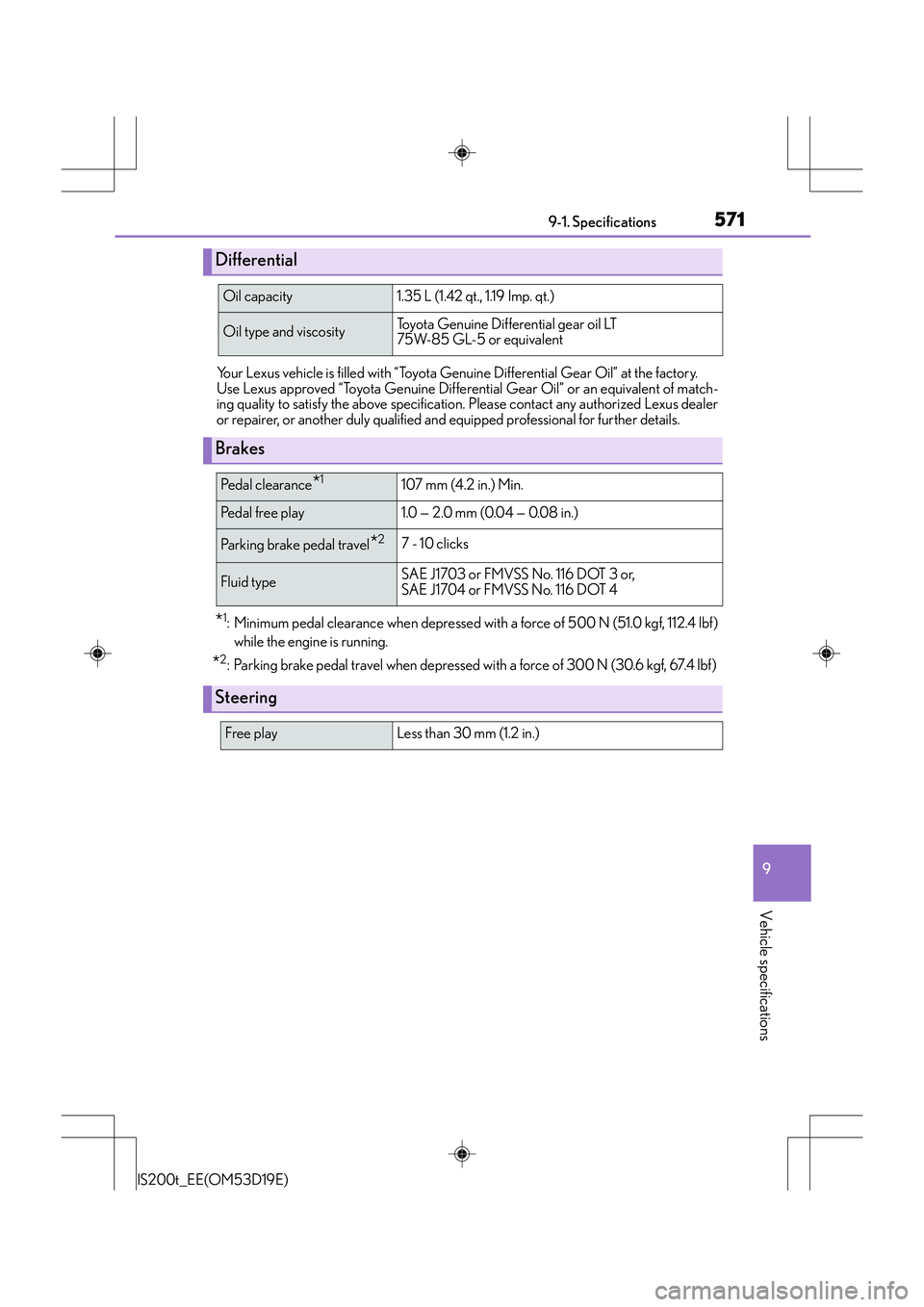

571
9
9-1. Specifications
Vehicle specifications
IS200t_EE(OM53D19E) Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of match-
ing quality to satisfy the above specification.
Please contact any authorized Lexus dealer
or repairer, or another duly qualified an d equipped professional for further details.
*1: Minimum pedal clearance when depressed with a force of 500 N (51.0 kgf, 112.4 lbf)
while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 300 N (30.6 kgf, 67.4 lbf)
Differential
Oil capacity1.35 L (1.42 qt., 1.19 Imp. qt.)
Oil type and viscosityToyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Brakes
Pe d a l c l e a r a n c e*1107 mm (4.2 in.) Min.
Pedal free play1.0 — 2.0 mm (0.04 — 0.08 in.)
Parking brake pedal travel*27 - 10 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3 or,
SAE J1704 or FMVSS No. 116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

5729-1. Specifications
IS200t_EE(OM53D19E)
X17-inch tires
X18-inch tires
XCompact spare tire
Tires and wheels
Ti r e s i z e225/45R17 91W
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)Vehicle speedFront wheel
kPa (kgf/cm2 or
bar, psi)Rear wheel
kPa (kgf/cm2 or
bar, psi)
More than 190 km/h
(118 mph)290 (2.9, 42)290 (2.9, 42)
190 km/h (118 mph)
or less250 (2.5, 36)250 (2.5, 36)
Wheel size17 × 7 1 /2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Ti r e s i z e225/40R18 88Y, 255/35R18 90Y
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)Vehicle speedFront wheel
kPa (kgf/cm2 or
bar, psi)Rear wheel
kPa (kgf/cm2 or
bar, psi)
More than 220 km/h
(137 mph)260 (2.6, 38)260 (2.6, 38)
220 km/h (137 mph)
or less250 (2.5, 36)250 (2.5, 36)
Wheel size18 × 8J (225/40R18), 18 × 8 1 /2J (255/35R18)
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Ti r e s i z eT125/70D17 98M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size17 × 4T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

573
9
9-1. Specifications
Vehicle specifications
IS200t_EE(OM53D19E)
■When towing a trailer (vehicles with a towing package)
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation pressure and
drive at speeds below 100 km/h (62 mph).

Light bulbs*1
Light bulbsWTy p e
Exterior
Discharge headlights*235A
Front turn signal lights21B
Rear turn signal lights21B
Back-up lights16C
Outer foot lights5C
Interior
Door courtesy lights5C
Vanity lights8C
Interior light8C
Personal lights8C
Footwell lights3.8C
Trunk light5C
A: D4S discharge bulbs
B: Wedge base bulbs (amber)
C: Wedge base bulbs (clear)
*1: Light bulbs not listed in this table are LED bulbs.
*2: If equipped

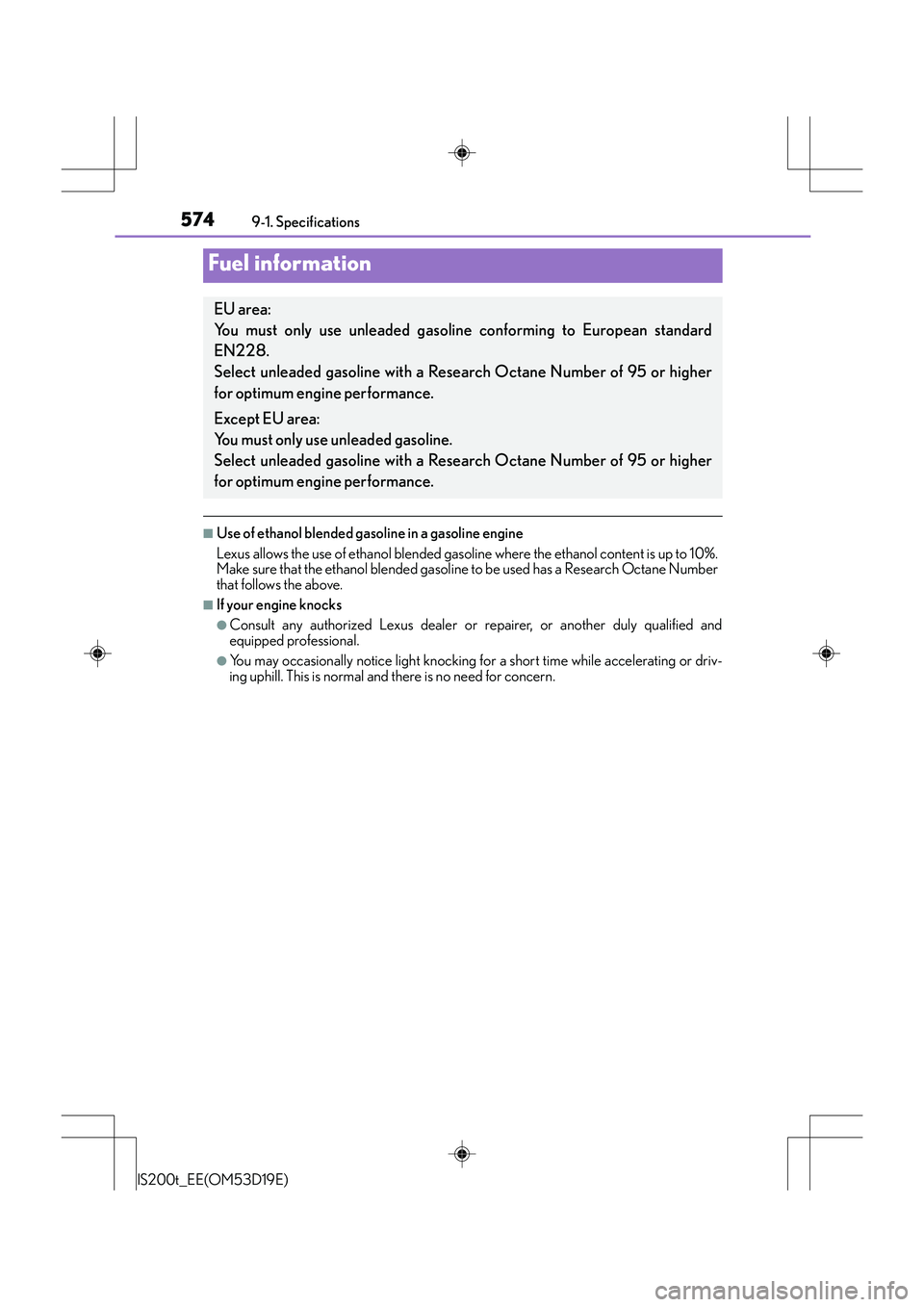

5749-1. Specifications
IS200t_EE(OM53D19E)
■Use of ethanol blended gasoline in a gasoline engine
Lexus allows the use of ethanol blended gasoline where the ethanol content is up to 10%.
Make sure that the ethanol blended gasoline to be used has a Research Octane Number
that follows the above.
■If your engine knocks
●Consult any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
●You may occasionally notice light knocking fo r a short time while accelerating or driv-
ing uphill. This is normal and there is no need for concern.
Fuel information
EU area:
You must only use unleaded gasoline conforming to European standard
EN228.
Select unleaded gasoline with a Research Octane Number of 95 or higher
for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95 or higher
for optimum engine performance.

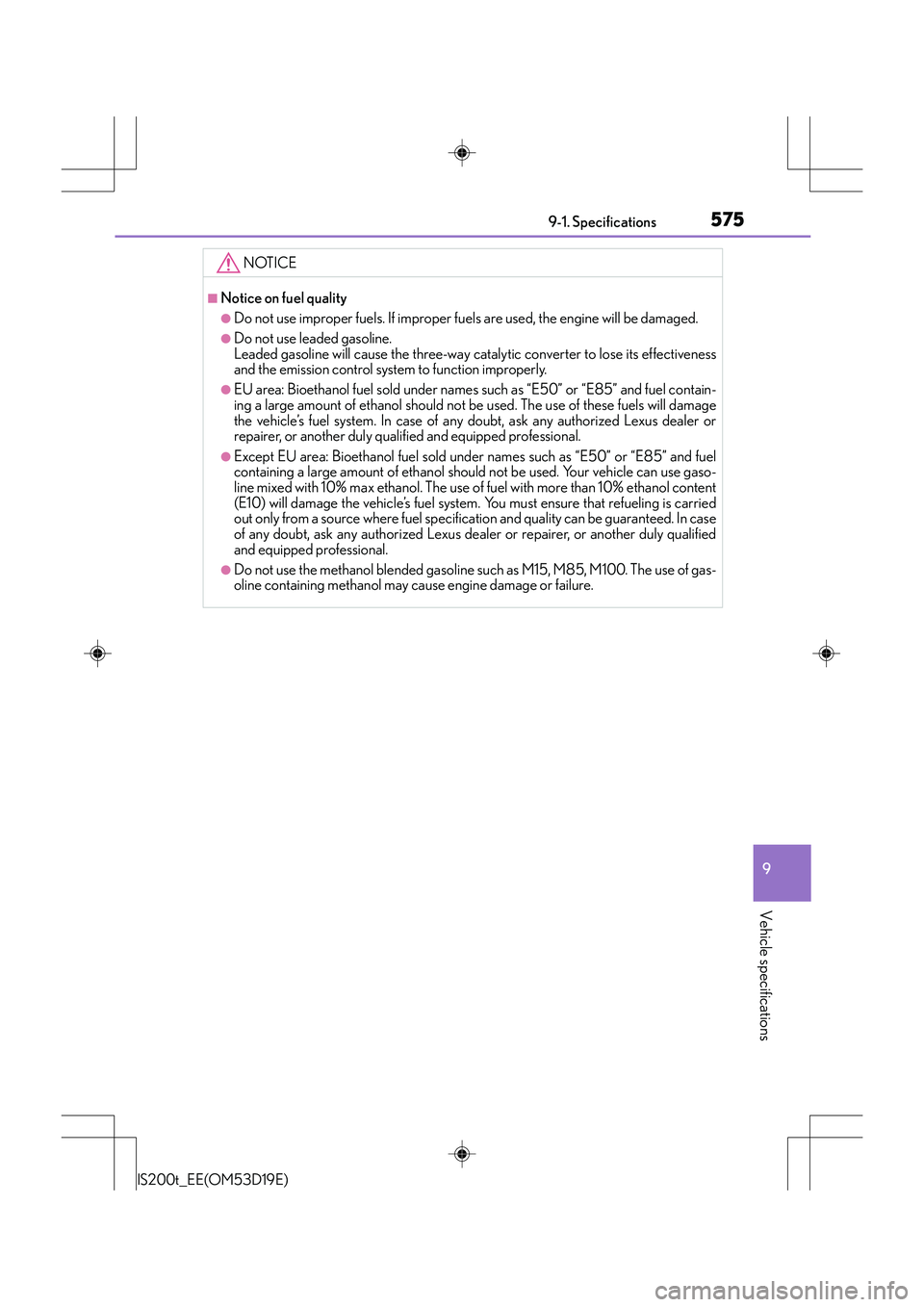

575
9
9-1. Specifications
Vehicle specifications
IS200t_EE(OM53D19E)
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its effectiveness
and the emission control system to function improperly.
●EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel contain-
ing a large amount of ethanol should not be used. The use of these fuels will damage
the vehicle’s fuel system. In case of any doubt, ask any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
●Except EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel
containing a large amount of ethanol should not be used. Your vehicle can use gaso-
line mixed with 10% max ethanol. The use of fuel with more than 10% ethanol content
(E10) will damage the vehicle’s fuel system. You must ensure that refueling is carried
out only from a source where fuel specification and quality can be guaranteed. In case
of any doubt, ask any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
●Do not use the methanol blended gasoline such as M15, M85, M100. The use of gas-
oline containing methanol may cause engine damage or failure.

576
IS200t_EE(OM53D19E)9-2. Customization
■Changing by using the Remote Touch or Lexus Display Audio controller
(if equipped)
XVe h i c l e s w i t h a R e m o t e To u c h
Press the “MENU” button on the Remote Touch.
Select “Setup” on the “Menu” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
For details on the Remote Touch, refer to the “NAVIGATION AND MULTI-
MEDIA SYSTEM OWNER’S MANUAL”.
XVehicles with a Lexus Display Audio controller
Press the “MENU” button on the Lexus Display Audio controller.
Select “Setup” on the “MENU” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing by using the meter control switches
→ P. 1 0 1
Customizable features
Your vehicle includes a variety of electr onic features that can be personalized
to your preferences. The settings of these features can be changed by using
the meter control switches, the Remote Touch or Lexus Display Audio con-
troller or at any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Customizing vehicle features
1
2
1
2

577
9
9-2. Customization
Vehicle specifications
IS200t_EE(OM53D19E)
Some function settings are changed simultaneously with other functions being
customized. Contact any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
Vehicles with a Remote Touch or Lexus Display Audio controller: Settings that
can be changed using the Remote Touch or Lexus Display Audio controller
Settings that can be changed using the meter control switches
Settings that can be changed by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional
Definition of symbols: O = Available, — = Not available
■Gauges, meters and multi-information display ( →P. 9 0 , 9 5 , 1 0 0 )
Customizable features
1
2
3
Function*1Default settingCustomized setting
Language*2English
French
—O—
German
Spanish
Italian
Russian
Units*2km (L/100 km)km (km/L)—O—miles (MPG)
Eco Driving Indicator LightON
(Self-lighting)OFF—O—
switch settings*3Drive
information 1Desired status screen
*4—O—
Drive information 1
Current fuel economy
*5—O—Average fuel economy
(after reset)
Drive information 2
Distance (range)
*5—O—Average speed (after reset)
Pop-up displayONOFF—O—
123

5789-2. Customization
IS200t_EE(OM53D19E)
*1: For details about each function: →P. 1 0 4
*2: The default setting varies according to country.
*3:Except F SPORT models
*4: Some status screens cannot be registered (indicated on multi-information display).
*5: 2 of the following items: current fuel consumption, average fuel economy (after reset),
average fuel economy (after start), average fuel economy (after refuel), average vehi-
cle speed (after reset), average vehicle speed (after start), elapsed time (after reset),
elapsed time (after start), distance (driving range), distance (after start), blank.
*6:F SPORT models
*7: The customized setting varies according to country.
Accent color*3Color 1Color 2OO—
Needle*6BlueRed—O—White
Speed indicator*6OFF
50 to 200 km/h
(30 to 125 mph)*7
—O—50 to 160 km/h
(30 to 100 mph)
*7
REV indicator*65000 r/min
2000 to 6100
r/m i n
—O—
OFF
REV peak*6ONOFF—O—
Function*1Default settingCustomized setting123

579
9
9-2. Customization
Vehicle specifications
IS200t_EE(OM53D19E)
■Door lock (
→P. 122, 129, 550)
■Smart entry & start system and wireless remote control ( →P. 1 2 2 , 1 2 9 )
FunctionDefault settingCustomized setting
Unlocking using a mechanical
keyAll doors
unlocked in
one stepDriver’s door
unlocked in one step, all doors
unlocked in two steps
——O
Speed-detecting automatic door
lock functionOnOffO—O
Shifting gears to position other
than P locks all doorsOffOnO—O
Shifting gears to P unlocks all
doorsOffOnO—O
Opening driver's door unlocks
all doorsOnOffO—O
Locking/unlocking of the trunk
when all doors are locked/
unlocked
OnOff——O
123
FunctionDefault settingCustomized setting
Operation signal
(Emergency flashers)OnOffO—O
Time elapsed before automatic
door lock function is activated if
door is not opened after being
unlocked
30 seconds
60 seconds
——O120 seconds
Open door warning buzzerOnOff——O
Welcome light illumination con-
trolOnOff——O
123

5809-2. Customization
IS200t_EE(OM53D19E)
■Smart entry & start system ( →P. 122, 129, 134)
*: If equipped
■Wireless remote control ( →P. 122, 129)
■Driving position memory* (→ P. 1 5 3 )
*: If equipped
FunctionDefault settingCustomized setting
Smart entry & start systemOnOffO—O
Smart door unlocking*All the doorsDriver's doorO—O
Number of consecutive door
lock operations*As many as
desired2 times——O
123
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
Unlocking operation
All doors
unlocked in one stepDriver's door
unlocked in one
step, all doors
unlocked in two steps
O—O
Trunk unlocking operationPress and hold
(short)
One short press
——O
Push twice
Press and hold
(long)
Off
123
FunctionDefault settingCustomized setting
Driver's seat movement when
exiting the vehicleStandardOffO—OPa r t i a l
Doors linked to the driving posi-
tion memory recall functionDriver's doorAll doors——O
123
