711-1. For safe use
1
For safety and security
IS200t_EE(OM53D19E)
Remove the head restraint if it inter-
feres with your child restraint system.
Latch the buckles onto the exclusive
fixing bars.
If the child restraint has a top strap, the
top strap should be latched onto the
anchor bracket.

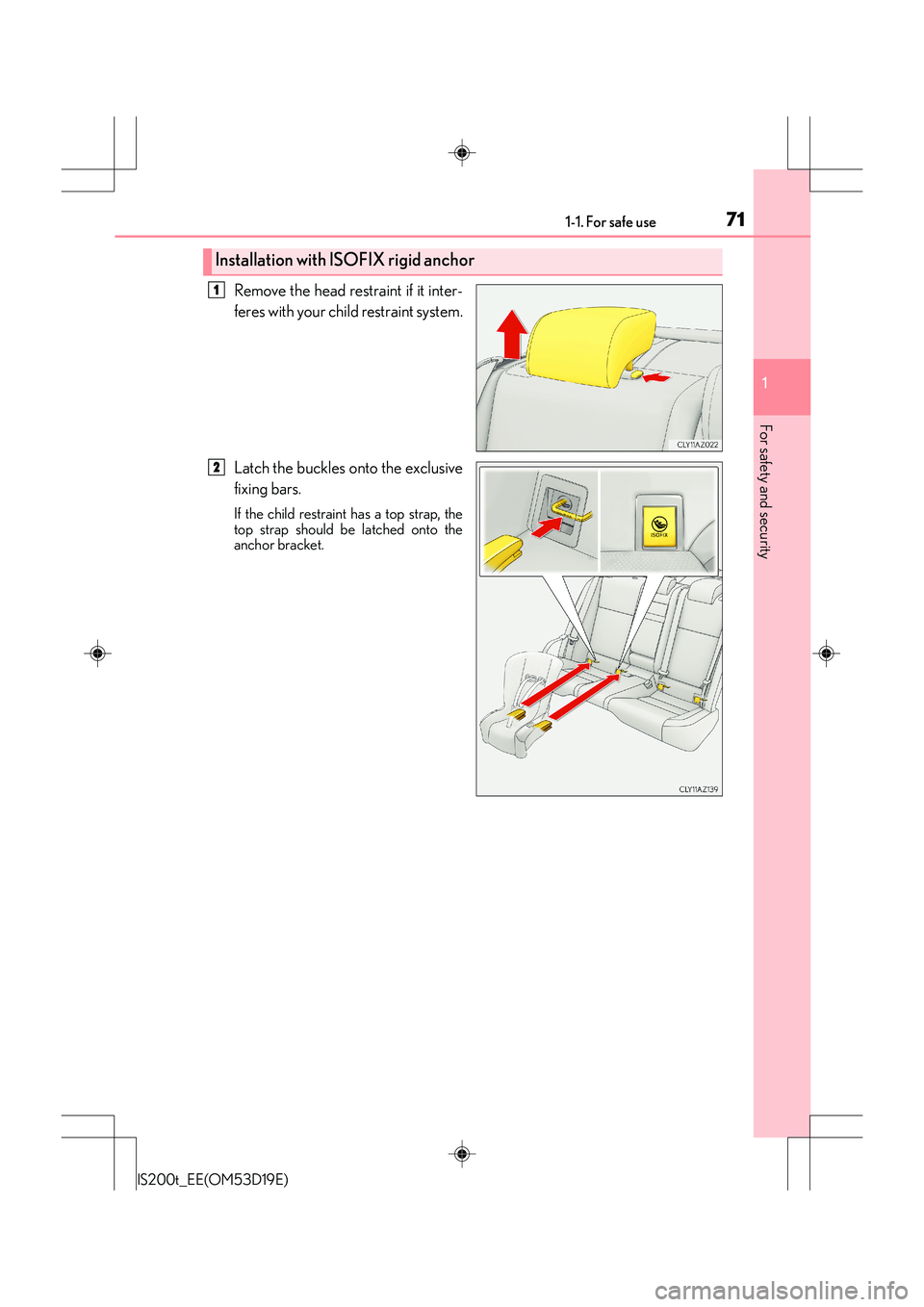

Installation with ISOFIX rigid anchor
1
2

721-1. For safe use
IS200t_EE(OM53D19E)
Remove the head restraint if it inter-
feres with your child restraint system.
Secure the child restraint system
using the seat belt or ISOFIX rigid
anchors.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is securely
latched.
■When installing a child restraint system
You need a locking clip to install the child restraint system. Follow the instructions pro-
vided by the manufacturer of the system. If yo ur child restraint system does not provide a
locking clip, you can purchase the following item from any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional:
Locking clip for child restraint system
(Part No. 73119-22010)
Child restraint systems with a top strap
1
2
3

731-1. For safe use
1
For safety and security
IS200t_EE(OM53D19E)
CAUTION

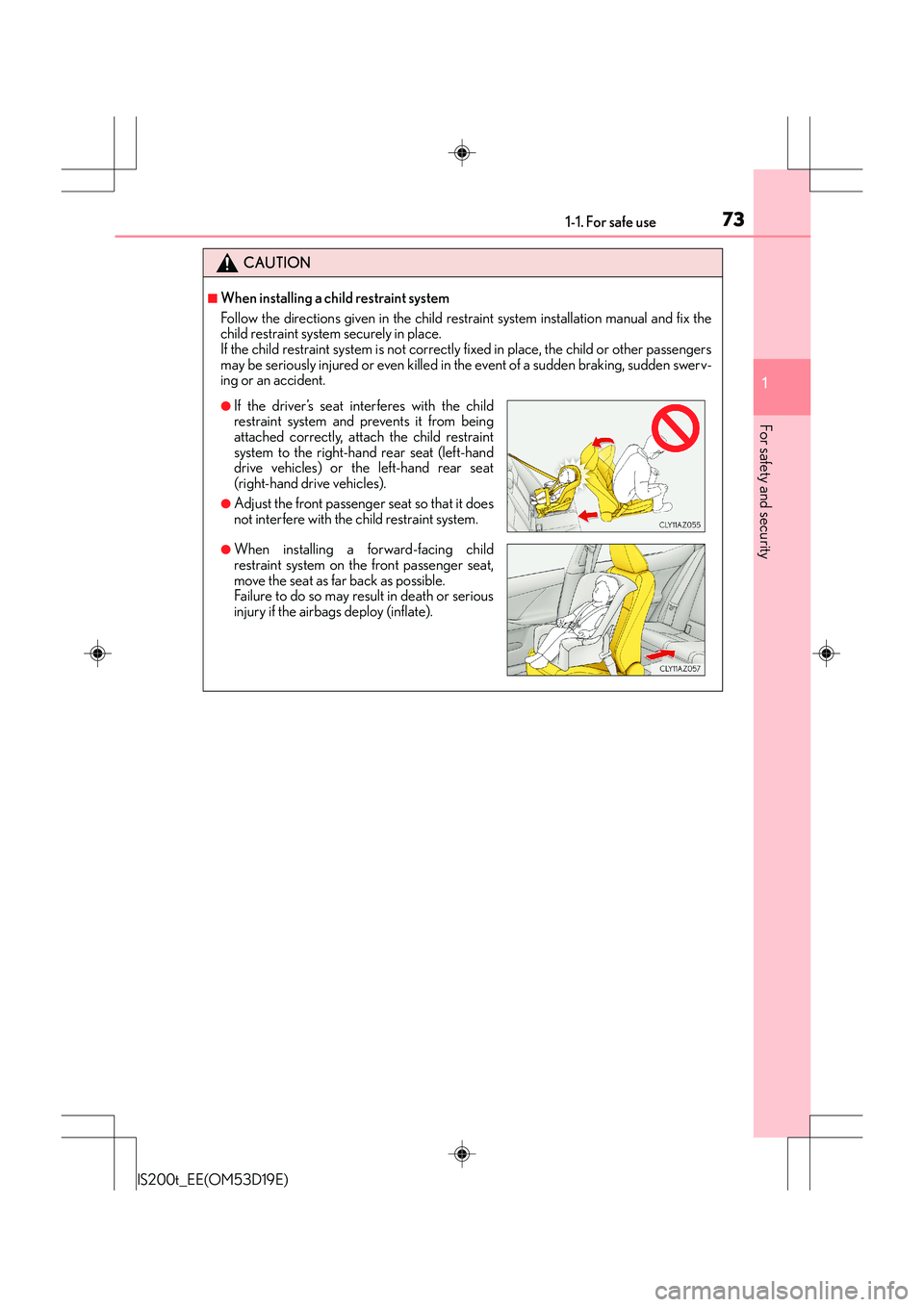

■When installing a child restraint system
Follow the directions given in the child restraint system installation manual and fix the
child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other passengers
may be seriously injured or even killed in the event of a sudden braking, sudden swerv-
ing or an accident.
●If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand rear seat (left-hand
drive vehicles) or the left-hand rear seat
(right-hand drive vehicles).
●Adjust the front passenge r seat so that it does
not interfere with the child restraint system.
●When installing a forward-facing child
restraint system on the front passenger seat,
move the seat as far back as possible.
Failure to do so may result in death or serious
injury if the airbags deploy (inflate).

741-1. For safe use
IS200t_EE(OM53D19E)
CAUTION

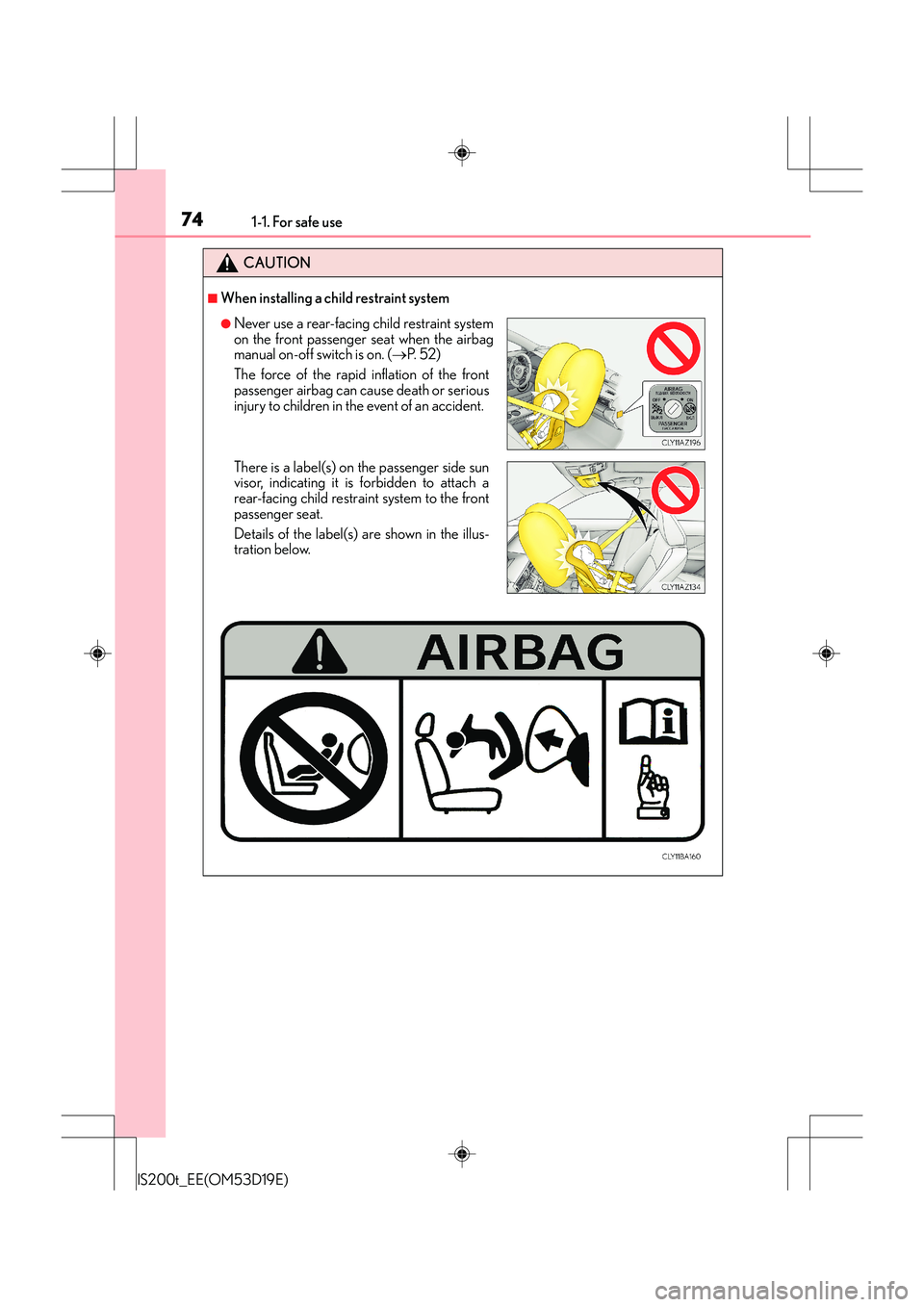

■When installing a child restraint system
●Never use a rear-facing child restraint system
on the front passenger seat when the airbag
manual on-off switch is on. (→P. 5 2 )
The force of the rapid inflation of the front
passenger airbag can cause death or serious
injury to children in the event of an accident.
There is a label(s) on the passenger side sun
visor, indicating it is forbidden to attach a
rear-facing child restraint system to the front
passenger seat.
Details of the label(s) are shown in the illus-
tration below.

751-1. For safe use
1
For safety and security
IS200t_EE(OM53D19E)
CAUTION

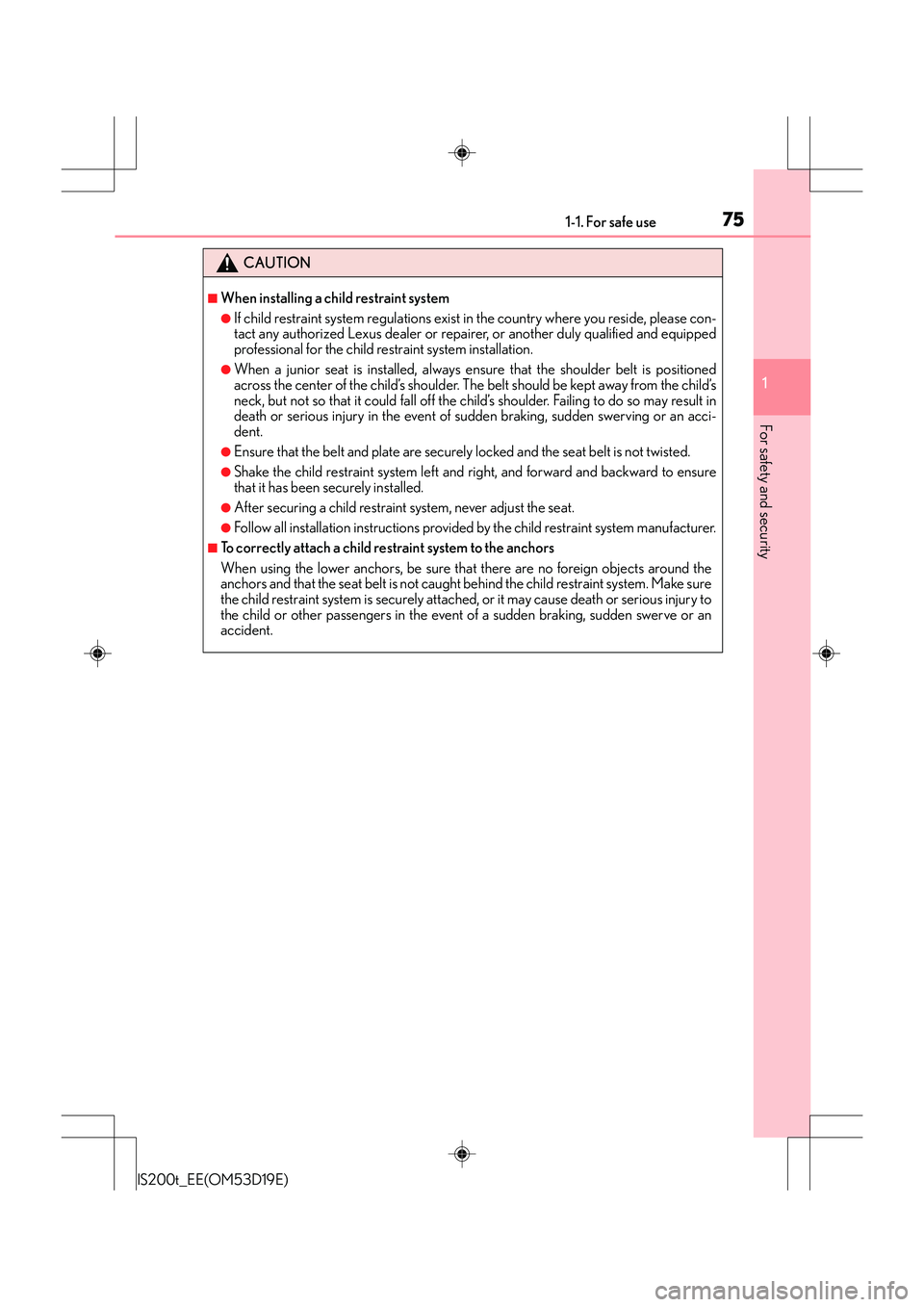

■When installing a child restraint system
●If child restraint system regulations exist in the country where you reside, please con-
tact any authorized Lexus dealer or repair er, or another duly qualified and equipped
professional for the child restraint system installation.
●When a junior seat is installed, always en sure that the shoulder belt is positioned
across the center of the child’s shoulder. The belt should be kept away from the child’s
neck, but not so that it could fall off the child’s shoulder. Failing to do so may result in
death or serious injury in the event of su dden braking, sudden swerving or an acci-
dent.
●Ensure that the belt and plate are securely locked and the seat belt is not twisted.
●Shake the child restraint system left and right, and forward and backward to ensure
that it has been securely installed.
●After securing a child restraint system, never adjust the seat.
●Follow all installation instructions provided by the child restraint system manufacturer.
■To correctly attach a child restraint system to the anchors
When using the lower anchors, be sure that there are no foreign objects around the
anchors and that the seat belt is not caught behind the child restraint system. Make sure
the child restraint system is securely attached, or it may cause death or serious injury to
the child or other passengers in the event of a sudden braking, sudden swerve or an
accident.

761-1. For safe use
IS200t_EE(OM53D19E)
Exhaust gas precautions
Harmful substance to the human body is included in exhaust gases if inhaled.
CAUTION
Exhaust gases include harmful carbon monoxi de (CO), which is colorless and odorless.
Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to an accident
caused by light-headedness, or may lead to death or a serious health hazard.
■Important points while driving
●Keep the trunk lid closed.
●If you smell exhaust gases in the vehicle even when the trunk lid is closed, open the
windows and have the vehicle inspected at any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional as soon as possible.
■When parking
●If the vehicle is in a poorly ventilated area or a closed area, such as a garage, stop the
engine.
●Do not leave the vehicle with the engine on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and ensure
that exhaust fumes do not enter the vehicle interior.
●Do not leave the engine running in an area with snow build-up, or where it is snowing.
If snowbanks build up around the vehicle while the engine is running, exhaust gases
may collect and enter the vehicle.
■Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or crack caused
by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle
inspected and repaired by any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.

77
1
For safety and security
IS200t_EE(OM53D19E)1-2. Theft deterrent system
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.
■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is
in contact with a metallic object
●If the key is in close proximity to or touching a key registered to the security system (key
with a built-in transponder chip) of another vehicle
Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent the engine
from starting if a key has not been prev iously registered in the vehicle’s on-
board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prev ent vehicle theft but does not guarantee
absolute security against all vehicle thefts.

781-2. Theft deterrent system
IS200t_EE(OM53D19E)

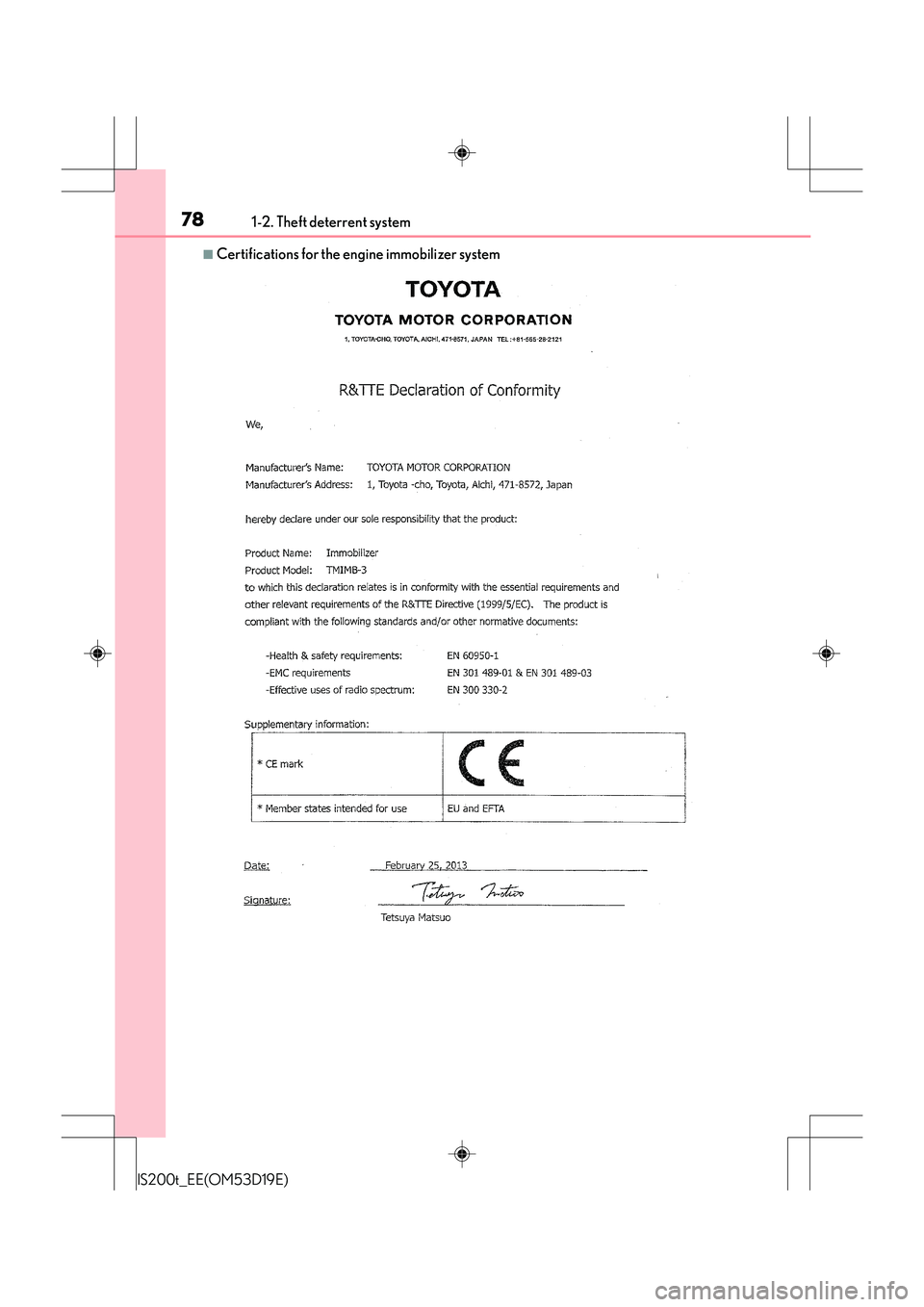

■Certifications for the engine immobilizer system

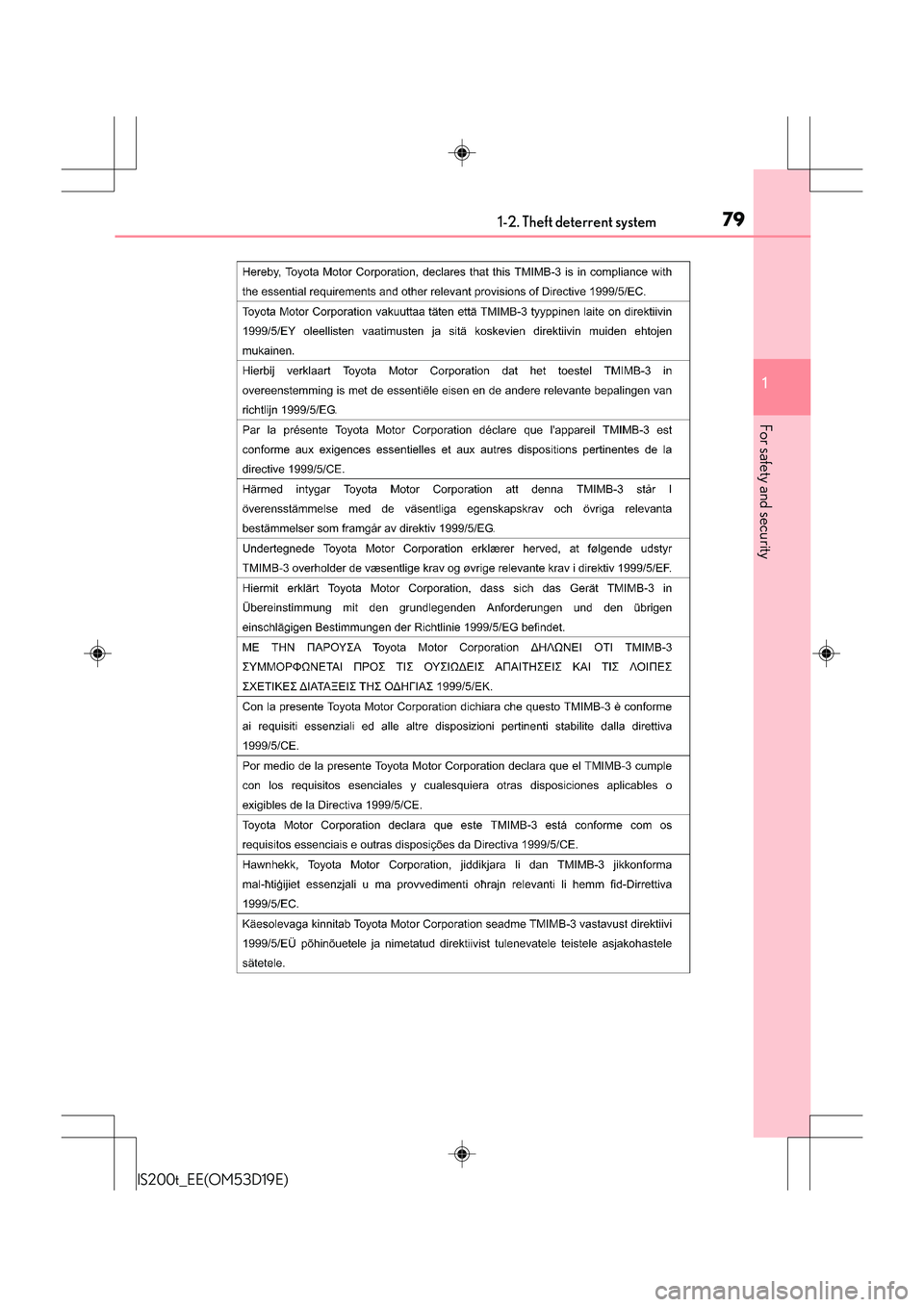

791-2. Theft deterrent system
1
For safety and security
IS200t_EE(OM53D19E)

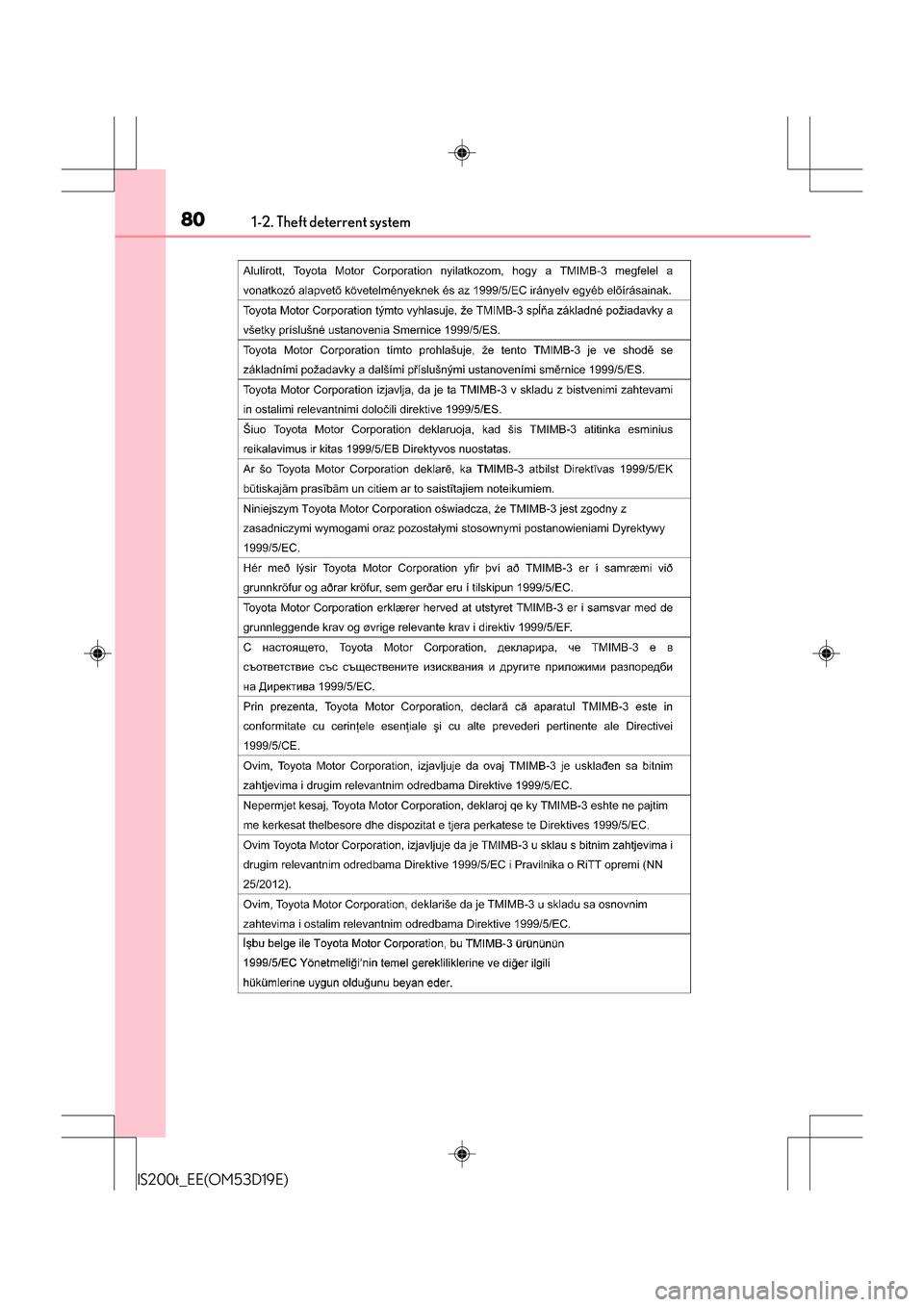

801-2. Theft deterrent system
IS200t_EE(OM53D19E)
