1. BASIC OPERATION
1. QUICK REFERENCE
■CONTROL SCREEN
The audio control screen can be reached by the following methods:
X
Using the instrument panel
Press the “RADIO” or “MEDIA” button.
XFrom the “Menu” screen
Press the “MENU” button on the Remote Touch, then select “Radio” or “Media” .
The audio functions can also be displayed and operated on the “Side Display”.
( → P.326)

159
1. BASIC OPERATION
AUDIO/VISUAL SYSTEM
IS_NAVI_EE
4
1Display the audio control screen.
(→ P.156)
X Using the instrument panel
2Each time the “RADIO” or “MEDIA”
button is pressed, the audio source
changes.
“RADIO” button: To change radio modes.
“MEDIA” button: To change media modes.
X From the audio source selection screen
2Select “Source” .
3Select the desired source.
1Display the audio control screen.
(→ P.156)
2Select “Source” .
3Select “Reorder” .
4Select the desired audio source then
“<<” or “>>” to reorder.
SELECTING AN AUDIO
SOURCE
INFORMATION
●Dimmed screen buttons cannot be oper-
ated.
REORDERING THE AUDIO
SOURCE

162
1. BASIC OPERATION
IS_NAVI_EE
zWhen using an iPod video, a cable that has
a 4-pole AUX plug and a USB connector is
necessary. Connect the plug and connec-
tor to the AUX and USB ports.
1Display the audio control screen.
(→ P.156)
2Select .
3Select the desired tab to be set.
USING A 4-POLE AUX CABLE
To view a video on an iPod video or Ex-
ternal video, it is necessary to use a 4-
pole AUX cable to connect the portable
audio device.
When connecting a portable audio de-
vice to the AUX port, use a 4-pole AUX
cable with a plug that matches the exact
layout shown in the illustration.
INFORMATION
● If a 4-pole AUX cable with a different lay-
out is used, audio and/or video may not
be output properly.
Connected device
(portable audio
device, etc.)
Left
audio Right
audio
Ground
Video
“Sound settings” SCREEN
No.InformationPage
Select to set the tone and
balance.163
Select to set the DSP con-
trol.164
Select to set the audio set-
tings.164
INFORMATION
●
Depending on the audio source, some
functions may not be available.

164
1. BASIC OPERATION
IS_NAVI_EE
1Select the “DSP” tab and select the de-
sired item to be set.1Select the “Settings” tab and select the
desired item to be set.
DSP CONTROL
No.Function
The system adjusts to the optimum
volume and tone quality according
to vehicle speed to compensate for
increased vehicle noise.
This function can create a feeling of
presence.
AUDIO SETTINGS
FunctionPage
FM radio settings200
DAB settings200
Cover art settings201
Gracenote settings201
DVD settings202
Screen size settings165
Display settings165
Video sound input settings201
Video signal settings201

165
1. BASIC OPERATION
AUDIO/VISUAL SYSTEM
IS_NAVI_EE
4
■SCREEN SIZE SETTINGS
X DVD video/USB video/iPod video/Ex-
ternal video
1Select “Wide” .
2Select the desired item to be adjusted.
■DISPLAY SETTINGS
X DVD video/USB video/iPod video/Ex-
ternal video
1Select “Display” .
2Select the desired item to be adjusted.
The screen size can be selected for each
type of media.
No.Function
Select to display a 4 : 3 screen, with
either side in black.
Select to enlarge the image horizon-
tally and vertically to full screen.
Select to enlarge the image by the
same ratio horizontally and vertically.
The brightness, contrast, colour and
tone of the screen can be adjusted.
Screen buttonFunction
“Colour” “R”Select to strengthen the
red colour of the screen.
“Colour” “G”
Select to strengthen the
green colour of the
screen.
“Tone” “+”Select to strengthen the
tone of the screen.
“Tone” “-”Select to weaken the
tone of the screen.
“Contrast” “+”Select to strengthen the
contrast of the screen.
“Contrast” “-”Select to weaken the
contrast of the screen.
“Brightness” “+”Select to brighten the
screen.
“Brightness” “-”Select to darken the
screen.
INFORMATION
●Depending on the audio source, some
functions may not be available.

168
2. RADIO OPERATION
IS_NAVI_EE
No.Function
Select to display the preset station screen.
Select to display the station list screen.
Select to display the manual tuning screen. (→P.169)
Select to tune to preset stations/ensembles.( →P.169)
Select to display the time shift operation screen. ( →P.171)
•Press to move up/down the preset stations/ensembles.
• Press to move up/down the station list.
• Press and hold 0.8 sec. or more to seek up/down available stations/ensembles continu-
ously while the button is being pressed.
Press to turn mute on/off.
Tune/Scroll knob:
•“Presets” screen: Turn to select preset stations/ensembles.
• “Stations” screen: Turn to move up/down the list.
• Manual tuning screen: Turn to step up/down frequencies or change services.
• “DAB time shift” screen: Turn to jump forward/backwards.
INFORMATION
● The radio automatically changes to stereo rece ption when a stereo broadcast is received.
● If the signal becomes weak, the radio reduces the amount of channel separation to prevent
the weak signal from creating noise. If the signal becomes extremely weak, the radio
switches from stereo to mono reception.

169
2. RADIO OPERATION
IS_NAVI_EE
AUDIO/VISUAL SYSTEM
4
1Tune in the desired station.
2Select one of the screen buttons (1-6)
and hold it until a beep is heard.
z The station’s frequency will be displayed in
the screen button.
z To change the preset station to a different
one, follow the same procedure.
X AM/FM
1Select “Manual” .
2Tune the desired station.
PRESETTING A STATION
Up to 6 preset stations can be regis-
tered.
MANUAL TUNING
No.Function
Select to seek up/down for a station.
Select to step up/down frequencies.

170
2. RADIO OPERATION
IS_NAVI_EE
XDAB
1Select “Manual” .
2Tune the desired ensemble or service.
1A pop-up message is displayed on the
screen when the radio seeks out a TP
station.
2Select “Continue” .
■TRAFFIC ANNOUNCEMENT
VOLUME FUNCTION
No.Function
Select to set the desired ensemble.
Select to set the desired service.
RDS (RADIO DATA SYSTEM)
Depending on the availability of RDS in-
frastructure, the service may not func-
tion properly.
AF (ALTERNATIVE
FREQUENCY) FUNCTION
A station providing good reception is
automatically selected if current recep-
tion worsens.
TA (TRAFFIC
ANNOUNCEMENT)
FUNCTION
The tuner will automatically seek a sta-
tion that regularly broadcasts traffic in-
formation and the station broadcasts
when the traffic information program
starts.
INFORMATION
● When TA is set to “On” ( →P. 2 0 0 ) , t h e
radio will begin seeking a TP station.
● When the program ends, the initial oper-
ation resumes.
The volume level when receiving the
traffic announcement is memorized.

173
3. MEDIA OPERATION
IS_NAVI_EE
AUDIO/VISUAL SYSTEM
4

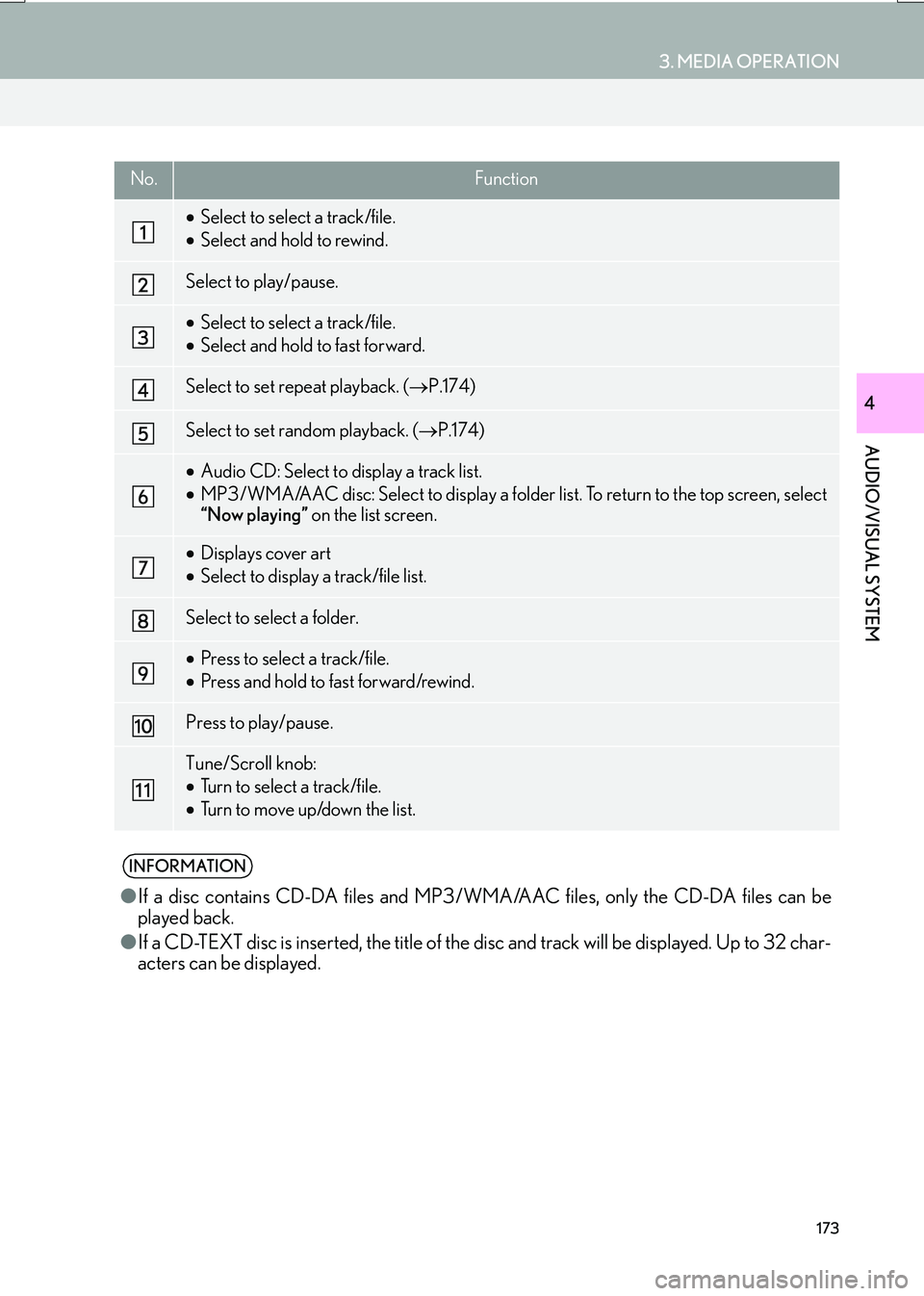

No.Function
•Select to select a track/file.
• Select and hold to rewind.
Select to play/pause.
•Select to select a track/file.
• Select and hold to fast forward.
Select to set repeat playback. ( →P.174)
Select to set random playback. ( →P.174)
•Audio CD: Select to display a track list.
• MP3/WMA/AAC disc: Select to display a folder list. To return to the top screen, select
“Now playing” on the list screen.
•Displays cover art
• Select to display a track/file list.
Select to select a folder.
•Press to select a track/file.
• Press and hold to fast forward/rewind.
Press to play/pause.
Tune/Scroll knob:
•Turn to select a track/file.
• Turn to move up/down the list.
INFORMATION
● If a disc contains CD-DA files and MP3 /WM A/AAC files, only the CD-DA files can be
played back.
● If a CD-TEXT disc is inserted, th e title of the disc and track will be displayed. Up to 32 char-
acters can be displayed.

176
3. MEDIA OPERATION
IS_NAVI_EE
■CONTROL PANEL
No.Function
Select to display the password input screen.
Select to display the menu screen.
Select to display the option screen. ( →P.178)
•Select to select a chapter.
• Select and hold to rewind.
Select to stop the video screen.
Select to play/pause.
•Select to select a chapter.
• During playback: Select an d hold to fast forward.
• During a pause: Select and hold to slow forward.
Select to display the menu control key.
Select to display full screen video.
•Press to select a chapter.
• Press and hold to fast forward/rewind.
Press to play/pause.
Tune/Scroll knob:
Turn to select a chapter.
