Page 507 of 609

5
481
5-2. Steps to take in an emergency
When trouble arises
IS250/220d/200d_EE
(Flashing)
(If equipped)
Indicates that there is a
high possibility of a
frontal collision, or that
the pre-crash braking
function is operating.
Slow the vehicle by
applying the brakes.
(On some IS250
models)
Indicates that the fuel
injectors require main-
tenance.Have your Lexus dealer
replenish the injector
cleaner and reset the
message.
Warning messages in the radar cruise mode (if equipped)
In the following instances, there is a possibility that the approach warning
will not illuminate even when vehicle-to-vehicle distance is closing.
When the speed of the vehicle ahead matches or exceeds your vehicle’s
speed.
When the vehicle ahead is traveling at an extremely slow speed.
Immediately after the cruise control speed has been set.
At the instant the accelerator is applied.
Warning messageDetailsCorrection procedure
Page 541 of 609

5
515
5-2. Steps to take in an emergency
When trouble arises
IS250/220d/200d_EE

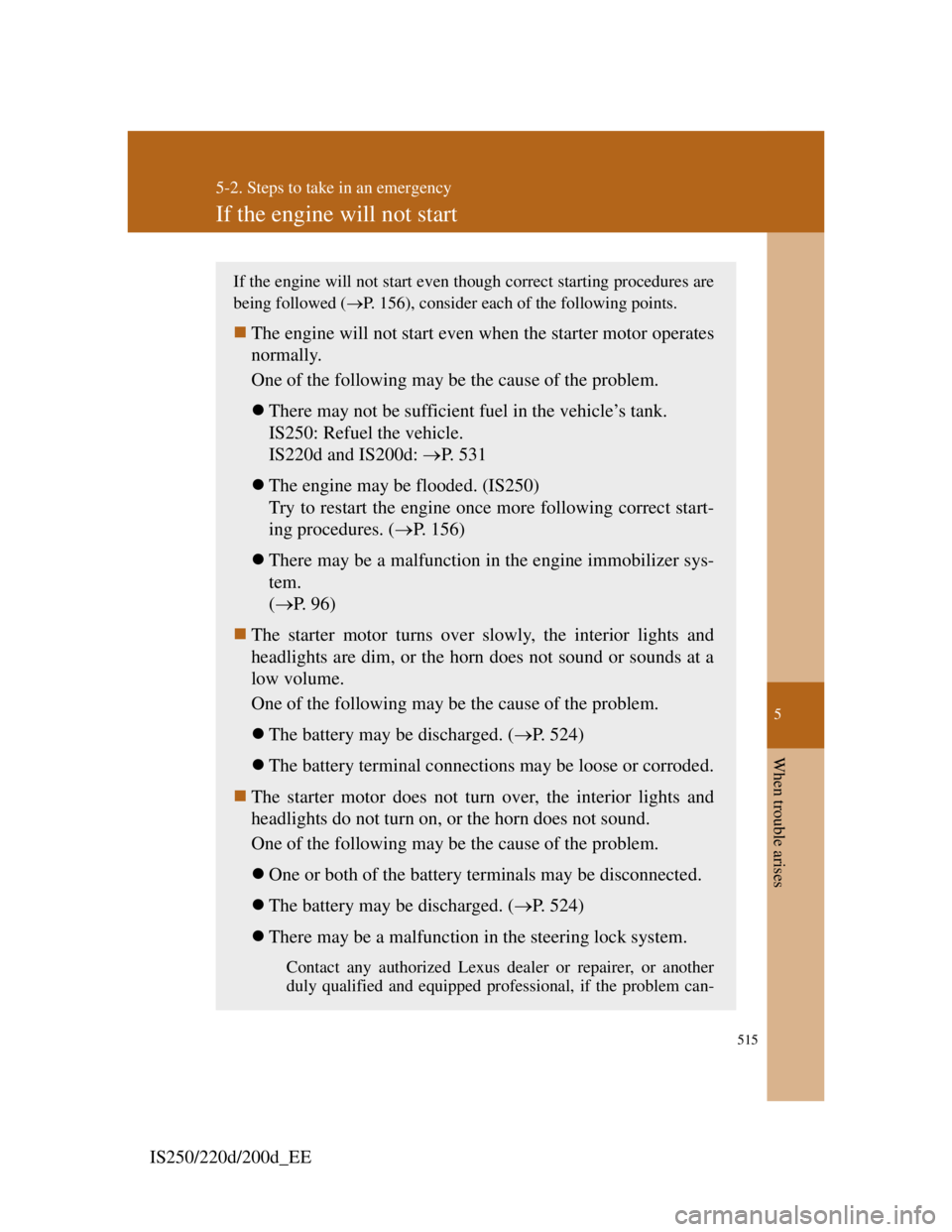

If the engine will not start
If the engine will not start even though correct starting procedures are
being followed (P. 156), consider each of the following points.
The engine will not start even when the starter motor operates
normally.
One of the following may be the cause of the problem.
There may not be sufficient fuel in the vehicle’s tank.
IS250: Refuel the vehicle.
IS220d and IS200d: P. 531
The engine may be flooded. (IS250)
Try to restart the engine once more following correct start-
ing procedures. (P. 156)
There may be a malfunction in the engine immobilizer sys-
tem.
(P. 96)
The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at a
low volume.
One of the following may be the cause of the problem.
The battery may be discharged. (P. 524)
The battery terminal connections may be loose or corroded.
The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem.
One or both of the battery terminals may be disconnected.
The battery may be discharged. (P. 524)
There may be a malfunction in the steering lock system.
Contact any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional, if the problem can-
Page 552 of 609

526
5-2. Steps to take in an emergency
IS250/220d/200d_EE
Avoiding a discharged battery
Turn off the headlights and the audio system while the engine is off.
Turn off any unnecessary electrical components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic, etc.
Charging the battery
The electricity stored in the battery will discharge gradually even when
the vehicle is not in use, due to natural discharge and the draining effects
of certain electrical appliances. If the vehicle is left for a long time, the
battery may discharge, and the engine may be unable to start. (The bat-
tery recharges automatically during driving.)
CAUTION
Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery.
Make sure the jumper cable is connected to the correct terminal and that it
is not unintentionally in contact with any part other than the intended ter-
minal.
Do not allow the jumper cables to come into contact with the “+” and “-”
terminals.
Do not allow open flame or use matches, cigarette lighters or smoke near
the battery.
Page 582 of 609

552
6-1. Specifications
IS250/220d/200d_EE
Light bulbs
A: D4S discharge bulbs B: H11 halogen bulbs
C: Wedge base bulbs (amber) D: HB3 halogen bulbs
E: Wedge base bulbs (clear) F: Double end bulbs
Light bulbsWTy p e
Exterior
Headlights
High beam
Low/high beam (discharge bulbs)
Low beam (halogen bulbs)
60
35
55D
A
B
Front turn signal lights21C
Front position lights (with halogen
headlights)5E
Front fog lights55B
Rear turn signal lights21C
Back-up lights16E
Rear fog lights21E
Outer foot lights5E
Interior
Vanity lights8E
Trunk light5F
Interior lights
Front
Rear
5
3E
F
Overhead courtesy lights
Front
Rear
3.8
3E
F
Front door courtesy lights5E
Page 596 of 609

563
IS250/220d/200d_EE
Alphabetical index
Alphabetical index
A/C* ..........................................254
ABS ...........................................224
Air conditioning filter ...............430
Air conditioning system
Air conditioning filter ...........430
Automatic air conditioning
system*...............................254
Airbags
Airbag manual ON/OFF
system.................................140
Airbag operating conditions .112
Airbag precautions for your
child....................................116
Airbag warning light ............468
Curtain shield airbag operating
conditions ...........................112
Curtain shield airbag
precautions .........................116
General airbag precautions ...116
Locations of airbags .............110
Modification and disposal of
airbags ................................120
Proper driving posture ..108, 116
Side airbag operating
conditions ...........................112
Side airbag precautions.........116
SRS airbags ..........................110
Alarm.........................................102
Antenna* ...................................272
Anti-lock brake system .............224Armrest ..................................... 377
Ashtrays .................................... 368
Audio input* ............................. 306
Audio system*
Antenna................................ 272
Audio input .......................... 306
AUX port ............................. 306
Bluetooth
® audio ................. 308
CD player/changer ............... 273
iPod ...................................... 288
MP3/WMA disc................... 280
Optimal use .......................... 304
Portable music player .......... 306
Radio.................................... 269
Steering wheel audio switch 307
USB memory ....................... 296
USB port .............................. 296
Automatic air conditioning
system* .................................. 254
Automatic headlight leveling
system .................................... 189
Automatic light control system 186
Automatic transmission
Automatic transmission ....... 161
If the shift lever cannot be
shifted from P .................... 517
S mode ................................. 165
AUX adapter*........................... 306
Auxiliary box............................ 361
A
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
Page 600 of 609

567
Alphabetical index
IS250/220d/200d_EE
Fuel door .....................................92
Fuel filler door.............................92
Fuel pump shut off system ........466
Fuses ..........................................438
Gas station information .............576
Gauges .......................................171
Glove box ..................................355
Glove box light ..........................356
Hazard lights
Switch ...................................458
Head restraints
Adjusting ...............................71
Headlight cleaner.......................197
Headlights
Discharge headlight
precautions .........................461
Replacing light bulbs ............453
Switch ...................................186
Wattage .................................552
Heaters
Seat heaters ...................371, 374
Side mirror ............................265
Hill-start assist control ..............224
Hood ..........................................402
Hooks
Cargo ....................................384
Coat ......................................381
Shopping bag ........................384
Horn...........................................173Identification
Engine .................................. 535
Vehicle ................................. 535
Ignition switch .......................... 156
Illuminated entry system .......... 351
Indicator lights.......................... 177
Inside rear view mirror ............... 82
Intercooler ................................ 415
Interior lights
Interior lights ....................... 351
Switch .................................. 353
Wattage ................................ 552
Jack
Positioning a floor jack ........ 403
Vehicle-equipped jack ......... 487
Jack handle ............................... 487
Keyless entry .............................. 55
Keys
Electronic key ........................ 32
Engine switch ...................... 156
If you lose your keys ........... 518
If your electronic key battery is
discharged ......................... 519
Key number ........................... 32
Keyless entry ......................... 55
Keys ....................................... 32
Mechanical key ...................... 32
Wireless remote control key .. 55
G
H
I
J
K
Page 601 of 609

568
Alphabetical index
IS250/220d/200d_EE
Light bulbs
Replacing ..............................453
Wattage .................................552
Lights
Door courtesy light ...............351
Emergency flasher switch.....458
Fog light switch ....................190
Hazard light switch ...............458
Headlights switch .................186
Interior light switch ..............353
Outer foot lights....................351
Overhead courtesy light........351
Personal light switch ............354
Replacing light bulbs ............453
Scuff lights ...........................351
Shift lever light .....................351
Turn signal lever ...................170
Vanity lights .........................363
Wattage .................................552
Maintenance
Do-it-yourself maintenance ..398
Maintenance data ..................534
Maintenance requirements....395
Manual headlight leveling dial ..187
Manual transmission .................168
Meter
Instrument panel light control ....
172
Meters ...................................171
Mirrors
Inside rear view mirror ...........82
Side mirror heater .................265
Side mirrors ............................84
Vanity mirrors ......................363Moon roof ................................... 89
MP3 disc* ................................. 280
Multi-information display ........ 181
Odometer .................................. 171
Oil
Engine oil............................. 409
Opener
Fuel filler door ....................... 92
Hood .................................... 402
Trunk ..................................... 63
Outer foot lights
Outer foot lights ................... 351
Wattage ................................ 552
Outside rear view mirrors
Adjusting and folding ............ 84
Mirror position memory ........ 66
Outside temperature display ..... 182
Overhead console ..................... 358
Overhead courtesy lights
Overhead courtesy lights ..... 351
Wattage ................................ 552
Overheating, Engine ................. 528L
M
O
Page 602 of 609

569
Alphabetical index
IS250/220d/200d_EE
Parking assist sensors ................217
Parking brake ............................171
PCS ............................................230
Personal lights
Switch ...................................354
Pollen removal mode*...............258
Power heater ..............................263
Power outlet ..............................370
Power windows ...........................85
Pre-crash safety system .............230
Radar cruise control ..................202
Radiator .....................................415
Radio* .......................................269
RDS* .........................................270
Rear fog lights
Replacing light bulbs ............453
Switch ...................................190
Wattage .................................552
Rear sunshade............................378
Rear turn signal lights
Replacing light bulbs ............453
Wattage .................................552
Rear window defogger* ............265
Replacing
Electronic key battery ...........434
Fuses .....................................438
Light bulbs ............................453Scuff lights ............................... 351
Seat belts
Adjusting the seat belt ........... 74
Child restraint system
installation ......................... 130
Cleaning and maintaining
the seat belts ...................... 393
Emergency locking retractor . 76
How to wear your seat belt .... 74
How your child should wear
the seat belt.......................... 77
Pregnant women, proper seat
belt use ................................ 76
Reminder light ..................... 470
Seat belt pretensioners ........... 75
Seat heaters ....................... 371, 374
Seat ventilators ......................... 374
Seats
Adjustment............................. 63
Adjustment precautions ......... 65
Child seats/child restraint
system installation ............. 130
Cleaning ............................... 392
Driving position memory....... 66
Head restraint......................... 71
Properly sitting in the seat ... 108
Seat heaters .................. 371, 374
Ventilated seats .................... 374P
R
S
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
