Lexus IS250 2014 Navigation Manual

211
3. MEDIA OPERATION
IS300h/250_Navi_EE
AUDIO/VISUAL SYSTEM
4
No.Function
Select to display the audio source selection screen.
Select to select a track/file.
•Displays cover art
•Select to display a track/file list.
•Audio CD: Select to display a track list.
•MP3/WMA/AAC disc: Select to display a folder list. To return to the top screen, select
“Now playing” on the list screen.
Select to display the audio setting screen.
Select to set random playback.
Select to set repeat playback.
Shows progress
Select to play/pause.
Select to select a folder.
Tune/Scroll knob:
•Turn to select a track/file.
•Turn to move up/down the list.
Press to play/pause.
•Press to select a track/file.
•Press and hold to fast forward/rewind.
•Press to select a media mode.
•While in a media mode, pressing the “MEDIA” button changes media modes.
Press to eject a disc.
Power/Volume knob:
•Turn to adjust volume.
•Press to turn the audio system on/off.
•Press and hold to restart the audio system.
Disc slot
IS_Navi_EE_53C71E.book 211 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

212
3. MEDIA OPERATION
IS300h/250_Navi_EE
INFORMATION
●If a disc contains CD-DA files and MP3/WMA/AAC files, only the CD-DA files can be
played back.
●If a CD-TEXT disc is inserted, the title of the disc and track will be displayed. Up to 32 char-
acters can be displayed.
IS_Navi_EE_53C71E.book 212 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

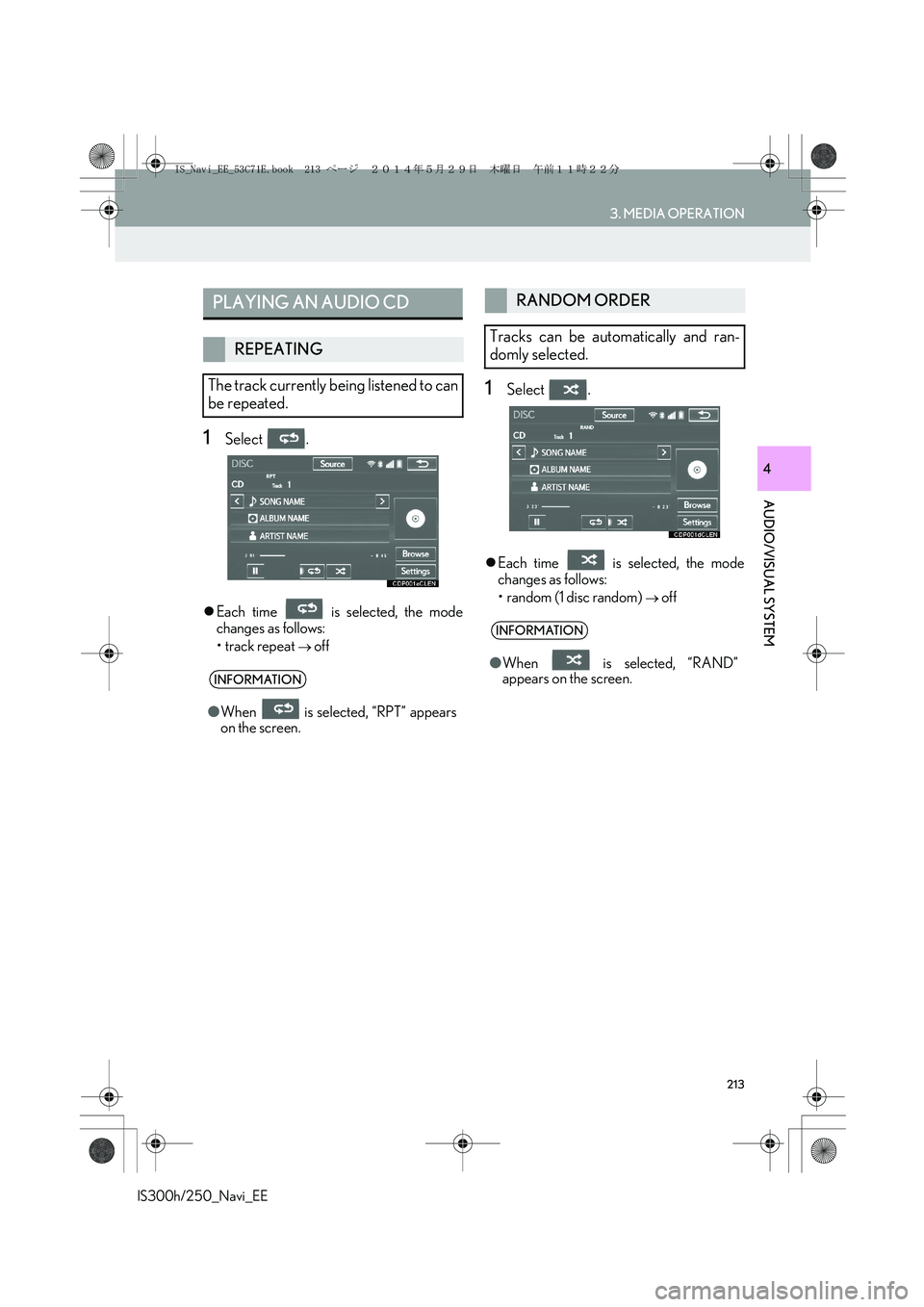

213
3. MEDIA OPERATION
IS300h/250_Navi_EE
AUDIO/VISUAL SYSTEM
4
1Select .
zEach time is selected, the mode
changes as follows:
• track repeat
→ off
1Select .
zEach time is selected, the mode
changes as follows:
•random (1 disc random)
→ off
PLAYING AN AUDIO CD
REPEATING
The track currently being listened to can
be repeated.
INFORMATION
●When is selected, “RPT” appears
on the screen.
RANDOM ORDER
Tracks can be automatically and ran-
domly selected.
INFORMATION
●When is selected, “RAND”
appears on the screen.
IS_Navi_EE_53C71E.book 213 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

214
3. MEDIA OPERATION
IS300h/250_Navi_EE
1Select .
zEach time is selected, the mode
changes as follows:
XWhen random playback is off
• file repeat → folder repeat → off
XWhen random playback is on
• file repeat → off
1Select .
zEach time is selected, the mode
changes as follows:
•random (1 folder random)
→ folder random (1 disc random) → off
PLAYING AN MP3/WMA/
AAC DISC
REPEATING
The file or folder currently being listened
to can be repeated.
INFORMATION
●Each time is selected, “RPT”/
“FLD.RPT” appears on the screen.
RANDOM ORDER
Files or folders can be automatically and
randomly selected.
INFORMATION
●Each time is selected, “RAND”/
“FLD.RAND” appears on the screen.
IS_Navi_EE_53C71E.book 214 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

215
3. MEDIA OPERATION
IS300h/250_Navi_EE
AUDIO/VISUAL SYSTEM
4
2. DVD
For safety reasons, the DVD video discs can only be viewed when the following con-
ditions are met:
(a) The vehicle is completely stopped.
(b) The engine switch is in ACCESSORY or IGNITION ON mode.
(c) The parking brake is applied.
While driving in DVD video mode, only the DVD’s audio can be heard.
The playback condition of some DVD discs may be determined by the DVD software
producer. This DVD player plays a disc as the software producer intended. As such,
some functions may not work properly. Be sure to read the instruction manual that
comes with the individual DVD disc. (→P.260)
OVERVIEW
The DVD operation screen can be reached by the following methods:
XInserting a disc (→P.196)
XUsing the instrument panel
Press the “MEDIA” button to display the audio control screen.
XUsing the Remote Touch
Press the “MENU” button on the Remote Touch, then select “Audio” to display the au-
dio control screen.
IS_Navi_EE_53C71E.book 215 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

216
3. MEDIA OPERATION
IS300h/250_Navi_EE
■CONTROL SCREEN
■CONTROL PANEL
IS_Navi_EE_53C71E.book 216 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

217
3. MEDIA OPERATION
IS300h/250_Navi_EE
AUDIO/VISUAL SYSTEM
4
No.Function
Select to display the audio source selection screen.
Select to display the password input screen.
Select to display the menu screen.
Select to display the option screen. (→P.219)
Select to display the DVD setting screen.
Shows progress
•During playback: Select to fast forward.
•During a pause: Select to slow forward.
Select to play/pause.
Select to stop the video screen.
Select to rewind.
Select to display the menu control key.
Select to display full screen video.
Tune/Scroll knob:
Turn to select a chapter.
Press to play/pause.
•Press to select a chapter.
•Press and hold to fast forward/rewind.
•Press to select a media mode.
•While in a media mode, pressing the “MEDIA” button changes media modes.
Press to eject a disc.
Power/Volume knob:
•Turn to adjust volume.
•Press to turn the audio system on/off.
•Press and hold to restart the audio system.
Disc slot
IS_Navi_EE_53C71E.book 217 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

218
3. MEDIA OPERATION
IS300h/250_Navi_EE
CAUTION
●Conversational speech on some DVDs is recorded at a low volume to emphasize the
impact of sound effects. If you adjust the volume assuming that the conversations represent
the maximum volume level that the DVD will play, you may be startled by louder sound
effects or when you change to a different audio source. The louder sounds may have a sig-
nificant impact on the human body or pose a driving hazard. Keep this in mind when you
adjust the volume.
INFORMATION
●According to the DVD disc, some menu items can be selected directly. (For details, see the
manual that comes with the DVD disc provided separately.)
●If appears on the screen when a control is selected, the operation relevant to the control
is not permitted.
IS_Navi_EE_53C71E.book 218 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

219
3. MEDIA OPERATION
IS300h/250_Navi_EE
AUDIO/VISUAL SYSTEM
4
1Select “Options”.
2The following screen is displayed.
DVD OPTIONSNo.FunctionPage
Select to display the title
search screen.220
Select to display the prede-
termined scene on the
screen and start playing.
Select to display the audio
selection screen.220
Select to display the subtitle
selection screen.220
Select to display the angle
selection screen.221
Select to change the screen
size.200
Select to display the image
quality adjustment screen.200
IS_Navi_EE_53C71E.book 219 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

220
3. MEDIA OPERATION
IS300h/250_Navi_EE
1Select “Search”.
2Enter the title number and select “OK”.
zThe player starts playing video for that title
number.
1Select “A u d i o ”.
2Each time “Change” is selected, the au-
dio language is changed.
zThe languages available are restricted to
those available on the DVD disc.
1Select “Subtitle”.
2Each time “Change” is selected, the lan-
guage the subtitles are displayed in is
changed.
zThe languages available are restricted to
those available on the DVD disc.
zWhen “Hide” is selected, the subtitles can
be hidden.
SEARCHING BY TITLE
CHANGING THE AUDIO
LANGUAGE
CHANGING THE SUBTITLE
LANGUAGE
IS_Navi_EE_53C71E.book 220 ページ ２０１４年５月２９日　木曜日　午前１１時２２分
