Lexus IS250 2014 Navigation Manual

4
191
IS300h/250_Navi_EE
4 2
1
3
5
6
7
8
2. DVD............................................................... 215
OVERVIEW................................................................ 215
DVD OPTIONS........................................................ 219
3. USB MEMORY ....................................... 222
OVERVIEW............................................................... 222
USB AUDIO .............................................................. 226
USB VIDEO ............................................................... 227
USB PHOTO ............................................................ 227
4. iPod ............................................................... 229
OVERVIEW............................................................... 229
iPod AUDIO .............................................................. 234
iPod VIDEO ............................................................... 235
5. Bluetooth® AUDIO ................................ 236
OVERVIEW............................................................... 236
CONNECTING A Bluetooth®
DEVICE.................................................................... 240
LISTENING TO Bluetooth
® AUDIO............ 240
6.AUX.................................................................. 242
OVERVIEW............................................................... 242
7. VTR ............................................................... 245
OVERVIEW............................................................... 245
VTR OPTIONS ........................................................ 247
1. STEERING SWITCHES ........................ 248
1. AUDIO SETTINGS................................. 250
AUDIO SETTINGS SCREEN ............................ 251
1. OPERATING INFORMATION ........ 258
RADIO ........................................................................ 258
DVD PLAYER AND DISC ................................ 260
iPod ................................................................................ 265
FILE INFORMATION........................................... 266
TERMS ......................................................................... 268
ERROR MESSAGES............................................. 270
4AUDIO/VISUAL REMOTE
CONTROLS
5SETUP
6TIPS FOR OPERATING THE
AUDIO/VISUAL SYSTEM
AUDIO/VISUAL SYSTEM
For vehicles sold outside Europe, some of the functions cannot be operated while driving.
IS_Navi_EE_53C71E.book 191 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

192
IS300h/250_Navi_EE
1. BASIC OPERATION
1. QUICK REFERENCE
■CONTROL SCREEN Operations such as selecting a preset station and adjusting the sound balance are car-
ried out on the screen.
XUsing the instrument panel
Press the “RADIO” or “MEDIA” button to display the audio/visual screen.
XUsing the Remote Touch
Press the “MENU” button on the Remote Touch, then select “Audio” to display the au-
dio/visual screen.
IS_Navi_EE_53C71E.book 192 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

193
1. BASIC OPERATION
AUDIO/VISUAL SYSTEM
IS300h/250_Navi_EE
4
■CONTROL PANEL
FunctionPage
Using the radio202
Playing an audio CD or MP3/WMA/AAC disc209
Playing a DVD215
Playing a USB memory222
Playing an iPod229
Playing a Bluetooth® device236
Using the AUX port242
Playing the VTR245
Using the steering wheel audio switches248
Audio system settings250
INFORMATION
●The illustration is for left-hand drive vehicles.
●The button positions and shapes will differ for right-hand drive vehicles.
●Also, the display and button positions will differ depending on the type of the system.
IS_Navi_EE_53C71E.book 193 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

194
1. BASIC OPERATION
IS300h/250_Navi_EE
2. SOME BASICS
Power/Volume knob: Press to turn the au-
dio/visual system on and off. The system
turns on in the last mode used. Turn this
knob to adjust the volume.
“RADIO”, “MEDIA” button: Press to dis-
play screen buttons for the audio/visual sys-
tem.
This section describes some of the basic
features of the audio/visual system.
Some information may not pertain to
your system.
Your audio/visual system works when
the engine switch is in ACCES-
SORY or IGNITION ON mode.
NOTICE
●To prevent the 12-volt battery from being
discharged, do not leave the audio/visual
system on longer than necessary when
the engine is not running tem is not operating>.
CERTIFICATION
CAUTION:
zThis product is a class 1 laser product
classified under the Safety of laser prod-
ucts, IEC 60825-1:2007, and contains a
class 1M laser module. To ensure contin-
ued safety, do not remove any covers or
attempt to gain access to the inside of the
product. Refer all servicing to qualified
personnel.
CLASS 1 LASER PRODUCT
CAUTION - CLASS 1M VISIBLE AND
INVISIBLE LASER RADIATION WHEN
OPEN, DO NOT VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS.
TURNING THE SYSTEM ON
AND OFF
zA function that enables automatic return
to the previous screen from the audio/
visual screen can be selected. (→P. 7 5 )
IS_Navi_EE_53C71E.book 194 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

195
1. BASIC OPERATION
AUDIO/VISUAL SYSTEM
IS300h/250_Navi_EE
4
XUsing the instrument panel
1Each time the “RADIO” or “MEDIA”
button is pressed, the audio control
mode changes.
“RADIO” button: To display the radio oper-
ation screen.
“MEDIA” button: To display the external
media operation screen.
XUsing the Remote Touch
1Press the “MENU” button on the
Remote Touch.
2Select “A u d i o ”.
3Select “Source”.
4Select the desired source.
SELECTING AN AUDIO
SOURCE
INFORMATION
●Dimmed screen buttons cannot be oper-
ated.
IS_Navi_EE_53C71E.book 195 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

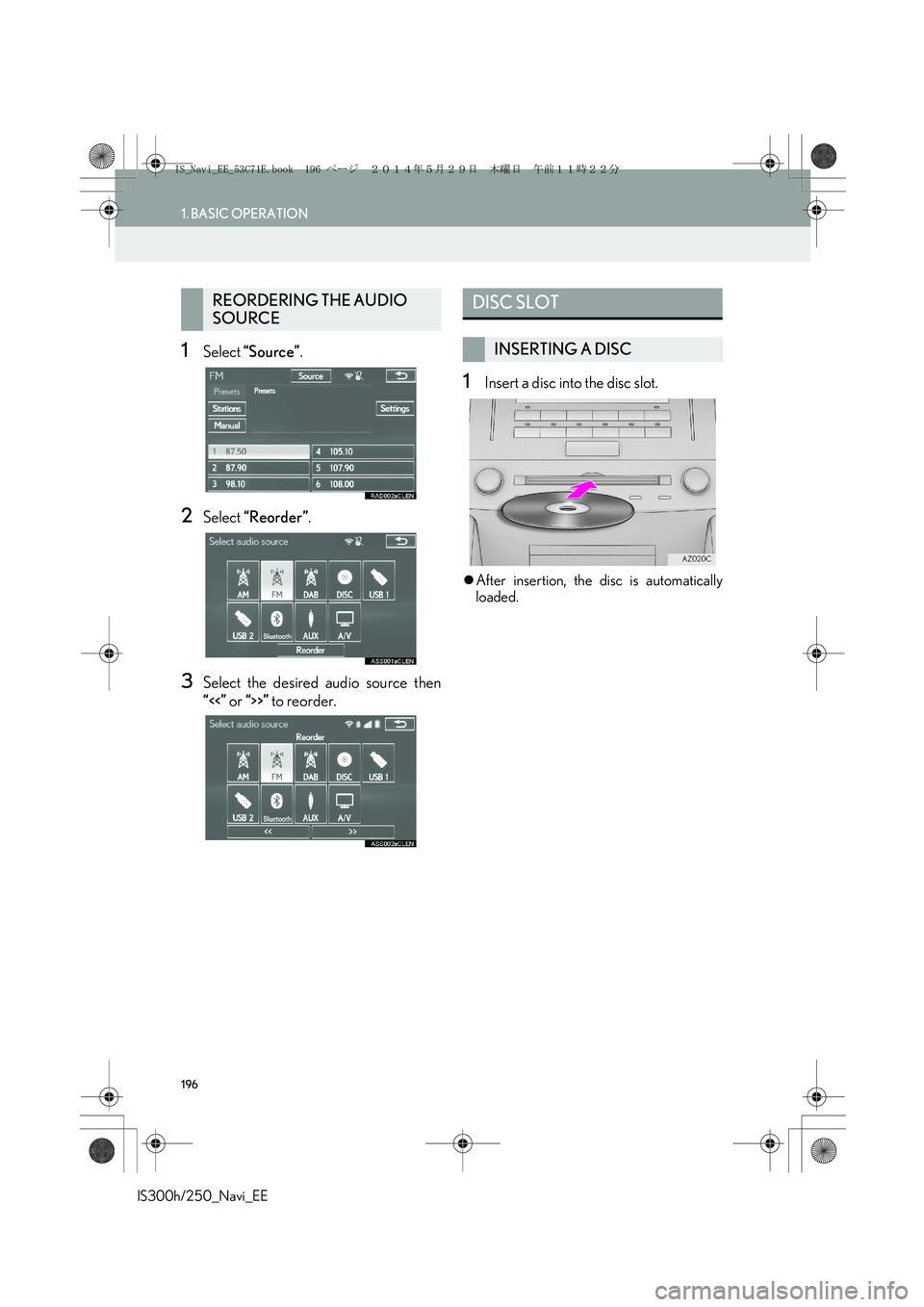

196
1. BASIC OPERATION
IS300h/250_Navi_EE
1Select “Source”.
2Select “Reorder”.
3Select the desired audio source then
“<<” or “>>” to reorder.
1Insert a disc into the disc slot.
zAfter insertion, the disc is automatically
loaded.
REORDERING THE AUDIO
SOURCEDISC SLOT
INSERTING A DISC
IS_Navi_EE_53C71E.book 196 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

197
1. BASIC OPERATION
AUDIO/VISUAL SYSTEM
IS300h/250_Navi_EE
4
1Press the “” button and remove the
disc.
1Press the button to release the lock and
lift the armrest.
2Open the cover and connect a device.
zTurn on the power of the device if it is not
turned on.
3Close the console box.
EJECTING A DISC
NOTICE
●Never try to disassemble or oil any part of
the DVD player. Do not insert anything
other than a disc into the slot.
INFORMATION
●The player is intended for use with 4.7 in.
(12 cm) discs only.
●When inserting a disc, gently insert the
disc with the label facing up.
USB/AUX PORT
There are 2 USB ports and an AUX port
in the console box.
IS_Navi_EE_53C71E.book 197 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

198
1. BASIC OPERATION
IS300h/250_Navi_EE
1Select “Sound settings” on the “Audio
settings” screen. (→P.250)
2Select the “DSP” tab.
3Select the desired items to be set.
INFORMATION
●To fully close the console box with the
cable routed to outside the console box,
insert the cable into the holder.
●Up to two portable players can be con-
nected to the USB port at the same time.
●Even if a USB hub is used to connect
more than two USB devices, only the first
two connected devices will be recog-
nized.
SOUND SETTINGS
DSP CONTROL
No.Function
The system adjusts to the optimum
volume and tone quality according to
vehicle speed to compensate for in-
creased vehicle noise.
This function can create a feeling of
presence.
IS_Navi_EE_53C71E.book 198 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

199
1. BASIC OPERATION
AUDIO/VISUAL SYSTEM
IS300h/250_Navi_EE
4
1Select the “Sound” tab.
2Select the desired screen button.
TONE AND BALANCE
TONE:
How good an audio program sounds is
largely determined by the mix of the tre-
ble, mid and bass levels. In fact, different
kinds of music and vocal programs usu-
ally sound better with different mixes of
treble, mid and bass.
BALANCE:
A good balance of the left and right ste-
reo channels and of the front and rear
sound levels is also important.
Keep in mind that when listening to a ste-
reo recording or broadcast, changing
the right/left balance will increase the
volume of 1 group of sounds while de-
creasing the volume of another.
No.Function
Select “+” or “-” to adjust high-
pitched tones.
Select “+” or “-” to adjust mid-pitched
tones.
Select “+” or “-” to adjust low-pitched
tones.
Select to adjust the sound balance
between the front and rear speakers.
Select to adjust the sound balance
between the left and right speakers.
IS_Navi_EE_53C71E.book 199 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

200
1. BASIC OPERATION
IS300h/250_Navi_EE
XDVD video/iPod video/VTR
1Select “Options” on the control screen.
2Select “Wide” on the options screen.
XUSB video
1Select “Options” on the control screen.
2Select “Screen format” on the options
screen.
3Select the desired item to be adjusted.XDVD video/USB video/iPod video/VTR
1Select “Options” on the control screen.
2Select “Display” on the option screen.
AUDIO SCREEN
ADJUSTMENT
SCREEN SIZE SETTINGS
The screen size can be selected for each
type of media.
No.Function
Select to display a 4 : 3 screen, with
either side in black.
Select to enlarge the image horizon-
tally and vertically to full screen.
Select to enlarge the image by the
same ratio horizontally and vertically.
CONTRAST, BRIGHTNESS,
COLOUR AND TONE
ADJUSTMENT
The brightness, contrast, colour and
tone of the screen can be adjusted.
