Page 11 of 420
11 .
SVPC025
PICTORIAL INDEX
xi

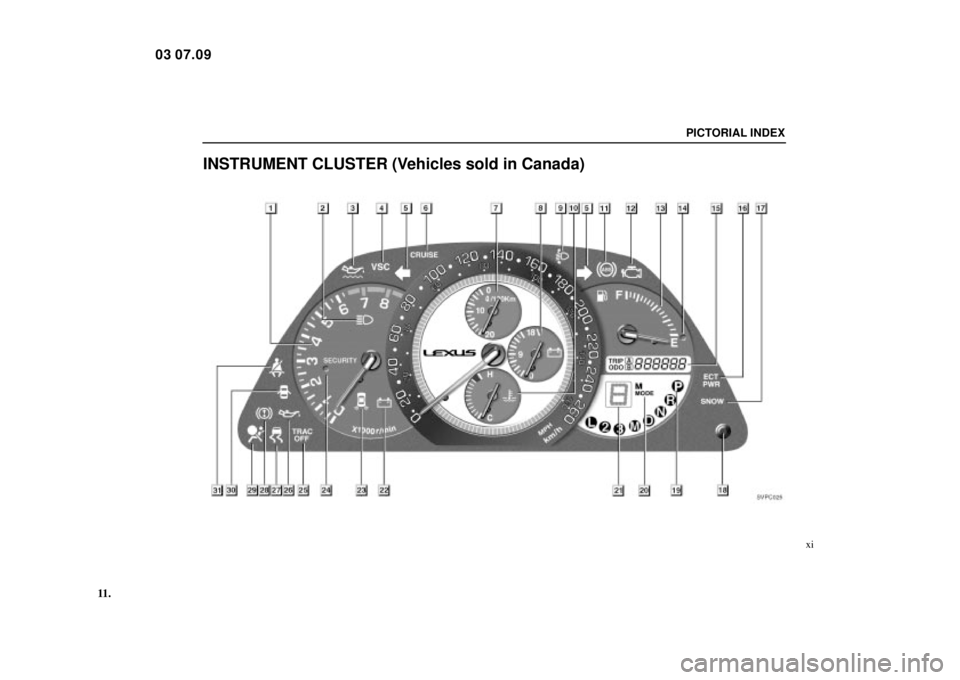

INSTRUMENT CLUSTER (Vehicles sold in Canada)
03 07.09
Page 12 of 420
12.
For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
xii
Page
1Tachometer47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Headlight high beam indicator light 32
. . . . . . . . . . .
3Low engine oil level warning light 53
. . . . . . . . . . . . .
4Vehicle stability control system warning light 56 . .
5Turn signal indicator lights 32
. . . . . . . . . . . . . . . . . . .
6Cruise control indicator light 249
. . . . . . . . . . . . . . . .
7Momentary fuel consumption meter 46
. . . . . . . . . . .
8Voltmeter 46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
9Automatic headlight leveling system warning
light 56 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
10Engine coolant temperature gauge 45
. . . . . . . . . . . .
11Anti-lock brake system warning light 54
. . . . . . . . . .
12Malfunction indicator lamp 54
. . . . . . . . . . . . . . . . . . .
13Fuel gauge 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14Low fuel level warning light 55
. . . . . . . . . . . . . . . . . . .
15Odometer and trip meter 48
. . . . . . . . . . . . . . . . . . . . .
16Power mode indicator light 240
. . . . . . . . . . . . . . . . . . Page
17Snow mode indicator light
240
. . . . . . . . . . . . . . . . . . .
18ODO/TRIP knob 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19Automatic transmission indicator lights 238 . . . . . .
20M mode indicator 241
. . . . . . . . . . . . . . . . . . . . . . . . . . .
21Gear position indicator for manual control 241 . . . .
22Discharge warning light 52
. . . . . . . . . . . . . . . . . . . . . .
23Rear light failure warning light 55
. . . . . . . . . . . . . . . .
24Security indicator light 27
. . . . . . . . . . . . . . . . . . . . . . .
25Traction control system
off indicator/warning light 55 . . . . . . . . . . . . . . . . . . . .
26Low engine oil pressure warning light 52
. . . . . . . . .
27Slip indicator light 252, 255, 258
. . . . . . . . . . . . . . . . .
28Brake system warning light 50
. . . . . . . . . . . . . . . . . . .
29SRS warning light 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
30Open door warning light 55
. . . . . . . . . . . . . . . . . . . . . .
31Driver's seat belt reminder light 51
. . . . . . . . . . . . . . .
03 07.09
Page 13 of 420
13.
SVPC012
Power Type
Manual Type
PICTORIAL INDEX
xiii

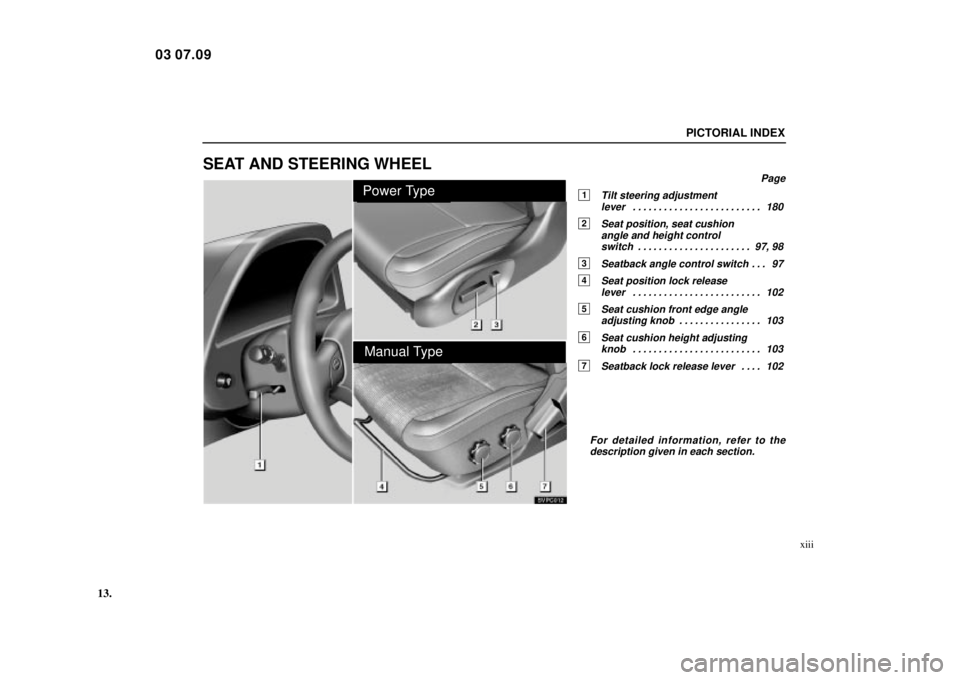

SEAT AND STEERING WHEEL
Page
1Tilt steering adjustmentlever 180 . . . . . . . . . . . . . . . . . . . . . . . . .
2Seat position, seat cushion
angle and height control switch 97, 98 . . . . . . . . . . . . . . . . . . . . . .
3Seatback angle control switch 97 . . .
4Seat position lock release
lever 102 . . . . . . . . . . . . . . . . . . . . . . . . .
5Seat cushion front edge angle
adjusting knob 103 . . . . . . . . . . . . . . . .
6Seat cushion height adjusting
knob 103 . . . . . . . . . . . . . . . . . . . . . . . . .
7Seatback lock release lever 102 . . . .
For detailed information, refer to the description given in each section.
03 07.09
Page 14 of 420
SVPC021
14.
PICTORIAL INDEX
xiv
EXTERIOR VIEW (Sedan)
Page
1Rear window defogger36
. . . . . . . . . .
2Trunk lid 87
. . . . . . . . . . . . . . . . . . . . . . .
3Moon roof 91
. . . . . . . . . . . . . . . . . . . . .
4Wiper and washer 34
. . . . . . . . . . . . . .
5Fuel filler door 89
. . . . . . . . . . . . . . . . .
6Outside rear view mirror 180 . . . . . . .
7Door 20
. . . . . . . . . . . . . . . . . . . . . . . . . .
8Tire and wheel 349
. . . . . . . . . . . . . . . .
9Headlights 30, 386
. . . . . . . . . . . . . . . . .
10Hood 86
. . . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the description given in each section.
03 07.09
Page 15 of 420
SVPC022
15.
PICTORIAL INDEX
xv
EXTERIOR VIEW (SportCross)
Page
1Rear window defogger36
. . . . . . . . . .
2Back door 24
. . . . . . . . . . . . . . . . . . . . .
3Moon roof 91
. . . . . . . . . . . . . . . . . . . . .
4Wiper and washer 34
. . . . . . . . . . . . . .
5Fuel filler door 89
. . . . . . . . . . . . . . . . .
6Outside rear view mirror 180 . . . . . . .
7Side door 20
. . . . . . . . . . . . . . . . . . . . . .
8Tire and wheel 349
. . . . . . . . . . . . . . . .
9Headlights 30, 386
. . . . . . . . . . . . . . . . .
10Hood 86
. . . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the description given in each section.
03 07.09
Page 16 of 420
BASIC OPERATION
1
QUICK REFERENCE
Driver's seat2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering wheel 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight and turn signal switch 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . .
Wiper switch 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
03 07.09
Page 17 of 420
QUICK REFERENCE
2

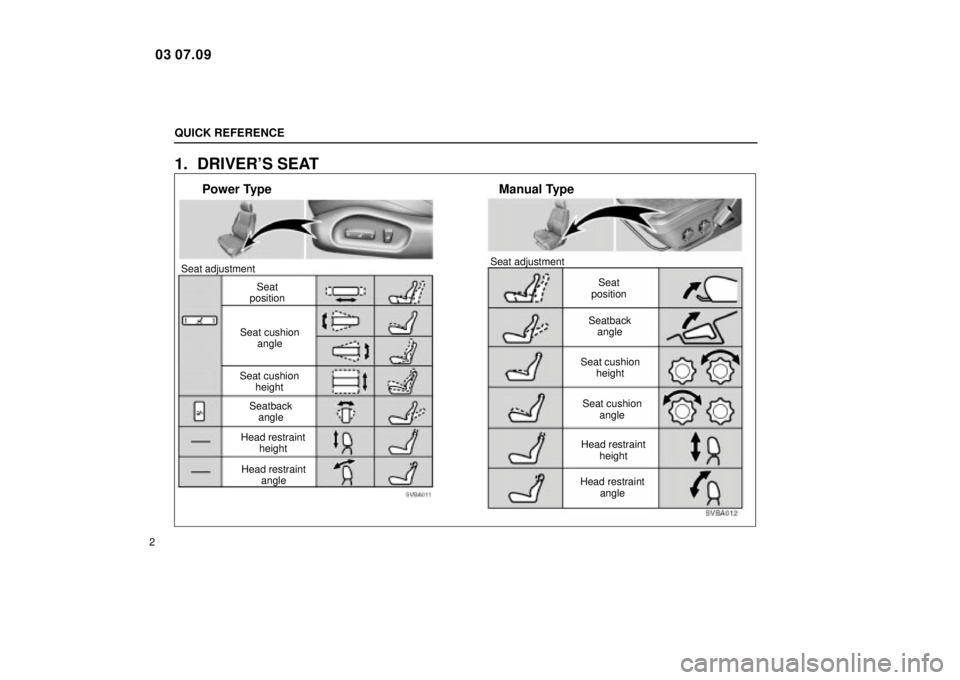

1. DRIVER'S SEAT
SVBA012
SVBA011
Power TypeManual Type
Seat
position
Seatback angle
Seat cushion height
Seat cushion angle
Head restraint height
Head restraint angle
Seat
position
Seat cushion angle
Seatback angle
Head restraint height
Head restraint angle
Seat adjustment Seat adjustment
Seat cushion height
03 07.09
Page 18 of 420
QUICK REFERENCE
3

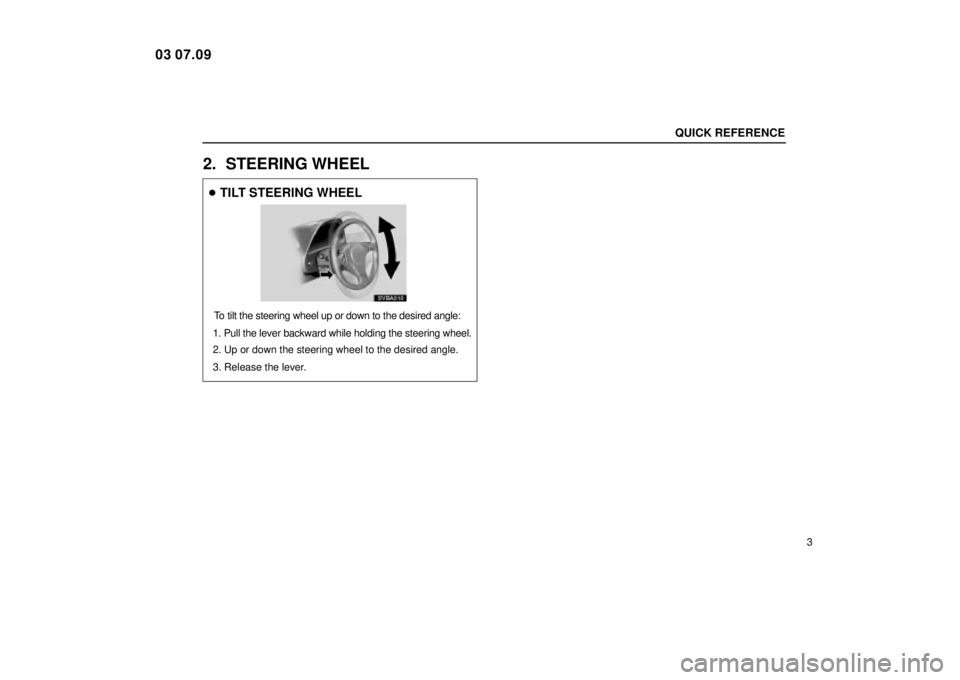

2. STEERING WHEEL
To tilt the steering wheel up or down to the desired angle:
1. Pull the lever backward while holding the steering wheel.
2. Up or down the steering wheel to the desired angle.
3. Release the lever.
TILT STEERING WHEEL
SVBA010
03 07.09
Page 19 of 420
OPERATION OF SELECTOR LEVER
SELECTOR LEVER POSITION
P: Parking, engine starting and key removal position
R: Reverse position
N: Neutral position
D: Normal driving position (Shifting into overdrive
possible)
M: Position for manual shifting up or downshifting
(Shifting into overdrive possible)*
3, 2: Position for more powerful engine braking
L: Position for maximum engine braking
SVBA009
Shift while pressing the brake pedal. (Ignition
switch must be in the ºONº position.)
*:When the cruise control is being used, even if you downshift from º5º to º4º\
, engine braking will not be enabled because
the cruise control is not cancelled. For the operation to decrease the \
vehicle speed, see page 251.
SV31020
QUICK REFERENCE
4
3. AUTOMATIC TRANSMISSION
03 07.09
Page 20 of 420
QUICK REFERENCE
5

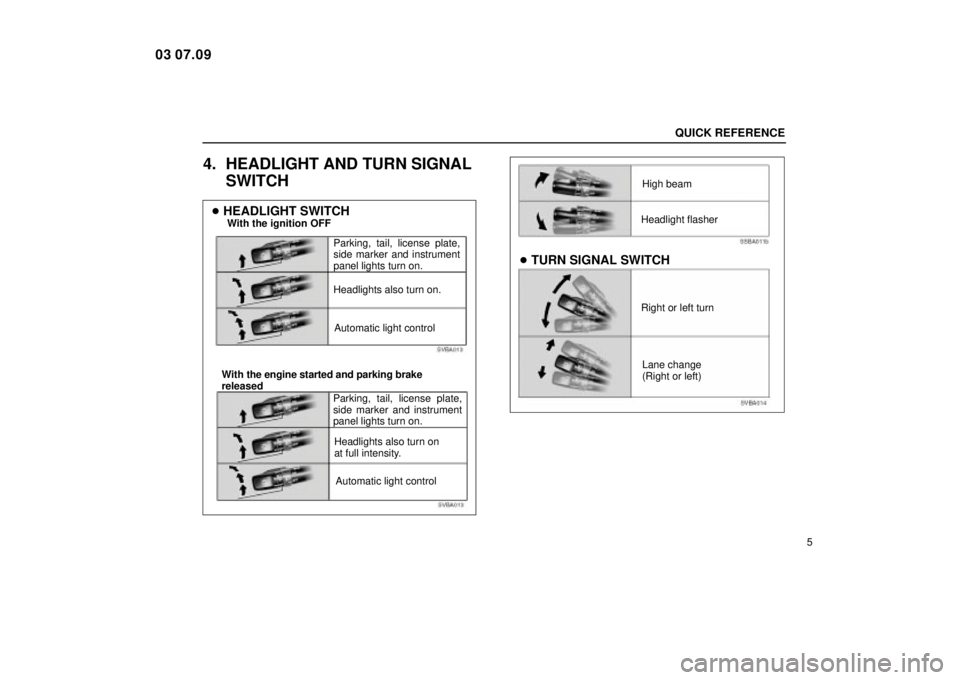

4. HEADLIGHT AND TURN SIGNALSWITCH
SVBA013
SVBA013
HEADLIGHT SWITCHWith the ignition OFF
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Automatic light control
Headlights also turn on.
With the engine started and parking brake
released Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on
at full intensity.
Automatic light control
SVBA014
SSBA011b
Right or left turn
Lane change
(Right or left) High beam
Headlight flasher
TURN SIGNAL SWITCH
03 07.09
