Page 31 of 420
KEYS AND DOORS
16
Unlocking the trunk lid
SV11009b
When you keep the button pushed for about 1 second, you
can unlock the trunk lid.* One beep sounds.
This function does not work when the key is in the ignition
switch.
NOTE: *The operation method can be changed. Ask your Lexus dealer for details.
Sounding an alarm*
SV11010a
Sedan
When you push the ºPANICº button for about 2 to 3
seconds, an alarm sounds to deter any person trying to
break into or damage your vehicle.
If you want to stop the alarm, push any button.
This function does not work when the ignition key is in the ºONº
position.
NOTE: *The alarm can be set not to sound. Ask your Lexus
dealer for details.
03 07.09
Page 32 of 420
KEYS AND DOORS
17
SV11013b
SportCross
When you push the ºPANICº button for about 1 second, an
alarm sounds to deter any person trying to break into or
damage your vehicle.
If you want to stop the alarm, push any button.
This function does not work when the ignition key is in the ºONº
position.
NOTE: *The alarm can be set not to sound. Ask your Lexus dealer for details.
For vehicles sold in U.S.A.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
NOTICE:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
03 07.09
Page 33 of 420
KEYS AND DOORS
18
Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
Consult the dealer or an experienced radio / TV
technician for help.
FCC WARNING:
Changes or modifications not expressly approved
by the party responsible for compliance could void
the user's authority to operate the equipment.
For vehicles sold in Canada
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation of
the device.
Replacing the battery
When you replace the battery, prepare a lithium battery
CR1616 or equivalent and a special screwdriver.
CAUTION
Special care should be taken to prevent small children
from swallowing the removed battery or components.
NOTICE
When replacing the battery, be careful not to lose the components, screws and O-ring.
Replace only with the same or equivalent typerecommended by a Lexus dealer.
Dispose of used battery according to the local laws.
03 07.09
Page 34 of 420
KEYS AND DOORS
19

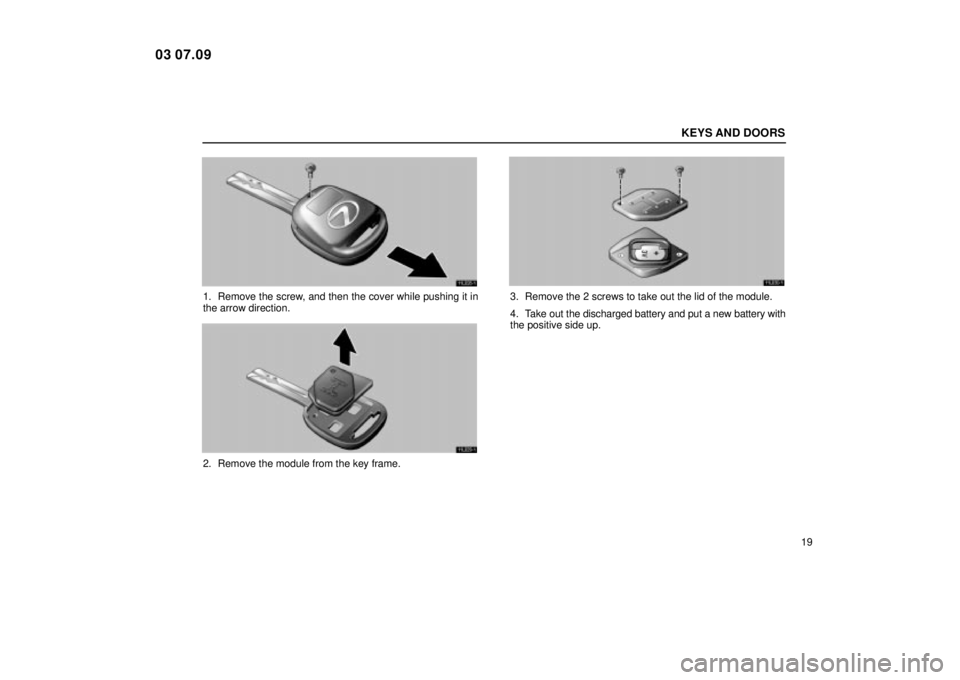

11L028-1
1. Remove the screw, and then the cover while pushing it in
the arrow direction.
11L029-1
2. Remove the module from the key frame.
11L030-1
3. Remove the 2 screws to take out the lid of the module.
4. Take out the discharged battery and put a new battery with
the positive side up.
03 07.09
Page 35 of 420
KEYS AND DOORS
20
NOTICE
Make sure the positive side and negative side of thebattery are faced correctly.
Do not replace the battery with wet hands. Water may
cause unexpected rust.
Do not touch or move any components inside of the transmitter, or it may interfere with proper operation.
Be careful not to bend the electrode of the batteryinsertion and that dust or oils do not adhere to theinside of the module.
Take care not to lose the screws and O-ring.
5. Install the lid with the 2 screws.
NOTICE
Take care not to damage or bend the O-ring wheninstalling.
6. Install the module into the key frame and secure the cover
with the screw.
7. When pushing any switch on the wireless key, make sure
the indicator light comes on.
DOORS
Locking with key
SS11007a
1Lock 2Unlock
Turn the key towards the front of the vehicle to lock and
towards the back to unlock.
Locking (or unlocking) the driver's door will lock (or unlock) all
the other doors simultaneously. In the driver's door lock,
turning the key once will unlock the driver's door and twice in
succession will unlock all doors simultaneously.*
Together with the activation of unlocking, the interior light will
turn on for 15 seconds if the interior light switch is in the
ºDOORº position.** However, this function does not work
when the ignition key is in the ºONº position. For further
information, see ºInterior lightº on page 61.
03 07.09
Page 36 of 420
KEYS AND DOORS
21
NOTE: *The 2-step unlocking function can be changed.**The interior light can be set not to come on or the durationof lighting can be changed. Ask your Lexus dealer for details.
Locking with inside lock button
SV11004
1Lock 2Unlock
Push in the lock button to lock and unlock the door.
The front doors can be opened by pulling the inside handles
even if the lock buttons are in the locked position.
CAUTION
Do not pull the inside handle of the front doors while
driving. The doors will open and an accident may occur.
Lexus strongly recommends that all children be placed
in the rear seat of the vehicle.
Closing the door with the lock button pushed in will also lock
the door. Be careful not to lock your keys in the vehicle. The
door will not lock if the key is left in the ignition switch when
closing the front doors.
CAUTION
Before driving, make sure the doors are closed and
locked, especially when small children are in the
vehicle. Along with the proper use of seat belts, locking
the doors helps prevent the driver and passengers from
being thrown out from the vehicle during an accident.
It also helps prevent the doors from being opened
unintentionally.
03 07.09
Page 37 of 420
KEYS AND DOORS
22

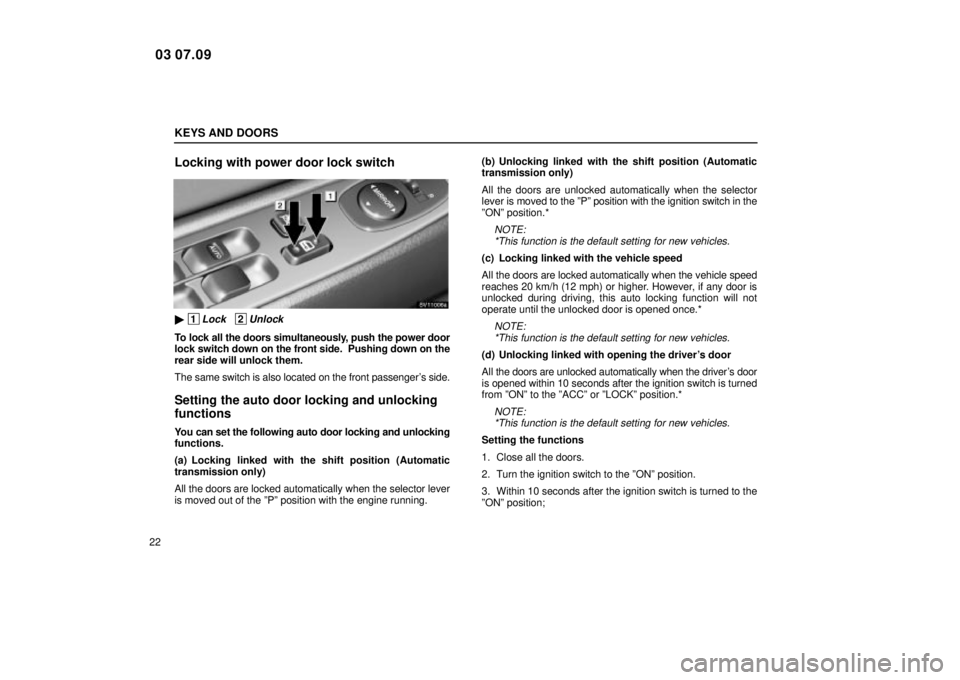

Locking with power door lock switch
SV11006a
1Lock 2Unlock
To lock all the doors simultaneously, push the power door
lock switch down on the front side. Pushing down on the
rear side will unlock them.
The same switch is also located on the front passenger's side.
Setting the auto door locking and unlocking
functions
You can set the following auto door locking and unlocking
functions.
(a) Locking linked with the shift position (Automatic
transmission only)
All the doors are locked automatically when the selector lever
is moved out of the ºPº position with the engine running. (b) Unlocking linked with the shift position (Automatic
transmission only)
All the doors are unlocked automatically when the selector
lever is moved to the ºPº position with the ignition switch in the
ºONº position.*
NOTE:
*This function is the default setting for new vehicles.
(c) Locking linked with the vehicle speed
All the doors are locked automatically when the vehicle speed
reaches 20 km/h (12 mph) or higher. However, if any door is
unlocked during driving, this auto locking function will not
operate until the unlocked door is opened once.*
NOTE:*This function is the default setting for new vehicles.
(d) Unlocking linked with opening the driver's door
All the doors are unlocked automatically when the driver's door
is opened within 10 seconds after the ignition switch is turned
from ºONº to the ºACCº or ºLOCKº position.*
NOTE:*This function is the default setting for new vehicles.
Setting the functions
1. Close all the doors.
2. Turn the ignition switch to the ºONº position.
3. Within 10 seconds after the ignition switch is turned to the
ºONº position;
03 07.09
Page 38 of 420
KEYS AND DOORS
23
To set function (a)
Push and hold the front of the power door lock switch for 5 seconds with the selector lever in the ºPº position.
To set function (b)
Push and hold the rear of the power door lock switch for 5 seconds with the selector lever in the ºPº position.
To set function (c)
Push and hold the front of the power door lock switch for 5 seconds with the selector lever in any position except ºPº.
To set function (d)
Push and hold the rear of the power door lock switch for 5 seconds with the selector lever in any position except ºPº.
All the doors are automatically lock and unlock when you
release the power door lock switch. This indicates that the
function is set. If all the doors do not lock and unlock, the time
the switch was held may have been too short or too long.
Perform the procedure over again starting from step 1.
If you want to cancel a function, repeat the procedure. Each
time you perform the procedure, the function is set or
cancelled.
Locking with rear door child-protector
SV11005
1Lock 2Unlock
Whenever small children are in the vehicle, lock the rear
door so that it does not open from the inside. To do this,
turn the knob to the ºLOCKº position as shown and then
close the door.
03 07.09
Page 39 of 420
KEYS AND DOORS
24

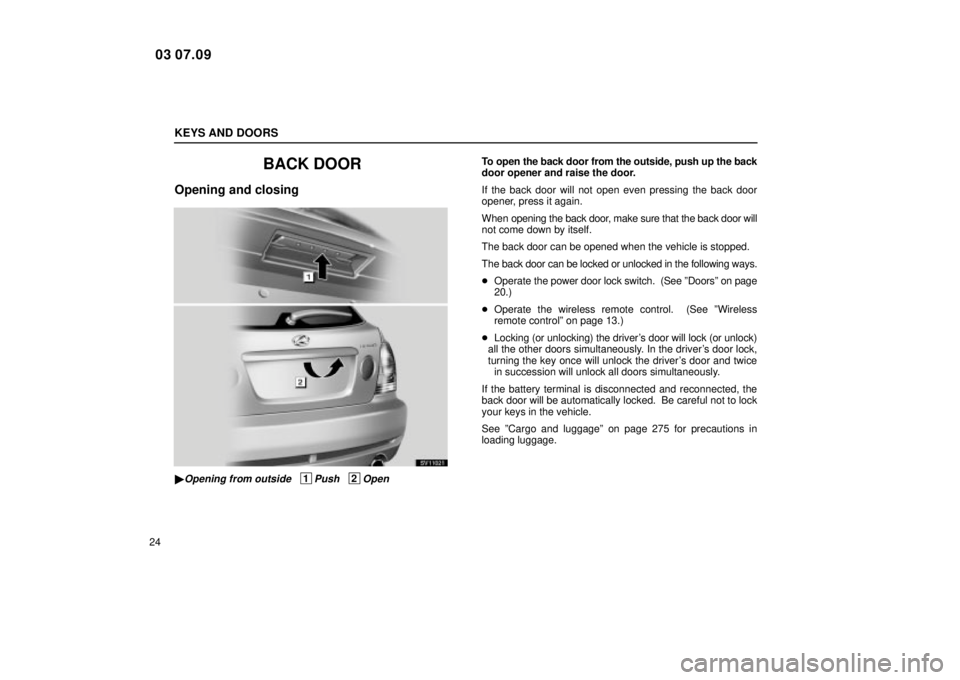

BACK DOOR
Opening and closing
SV11021
Opening from outside 1Push 2Open
To open the back door from the outside, push up the back
door opener and raise the door.
If the back door will not open even pressing the back door
opener, press it again.
When opening the back door, make sure that the back door will
not come down by itself.
The back door can be opened when the vehicle is stopped.
The back door can be locked or unlocked in the following ways.
Operate the power door lock switch. (See ºDoorsº on page
20.)
Operate the wireless remote control. (See ºWireless
remote controlº on page 13.)
Locking (or unlocking) the driver's door will lock (or unlock)
all the other doors simultaneously. In the driver's door lock,
turning the key once will unlock the driver's door and twice in succession will unlock all doors simultaneously.
If the battery terminal is disconnected and reconnected, the
back door will be automatically locked. Be careful not to lock
your keys in the vehicle.
See ºCargo and luggageº on page 275 for precautions in
loading luggage.
03 07.09
Page 40 of 420
KEYS AND DOORS
25
SV11023
When closing the back door, the inside handle can be
used to make the reach easier.
To close the back door, lower it and press down on it. After
closing the back door, try pulling it up to make sure it is securely
closed.
When closing the back door, make sure it is securely closed.
See ºCargo and luggageº on page 275 for precautions in
loading luggage.
CAUTION
Keep the back door closed while driving. This not
only keeps the luggage from being thrown out but
also prevents exhaust gases from entering the
vehicle.
If the open back door hides the rear stop and tail
lights or rear turn signal lights while you are parked,
other road users must be warned of the presence of
your vehicle by a warning triangle or other device.
NOTICE
To prevent damage to the back door dampers, do not
apply any force, paint or let any other foreign matter onthem.
03 07.09
