KEYS AND DOORS
26
SV11022

Opening from inside
If the back door opener does not operate, you can open
the back door from the inside.
To open the back door from inside, do the following.
1. Remove the cover with a key.
SV11018
2. Pull up the lever and open the back door.
Have your vehicle checked/repaired by your Lexus dealer if
the back door opener does not operate.
03 07.09

KEYS AND DOORS
27
THEFT DETERRENT SYSTEM
SV17003

Sedan
SV17004

SportCross

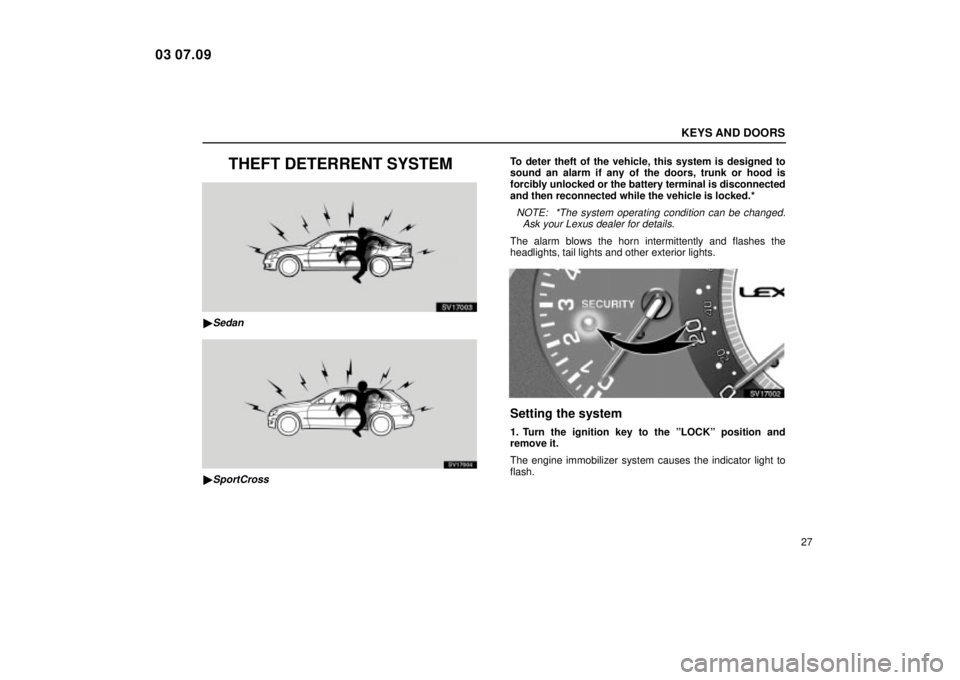

To deter theft of the vehicle, this system is designed to
sound an alarm if any of the doors, trunk or hood is
forcibly unlocked or the battery terminal is disconnected
and then reconnected while the vehicle is locked.*
NOTE: *The system operating condition can be changed.Ask your Lexus dealer for details.
The alarm blows the horn intermittently and flashes the
headlights, tail lights and other exterior lights.
SV17002
Setting the system
1. Turn the ignition key to the ºLOCKº position and
remove it.
The engine immobilizer system causes the indicator light to
flash.
03 07.09

KEYS AND DOORS
282. Close and lock all the doors, trunk and hood using an
ignition key or wireless remote control.
The flashing indicator light will remain on when all the doors,
trunk and hood are closed and locked.
3. After 30 seconds, the indicator starts flashing and the
system is set.
Cancelling the system
When you unlock any door or trunk using an ignition key
or wireless remote control, the system is cancelled.
Activating the system
The alarm sounds for 60 seconds if any of the following are
operated:

Unlocking any door or trunk without using an ignition key or
wireless remote control.
 Opening the hood forcibly.
 Reconnecting the battery.
If any door is unlocked and the ignition key is not in the ignition
switch during the alarm sounding, its door is automatically
locked.
To stop the alarm: Use either of the following methods.
 Unlock the door or trunk using an ignition key or wireless
remote control.
 Turn the ignition switch on.
Testing the system
1. Open all the windows.
2. Set the system as described above.
The front doors should be locked with the ignition key or
wireless remote control. Be sure to wait until the indicator light
starts flashing.
3. Unlock one of the doors from the inside.
The system should activate the alarm.
4. Unlock any of the doors with a key or the wireless
remote control to cancel the system.
5. Repeat this operation for the other doors and hood.
When testing the hood, also check that the system is activated
when the battery terminal is disconnected and then
reconnected.
If the system does not work properly, have it checked by your
Lexus dealer.
NOTICE
Disconnecting the battery may result in the erasure of information you have set in the computer memory. After
reconnecting the battery, check that the memorized data has been retained. If it has been erased, input it into
the computer once more.
03 07.09

SECTION 1 ± 2
29
INSTRUMENTS AND CONTROLS
Switches
Headlight switch30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight dimmer and turn signal switch 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Front fog light switch 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear fog light switch 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and washer switch 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Rear window wiper and washer switch 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Headlight cleaner switch 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror defogger,
and windshield wiper deicer switch 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Power window switches 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . .
Seat heater switches 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . .
03 07.09

SWITCHES
30
HEADLIGHT SWITCH
SS12002a
To turn the lights on, twist the knob on the end of the lever.
FIRST CLICKSTOP: Only the parking, tail, license plate, side
marker and instrument panel lights turn on.
SECOND CLICKSTOP: Headlights also turn on.
THIRD CLICKSTOP (ºAUTOº): The headlights and all other
lights automatically turn on depending on the darkness of the
surroundings.*
Manually twist the knob to the second clickstop to turn on
the headlights if they are needed immediately when
entering a dark tunnel, parking structure, etc.
When the headlight switch is turned to the first or second
clickstop, the brightness of the instrument cluster will be
reduced slightly unless the instrument panel light control knob
is turned fully on.
NOTE: *The operating condition or sensitivity can be changed. Ask your Lexus dealer for details.
SV12024
The automatic light control sensor is on top of the driver's side
instrument panel.
Do not place anything on the instrument panel, and/or do not
affix anything on the windshield to block this sensor.
When the headlights come on, the lights automatically turn off
about 30 seconds after any of the doors is opened and closed
with the ignition key turned to the ºACCº or ºLOCKº position\
.*
When only the taillights come on: The lights automatically turn
off with the driver's door opened and the ignition key turned to
the ºACCº or ºLOCKº position.
To turn them on again, turn the ignition key to the ºONº position,
or turn the headlight switch off and then twist the knob until the
first or second clickstop. If you are going to park for over one
week, make sure the headlight switch is off.
NOTE: *The time before turning off the lights can be changed. Ask your Lexus dealer for details.
03 07.09

SWITCHES
31
Daytime Running Light System
The headlights turn on at reduced intensity when the parking
brake is released with the engine started, even with the light
switch in the ºOFFº position. They will not go off until the
ignition switch is turned off.
To turn on the other exterior lights and instrument panel lights,
twist the knob to the first clickstop.
Twist
the knob to the second clickstop to turn on the headlights
to full intensity for driving at night.
When setting the knob to the third clickstop (ºAUTOº), the
headlights will automatically adjust to full intensity and/or turn
on the other lights depending on the darkness of the
surroundings. Likewise, as the surroundings become brighter,
the headlights will turn to reduced intensity, ultimately turning
off the other lights.
NOTICE
To prevent the battery from being discharged, do not leave the lights on longer than necessary when theengine is not running.
Automatic headlight leveling system
SV12022
The headlight beam level is always maintained automatically
at the proper level in all loading conditions so that your
headlights do not dazzle other road users.
If this system fails, the warning light in the instrument cluster
comes on. If this occurs, have your vehicle checked by Lexus
dealer.
03 07.09

SWITCHES
32
HEADLIGHT DIMMER AND TURNSIGNAL SWITCH
SV12010
For high beam, push the lever forward. Pull it back for low
beam. For the headlight flasher, pull it further back.
A blue light in the instrument cluster indicates high beam or
headlight flasher is on.
The headlight flasher works even when the headlight switch is
off.
SV12011
For signaling turns, move the lever up or down in the
conventional manner.
The ignition key must be in the ºONº position.
The turn signal is self-cancelling after a turn, but after a lane
change, you may have to cancel it by hand. You can also signal
a lane change by moving the turn signal lever partway and
holding it there.
If the green light in the instrument cluster flashes faster than
normal, it indicates that the front or rear turn signal bulb has
burned out. If this indicator light does not come on, the fuse
or the indicator light itself has probably failed.
03 07.09

SWITCHES
33
FRONT FOG LIGHT SWITCH
SV12016
To turn on the front fog lights, turn the switch to the ºONº
position. The front fog lights come on only when the
headlights are on low beam.
REAR FOG LIGHT SWITCH
SV12017
To turn on the rear fog lights, push the switch. They will
come on when the headlights are turned on.
To turn off the lights, push the switch again. They will go out
when the headlight switch is in the ºOFFº position. After the
rear fog and all other lights are turned off, the rear fog light do
not come on even if you turn on the tail or headlight switch
again.
When the rear fog lights are on, the indicator lights on the upper
side of the rear fog light switch lights up.
03 07.09

SWITCHES
34
WINDSHIELD WIPER AND WASHERSWITCH
SV12025

1Interval adjuster 2Washer on
To turn the wipers on, move the lever down until you reach
the desired speed setting.
The ignition key must be in the ºONº position.
There are 3 settings:
ºINTº position: Intermittent operation
ºLOº position: Low speed operation
ºHIº position: High speed operation
Twist the interval adjuster upward to increase the wiping
time interval between sweeps, and downward to decrease
it.
The wiper lever must be in the ºINTº position. For mist wiper operations (a single wipe), pull the lever
toward you and release it.
To make the washer squirt, push the button on the end of
the lever.
For information on adding washer fluid, see ºAdding washer
fluidº on page 384.
Some m
odels: If you push the windshield washer switch with
the headlights on, the headlight cleaner operates once
automatically.
In cold weather, warm the windshield with the defroster before
using the washer. This will help prevent icing, which could
block your vision.
The rear window and outside rear view mirror defogger
automatically turns on when you operate the wipers.
NOTICE
Do not operate the wipers if the windshield is dry. It may scratch the glass.
When waxing your vehicle, make sure that the washer nozzles
do not become blocked. If a nozzle becomes blocked, contact
your Lexus dealer to have the vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not try to clear it with
a pin or other object. The nozzle will be damaged.
03 07.09

SWITCHES
35
REAR WINDOW WIPER ANDWASHER SWITCH
SV12018a

1Washer on during wiping 2Washer on
To turn the wipers on, twist the knob at the end of the lever.
The ignition key must be in the ºONº position.
There are 2 settings:
ºINTº position: Intermittent operation
ºONº position: Low speed operation
To make the washer squirt, twist the knob downward to
position 2.
To make the washer squirt while operating in ºONº
position, twist the knob upward to position 1.
The knob automatically returns from these positions after you
release it. For information on adding washer fluid, see ºAdding washer
fluidº on page 384.
NOTICE
Do not operate the rear window wiper if the rear window
is dry. It may scratch the glass.
03 07.09
