1182. Instrument cluster
IS300h_EE(OM53B95E)
Distance (driving range/after start)*
Displays the estimated maximum distance that can be driven with the
quantity of fuel remaining and the distance driven after the hybrid sys-
tem was started respectively.
• This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not
be updated.
When refueling, turn the power switch off. If the vehicle is refueled with-
out turning the power switch off, the display may not be updated.
Energy monitor
P. 1 2 2
*: Displayed when the item is set in “Drive Info 1” or “Drive Info 2”. Use these
values as a reference.
Language
Select to change the language on the display.
Units
Select to change the unit of measure for fuel consumption.
Maintenance system
Select to reset the maintenance data after the required maintenance is
performed. (P. 442)
EV indicator
Select to set the EV indicator on/off.
 switch settings (except F SPORT models)
Displays a procedure to register a desired screen to .
You can register 1 screen as a shortcut, which can be displayed by
pressing . (P. 1 1 7 )
Drive information 1/Drive information 2
Select to select up to 2 items that will be displayed on the “Drive Info
1” screen and “Drive Info 2” screen respectively. (P. 117)
Settings display

1192. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53B95E)
Pop-up display
Select to set the following pop-up displays, which may appear in some
situations, on/off.
• Route guidance display of the navigation system-linked system
(if equipped)
• Incoming call display of the hands-free phone system (if equipped)
• Windshield wiper switch operation display (if equipped)
• Headlight switch operation display (if equipped)
• Dynamic radar cruise control operation display (if equipped)
• Instrument panel brightness adjustment display
• Main meter switch operation display (F SPORT models)
Accent color (except F SPORT models)
Select to change the accent colors on the screen, such as the cursor
color.
Tachometer settings
Select to set the display of the tachometer or Hybrid System Indicator
to automatically change according to the driving mode or static.
Needle (F SPORT models)
Select to change the needle color for the tachometer.

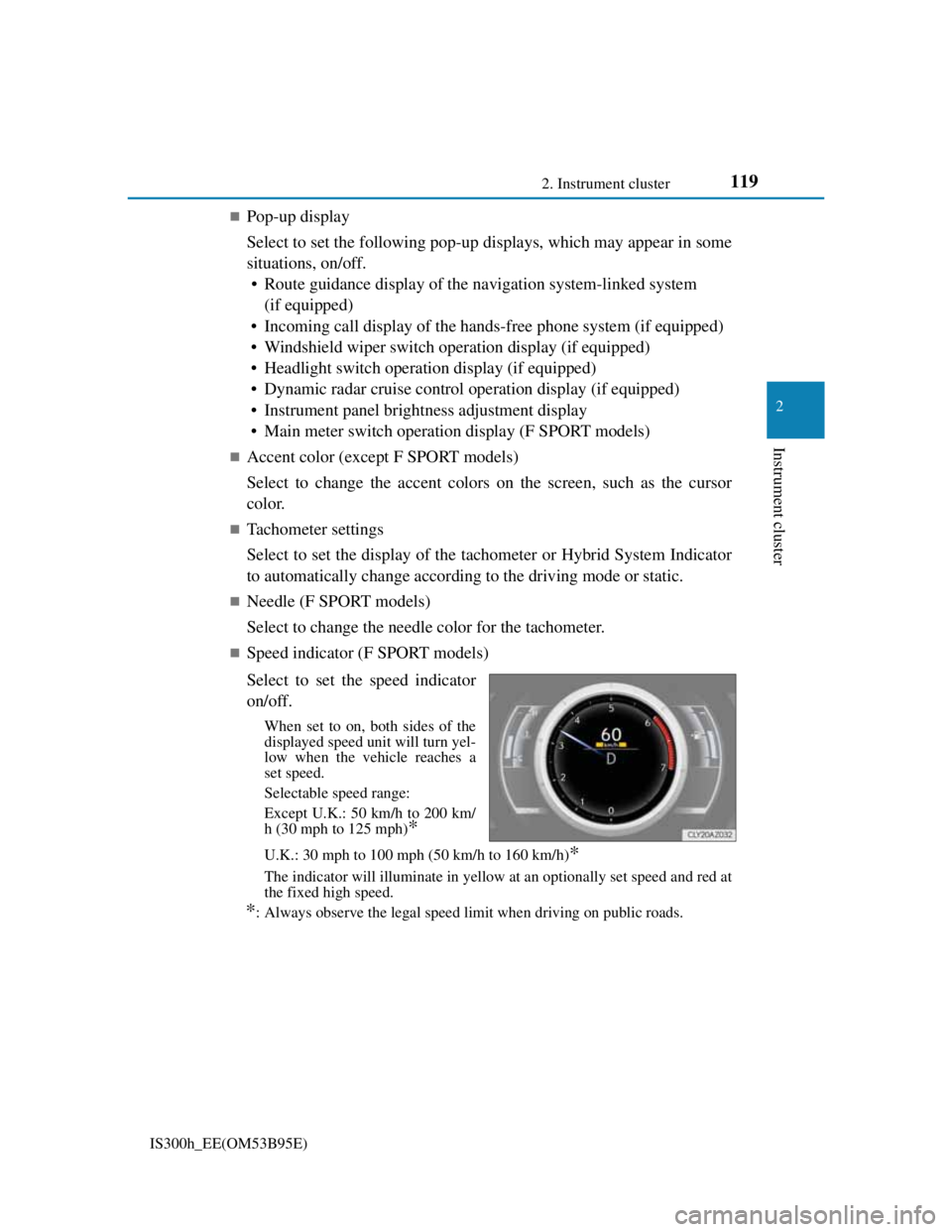

Speed indicator (F SPORT models)
Select to set the speed indicator
on/off.
When set to on, both sides of the
displayed speed unit will turn yel-
low when the vehicle reaches a
set speed.
Selectable speed range:
Except U.K.: 50 km/h to 200 km/
h (30 mph to 125 mph)
*
U.K.: 30 mph to 100 mph (50 km/h to 160 km/h)*
The indicator will illuminate in yellow at an optionally set speed and red at
the fixed high speed.
*: Always observe the legal speed limit when driving on public roads.

1202. Instrument cluster
IS300h_EE(OM53B95E)

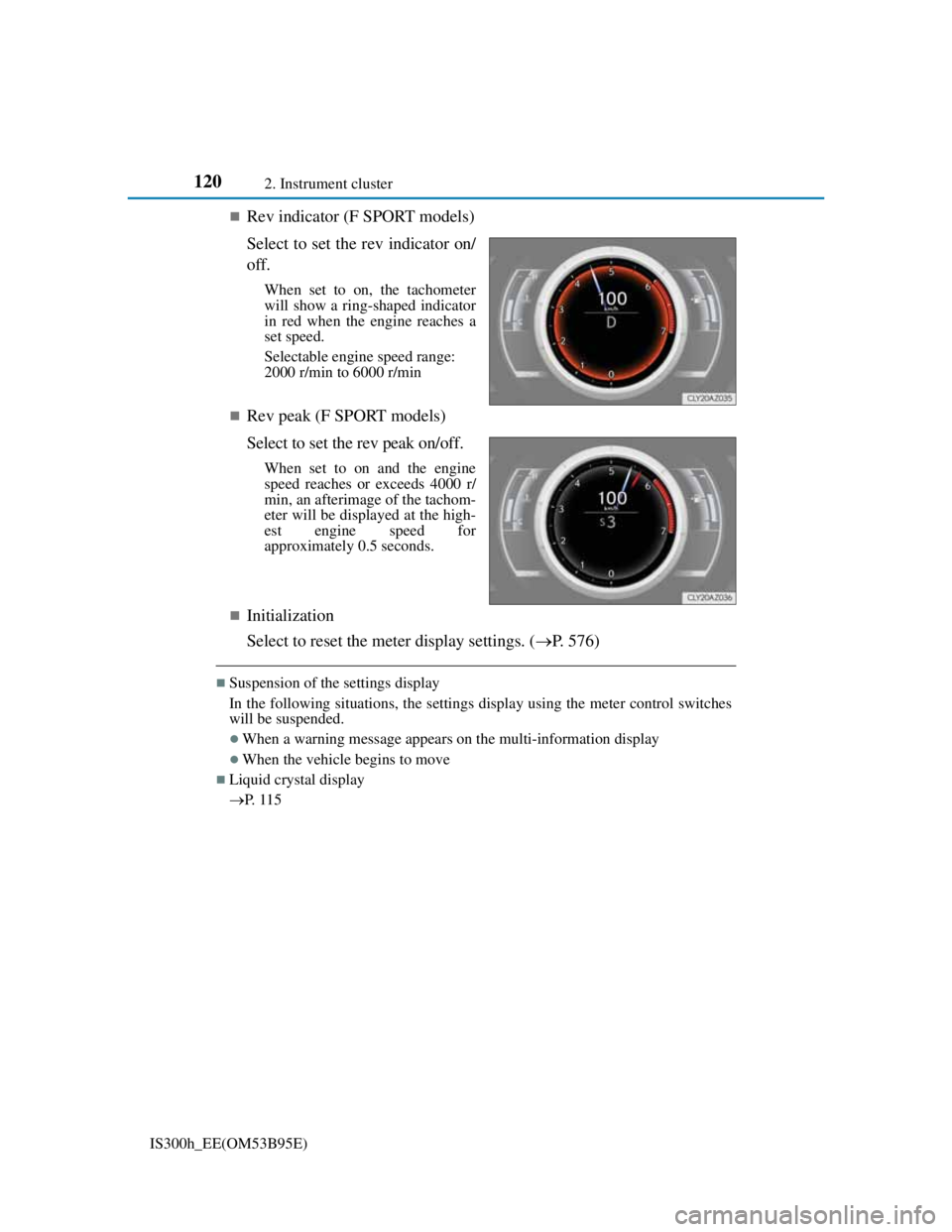

Rev indicator (F SPORT models)
Select to set the rev indicator on/
off.
When set to on, the tachometer
will show a ring-shaped indicator
in red when the engine reaches a
set speed.
Selectable engine speed range:
2000 r/min to 6000 r/min
Rev peak (F SPORT models)
Select to set the rev peak on/off.
When set to on and the engine
speed reaches or exceeds 4000 r/
min, an afterimage of the tachom-
eter will be displayed at the high-
est engine speed for
approximately 0.5 seconds.
Initialization
Select to reset the meter display settings. (P. 576)
Suspension of the settings display
In the following situations, the settings display using the meter control switches
will be suspended.
When a warning message appears on the multi-information display
When the vehicle begins to move
Liquid crystal display
P. 1 1 5

1212. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53B95E)
CAUTION
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear num-
ber appearing on the display. This lag could cause the driver to downshift
again, causing rapid and excessive engine braking and possibly an accident
resulting in death or injury.
Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health hazard.
NOTICE
During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is operating
while setting up the display features.

1222. Instrument cluster
IS300h_EE(OM53B95E)

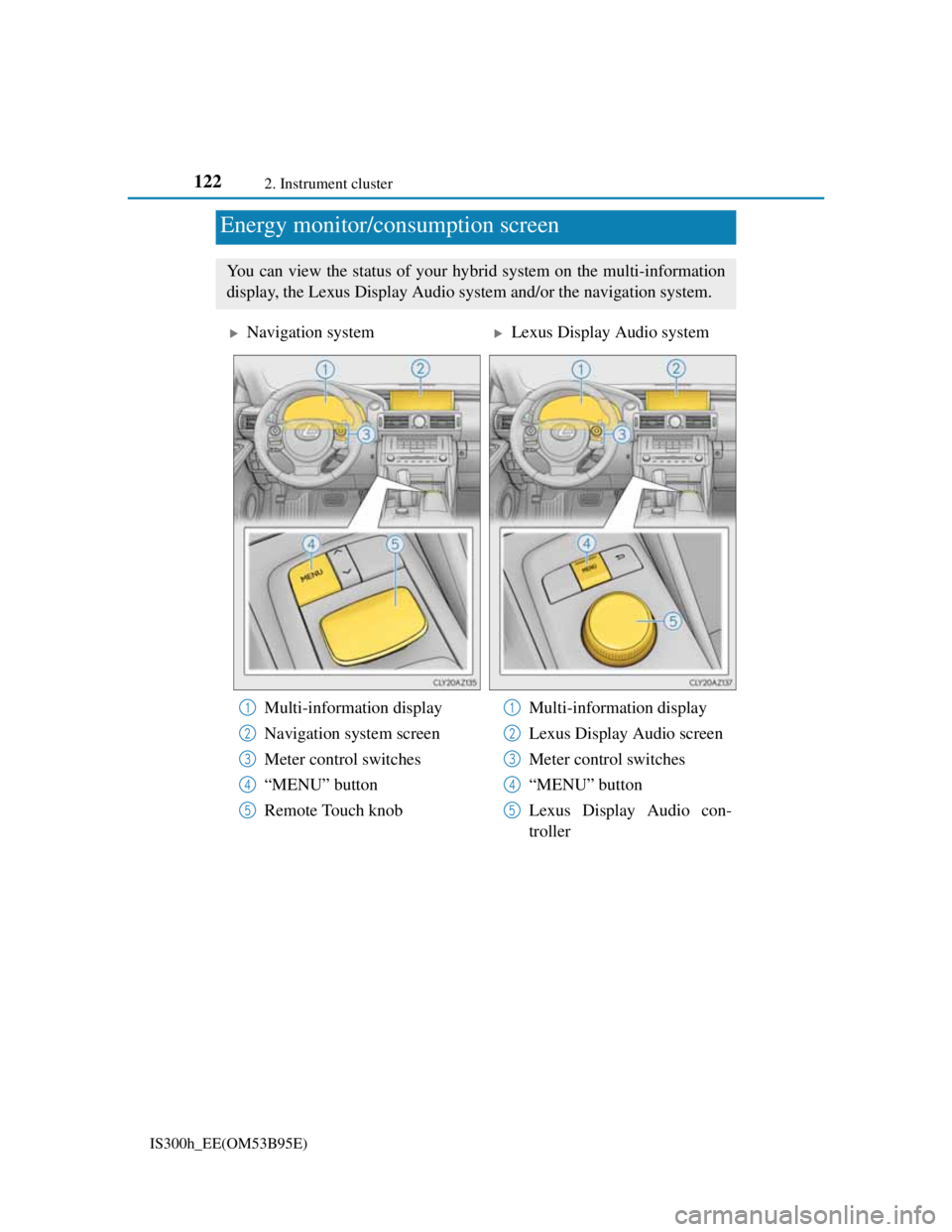

Energy monitor/consumption screen
You can view the status of your hybrid system on the multi-information
display, the Lexus Display Audio system and/or the navigation system.
Navigation systemLexus Display Audio system
Multi-information display
Navigation system screen
Meter control switches
“MENU” button
Remote Touch knobMulti-information display
Lexus Display Audio screen
Meter control switches
“MENU” button
Lexus Display Audio con-
troller
1
2
3
4
5
1
2
3
4
5

1232. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53B95E)
Navigation system
Press the “MENU” button on the
Remote Touch, and then select
“Car” on the “Menu” screen.
If the “Trip information” or “Past
record” screen is displayed, select
“Energy”.
Lexus Display Audio system
Press the “MENU” button on the
Lexus Display Audio controller,
and then select “Car” on the
“MENU” screen.
If the “Energy monitor” screen
does not appear, move the con-
troller to the right and select
“Energy”.
Multi-information display
Press the meter control switches several times to select the energy
monitor display.

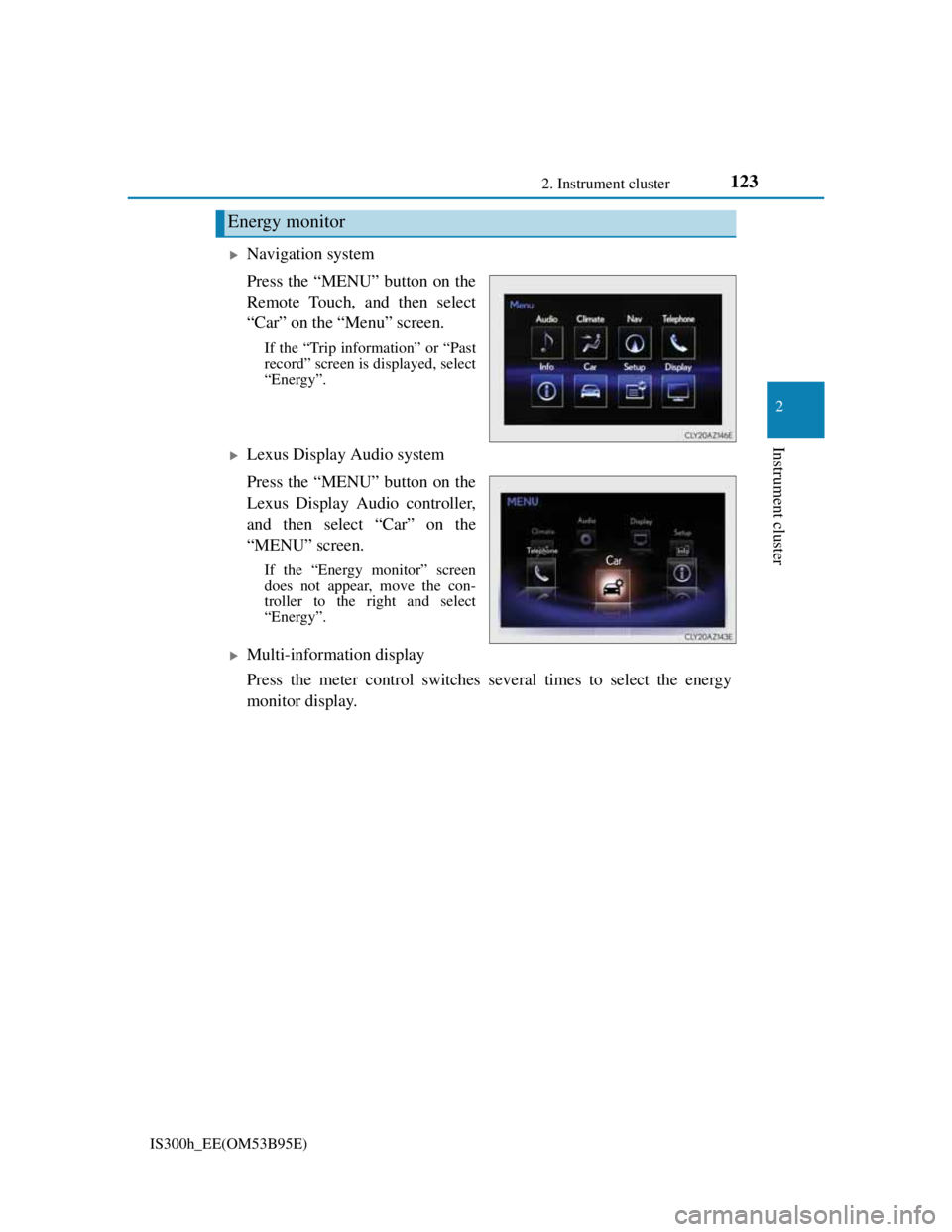

Energy monitor

1242. Instrument cluster
IS300h_EE(OM53B95E)

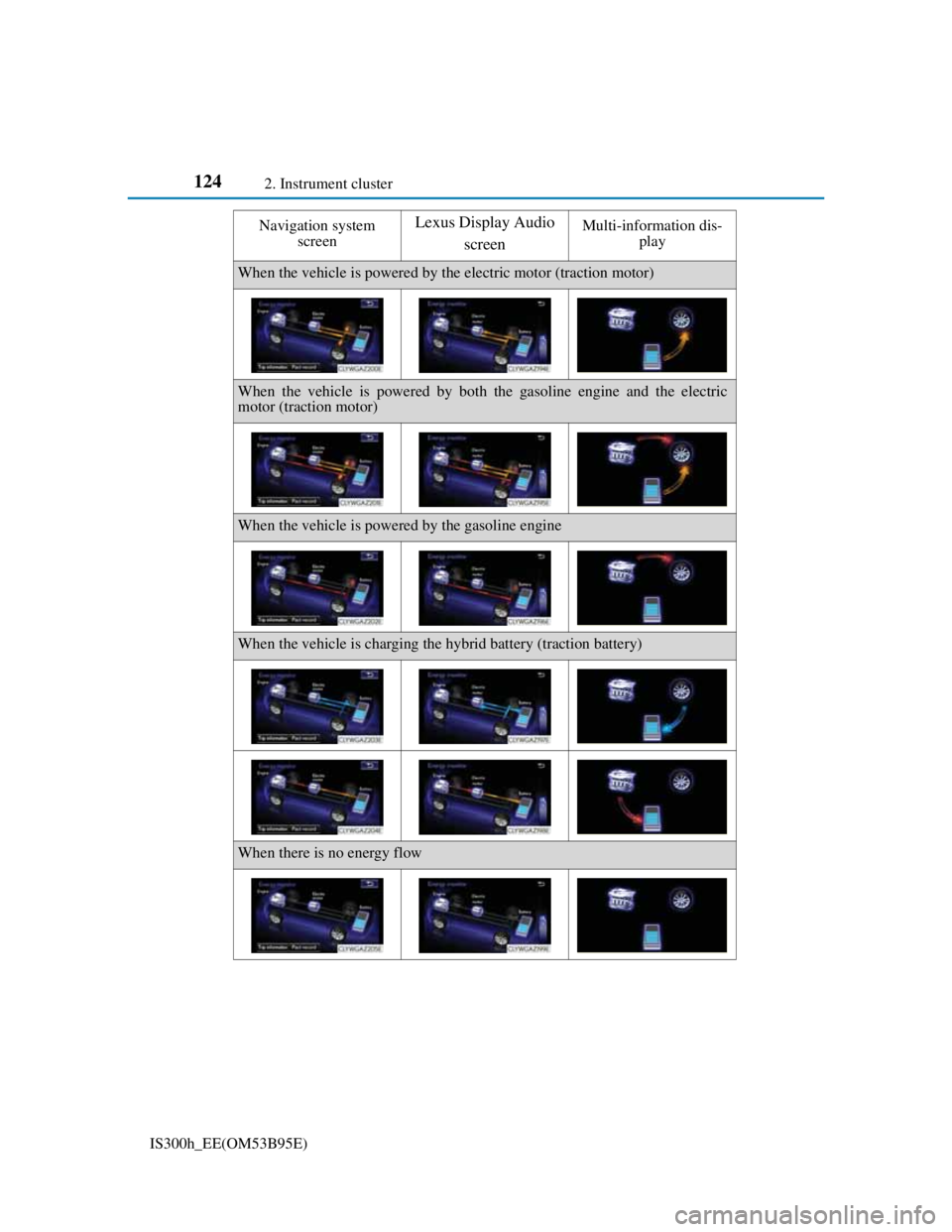

Navigation system
screenLexus Display Audio
screenMulti-information dis-
play
When the vehicle is powered by the electric motor (traction motor)
When the vehicle is powered by both the gasoline engine and the electric
motor (traction motor)
When the vehicle is powered by the gasoline engine
When the vehicle is charging the hybrid battery (traction battery)
When there is no energy flow

1252. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53B95E)These images are examples only.
Trip information
Navigation system
Press the “MENU” button on the Remote Touch, and then select “Car”
on the “Menu” screen.
If the “Energy monitor” or “Past record” screen is displayed, select “Trip
information”.
Resetting the consumption
data
Fuel consumption in the past
15 minutes
Regenerated energy in the past
15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
Displays the average vehicle
speed since the hybrid system
was started.
Displays the elapsed time since the hybrid system was started.
Cruising range (P. 128)
Hybrid battery (traction battery) status
Fuel consumption
Navigation system
screenLexus Display Audio
screenMulti-information dis-
play
LowFullLowFullLowFull
1
2
3
4
5
6

1262. Instrument cluster
IS300h_EE(OM53B95E)

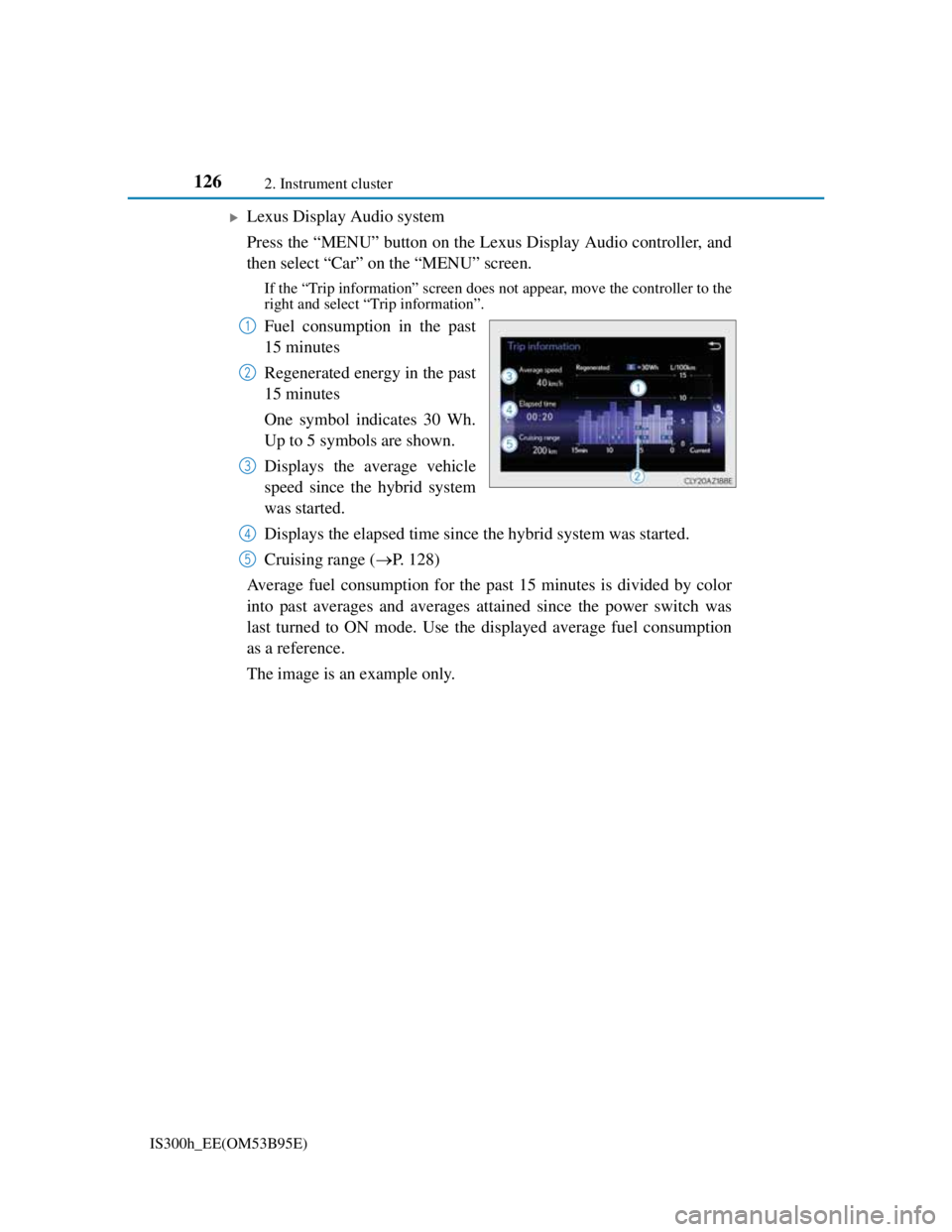

Lexus Display Audio system
Press the “MENU” button on the Lexus Display Audio controller, and
then select “Car” on the “MENU” screen.
If the “Trip information” screen does not appear, move the controller to the
right and select “Trip information”.
Fuel consumption in the past
15 minutes
Regenerated energy in the past
15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
Displays the average vehicle
speed since the hybrid system
was started.
Displays the elapsed time since the hybrid system was started.
Cruising range (P. 128)
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the power switch was
last turned to ON mode. Use the displayed average fuel consumption
as a reference.
The image is an example only.1
2
3
4
5

1272. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53B95E)

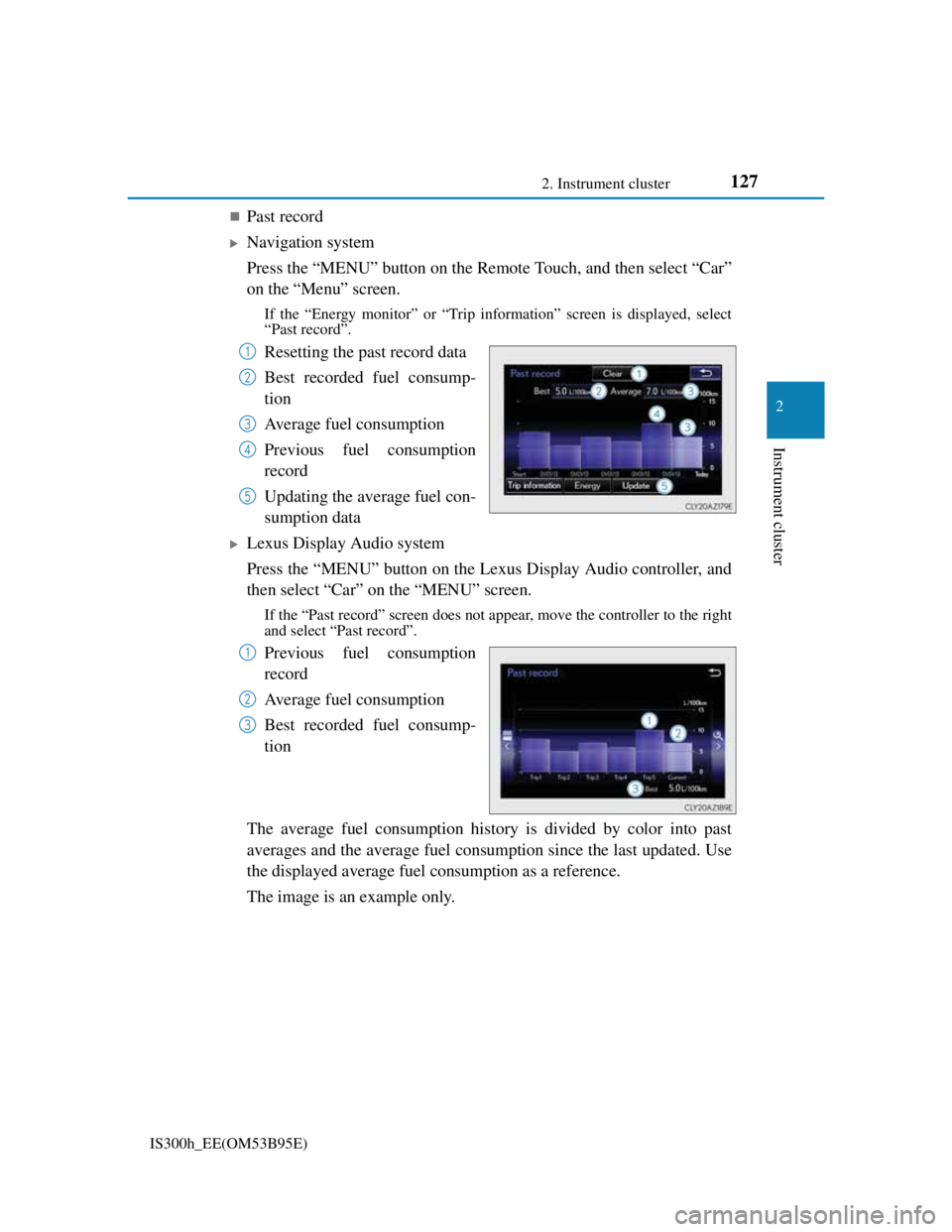

Past record
Navigation system
Press the “MENU” button on the Remote Touch, and then select “Car”
on the “Menu” screen.
If the “Energy monitor” or “Trip information” screen is displayed, select
“Past record”.
Resetting the past record data
Best recorded fuel consump-
tion
Average fuel consumption
Previous fuel consumption
record
Updating the average fuel con-
sumption data
Lexus Display Audio system
Press the “MENU” button on the Lexus Display Audio controller, and
then select “Car” on the “MENU” screen.
If the “Past record” screen does not appear, move the controller to the right
and select “Past record”.
Previous fuel consumption
record
Average fuel consumption
Best recorded fuel consump-
tion
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated. Use
the displayed average fuel consumption as a reference.
The image is an example only.
1
2
3
4
5
1
2
3
