The coolant level is satisfac-
tory if it is between the
“FULL” and “LOW” lines on
the reservoir.
Reservoir
“FULL”
“LOW”
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the hybrid system and turn the air conditioning system on to
check that the radiator cooling fan operates and to check for coolant
leaks from the radiator or hoses.
The fan operates when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fan is operating by checking the fan
sound and air flow. If it is difficult to check these, turn the air conditioning
system on and off repeatedly.
(The fan may not operate in freezing temperatures.)
If the fan is not operating:
Stop the hybrid system immediately and contact any authorized
Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional.
If the fan is operating:
Have the vehicle inspected at the nearest authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
If “Hybrid System Overheat” is shown on the multi-information dis-
play
Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
4
1
2
3
5
6
7
1
2

5588-2. Steps to take in an emergency
IS300h_EE(OM53B95E)
After the hybrid system has
cooled down, inspect the hoses
and radiator core (radiator) for
any leaks.
Radiator
Cooling fans

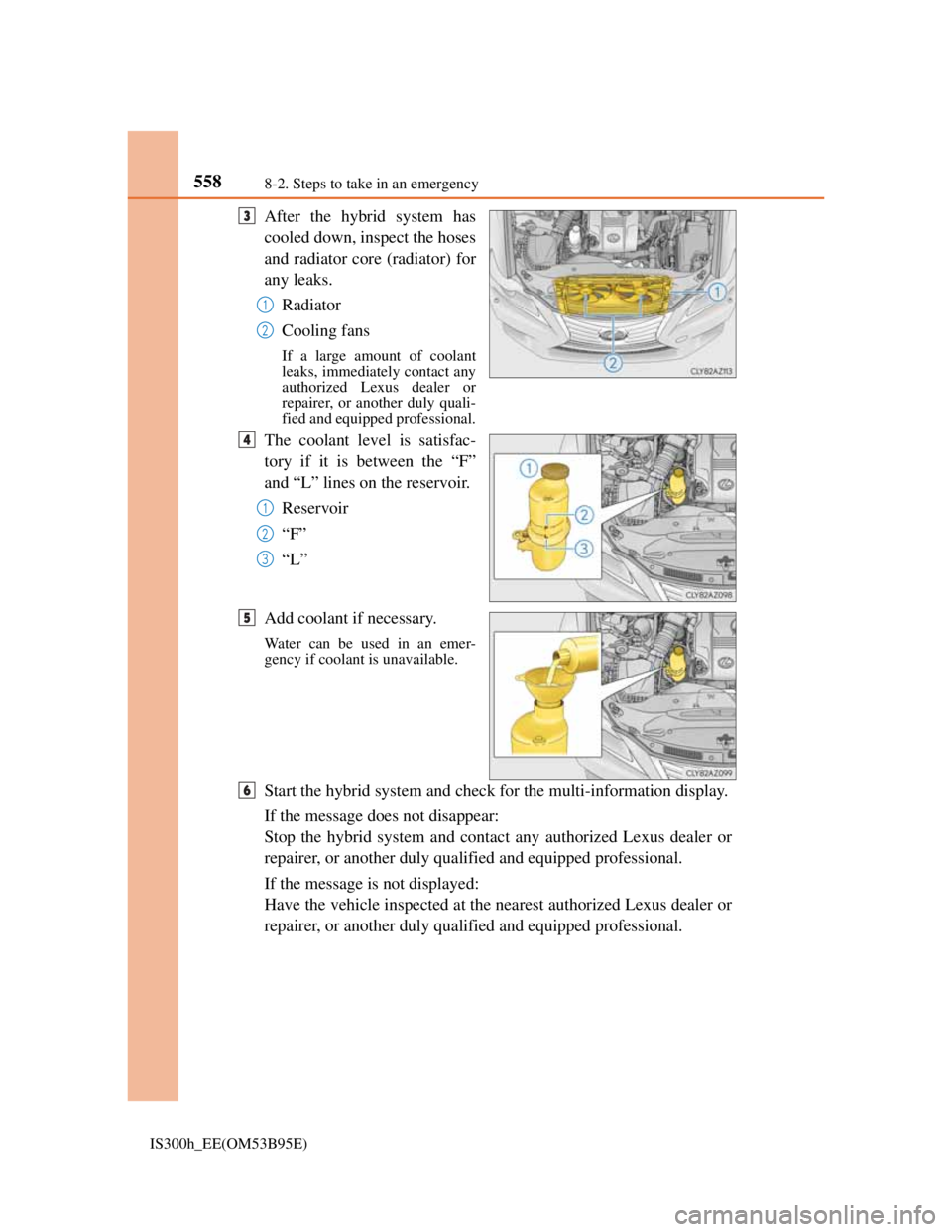

If a large amount of coolant
leaks, immediately contact any
authorized Lexus dealer or
repairer, or another duly quali-
fied and equipped professional.

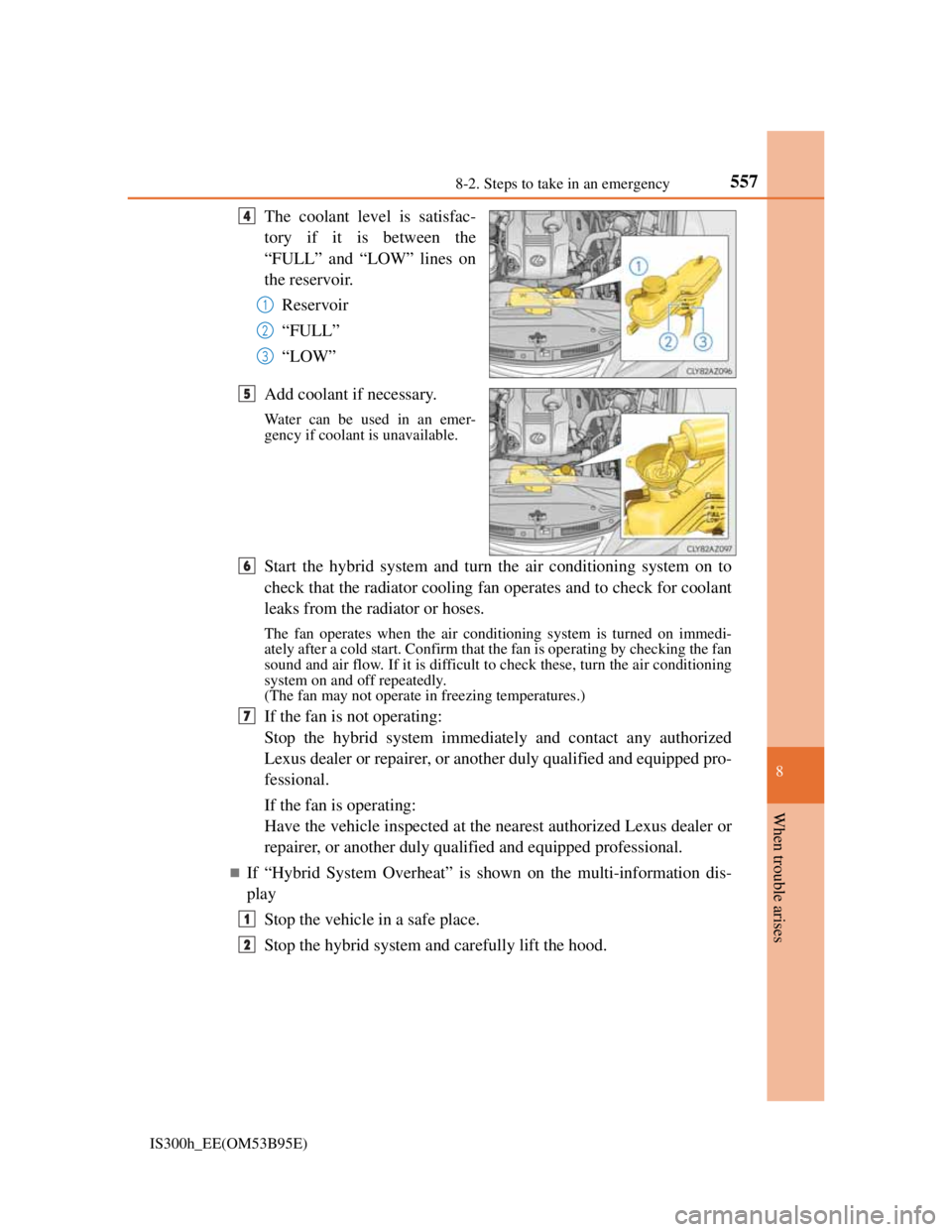

The coolant level is satisfac-
tory if it is between the “F”
and “L” lines on the reservoir.
Reservoir
“F”
“L”
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the hybrid system and check for the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
If the message is not displayed:
Have the vehicle inspected at the nearest authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
3
1
2
4
1
2
3
5
6

5598-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53B95E)

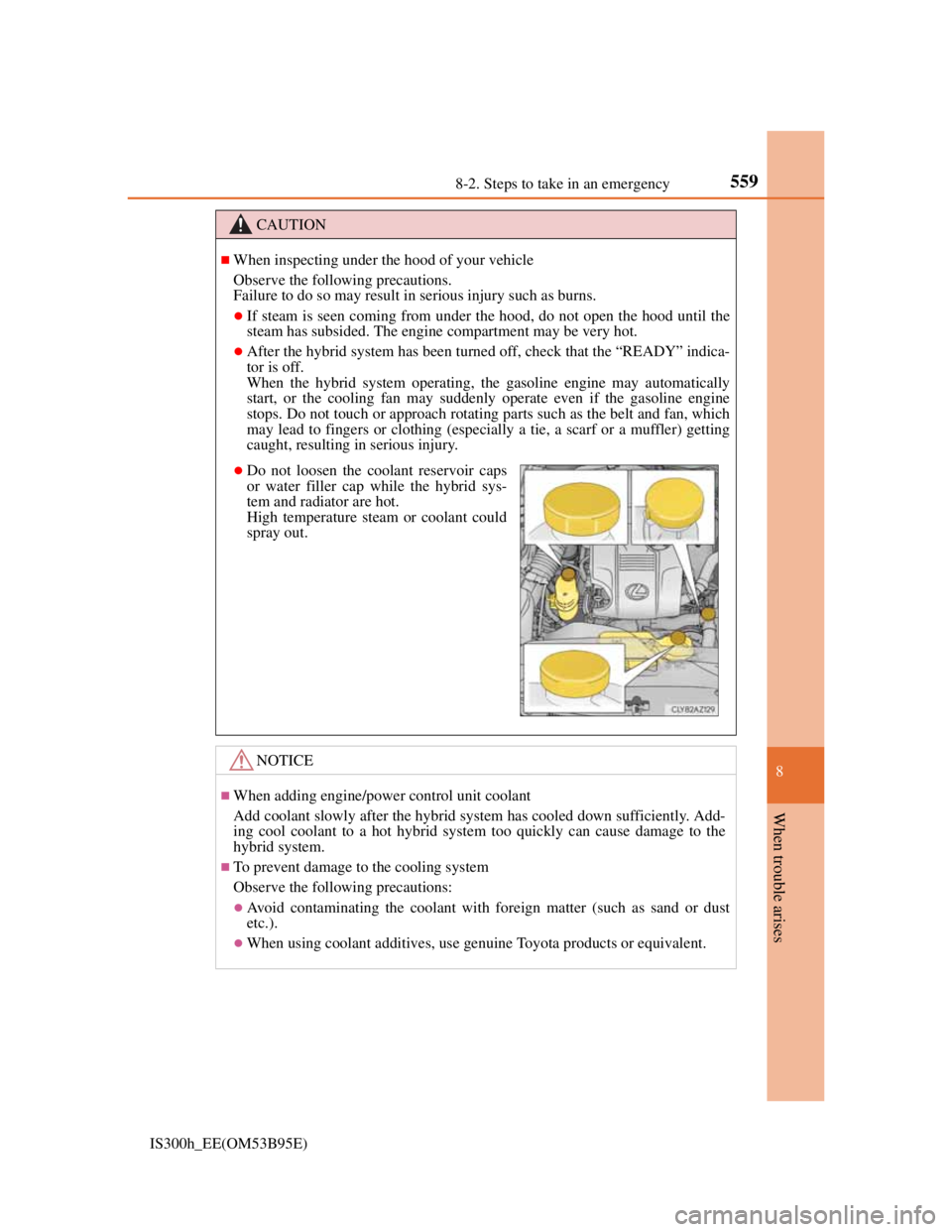

CAUTION
When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot.
After the hybrid system has been turned off, check that the “READY” indica-
tor is off.
When the hybrid system operating, the gasoline engine may automatically
start, or the cooling fan may suddenly operate even if the gasoline engine
stops. Do not touch or approach rotating parts such as the belt and fan, which
may lead to fingers or clothing (especially a tie, a scarf or a muffler) getting
caught, resulting in serious injury.
NOTICE
When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Add-
ing cool coolant to a hot hybrid system too quickly can cause damage to the
hybrid system.
To prevent damage to the cooling system
Observe the following precautions:
Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
When using coolant additives, use genuine Toyota products or equivalent.
Do not loosen the coolant reservoir caps
or water filler cap while the hybrid sys-
tem and radiator are hot.
High temperature steam or coolant could
spray out.

5608-2. Steps to take in an emergency
IS300h_EE(OM53B95E)
Stop the hybrid system. Set the parking brake and shift the shift lever to
P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other material under the rear wheels to
help provide traction.
Restart the hybrid system.
Shift the shift lever to D or R and release the parking brake. Then,
while exercising caution, depress the accelerator pedal.
When it is difficult to free the vehicle

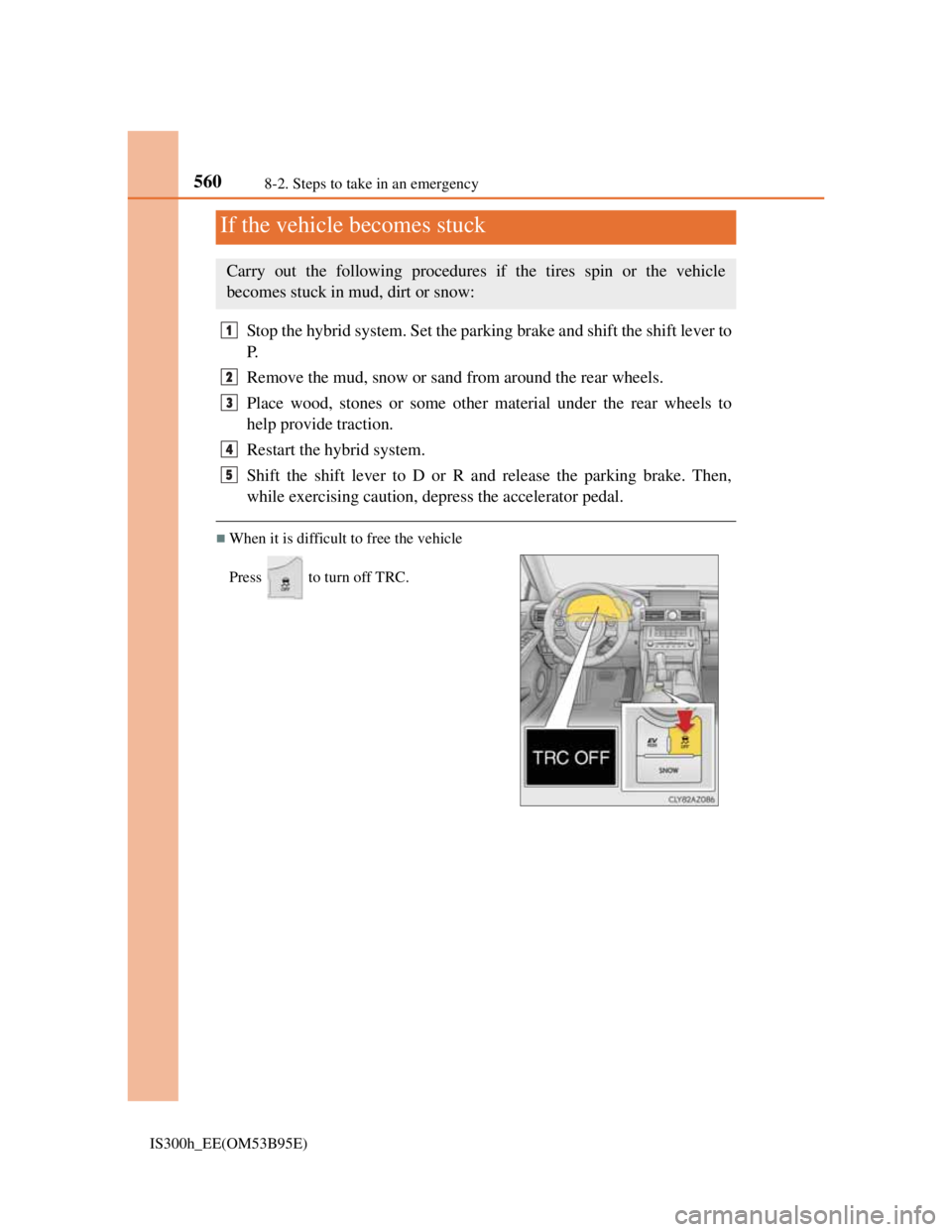

If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRC.
1
2
3
4
5

5618-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53B95E)
CAUTION
When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or people. The
vehicle may also lunge forward or lunge back suddenly as it becomes free. Use
extreme caution.
When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident resulting in death or serious injury.
NOTICE
To avoid damaging the transmission and other components
Avoid spinning the rear wheels and depressing the accelerator pedal more
than necessary.
If the vehicle remains stuck even after these procedures are performed, the
vehicle may require towing to be freed.

561
9Vehicle specifications
IS300h_EE(OM53B95E)
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)......... 562
Fuel information ............... 573
9-2. Customization
Customizable features....... 575
9-3. Items to initialize
Items to initialize .............. 585

562
IS300h_EE(OM53B95E)9-1. Specifications
*1: Unladen vehicle
*2: Vehicles with 255/35R18 tires
*3: AVE30L-AEXEHW and AVE30R-AEXEHW models
*4: AVE30L-AEXLHW and AVE30R-AEXLHW models
The model code is indicated on the manufacturer’s label. (P. 563)
*5: Vehicles with a towing package
Maintenance data (fuel, oil level, etc.)

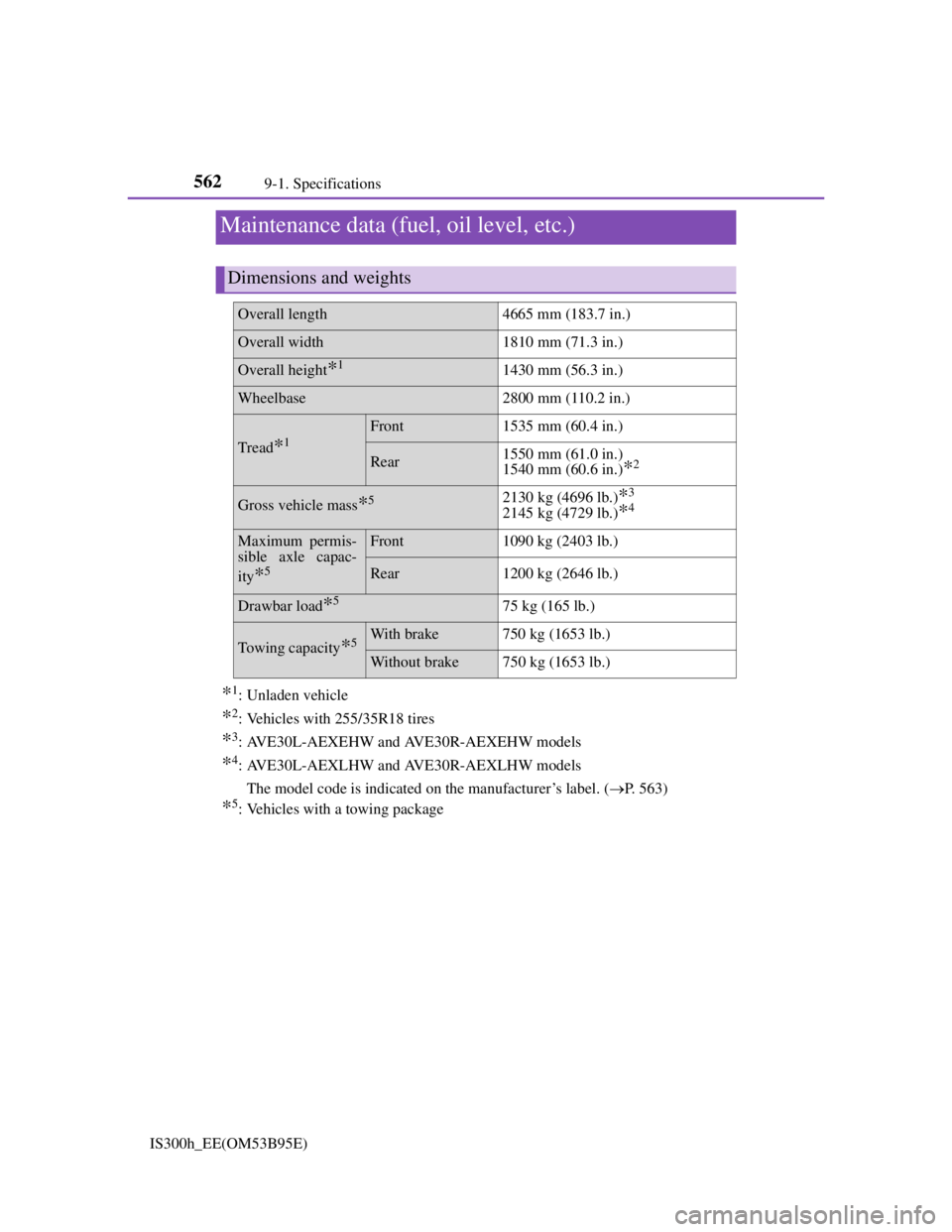

Dimensions and weights
Overall length 4665 mm (183.7 in.)
Overall width 1810 mm (71.3 in.)
Overall height*11430 mm (56.3 in.)
Wheelbase 2800 mm (110.2 in.)
Tread*1Front 1535 mm (60.4 in.)
Rear1550 mm (61.0 in.)
1540 mm (60.6 in.)*2
Gross vehicle mass*52130 kg (4696 lb.)*3
2145 kg (4729 lb.)*4
Maximum permis-
sible axle capac-
ity
*5
Front 1090 kg (2403 lb.)
Rear 1200 kg (2646 lb.)
Drawbar load*575 kg (165 lb.)
Towing capacity*5With brake 750 kg (1653 lb.)
Without brake 750 kg (1653 lb.)

563
9 9-1. Specifications
Vehicle specifications
IS300h_EE(OM53B95E)
Vehicle identification number

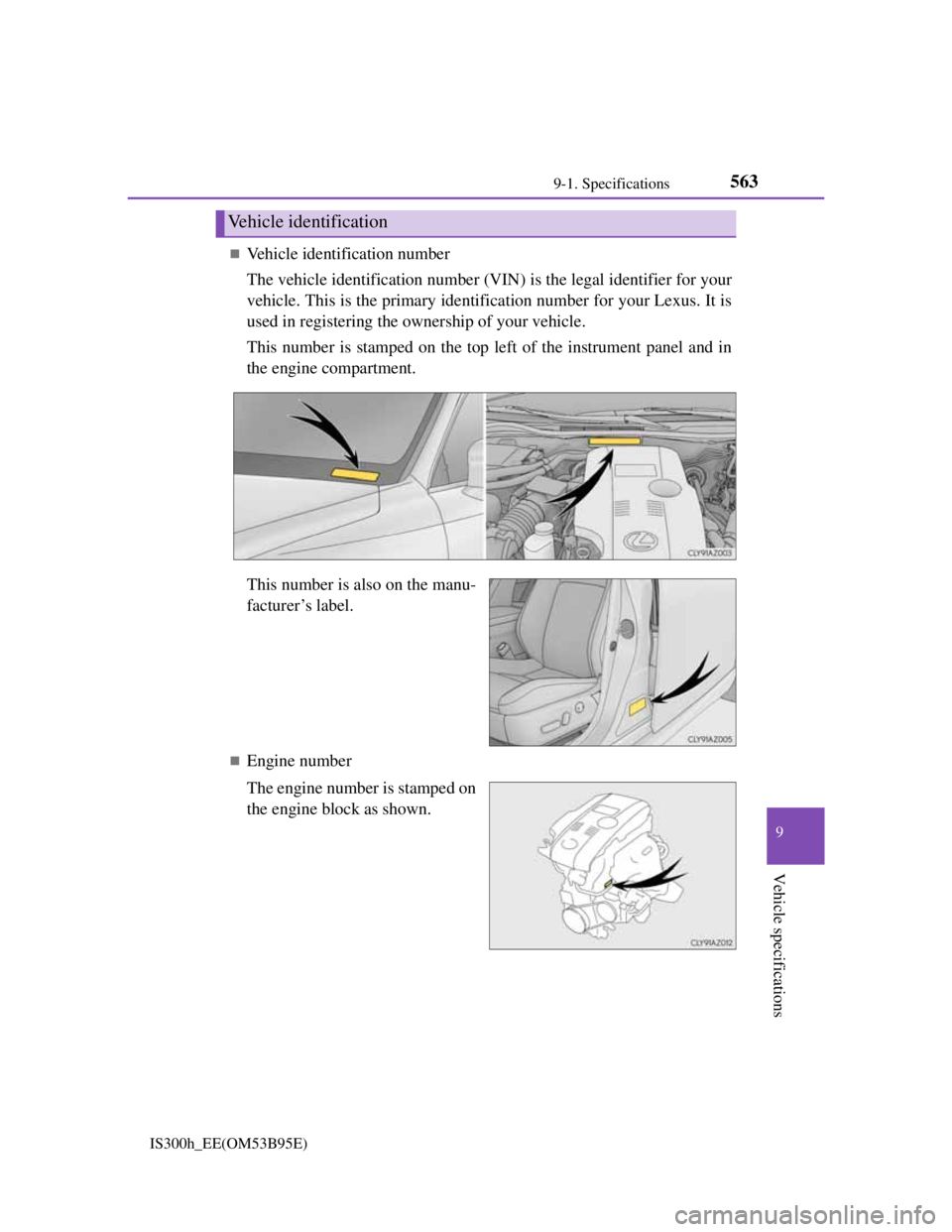

The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is
used in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in
the engine compartment.
This number is also on the manu-
facturer’s label.
Engine number
The engine number is stamped on
the engine block as shown.
Vehicle identification

5649-1. Specifications
IS300h_EE(OM53B95E)

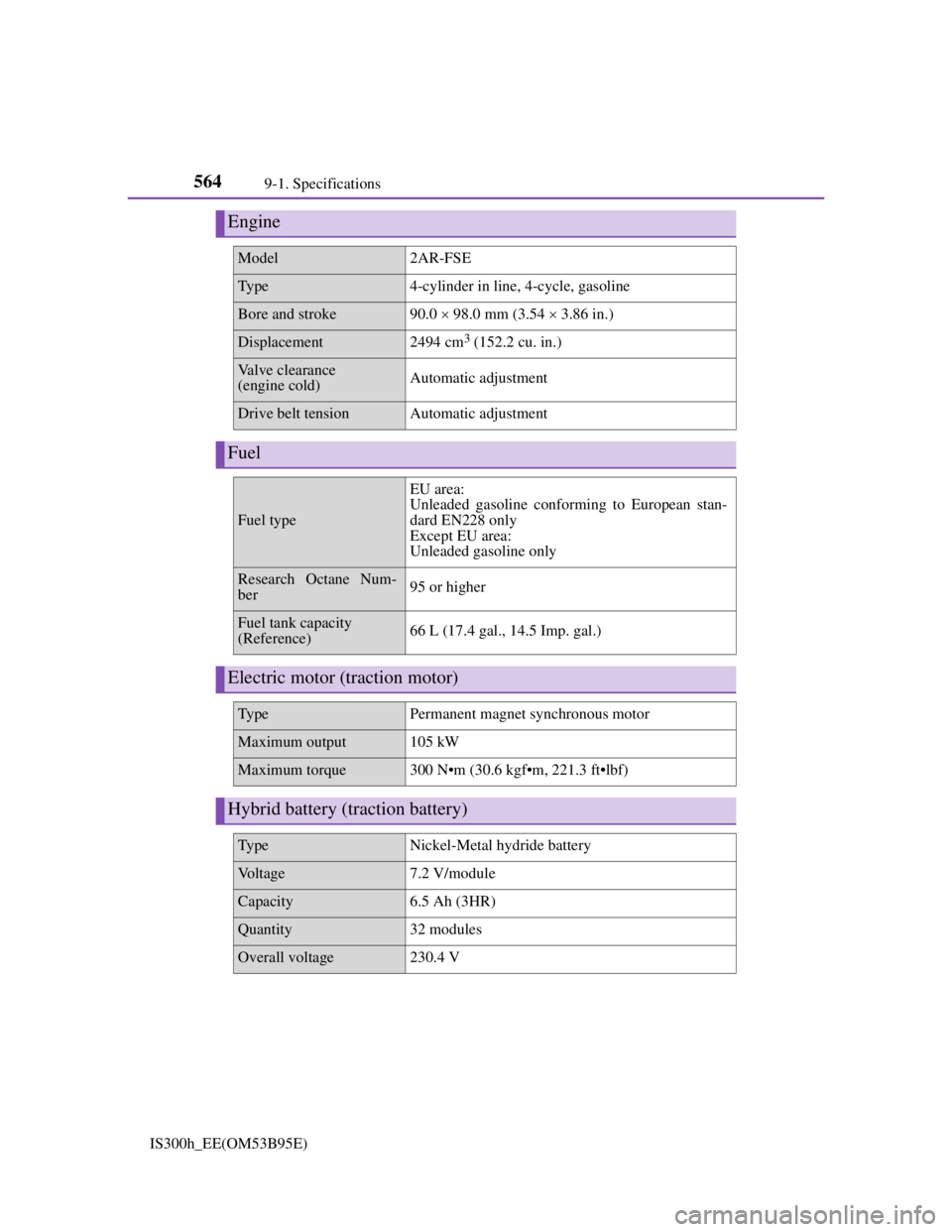

Engine
Model2AR-FSE
Type4-cylinder in line, 4-cycle, gasoline
Bore and stroke90.0  98.0 mm (3.54  3.86 in.)
Displacement2494 cm3 (152.2 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European stan-
dard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Num-
ber95 or higher
Fuel tank capacity
(Reference)66 L (17.4 gal., 14.5 Imp. gal.)
Electric motor (traction motor)
TypePermanent magnet synchronous motor
Maximum output105 kW
Maximum torque300 N•m (30.6 kgf•m, 221.3 ft•lbf)
Hybrid battery (traction battery)
TypeNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity32 modules
Overall voltage230.4 V

565
9 9-1. Specifications
Vehicle specifications
IS300h_EE(OM53B95E)
Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turn off the hybrid system, wait more than
5 minutes, and check the oil level on the dipstick.
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Lexus vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 0W-20, 5W-20 or
5W-30 engine oil is recom-
mended.

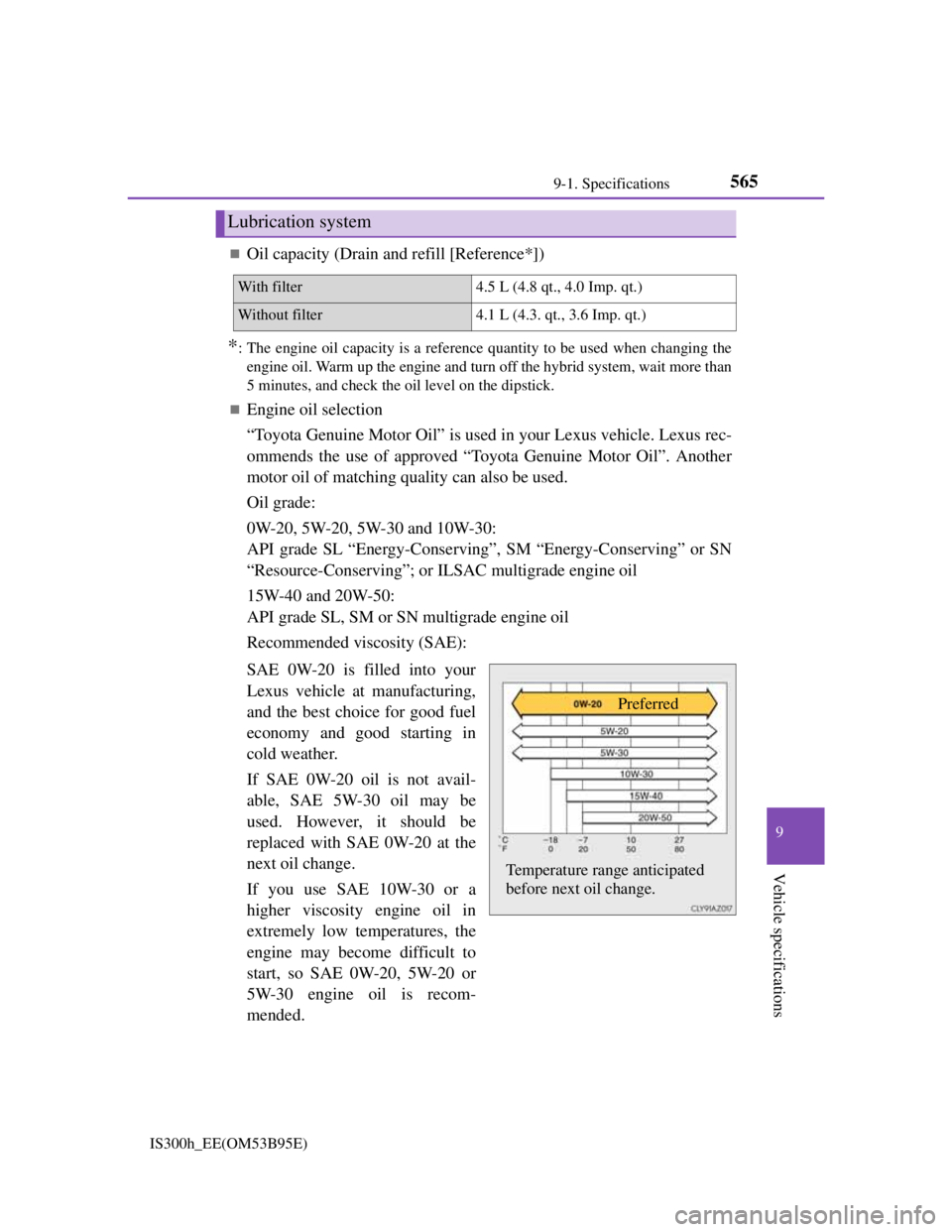

Lubrication system
With filter4.5 L (4.8 qt., 4.0 Imp. qt.)
Without filter4.1 L (4.3. qt., 3.6 Imp. qt.)
Temperature range anticipated
before next oil change.Preferred
