1. LEXUS PARKING ASSIST MONITOR
IS300h/250_Navi_EE
zThe parking assist monitor displays the last-used parking mode first.
XPerpendicular parkingXParallel parking
zWhen the shift lever is shifted to the “R” position and any mode button (such as
“MENU”) is pressed
¨The parking assist monitor is canceled, and the screen is switched to the mode of the
button that was pressed.
SCREEN DISPLAY
The parking assist monitor screen will be displayed if the shift lever is shifted to the “R”
position while the engine switch is in IGNITION ON mode.
No.DisplayFunction
Display mode switch screen but-
tonSwitches the display mode.
Parking mode switch screen but-
tonSwitches the parking mode (between perpendic-
ular parking and parallel parking assist screens)
Narrow mode screen on-off but-
tonSwitch the narrow mode on and off. (→P.291)
Lexus parking assist-sensorIf an obstacle is detected while the Lexus parking
assist-sensor is on, a display is shown in the top
right corner of the screen.
CANCELING LEXUS PARKING ASSIST MONITOR
The parking assist monitor is canceled when the shift lever is shifted into any position
other than the “R” position.
IS_Navi_EE_53C71E.book 288 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

289
1. LEXUS PARKING ASSIST MONITOR
PERIPHERAL MONITORING SYSTEM
IS300h/250_Navi_EE
6
XEstimated course line display mode
(→P.292)XParking assist guide line display mode
(→P.294)
XDistance guide line display mode
USING THE SYSTEM WHEN
PERPENDICULAR PARKING
Use any of the following modes when
perpendicular parking (for example,
when parking in a garage).
Estimated course lines are displayed
which move in accordance with the op-
eration of the steering wheel.
The steering wheel return points (park-
ing assist guide lines) are displayed.
Distance guide lines only are displayed.
IS_Navi_EE_53C71E.book 289 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

290
1. LEXUS PARKING ASSIST MONITOR
IS300h/250_Navi_EE
1Select the display mode switch screen
button.
zWith each select, the perpendicular park-
ing assist screen switches as follows:
SWITCHING THE DISPLAY
MODE
Distance guide line display
mode
Parking assist guide line
display mode
Estimated course line
display mode
USING THE SYSTEM WHEN
PARALLEL PARKING
Screen display and beep sounds pro-
vide an estimation of the point at which
you should turn the steering wheel when
parallel parking. If the position the vehi-
cle is to be parked in is narrower than
usual, narrow mode can be used.
IS_Navi_EE_53C71E.book 290 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

291
1. LEXUS PARKING ASSIST MONITOR
PERIPHERAL MONITORING SYSTEM
IS300h/250_Navi_EE
6
1Select the narrow mode screen on-off
button on the parallel parking assist.
zWith each select, the mode switches as fol-
lows:
1Select the parking mode switch screen
button.
zWith each select, the perpendicular park-
ing and parallel parking assist screen
switches as follows:
SWITCHING TO NARROW
MODE
Caution screen
Normal mode
Narrow mode
“I agree”
SWITCHING THE PARKING
MODE SCREEN
Perpendicular parking
• Estimated course line display mode
• Parking assist guide line display mode
• Distance guide line display modePa ra l l el p a r k i n g
IS_Navi_EE_53C71E.book 291 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

292
1. LEXUS PARKING ASSIST MONITOR
IS300h/250_Navi_EE
2. PERPENDICULAR PARKING (ESTIMATED COURSE LINE DISPLAY MODE)
SCREEN DESCRIPTION
No.DisplayFunction
Vehicle width guide line
Displays a guide path when the vehicle is being backed
straight up.
•The displayed width is wider than the actual vehicle
width.
•These guide lines align with the estimated course lines
when the vehicle is going straight ahead.
Estimated course linesShows an estimated course when the steering wheel is
turned.
Distance guide lines
Shows distance behind the vehicle when the steering
wheel is turned.
•The guide lines move in conjunction with the estimated
course lines.
•The guide lines display points approximately 1.5 ft. (0.5
m) (red) and approximately 3 ft. (1 m) (yellow) from the
centre of the edge of the bumper.
Distance guide line
Shows distance behind the vehicle.
•Displays a point approximately 1.5 ft. (0.5 m) (blue)
from the edge of the bumper.
CAUTION
●If the steering wheel is straight and the vehicle width guide lines and the estimated course
lines are not in alignment, have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
IS_Navi_EE_53C71E.book 292 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

294
1. LEXUS PARKING ASSIST MONITOR
IS300h/250_Navi_EE
3. PERPENDICULAR PARKING (PARKING ASSIST GUIDE LINE DISPLAY MODE)
SCREEN DESCRIPTION
No.DisplayFunction
Vehicle width guide line
Displays a guide path when the vehicle is being backed
straight up.
•The displayed width is wider than the actual vehicle
width.
Parking assist guide lines
Shows the path of the smallest turn possible behind the ve-
hicle.
•Shows the approximate position of the steering wheel
when parking.
Distance guide line
Shows distance behind the vehicle.
•Display points approximately 1.5 ft. (0.5 m) (red) from
the edge of the bumper.
IS_Navi_EE_53C71E.book 294 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

296
1. LEXUS PARKING ASSIST MONITOR
IS300h/250_Navi_EE
4. PARALLEL PARKING
VEHICLE MOVEMENT PROCEDURE

Keeping parallel with the road, stop the vehicle leav-
ing a gap of approximately 3 ft. (1 m) between your
vehicle and the parked vehicle. [PARKING] : STEP 1
Back up until the black and yellow vertical pole just
overlaps the rear end of the parked vehicle. Then
stop the vehicle. [PARKING] : STEP 4
Leaving the vehicle stopped, move the steering
wheel until the blue outline meets the desired park-
ing space, and back up while keeping the steering
wheel in that position. [PARKING] : STEP 5
A curved blue line is displayed. Keep the steering
wheel in the same position and back up until the
curved blue line meets the right corner of the park-
ing space. [PARKING] : STEP 7
When it meets the right corner of the parking space,
turn the steering wheel in the opposite direction as
far as it will go. [PARKING] : STEP 8
Keeping the steering wheel in that position, check
your surroundings visually and using mirrors, and
back up using the distance guide lines etc. as a refer-
ence. [PARKING] : STEP 9
When the vehicle is approximately in the desired
parking location, parallel parking assist is complete.
[PARKING] : STEP 10
CAUTION
●Do not use the system if the display is incorrect due to an uneven (curvy/hilly) road or a non-
straight road.
●Make sure to operate the steering wheel only when the vehicle is stopped.
XApprox. 3 ft. (1 m)
IS_Navi_EE_53C71E.book 296 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

298
1. LEXUS PARKING ASSIST MONITOR
IS300h/250_Navi_EE

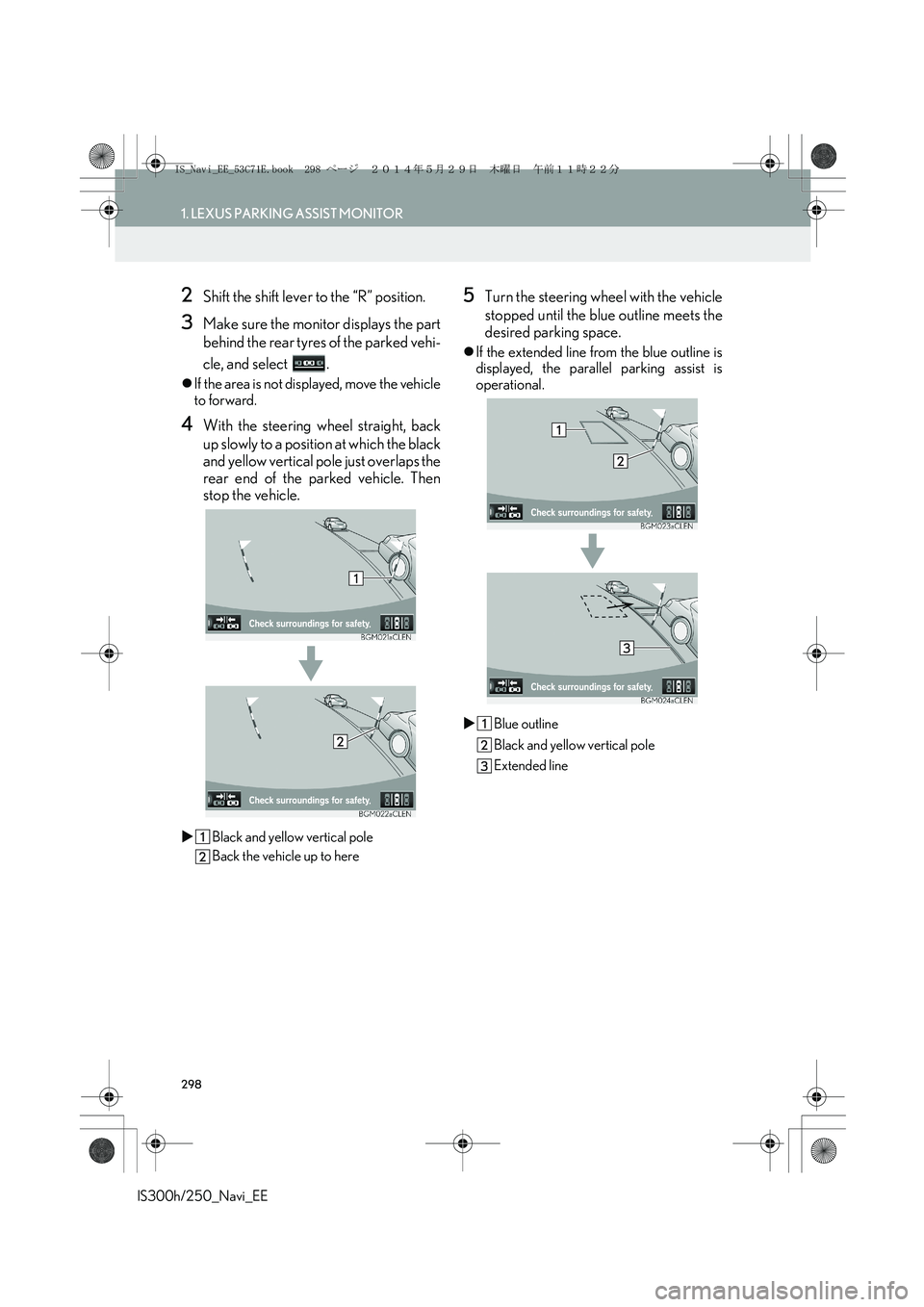

2Shift the shift lever to the “R” position.
3Make sure the monitor displays the part
behind the rear tyres of the parked vehi-
cle, and select .
zIf the area is not displayed, move the vehicle
to forward.
4With the steering wheel straight, back
up slowly to a position at which the black
and yellow vertical pole just overlaps the
rear end of the parked vehicle. Then
stop the vehicle.
XBlack and yellow vertical pole
Back the vehicle up to here
5Turn the steering wheel with the vehicle
stopped until the blue outline meets the
desired parking space.
zIf the extended line from the blue outline is
displayed, the parallel parking assist is
operational.
XBlue outline
Black and yellow vertical pole
Extended line
IS_Navi_EE_53C71E.book 298 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

302
1. LEXUS PARKING ASSIST MONITOR
IS300h/250_Navi_EE
1Select .
zIf the Lexus parking assist-sensor detects
an object while you attempt to park in a
parking space on the left, the black and yel-
low vertical pole could be obscured by the
Lexus parking assist-sensor display. In this
event, turn the Lexus parking assist-sensor
switch off (→P.312), and operate the vehi-
cle while checking the safety of the sur-
rounding area direct visually and with
mirror. After the operation, turn the switch
on.
zThe steering wheel has been turned too far,
and the system cannot function. Return the
steering wheel to its original position.
zIf the message is displayed before the out-
line is positioned over the desired parking
space, it is likely that the vehicle is too far
away from the shoulder. Check that there is
a gap of approximately 3 ft. (1 m) between
your vehicle and the parked vehicle.
XNormal mode
Narrow mode
zIf the engine switch is turned off
when the parking assist monitor is canceled
with narrow mode, the caution screen is
displayed first when the parallel parking
assist is selected next time.
CANCELING PARALLEL
PARKING ASSIST
VEHICLES EQUIPPED WITH
LEXUS PARKING ASSIST-
SENSOR
IF THE MESSAGE “Steering
wheel turned too far, please
return.” IS DISPLAYED
NARROW MODE
If the position the vehicle is to be parked
in is narrower than usual, narrow mode
can be used.
IS_Navi_EE_53C71E.book 302 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

304
1. LEXUS PARKING ASSIST MONITOR
IS300h/250_Navi_EE
5. LEXUS PARKING ASSIST MONITOR PRECAUTIONS
zThe image adjustment procedure for the
parking assist monitor screen is the same as
the procedure for adjusting the screen.
(→P. 4 7 )
AREA DISPLAYED ON
SCREEN
The parking assist monitor displays an
image of the view from the bumper of
the rear area of the vehicle.
Screen Displayed area
Corners of bumper
INFORMATION
●The area displayed on the screen may
vary according to vehicle orientation
conditions.
●Objects which are close to either corner
of the bumper or under the bumper can-
not be displayed.
●The camera uses a special lens. The dis-
tance of the image that appears on the
screen differs from the actual distance.
●Items which are located higher than the
camera may not be displayed on the
monitor.
IS_Navi_EE_53C71E.book 304 ページ ２０１４年５月２９日　木曜日　午前１１時２２分
