Lexus IS300h 2014 Navigation manual

271
6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
IS300h/250_Navi_EE
AUDIO/VISUAL SYSTEM
4
INFORMATION
●If the malfunction is not rectified: Take your vehicle to any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
IS_Navi_EE_53C71E.book 271 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

272
6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
IS300h/250_Navi_EE
IS_Navi_EE_53C71E.book 272 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

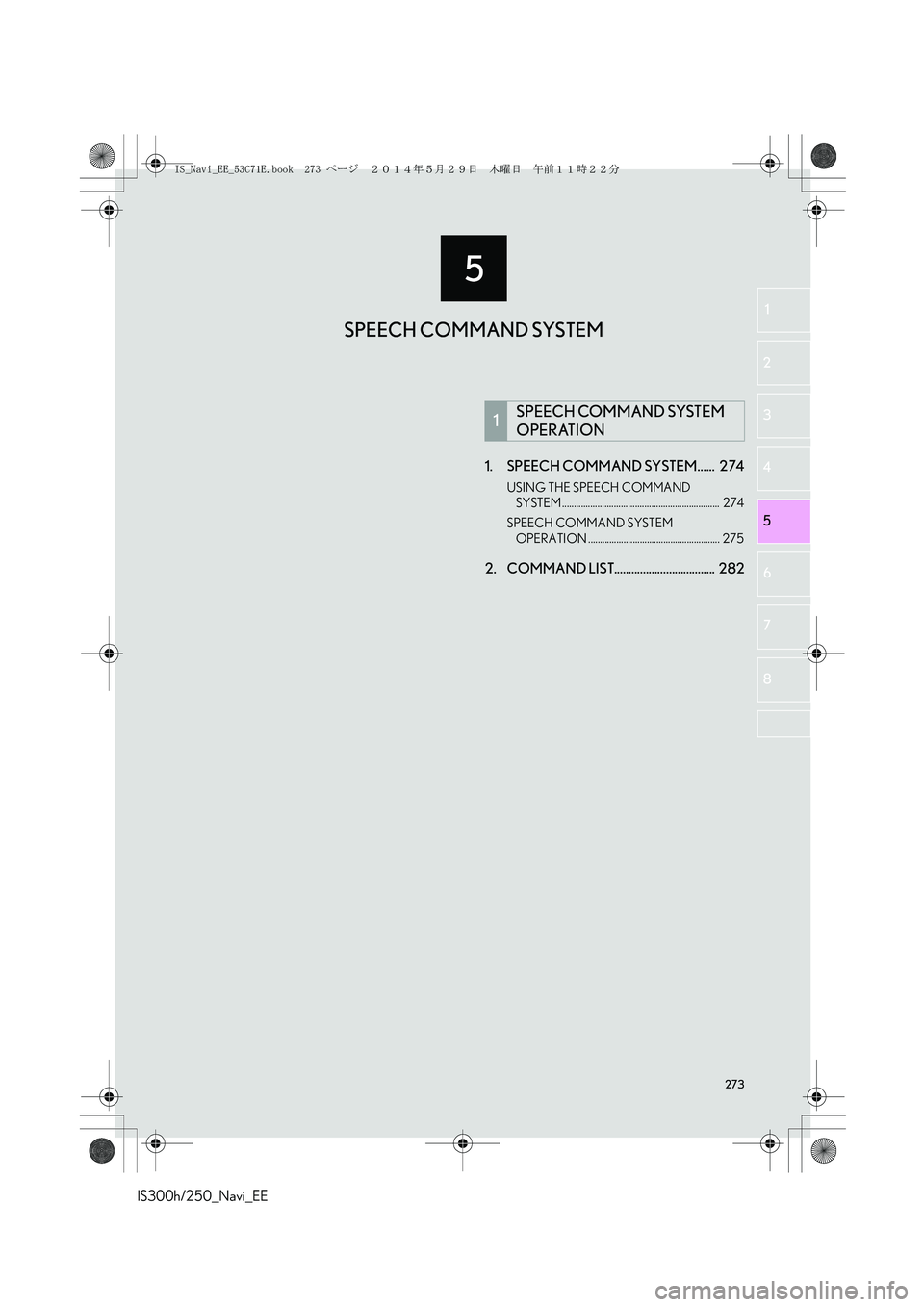

273
5
IS300h/250_Navi_EE
5 2
1
3
4
6
7
8
1. SPEECH COMMAND SYSTEM...... 274
USING THE SPEECH COMMAND
SYSTEM ................................................................... 274
SPEECH COMMAND SYSTEM
OPERATION ........................................................ 275
2. COMMAND LIST................................... 282
1SPEECH COMMAND SYSTEM
OPERATION
SPEECH COMMAND SYSTEM
IS_Navi_EE_53C71E.book 273 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

274
IS300h/250_Navi_EE
1. SPEECH COMMAND SYSTEM OPERATION
1. SPEECH COMMAND SYSTEM
Talk switch
zPress the talk switch to start the speech
command system.
zTo cancel voice recognition, press and hold
the talk switch.zIt is unnecessary to speak directly into the
microphone when giving a command.
The speech command system enables
the audio/visual, hands-free systems,
etc. to be operated using speech com-
mands.
Refer to the command list for samples of
speech commands. (→P.282)
INFORMATION
●
Commands that are not displayed in the
“Shortcuts” screen can be operated from
the “Main menu” screen.
USING THE SPEECH
COMMAND SYSTEM
STEERING SWITCH
MICROPHONE
INFORMATION
●
Wait for the confirmation beep before
speaking a command.
●Speech commands may not be recog-
nized if:
• Spoken too quickly.
• Spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while speech
commands are spoken.
• The air conditioning speed is set high.
• The air conditioning vents are turned
towards the microphone.
●In the following conditions, the system
may not recognize the command prop-
erly and using speech commands may
not be possible:
• The command is incorrect or unclear.
Note that certain words, accents or
speech patterns may be difficult for the
system to recognize.
• There is excessive background noise,
such as wind noise.
IS_Navi_EE_53C71E.book 274 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

275
1. SPEECH COMMAND SYSTEM OPERATION
SPEECH COMMAND SYSTEM
IS300h/250_Navi_EE
5
1Press the talk switch.
zAfter the “Shortcuts” screen has been dis-
played, voice guidance will commence.
2After a beep sounds, say or select the
desired command.
zSpeech commands are marked with .
Some commonly used commands are dis-
played on the screen.
3Say or select the command displayed on
the screen.SPEECH COMMAND SYSTEM
OPERATION
OPERATION FROM THE
SHORTCUTS
zVoice guidance for the speech command
system can be skipped by pressing the
talk switch.
zSaying “Help” or selecting “?” prompts
voice guidance to offer examples of
commands and operation methods.
IS_Navi_EE_53C71E.book 275 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

276
1. SPEECH COMMAND SYSTEM OPERATION
IS300h/250_Navi_EE
1Press the talk switch.
2Saying “Main menu” or selecting “Main
menu”.
3Say or select the desired function com-
mand.
4Say or select the desired command on
the screen.
zRegistered POIs, registered names in the
contacts list etc., can be said in the place of
the “ ” next to the commands. (→P. 2 8 2 )
For example: Say “Find nearby Restau-
rants”, “Call John Smith” etc.
zIf a desired outcome is not shown, or if no
selections are available, perform one of the
following to return to the previous screen:
•Say “Go back”
•Select “Go Back”
zTo cancel voice recognition, select
“Cancel”, or press and hold the talk switch.
OPERATION FROM THE
MAIN MENU
IS_Navi_EE_53C71E.book 276 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

277
1. SPEECH COMMAND SYSTEM OPERATION
SPEECH COMMAND SYSTEM
IS300h/250_Navi_EE
5
1Press the talk switch.
2Say “Go home” or select “Go home”.
zA confirmation screen will be displayed
showing the recognition results.
3Say “Yes” or select “Yes”.
zThe system starts searching for a route to
your home.
zWhen the speech command is recognized,
the map of the area around the home
address will be displayed and route guid-
ance to the home address will begin.
INFORMATION
●
If the system does not respond or the
confirmation screen does not disappear,
press the talk switch and try again.
●If a speech command cannot be recog-
nized, voice guidance will say “Pardon?”
and speech command reception will
restart.
●If a speech command cannot be recog-
nized 2 consecutive times, the speech
command guidance system will say “To
restart voice recognition, push the talk
switch.”. Then voice recognition will be
suspended.
●The voice recognition prompt can be set
to on or off when “Voice prompts” is
selected. This setting can also be
changed on the “Voice settings” screen.
(→P. 8 4 )
●Voice guidance can be canceled by set-
ting voice prompts to off. Use this setting
when it is desirable to say a command
immediately after pressing the talk switch
and hearing a beep.
SPEECH COMMAND
EXAMPLE: SEARCHING FOR
A ROUTE TO YOUR HOME*
zIf a home address is not registered, voice
guidance will say “Your home is not set.”.
Please try again after setting a home
location. (→P.151)
*: With navigation function
IS_Navi_EE_53C71E.book 277 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

278
1. SPEECH COMMAND SYSTEM OPERATION
IS300h/250_Navi_EE
1Press the talk switch.
2Say “Enter an address” or select “Enter
an address”.
zThe searchable countries are restricted
according to the voice recognition lan-
guage.
zSome areas cannot be recognized by the
voice recognition system.
XFor UK English and French
3Say “”, “”
and “” continuously.
XExcept for UK English and French
3Say “”, “”
and “” continuously.
zSay the desired house number in the place
of the “<>”. It is possible to only say the num-
bers. For example, 1,2,3,4 etc. (It is not pos-
sible to say cardinals.) Inputting the house
number can be skipped.
zSay the desired full street name that
belongs to the set country in the place of
the “<>”. If only the city name was said at
step 3, say the street name. If the street
name is not unique, select the appropriate
number from the displayed address list.
zSay the desired city name or city name and
street name that belongs to the set country
in the place of the “<>”. Not just the city
name, but the city name and street name
can be said at the same time. If both are
said at the same time and the street name is
not unique, select the appropriate number
from the displayed address list.
SPEECH COMMAND
EXAMPLE: PERFORMING A
DESTINATION SEARCH BY
ADDRESS*
Use the official language of the country
the desired destination is in. A destina-
tion search by address, using speech
command, can only be performed for
countries that have one of the following
15 languages as their official language.
· Dutch
· French
· German
· Italian
· Spanish
· UK English
· Russian
· Portuguese
· Swedish
· Danish
· Finnish
· Greek
· Polish
· Turkish
· Czech
For changing voice recognition lan-
guages: →P.75
*: With navigation function
IS_Navi_EE_53C71E.book 278 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

279
1. SPEECH COMMAND SYSTEM OPERATION
SPEECH COMMAND SYSTEM
IS300h/250_Navi_EE
5
4Say or select “Enter”.
zA map corresponding to the decided
address is displayed. To set the displayed
point as a destination, say “Enter”.
zIf multiple points exist, the next point can be
displayed by saying “Next”.
1Press the talk switch.
z“Play artist ”, “Play album ”,
“Play song ” and “Play playlist
” are displayed in the “Shortcuts”
screen.
2Say or select “Play artist ”, “Play
album ”, “Play song ” or
“Play playlist ”.
zSay the desired name in the place of the
“<>”.
zA confirmation screen will be displayed
showing the recognition results. If multiple
matching items are found, a selection
screen will be displayed.
3Say “Play” or select “Play”.
zThe system starts playing music.
INFORMATION
●
To change the country to be searched,
say “Change country” when the screen to
say the city name is displayed and the
screen will change to the country input
screen.
●The house number voice recognition
conditions are outlined below:
• Numerals: 10 digits or less
• Cardinals cannot be recognized.
• Numerals are recognized as single dig-
its only.
SPEECH COMMAND
EXAMPLE: SEARCH FOR A
TRACK
IS_Navi_EE_53C71E.book 279 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

280
1. SPEECH COMMAND SYSTEM OPERATION
IS300h/250_Navi_EE
1Press the talk switch.
z“Call ” is displayed in the
“Shortcuts” screen.
zWhen “Call ” on the “Shortcuts”
screen is dimmed, the contact’s speech
command recognition cannot be used.
Check the Bluetooth
® connection and if
the contacts have been transferred to the
system.
2Say or select a registered contact name.
zIn the same manner as it is displayed on the
screen, “Call ”, after saying
“Call”
say the name of a contact.
For example: “Call”, “J o h n S m i t h”
zShort or abbreviated names in the contact
list may not be recognized. Change names
in the contact list to full names.
zSometimes a voice recognition result con-
firmation screen will be displayed. After
confirming the result, say “Dial”.
zWhen the system recognizes multiple
names from the contact list, a name candi-
date list will be displayed on the screen. If
the desired name is not displayed on the
top of the screen, say the number of the
name from the candidate list to select a
name from the candidate list.
INFORMATION
●
A USB memory or iPod must be con-
nected to enable track searching and
playback. (→P.222, 229)
●When a USB memory or iPod is con-
nected, recognition data is created so
tracks can be searched using speech
commands.
●Recognition data is updated under the
following conditions:
• When the USB memory or iPod data
has changed.
• When the voice recognition language is
changed. (→P. 7 5 )
●While the recognition data is being cre-
ated or being updated, a track search
cannot be performed using a speech
command.
●When “Play music” is dimmed in the
“Shortcuts” screen, it is not possible to
search for a track using a speech com-
mand. In this situation, reduce the amount
of music data in the USB memory or iPod
and update the recognition data to
enable searching by speech command.
SPEECH COMMAND
EXAMPLE: CALL NAME
IS_Navi_EE_53C71E.book 280 ページ ２０１４年５月２９日　木曜日　午前１１時２２分
