Lexus IS300h 2014 Navigation manual

251
5. SETUP
IS300h/250_Navi_EE
AUDIO/VISUAL SYSTEM
4
AUDIO SETTINGS SCREENNo.FunctionPage
Select to set detailed sound
settings.198
Select to set detailed FM
radio settings.252
Select to set detailed DAB
settings. 252
Select to set the iPod audio
signal input settings.253
Select to set the video sig-
nal format settings.253
Select to set detailed cover
art settings.254
*Select to set detailed DVD
settings.254
*: Only in DVD video mode
IS_Navi_EE_53C71E.book 251 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

252
5. SETUP
IS300h/250_Navi_EE
1Display the audio setting screen.
(→P.250)
2Select “FM radio settings”.
3Select the desired button to be set.
1Display the audio setting screen.
(→P.250)
2Select “DAB settings”.
3Select the desired button to be set.
FM RADIO SETTINGS
No.Function
Select “Broadcaster” or “A l p h a b e t i -
cal” to set the listing order of the sta-
tion list.
The tuner will automatically seek a
station that regularly broadcasts
traffic information and the station
broadcasts when the traffic informa-
tion program starts.
A station providing good reception
is automatically selected if current
reception worsens.
Select to switch to a broadcasting
station within the same local pro-
gram network.
Select on/off to set the FM Radio
text feature.
DAB SETTINGS
No.Function
Select on/off to set L-band in the
tune range. When “Off” is selected,
the physical channel range for tuning
operations is limited to Band III, ex-
cluding for preset operations. When
“On” is selected, the physical chan-
nel range for tuning operations in-
cludes Band III and L-band.
The tuner will automatically seek a
station that regularly broadcasts
traffic information and the station
broadcasts when the traffic informa-
tion program starts.
A station providing good reception
is automatically selected if current
reception worsens.
Select on/off to set the DAB text fea-
ture.
IS_Navi_EE_53C71E.book 252 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

253
5. SETUP
IS300h/250_Navi_EE
AUDIO/VISUAL SYSTEM
4
1Display the audio setting screen.
(→P.250)
2Select “iPod settings”.
3Select “Video sound input”.
4Select a screen button for the desired
setting.
1Display the audio setting screen.
(→P.250)
2Select “External video settings”.
3Select “Video signal switch”.
4Select a screen button for the desired
setting.
iPod SETTINGSEXTERNAL VIDEO SETTINGS
IS_Navi_EE_53C71E.book 253 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

254
5. SETUP
IS300h/250_Navi_EE
1Display the audio setting screen.
(→P.250)
2Select “Cover art settings”.
3Select the desired button to be set.
1Display the audio setting screen.
(→P.250)
2Select “DVD settings”.
zSelecting “DVD settings” on the DVD top
screen can also display “DVD settings”
screen. (→P. 2 1 5 )
3Select the items to be set.
zWhen “Default” is selected, all menus are
initialized.
COVER ART SETTINGS
No.Function
Select on/off to set the cover art dis-
play in DISC mode.
Select on/off to set the cover art dis-
play in USB mode.
Select on/off to set the priority of the
Gracenote database in USB mode.
Select on/off to set the cover art dis-
play in iPod mode.
Select on/off to set the priority of the
Gracenote database in iPod mode.
INFORMATION
●Images from the Gracenote database
displayed on the screen may be different
from the actual cover art.
DVD SETTINGS
IS_Navi_EE_53C71E.book 254 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

255
5. SETUP
IS300h/250_Navi_EE
AUDIO/VISUAL SYSTEM
4
■AUDIO LANGUAGE
1Select “Audio language”.
2Select the desired language to be heard
on the “Audio language” screen.
zIf the desired language to be heard cannot
be found on this screen, select “Other ” and
enter a language code. (→P. 2 5 6 )
■SUBTITLE LANGUAGE
1Select “Subtitle language”.
2Select the desired language to be read
on the “Subtitle language” screen.
zIf the desired language to be read cannot
be found on this screen, select “Other ” and
enter a language code. (→P. 2 5 6 )
■MENU LANGUAGE
1Select “Menu language”.
2Select the desired language to be read
on the “Menu language” screen.
zIf the desired language to be read cannot
be found on this screen, select “Other ” and
enter a language code. (→P. 2 5 6 )
■ANGLE MARK
1Select “A n g l e m a r k ”.
2Select “On” or “Off”.
■PARENTAL LOCK
1Select “Parental lock”.
2Enter the 4-digit personal code on the
“Key code” screen.
3Select a parental level (1-8) on the “Se-
lect restriction level” screen.
■AUTO START
1Select “Auto-start playback”.
2Select “On” or “Off”.
■SOUND DYNAMIC RANGE
1Select “Sound dynamic range”.
2Select “MAX”, “STD” or “MIN”.
The audio language can be changed.
The subtitle language can be changed.
The language on the DVD video menu
can be changed.The multi-angle mark can be turned on
or off on the screen while discs that are
multi-angle compatible are being
played.
The level of viewer restrictions can be
changed.
Discs that are inserted while the vehicle
is in motion will automatically start play-
ing. Certain discs may not play.
The difference between the lowest vol-
ume and the highest volume can be ad-
justed.
IS_Navi_EE_53C71E.book 255 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

256
5. SETUP
IS300h/250_Navi_EE
■ENTER AUDIO/SUBTITLE/MENU
LANGUAGE CODE
1Enter the 4-digit language code.
2Select “OK”.
If “Other ” on the “Audio language”
screen, “Subtitle language” screen or
“Menu language” screen is selected, the
desired language to be heard or read
can be selected by entering a language
code.
IS_Navi_EE_53C71E.book 256 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

257
5. SETUP
IS300h/250_Navi_EE
AUDIO/VISUAL SYSTEM
4
LANGUAGE CODES LIST
CodeLanguageCodeLanguageCodeLanguageCodeLanguage
0514English0515Esperanto1214Lingala1913Samoan
1001Japanese0520Estonian1215Laotian1914Shona
0618French0521Basque1220Lithuanian1915Somali
0405German0601Persian1222Latvian, Lettish1917Albanian
0920Italian0609Finnish1307Malagasy1918Serbian
0519Spanish0610Fiji1309Maori1919Siswati
2608Chinese0615Faroese1311Macedonian1920Sesotho
1412Dutch0625Frisian1312Malayalam1921Sundanese
1620Portuguese0701Irish1314Mongolian1923Swahili
1922Swedish070 4Scottish-Gaelic1315Moldavian2001Tamil
1821Russian0712Galician1318Marathi2005Telugu
1115Korean0714Guarani1319Malay2007Tajik
0512Greek0721Gujarati1320Maltese2008Thai
0101Afar0801Hausa1325Burmese2009Tigrinya
0102Abkhazian0809Hindi1401Nauru2011Turkmen
0106Afrikaans0818Croatian1405Nepali2012Tagalog
0113Amharic0821Hungarian1415Norwegian2014Setswana
0118Arabic0825Armenian1503Occitan2015Tongan
0119Assamese0901Interlingua1513(Afan) Oromo2018Turkish
0125Aymara0905Interlingue1518Oriya2019Tsonga
0126Azerbaijani0911Inupiak1601Punjabi2020Tatar
0201Bashkir0914Indonesian1612Polish2023Twi
0205Byelorussian0919Icelandic1619Pashto, Pushto2111Ukrainian
0207Bulgarian0923Hebrew1721Quechua2118Urdu
0208Bihari1009Yiddish1813Rhaeto-Romance2126Uzbek
0209Bislama1023Javanese1814Kirundi2209Vietnamese
0214Bengali, Bangla1101Georgian1815Romanian2215Volapük
0215Tibetan1111Kazakh1823Kinyarwanda2315Wolof
0218Breton1112Greenlandic1901Sanskrit24 08Xhosa
0301Catalan1113Cambodian1904Sindhi2515Yoruba
0315Corsican1114Kannada1907Sango2621Zulu
0319Czech1119Kashmiri1908Serbo-Croatian
0325Welsh1121Kurdish1909Sinhalese
0401Danish1125Kirghiz1911Slovak
0426Bhutani1201Latin1912Slovenian
IS_Navi_EE_53C71E.book 257 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

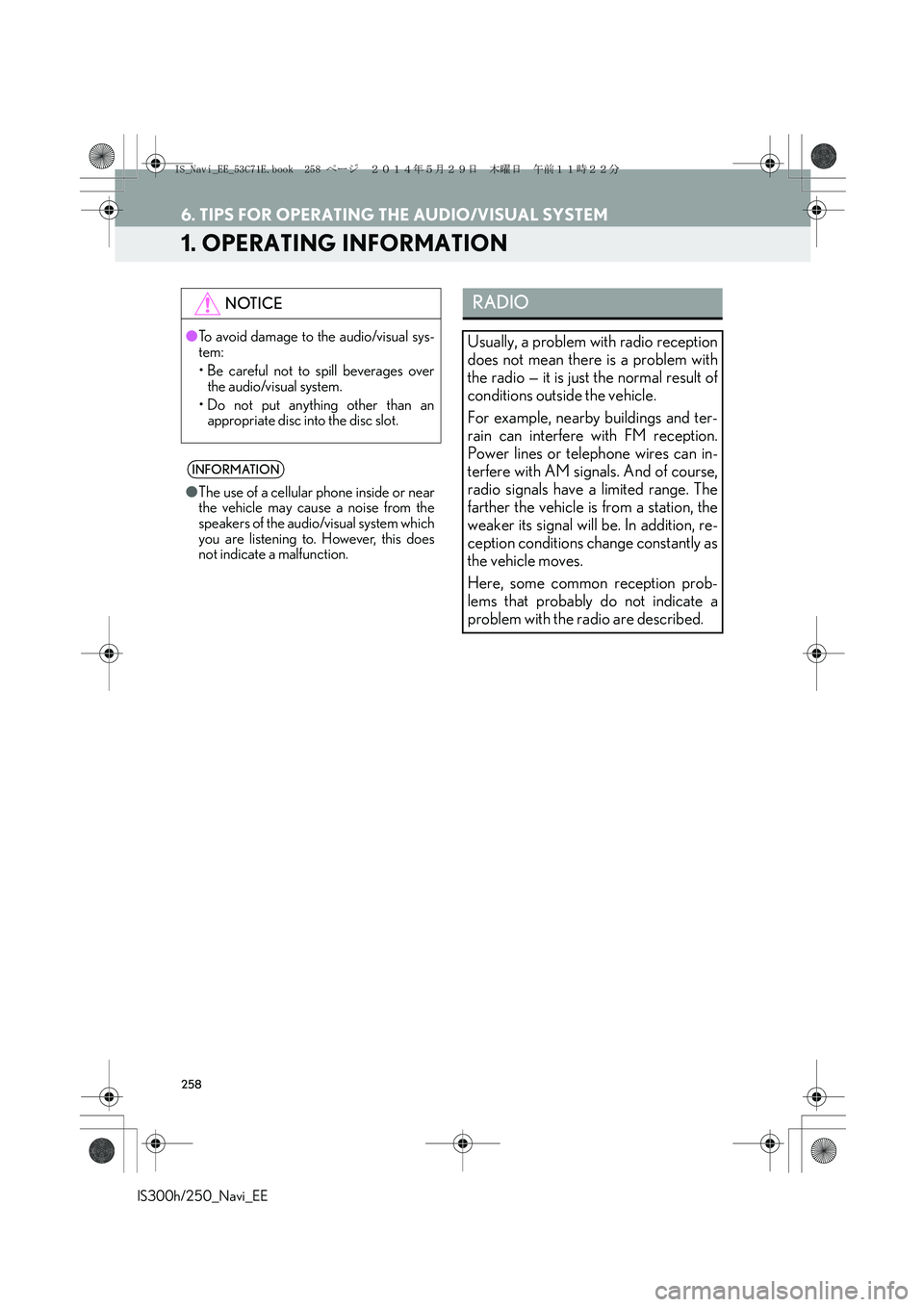

258
IS300h/250_Navi_EE
6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
1. OPERATING INFORMATION
NOTICE
●To avoid damage to the audio/visual sys-
tem:
• Be careful not to spill beverages over
the audio/visual system.
• Do not put anything other than an
appropriate disc into the disc slot.
INFORMATION
●The use of a cellular phone inside or near
the vehicle may cause a noise from the
speakers of the audio/visual system which
you are listening to. However, this does
not indicate a malfunction.
RADIO
Usually, a problem with radio reception
does not mean there is a problem with
the radio — it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and ter-
rain can interfere with FM reception.
Power lines or telephone wires can in-
terfere with AM signals. And of course,
radio signals have a limited range. The
farther the vehicle is from a station, the
weaker its signal will be. In addition, re-
ception conditions change constantly as
the vehicle moves.
Here, some common reception prob-
lems that probably do not indicate a
problem with the radio are described.
IS_Navi_EE_53C71E.book 258 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

259
6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
IS300h/250_Navi_EE
AUDIO/VISUAL SYSTEM
4
Fading and drifting stations: Generally, the
effective range of FM is about 25 miles (40
km). Once outside this range, you may no-
tice fading and drifting, which increase with
the distance from the radio transmitter.
They are often accompanied by distortion.
Multi-path: FM signals are reflective, mak-
ing it possible for 2 signals to reach the vehi-
cle’s antenna at the same time. If this
happens, the signals will cancel each other
out, causing a momentary flutter or loss of
reception.
Static and fluttering: These occur when sig-
nals are blocked by buildings, trees or other
large objects. Increasing the bass level may
reduce static and fluttering.
Station swapping: If the FM signal being lis-
tened to is interrupted or weakened, and
there is another strong station nearby on
the FM band, the radio may tune in the sec-
ond station until the original signal can be
picked up again.Fading: AM broadcasts are reflected by the
upper atmosphere — especially at night.
These reflected signals can interfere with
those received directly from the radio sta-
tion, causing the radio station to sound al-
ternately strong and weak.
Station interference: When a reflected sig-
nal and a signal received directly from a ra-
dio station are very nearly the same
frequency, they can interfere with each oth-
er, making it difficult to hear the broadcast.
Static: AM is easily affected by external
sources of electrical noise, such as high ten-
sion power lines, lightening or electrical
motors. This results in static.
FMAM
IS_Navi_EE_53C71E.book 259 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

260
6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
IS300h/250_Navi_EE
zThis DVD player is intended for use with
4.7 in. (12 cm) discs only.
zExtremely high temperatures can keep the
DVD player from working. On hot days,
use the air conditioning system to cool the
inside of the vehicle before using the player.
zBumpy roads or other vibrations may make
the DVD player skip.
zIf moisture gets into the DVD player, the
discs may not be able to be played. Remove
the discs from the player and wait until it
dries.
zUse only discs marked as shown above.
The following products may not be playable
on your player:
•SACD
•dts CD
• Copy-protected CD
•DVD audio
•Video CD
•DVD-RAM
DVD PLAYER AND DISC
CAUTION
●The DVD player uses an invisible laser
beam which could cause hazardous radi-
ation exposure if directed outside the
unit. Be sure to operate the player cor-
rectly.
DVD PLAYER
Audio CDs
DVD video
discs
DVD-R/RW
discs
IS_Navi_EE_53C71E.book 260 ページ ２０１４年５月２９日　木曜日　午前１１時２２分
