8
-$@-$I@/BWJ@0.&@ &&

Information for hybrid vehicles is writ-
ten in brackets next to the information
for gasoline vehicles
Example
Turn the engine switch*1 switch>*2 to IGNITION ON
mode*1*2 mode.
*1:LC500
Reading this manual
Explains symbols used in this man-
ual
Symbols in this manual
SymbolsMeanings
WARNING:
Explains something that,
if not obeyed, could
cause death or serious
injury to people.
NOTICE:
Explains something that,
if not obeyed, could
cause damage to or a
malfunction in the vehi-
cle or its equipment.
Indicates operating or
working procedures. Fol-
low the steps in numeri-
cal order.
Symbols in illustrations
SymbolsMeanings
Indicates the action
(pushing, turning, etc.)
used to operate switches
and other devices.
Indicates the outcome of
an operation (e.g. a lid
opens).
SymbolsMeanings
Indicates the component
or position being
explained.
Means Do not, Do not do
this , or Do not let this
happen .
Different writing styles for gasoline
and hybrid vehicles

9
-$@-$I@/BWJ@0.&@ &&

*2:LC500h
To use this system in the safest possible
manner, follow all the safety tips shown
below.
This system is intended to assist in
reaching the destination and, if used
properly, can do so. The driver is solely
responsible for the safe operation of
your vehicle and the safety of your pas-
sengers.
Do not use any feature of this system to
the extent it becomes a distraction and
prevents safe driving. The first priority
while driving should always be the safe
operation of the vehicle. While driving,
be sure to observe all traffic regula-
tions.
Prior to the actual use of this system,
learn how to use it and become thor-
oughly familiar with it. Read the entire
manual to make sure you understand
the system. Do not allow other people
to use this system until they have read
and understood the instructions in this
manual.
For your safety, some functions may
become inoperable when driving.
Unavailable screen buttons are
dimmed.
While driving, listen to the voice
instructions as much as possible and
glance at the screen briefly and only
when it is safe. However, do not totally
rely on voice guidance. Use it just for
reference. If the system cannot deter-
mine the current position correctly,
there is a possibility of incorrect, late,
or non-voice guidance.
The data in the system may occasion-
ally be incomplete. Road conditions,
including driving restrictions (no left
turns, street closures, etc.) frequently
change. Therefore, before following
any instructions from the system, look
to see whether the instruction can be
done safely and legally.
This system cannot warn about such
things as the safety of an area, condi-
tion of streets, and availability of emer-
gency services. If unsure about the
safety of an area, do not drive into it.
Under no circumstances is this system
a substitute for the driver’s personal
judgement.
Use this system only in locations where
it is legal to do so. Some areas may
have laws prohibiting the use of naviga-
tion screens next to the driver.
Safety instruction
WARNING
●Exercise extreme caution if operating the system while driving. Insufficient
attention to the road, traffic or weather conditions may cause an accident.
●While driving, be sure to obey the traf-fic regulations and maintain awareness
of the road conditions. If a traffic sign on the road has been changed, route guidance may not have the updated
information such as the direction of a one way street.

13
1
-$@-$I@/BWJ@0.&@ &&

1-1. Basic function
Quick guide
WARNING
●For safety reasons, drivers should avoid performing operations as much as possible while driving. Performing
operations while driving may cause the driver to mistakenly operate the steer-ing wheel, which may lead to an acci-
dent. Stop the vehicle before using. Furthermore, avoid looking at the screen as much as possible while driv-
ing.
●Always follow the actual traffic regula- tions and drive according to the road conditions. Routes displayed by the
destination guidance may include routes where the vehicle is prohibited from entering due to changes to speed
limit signs and routes where the road is too narrow to pass through.
NOTICE
●To prevent the 12-volt battery from becoming fully depleted, do not use
the remote touch for long periods of time while the engine/hybrid system is turned off.

28
-$@-$I@/BWJ@0.&@ &&

2-1. Basic information before operation
2-1.Basic information before operation
After a few seconds, the “CAUTION”
screen will be displayed.
Waiting about 5 seconds or selecting
“Continue” switches to the last dis-
played screen.
When system response is extremely
slow, the system can be restarted.
1 Press and hold the “PWR•VOL”
knob for 3 seconds or more.
1 Use the touchpad of the Remote
Touch to select the desired button
on the screen.
2 The buttons on the screen can be
selected by either depressing or
double tapping on the touchpad.
Once a button has been selected,
the screen will change.
 When the pointer moves close to a
button, it will automatically snap to
Initial screen
When the engine switch switch> is turned to ACCESSORY
or IGNITION ON mode mode>, the initial screen will be dis-
played and the system will begin
operating.
Caution screen
WARNING
●When the vehicle is stopped with the engine running operating>, always apply the parking brake for safety.
Restarting the system
How to use the Remote
Touch
This system can be operated by the
Remote Touch when the engine
switch is in ACCES-
SORY or IGNITION ON mode
.
Touchpad operation

54
-$@-$I@/BWJ@0.&@ &&

2-2. Network settings
delete networks from the list.
( P.54)
Select to set automatic connection
to network on/off. When set to on,
the system will automatically con-
nect to the preferred networks that
have been registered.
Select to set the automatic connec-
tion message notification display
on/off.
Select to reset all setup items.
*:Wi-Fi® is a registered trademark of
Wi-Fi Alliance®.
Any network connected to in the past
is set as a preferred network. The pri-
ority of the networks to connect to can
be changed.
1 Select “Reorder/Remove preferred
networks”.
2 Select the desired network and
select “Move up” or “Move down”
to change the connection priority
of the network.
“Remove”: Select to delete a network.
●If a network is being connected to, pre-
ferred network settings cannot be changed.
Reception level appears on the right
upper side of the screen. ( P.18)
●Communication standards
•802.11b •802.11g•802.11n
●Security•WEP
•WPA™*
Preferred network settings
B
C
D
Wi-Fi® function operating hints
WARNING
●Use Wi-Fi® devices only when safe
and legal to do so.
●Your audio unit is fitted with Wi-Fi® antennas. People with implantable car-
diac pacemakers, cardiac resynchro- nization therapy-pacemakers or implantable cardioverter defibrillators
should maintain a reasonable distance
between themselves and the Wi-Fi®
antennas. The radio waves may affect the opera-tion of such devices.
●Before using Wi-Fi® devices, users of
any electrical medical device other than implantable cardiac pacemakers, cardiac resynchronization therapy-
pacemakers or implantable cardio- verter defibrillators should consult the manufacturer of the device for infor-
mation about its operation under the influence of radio waves.Radio waves could have unexpected
effects on the operation of such medi- cal devices.
Conditions displayed with Wi-Fi®
icon
Specifications

67
3
-$@-$I@/BWJ@0.&@ &&

3-1. Basic operation
Navigation system
■During route guidance operation
Select to pause or resume route guidance.
Select to display the traffic messages. It displays a list of traffic messages relat-
ing to the set route, all traffic messages, and warnings. ( P.76)
Select to display fuel station information. The location and fuel price can also be
checked. ( P.227)
Select to display parking lot information. The location, price and available
spaces of parking lots can be checked. ( P.226)
Select to display the route information screen. Route options for the route cal-
culations can be selected. ( P.95)
A
B
C
D
E

78

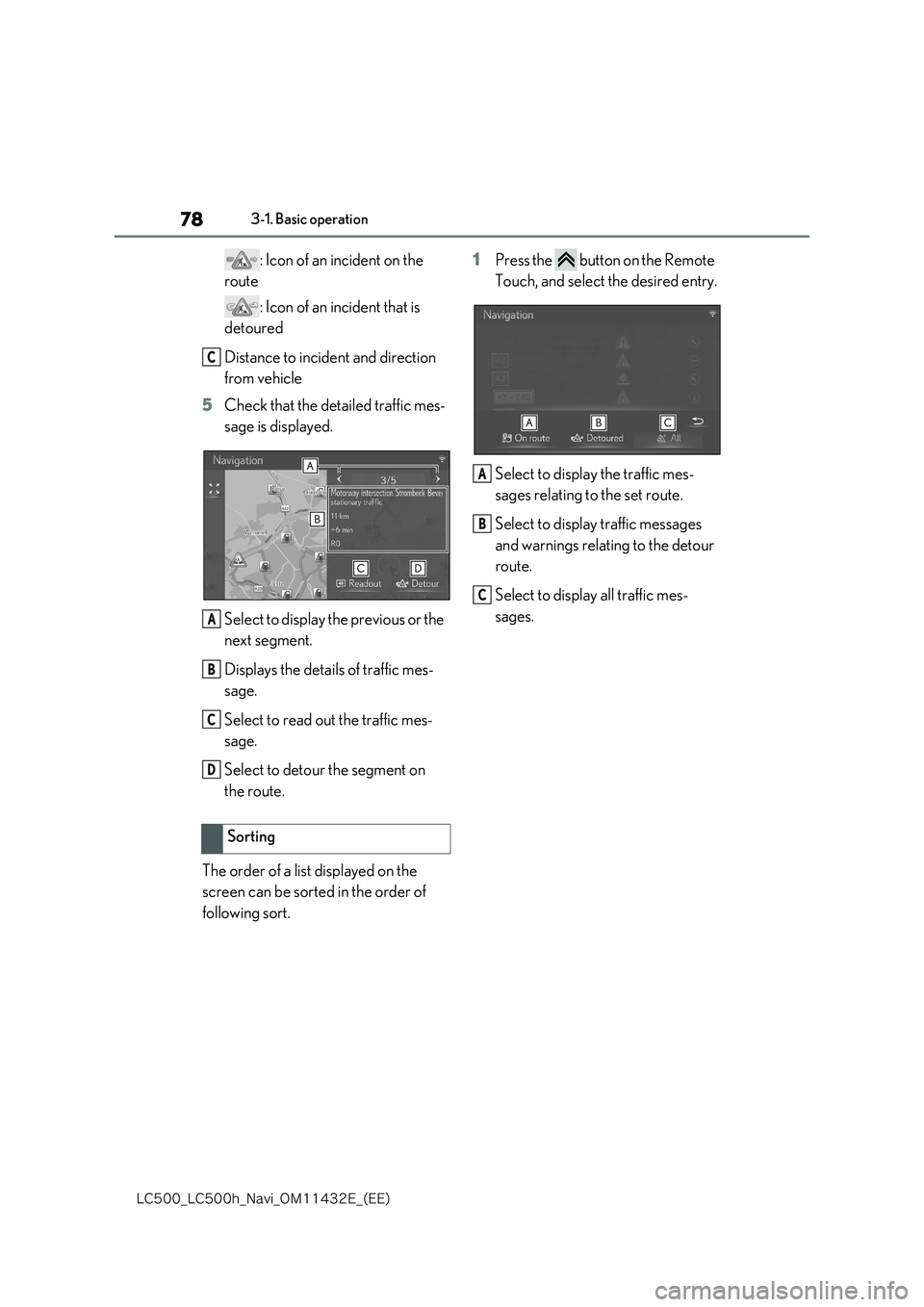

-$@-$I@/BWJ@0.&@ &&

3-1. Basic operation
: Icon of an incident on the
route
: Icon of an incident that is
detoured
Distance to incident and direction
from vehicle
5 Check that the detailed traffic mes-
sage is displayed.
Select to display the previous or the
next segment.
Displays the details of traffic mes-
sage.
Select to read out the traffic mes-
sage.
Select to detour the segment on
the route.
The order of a list displayed on the
screen can be sorted in the order of
following sort.
1 Press the button on the Remote
Touch, and select the desired entry.
Select to display the traffic mes-
sages relating to the set route.
Select to display traffic messages
and warnings relating to the detour
route.
Select to display all traffic mes-
sages.
Sorting
C
A
B
C
D
A
B
C

90
-$@-$I@/BWJ@0.&@ &&

3-3. Route guidance
3-3.Route guidance
When the destination is set, the entire
route map from the current position to
the destination is displayed.
Depending on the navigation settings,
either a single route or route alterna-
tives will be displayed on the screen.
( P.113)
Recommended route screen
Route alternatives screen
●The starting route guidance screen is dis- played in 2D north-up.
The recommended route will be dis-
played on the map.
1 Select “Destination” to start route
guidance.
 Displays information about the des-
tination, such as estimated arrival
time and distance.
Select to display the three route
calculation methods. Select the
desired item to adjust the route
preferences. ( P.91)
Select to display the avoidance cri-
teria. Select the desired item to
adjust the avoidance criteria.
( P.91)
Select to display parking lot infor-
mation. The location and available
spaces of parking lots around the
destination can be checked.
( P.226)
Select to display the Street View.
The Street View images of the des-
tination can be viewed. ( P.224)
Select to display weather informa-
tion. The weather information
around the destination can be
checked. ( P.225)
Starting route guidance
Starting route guidance
WARNING
●Be sure to obey traffic regulations and
keep road conditions in mind while driving. If a traffic sign on the road has been changed, the route guidance
may not indicate such changed infor- mation.
Recommended route screen
A
B
C
D
E

95
3
-$@-$I@/BWJ@0.&@ &&

3-3. Route guidance
Navigation system
1A short while later after the “MAP”
button is pressed, the display auto-
matically switches to map screen.
( P.69)
2 Select on the map.
3 Select “Pause guidance”.
 The route guidance can be
restarted by selecting “Resume
guidance”.
During route guidance, the route to the
destination can be checked and edited.
1 A short while later after the “MAP”
button is pressed, the display auto-
matically switches to map screen.
( P.69)
2 Select the on the map.
3 Select “Route”.
4 Select the items to be set.
When a destination is set
Select to display the three route
calculation methods. Select the
desired item to adjust the route
preferences. ( P.91)
Select to display the avoidance cri-
teria.
Select the desired item to adjust the
WARNING
●Be sure to obey the traffic regulations and keep the road condition in mind especially when you are driving on IPD
roads (roads that are not completely digitized in our database). The route guidance may not have the updated
information such as the direction of a one way street.
Pausing route guidance
Editing route
Displaying the edit route screen
A
B

108
-$@-$I@/BWJ@0.&@ &&

3-5. Setup
day or night mode depending on
the position of the headlight switch.
Select to always display the map
screen in day mode.
Select to always display the map
screen in night mode.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Navigation” on the sub
menu.
4 Select “Map”.
5 Select “Arrival information”.
6 Select the desired item.
Select to set the arrival information
off.
Select to display the arrival time on
the map screen.
Select to display the remaining time
on the map screen.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Navigation” on the sub
menu.
4 Select “Map”.
5 Select “Speed limits”.
6 Select the desired item.
Select to display the speed limits on
the map.
Select to receive an audible warn-
ing, if the speed limit will be
exceeded by a certain range.
Select to set the speed warning
threshold. ( P.108)
*:If equipped
1Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Navigation” on the sub
menu.
4 Select “Map”.
5 Select “Speed limits”.
6 Select “Speed warning threshold”.
Arrival information
Speed limits*
B
C
A
B
C
Speed warning threshold
A
B
C
