3918-2. Customization
LC500_LC500h_OM_OM11405U_(U)
8
Vehicle specifications
8-2.Customization
■Changing by using the meter con-
trol switches
1 Press or of the meter con-
trol switches, and select .
2 Press or of the meter con-
trol switches, select the item, and
press “OK”.
3 Press or of the meter con-
trol switches, select the desired set-
ting, and press “OK”.
To go back to the previous screen or
exit the customize mode, press .
■Changing by using the Remote
Touch
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup” on the menu screen
and select “Vehicle”. 3
Select “Vehicle Customization”,
“LEXUS Park Assist” or “Drive
Mode Customization”.
Various setting can be changed. Refer
to the list of settings that can be
changed for details.
For details on the Remote Touch, refer
to the “NAVIGATION SYSTEM
OWNER’S MANUAL”.
■When customizing using the Remote
Touch
Stop the vehicle in a safe place, apply the
parking brake, and shift the shift position to
P. Also, to prevent 12-volt battery discharge,
leave the engine running operating> while customizing the features.
Some function settings are changed simultaneously with other functions being cus-
tomized. Contact your Lexus dealer.
Settings that can be changed using the Remote Touch
Customizable features
Your vehicle includes a variety of
electronic features that can be per-
sonalized to your preferences. The
settings of these features can be
changed by using the meter control
switches, the Remote Touch or at
your Lexus dealer.
Customizing vehicle features
WARNING
■During customization
As the engine needs to
be running during customi-
zation, ensure that the vehicle is parked
in a place with adequate ventilation. In a
closed area such as a garage, exhaust
gases including harmful carbon monox-
ide (CO) may collect and enter the vehi-
cle. This may lead to death or a serious
health hazard.
NOTICE
■During customization
To prevent 12-volt battery discharge,
ensure that the engine is running system is operating> while customizing
features.
Customizable features
A

3928-2. Customization
LC500_LC500h_OM_OM11405U_(U)

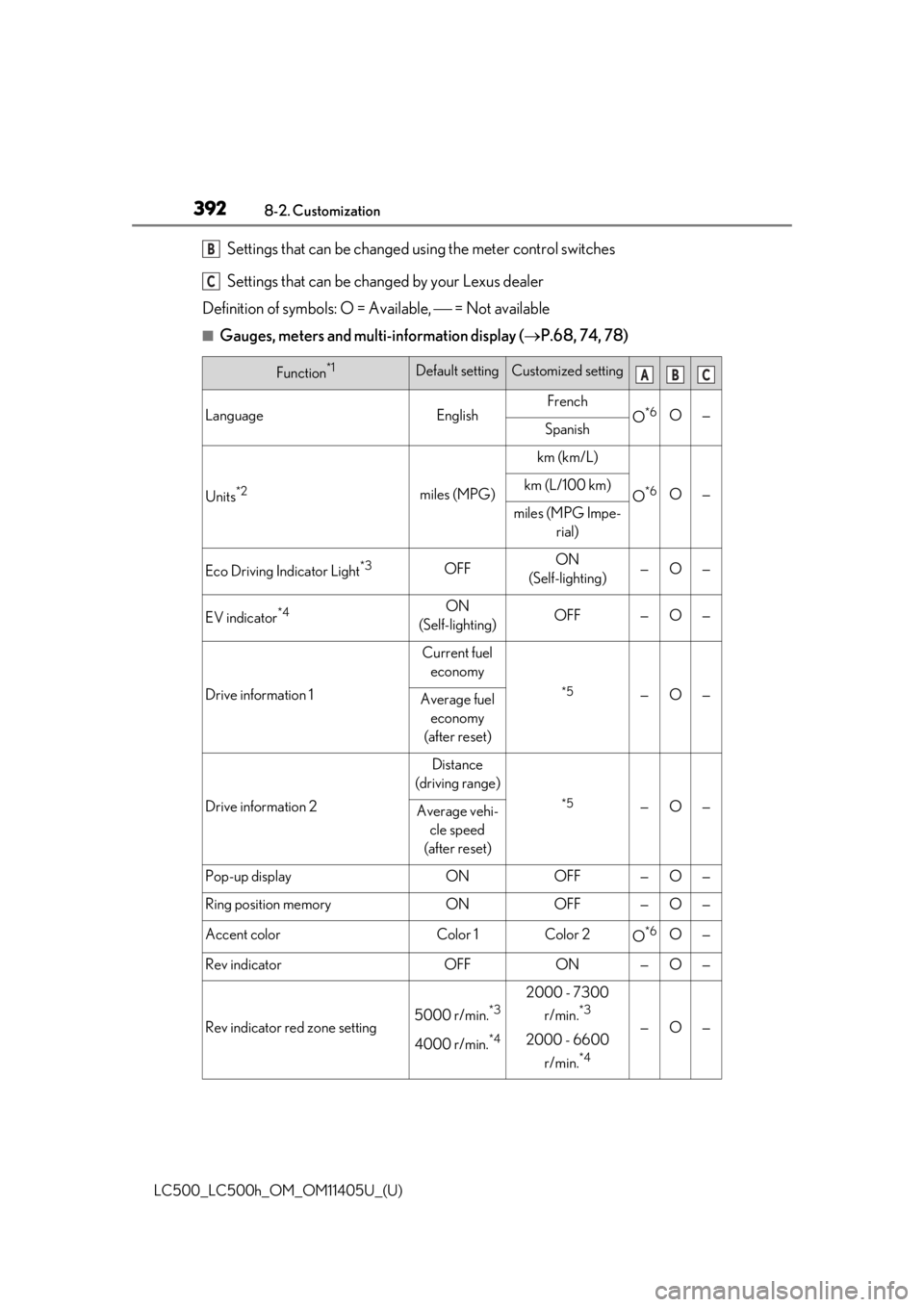

Settings that can be changed using the meter control switches
Settings that can be changed by your Lexus dealer
Definition of symbols: O = Available,  = Not available
■Gauges, meters and multi-information display ( P.68, 74, 78)
Function*1Default settingCustomized setting
LanguageEnglishFrench
O*6O—Spanish
Units*2miles (MPG)
km (km/L)
O*6O—km (L/100 km)
miles (MPG Impe-
rial)
Eco Driving Indicator Light*3OFFON
(Self-lighting)—O—
EV indicator*4ON
(Self-lighting)OFF—O—
Drive information 1
Current fuel economy
*5—O—Average fuel economy
(after reset)
Drive information 2
Distance
(driving range)
*5—O—Average vehi- cle speed
(after reset)
Pop-up displayONOFF—O—
Ring position memoryONOFF—O—
Accent colorColor 1Color 2O*6O—
Rev indicatorOFFON—O—
Rev indicator red zone setting5000 r/min.*3
4000 r/min.*4
2000 - 7300
r/min.
*3
2000 - 6600
r/min.
*4
—O—
B
C
ABC

3938-2. Customization
LC500_LC500h_OM_OM11405U_(U)
8
Vehicle specifications
*1: For details about each function: P.74, 82
*2: The default setting varies according to country.
*3:LC500
*4: LC500h
*5: 2 of the following items: current fuel cons umption, average fuel economy (after reset),
average fuel economy (after start), average fuel economy (after refuel), average vehicle
speed (after reset), average vehicle speed (after start), elapsed time (after reset),
elapsed time (after start), distance (driving range), distance (after start), blank.
*6: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
■HUD (Head-up Display)*1 (  P.84)

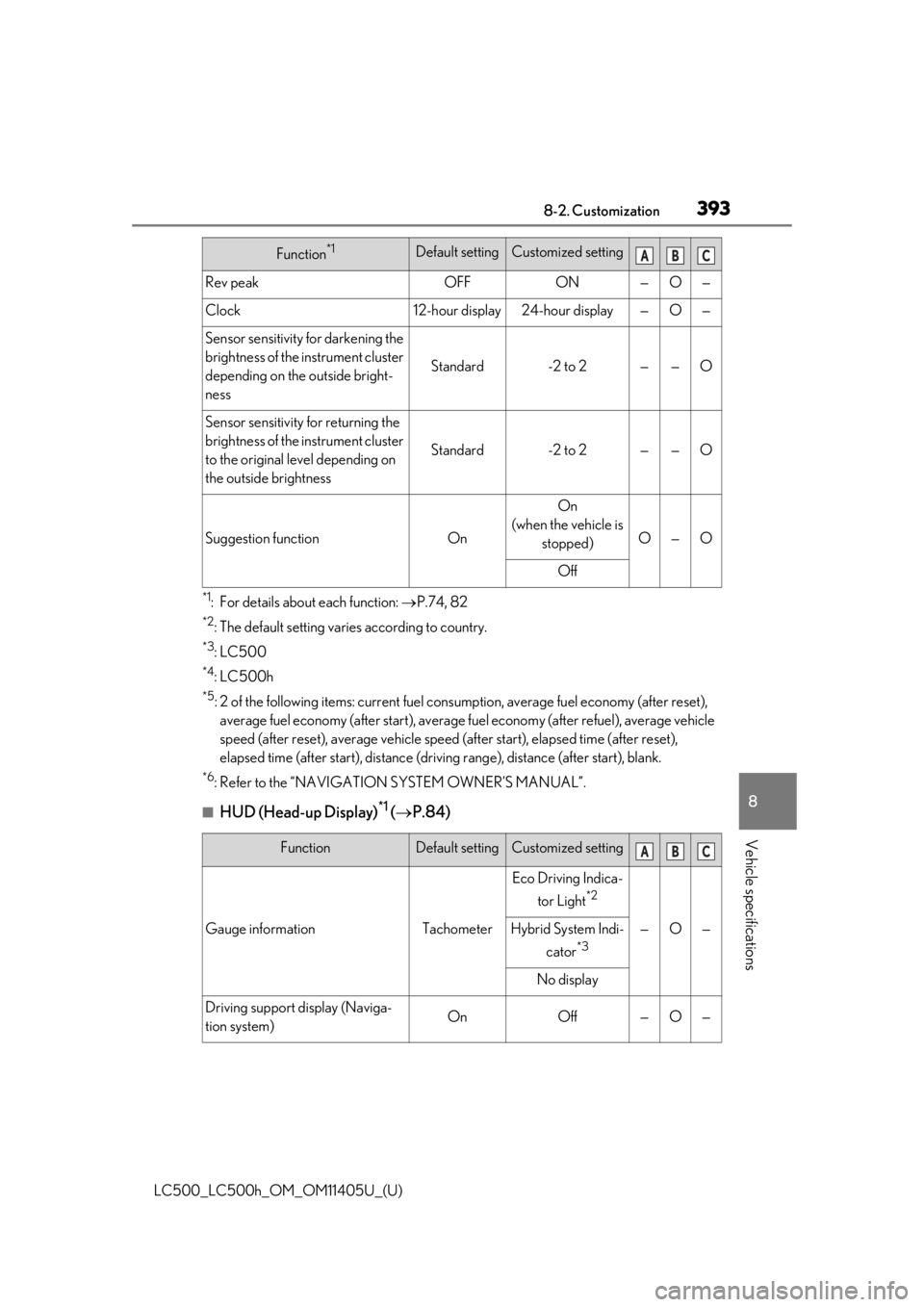

Rev peakOFFON—O—
Clock12-hour display24-hour display—O—
Sensor sensitivity for darkening the
brightness of the instrument cluster
depending on the outside bright-
ness
Standard-2 to 2——O
Sensor sensitivity for returning the
brightness of the instrument cluster
to the original level depending on
the outside brightness
Standard-2 to 2——O
Suggestion functionOn
On
(when the vehicle is stopped)
O—O
Off
FunctionDefault settingCustomized setting
Gauge informationTachometer
Eco Driving Indica-
tor Light
*2
—O—Hybrid System Indi-
cator
*3
No display
Driving support display (Naviga-
tion system)OnOff—O—
Function*1Default settingCustomized settingABC
ABC

3948-2. Customization
LC500_LC500h_OM_OM11405U_(U)
*1: If equipped
*2:LC500
*3: LC500h
■LKA (Lane-Keeping Assist) (P.191)
■PCS (Pre-Collision System) ( P.184)
■BSM (Blind Spot Monitor)*1 ( P.215)

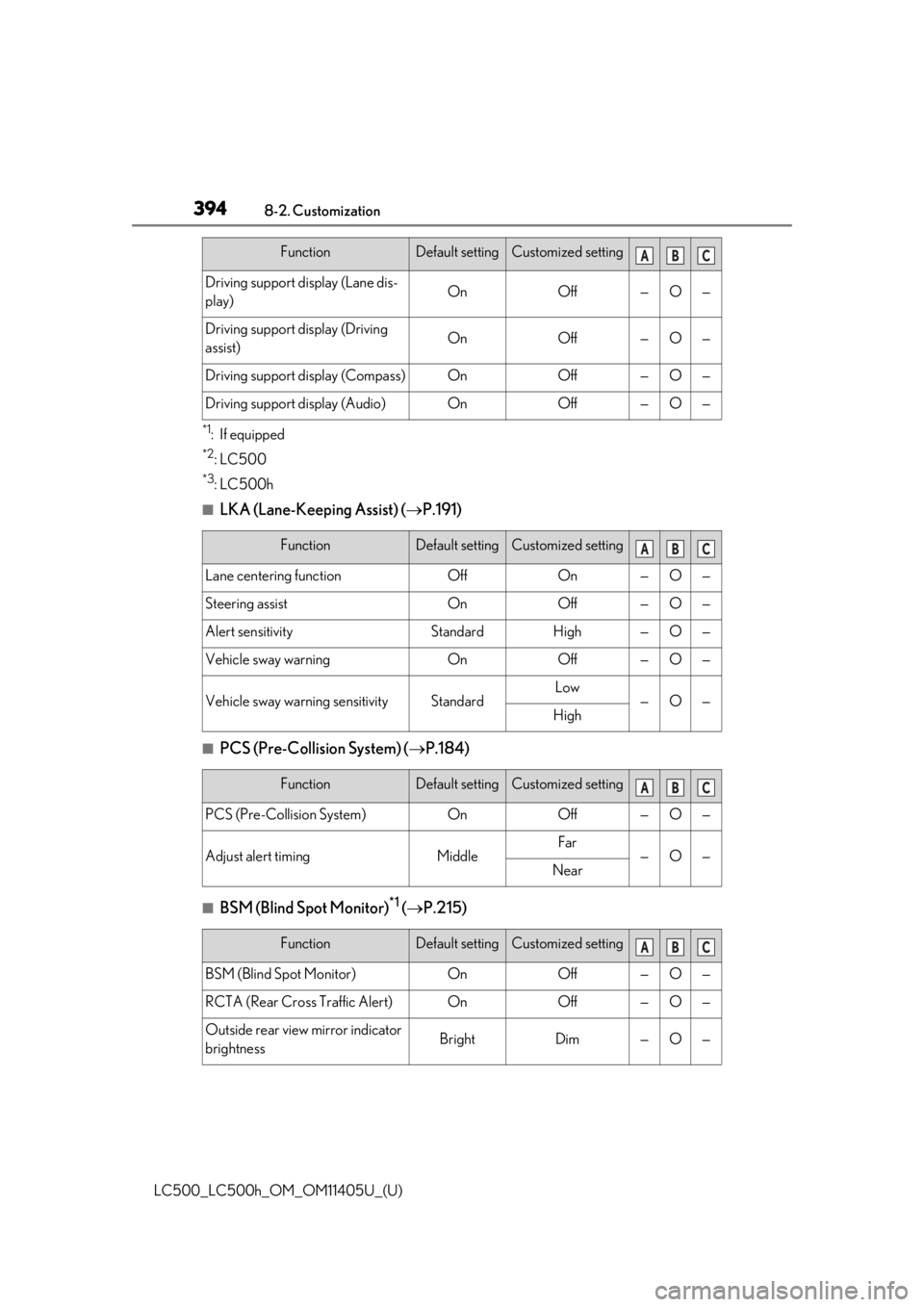

Driving support display (Lane dis-
play)OnOff—O—
Driving support display (Driving
assist)OnOff—O—
Driving support display (Compass)OnOff—O—
Driving support display (Audio)OnOff—O—
FunctionDefault settingCustomized setting
Lane centering functionOffOn—O—
Steering assistOnOff—O—
Alert sensitivityStandardHigh—O—
Vehicle sway warningOnOff—O—
Vehicle sway warning sensitivityStandardLow—O—High
FunctionDefault settingCustomized setting
PCS (Pre-Collision System)OnOff—O—
Adjust alert timingMiddleFar—O—Near
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)OnOff—O—
RCTA (Rear Cross Traffic Alert)OnOff—O—
Outside rear view mirror indicator
brightnessBrightDim—O—
FunctionDefault settingCustomized settingABC
ABC
ABC
ABC

3958-2. Customization
LC500_LC500h_OM_OM11405U_(U)
8
Vehicle specifications
*1: If equipped
*2: BSM function only

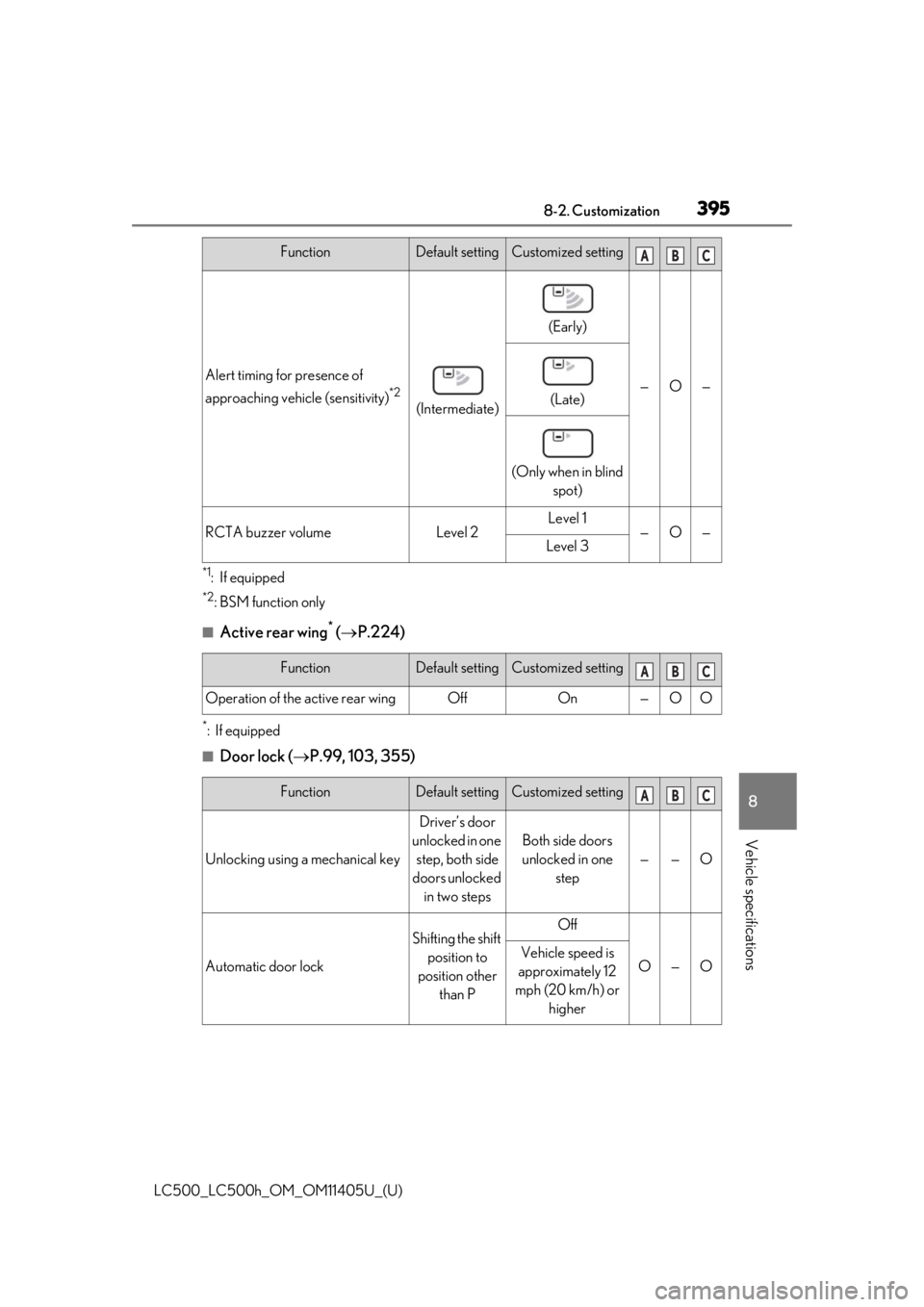

■Active rear wing* (  P.224)
*:If equipped
■Door lock ( P.99, 103, 355)
Alert timing for presence of
approaching vehicle (sensitivity)
*2
(Intermediate)
(Early)
—O—(Late)
(Only when in blind
spot)
RCTA buzzer volumeLevel 2Level 1—O—Level 3
FunctionDefault settingCustomized setting
Operation of the active rear wingOffOn—OO
FunctionDefault settingCustomized setting
Unlocking using a mechanical key
Driver’s door
unlocked in one step, both side
doors unlocked in two steps
Both side doors
unlocked in one step
——O
Automatic door lock
Shifting the shift position to
position other than POff
O—OVehicle speed is
approximately 12
mph (20 km/h) or higher
FunctionDefault settingCustomized settingABC
ABC
ABC

3968-2. Customization
LC500_LC500h_OM_OM11405U_(U)

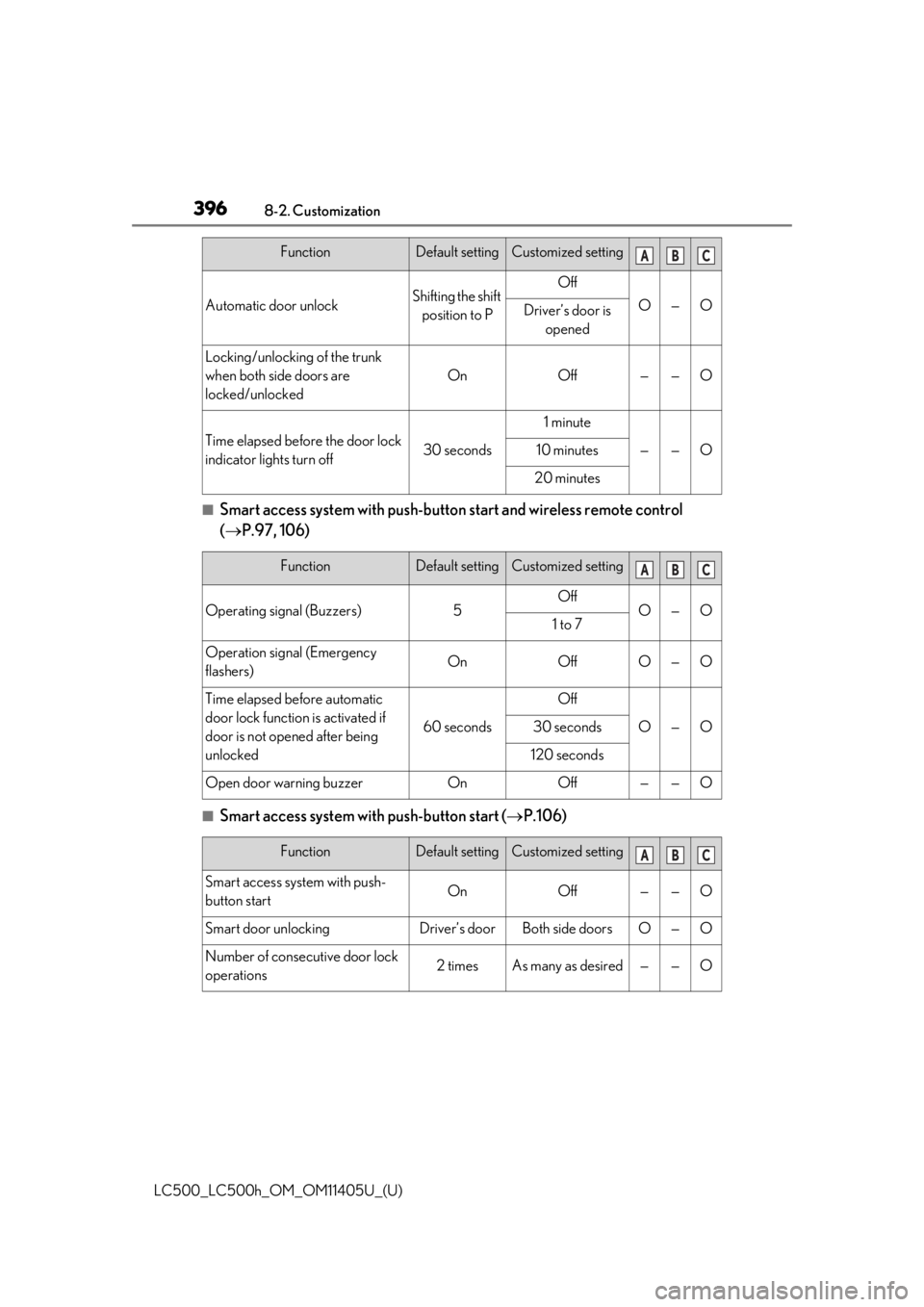

■Smart access system with push-button start and wireless remote control
(  P.97, 106)
■Smart access system with push-button start ( P.106)
Automatic door unlockShifting the shift
position to POff
O—ODriver’s door is opened
Locking/unlocking of the trunk
when both side doors are
locked/unlocked
OnOff——O
Time elapsed before the door lock
indicator lights turn off30 seconds
1 minute
——O10 minutes
20 minutes
FunctionDefault settingCustomized setting
Operating signal (Buzzers)5OffO—O1 to 7
Operation signal (Emergency
flashers)OnOffO—O
Time elapsed before automatic
door lock function is activated if
door is not open ed after being
unlocked
60 seconds
Off
O—O30 seconds
120 seconds
Open door warning buzzerOnOff——O
FunctionDefault settingCustomized setting
Smart access system with push-
button startOnOff——O
Smart door unlockingDriver’s doorBoth side doorsO—O
Number of consecutive door lock
operations2 timesAs many as desired——O
FunctionDefault settingCustomized settingABC
ABC
ABC

3978-2. Customization
LC500_LC500h_OM_OM11405U_(U)
8
Vehicle specifications
■Wireless remote control ( P.97)
■Driving position memory ( P.116)
■Steering wheel ( P.121)
FunctionDefault settingCustomized setting
Wireless remote controlOnOffO—O
Unlocking operation
Driver’s door
unlocked in one step, both side
doors unlocked in two steps
Both side doors
unlocked in one step
O—O
Trunk unlocking operationPress and hold (short)
One short press
——O
Push twice
Press and hold (long)
Off
Alarm (panic mode)OnOff——O
Reservation lockOnOffO—O
FunctionDefault settingCustomized setting
Selecting the door linking driving
position memory with door unlock
operation
Driver’s doorBoth side doors——O
FunctionDefault settingCustomized setting
Auto tilt away functiontilt only
telescopic only
O—Otilt & telescopic
Off
ABC
ABC
ABC

3988-2. Customization
LC500_LC500h_OM_OM11405U_(U)

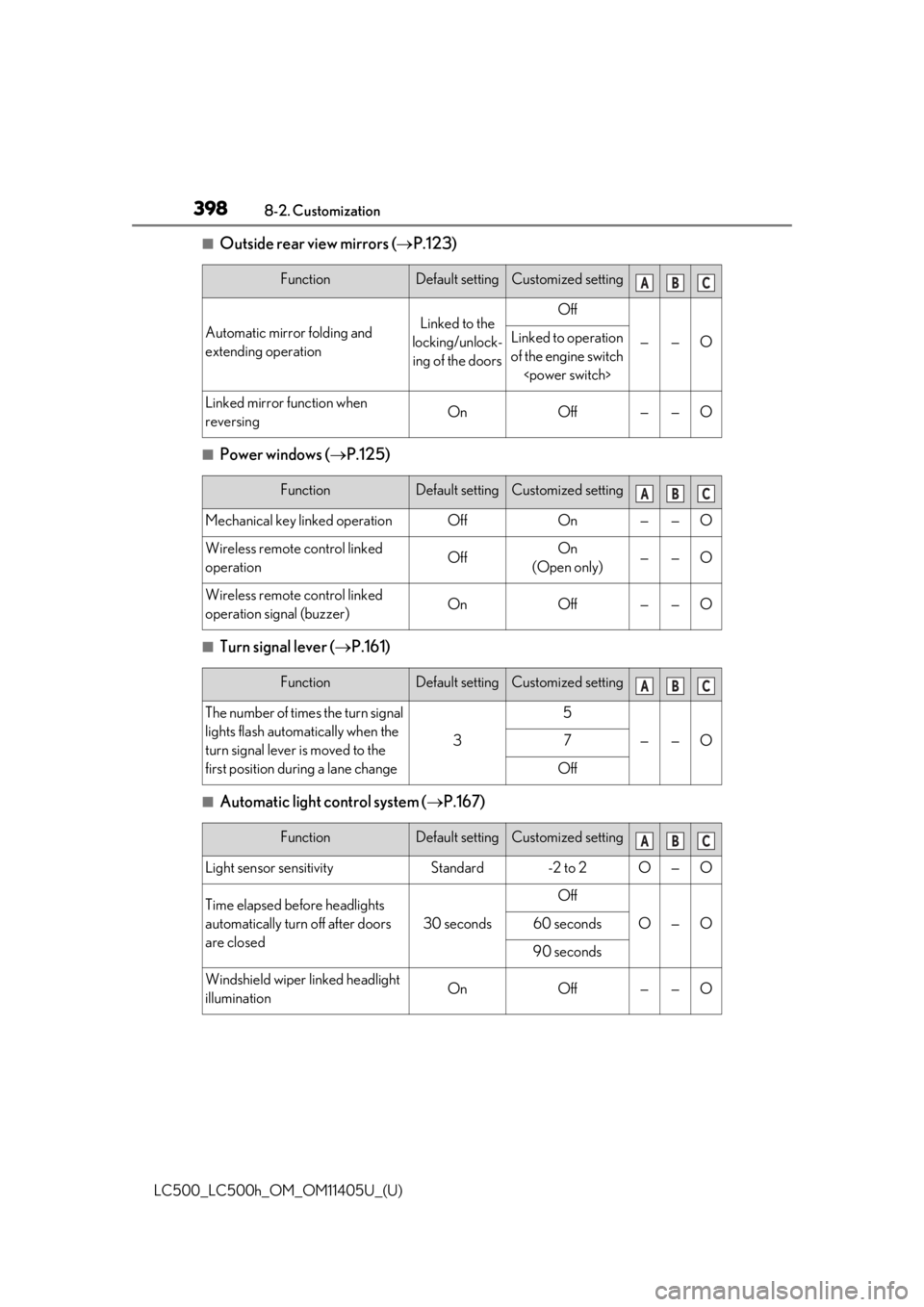

■Outside rear view mirrors (P.123)
■Power windows ( P.125)
■Turn signal lever ( P.161)
■Automatic light control system ( P.167)
FunctionDefault settingCustomized setting
Automatic mirror folding and
extending operationLinked to the
locking/unlock- ing of the doorsOff
——OLinked to operation
of the engine switch
Linked mirror function when
reversingOnOff——O
FunctionDefault settingCustomized setting
Mechanical key linked operationOffOn——O
Wireless remote control linked
operationOffOn
(Open only)——O
Wireless remote control linked
operation signal (buzzer)OnOff——O
FunctionDefault settingCustomized setting
The number of times the turn signal
lights flash automatically when the
turn signal lever is moved to the
first position during a lane change
3
5
——O7
Off
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Time elapsed before headlights
automatically turn off after doors
are closed
30 seconds
Off
O—O60 seconds
90 seconds
Windshield wiper linked headlight
illuminationOnOff——O
ABC
ABC
ABC
ABC

3998-2. Customization
LC500_LC500h_OM_OM11405U_(U)
8
Vehicle specifications
■Lights ( P.167)
*: U.S.A. only
■Automatic air conditioning system ( P.242)
■Seat heater*/seat ventilators* ( P.249)
*:If equipped
■Heated steering wheel* ( P.249)
*:If equipped
■Illumination ( P.252)
FunctionDefault settingCustomized setting
Daytime running lights*OnOffO—O
Welcome light illumi nation controlOnOff——O
FunctionDefault settingCustomized setting
A/C auto switch operationOnOffO—O
Exhaust gas sensor sensitivityStandard-3 to 3O—O
FunctionDefault settingCustomized setting
Driver’s seat temperature prefer-
ence in automatic modeStandard-2 (cooler) to 2
(warmer)O—O
Passenger’s seat temperature pref-
erence in automatic modeStandard-2 (cooler) to 2 (warmer)O—O
FunctionDefault settingCustomized setting
Steering wheel heating preference
in automatic modeStandard-2 (low) to 2 (high)O—O
FunctionDefault settingCustomized setting
Time elapsed before the interior
lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the engine switch
is turned offOnOff——O
ABC
ABC
ABC
ABC
ABC

4008-2. Customization
LC500_LC500h_OM_OM11405U_(U)

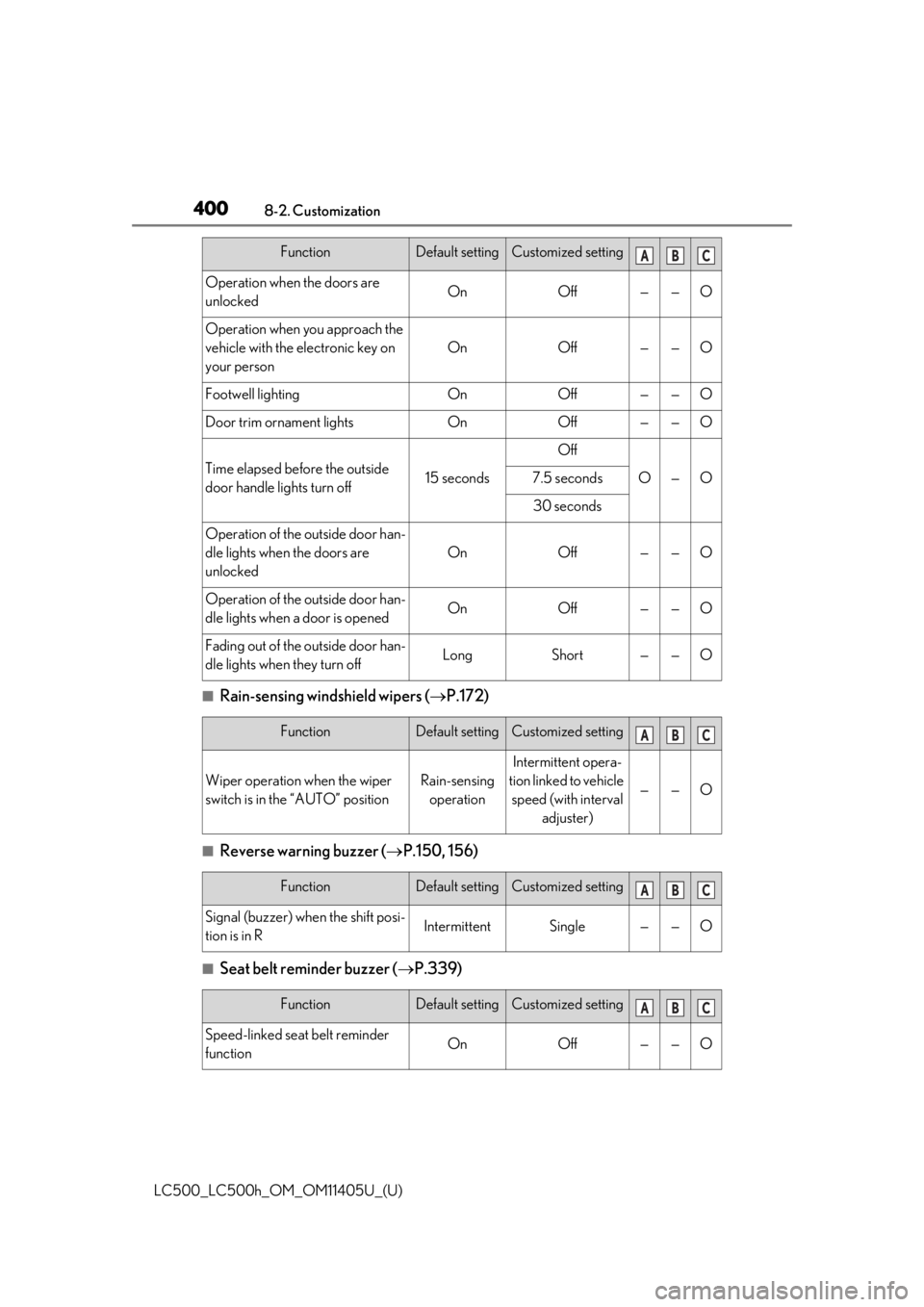

■Rain-sensing windshield wipers (P.172)
■Reverse warning buzzer ( P.150, 156)
■Seat belt reminder buzzer ( P.339)
Operation when the doors are
unlockedOnOff——O
Operation when you approach the
vehicle with the electronic key on
your person
OnOff——O
Footwell lightingOnOff——O
Door trim ornament lightsOnOff——O
Time elapsed before the outside
door handle lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation of the outside door han-
dle lights when the doors are
unlocked
OnOff——O
Operation of the outside door han-
dle lights when a door is openedOnOff——O
Fading out of the outside door han-
dle lights when they turn offLongShort——O
FunctionDefault settingCustomized setting
Wiper operation when the wiper
switch is in the “AUTO” positionRain-sensing
operation
Intermittent opera-
tion linked to vehicle speed (with interval adjuster)
——O
FunctionDefault settingCustomized setting
Signal (buzzer) when the shift posi-
tion is in RIntermittentSingle——O
FunctionDefault settingCustomized setting
Speed-linked seat belt reminder
functionOnOff——O
FunctionDefault settingCustomized settingABC
ABC
ABC
ABC
