Vehicle specifications
Vehicle specifications
8-1. SpecificationsMaintenance data (fuel, oil level, etc.) .............................................. 372
Fuel information .......................... 381
Tire information.......................... 383
8-2. Customization Customizable features............. 391
8-3. Items to initialize Items to initialize ........................ 403

3728-1. Specifications
LC500_LC500h_OM_OM11405U_(U)
8-1.Specifications
*:Unladen vehicle
■Vehicle identification number
The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in
registering the ownership of your vehi-
cle.
This number is stamped on the top left
of the instrument panel.
This number is also stamped under the
right-hand front seat. This number is also on the Certification
Label.
■Engine number
The engine number is located as
shown.
Maintenance data (fuel, oil level, etc.)

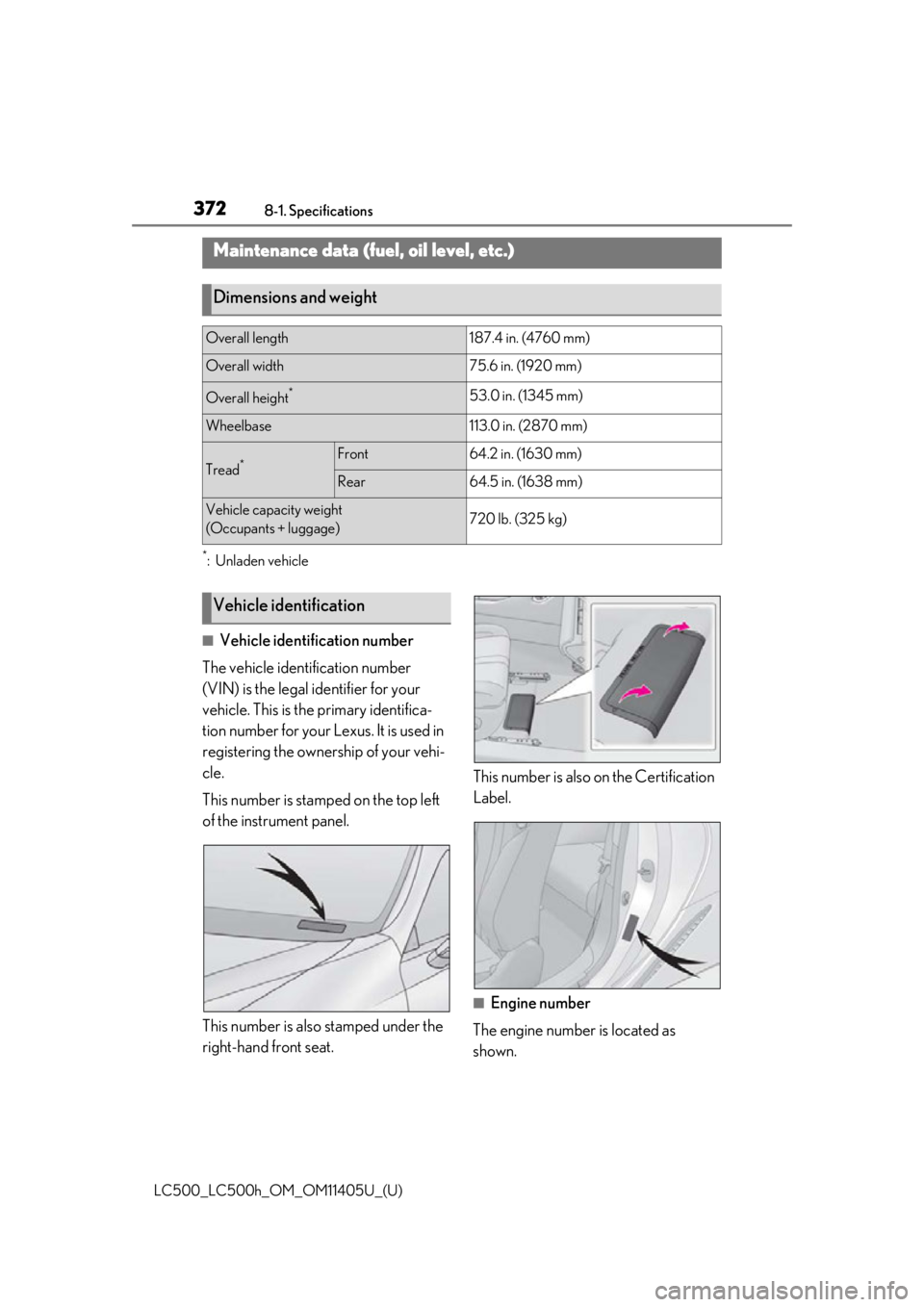

Dimensions and weight
Overall length187.4 in. (4760 mm)
Overall width75.6 in. (1920 mm)
Overall height*53.0 in. (1345 mm)
Wheelbase113.0 in. (2870 mm)
Tread*Front64.2 in. (1630 mm)
Rear64.5 in. (1638 mm)
Vehicle capacity weight
(Occupants + luggage)720 lb. (325 kg)
Vehicle identification

3738-1. Specifications
LC500_LC500h_OM_OM11405U_(U)
8
Vehicle specifications
LC500LC500h
LC500
LC500h

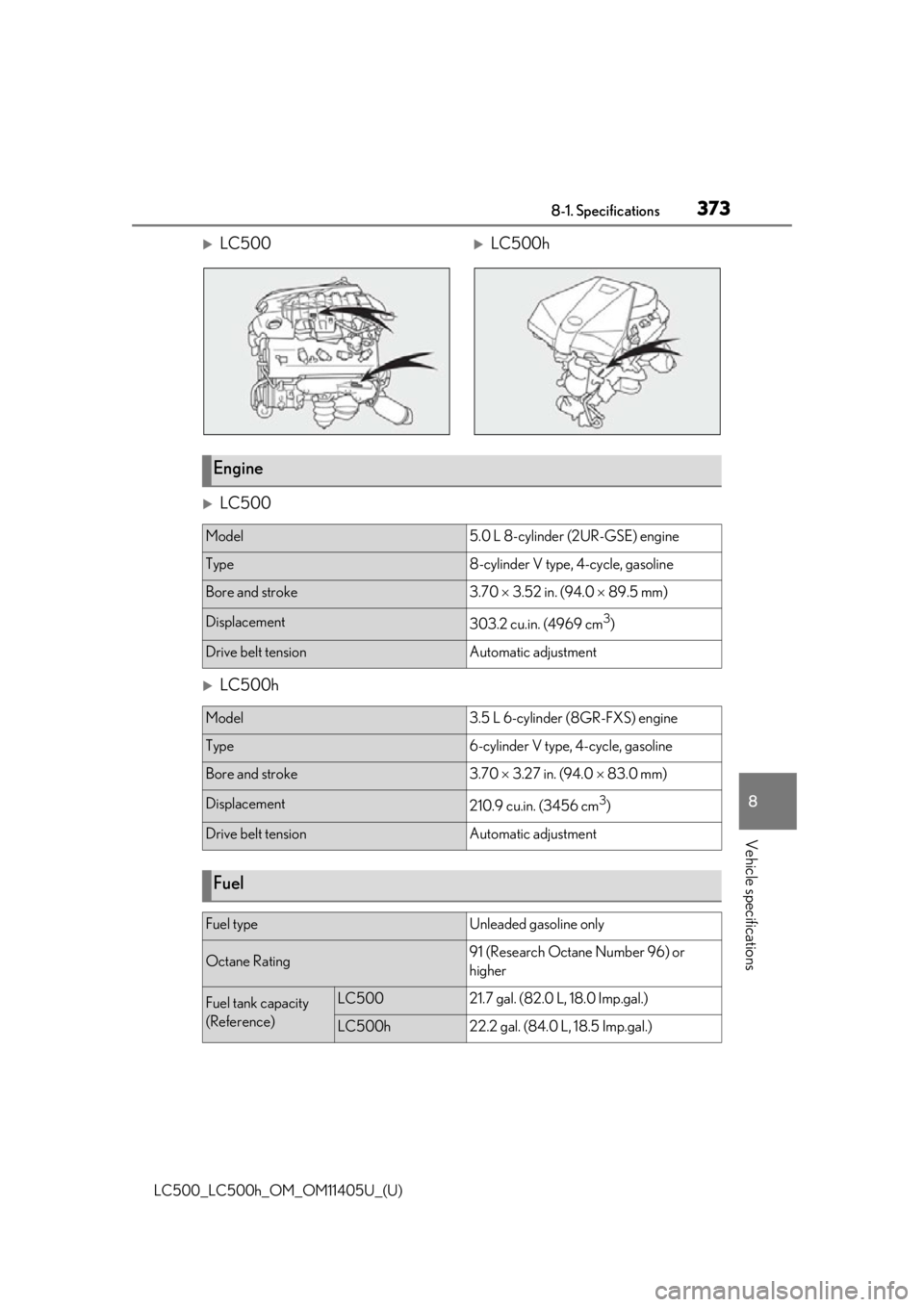

Engine
Model5.0 L 8-cylinder (2UR-GSE) engine
Type8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.52 in. (94.0  89.5 mm)
Displacement303.2 cu.in. (4969 cm3)
Drive belt tensionAutomatic adjustment
Model3.5 L 6-cylinder (8GR-FXS) engine
Type6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.27 in. (94.0  83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Drive belt tensionAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating91 (Research Octane Number 96) or
higher
Fuel tank capacity
(Reference)LC50021.7 gal. (82.0 L, 18.0 Imp.gal.)
LC500h22.2 gal. (84.0 L, 18.5 Imp.gal.)

3748-1. Specifications
LC500_LC500h_OM_OM11405U_(U)
LC500
■Oil capacity (Drain and refill [Ref-
erence
*])
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the
engine, wait more than 5 minutes, and
check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil”
or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade
engine oil
Recommended viscosity: SAE 5W-30 SAE 5W-30 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 5W-30 is not available, SAE
10W-30 oil may be used. However, it
should be replaced with SAE 5W-30
at the next oil change.
Outside temperature
Oil viscosity (5W-30 is explained here
as an example):
• The 5W in 5W-30 indicates the characteristic of the oil which allows

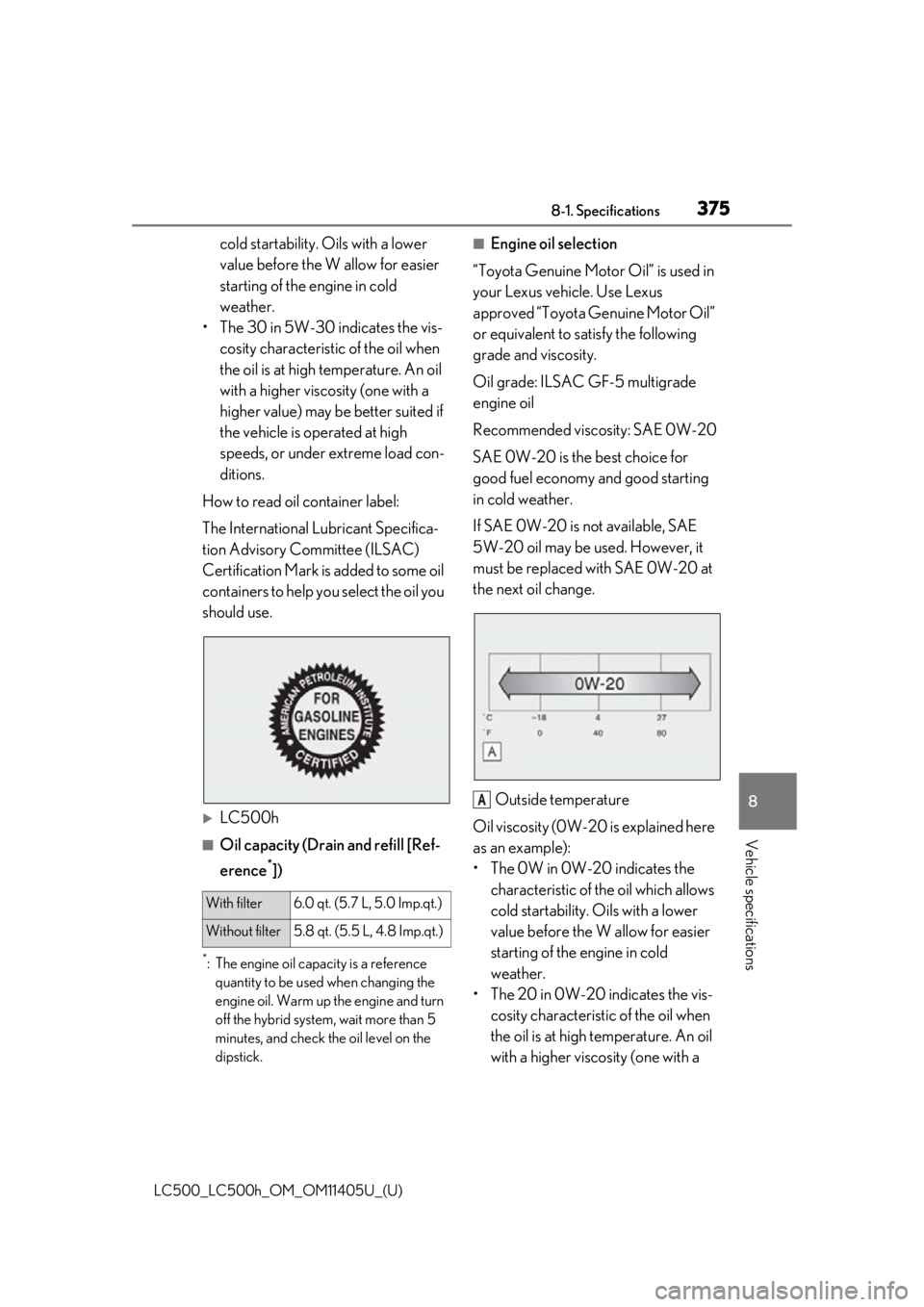

Electric motor (traction motor) (LC500h)
TypePermanent magnet synchronous motor
Maximum output131.9 kW
Maximum torque221.3 ft•lbf (300 N•m, 30.6 kgf•m)
Hybrid battery (traction battery) (LC500h)
TypeLithium-ion battery
Voltage3.7 V/cell
Capacity3.6 Ah
Quantity84 cells
Overall voltage310.8 V
Lubrication system
With filter9.1 qt. (8.6 L, 7.6 Imp.qt.)
Without filter8.3 qt. (7.9 L, 7.0 Imp.qt.)
A

3758-1. Specifications
LC500_LC500h_OM_OM11405U_(U)
8
Vehicle specifications
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.
• The 30 in 5W-30 indicates the vis- cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.
How to read oil container label:
The International Lubricant Specifica-
tion Advisory Committee (ILSAC)
Certification Mark is added to some oil
containers to help you select the oil you
should use.
LC500h
■Oil capacity (Drain and refill [Ref-
erence
*])
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turn
off the hybrid system, wait more than 5
minutes, and check the oil level on the
dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil”
or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade
engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20 at
the next oil change.
Outside temperature
Oil viscosity (0W-20 is explained here
as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.
• The 20 in 0W-20 indicates the vis- cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
With filter6.0 qt. (5.7 L, 5.0 Imp.qt.)
Without filter5.8 qt. (5.5 L, 4.8 Imp.qt.)
A

3768-1. Specifications
LC500_LC500h_OM_OM11405U_(U)
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.
How to read oil container label:
The International Lubricant Specifica-
tion Advisory Committee (ILSAC)
Certification Mark is added to some oil
containers to help you select the oil you should use.
■Spark plug
Cooling system
Capacity
LC50012.8 qt. (12.1 L, 10.6 Imp.qt.)
LC500h
Gasoline engine
11.5 qt. (10.9L, 9.6 Imp.qt.)
Power control unit
2.4 qt. (2.3L, 2.0 Imp.qt.)
Coolant type
Use either of the following:
 “Toyota Super Long Life Coolant”
 Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
Ignition system
LC500LC500h
MakeDENSO FK20HBR-J8DENSO FK20HBR8
Gap0.031 in. (0.8 mm)0.031 in. (0.8 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

3778-1. Specifications
LC500_LC500h_OM_OM11405U_(U)
8
Vehicle specifications
LC500
LC500h
*: The fluid capacity is a reference quantity. If replacement is necessary, contact your Lexus dealer.

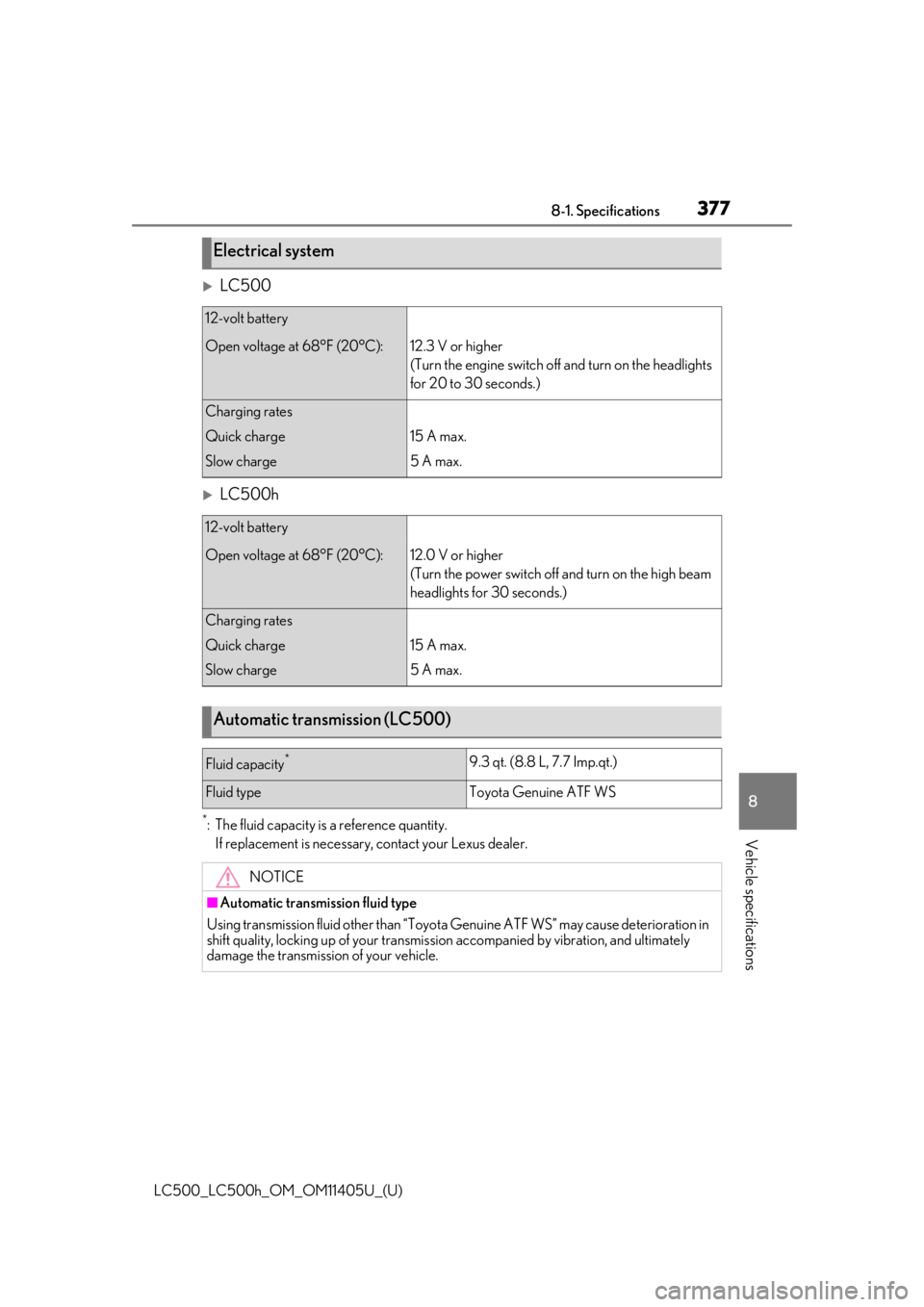

Electrical system
12-volt battery
Open voltage at 68°F (20°C):12.3 V or higher
(Turn the engine switch off and turn on the headlights
for 20 to 30 seconds.)
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.
12-volt battery
Open voltage at 68°F (20°C):12.0 V or higher
(Turn the power switch off and turn on the high beam
headlights for 30 seconds.)
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.
Automatic transmission (LC500)
Fluid capacity*9.3 qt. (8.8 L, 7.7 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration in
shift quality, locking up of your transmission accompanied by vibration, and ultimately
damage the transmission of your vehicle.

3788-1. Specifications
LC500_LC500h_OM_OM11405U_(U)
*: The fluid capacity is the quantity of reference.If replacement is necessary, contact your Lexus dealer.
*: Your Lexus vehicle is filled with “Toyota Genu ine Differential Gear Oil” at the factory.
Use Lexus approved “Toyota Genu ine Differential Gear Oil” or an equivalent of match-
ing quality to satisfy the above specification. Please contact your Lexus dealer for further
details.
Hybrid transmission (LC500h)
Fluid capacity*7.2 qt. (6.8 L, 6.0 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Hybrid transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration in
shift quality and ultimately damage the transmission of your vehicle.
Differential
Oil capacity0.90 qt. (0.85 L, 0.75 Imp.qt.)
Oil type and viscosity
Without LSD (Limited Slip Differential)
Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
*

With LSD (Limited Slip Differential)
Toyota Genuine Differential gear oil LX
75W-85 GL-5 or equivalent
*
Brakes
Pedal clearance*15.2 in. (132 mm) Min.
Pedal free play0.04  0.24 in. (1.0  6.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)

3798-1. Specifications
LC500_LC500h_OM_OM11405U_(U)
8
Vehicle specifications
*1: Minimum pedal clearance when depressed with a force of 112.4 lbf (500 N, 51.0 kgf)
while the engine is running .
When performing the brake pedal inspection, also be sure to check that the brake sys-
tem warning light is not illumin ated when the engine is running ing>. (If the brake system warning lig ht is illuminated, refer to P.334.)
*2: Make sure to confirm that the brake warning light (yellow) does not illuminate. (If the
brake warning light illuminates, refer to P.338.)

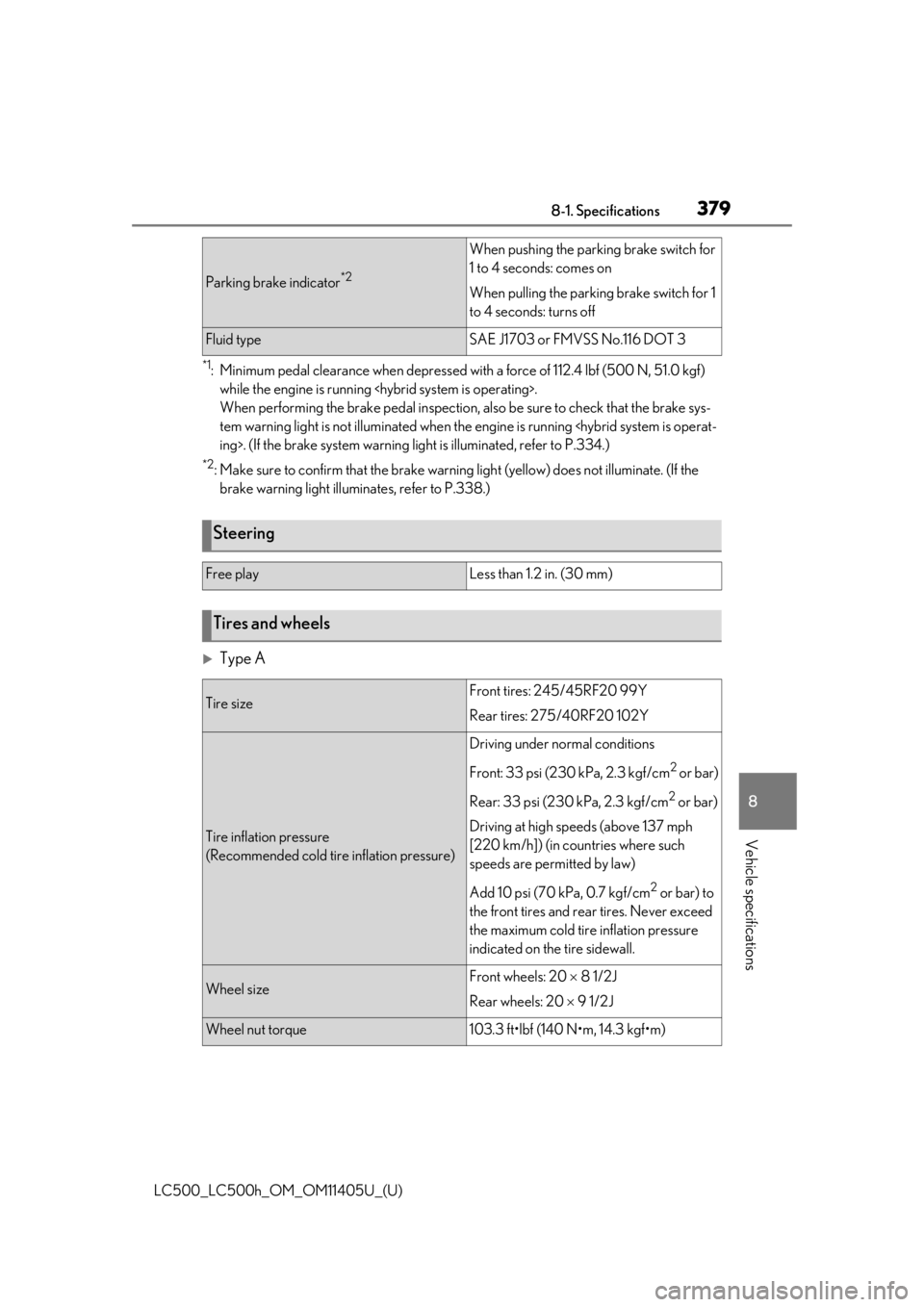

Type A
Parking brake indicator*2
When pushing the parking brake switch for
1 to 4 seconds: comes on
When pulling the parking brake switch for 1
to 4 seconds: turns off
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
Steering
Free playLess than 1.2 in. (30 mm)
Tires and wheels
Tire sizeFront tires: 245/45RF20 99Y
Rear tires: 275/40RF20 102Y
Tire inflation pressure
(Recommended cold tire inflation pressure)
Driving under normal conditions
Front: 33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Rear: 33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Driving at high speeds (above 137 mph
[220 km/h]) (in countries where such
speeds are permitted by law)
Add 10 psi (70 kPa, 0.7 kgf/cm
2 or bar) to
the front tires and rear tires. Never exceed
the maximum cold tire inflation pressure
indicated on the tire sidewall.
Wheel sizeFront wheels: 20  8 1/2J
Rear wheels: 20  9 1/2J
Wheel nut torque103.3 ft•lbf (140 N•m, 14.3 kgf•m)

3808-1. Specifications
LC500_LC500h_OM_OM11405U_(U)
Type B
Tire sizeFront tires: 245/40RF21 96Y
Rear tires: 275/35RF21 99Y
Tire inflation pressure
(Recommended cold tire inflation pressure)
Driving under normal conditions
Front: 33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Rear: 33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Driving at high speeds (above 137 mph
[220 km/h]) (in countries where such
speeds are permitted by law)
Add 10 psi (70 kPa, 0.7 kgf/cm
2 or bar) to
the front tires and rear tires. Never exceed
the maximum cold tire inflation pressure
indicated on the tire sidewall.
Wheel sizeFront wheels: 21  8 1/2J
Rear wheels: 21  9 1/2J
Wheel nut torque103.3 ft•lbf (140 N•m, 14.3 kgf•m)

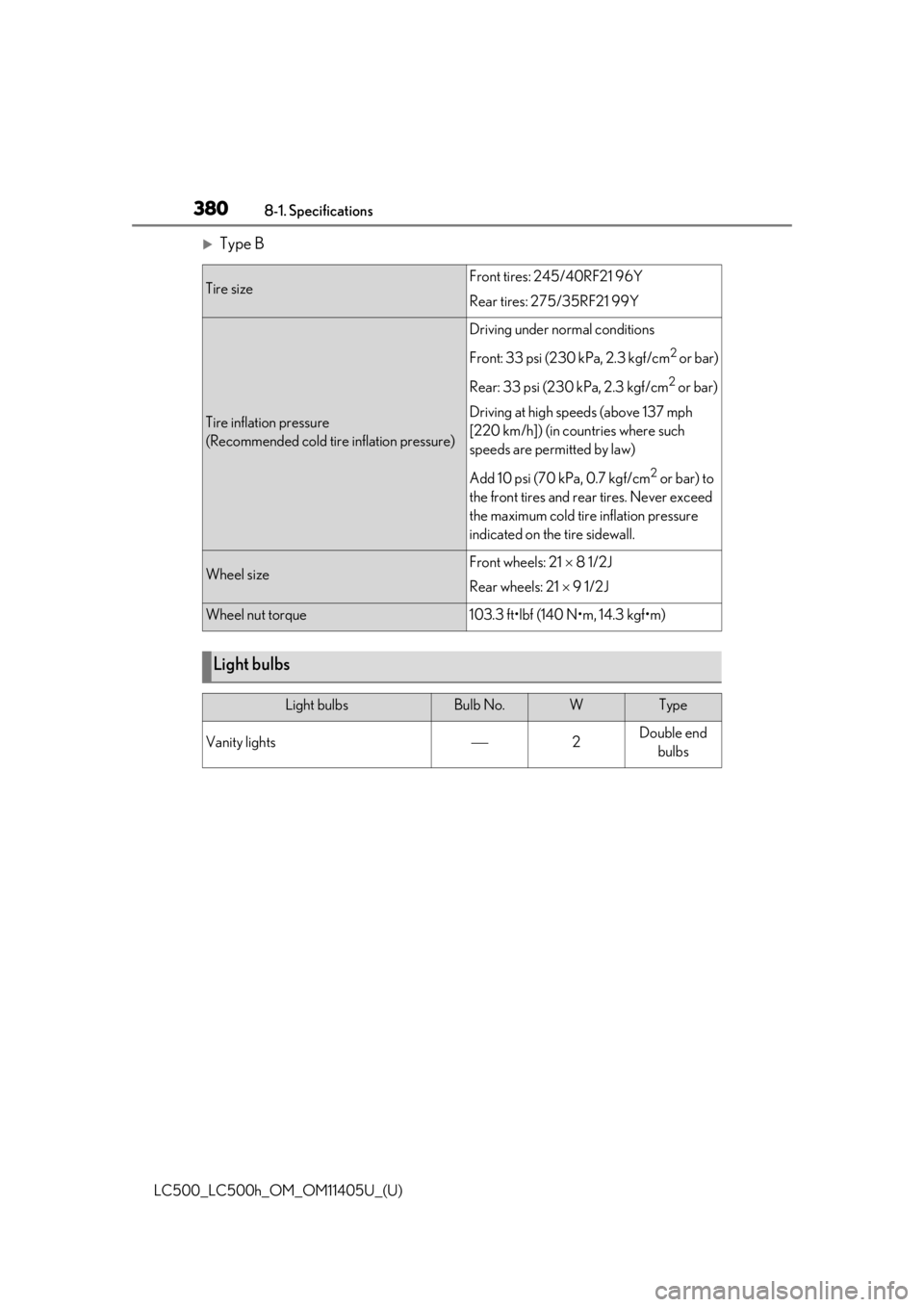

Light bulbs
Light bulbsBulb No.WType
Vanity lights2Double end
bulbs
