Vehicle status information and indicators
*1: These lights turn on when the engine switch is turned to
IGNITION ON mode to
indicate that a system check is being
performed. They will turn off after the
engine is started, or
after a few seconds. There may be a
malfunction in a syst em if a light does
not come on, or turn off. Have the vehi-
cle inspected by your Lexus dealer.
*2: This light illuminates on the multi-infor- mation display.
*3: The light flashes to indicate that the sys-tem is operating.
*4: The light comes on when the system is turned off.
*5: In order to confirm operation, the BSM outside rear view mirror indicators illu-
minate in the following situations:
When the engine switch
is turned to IGNITION ON mode mode> while the BSM main switch is
turned on.
When the BSM main switch is turned
on while the engine switch switch> is in IGNITION ON mode
.
If the system is func tioning correctly, the
BSM outside rear view mirror indica-
tors will turn off after a few seconds.
If the BSM outside rear view mirror indi-
cators do not illuminate or do not turn
off, there may be a malfunction in the
system.

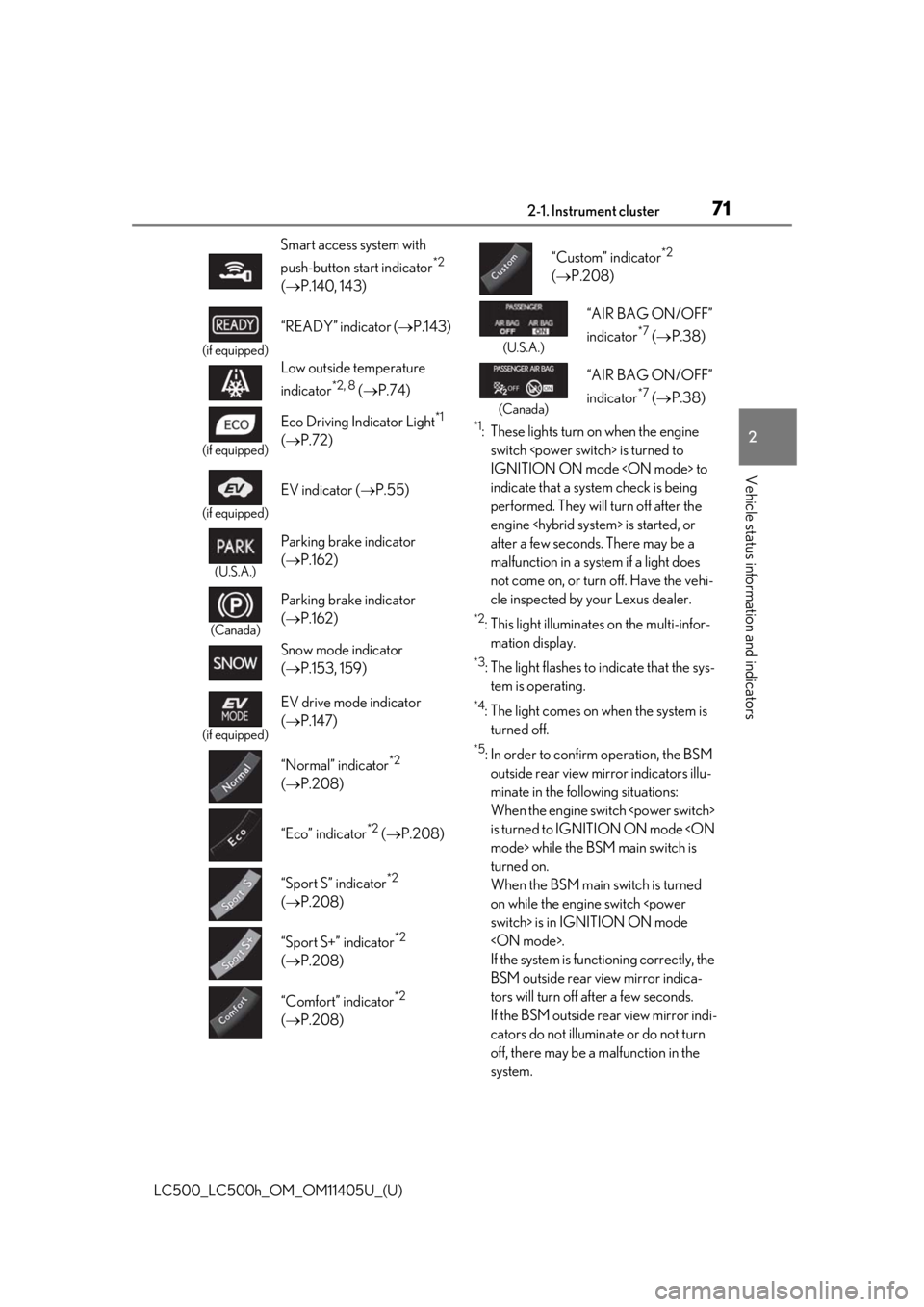

Smart access system with
push-button start indicator
*2
(  P.140, 143)
(if equipped)
“READY” indicator ( P.143)
Low outside temperature
indicator
*2, 8 (  P.74)
(if equipped)
Eco Driving Indicator Light*1
(  P.72)
(if equipped)
EV indicator ( P.55)
(U.S.A.)
Parking brake indicator
( P.162)
(Canada)
Parking brake indicator
( P.162)
Snow mode indicator
(  P.153, 159)
(if equipped)
EV drive mode indicator
( P.147)
“Normal” indicator
*2
(  P.208)
“Eco” indicator
*2 (  P.208)
“Sport S” indicator
*2
(  P.208)
“Sport S+” indicator
*2
(  P.208)
“Comfort” indicator
*2
(  P.208)
“Custom” indicator*2
(  P.208)
(U.S.A.)
“AIR BAG ON/OFF”
indicator
*7 ( P.38)
(Canada)
“AIR BAG ON/OFF”
indicator
*7 ( P.38)

722-1. Instrument cluster
LC500_LC500h_OM_OM11405U_(U)If this occurs, have
the vehicle inspected
by your Lexus dealer.
*6: This light illuminates on the outside rear view mirrors.
*7: This light illuminates on the center panel.
*8: When the outside temperature is approximately 37°F (3°C) or lower, the
indicator will flash for approximately 10
seconds, then stay on.
■Eco Driving Indicator (LC500)
Eco Driving Indicator Light
During Eco-friendly acceleration (Eco driv-
ing), the Eco Driving Indicator Light will
turn on. When the acceleration exceeds the
Zone of Eco driving, or when the vehicle is
stopped, the light turns off.
Eco Driving Indicator can be enabled on
the multi-information display. ( P.78)
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with cur-
rent Eco driving ratio based on accelera-
tion.
Eco driving ratio based on acceleration
The part that exceeds the Zone of Eco driv-
ing illuminates in white. Zone of Eco driving
Eco Driving Indicator will not operate
under the following conditions:
●The shift position is in any position other
than D.
●A paddle shift swit ch is operated.
●Eco Driving Indicator Light:
Neither normal mode nor Eco drive
mode is selected.
Eco Driving Indicator Zone Display:
Eco drive mode is not selected.
●The vehicle speed is approximately 80
mph (130 km/h) or higher.
■Hybrid System Indicator (LC500h)
Charge area
Shows regeneration
* status. Regenerated
energy will be used to charge the hybrid
battery (traction battery).
Hybrid Eco area
Shows that gasoline en gine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.
Eco area
Shows that the vehicle is being driven in an
Eco-friendly manner.
By keeping the indicator needle within Eco
A
B
C
D
A
B
C

732-1. Instrument cluster
LC500_LC500h_OM_OM11405U_(U)
2
Vehicle status information and indicators
area, more Eco-friendly driving can be
achieved. Power area
Shows that an Eco-frie ndly driving range is
being exceeded (durin g full power driving
etc.)
In the following situation, the Hybrid System
Indicator does not operate.
*: When used in this manual, “regeneration” refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.
●The shift position is in other than D or M.
●The driving mode is other than Eco
mode.
■Motor power display (LC500h)
Motor power area
Shows that the power of the motor assists
the engine.
Charge area
Shows regeneration
* status. Regenerated
energy will be used to charge the hybrid
battery (traction battery).
*: When used in this manual, “regeneration” refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.
D
A
B

742-1. Instrument cluster
LC500_LC500h_OM_OM11405U_(U)
LC500
LC500h
The units used on the meters may diff er depending on the target region.
Engine oil temperature gauge/Eco Driving Indicator (LC500)
Displays the engine oil temperat ure or Eco Driving Indicator (P.72)
Outside temperature
Gauges and meters
When the main meter is in the side posi tion, some of the meter displays and the
gauge layout will be changed.
Meter display
A
B

752-1. Instrument cluster
LC500_LC500h_OM_OM11405U_(U)
2
Vehicle status information and indicators
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Low outside temperature indicator comes on wh en the ambient temperature is 37°F (3°C)
or lower
Tachometer
Displays the engine speed in revolutions per minute
Speedometer

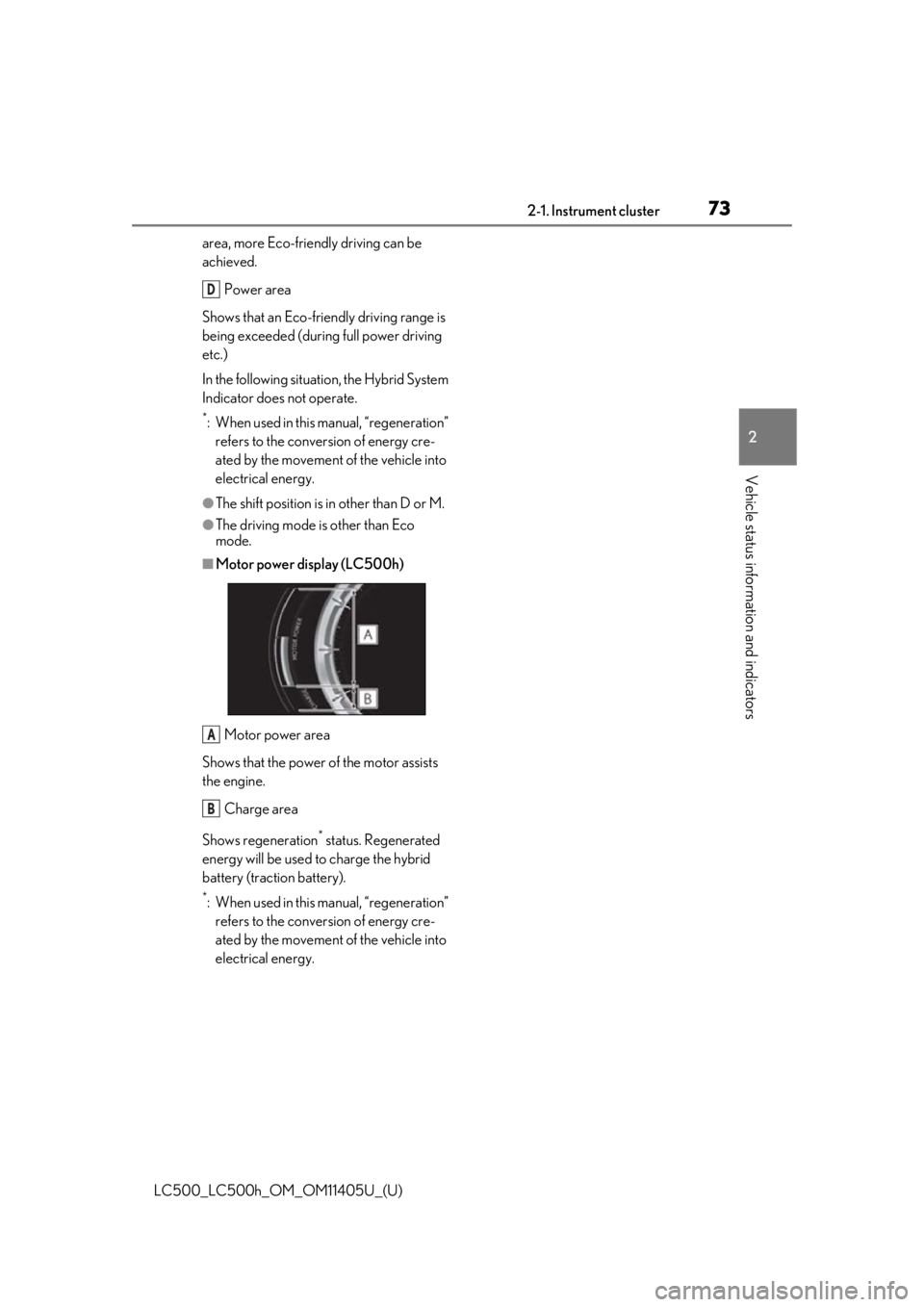

Shift position/shift range/gear position ( P.149, 155)
Shift position indicator ( P.151, 157)
Clock
Time displayed is linked to the analog clock on the instrument panel. (P.258)
Engine coolant temperature gauge
Displays the engine coolant temperature
If the engine coolant temperature gauge indicator enters the red zone, a buzzer sounds
and the high coolant temperature warning light comes on
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset
Trip meters “A” and “B” can be used to record and display different distances independently
Fuel gauge
Displays the quantity of fuel remaining in the tank
Multi-information display
Presents the driver with a variety of vehicle data ( P.78)
Displays warning messages in case of a malfunction (P.344)
Motor power display/Hybrid System Indicator (LC500h)
Displays the motor power display ( P.73) or Hybrid System Indicator ( P.72)
■Rev indicator
When the engine speed reaches a set
speed or the red zone, a ring-shaped
indicator will be displayed on the
tachometer.
The indicators will be displayed in
amber ( ) when the engine speed
reaches a set speed, and in red ( ) when the engine speed reaches the
red zone. This setting can be enabled
on the multi-information display.
(
P.83)
C
D
E
F
G
H
I
J
K
L
A
B

762-1. Instrument cluster
LC500_LC500h_OM_OM11405U_(U)
■Rev peak
When the engine speed reaches or
exceeds the following, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.
LC500: 3600 r/min
LC500h: 4000 r/min
■The meters and display illuminate when
The engine switch is in
IGNITION ON mode .

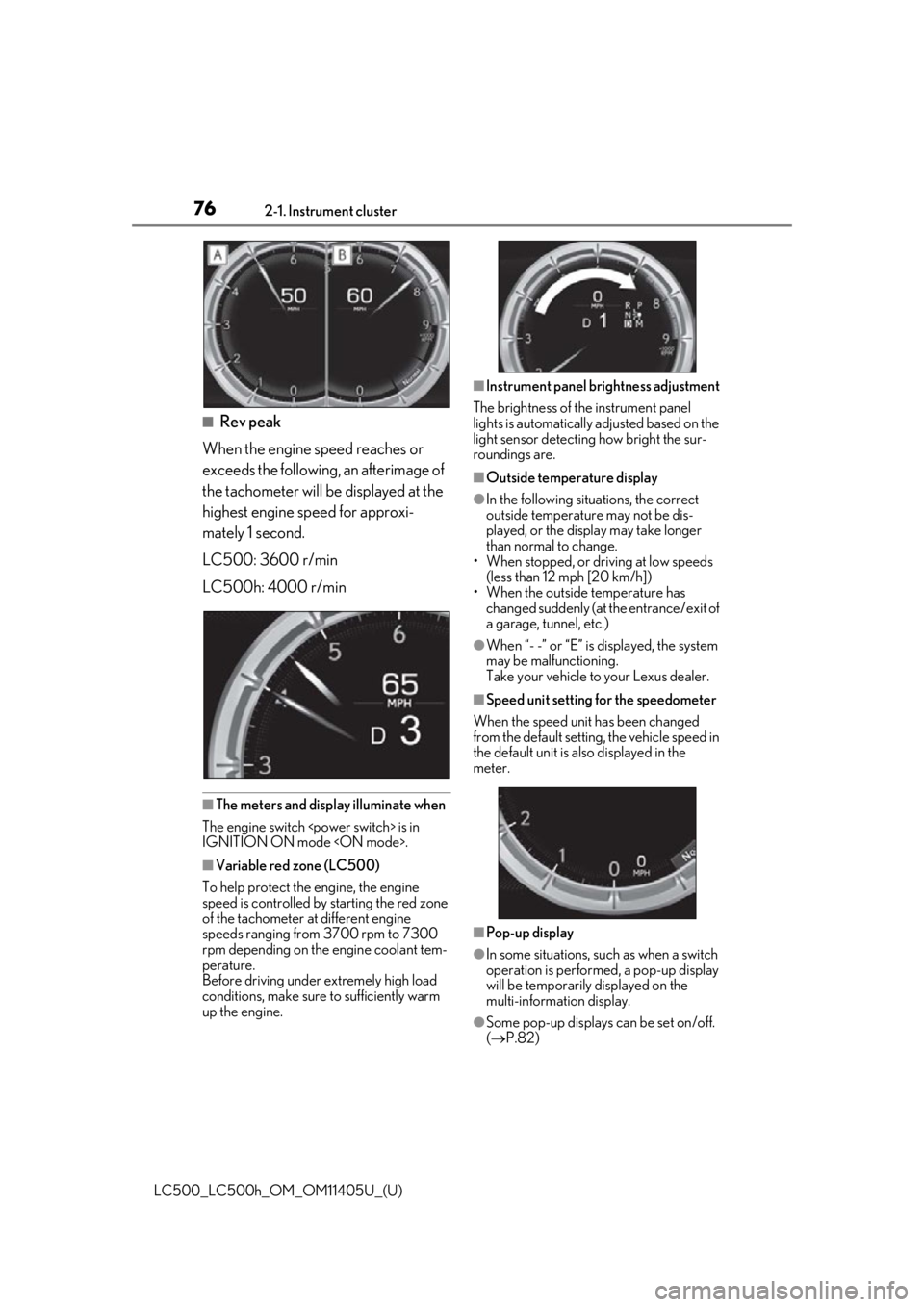

■Variable red zone (LC500)
To help protect the engine, the engine
speed is controlled by starting the red zone
of the tachometer at different engine
speeds ranging from 3700 rpm to 7300
rpm depending on the engine coolant tem-
perature.
Before driving under extremely high load
conditions, make sure to sufficiently warm
up the engine.
■Instrument panel brightness adjustment
The brightness of the instrument panel
lights is automatically adjusted based on the
light sensor detectin g how bright the sur-
roundings are.
■Outside temperature display
●In the following situations, the correct
outside temperature may not be dis-
played, or the display may take longer
than normal to change.
• When stopped, or driving at low speeds
(less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/exit of
a garage, tunnel, etc.)
●When “- -” or “E” is displayed, the system
may be malfunctioning.
Take your vehicle to your Lexus dealer.
■Speed unit setting for the speedometer
When the speed unit has been changed
from the default setting, the vehicle speed in
the default unit is also displayed in the
meter.
■Pop-up display
●In some situations, su ch as when a switch
operation is performed, a pop-up display
will be temporarily displayed on the
multi-information display.
●Some pop-up displays can be set on/off.
(  P.82)

772-1. Instrument cluster
LC500_LC500h_OM_OM11405U_(U)
2
Vehicle status information and indicators
■Liquid crystal display
Small spots or light spots may appear on the
display. This phenomenon is characteristic
of liquid crystal displays, and there is no
problem continuing to use the display.

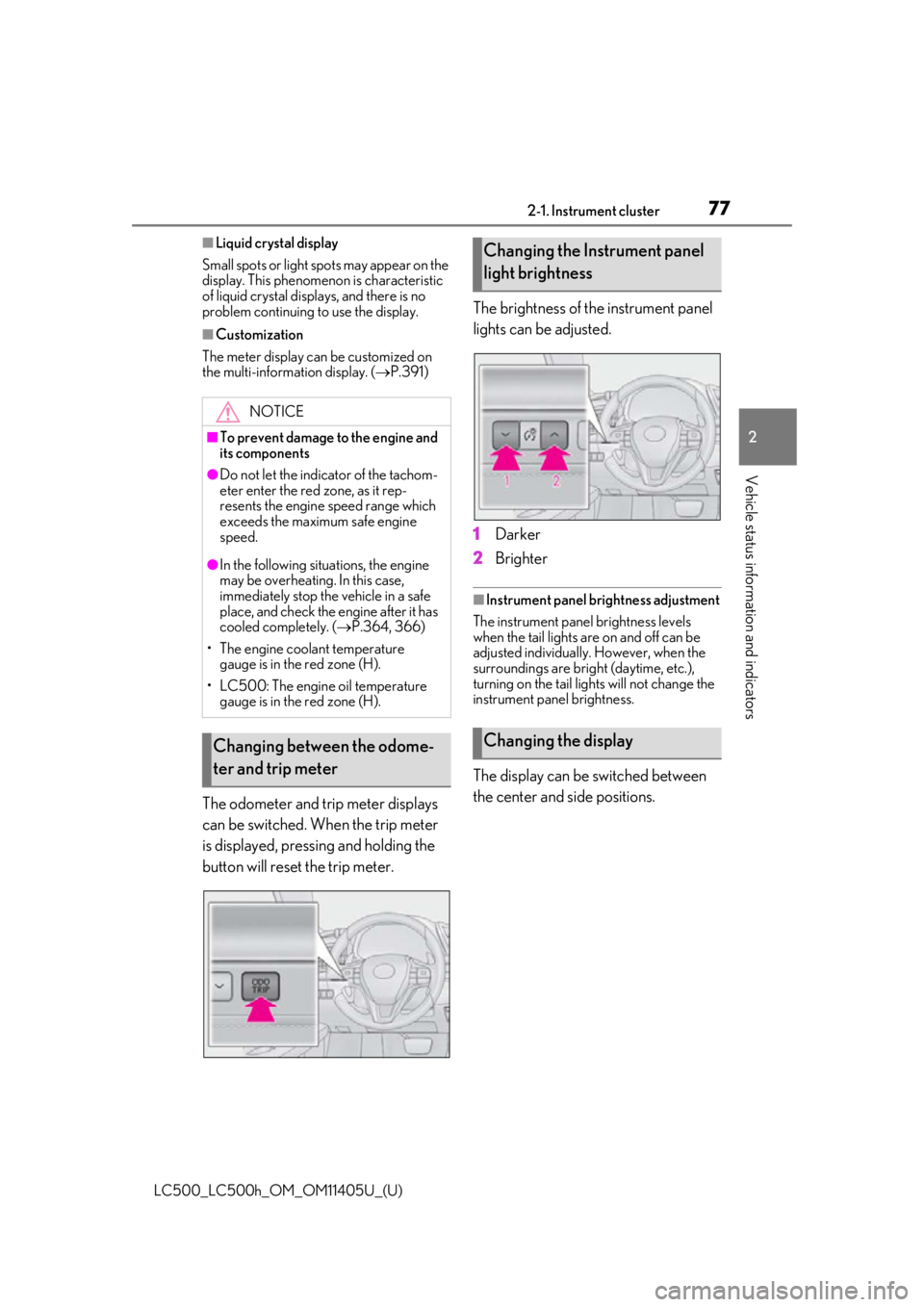

■Customization
The meter display can be customized on
the multi-information display. ( P.391)
The odometer and trip meter displays
can be switched. When the trip meter
is displayed, pressing and holding the
button will reset the trip meter. The brightness of the instrument panel
lights can be adjusted.
1
Darker
2 Brighter
■Instrument panel brightness adjustment
The instrument panel brightness levels
when the tail lights are on and off can be
adjusted individually. However, when the
surroundings are bright (daytime, etc.),
turning on the tail lights will not change the
instrument pa nel brightness.
The display can be switched between
the center and side positions.
NOTICE
■To prevent damage to the engine and
its components
●Do not let the indicator of the tachom-
eter enter the red zone, as it rep-
resents the engine speed range which
exceeds the maximum safe engine
speed.
●In the following situations, the engine
may be overheating. In this case,
immediately stop the vehicle in a safe
place, and check the engine after it has
cooled completely. ( P.364, 366)
• The engine coolant temperature gauge is in the red zone (H).
• LC500: The engine oil temperature gauge is in the red zone (H).
Changing between the odome-
ter and trip meter
Changing the Instrument panel
light brightness
Changing the display

782-1. Instrument cluster
LC500_LC500h_OM_OM11405U_(U)
■Display
When the main meter is in the cen-
ter position
Displays various drive information on
the main meter.
Some of the contents which are dis-
played when the main meter is in the
side position cannot be displayed.
( P.79)
When the main meter is in the side
position
Selecting a menu icon displays a vari-
ety of vehicle data or allows vehicle
settings to be customized.
■Menu icons

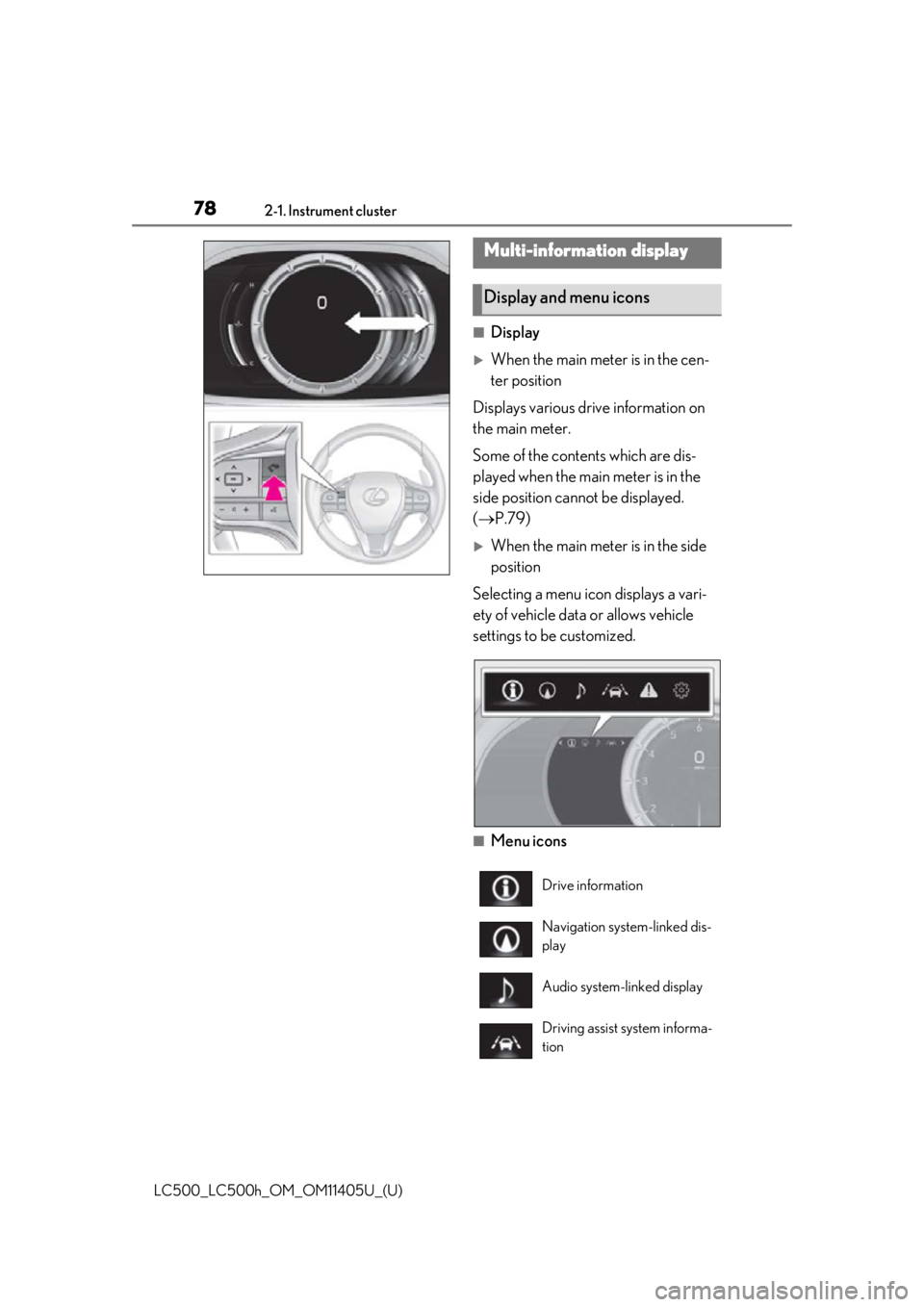

Multi-information display
Display and menu icons
Drive information
Navigation system-linked dis-
play
Audio system-linked display
Driving assist system informa-
tion

792-1. Instrument cluster
LC500_LC500h_OM_OM11405U_(U)
2
Vehicle status information and indicators
■Opening image display
When the engine switch is
in ACCESSORY mode or IGNITION ON
mode , the opening image is
displayed on the multi-information display.
While the opening image is being dis-
played, the meter display cannot be
changed even if the drive mode is changed.
When the start-up display is finished, the
meter display for the currently selected
mode will be displayed.
■When disconnecting and reconnecting
12-volt battery terminals
Record of the maximum G-forces will be
reset.
■Liquid crystal display
 P.77
The multi-information display is oper-
ated using the meter control switches.
/ : Switch menu
/ : Change displayed con-
tent, scroll up/down the screen and
move the cursor up/down
Press: Enter/Set
Press and hold: Reset
Return to the previous screen and
move the main meter
■Content of drive information
Select to display various drive data.
Warning message display
Settings display
WARNING
■Caution for use while driving
●When operating the multi-information
display while driving, pay extra atten-
tion to the safety of the area around the
vehicle.
●Do not look continuously at the multi-
information display while driving as
you may fail to see pedestrians, objects
on the road, etc. ahead of the vehicle.
■The information display at low tem-
peratures
Allow the interior of the vehicle to warm
up before using the liquid crystal infor-
mation display. At extremely low tem-
peratures, the information display
monitor may respond slowly, and display
changes may be delayed.
For example, there is a lag between the
driver’s shifting and the new gear number
appearing on the display. This lag could
cause the driver to downshift again,
causing rapid and excessive engine brak-
ing and possibly an accident resulting in
death or injury.

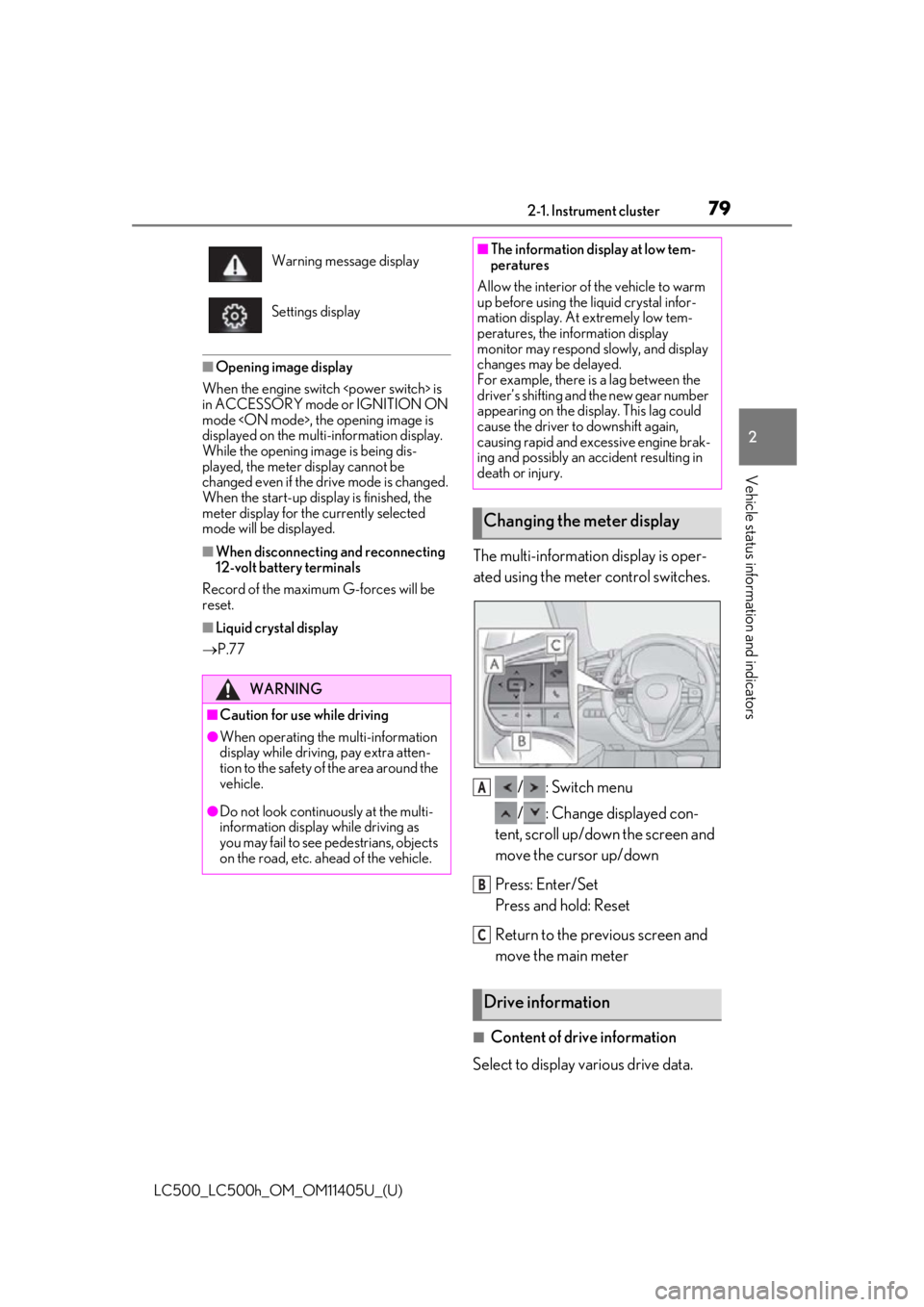

Changing the meter display
Drive information
A
B
C

802-1. Instrument cluster
LC500_LC500h_OM_OM11405U_(U)
Up to 2 of the following items can be
selected.
Items displayed can be switched by
pressing or of the meter con-
trol switches to select and pressing or .
 Current fuel consumption
*1
Displays the current rate of fuel consump-
tion
Average fuel economy (after
reset
*2/after start/after refuel)*1
Displays the average fuel consumption
since the function was reset, the engine
was started, and the vehi-
cle was refueled, respectively
Use the displayed average fuel consump-
tion as a reference.
Average speed (after reset*2/after
start)
*1
Displays the average vehicle speed since
the function was reset and the engine
was started, respectively
 Elapsed time (after reset*2/after
start)
*1
Displays the elapsed time since the func-
tion was reset and th e engine tem> was started, respectively
 Distance (range/after start)*1
Displays the estimated maximum distance
that can be driven with the quantity of fuel
remaining and the distance driven after the
engine was started
respectively.
• This distance is computed based on your
average fuel consumption. As a result,
the actual distance that can be driven
may differ from that displayed. • When only a small amount of fuel is
added to the tank, the display may not be
updated.
When refueling, turn the engine switch
off. If the vehicle is refu-
eled without turning the engine switch
off, the display may not
be updated.
*1: Displayed when the it em is set in “Drive
Info 1” and “Drive Info 2”.
*2: The function can be reset by pressing “OK” of the meter control switches for
longer than 1 second when the item to
reset is displayed.
If there is more than one item that can
be reset, the item selection screen will
appear.
■Eco Driving Indicator/engine oil
temperature gauge (LC500)
 P.72, 74
■Hybrid System Indicator/motor
power display (LC500h)
 P.72
■Energy monitor (LC500h)
 P.89
■Tire pressure
 P.303
■Gear positions
Displays the current shift range or gear
position when the shift position is in D
or M.
■Units
The units of measure used can be
changed while driving.
Unlike the units sett ing performed on the
settings display, th e units setting per-
formed on the drive information menu can
be changed while driving.
