812-1. Instrument cluster
LC500_LC500h_OM_OM11405U_(U)
2
Vehicle status information and indicators

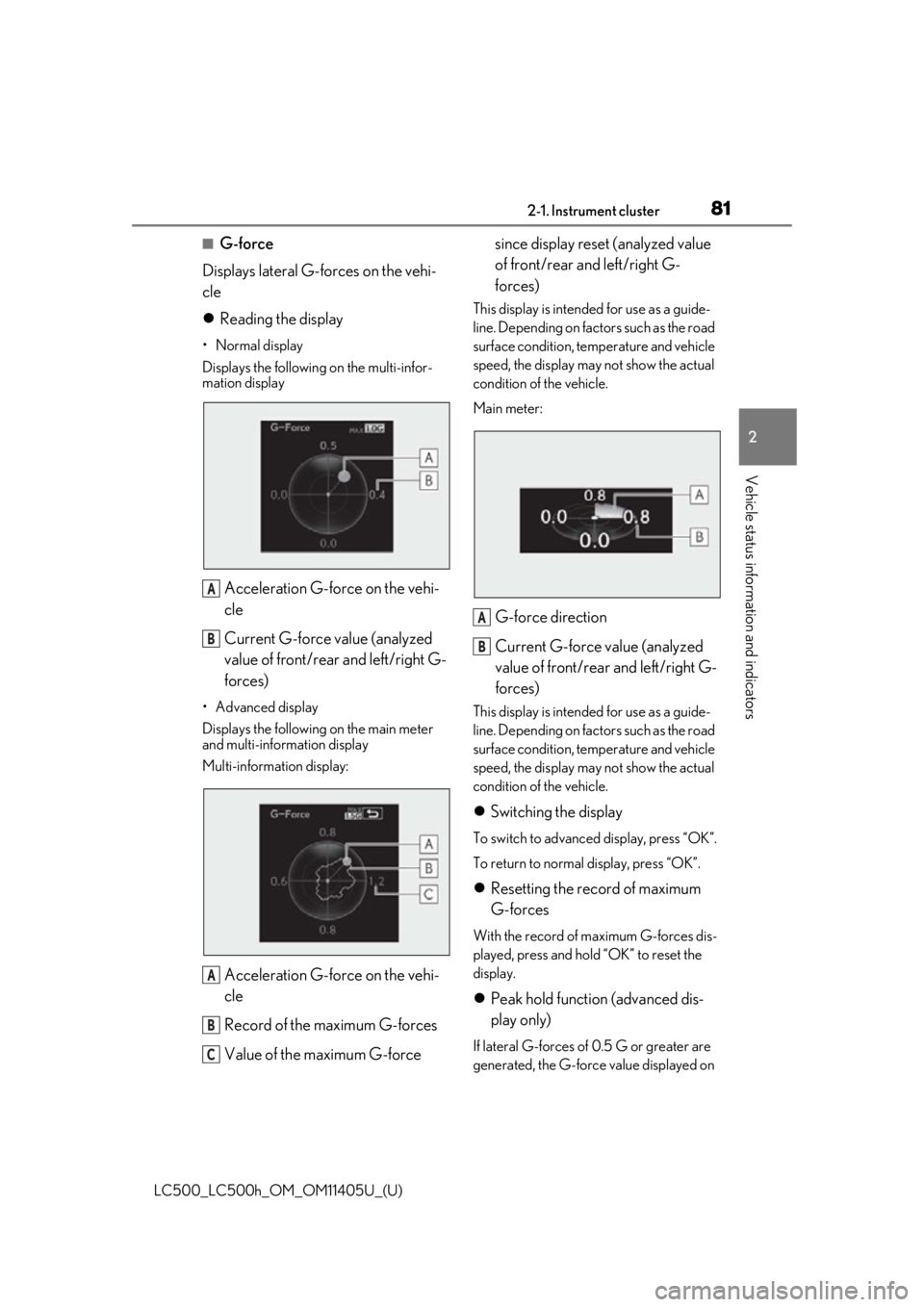

■G-force
Displays lateral G-forces on the vehi-
cle
 Reading the display
• Normal display
Displays the following on the multi-infor-
mation display
Acceleration G-force on the vehi-
cle
Current G-force value (analyzed
value of front/rear and left/right G-
forces)
• Advanced display
Displays the following on the main meter
and multi-information display
Multi-information display:
Acceleration G-force on the vehi-
cle
Record of the maximum G-forces
Value of the maximum G-force since display reset (analyzed value
of front/rear and left/right G-
forces)
This display is intended for use as a guide-
line. Depending on fact
ors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.
Main meter:
G-force direction
Current G-force value (analyzed
value of front/rear and left/right G-
forces)
This display is intended for use as a guide-
line. Depending on fact ors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.
 Switching the display
To switch to advanced display, press “OK”.
To return to normal display, press “OK”.
 Resetting the record of maximum
G-forces
With the record of maximum G-forces dis-
played, press and hold “OK” to reset the
display.

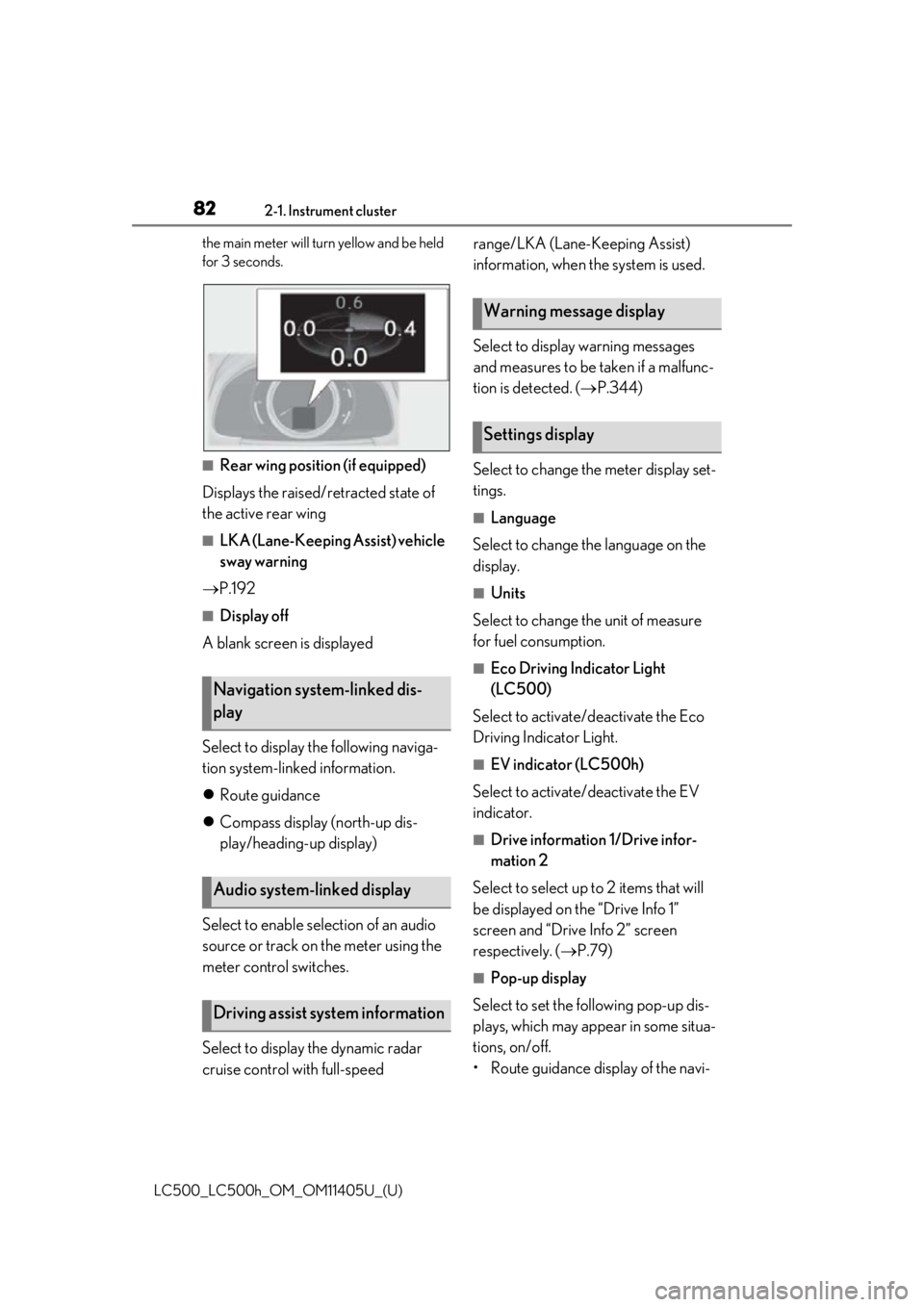

Peak hold function (advanced dis-
play only)
If lateral G-forces of 0.5 G or greater are
generated, the G-force value displayed on
A
B
A
B
C
A
B

822-1. Instrument cluster
LC500_LC500h_OM_OM11405U_(U)the main meter will turn yellow and be held
for 3 seconds.
■Rear wing position (if equipped)
Displays the raised/retracted state of
the active rear wing
■LKA (Lane-Keeping Assist) vehicle
sway warning
 P.192
■Display off
A blank screen is displayed
Select to display the following naviga-
tion system-linked information.
 Route guidance
 Compass display (north-up dis-
play/heading-up display)
Select to enable selection of an audio
source or track on the meter using the
meter control switches.
Select to display the dynamic radar
cruise control with full-speed range/LKA (Lane-Keeping Assist)
information, when the system is used.
Select to display warning messages
and measures to be taken if a malfunc-
tion is detected. (
P.344)
Select to change the meter display set-
tings.
■Language
Select to change the language on the
display.
■Units
Select to change the unit of measure
for fuel consumption.
■Eco Driving Indicator Light
(LC500)
Select to activate/deactivate the Eco
Driving Indicator Light.
■EV indicator (LC500h)
Select to activate/deactivate the EV
indicator.
■Drive information 1/Drive infor-
mation 2
Select to select up to 2 items that will
be displayed on the “Drive Info 1”
screen and “Drive Info 2” screen
respectively. ( P.79)
■Pop-up display
Select to set the following pop-up dis-
plays, which may appear in some situa-
tions, on/off.
• Route guidance display of the navi-
Navigation system-linked dis-
play
Audio system-linked display
Driving assist system information
Warning message display
Settings display

832-1. Instrument cluster
LC500_LC500h_OM_OM11405U_(U)
2
Vehicle status information and indicators
gation system-linked system
• Making call display of the hands- free phone system
• Audio system operation display
• Voice recognition display
• Instrument panel brightness adjust- ment display
■Ring position memory
Select to change the meter ring posi-
tion when the engine is
started.
The position before the engine system> is stopped or the center posi-
tion can be selected.
■Accent color
Select to change the accent color on
the screen, such as the cursor color.
■Rev indicator
Select to set the rev indicator on/off.
When set to on, proceed to select the
engine speed at which the rev indicator
will be displayed.
■Rev peak
Select to set the rev peak on/off.
■Clock
Select to switch between 12-hour dis-
play and 24-hour display.
■Initialization
Select to reset the meter display set-
tings.
■Suspension of the settings display
In the following situations, operation of the
settings display will be temporarily sus-
pended.
●When a warning message appears on the
multi-information display
●When the vehicle begins to move
■Customization
The settings can be changed on of the
multi-information display.
●Settings of the driving assist systems
(  P.391)
●Vehicle settings ( P.85, 282, 306,
307, 391)
Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the meter control switches.
■Suggestion to turn on the head-
lights
If the headlight switch is in other than
or position, and the vehicle
speed is 3 mph (5 km/h) or higher for
a certain amount of time when the sur-
roundings are dark, a suggestion mes-
WARNING
■Cautions during setting up the dis-
play
As the engine needs to
be running during setting up
the display, ensure that the vehicle is
parked in a place with adequate ventila-
tion. In a closed area such as a garage,
exhaust gases including harmful carbon
monoxide (CO) may collect and enter
the vehicle. This may lead to death or a
serious health hazard.
NOTICE
■While setting up the display
To prevent 12-volt battery discharge,
ensure that the engine is running system is operating> while setting up the
display features.
Suggestion function

842-1. Instrument cluster
LC500_LC500h_OM_OM11405U_(U)
sage will be displayed.
■Suggestion to turn off the head-
lights
If the headlights are left on for a certain
amount of time after the engine switch
has been turned off, a
suggestion message will be displayed
asking if you wish to turn the headlights
off.
When the headlight switch is in the
“AUTO” position: To turn the headlights
off, select “Yes”.
If a front door is op ened after the engine
switch is turned off, this
suggestion message will not be displayed.
■Suggestion to unlock the power
windows
If it is attempt to close the passenger’s
side window using the power window
switch on the driver’s door, a sugges-
tion message will be displayed.
■Customization
The suggestion function can be turned
on/off. (Customizable features: P.391)
*: If equipped
Navigation system-linked display
area
Displays the following items, which are
linked to the navigation system:
•Speed limit
• Street name
• Route guidance to destination
•Compass
Driving assist system status display
area
Displays the current sh ift position, and shift

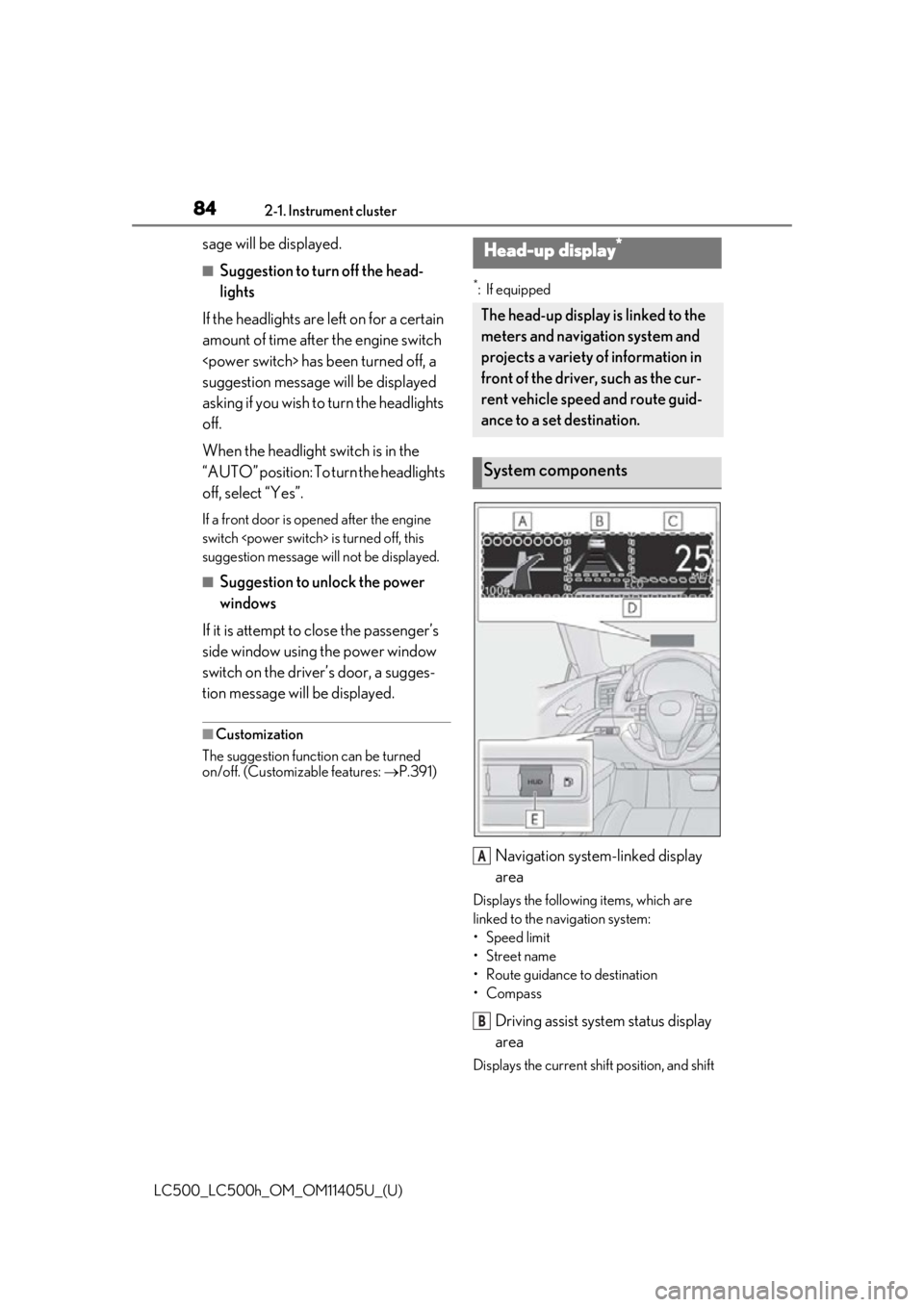

Head-up display*
The head-up display is linked to the
meters and navigation system and
projects a variety of information in
front of the driver, such as the cur-
rent vehicle speed and route guid-
ance to a set destination.
System components
A
B

852-1. Instrument cluster
LC500_LC500h_OM_OM11405U_(U)
2
Vehicle status information and indicators
range/gear position, or the operational sta-
tus of the following systems:
• Pre-collision warning (Pre-Collision Sys- tem) ( 
P.184)
• Dynamic radar cruise control with full- speed range ( 
P.198)
• LKA (Lane-Keeping Assist) ( 
P.191)
• Intuitive parking assist ( 
P.209)
Displayed content is the same as that dis-
played on the multi-information display. For
details, refer to the ex planations of each
system.
Vehicle speed display
Information display area ( P.87)
Displays the following items:
• Warning/message
•
/ icon ( P.87)
• Audio system operation status
• Dynamic radar cruise control with full- speed range status ( 
P.198)
• Hands-free system status ( 
P.87)
• Eco Driving Indicator/tachometer (
P.88) (LC500)
• Hybrid System Indicator/motor power display/tachometer ( 
P.88)
(LC500h)

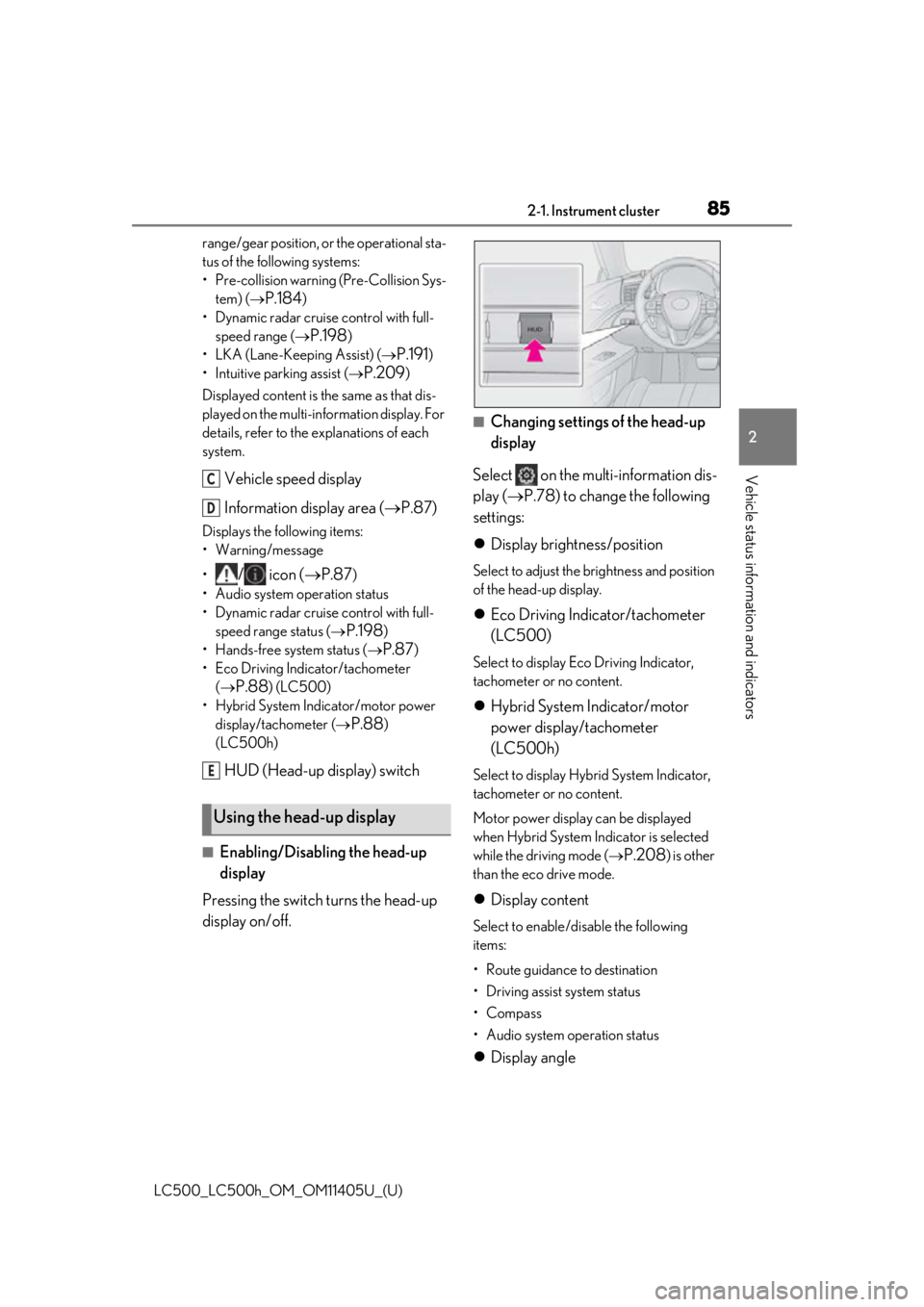

HUD (Head-up display) switch
■Enabling/Disabling the head-up
display
Pressing the switch turns the head-up
display on/off.
■Changing settings of the head-up
display
Select on the multi-information dis-
play ( P.78) to change the following
settings:
 Display brightness/position
Select to adjust the brightness and position
of the head-up display.

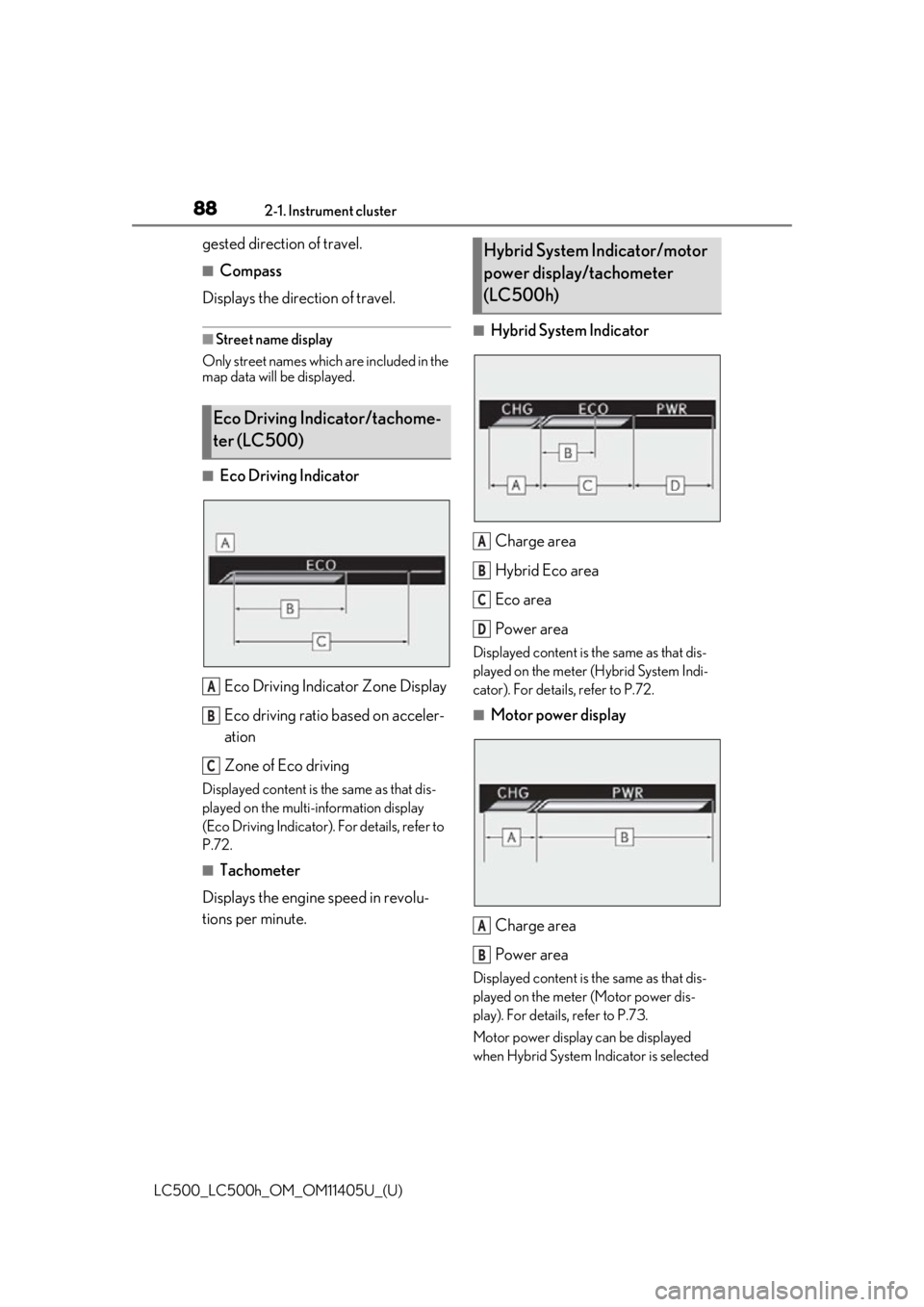

Eco Driving Indicator/tachometer
(LC500)
Select to display Eco Driving Indicator,
tachometer or no content.
Hybrid System Indicator/motor
power display/tachometer
(LC500h)
Select to display Hybrid System Indicator,
tachometer or no content.
Motor power display can be displayed
when Hybrid System Indicator is selected
while the driving mode ( 
P.208) is other
than the eco drive mode.
 Display content
Select to enable/disable the following
items:
• Route guidance to destination
• Driving assist system status
•Compass
• Audio system operation status
Display angle
Using the head-up display
C
D
E

862-1. Instrument cluster
LC500_LC500h_OM_OM11405U_(U)Select to adjust the angle of the head-up
display.
■Head-up display
●The head-up display may seem dark and
hard to see when viewed through sun-
glasses, especially polarized sunglasses.
Adjust the brightness of the head-up dis-
play or remove your sunglasses.
●When the head-up display is turned off, it
will remain off even if the engine switch
is turned to ACCES-
SORY mode or IGNITION ON mode
after th
e engine switch
has been turned off.
●The startup image will be displayed on
the head-up display after the engine
switch has been turned to
IGNITION ON mode while
the head-up display switch is set to on.
■Display brightness
The brightness of the head-up display can
be adjusted on of the multi-information
display. Also, it is automatically adjusted
according to the ambient brightness.
■Head-up display automatic position
adjustment
If the display position is recorded into mem-
ory, the head-up display will be automati-
cally adjusted to the desired position.
(  P.116)
■When the 12-volt battery is discon-
nected
The customize settings of the head-up dis-
play will be reset.
■Customization
Settings (e.g. display) can be changed.
(Customizable features: P.391)

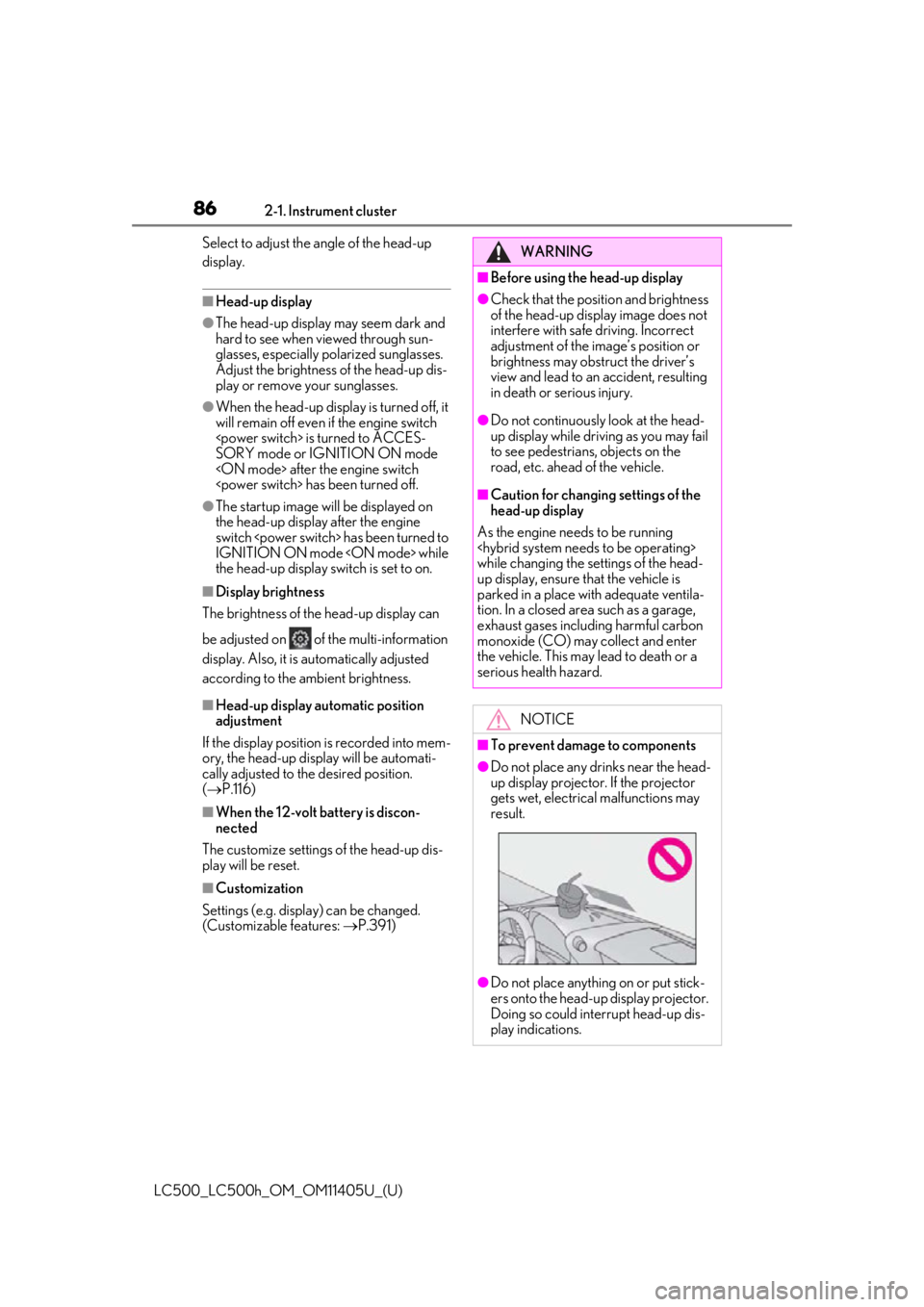

WARNING
■Before using the head-up display
●Check that the position and brightness
of the head-up display image does not
interfere with safe driving. Incorrect
adjustment of the image’s position or
brightness may obstruct the driver’s
view and lead to an accident, resulting
in death or serious injury.
●Do not continuously look at the head-
up display while driving as you may fail
to see pedestrians, objects on the
road, etc. ahead of the vehicle.
■Caution for changing settings of the
head-up display
As the engine needs to be running

while changing the settings of the head-
up display, ensure that the vehicle is
parked in a place with adequate ventila-
tion. In a closed area such as a garage,
exhaust gases including harmful carbon
monoxide (CO) may collect and enter
the vehicle. This may lead to death or a
serious health hazard.
NOTICE
■To prevent damage to components
●Do not place any drinks near the head-
up display projector. If the projector
gets wet, electrical malfunctions may
result.
●Do not place anything on or put stick-
ers onto the head-up display projector.
Doing so could interrupt head-up dis-
play indications.

872-1. Instrument cluster
LC500_LC500h_OM_OM11405U_(U)
2
Vehicle status information and indicators
Displays the following items in the
appropriate situation:
■Warning/message
Displays the following warning/mes-
sages:
• Master warning message
• Notification message (Dynamic radar cruise control with full-speed
range)
• Other messages
■/ icons
Displays the following multi-informa-
tion display linked icons:
: Master warning icon
Displayed when a warning message is dis-
played on the multi-information display.
( P.344)
: Information icon
Displayed when a suggestion/advice pop-
up display is displayed on the multi-infor-
mation display. ( P.83)
■Hands-free system status
Displayed when the hands-free system
is operated.
■Audio system operation status
Displayed when the audio system is
operated.
■Eco Driving Indicator/tachometer
(LC500)
Displays either of Eco Driving Indica-
tor or the tachometer.
■Hybrid System Indicator/motor
power display/tachometer
(LC500h)
Displays either of Hybrid System Indi-
cator or the tachometer.
Motor power display can be displayed
when Hybrid System Indicator is
selected while the driving mode
( P.208) is other than the eco drive
mode.
Displays the following items which are
linked to the navigation system:
■Speed limit
Displays the speed limit on the current
road.
■Street name
When the navigation system is per-
forming route guidance, the name of
the next street will be displayed on the
top of the display area.
■Route guidance to destination
Displayed when the navigation system
is performing route guidance. When
approaching an intersection, an arrow
will be displayed to indicate the sug-
NOTICE
●Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector.
Doing so could cause mechanical mal-
functions.
■When changing the settings of the
head-up display
To prevent battery discharge, ensure that
the engine is running while the changing
the settings of the head-up display.
Information display area
Navigation system-linked dis-
play area

882-1. Instrument cluster
LC500_LC500h_OM_OM11405U_(U)
gested direction of travel.
■Compass
Displays the direction of travel.
■Street name display
Only street names whic h are included in the
map data will be displayed.
■Eco Driving Indicator
Eco Driving Indicator Zone Display
Eco driving ratio based on acceler-
ation
Zone of Eco driving
Displayed content is the same as that dis-
played on the multi-information display
(Eco Driving Indicator). For details, refer to
P.72.
■Tachometer
Displays the engine speed in revolu-
tions per minute.
■Hybrid System Indicator
Charge area
Hybrid Eco area
Eco area
Power area
Displayed content is th e same as that dis-
played on the meter (Hybrid System Indi-
cator). For details, refer to P.72.
■Motor power display
Charge area
Power area
Displayed content is th e same as that dis-
played on the meter (Motor power dis-
play). For details, refer to P.73.
Motor power display can be displayed
when Hybrid System Indicator is selected
Eco Driving Indicator/tachome-
ter (LC500)
A
B
C
Hybrid System Indicator/motor
power display/tachometer
(LC500h)
A
B
C
D
A
B

892-1. Instrument cluster
LC500_LC500h_OM_OM11405U_(U)
2
Vehicle status information and indicators
while the driving mode ( P.208) is other
than the eco drive mode.
■Tachometer
Displays the engine speed in revolu-
tions per minute.
*: If equipped
Multi-information display
Center Display
Meter control switches
“MENU” button
Touchpad

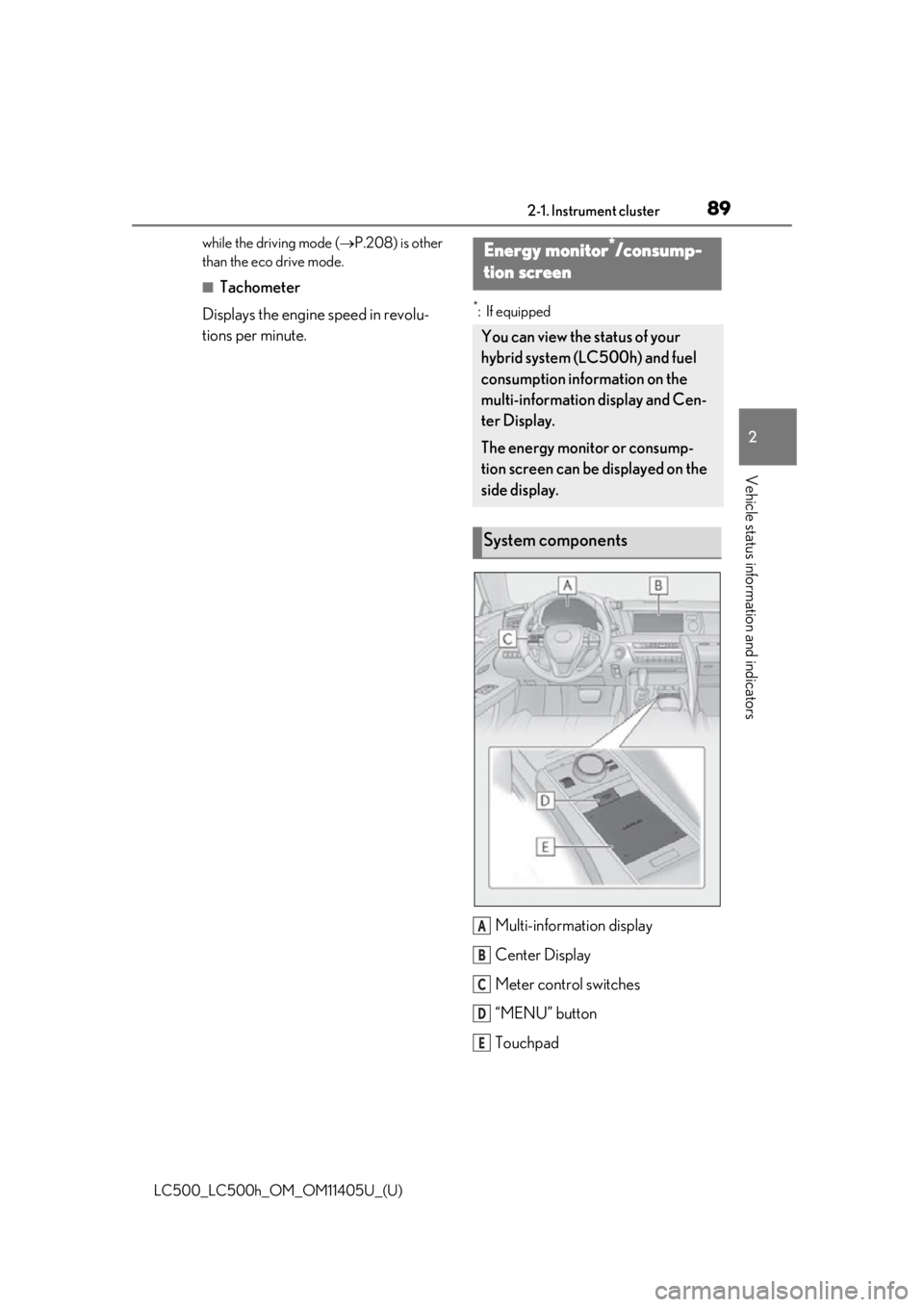

Energy monitor*/consump-
tion screen
You can view the status of your
hybrid system (LC500h) and fuel
consumption information on the
multi-information display and Cen-
ter Display.
The energy monitor or consump-
tion screen can be displayed on the
side display.
System components
A
B
C
D
E

902-1. Instrument cluster
LC500_LC500h_OM_OM11405U_(U)
Center Display
Press the “MENU” button on the Remote Touch, and then select on the menu
screen.
If the “Trip Information” or “History” screen is displayed, select “Energy”.
Multi-information display
Press or of the meter control switch es and select , and then press or
to select the energy monitor display.

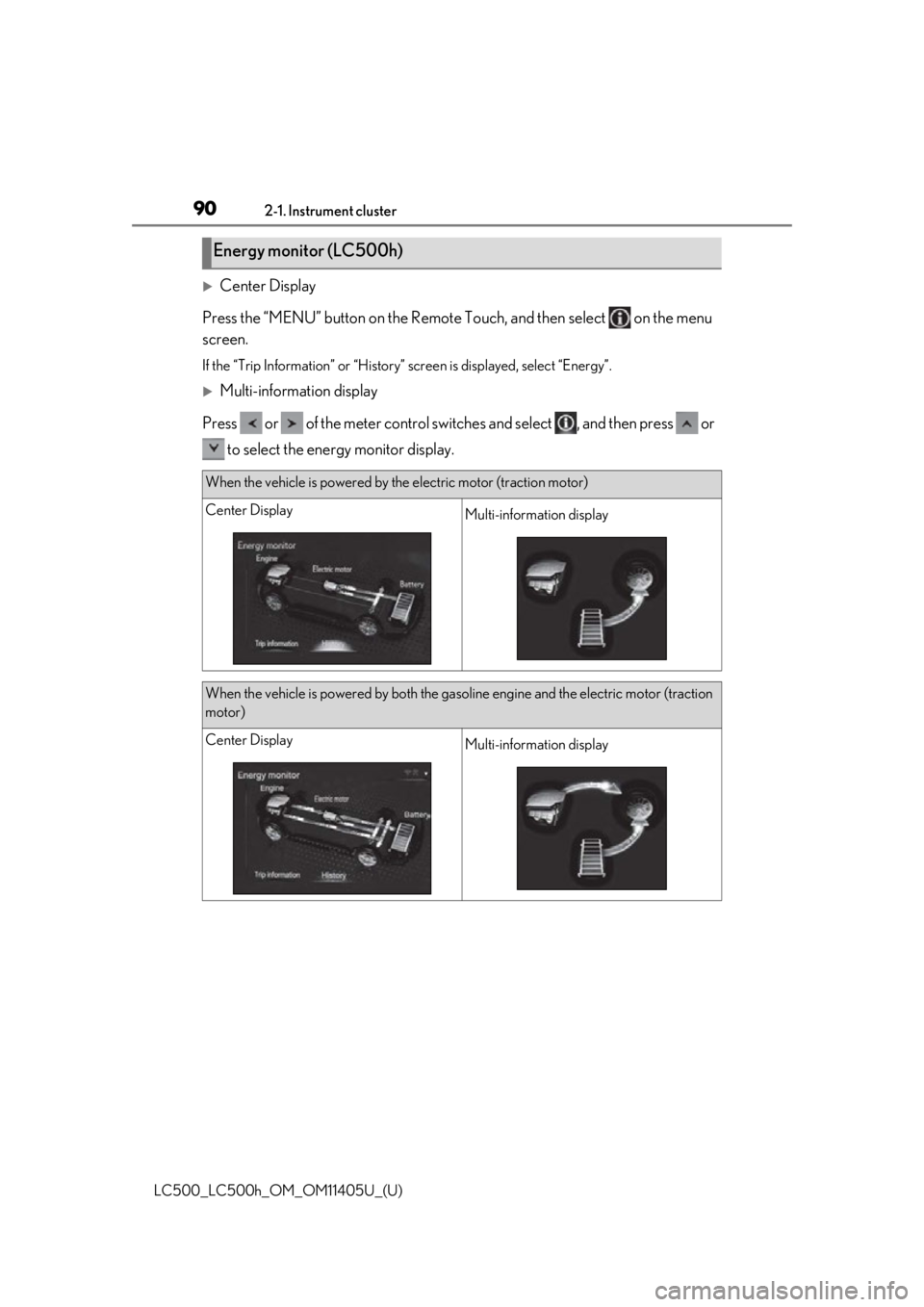

Energy monitor (LC500h)
When the vehicle is powered by the electric motor (traction motor)
Center DisplayMulti-information display
When the vehicle is powered by both the gasoline engine and the electric motor (traction
motor)
Center DisplayMulti-information display
