lexus LC500h 2020 / LEXUS 2020 LC500,LC500H QUICK GUIDE (OM11556U) Manual Online

81
LC500_LC500h_QG_OM11556U_(U)
Press the “MENU” button on the Remote Touch and select “Climate” to display the air con-
ditioning control screen. Then, select on the sub menu to display the Lexus Climate
Concierge control screen.
Select .
The indicator on the Lexus Climate Con-
cierge control screen illuminates and all of
the following systems operate in automatic
mode.
●Air conditioning system
● Seat heaters and ventilators (if
equipped)
● Heated steering wheel (if equipped)
If any of the system is operated manually, the indicator turns off. However, all other functions
continue to operate in automatic mode.
Lexus Climate Concierge
The seat heaters, seat ventilators and heated steering wheel are each automatically con-
trolled according to the set temperature of the air conditioning system, the outside and
cabin temperature, etc. Lexus Climate Conc ierge allows a comfortable condition to be
maintained without adjusting each system.
Displaying the Lexus Climate Concierge
Turning on Lexus Climate Concierge

82
LC500_LC500h_QG_OM11556U_(U)
Automatic mode switch
Off switch
Left-hand side temperature control switch
Fan speed control switch
Outside/recirculated air mode switch
Right-hand side temperature control switch
Windshield defogger switch
Rear window and outside rear view mirror defoggers switch
■Adjusting the temperature
Operate the temperature control switch upwards to increase the temperature and down-
wards to decrease the temperature.
If the “A/C” indicator is turned off, the system will blow ambient temperature air or heated
air.
■Setting the fan speed
Operate the fan speed control switch upwards to increase the fan speed and downwards
to decrease the fan speed.
Press the off switch to turn the fan off.
■Changing the air flow mode
 P.83
Air Conditioning System
Press the “MENU” button on the Remote Touch, then select “Climate” to display the air
conditioning control screen.
Control panel
A
B
C
D
E
F
G
H

83
LC500_LC500h_QG_OM11556U_(U)
■Main control screen
Using the touchpad of the Remote Touch, select the button on the screen. to can be adjusted by perf orming the following operations.
Flick operation: Move the poin ter to the desired item and flick the touchpad up or down.
The item can be adjusted by one level.
Trace operation: After selecting the desired item, trace the pad surface.
The item can be adjusted by the amount that you trace.
Trace operation cannot be used while driving.
Sub menu
Selecting the sub menu item to switch
the main screen.
: Display the air conditioning con-
trol screen
: Display the heated steering
wheel/seat heater/seat ventilator con-
trol screen (if equipped)
: Display the Lexus Climate Con-
cierge control screen
: Display the option control
screen
Adjust the left-hand si de temperature setting
Adjust the fan speed setting
Select the air flow mode
: Air flows to the upper body
: Air flows to the upper body and feet
: Air flows to the feet
: Air flows to the feet and the windshield defogger operates
Air conditioning control screen
BE
A
B
C
D

84
LC500_LC500h_QG_OM11556U_(U)
Adjust the right-hand side temperature setting
Function on/off indicators
When the function is on, the indica tor illuminates on the control screen.
Sub function menu
When the sub function button on the Remote Touch is pressed, the following functions
can be switched on and off.
: Set Lexus Climate Concierge ( P.81)
“AUTO”: Set automatic mode on/off ( P.85)
“Off”: Turn the fan off
“A/C”: Set cooling and dehumidification function
“DUAL”: Adjust the temperature for driver and passenger seats separately (“DUAL”
mode)
: Set eco air conditioning mode
■Option control screen
Select on the sub menu to di splay the option control screen.
The functions can be switched on and off.
When the function is on, the indicator illuminates on the screen.
Set Lexus Climate Concierge (P.81)
Adjusting the temperature for driver
and passenger seats separately
(“DUAL” mode)
Set eco air conditioning mode
Air conditioning and heater output is
limited to prioritize fuel economy.
Cooling and dehumidification function
Prevent ice from building up on the windshield and wiper blades (Windshield wiper de-
icer) (if equipped)
Removing pollen from the air (Micro dust and pollen filter)
E
F
G
A
B
C
D
E
F

85
LC500_LC500h_QG_OM11556U_(U)
■Side display
Display the heated steering wheel/seat
heaters/seat ventilators control screen
(if equipped)
Adjust the left-hand side temperature
setting
Adjust the fan speed setting
Adjust the right-hand side temperature
setting
Set cooling and dehumidification function on/off
Adjust the temperature for the driver’s and front passenger’s seats separately (“DUAL”
mode)
Select the air flow mode
1Press the automatic mode switch or sele ct “AUTO” on the sub function menu.
(  P.82, 84)
2Press the outside/recirculated air mode switch to switch to automatic air intake mode.
The air conditioning system automatically switches between outside air and recircu-
lated air modes.
3Adjust the temperature setting.
4To stop the operation, press the off switch or select “Off” on the sub function menu.
(  P.82, 84)
A
B
C
D
Using automatic mode
E
F
G

86
LC500_LC500h_QG_OM11556U_(U)
1Press the talk switch.
Voice guidance for the voice com-
mand system can be skipped by press-
ing the talk switch.
2If “Getting Started with Voice” screen is displayed, select “OK” or press the talk switch.
3After hearing a beep, say a supported command.
●To display sample commands of the desired function, say the desired function or
select the desired function button. To display more commands, select “More Com-
mands”.
● Selecting “Help” or saying “Help” prom pts the voice command system to offer
examples of commands and operation methods.
● Registered POIs, registered names in the co ntacts list etc., can be said in the place
of the “<>” next to the commands.
Continue on to pages 87-92 for a detailed lis t of Voice Commands for the following cate-
gories:
Common . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.87
Top menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.87
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.88
Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.89
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.90
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.91
Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.91
Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.92
Climate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.92
Voice Command System
Basic operation
The voice command system enables the radio, phone dialing, etc. to be operated using
voice commands. Refer to the command list for samples of voice commands.

87
LC500_LC500h_QG_OM11556U_(U)

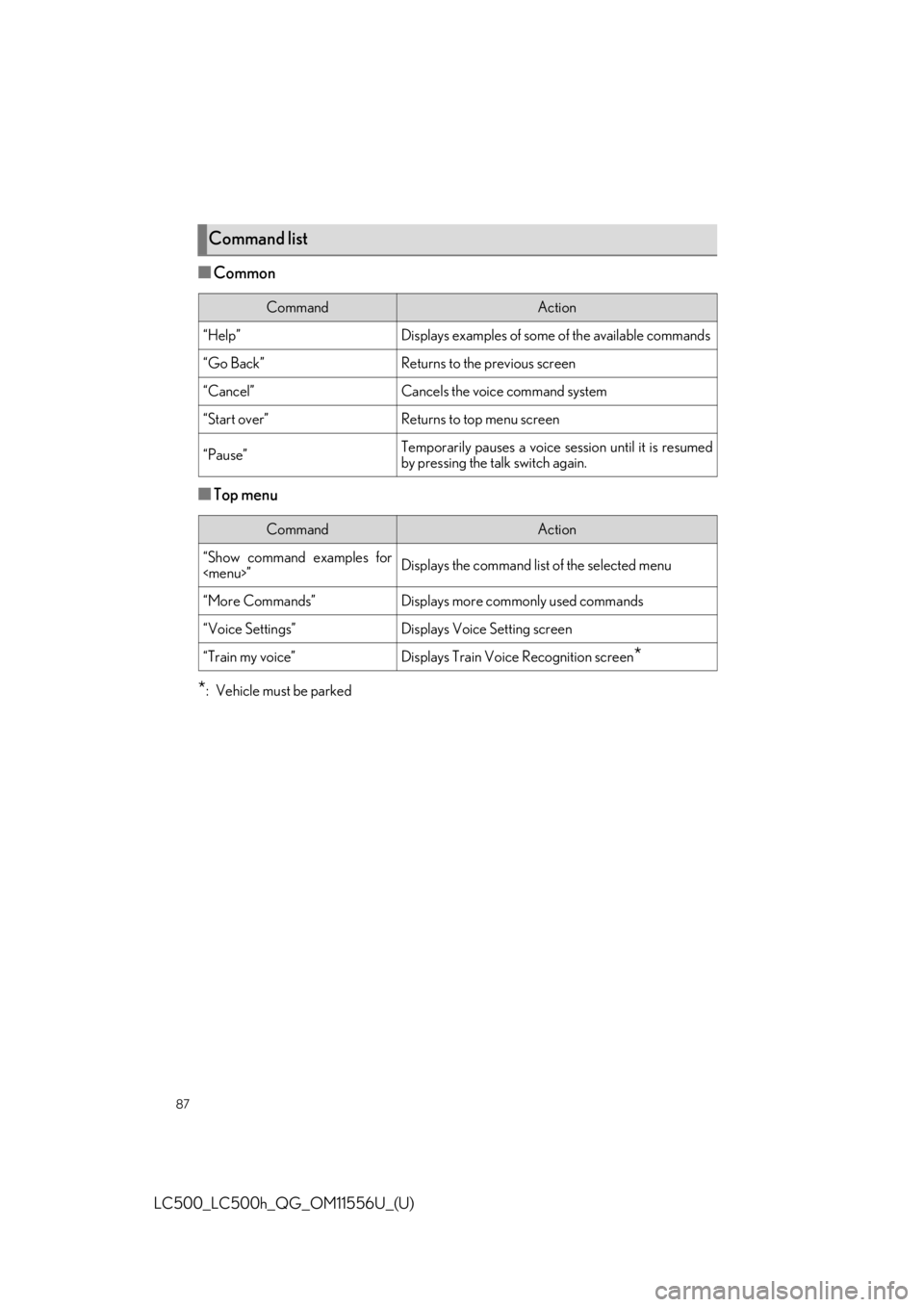

■Common
■Top menu
*: Vehicle must be parked
Command list
CommandAction
“Help”Displays examples of some of the available commands
“Go Back”Returns to the previous screen
“Cancel”Cancels the voice command system
“Start over”Returns to top menu screen
“Pause”Temporarily pauses a voice session until it is resumed
by pressing the talk switch again.
CommandAction
“Show command examples for

88
LC500_LC500h_QG_OM11556U_(U)
■Navigation
*1: English and French only
*2: Best recognition results occur when saying the full address without the zipcode
*3: When the language is set to French, the supported area is only Quebec Province inCanada
*4: For example; “Gas stations”, “Restaurants”, etc.
*5: Major national brands are always supporte d. Local brands are also supported with a
subscription to the Lexus Enform. Co ntact your Lexus dealer for details.
*6: Used when multiple destinations are set on a route
CommandAction
“Get directions to street, city, state>”
*1Enables setting a destination by saying the address*2, 3
“Find a name>”Displays a list of near
the current position
“Find a near my destina-
tion”Displays a list of near the destination
“Find a in a
city”*1Displays a list of in a specified city and state*3
“Go Home”Displays the route to home
“Go to Favorite <1-10>”Sets the location registered to the corresponding
favorite number as the destination
“Show Recent Destinations”
Displays recent destinations. Selecting a number from
the list will start navigation to the selected recent desti-
nation.
“Cancel Route”Cancels the route guidance
“Delete destinations”Displays a list of de stination to delete*6
“Show icons”Displays the specified po int of interest category*4
icons on the map
“Destination Assist”Connects the system to the Lexus response center

89
LC500_LC500h_QG_OM11556U_(U)

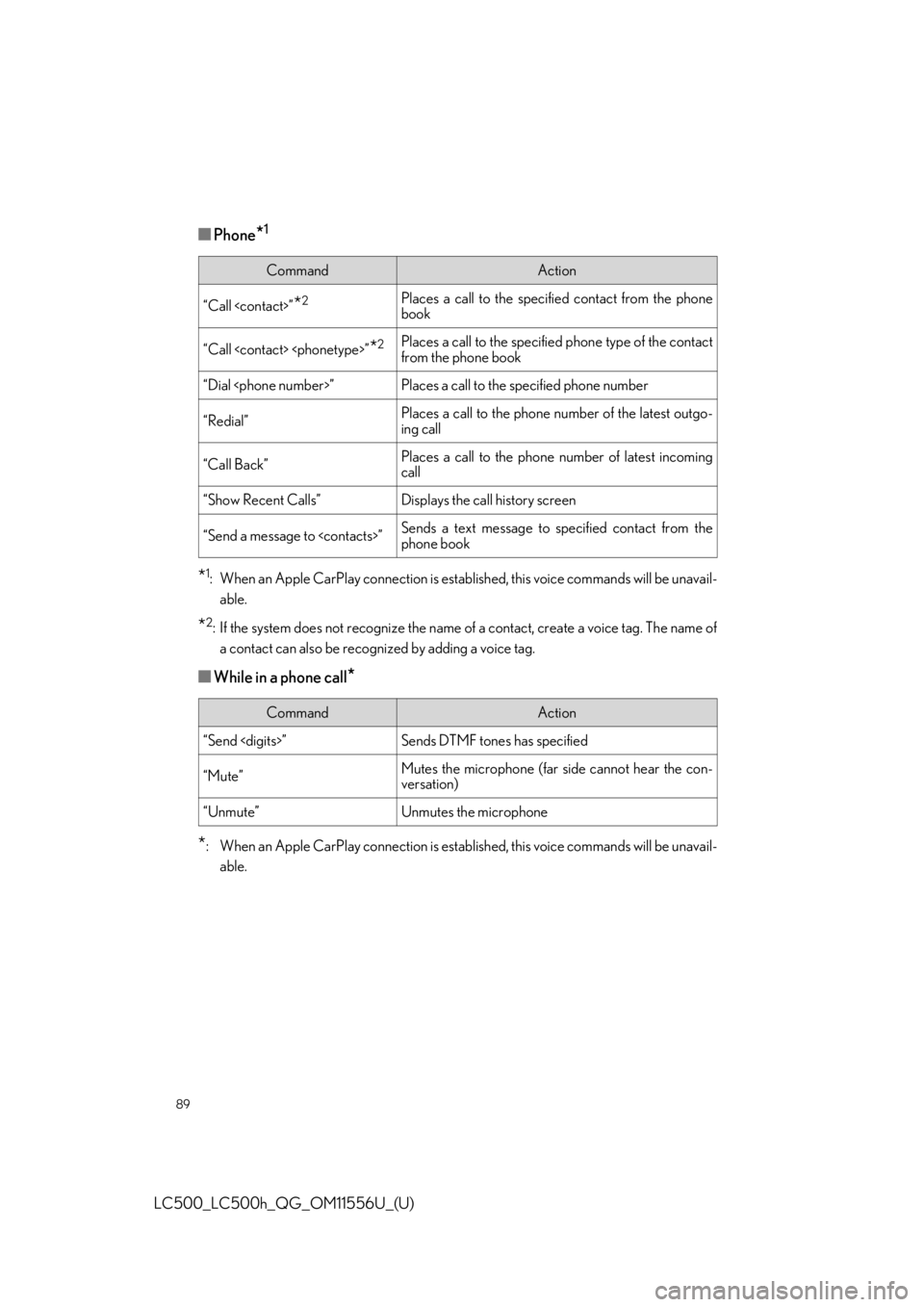

■Phone*1
*1: When an Apple CarPlay connection is established, this voice commands will be unavail-able.
*2: If the system does not recognize the name of a contact, create a voice tag. The name ofa contact can also be recognized by adding a voice tag.
■While in a phone call*
*
: When an Apple CarPlay connection is established, this voice commands will be unavail- able.
CommandAction
“Call ”*2Places a call to the specified contact from the phone
book
“Call ”*2Places a call to the specified phone type of the contact
from the phone book
“Dial ”Places a call to the specified phone number
“Redial”Places a call to the phone number of the latest outgo-
ing call
“Call Back”Places a call to the phone number of latest incoming
call
“Show Recent Calls”Displays the call history screen
“Send a message to ”Sends a text message to specified contact from the
phone book
CommandAction
“Send ”Sends DTMF tone s has specified
“Mute”Mutes the microphone (far side cannot hear the con-
versation)
“Unmute”Unmutes the microphone

90
LC500_LC500h_QG_OM11556U_(U)

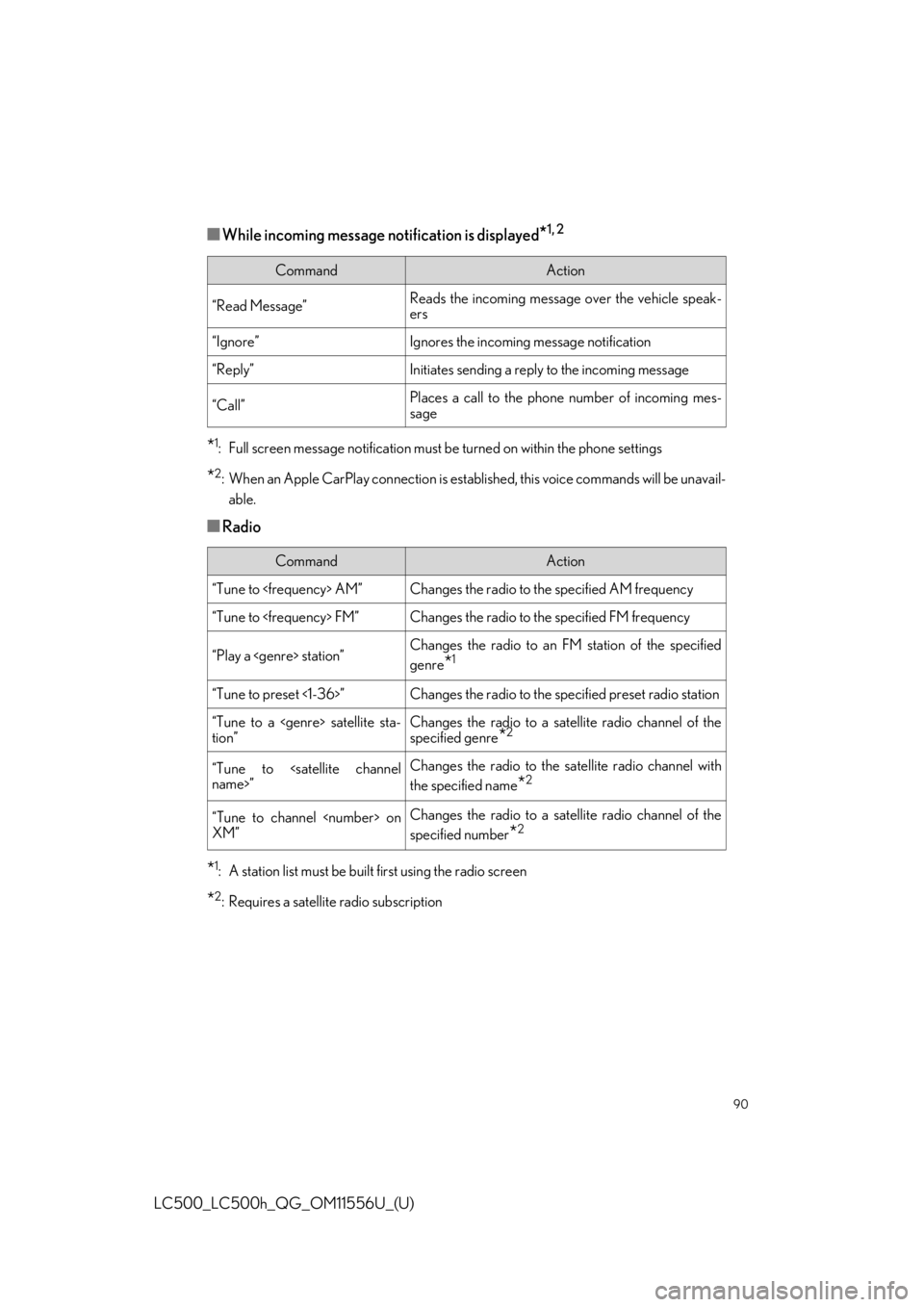

■While incoming message notification is displayed*1, 2
*1: Full screen message notification must be turned on within the phone settings
*2: When an Apple CarPlay connection is establis hed, this voice commands will be unavail-
able.
■Radio
*1: A station list must be built first using the radio screen
*2: Requires a satellite radio subscription
CommandAction
“Read Message”Reads the incoming message over the vehicle speak-
ers
“Ignore”Ignores the incoming message notification
“Reply”Initiates sending a reply to the incoming message
“Call”Places a call to the phone number of incoming mes-
sage
CommandAction
“Tune to AM”Changes the radio to the specified AM frequency
“Tune to FM”Changes the radio to the specified FM frequency
“Play a station”Changes the radio to an FM station of the specified
genre
*1
“Tune to preset <1-36>”Changes the radio to the specified preset radio station
“Tune to a satellite sta-
tion”Changes the radio to a satellite radio channel of the
specified genre
*2
“Tune to name>”Changes the radio to the satellite radio channel with
the specified name
*2
“Tune to channel on
XM”Changes the radio to a satellite radio channel of the
specified number
*2
