LEXUS LS430 2006 Owners Manual

195
3-2. Using the audio system
3
Interior features

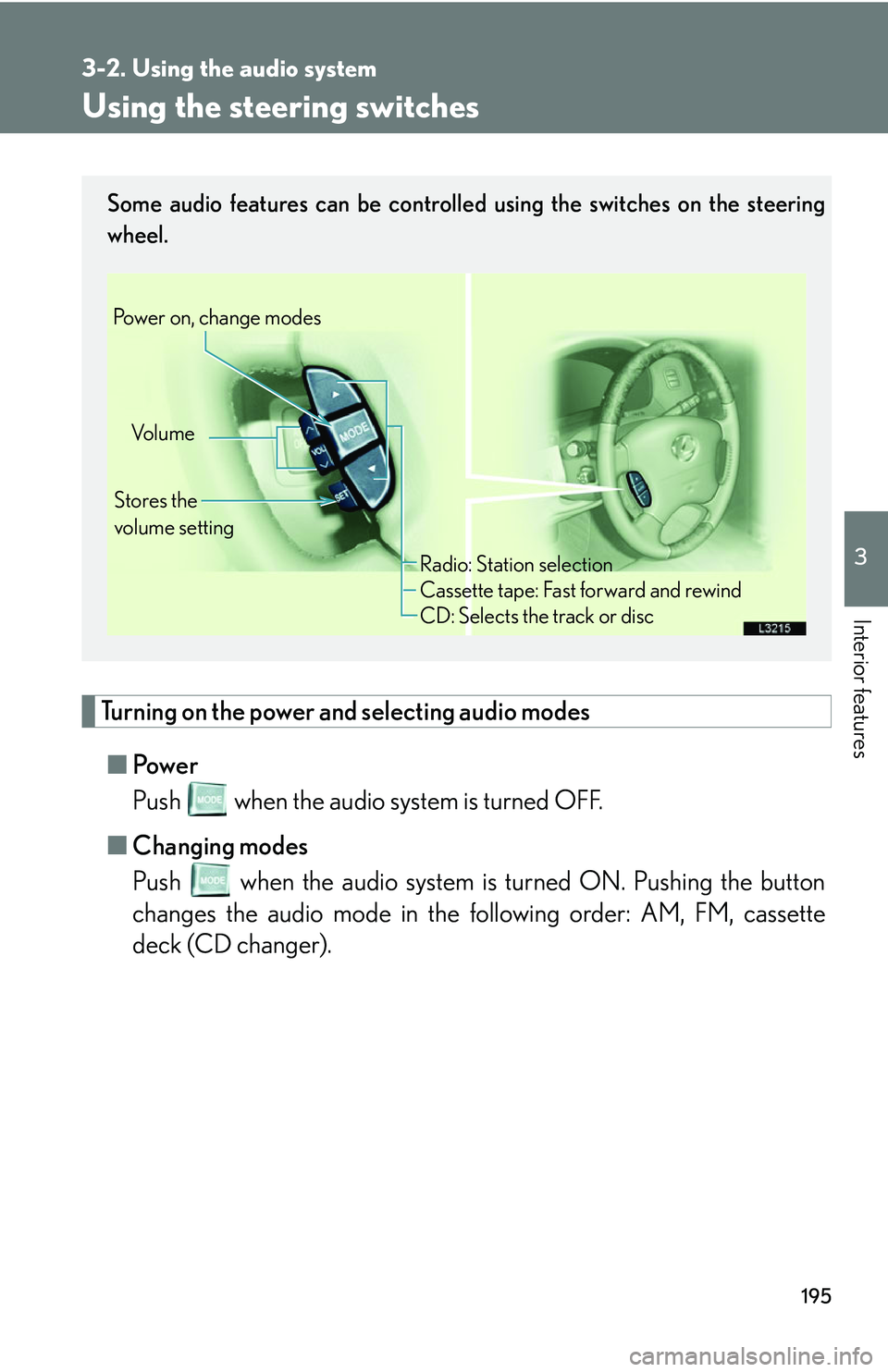

Using the steering switches
Turning on the power and selecting audio modes
â– Pow e r
Push when the audio system is turned OFF.
â–  Cha
nging modes
Push when the audio system is turned ON. Pushing the button
changes the audio mode in the following order: AM, FM, cassette
deck (CD changer).
Some audio features can be controlled using the switches on the steering
wheel.
Vo l u m e
Stores the 
volume setting
Power on, change modes
Radio: Station selection
Cassette tape: Fast forward and rewind
CD: Selects the track or disc

196
3-2. Using the audio system

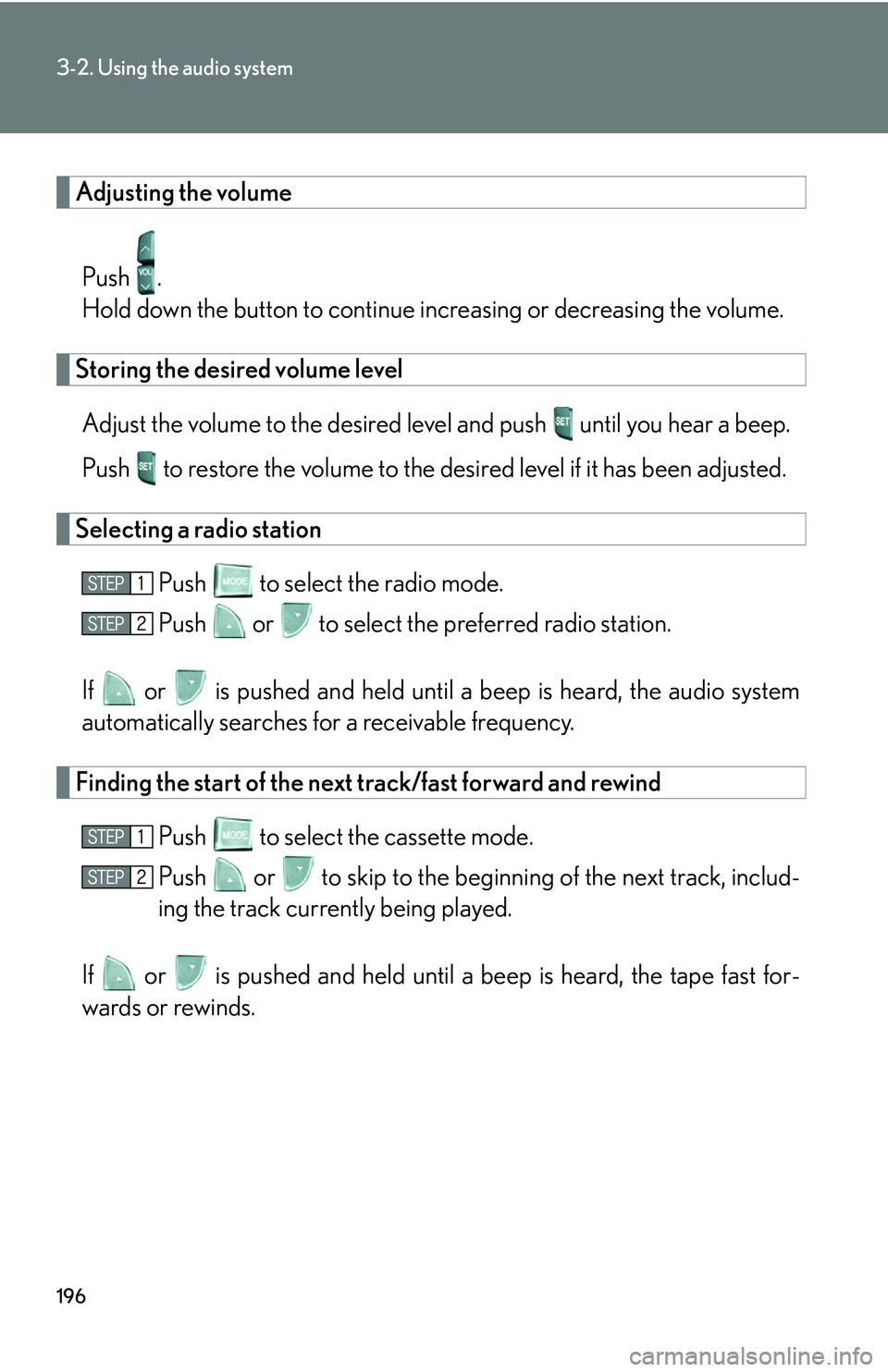

Adjusting the volume

Push .
Hold down the button to continue incr
easing or decreasing the volume.
Storing the desired volume level
Adjust the volume to the desired level and push until you hear a beep.
Push to restore the volume to the desir
ed level if it has been adjusted.
Selecting a radio station
Push to select the radio mode.
Push or to select the preferred radio station. 
If or is pushed and held until a b eep is hear
d, the audio system
automatically searches for a receivable frequency.
Finding the start of the next track/fast forward and rewind
Push to select the cassette mode.
Push or to skip to the beginning of the ne
xt track, includ-
ing the track currently being played. 
If or is pushed and held until a beep is heard, the tape fast for -
wards or rewinds.

197
3-2. Using the audio system
3
Interior features

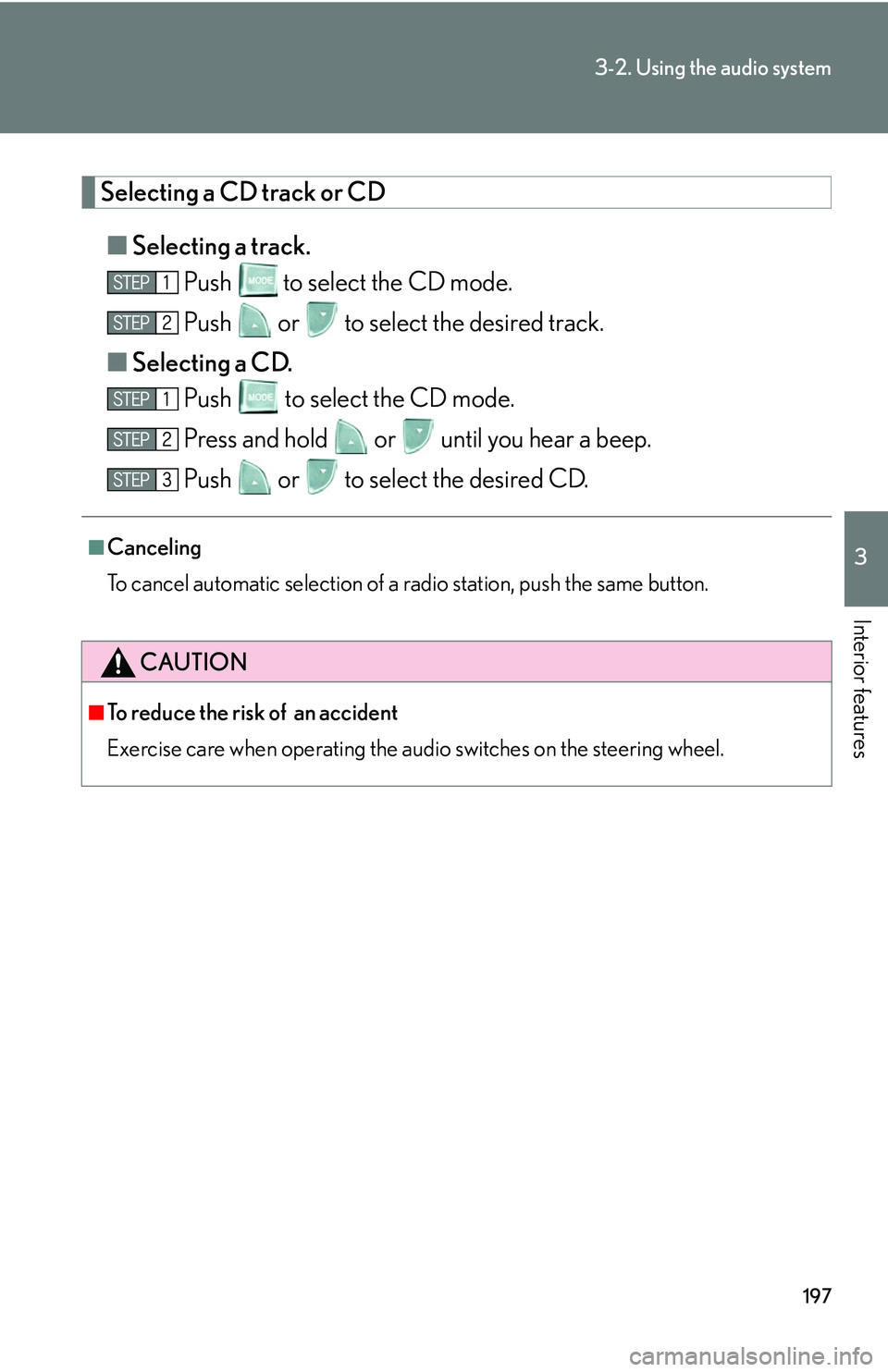

Selecting a CD track or CD
â– Selecting a track.
Push
to select the CD mode.
Push or to select the desired track.
â–  Selecting a CD
.
Push to select the CD mode.
Press and hold or until you hear a beep.
Push or to select the desired CD.
â– Canceling
To cancel automatic selection of a radio station, push the same button.
CAUTION
â– To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.

198
3-3. Turning on interior lights

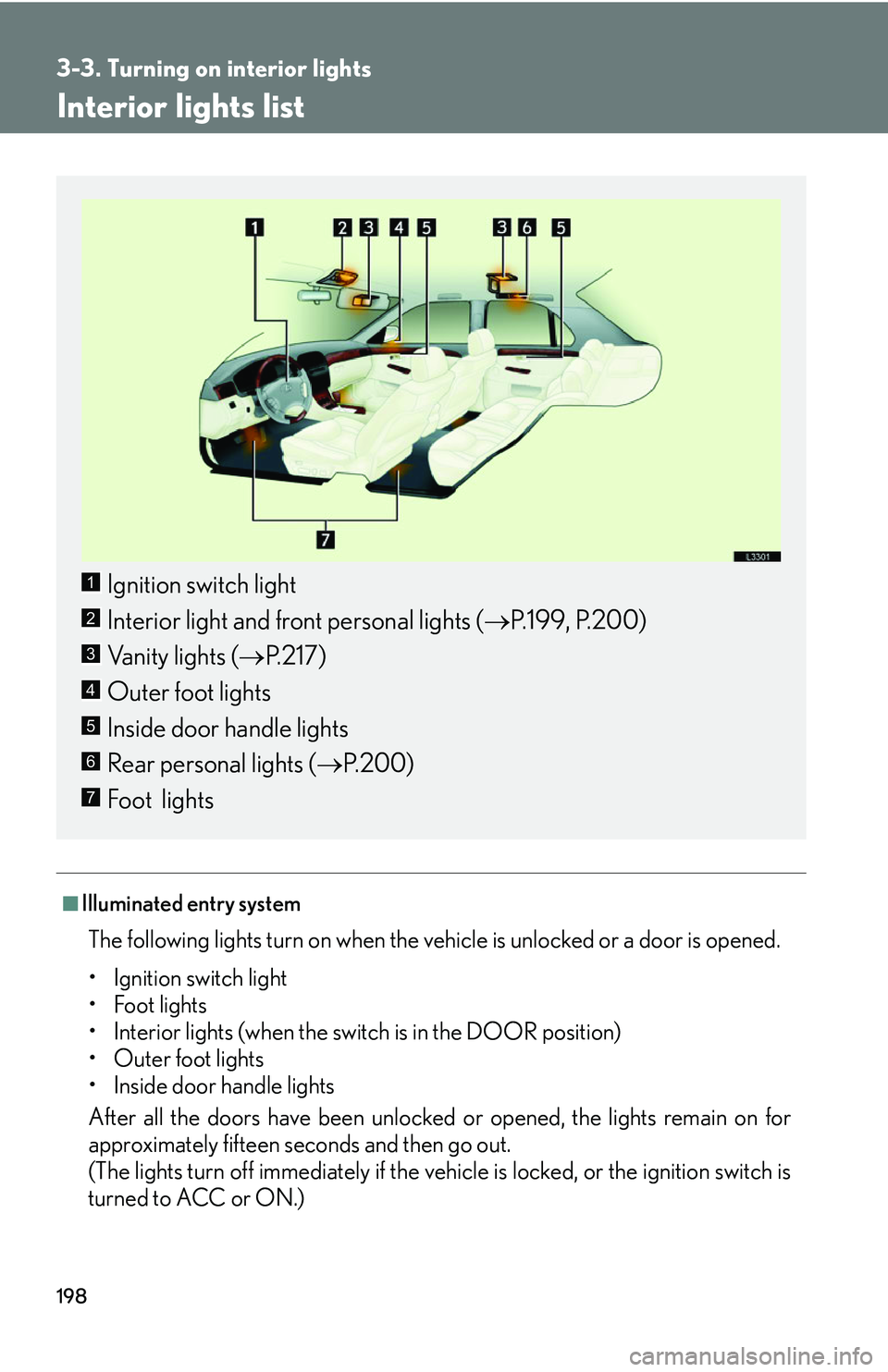

Interior lights list
â– Illuminated entry system
The following lights turn on when the vehicle is unlocked or a door is opened.
• Ignition switch light
• Foot lights
• Interior lights (when the switch is in the DOOR position)
• Outer foot lights
• Inside door handle lights
After all the doors have been unlocked or
opened, the lights remain on for
approximately fifteen seconds and then go out. 
(The lights turn off immediately if the vehicle is locked, or the ignition switch is
turned to A
CC or ON.)
Ignition switch light
Interior light and front personal lights ( ï‚®P.199 , P.200)
Vanity lights ( ï‚®P
.217)
Outer foot lights
Inside door handle lights
Rear personal lights ( ï‚®P.200 )
Foot lights
1
2
3
4
5
6
7

199
3-3. Turning on interior lights
3
Interior features

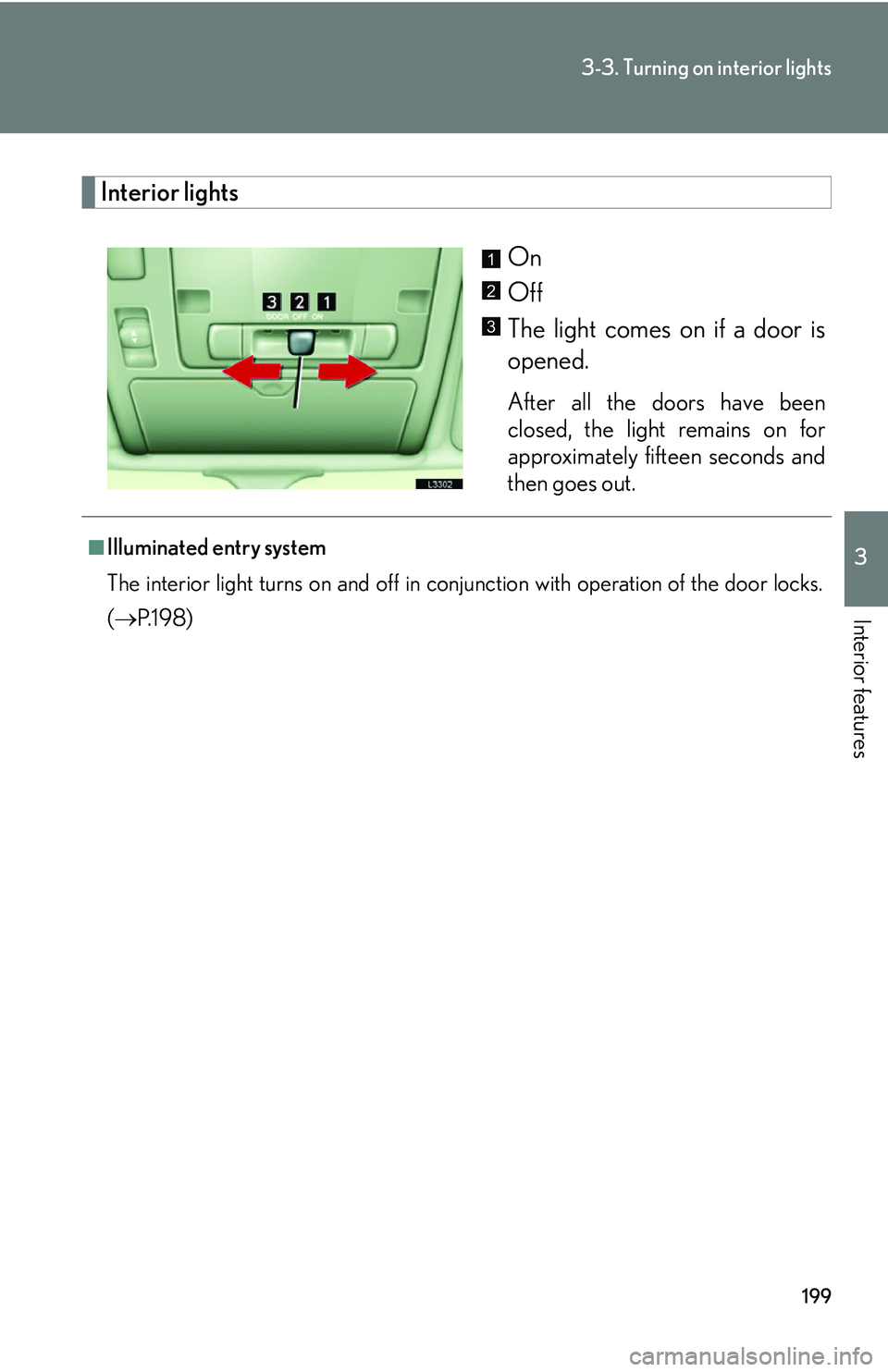

Interior lights
On
Off
The light comes on if a door is
opened.
After all the doors have been
closed, the light remains on for
approximately fifteen seconds and
then goes out.
1
2
3
â– Illuminated entry system
The interior light turns on and off in conjun
ction with operation of the door locks.
( ï‚® P.198 )

200
3-3. Turning on interior lights

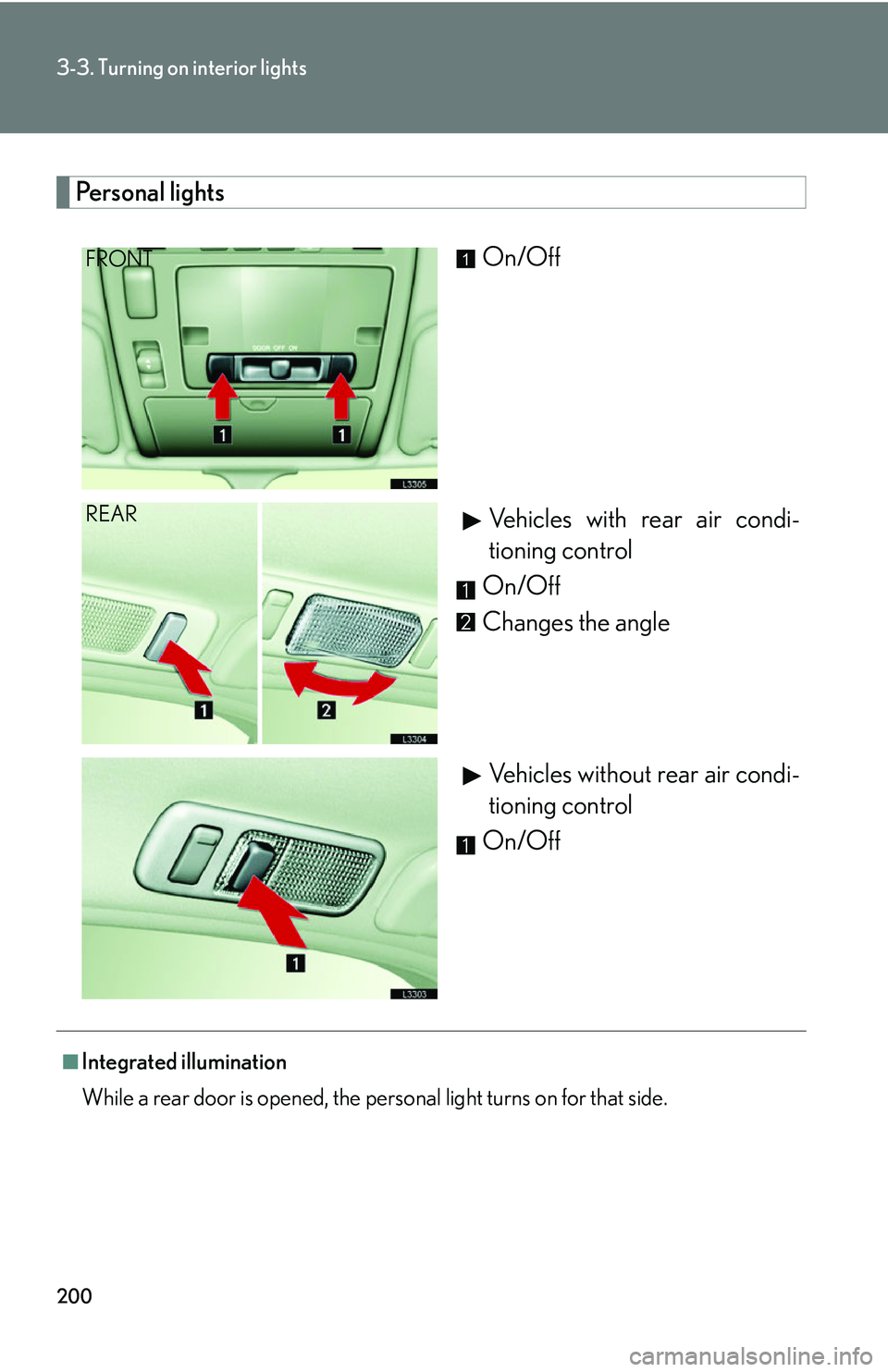

Personal lights
On/OffVehicles with rear air condi -
tioning control
On/Off
Changes the angle
Vehicles without rear air condi -
tioning control
On/OffFRONT1
REAR
â– Integrated illumination
While a rear door is opened, the personal light turns on for that side.

201
3
Interior features
3-4. Storage

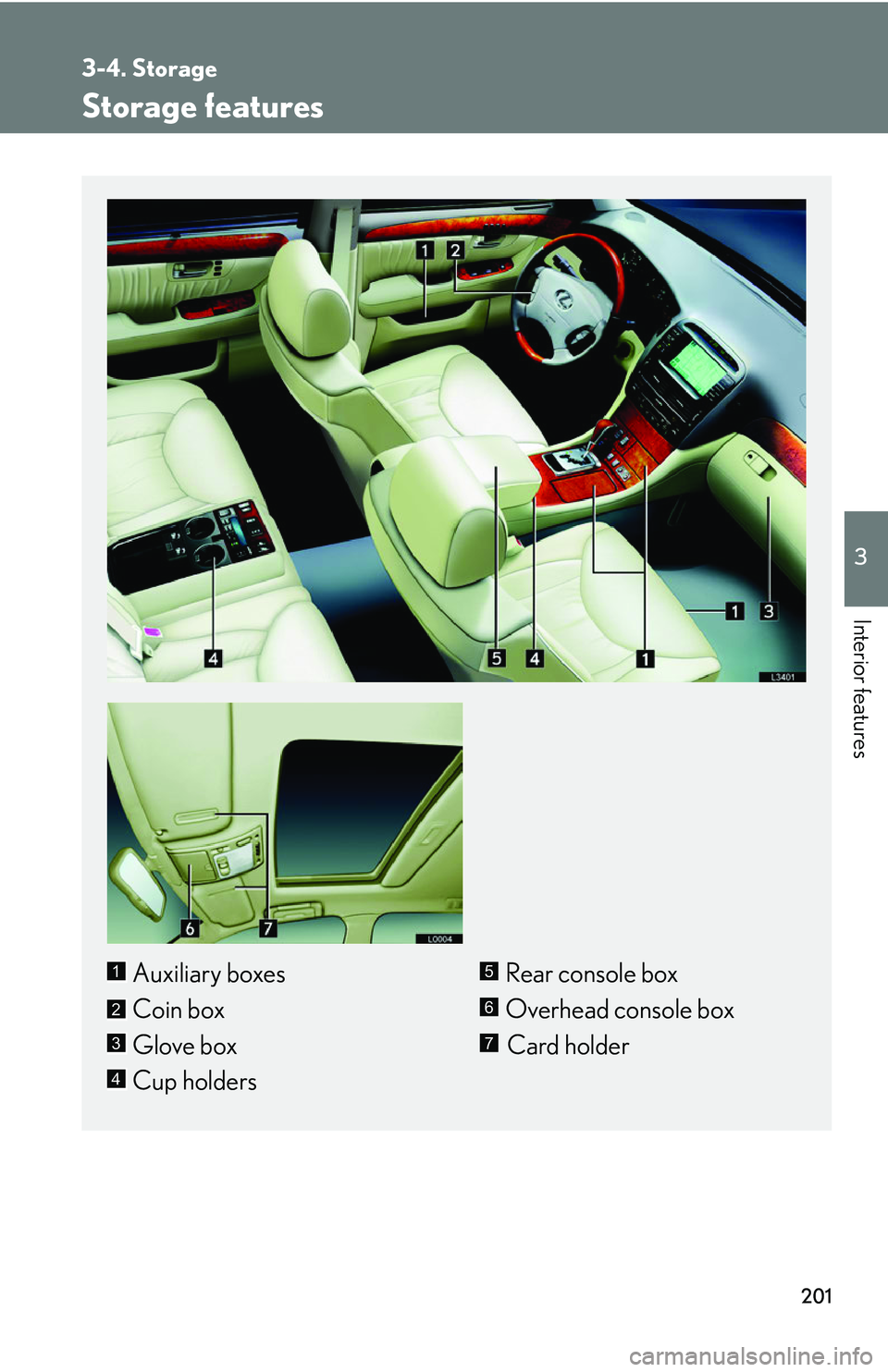

Storage features
Auxiliary boxes
Coin box
Glove box
Cup holdersRear console box
Overhead console box
Card holder
1
2
3
4
5
6
7

202
3-4. Storage

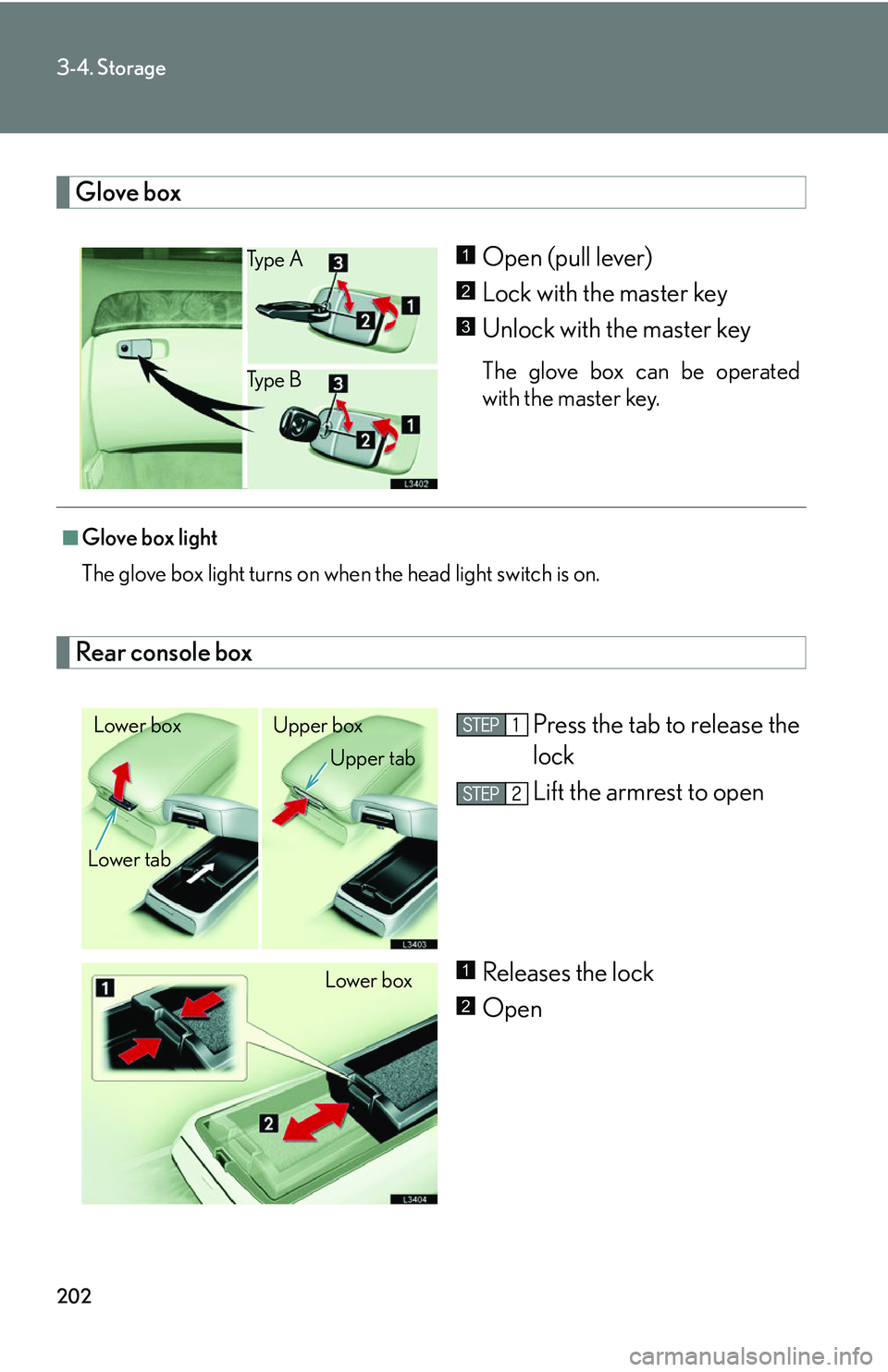

Glove box
Open (pull lever)
Lock with the master key
Unlock with the master key
The glove box can be operated
with the master key.
Rear console box
Press the tab to release the
lock
Lift the armrest to open
Releases the lock
Open
Ty p e A
Ty p e B1
2
3
â– Glove box light
The glove box light turns on when the head light switch is on.
Lower box Upper box
Lower tab Upper tab
Lower box1
2

203
3-4. Storage
3
Interior features

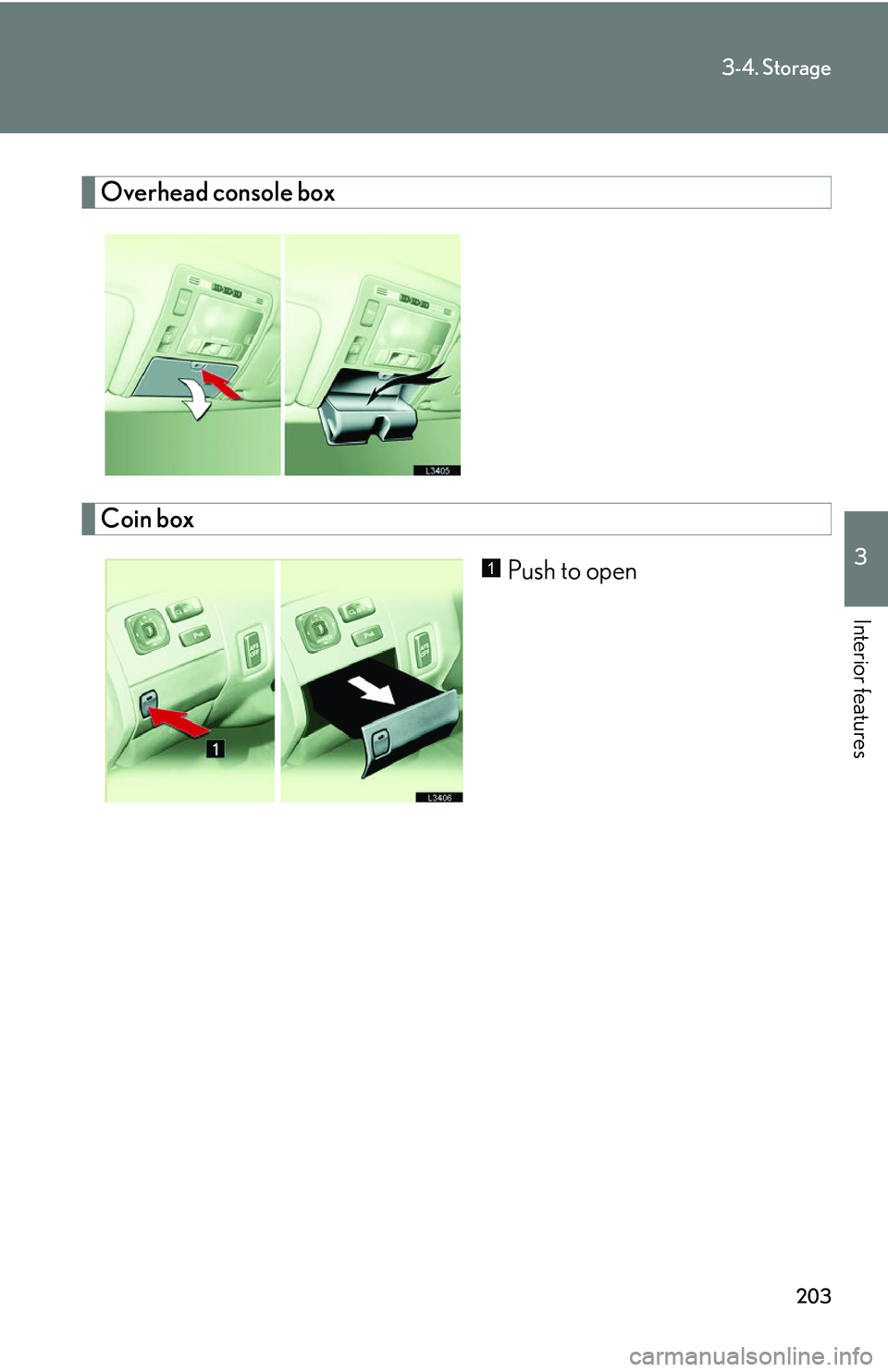

Overhead console box
Coin box
Push to open1

204
3-4. Storage

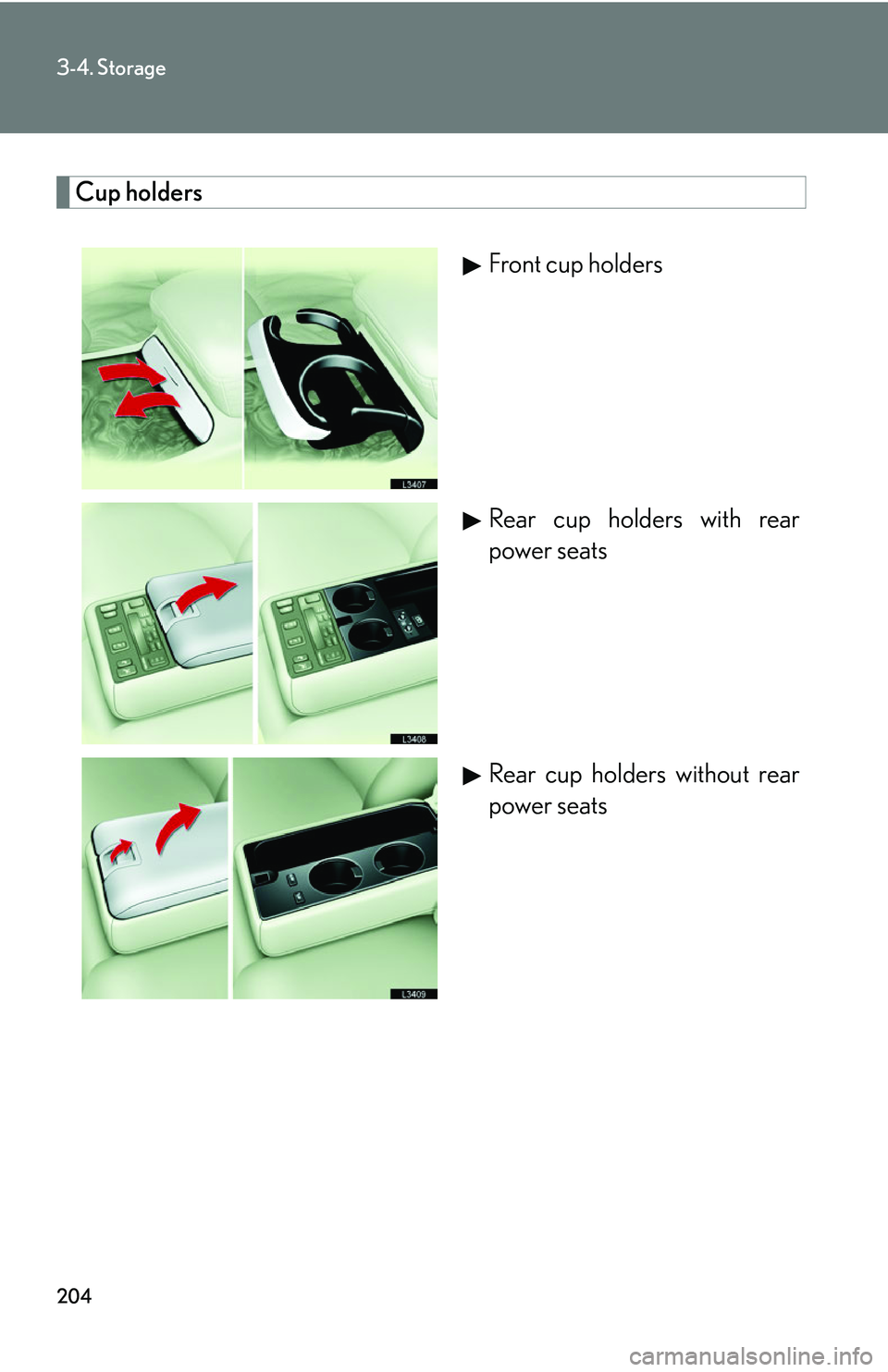

Cup holders
Front cup holders
Rear cup holders with rear
power seats
Rear cup holders without rear
power seats
