LEXUS LS460L 2016 Owners Manual

1813-2. Opening, closing and locking the doors
3
Operation of each component
LS460/LS460L_GE (OM50G06E)

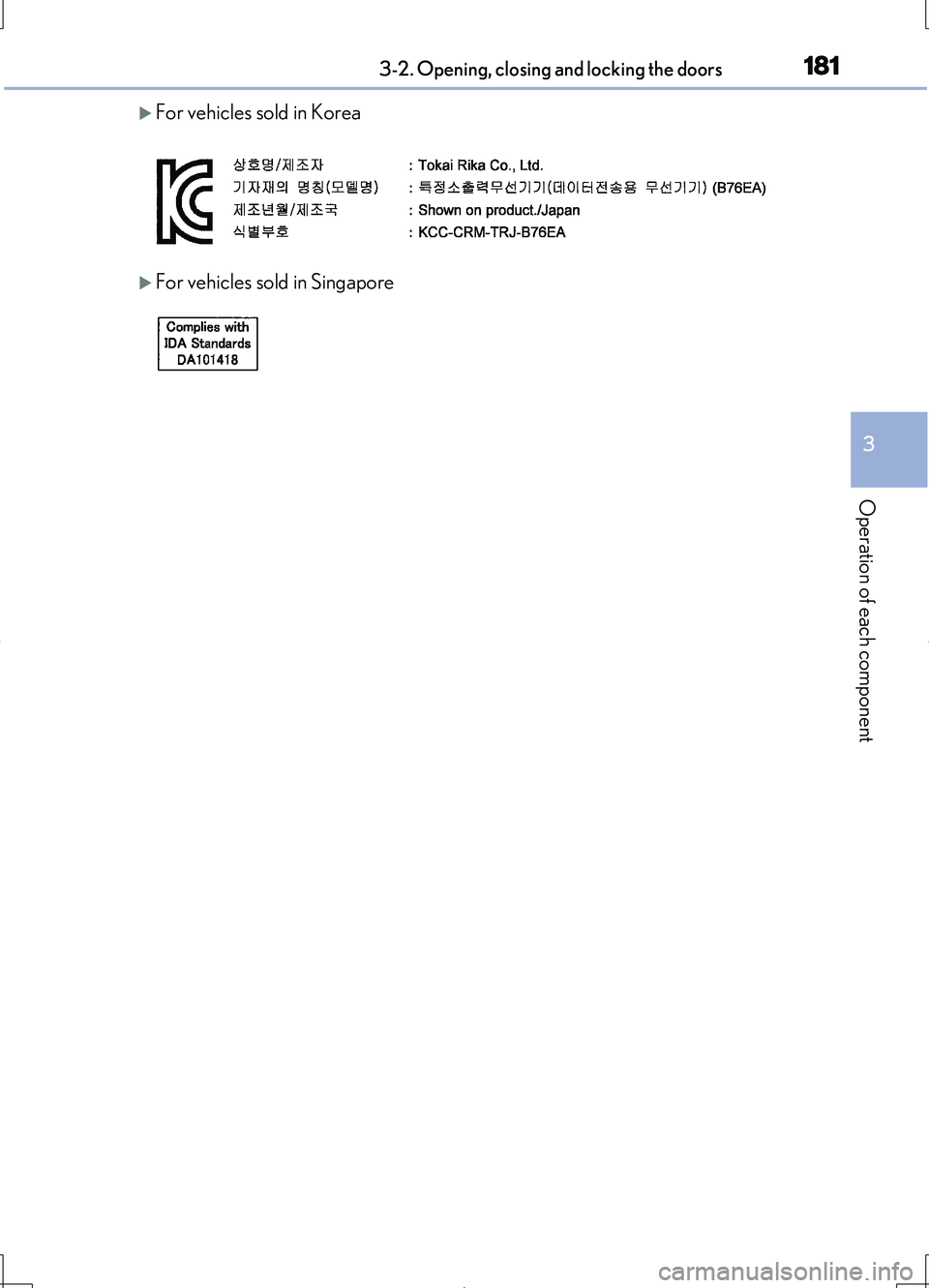

For vehicles sold in Korea
For vehicles sold in Singapore

1823-2. Opening, closing and locking the doors
LS460/LS460L_GE (OM50G06E)

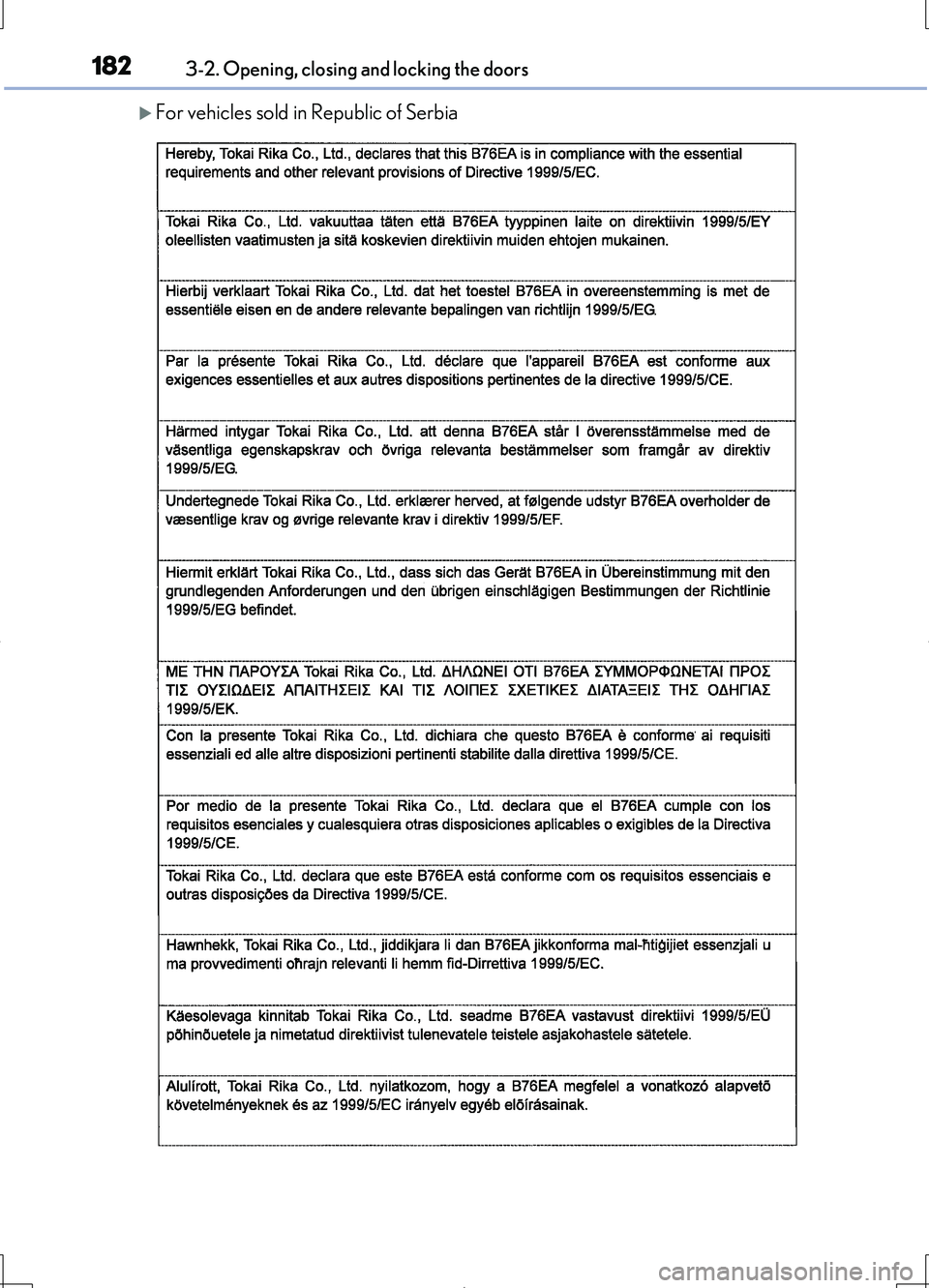

For vehicles sold in Republic of Serbia

1833-2. Opening, closing and locking the doors
3
Operation of each component
LS460/LS460L_GE (OM50G06E)

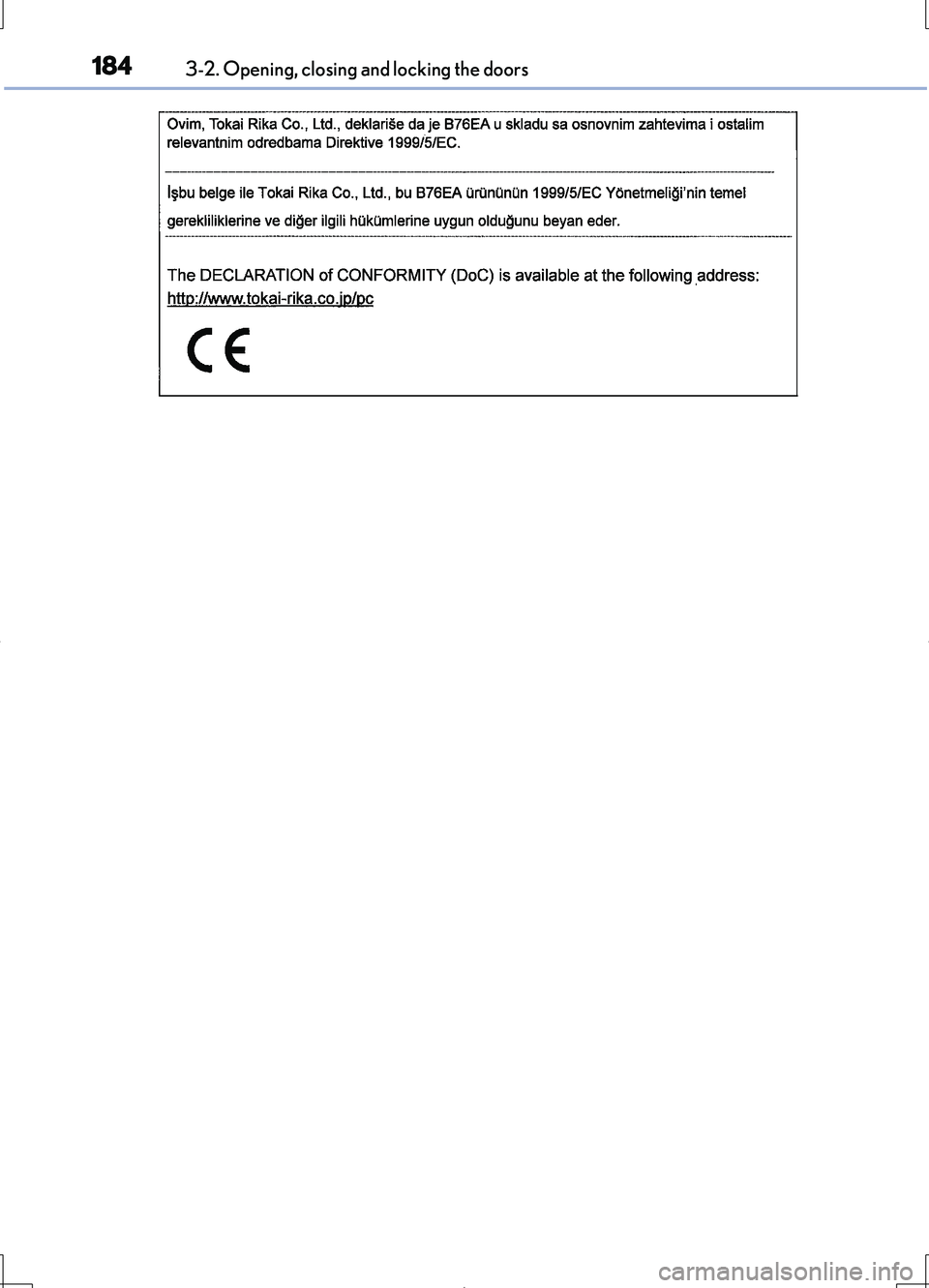

1843-2. Opening, closing and locking the doors
LS460/LS460L_GE (OM50G06E)

1853-2. Opening, closing and locking the doors
3
Operation of each component
LS460/LS460L_GE (OM50G06E)

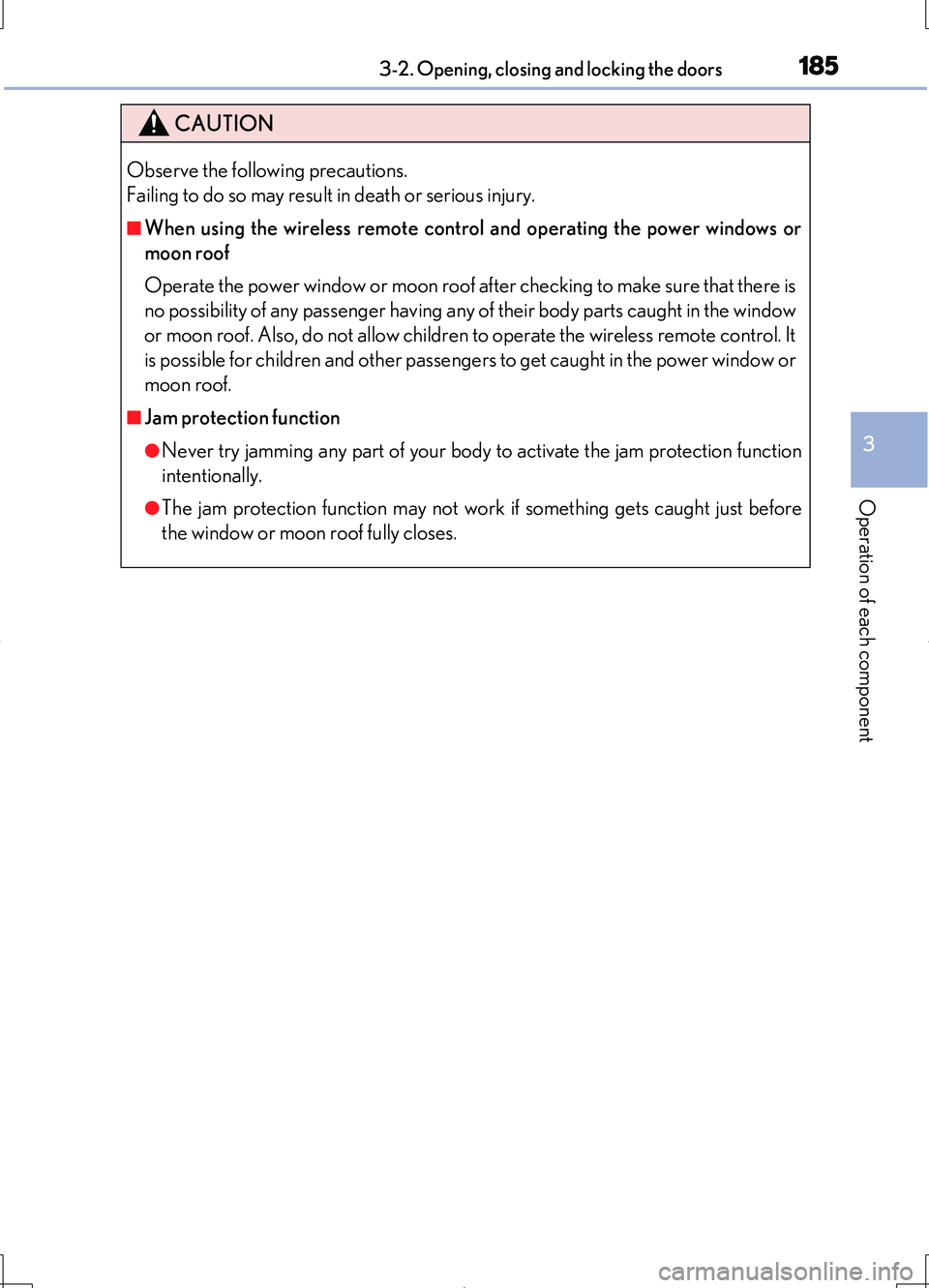

CAUTION
Observe the following precautions.
Failing to do so may result in death or serious injury.
■When using the wireless remote cont rol and operating the power windows or
moon roof
Operate the power window or moon roof after checking to make sure that there is
no possibility of any passenger having any of their body parts caught in the window
or moon roof. Also, do not allow children to operate the wireless remote control. It
is possible for children and other passengers to get caught in the power window or
moon roof.
■Jam protection function
●Never try jamming any part of your body to activate the jam protection function
intentionally.
●The jam protection function may not work if something gets caught just before
the window or moon roof fully closes.

1863-2. Opening, closing and locking the doors
LS460/LS460L_GE (OM50G06E)

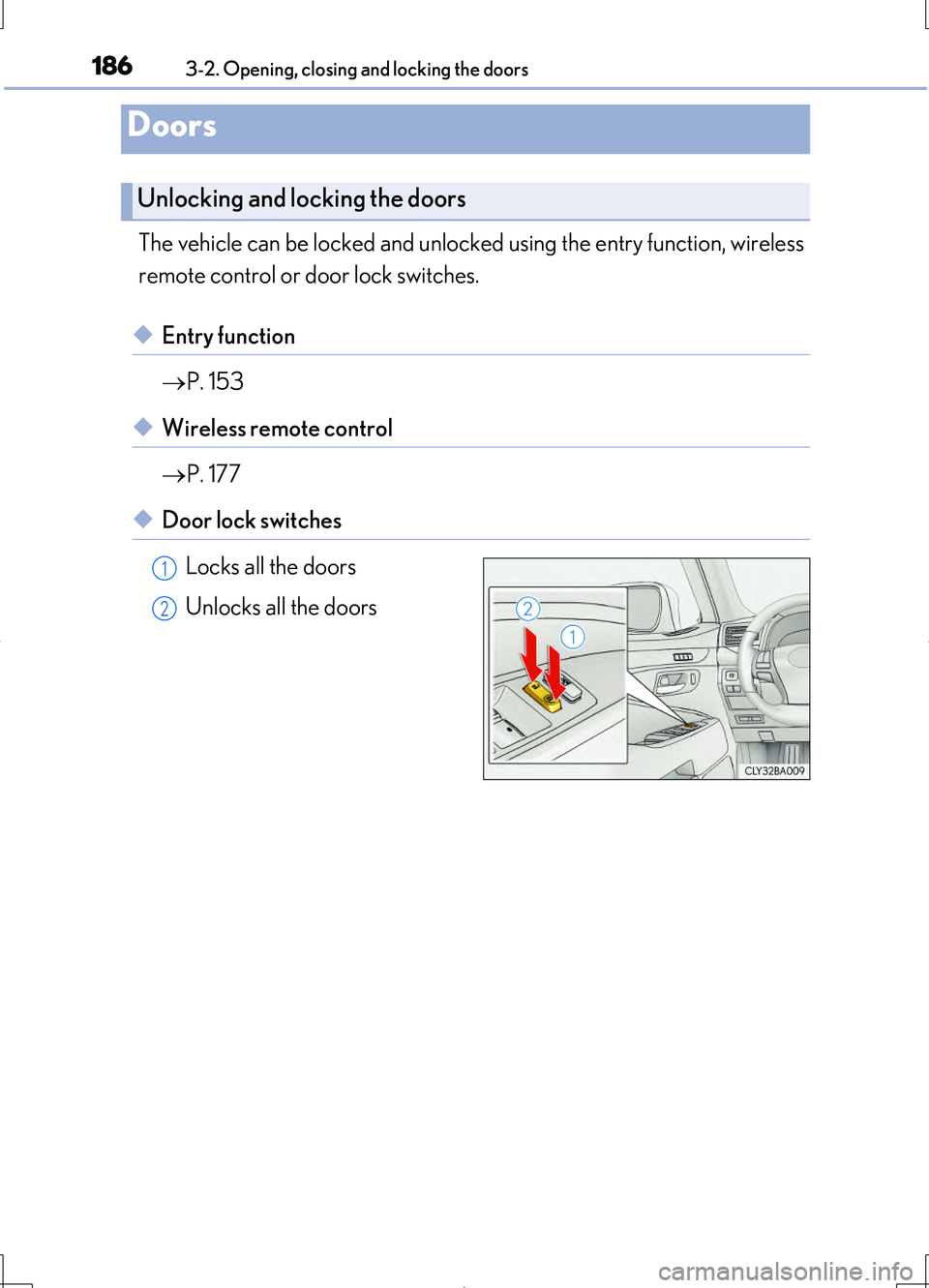

The vehicle can be locked and unlocked using the entry function, wireless
remote control or door lock switches.
◆Entry function
 P. 153
◆Wireless remote control
 P. 177
◆Door lock switches
Locks all the doors
Unlocks all the doors
Doors
Unlocking and locking the doors
1
2

1873-2. Opening, closing and locking the doors
3
Operation of each component
LS460/LS460L_GE (OM50G06E)

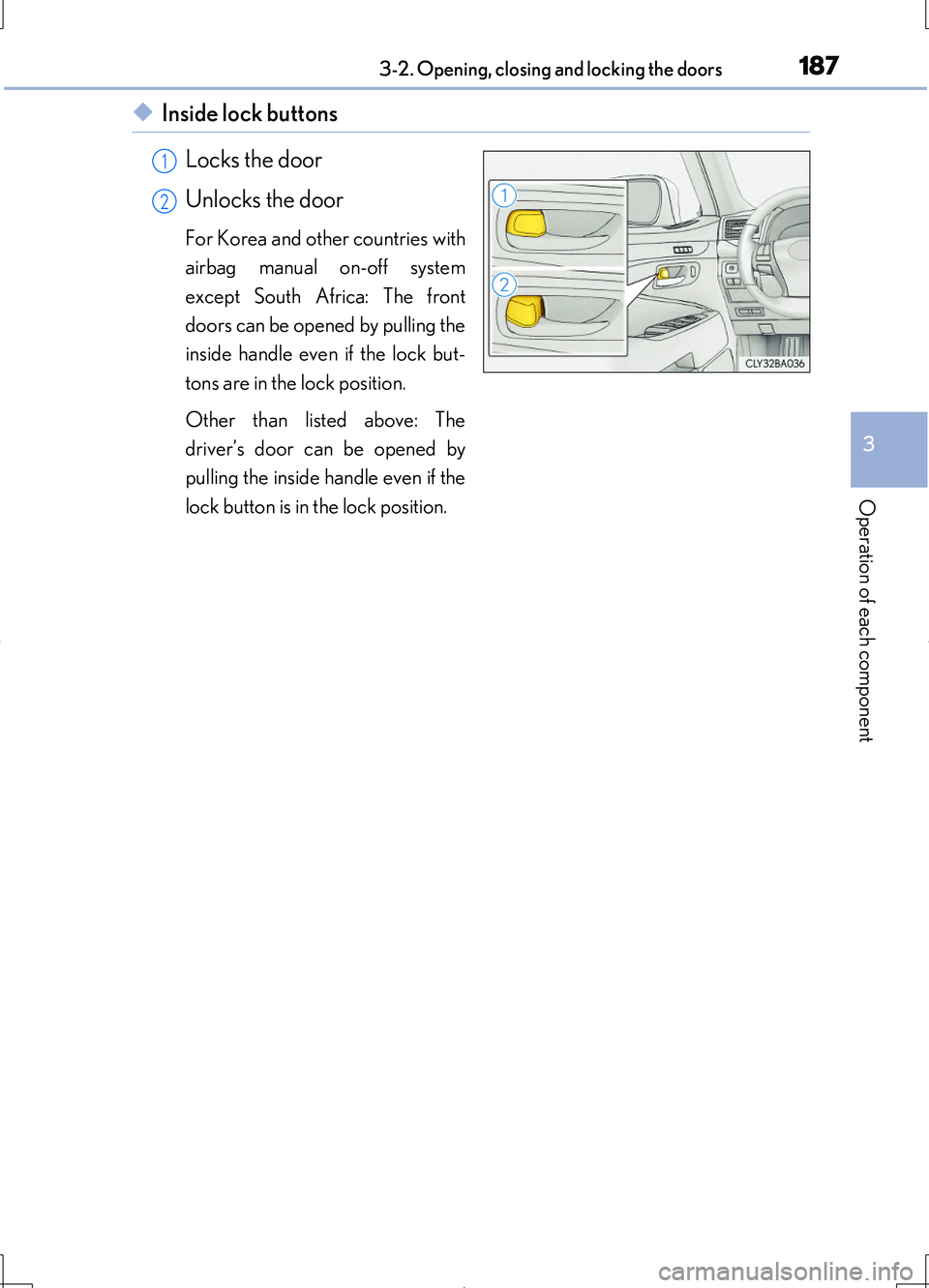

◆Inside lock buttons
Locks the door
Unlocks the door
For Korea and other countries with
airbag manual on-off system
except South Africa: The front
doors can be opened by pulling the
inside handle even if the lock but-
tons are in the lock position.
Other than listed above: The
driver’s door can be opened by
pulling the inside handle even if the
lock button is in the lock position.
1
2

1883-2. Opening, closing and locking the doors
LS460/LS460L_GE (OM50G06E)

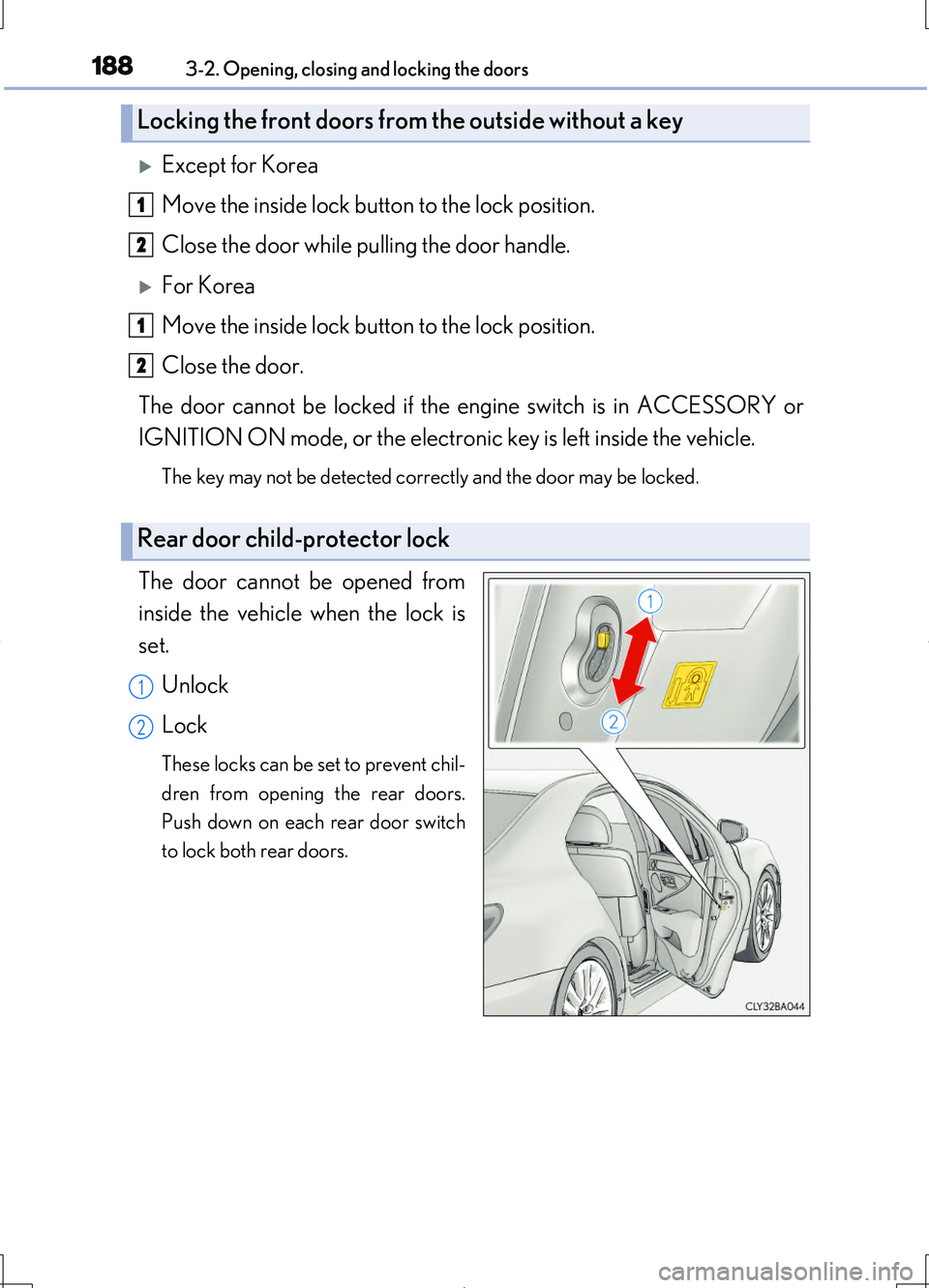

Except for Korea
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
For Korea
Move the inside lock button to the lock position.
Close the door.
The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
The door cannot be opened from
inside the vehicle when the lock is
set.
Unlock
Lock
These locks can be set to prevent chil-
dren from opening the rear doors.
Push down on each rear door switch
to lock both rear doors.
Locking the front doors from the outside without a key
Rear door child-protector lock
1
2
1
2
1
2

1893-2. Opening, closing and locking the doors
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
The following functions can be set or canceled:
For instructions on customizing, refer to P. 667.
■Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are unlocked.
Depending on the force of the impact or the type of accident, however, the system
may not operate.
■ Door closer
In the event that a door is left slightly open, the door closer will automatically close it
to the fully closed position.
●The door closer will operate regardless of the engine switch mode.
●The door closer will not function if the door has been closed while pulling the inside
or outside door handle.
●The door can be opened by pulling the in side or outside door handle, even when
the door closer is operating (except when the lock button is in the lock position or
the child-protector lock is set).
●The motor sound may be heard for several s econds after the door closer closes the
door. This does not indicate a malfunction.
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. ( P. 631)
■If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.
Automatic door locking and unlocking systems
FunctionOperation
Speed linked door locking function
All doors are automatically locked
when vehicle speed is approximately
20 km/h (12 mph) or higher.
Shift position linked door locking func-
tion
All doors are automatically locked
when shifting the shift lever to position
other than P.
Shift position linked door unlocking
function
All doors are automatically unlocked
when shifting the shift lever to P.
Driver’s door linked door unlocking
function
All doors are automatically unlocked
when driver’s door is opened.

1903-2. Opening, closing and locking the doors
LS460/LS460L_GE (OM50G06E)

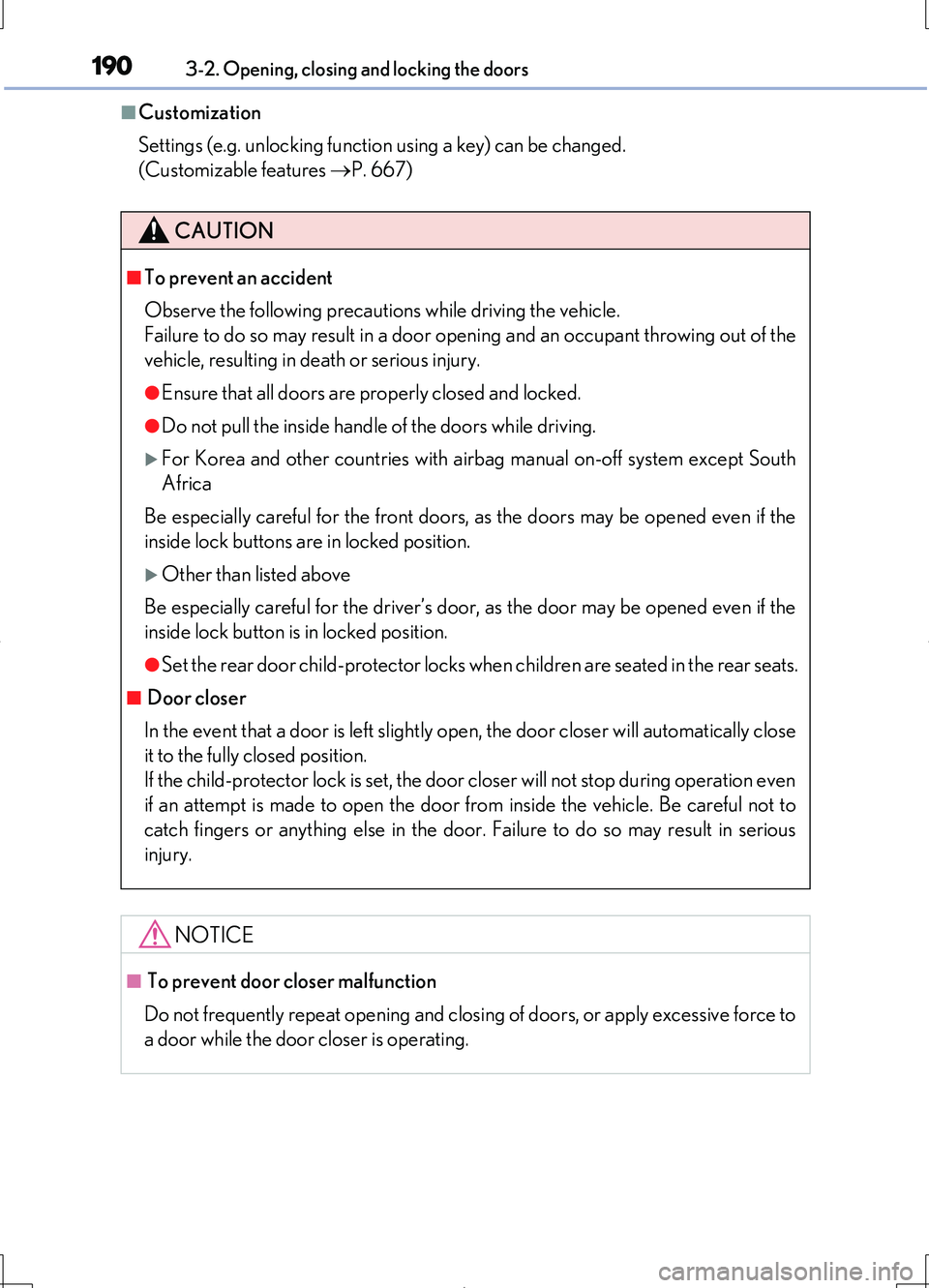

■Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features P. 667)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant throwing out of the
vehicle, resulting in death or serious injury.
●Ensure that all doors are properly closed and locked.
●Do not pull the inside handle of the doors while driving.
For Korea and other countries with airbag manual on-off system except South
Africa
Be especially careful for the front doors, as the doors may be opened even if the
inside lock buttons are in locked position.
Other than listed above
Be especially careful for the driver’s door, as the door may be opened even if the
inside lock button is in locked position.
●Set the rear door child-protector locks when children are seated in the rear seats.
■ Door closer
In the event that a door is left slightly open, the door closer will automatically close
it to the fully closed position.
If the child-protector lock is set, the door closer will not stop during operation even
if an attempt is made to open the door from inside the vehicle. Be careful not to
catch fingers or anything else in the door. Failure to do so may result in serious
injury.
NOTICE
■ To prevent door closer malfunction
Do not frequently repeat opening and closing of doors, or apply excessive force to
a door while the door closer is operating.
