Maintenance and care Parking brake • Does the parking
brake operate nor-
mally?
•When parked on a
slope and the park-
ing brake is on, is the
vehicle securely
stopped?
Seat belts • Do the seat belts
operate smoothly?
• The seat belts should
not be damaged.
Seats • Do the seat controls
operate properly?
Steering wheel • Does the steering
wheel rotate
smoothly?
• Does the steering
wheel have the cor-
rect amount of free
play?
•There should not be
any strange sounds
coming from the
steering wheel.
Vehicle exterior Items Check points
Doors/trunk • Do the doors/trunk
operate smoothly?
Engine hood •Does the engine
hood lock system
work properly?
Fluid leaks •There should not be
any signs of fluid
leakage after the
vehicle has been
parked.Items Check points
Tires • Is the tire inflation
pressure correct?
• The tires should not
be damaged or
excessively worn.
• Have the tires been
rotated according to
the maintenance
schedule?
•The wheel nuts
should not be loose.
Windshield wip-
ers • The wiper blades
should not show any
signs of cracking,
splitting, wear, con-
tamination or defor-
mation.
• The wiper blades
should clear the
windshield without
streaking or skip-
ping.Items Check points

372 6-2. Maintenance
LS500_OM_OM50F54U_(U) The OBD system determines that a
problem exists somewhere in the emis-
sion control system. Your vehicle may
not pass the I/M test and may need to
be repaired. Contact your Lexus
dealer to service the vehicle.
 When the battery is disconnected
or discharged Readiness codes that are set during ordi-
nary driving are erased.
Also, depending on your driving habits, the
readiness codes may not be completely
set.
 When the fuel tank cap is loose The malfunction indicator lamp comes on
indicating a temporary malfunction and
your vehicle may not pass the I/M test. The error code in the OBD system will
not be cleared unless the vehicle is
driven 40 or more times.
Contact your Lexus dealer to prepare
the vehicle for re-testing.Emission inspection and
maintenance (I/M) pro-
grams Some states have vehicle emission
inspection programs which include
OBD (On Board Diagnostics)
checks. The OBD system monitors
the operation of the emission con-
trol system.
If the malfunction indicator lamp
comes on
Your vehicle may not pass the
I/M test in the following situa-
tions: When the malfunction indicator
lamp still remains on after sev-
eral driving trips
If your vehicle does not pass the
I/M test

3736-3. Do-it-yourself maintenance
LS500_OM_OM50F54U_(U) 6
Maintenance and care 6-3.Do-it-yourself maintenance

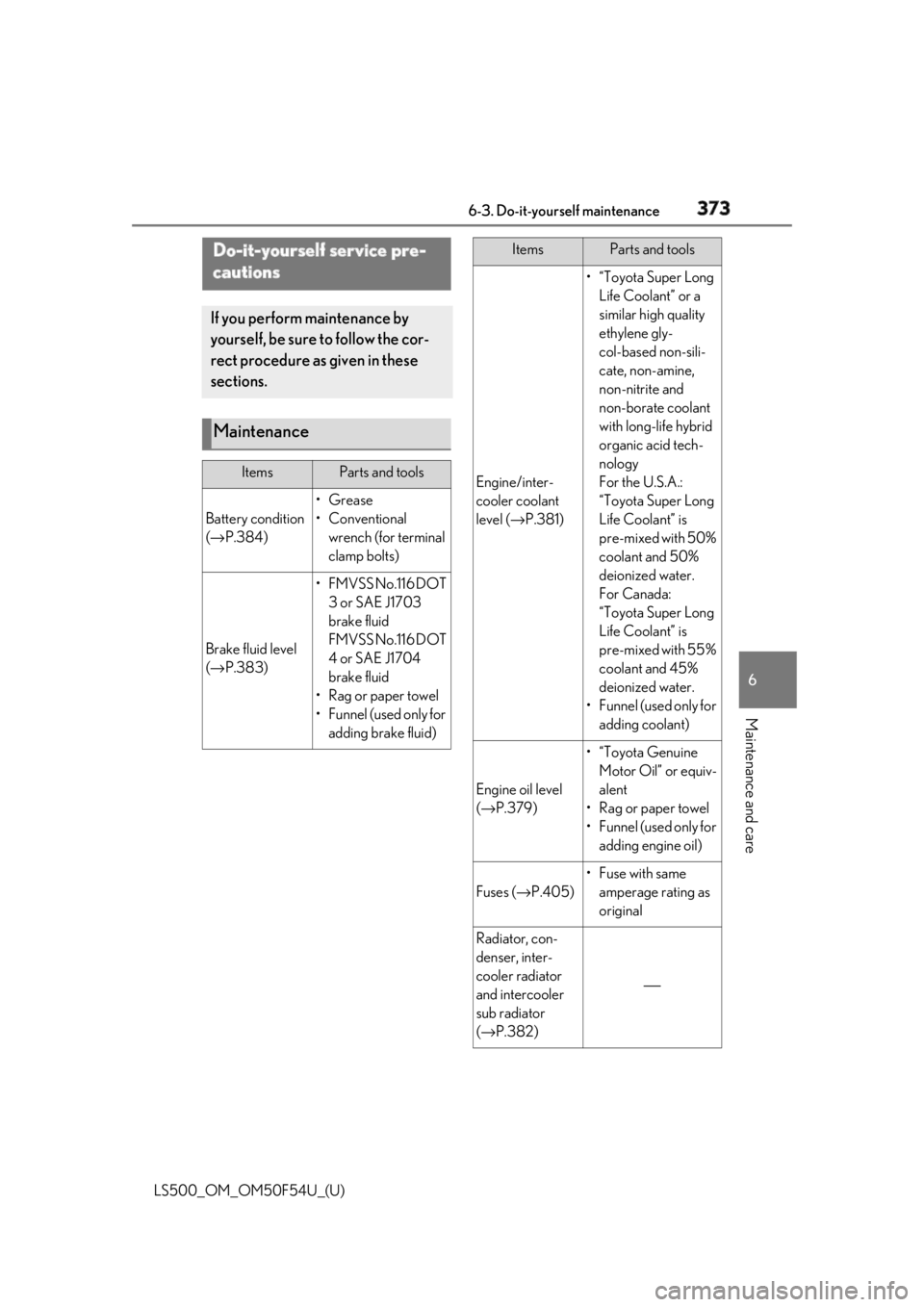

Do-it-yourself service pre-
cautions If you perform maintenance by
yourself, be sure to follow the cor-
rect procedure as given in these
sections.
Maintenance Items Parts and tools
Battery condition
( → P.384) •Grease
• Conventional
wrench (for terminal
clamp bolts)
Brake fluid level
( → P.383) • FMVSS No.116 DOT
3 or SAE J1703
brake fluid
FMVSS No.116 DOT
4 or SAE J1704
brake fluid
•Rag or paper towel
• Funnel (used only for
adding brake fluid) Engine/inter-
cooler coolant
level ( → P.381) •“Toyota Super Long
Life Coolant” or a
similar high quality
ethylene gly-
col-based non-sili-
cate, non-amine,
non-nitrite and
non-borate coolant
with long-life hybrid
organic acid tech-
nology
For the U.S.A.:
“Toyota Super Long
Life Coolant” is
pre-mixed with 50%
coolant and 50%
deionized water.
For Canada:
“Toyota Super Long
Life Coolant” is
pre-mixed with 55%
coolant and 45%
deionized water.
•Funnel (used only for
adding coolant)
Engine oil level
( → P.379) •“Toyota Genuine
Motor Oil” or equiv-
alent
• Rag or paper towel
•Funnel (used only for
adding engine oil)
Fuses ( → P.405) •Fuse with same
amperage rating as
original
Radiator, con-
denser, inter-
cooler radiator
and intercooler
sub radiator
( → P.382) ⎯Items Parts and tools

374 6-3. Do-it-yourself maintenance
LS500_OM_OM50F54U_(U) Tire inflation pres-
sure ( → P.399) • Tire pressure gauge
•Compressed air
source
Washer fluid
( → P.383) • Water or washer
fluid containing anti-
freeze (for winter
use)
• Funnel (used only for
adding water or
washer fluid)
WARNING
The engine compartment contains many
mechanisms and fluids that may move
suddenly, become hot, or become elec-
trically energized. To avoid death or seri-
ous injury, observe the following
precautions. ■
When working on the engine com-
partment●
Keep hands, clothi ng and tools away
from the moving fan and engine drive
belt.●
Be careful not to touch the engine,
radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil
and other fluids may also be hot.
●
Do not leave anything that may burn
easily, such as paper and rags, in the
engine compartment.
●
Do not smoke, cause sparks or expose
an open flame to fuel. Fuel fumes are
flammable.
■
When working near the electric cool-
ing fan or radiator grille
Be sure the engine switch is off.
With the engine switch in IGNITION
ON mode, the electric cooling fan may
automatically start to run if the air condi-
tioning is on and/or the coolant tempera-
ture is high. ( → P.382)Items Parts and tools ■
Safety glasses
Wear safety glasses to prevent flying or
falling material, fluid spray, etc. from get-
ting in your eyes.
NOTICE■
If you remove the air cleaner filter
Driving with the air cleaner filter
removed may cause excessive engine
wear due to dirt in the air.

3756-3. Do-it-yourself maintenance
LS500_OM_OM50F54U_(U) 6

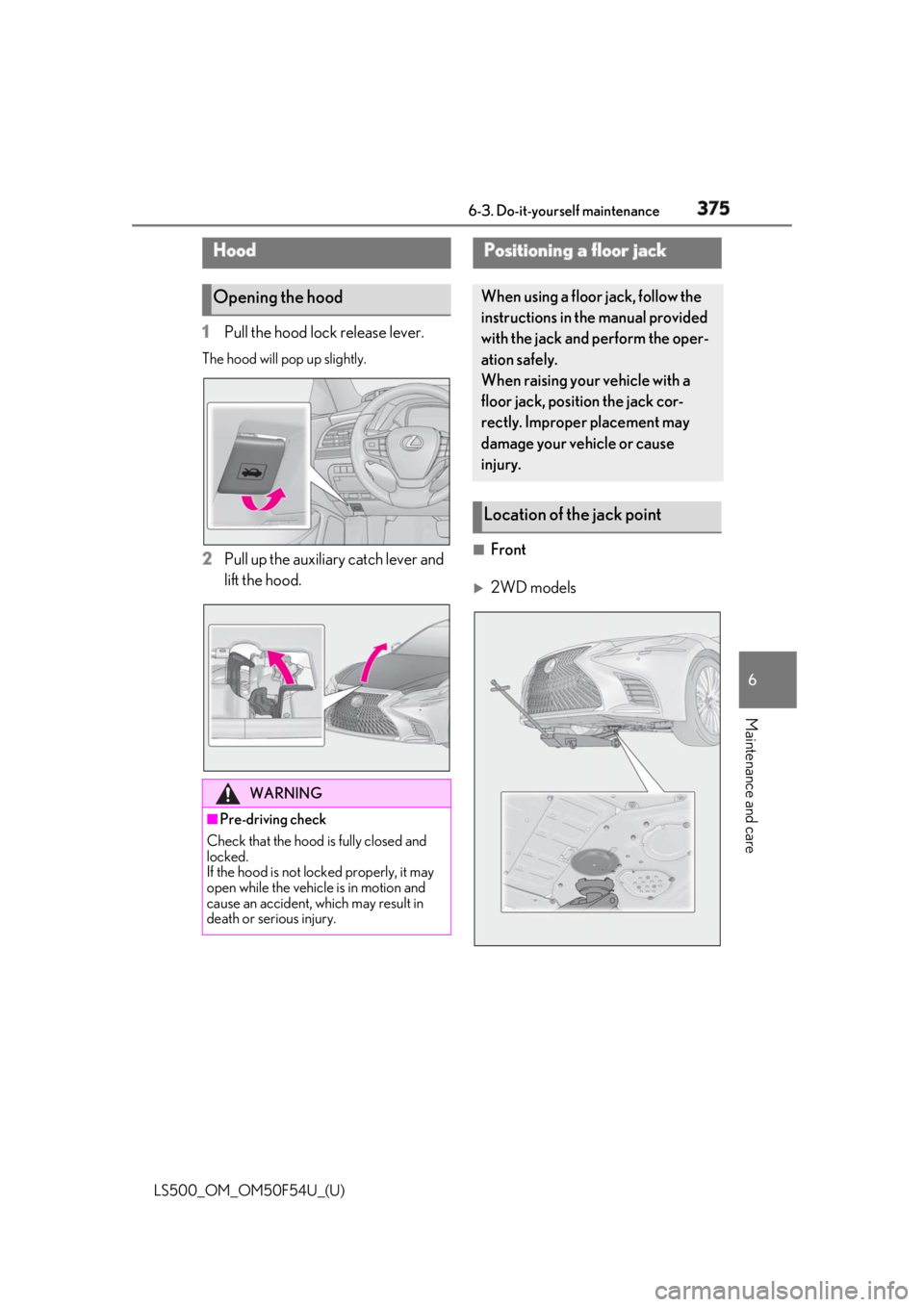

Maintenance and care 1 Pull the hood lock release lever.The hood will pop up slightly.
2 Pull up the auxiliary catch lever and
lift the hood. ■
Front 
2WD modelsHood
Opening the hood
WARNING
■
Pre-driving check
Check that the hood is fully closed and
locked.
If the hood is not locked properly, it may
open while the vehicle is in motion and
cause an accident, which may result in

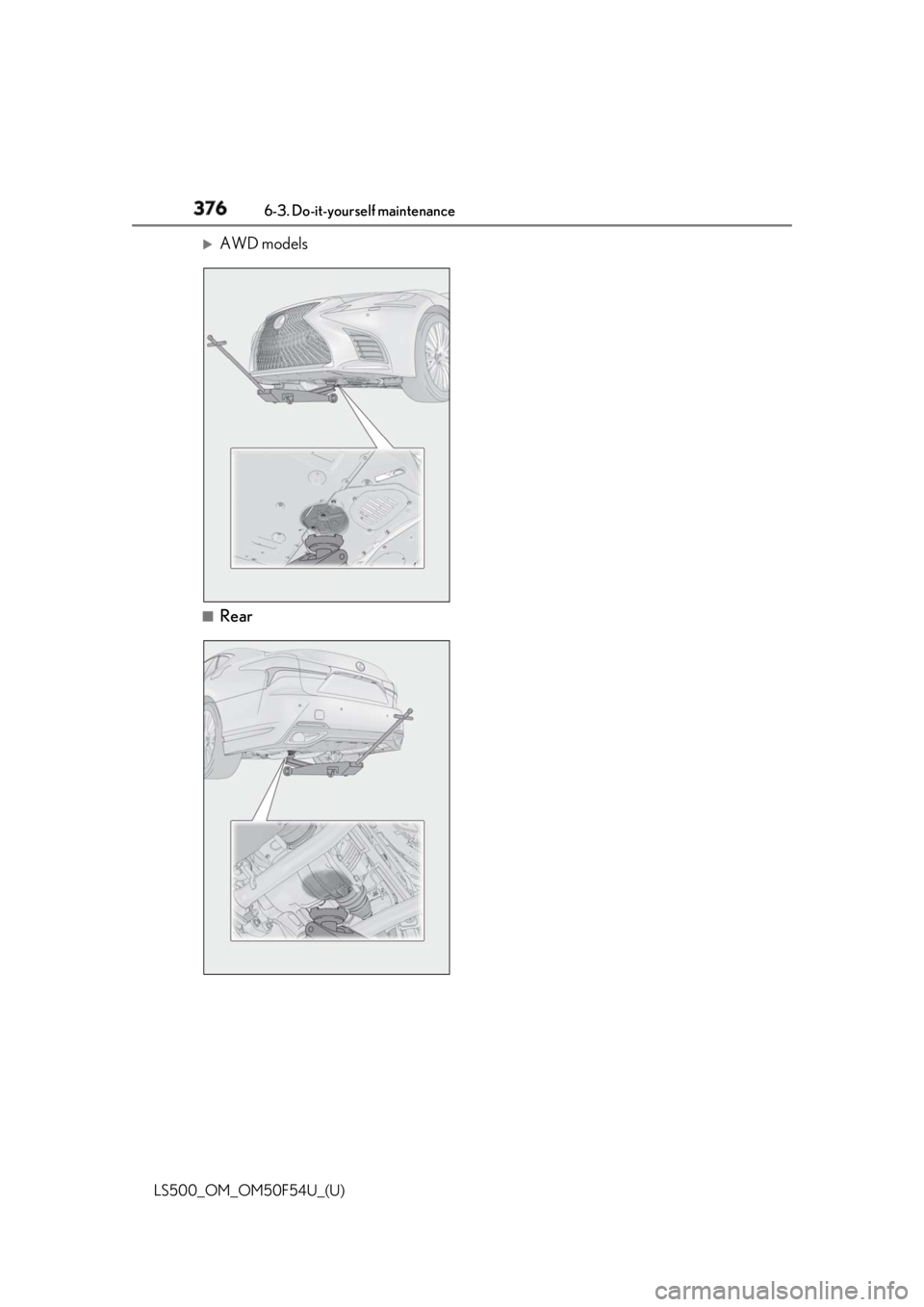

death or serious injury. Positioning a floor jack When using a floor jack, follow the
instructions in the manual provided
with the jack and perform the oper-
ation safely.
When raising your vehicle with a
floor jack, position the jack cor-
rectly. Improper placement may
damage your vehicle or cause
injury.
Location of the jack point

376 6-3. Do-it-yourself maintenance
LS500_OM_OM50F54U_(U) 
AWD models
■
Rear

3776-3. Do-it-yourself maintenance
LS500_OM_OM50F54U_(U) 6
Maintenance and care
Fuse boxes ( → P.405)
Engine oil filler cap ( → P.380)
Engine coolant reservoir ( → P.381)
Intercooler coolant reservoir ( → P.381)
Engine oil level dipstick ( → P.379)
Brake fluid reservoir ( → P.383)
Washer fluid tank ( → P.383)
Radiator ( → P.382)
Intercooler radiator ( → P.382)
Electric cooling fan
Condenser ( → P.382)

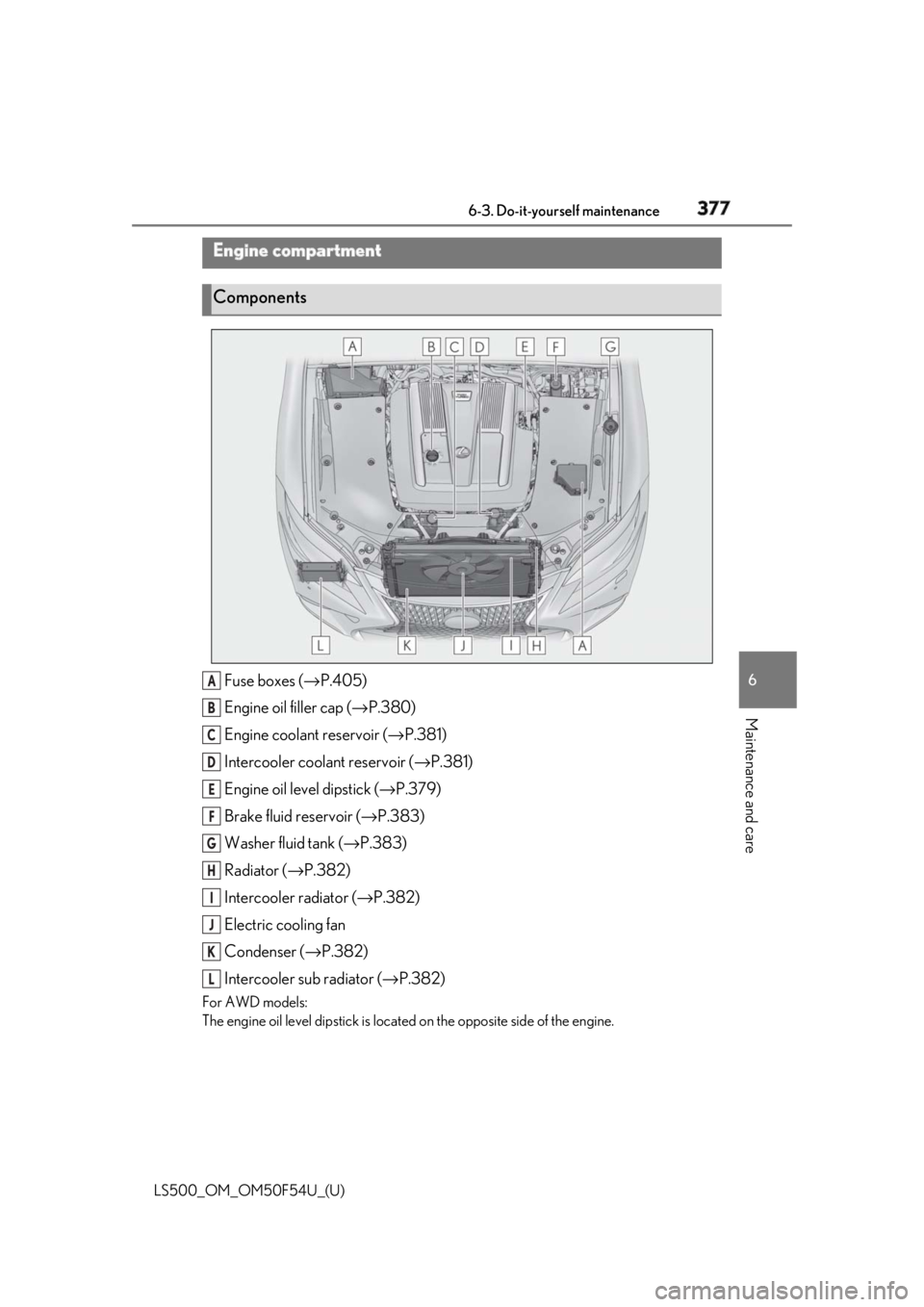

Intercooler sub radiator ( → P.382)For AWD models:
The engine oil level dipstick is locate d on the opposite side of the engine.Engine compartment
Components
A
B
C
D
E
F
G
H
I
J
K
L

378 6-3. Do-it-yourself maintenance
LS500_OM_OM50F54U_(U) ■
Battery
→ P.384
■

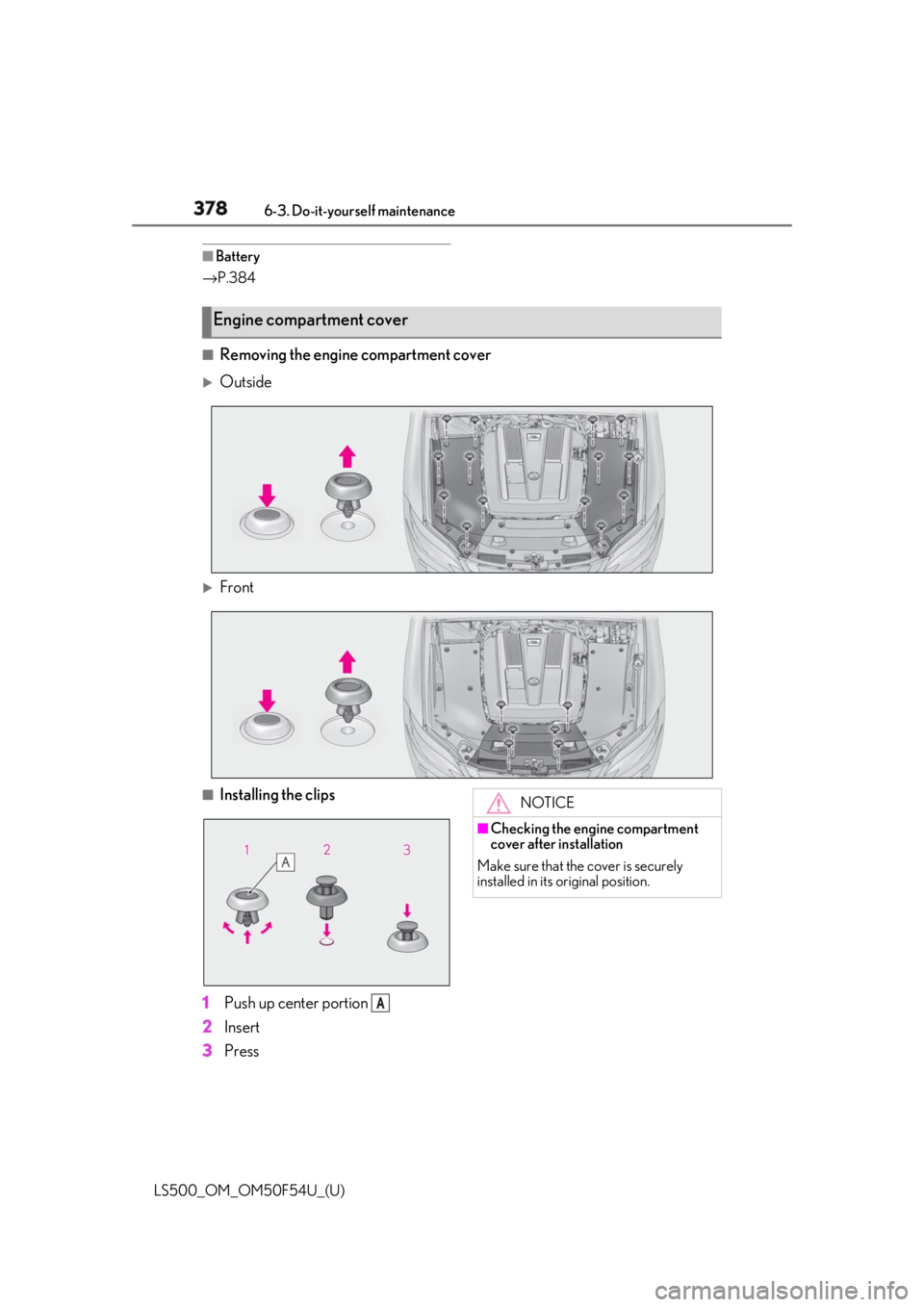

Removing the engine compartment cover 
Outside 
Front
■
Installing the clips
1 Push up center portion
2 Insert
3 PressEngine compartment cover
A NOTICE
■
Checking the engine compartment
cover after installation
Make sure that the cover is securely
installed in its original position.

3796-3. Do-it-yourself maintenance
LS500_OM_OM50F54U_(U) 6
Maintenance and care ■

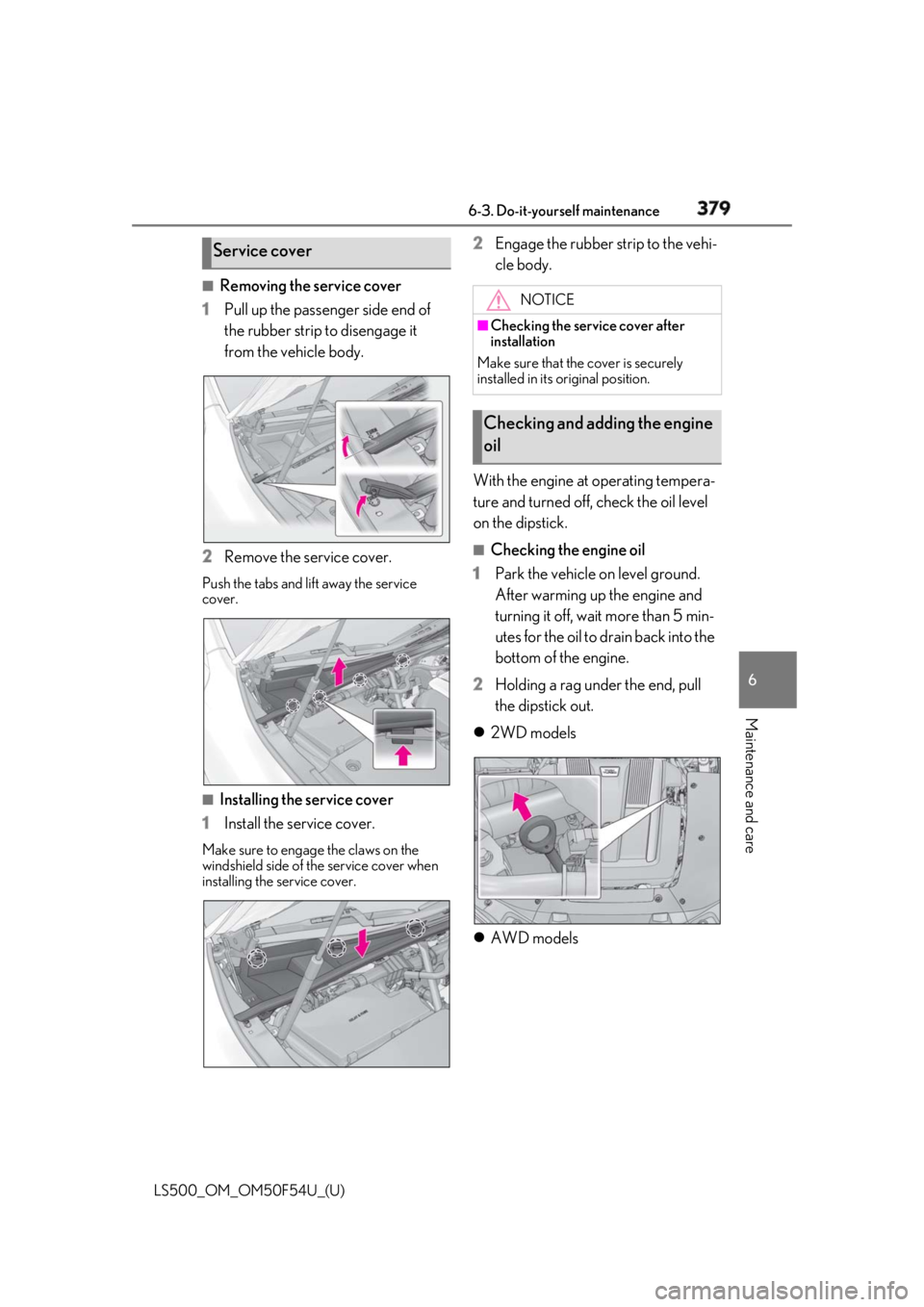

Removing the service cover
1 Pull up the passenger side end of
the rubber strip to disengage it
from the vehicle body.
2 Remove the service cover.Push the tabs and lift away the service
cover.
■
Installing the service cover
1 Install the service cover.Make sure to engage the claws on the
windshield side of the service cover when
installing the service cover. 2 Engage the rubber strip to the vehi-
cle body.
With the engine at operating tempera-
ture and turned off, check the oil level
on the dipstick. ■
Checking the engine oil
1 Park the vehicle on level ground.
After warming up the engine and
turning it off, wait more than 5 min-
utes for the oil to drain back into the
bottom of the engine.
2 Holding a rag under the end, pull
the dipstick out.
 2WD models
 AWD modelsService cover NOTICE■
Checking the service cover after
installation
Make sure that the cover is securely
installed in its original position.
Checking and adding the engine
oil

380 6-3. Do-it-yourself maintenance
LS500_OM_OM50F54U_(U) 3 Wipe the dipstick clean.
4 Reinsert the dipstick fully.
5 Holding a rag under the end, pull
the dipstick out and check the oil
level.
Low
Normal
ExcessiveThe shape of the dipstick may differ
depending on the type of vehicle or
engine.
6 Wipe the dipstick and reinsert it
fully. ■
Checking the oil type and prepar-
ing the item needed
Make sure to check the oil type and
prepare the items needed before add-
ing oil.
 Engine oil selection
→ P.450  Oil quantity (Low → Full)
1.6 qt. (1.5 L, 1.3 Imp. qt.)
 Item
Clean funnel ■
Adding engine oil
If the oil level is below or near the low
level mark, add engine oil of the same
type as that already in the engine.
 2WD models
 AWD models
1 Remove the oil filler cap by turning
it counterclockwise.
2 Add engine oil slowly, checking the
dipstick.
3 Install the oil filler cap by turning it
clockwise. ■
Engine oil consumption
A certain amount of engine oil will be con-
sumed while driving. In the following situa-
tions, oil consumption may increase, and A
B
C
