For safety and security WARNING●
Make sure the “AIR BAG OFF” indi-
cator light is not illuminated when
using the seat belt extender for the
front passenger seat. If the “AIR BAG
OFF” indicator light is illuminated, dis-
connect the extender tongue from the
seat belt buckle, and reconnect the
seat belt. Reconnect the seat belt
extender after making sure the “AIR
BAG ON” indicator light is illumi-
nated. If you use the seat belt extender
while the “AIR BAG OFF” indicator
light is illuminated, the SRS airbags for
the front passenger will not activate,
which could cause death or serious
injury in the event of a collision.●
Do not apply a heavy load to the front
passenger seat or equipment (e.g.
seatback pocket).●
Do not put weight on the front passen-
ger seat by putting your hands or feet
on the front passenger seat seatback
from the rear passenger seat.●
Do not let a rear passenger lift the
front passenger seat with their feet or
press on the seatback with their legs.●
Do not put objects under the front pas-
senger seat.
●
Do not recline the front passenger
seatback so far that it touches a rear
seat. This may cause the “AIR BAG
OFF” indicator light to be illuminated,
which indicates that the SRS airbags
for the front passenger will not activate
in the event of a severe accident. If the
seatback touches the rear seat, return
the seatback to a position where it
does not touch the rear seat. Keep the
front passenger seatback as upright as
possible when the vehicle is moving.
Reclining the seatback excessively
may lessen the effectiveness of the
seat belt system. ●
If an adult sits in the front passenger
seat, the “AIR BAG ON” indicator
light is illuminated. If the “AIR BAG
OFF” indicator is illuminated, ask the
passenger to sit up straight, well back
in the seat, feet on the floor, and with
the seat belt worn co rrectly. If the “AIR
BAG OFF” indicator still remains illu-
minated, either ask the passenger to
move to the rear seat, or if that is not
possible, move the front passenger
seat fully rearward. ●
When it is unavoidable to install a for-
ward-facing child re straint system on
the front passenger seat, install the
child restraint system on the front pas-
senger seat in the proper order.
(  P.46)●
Do not modify or remove the front
seats. ●
Do not kick the front passenger seat or
subject it to severe impact. Otherwise,
the SRS warning light may come on to
indicate a malfunction of the front pas-
senger occupant clas sification system.
In this case, contact your Lexus dealer
immediately. ●
Child restraint systems installed on the
rear seat should not contact the front
seatbacks.
●
Do not use a seat accessory, such as a
cushion and seat cover, that covers the
seat cushion surface.
●
Do not modify or replace the uphol-
stery of the front seat.

42 1-1. For safe use
LS500_OM_(U)_1810 ■
Adult *1
■
Child *4
■

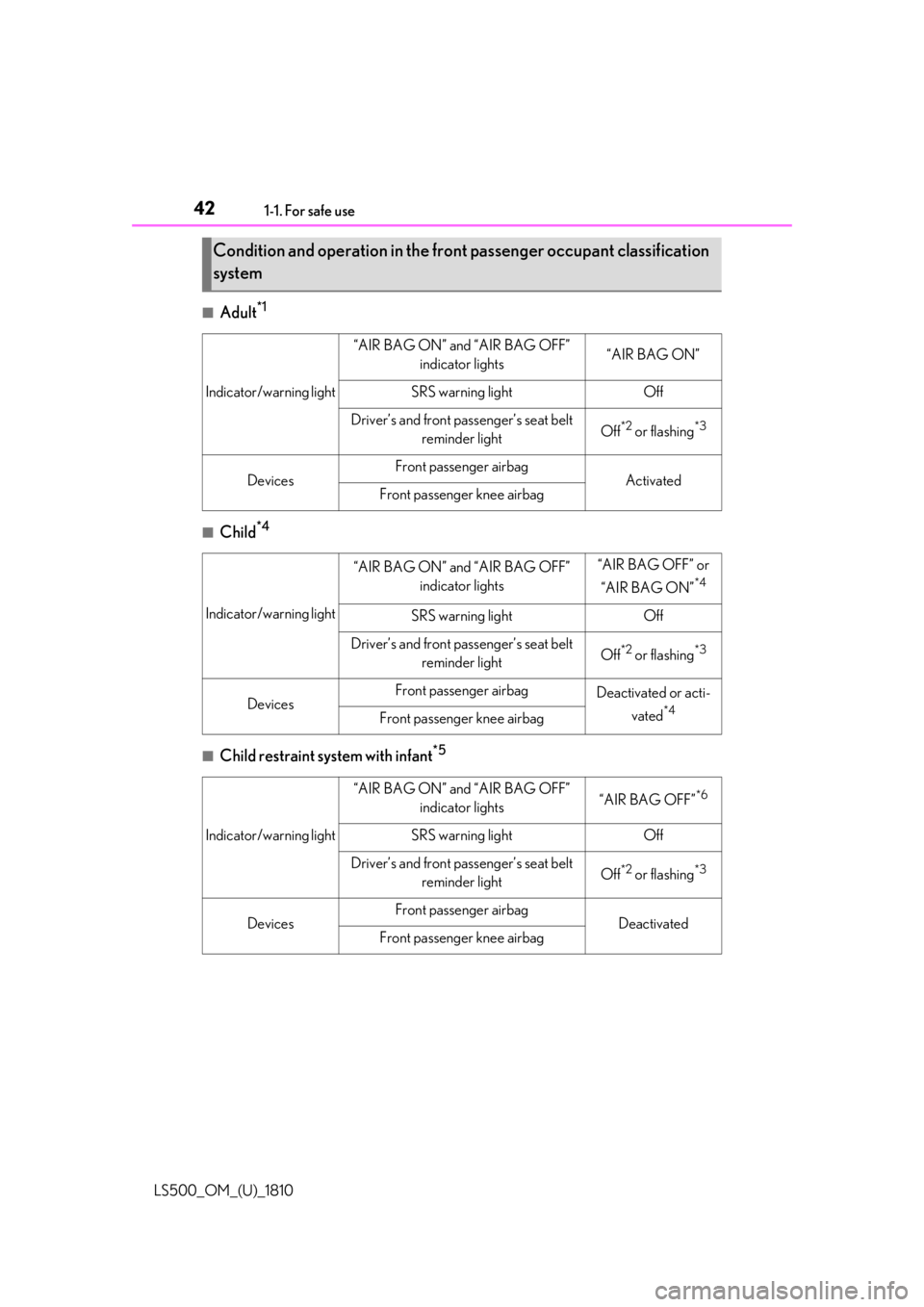

Child restraint system with infant *5Condition and operation in the front passenger occupant classification
system Indicator/warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG ON”
SRS warning light Off
Driver’s and front passenger’s seat belt
reminder light Off *2
or flashing *3
Devices Front passenger airbag
Activated
Front passenger knee airbag
Indicator/warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG OFF” or
“AIR BAG ON” *4
SRS warning light Off
Driver’s and front passenger’s seat belt
reminder light Off *2
or flashing *3
Devices Front passenger airbag
Deactivated or acti-
vated *4
Front passenger knee airbag
Indicator/warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG OFF” *6
SRS warning light Off
Driver’s and front passenger’s seat belt
reminder light Off *2
or flashing *3
Devices Front passenger airbag
Deactivated
Front passenger knee airbag

431-1. For safe use
LS500_OM_(U)_1810 1
For safety and security ■
Unoccupied
■
There is a malfunction in the system *1
: The system judges a person of adult size as an adult. When a smaller adult sits in the
front passenger seat, the system may not re cognize him/her as an adult depending on
his/her physique and posture. *2
: In the event the front passenger is wearing a seat belt *3
: In the event the front passenger does not wear a seat belt *4
: For some children, child in se at, child in booster seat or ch ild in convertible seat, the sys-
tem may not recognize him/her as a child. Factors which may affect this can be the phy-
sique or posture. *5
: Never install a rear-facing child restraint system on th e front passenger seat. A for-
ward-facing child restraint system should only be installed on the front passenger seat
when it is unavoidable. (  P.45)*6
: In case the indicator light is not illuminated, consult this manual on how to install the child
restraint system properly. (  P.46)Indicator/warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG OFF”
SRS warning light
Off
Driver’s and front passenger’s seat belt
reminder light
Devices Front passenger airbag
Deactivated
Front passenger knee airbag

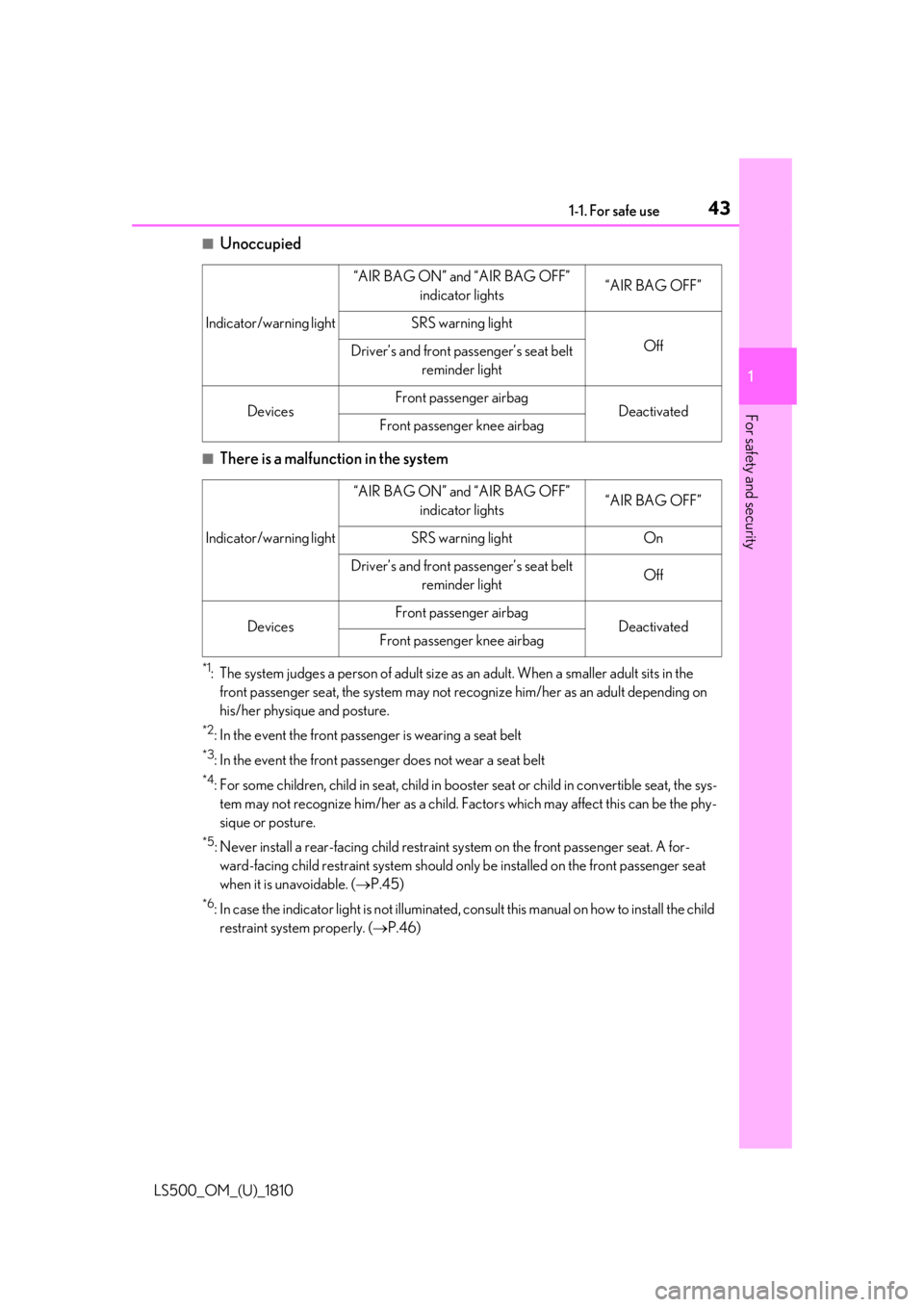

Indicator/warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG OFF”
SRS warning light On
Driver’s and front passenger’s seat belt
reminder light Off
Devices Front passenger airbag
Deactivated
Front passenger knee airbag

44 1-1. For safe use
LS500_OM_(U)_1810 Exhaust gas precautions Harmful substance to the human
body is included in exhaust gases if
inhaled. WARNING
Exhaust gases include harmful carbon
monoxide (CO), which is colorless and
odorless. Observe the following precau-
tions.
Failure to do so may cause exhaust gases
enter the vehicle and may lead to an
accident caused by light-headedness, or
may lead to death or a serious health
hazard. ■
Important points while driving●
Keep the trunk lid closed.●
If you smell exhaust gases in the vehi-
cle even when the trunk lid is closed,
open the windows and have the vehi-
cle inspected at your Lexus dealer as
soon as possible.■
When parking●
If the vehicle is in a poorly ventilated
area or a closed area, such as a
garage, stop the engine.
●
Do not leave the vehicle with the
engine on for a long time.
If such a situation cannot be avoided,
park the vehicle in an open space and
ensure that exhaust fumes do not enter
the vehicle interior.
●
Do not leave the engine running in an
area with snow build-up, or where it is
snowing. If snowbanks build up around
the vehicle while the engine is running,
exhaust gases may collect and enter
the vehicle. ■
Exhaust pipe
The exhaust system needs to be checked
periodically. If there is a hole or crack
caused by corrosion, damage to a joint
or abnormal exhaust noise, be sure to
have the vehicle inspected and repaired
by your Lexus dealer.

451-2. Child safety
LS500_OM_(U)_1810 1

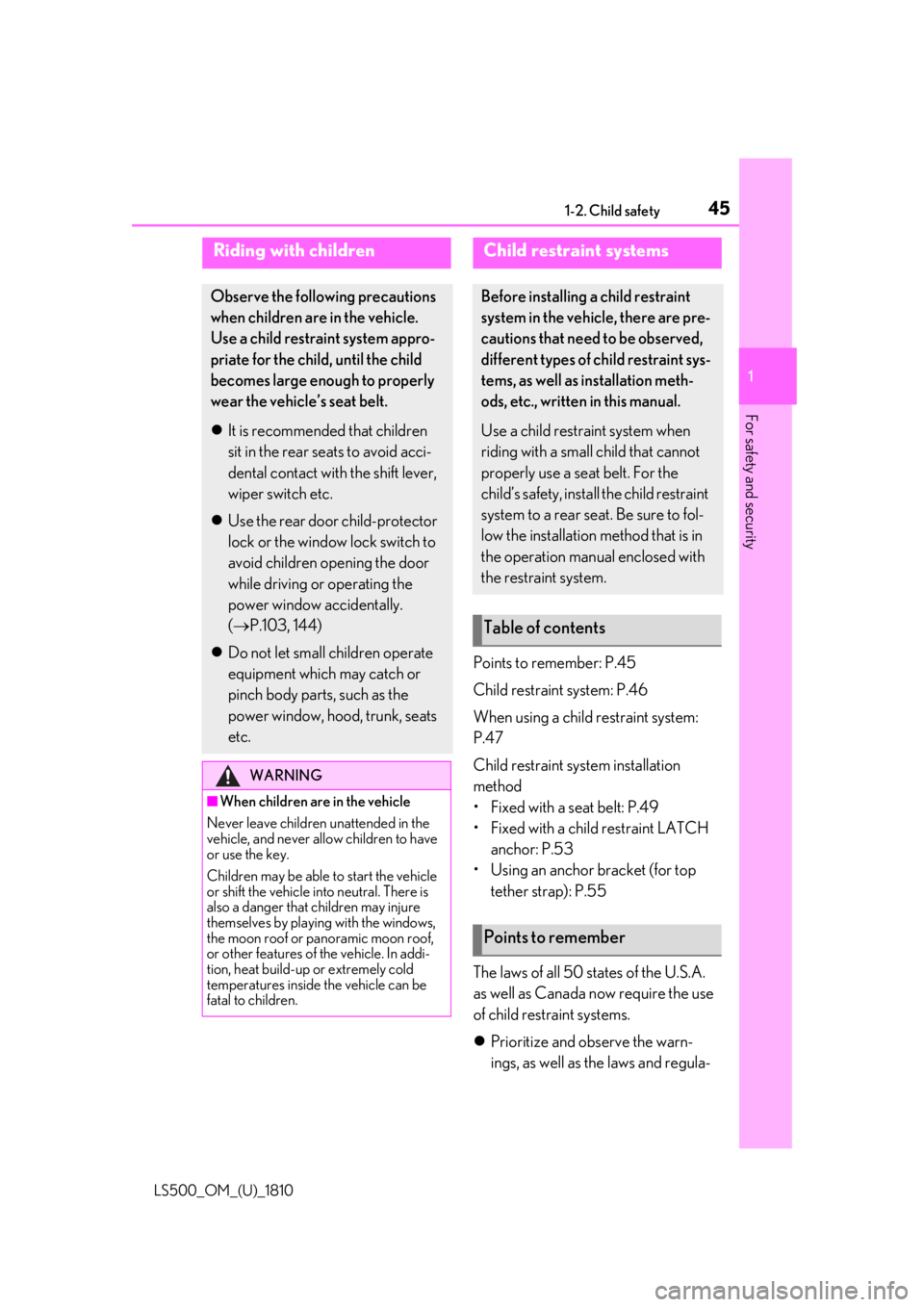

For safety and security 1-2.Child safety
Points to remember: P.45
Child restraint system: P.46
When using a child restraint system:
P.47

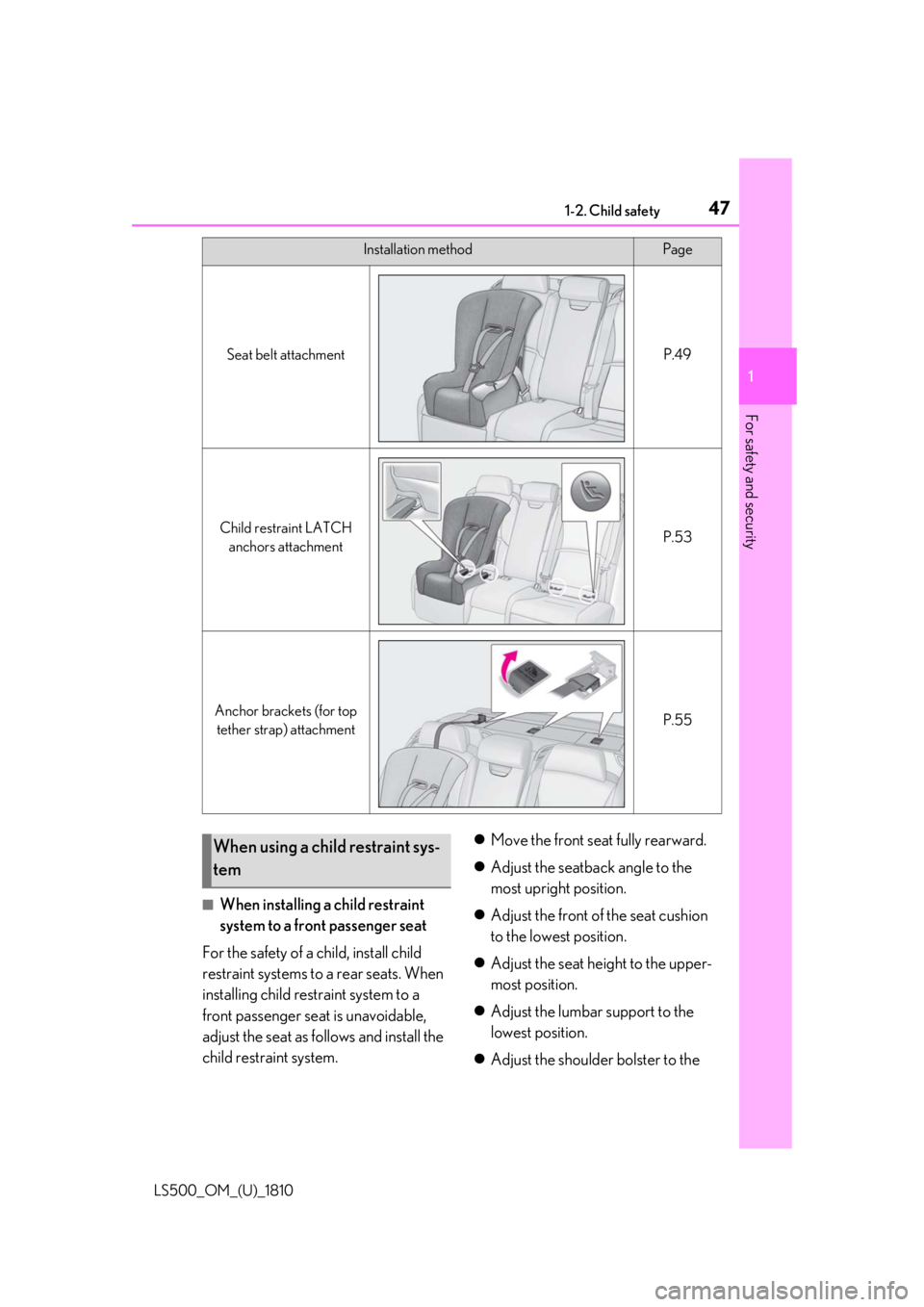

Child restraint system installation
method
• Fixed with a seat belt: P.49
• Fixed with a child restraint LATCH
anchor: P.53
• Using an anchor bracket (for top
tether strap): P.55
The laws of all 50 states of the U.S.A.
as well as Canada now require the use
of child restraint systems.
 Prioritize and observe the warn-
ings, as well as the laws and regula-Riding with children Observe the following precautions
when children are in the vehicle.
Use a child restraint system appro-
priate for the child , until the child
becomes large enough to properly
wear the vehicle’s seat belt.
 It is recommended that children
sit in the rear seats to avoid acci-
dental contact with the shift lever,
wiper switch etc.
 Use the rear door child-protector
lock or the window lock switch to
avoid children opening the door
while driving or operating the
power window accidentally.
(  P.103, 144)
 Do not let small children operate
equipment which may catch or
pinch body parts, such as the
power window, hood, trunk, seats
etc. WARNING
■
When children are in the vehicle
Never leave children unattended in the
vehicle, and never allow children to have
or use the key.
Children may be able to start the vehicle
or shift the vehicle into neutral. There is
also a danger that children may injure
themselves by playing with the windows,
the moon roof or panoramic moon roof,
or other features of the vehicle. In addi-
tion, heat build-up or extremely cold
temperatures inside the vehicle can be
fatal to children. Child restraint systems Before installing a child restraint
system in the vehicle, there are pre-
cautions that need to be observed,
different types of child restraint sys-
tems, as well as installation meth-
ods, etc., written in this manual.
Use a child restraint system when
riding with a small child that cannot
properly use a seat belt. For the
child’s safety, install the child restraint
system to a rear seat. Be sure to fol-
low the installation method that is in
the operation manual enclosed with
the restraint system.
Table of contents
Points to remember

46 1-2. Child safety
LS500_OM_(U)_1810 tions for child restraint systems.
 Use a child restraint system until the
child becomes large enough to
properly wear the vehicle’s seat belt.
 Choose a child restraint system that
suits your vehicle and is appropriate
to the age and size of the child.
■
Types of child restraint system installation methods
Confirm with the operation manual enclosed with the child restraint system about
the installation of the child restraint system. WARNING■
When a child is riding
Observe the following precautions.
Failure to do so may result in death or
serious injury. ●
For effective protection in automobile
accidents and sudden stops, a child
must be properly restrained, using a
seat belt or child restraint system
which is correctly installed. For installa-
tion details, refer to the operation man-
ual enclosed with the child restraint
system. General insta llation instruction
is provided in this manual.●
Lexus strongly urges the use of a
proper child restraint system that con-
forms to the weight and size of the
child, installed on the rear seat.
According to accident statistics, the
child is safer when properly restrained
in the rear seat than in the front seat. ●
Holding a child in your or someone
else’s arms is not a substitute for a child
restraint system. In an accident, the
child can be crushe d against the wind-
shield or between the holder and the
interior of the vehicle. ■
Handling the child restraint system
If the child re straint system is not prop-
erly fixed in place, the child or other pas-
sengers may be seriously injured or even
killed in the event of sudden braking, sud-
den swerving, or an accident. ●
If the vehicle were to receive a strong
impact from an accident, etc., it is pos-
sible that the child restraint system has
damage that is not readily visible. In
such cases, do not reuse the restraint
system. ●
Make sure you have complied with all
installation instructions provided with
the child restraint system manufac-
turer and that the system is properly
secured. ●
Keep the child rest raint system prop-
erly secured on the seat even if it is not
in use. Do not store the child restraint
system unsecured in the passenger
compartment.
●
If it is necessary to detach the child
restraint system, remove it from the
vehicle or store it securely in the trunk.
Child restraint system

471-2. Child safety
LS500_OM_(U)_1810 1
For safety and security
■
When installing a child restraint
system to a front passenger seat
For the safety of a child, install child
restraint systems to a rear seats. When
installing child restraint system to a
front passenger seat is unavoidable,
adjust the seat as follows and install the
child restraint system.  Move the front seat fully rearward.
 Adjust the seatback angle to the
most upright position.
 Adjust the front of the seat cushion
to the lowest position.
 Adjust the seat height to the upper-
most position.
 Adjust the lumbar support to the
lowest position.
 Adjust the shoulder bolster to the Installation method Page
Seat belt attachment P.49
Child restraint LATCH
anchors attachment P.53
Anchor brackets (for top
tether strap) attachment P.55
When using a child restraint sys-
tem

48 1-2. Child safety

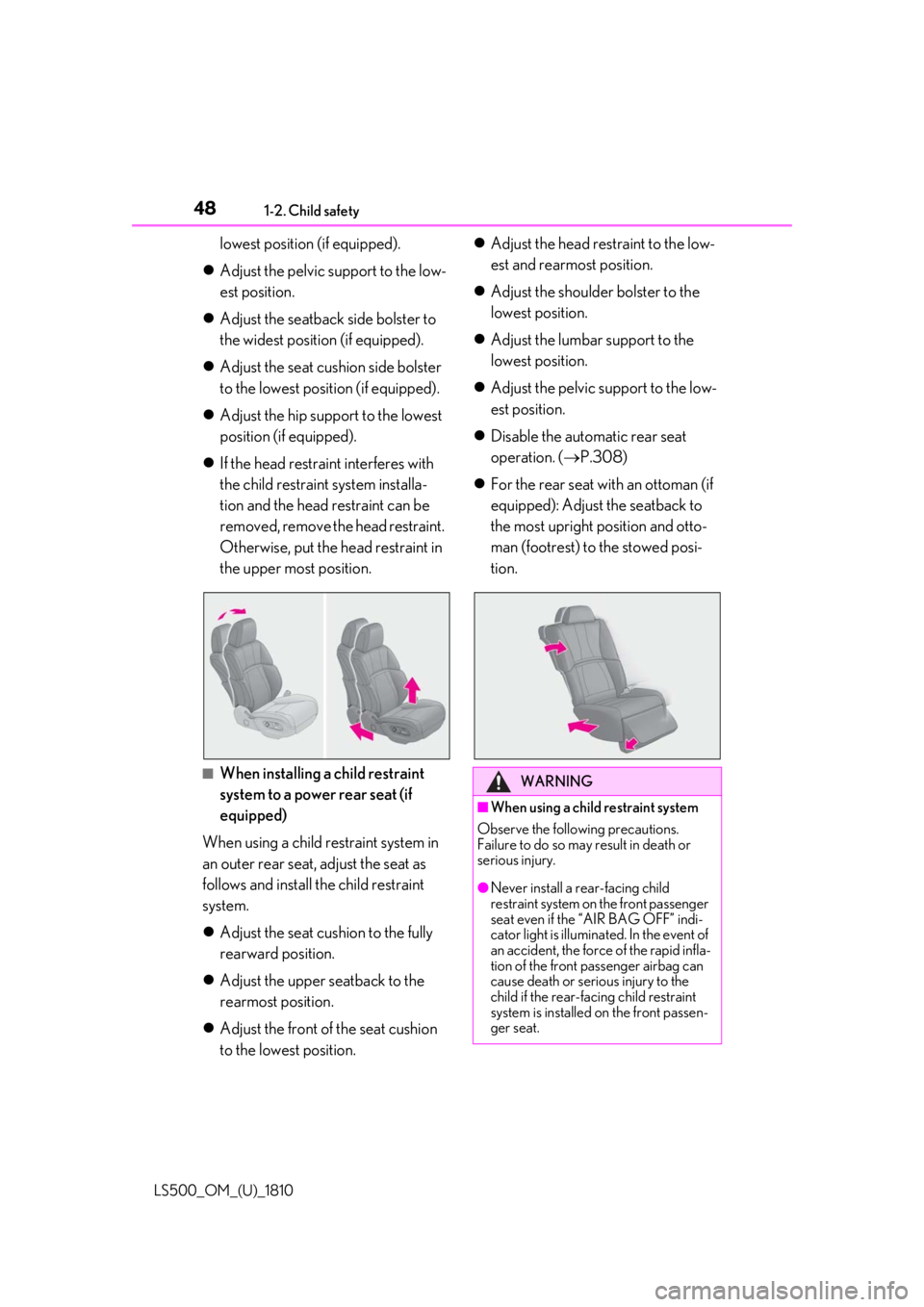

LS500_OM_(U)_1810 lowest position (if equipped).
 Adjust the pelvic support to the low-
est position.
 Adjust the seatback side bolster to
the widest position (if equipped).
 Adjust the seat cushion side bolster
to the lowest position (if equipped).
 Adjust the hip support to the lowest
position (if equipped).
 If the head restraint interferes with
the child restraint system installa-
tion and the head restraint can be
removed, remove the head restraint.
Otherwise, put the head restraint in
the upper most position.
■
When installing a child restraint
system to a power rear seat (if
equipped)
When using a child restraint system in
an outer rear seat, adjust the seat as
follows and install the child restraint
system.
 Adjust the seat cushion to the fully
rearward position.
 Adjust the upper seatback to the
rearmost position.
 Adjust the front of the seat cushion
to the lowest position.  Adjust the head restraint to the low-
est and rearmost position.
 Adjust the shoulder bolster to the
lowest position.
 Adjust the lumbar support to the
lowest position.
 Adjust the pelvic support to the low-
est position.
 Disable the automatic rear seat
operation. (  P.308)
 For the rear seat with an ottoman (if
equipped): Adjust the seatback to
the most upright position and otto-
man (footrest) to the stowed posi-
tion.
WARNING
■
When using a child restraint system
Observe the following precautions.
Failure to do so may result in death or
serious injury.
●
Never install a rear-facing child
restraint system on the front passenger
seat even if the “AIR BAG OFF” indi-
cator light is illuminated. In the event of
an accident, the force of the rapid infla-
tion of the front passenger airbag can
cause death or serious injury to the
child if the rear-fac ing child restraint
system is installed on the front passen-
ger seat.

491-2. Child safety

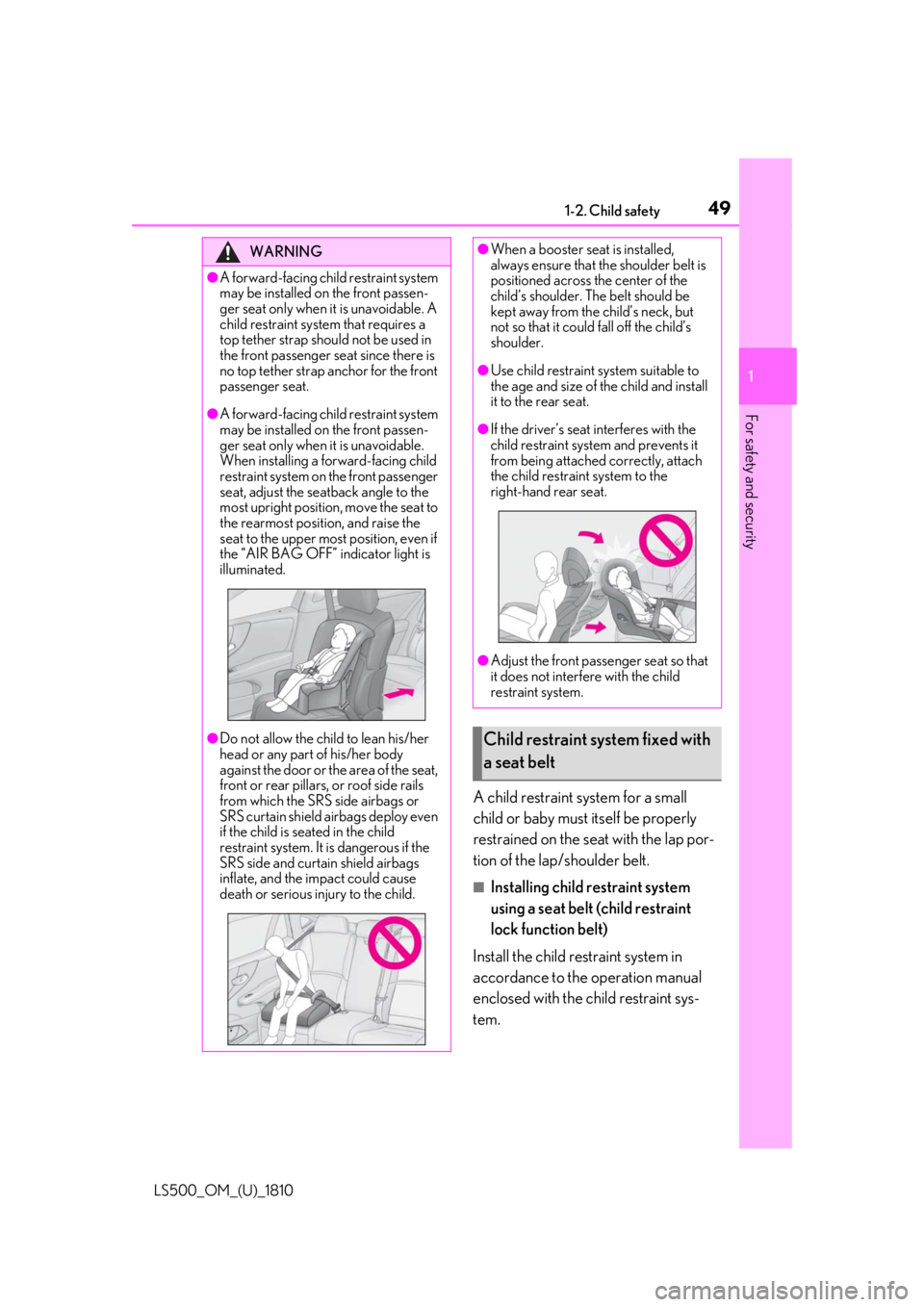

LS500_OM_(U)_1810 1
For safety and security
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap por-
tion of the lap/shoulder belt. ■
Installing child restraint system
using a seat belt (child restraint
lock function belt)
Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint sys-
tem.WARNING●
A forward-facing child restraint system
may be installed on the front passen-
ger seat only when it is unavoidable. A
child restraint system that requires a
top tether strap should not be used in
the front passenger seat since there is
no top tether strap anchor for the front
passenger seat.●
A forward-facing child restraint system
may be installed on the front passen-
ger seat only when it is unavoidable.
When installing a forward-facing child
restraint system on the front passenger
seat, adjust the seatback angle to the
most upright position, move the seat to
the rearmost position, and raise the
seat to the upper most position, even if
the “AIR BAG OFF” indicator light is
illuminated.
●
Do not allow the child to lean his/her
head or any part of his/her body
against the door or the area of the seat,
front or rear pillars, or roof side rails
from which the SRS side airbags or
SRS curtain shield ai rbags deploy even
if the child is seated in the child
restraint system. It is dangerous if the
SRS side and curtain shield airbags
inflate, and the impact could cause
death or serious injury to the child. ●
When a booster seat is installed,
always ensure that th e shoulder belt is
positioned across the center of the
child’s shoulder. The belt should be
kept away from the child’s neck, but
not so that it could fall off the child’s
shoulder. ●
Use child restraint system suitable to
the age and size of the child and install
it to the rear seat. ●
If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the
right-hand rear seat.
●
Adjust the front passe nger seat so that
it does not interfere with the child
restraint system.
Child restraint system fixed with
a seat belt

50 1-2. Child safety
LS500_OM_(U)_1810 ■

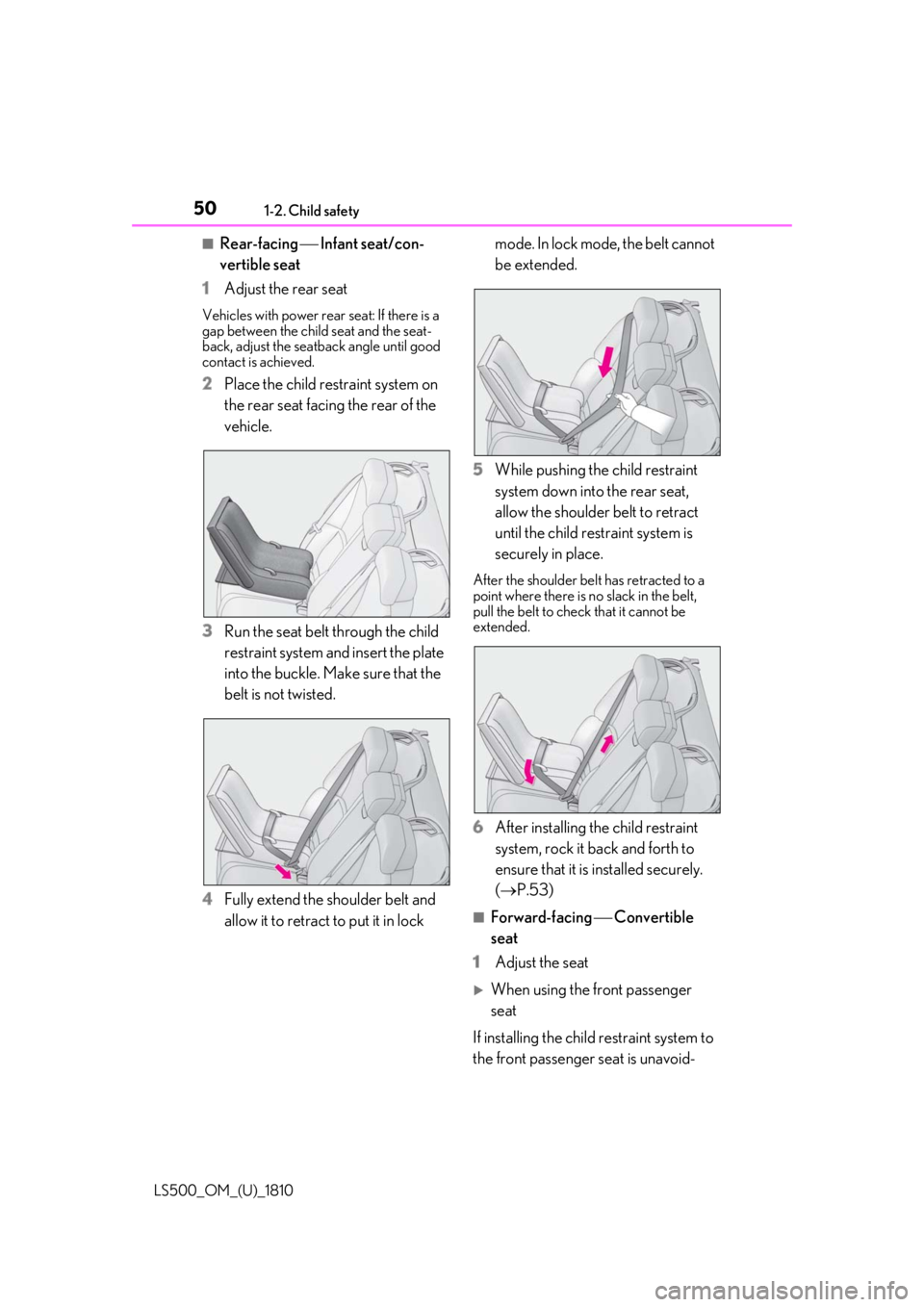

Rear-facing  Infant seat/con-
vertible seat
1 Adjust the rear seatVehicles with power rear seat: If there is a
gap between the child seat and the seat-
back, adjust the seatback angle until good
contact is achieved.
2 Place the child restraint system on
the rear seat facing the rear of the
vehicle.
3 Run the seat belt through the child
restraint system and insert the plate
into the buckle. Make sure that the
belt is not twisted.
4 Fully extend the shoulder belt and
allow it to retract to put it in lock mode. In lock mode, the belt cannot
be extended.
5 While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
securely in place. After the shoulder belt has retracted to a
point where there is no slack in the belt,
pull the belt to check that it cannot be
extended.
6 After installing the child restraint
system, rock it back and forth to
ensure that it is installed securely.
(  P.53) ■
Forward-facing  Convertible
seat
1 Adjust the seat 
When using the front passenger
seat
If installing the child restraint system to
the front passenger seat is unavoid-
