611-3. Lexus Enform
LS500_OM_(U)_1810 1
For safety and security tor light comes on, indicating that the
service is active.
The following indicator light patterns
indicate specific system usage condi-
tions:
 Green indicator light on = Active
service
 Green indicator light flashing =
Safety Connect call in process
 Red indicator light (except at vehi-
cle start-up) = System malfunction
(contact your Lexus dealer)
 No indicator light (off) = Safety
Connect service not active ■
Automatic Collision Notification
In case of either airbag deployment or
severe rear-end collision, the system is
designed to automatically call the
response center. The responding agent
receives the vehicle’s location and
attempts to speak with the vehicle
occupants to assess the level of emer-
gency. If the occupants are unable to
communicate, the ag ent automatically
treats the call as an emergency, con-
tacts the nearest emergency services
provider to describe the situation, and
requests that assistance be sent to the
location. ■
Stolen Vehicle Location
If your vehicle is stolen, Safety Connect
can work with local authorities to assist
them in locating and recovering the
vehicle. After filing a police report, call
the Safety Connect response center at 1-800-25-LEXUS
(1-800-255-3987) in the United
States, 1-877-539-8777 in Puerto
Rico or 1-800-265-3987 in Canada,
and follow the prompts for Safety Con-
nect to initiate this service.
In addition to assisting law enforce-
ment with recovery of a stolen vehicle,
Safety-Connect-equipped vehicle
location data may, under certain cir-
cumstances, be shared with third par-
ties to locate your vehicle. Further
information is available at Lexus.com. ■
Emergency Assistance Button
(“SOS”)
In the event of an emergency on the
road, push the “SOS” button to reach
the Safety Connect response center.
The answering agent will determine
your vehicle’s location, assess the
emergency, and dispatch the neces-
sary assistance required. If you accidentally press the “SOS” button,
tell the response-center agent that you are
not experiencing an emergency.
■
Enhanced Roadside Assistance
Enhanced Roadside Assistance adds
GPS data to the already included war-
ranty-based Lexus roadside service.
Subscribers can press the “SOS” but-
ton to reach a Safety Connect
response-center agent, who can help
with a wide range of needs, such as:
towing, flat tire, fuel delivery, etc. For a
description of the Roadside Assistance
services and their limitations, please
see the Safety Connect Terms and
Conditions, which are available at Safety Connect services

62 1-3. Lexus Enform
LS500_OM_(U)_1810 Lexus.com.
Important! Read this information about
exposure to radio frequency signals
before using Safety Connect;
The Safety Connect system installed in
your vehicle is a low-power radio trans-
mitter and receiver. It receives and also
sends out radio frequency (RF) signals.
In August 1996, the Federal Commu-
nications Commission (FCC) adopted
RF exposure guidelines with safety lev-
els for mobile wireless phones. Those
guidelines are consistent with the
safety standards previously set by the
following U.S. and international stan-
dards bodies.
 ANSI (American National Stan-
dards Institute) C95.1 [1992]
 NCRP (National Council on Radia-
tion Protection and Measurement)
Report 86 [1986]
 ICNIRP (International Commission
on Non-Ionizing Radiation Protec-
tion) [1996]
Those standards were based on com-
prehensive and periodic evaluations of
the relevant scientific literature. Over
120 scientists, engi neers, and physi-
cians from universi ties, and govern-
ment health agencies and industries
reviewed the available body of
research to develop the ANSI Stan-
dard (C95.1).
The design of Safety Connect com- plies with the FCC guidelines in addi-
tion to those standards.
Safety information for Safety
Connect

631-4. Theft deterrent system
LS500_OM_(U)_1810 1
For safety and security 1-4.Theft deterrent system
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled. ■
System maintenance
The vehicle has a maintenance-free type
engine immobilizer system. ■
Conditions that may cause the system to
malfunction ●
If the grip portion of the key is in contact
with a metallic object ●
If the key is in close proximity to or touch-
ing a key to the security system (key with
a built-in transponder chip) of another
vehicle
■

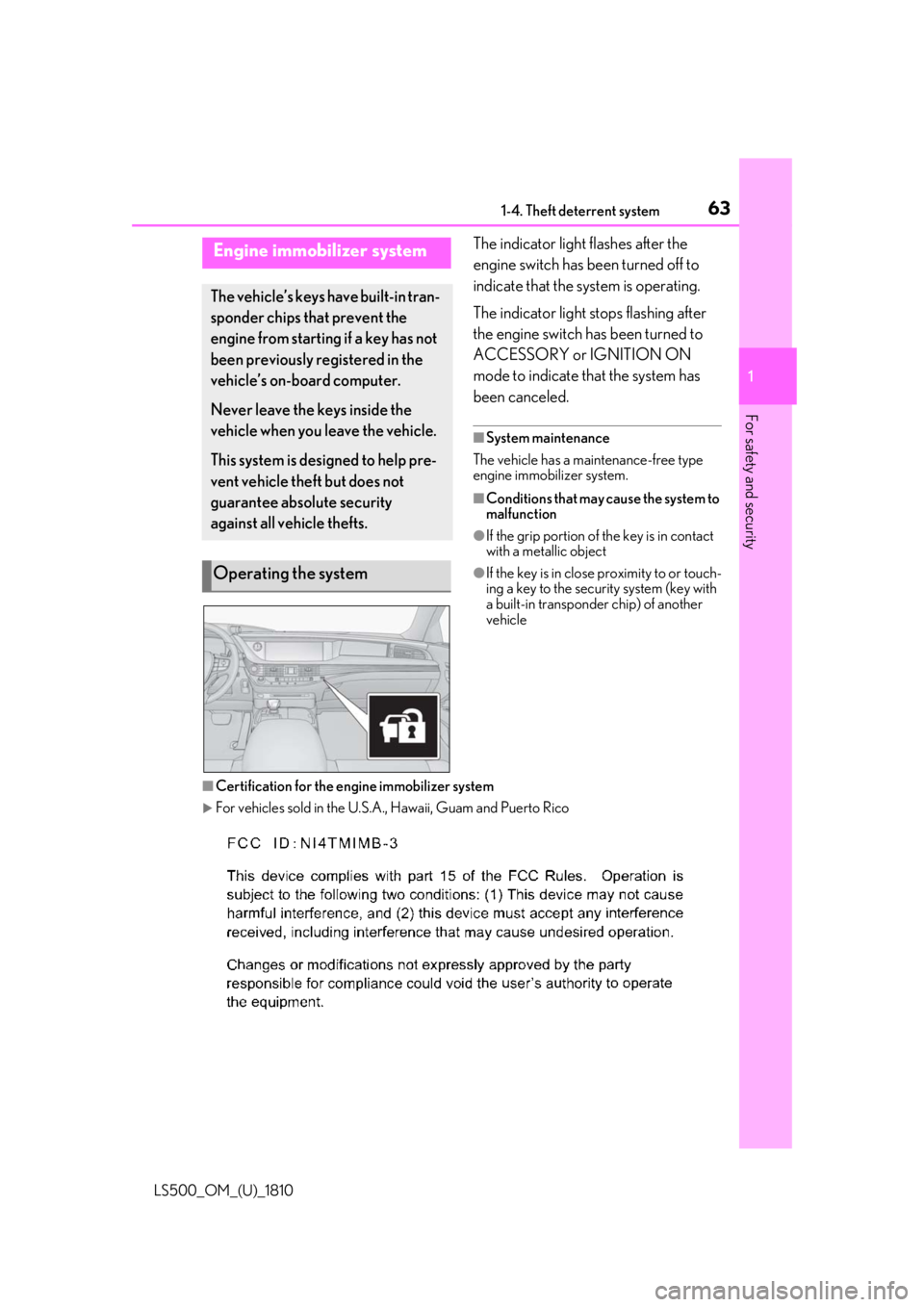

Certification for the en gine immobilizer system
For vehicles sold in the U.S.A. , Hawaii, Guam and Puerto RicoEngine immobilizer system The vehicle’s keys have built-in tran-
sponder chips that prevent the
engine from starting if a key has not
been previously registered in the
vehicle’s on-board computer.
Never leave the keys inside the
vehicle when you leave the vehicle.
This system is designed to help pre-
vent vehicle theft but does not
guarantee absolute security
against all vehicle thefts.
Operating the system

64 1-4. Theft deterrent system
LS500_OM_(U)_1810 

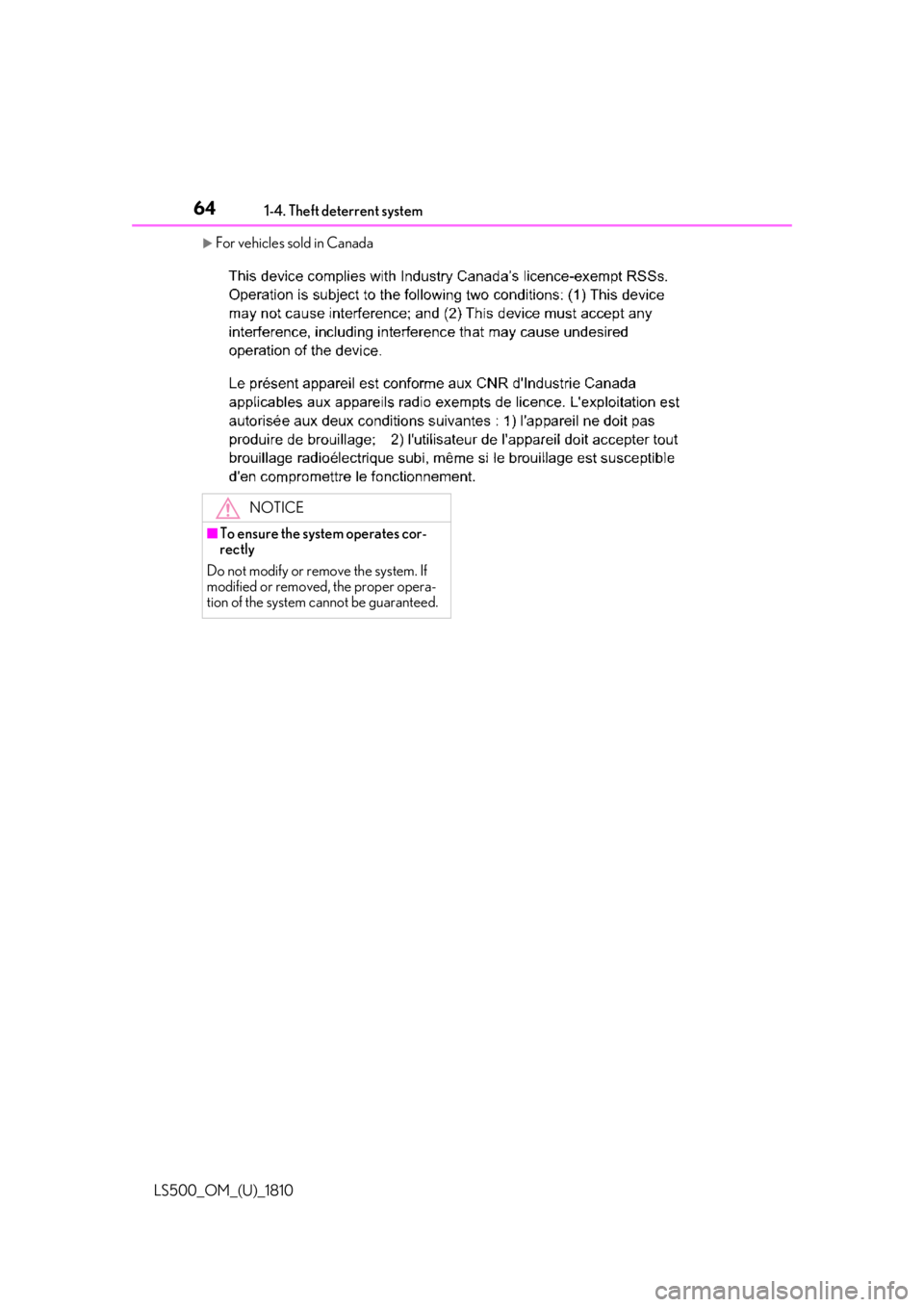

For vehicles sold in Canada
NOTICE■
To ensure the system operates cor-
rectly
Do not modify or remove the system. If
modified or removed, the proper opera-
tion of the system cannot be guaranteed.

651-4. Theft deterrent system
LS500_OM_(U)_1810 1
For safety and security
■
Items to check before locking the
vehicle
To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:
 Nobody is in the vehicle.
 The windows, moon roof (if
equipped) and panoramic moon
roof (if equipped) are closed before
the alarm is set.
 No valuables or other personal
items are left in the vehicle. ■
Setting
Close the doors, trunk and hood, and
lock all the doors. The system will be
set automatically after 30 seconds. The indicator light changes from being on
to flashing when the system is set. ■
Canceling or stopping
Do one of the following to deactivate
or stop the alarms:
 Unlock the doors.
 Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.) ■
System maintenance
The vehicle has a maintenance-free type
alarm system. ■
Triggering of the alarm
The alarm may be triggered in the following
situations:
(Stopping the alarm deactivates the alarm
system.) ●
The trunk is opened using the mechanical
key.
●
A person inside the vehicle opens a door,

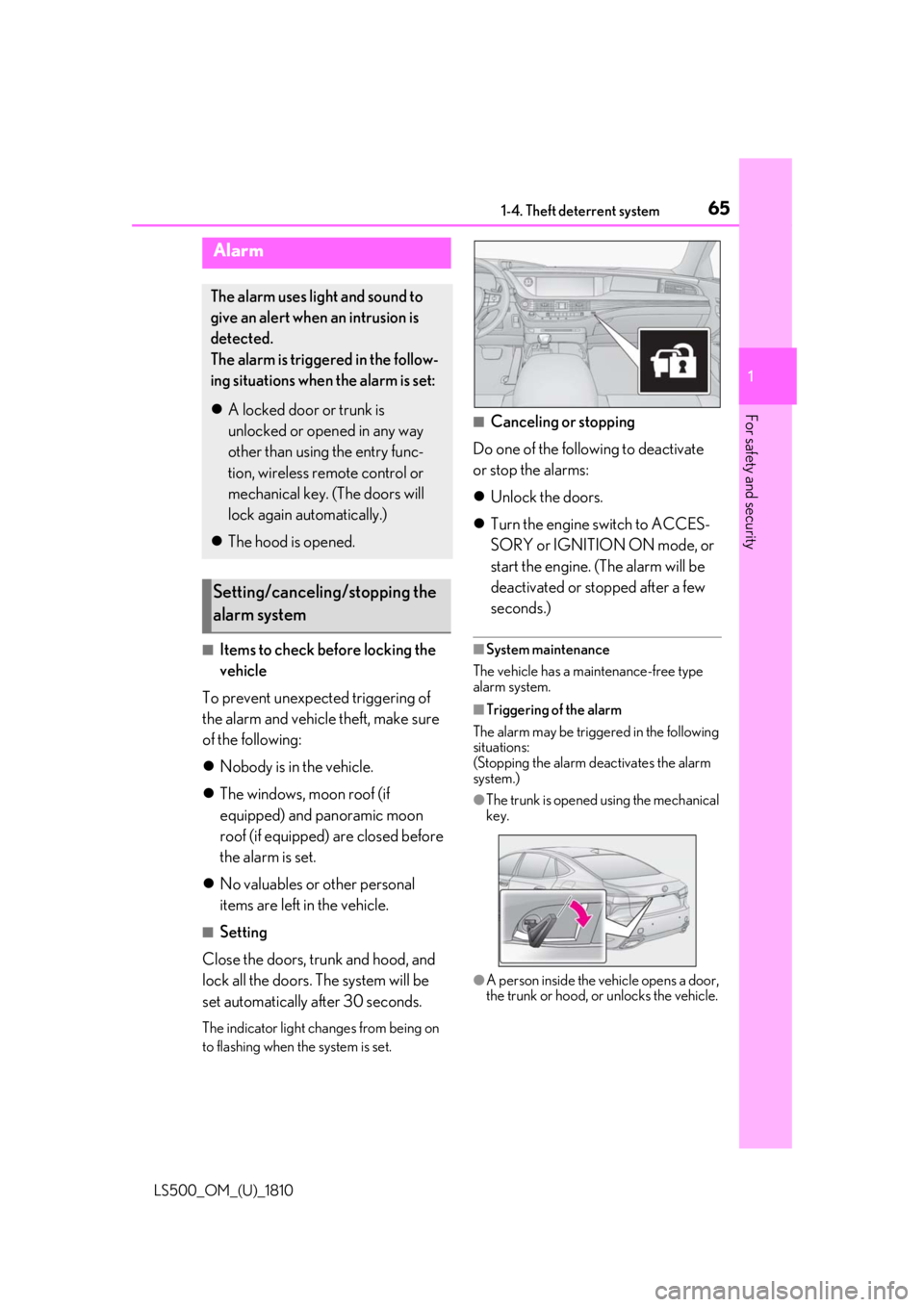

the trunk or hood, or unlocks the vehicle.Alarm The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:
 A locked door or trunk is
unlocked or opened in any way
other than using the entry func-
tion, wireless remote control or
mechanical key. (The doors will
lock again automatically.)
 The hood is opened.
Setting/canceling/stopping the
alarm system

66 1-4. Theft deterrent system
LS500_OM_(U)_1810 ●
The battery is rech arged or replaced
when the vehicle is locked. (  P.438)
■
Alarm-operated door lock
In the following cases, depending on the sit-
uation, the door may automatically lock to
prevent improper entry into the vehicle: ●
When a person remaining in the vehicle
unlocks the door and the alarm is acti-
vated.●
While the alarm is activated, a person
remaining in the vehicle unlocks the door.
NOTICE■
To ensure the system operates cor-
rectly
Do not modify or remove the system. If
modified or removed, the proper opera-
tion of the system cannot be guaranteed.

67
LS500_OM_(U)_1810 2 2
Vehicle status information and indicators Vehicle status information
and indicators .
2-1. Instrument cluster
Warning lights and indicators
........................................................... 68
Gauges and meters (except F
SPORT models) ........................ 73
Gauges and meters (F SPORT
models) .......................................... 76
Multi-information display.......... 80
Head-up display ........................... 87
Fuel consumption information
............................................................ 91

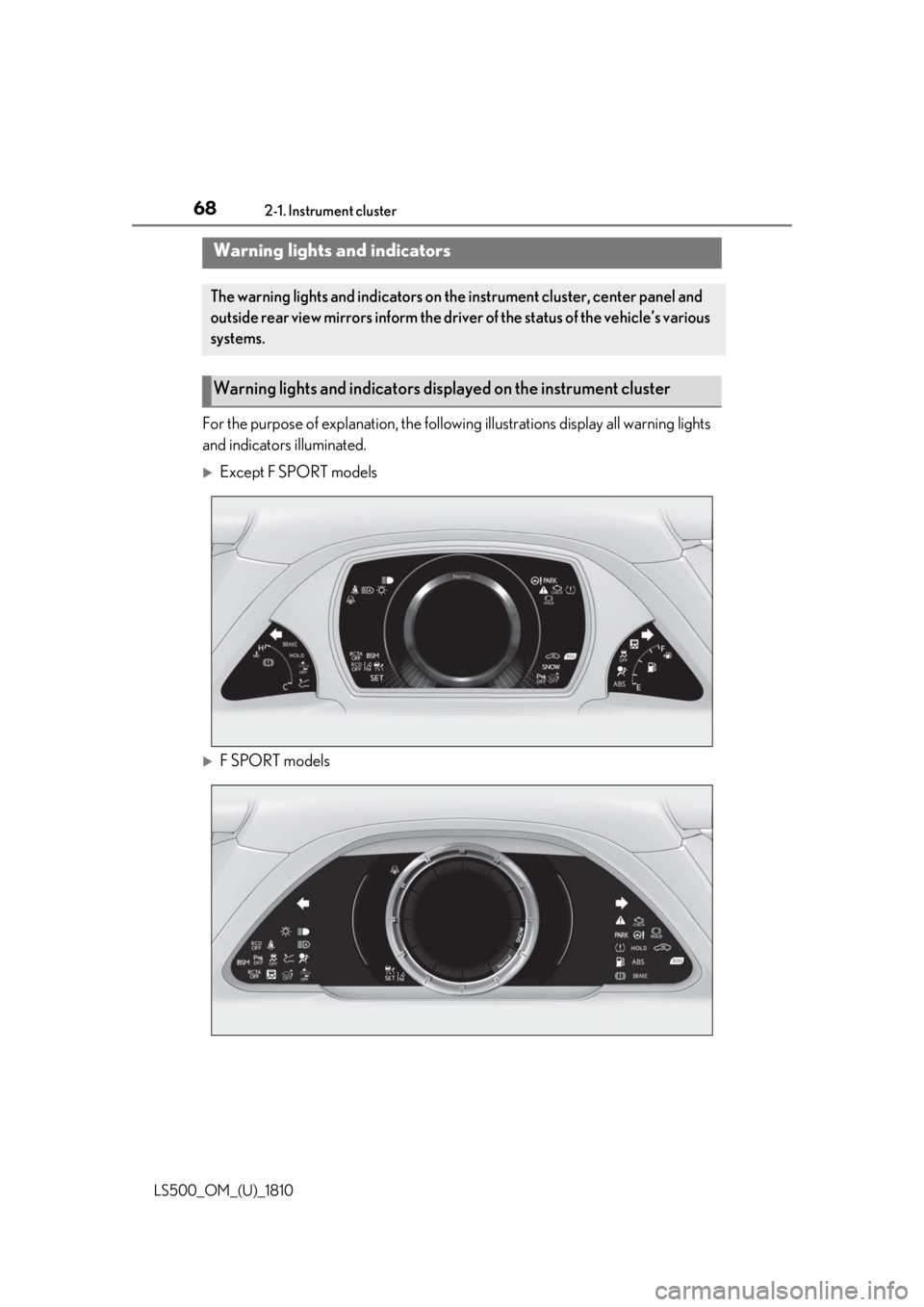

68 2-1. Instrument cluster
LS500_OM_(U)_1810 2-1.Instrument cluster
For the purpose of explanatio n, the following illustrations display all warning lights
and indicators illuminated. 
Except F SPORT models

F SPORT modelsWarning lights and indicators The warning lights and indicators on th e instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.
Warning lights and indicators displayed on the instrument cluster

692-1. Instrument cluster
LS500_OM_(U)_1810 2
Vehicle status information and indicators Warning lights inform the driver of mal-
functions in the indicated vehicle’s sys-
tems.

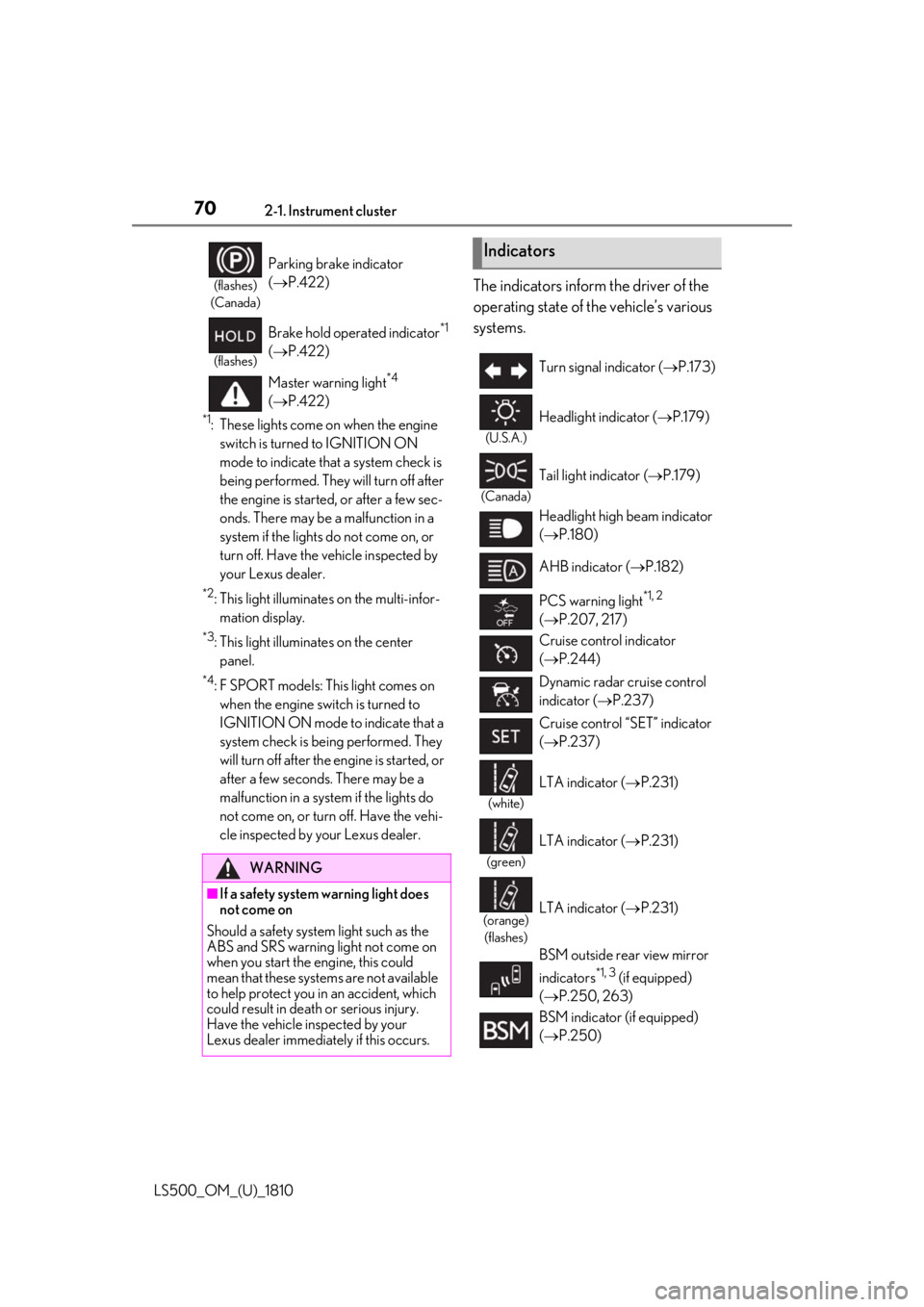

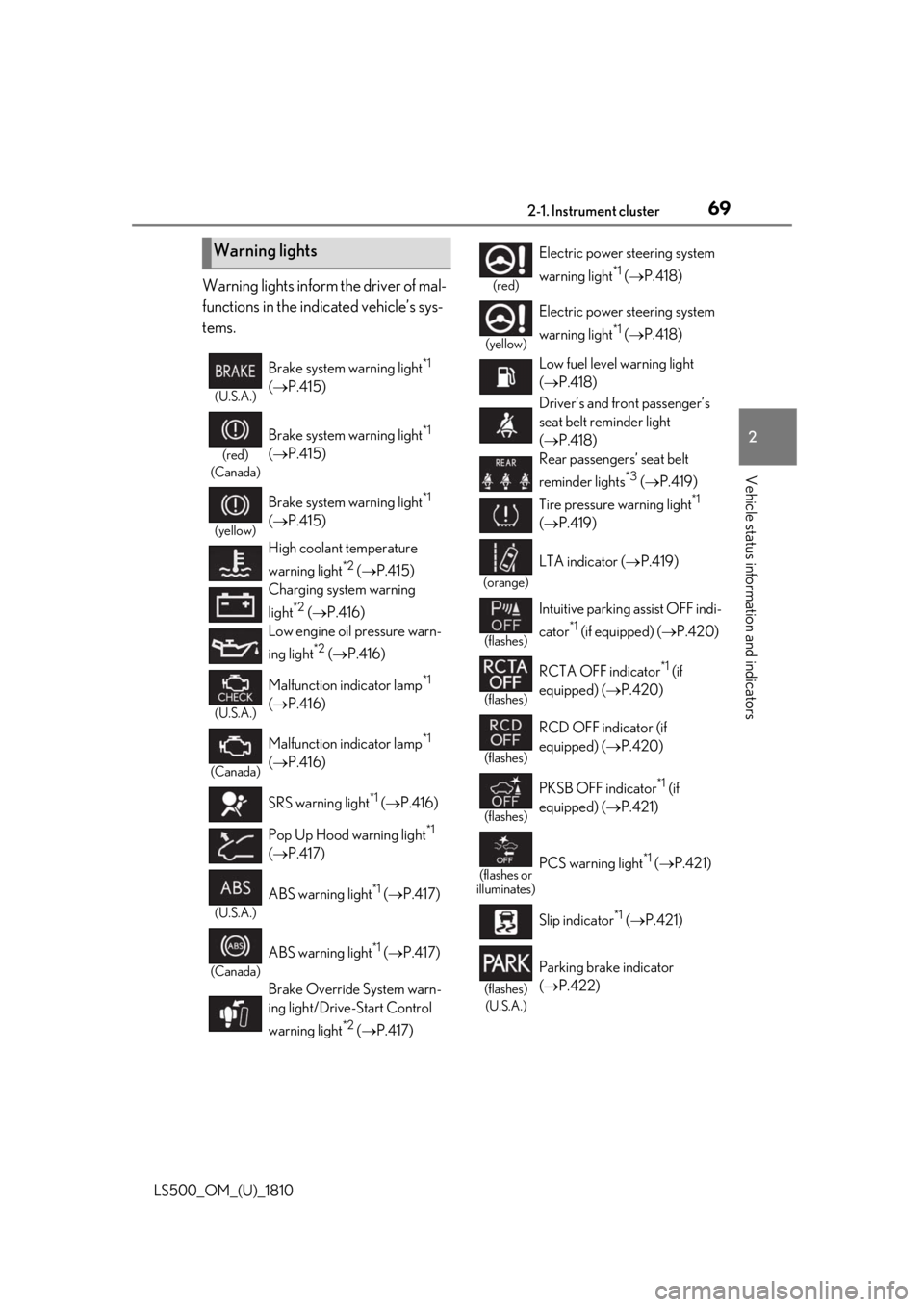

Warning lights (U.S.A.)
Brake system warning light *1

(  P.415)(red)
(Canada)
Brake system warning light *1

(  P.415)(yellow)
Brake system warning light *1

(  P.415)
High coolant temperature
warning light *2
(  P.415)
Charging system warning
light *2
(  P.416)
Low engine oil pressure warn-
ing light *2
(  P.416)(U.S.A.)
Malfunction indicator lamp *1

(  P.416)
(Canada)
Malfunction indicator lamp *1

(  P.416)
SRS warning light *1
(  P.416)
Pop Up Hood warning light *1

(  P.417)
(U.S.A.)
ABS warning light *1
(  P.417)
(Canada)
ABS warning light *1
(  P.417)
Brake Override System warn-
ing light/Drive-Start Control
warning light *2
(  P.417) (red)
Electric power steering system
warning light *1
(  P.418)(yellow)
Electric power steering system
warning light *1
(  P.418)
Low fuel level warning light
(  P.418)
Driver’s and front passenger’s
seat belt reminder light
(  P.418)
Rear passengers’ seat belt
reminder lights *3
(  P.419)
Tire pressure warning light *1

(  P.419)(orange)
LTA indicator (  P.419)
(flashes)
Intuitive parking assist OFF indi-
cator *1
(if equipped) (  P.420)
(flashes)
RCTA OFF indicator *1
(if
equipped) (  P.420)
(flashes)
RCD OFF indicator (if
equipped) (  P.420)
(flashes)
PKSB OFF indicator *1
(if
equipped) (  P.421)
(flashes or
illuminates)
PCS warning light *1
(  P.421)
Slip indicator *1
(  P.421)
(flashes)
(U.S.A.) Parking brake indicator
(  P.422)

70 2-1. Instrument cluster
LS500_OM_(U)_1810 *1
: These lights come on when the engine
switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer. *2
: This light illuminates on the multi-infor-
mation display. *3
: This light illuminates on the center
panel. *4
: F SPORT models: This light comes on
when the engine switch is turned to
IGNITION ON mode to indicate that a
system check is being performed. They
will turn off after the engine is started, or
after a few seconds. There may be a
malfunction in a system if the lights do
not come on, or turn off. Have the vehi-
cle inspected by your Lexus dealer. The indicators inform the driver of the
operating state of the vehicle’s various
systems.(flashes)
(Canada)
Parking brake indicator
(  P.422)(flashes)
Brake hold operated indicator *1

(  P.422)
Master warning light *4

(  P.422)
WARNING
■
If a safety system warning light does
not come on
Should a safety system light such as the
ABS and SRS warning light not come on
when you start the engine, this could
mean that these systems are not available
to help protect you in an accident, which
could result in death or serious injury.
Have the vehicle inspected by your
Lexus dealer immediately if this occurs. Indicators Turn signal indicator (  P.173)(U.S.A.)
Headlight indicator (  P.179)(Canada)
Tail light indicator (  P.179)
Headlight high beam indicator
(  P.180)
AHB indicator (  P.182)
PCS warning light *1, 2

(  P.207, 217)
Cruise control indicator
(  P.244)
Dynamic radar cruise control
indicator (  P.237)
Cruise control “SET” indicator
(  P.237)
(white)
LTA indicator (  P.231)
(green)
LTA indicator (  P.231)
(orange)
(flashes)
LTA indicator (  P.231)
BSM outside rear view mirror
indicators *1, 3
(if equipped)
(  P.250, 263)
BSM indicator (if equipped)
(  P.250)
