5097-2. Steps to take in an emergency
7
When trouble arises
LS600hL_U(OM50E41U)
Lift up the luggage mat and secure it by using the hook provided.
( P. 3 74 )
Remove the tool tray.
Remove the jack after removing
the hook.
Taking out the jack and jack handle
1
2
3

5107-2. Steps to take in an emergency
LS600hL_U(OM50E41U)
Lift up the luggage mat and secure it by using the hook provided.
( P. 3 74 )

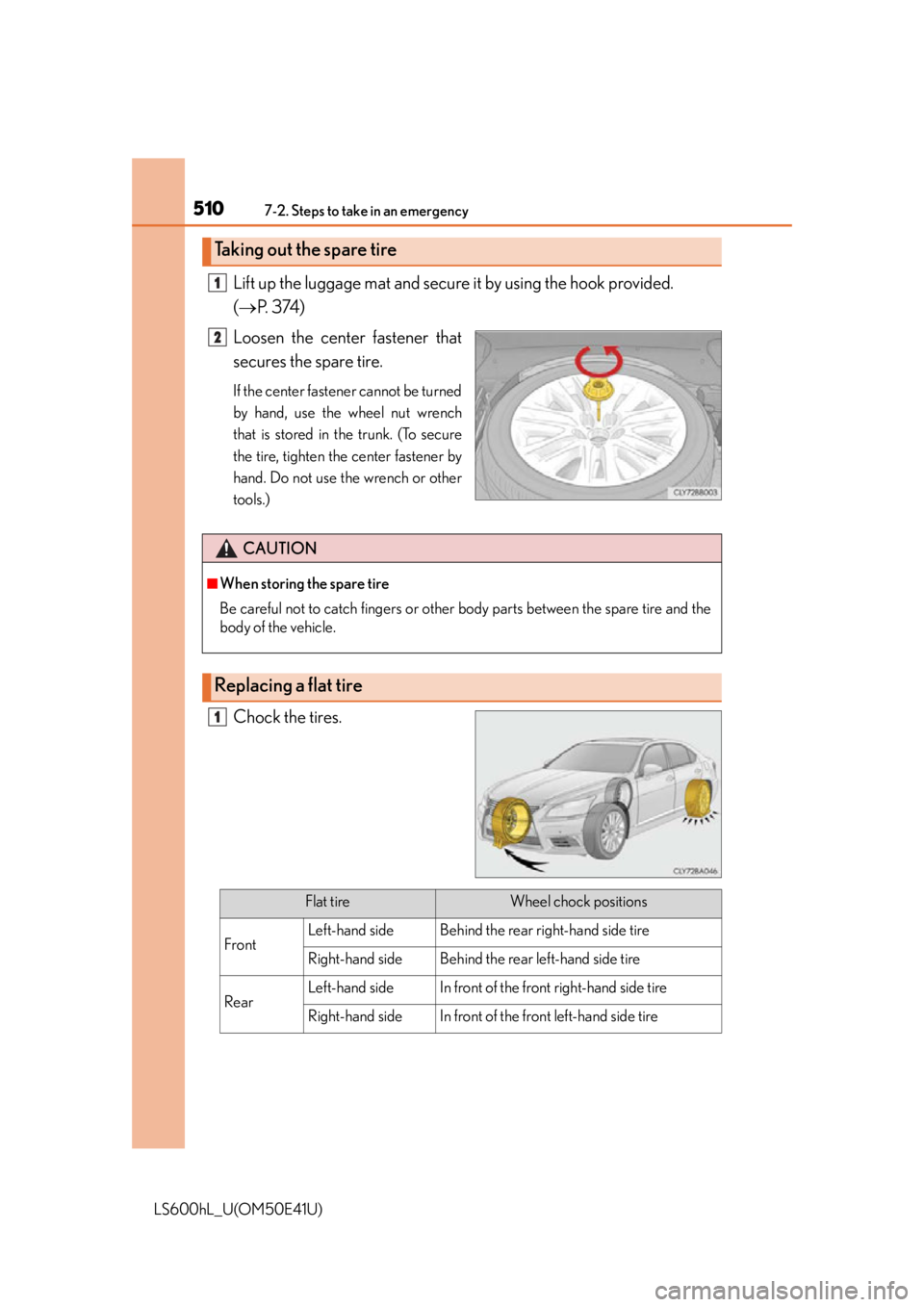

Loosen the center fastener that
secures the spare tire.
If the center fastener cannot be turned
by hand, use the wheel nut wrench
that is stored in the trunk. (To secure
the tire, tighten the center fastener by
hand. Do not use the wrench or other
tools.)
Chock the tires.
Taking out the spare tire
1
2
CAUTION
■When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire and the
body of the vehicle.
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the fron t left-hand side tire

5117-2. Steps to take in an emergency
7
When trouble arises
LS600hL_U(OM50E41U)
Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
The jack point guides are located
under the rocker panel. They indicate
the jack point positions.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the ground,
place the tire so that the wheel design
faces up to avoid scratching the wheel
surface.
2
3
4
5

5127-2. Steps to take in an emergency
LS600hL_U(OM50E41U)
Remove the wheel ornament by
pushing from the reverse side.6
CAUTION
■Replacing a flat tire
●Observe the following precautions.
Failure to do so may result in serious injury:
• Do not try to remove the wheel ornament by hand. Take due care in handlingthe ornament to avoid unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes immediately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the
brakes will be extremely hot. Touching these areas with hands, feet or other
body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to loosen and the
tire to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts.Oil and grease may cause the wheel nuts to be excessively tightened, leading
to bolt or disc wheel da mage. In addition, the oil or grease can cause the
wheel nuts to loosen and the wheel may fall off, causing a serious accident.
Remove any oil or grease from the wheel bolts or wheel nuts.
• Have the wheel nuts tightened with a torque wrench to 103 ft•lbf (140 N•m, 14.3 kgf•m) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off the wheel while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been specifically designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by your Lexus dealer.

5137-2. Steps to take in an emergency
7
When trouble arises
LS600hL_U(OM50E41U)
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel con-
tact surface, the wheel nuts may
loosen while the vehicle is in motion,
causing the tire to come off.

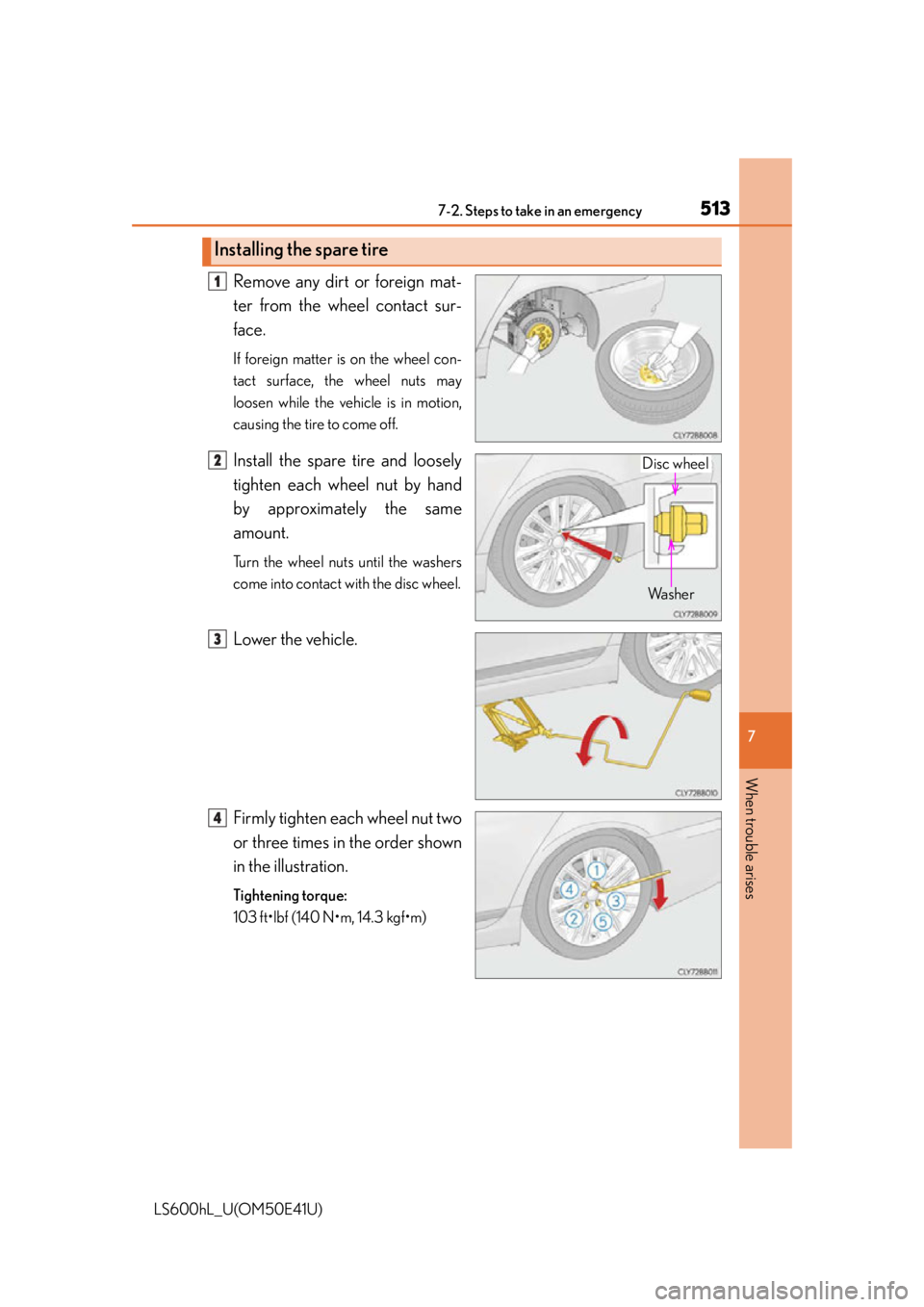

Install the spare tire and loosely
tighten each wheel nut by hand
by approximately the same
amount.
Turn the wheel nuts until the washers
come into contact with the disc wheel.
Lower the vehicle.
Firmly tighten each wheel nut two
or three times in the order shown
in the illustration.
Tightening torque:
103 ft•lbf (140 N•m, 14.3 kgf•m)
Installing the spare tire
1
Disc wheelWa s h e r2
3
4

5147-2. Steps to take in an emergency
LS600hL_U(OM50E41U)
Reinstall the wheel ornament.
Stow the flat tire, tire jack and all tools.5
CAUTION
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their stor-
age location to reduce the possibility of pe rsonal injury during a collision or sudden
braking.
NOTICE
■When replacing the tires
When removing or fitting the wheels, tire s or the tire pressure warning valve and
transmitter, contact your Lexus dealer as the tire pressure warning valve and trans-
mitter may be damaged if not handled correctly.
■To avoid damage to the tire pressu re warning valves and transmitters
When a tire is repaired with liquid seal ants, the tire pressure warning valve and
transmitter may not operate properly. If a liquid sealant is used, contact your Lexus
dealer or other qualified service shop as soon as possible. Make sure to replace
the tire pressure warning valve and transmitter when replacing the tire. ( P. 455)
6

5157-2. Steps to take in an emergency
7
When trouble arises
LS600hL_U(OM50E41U)

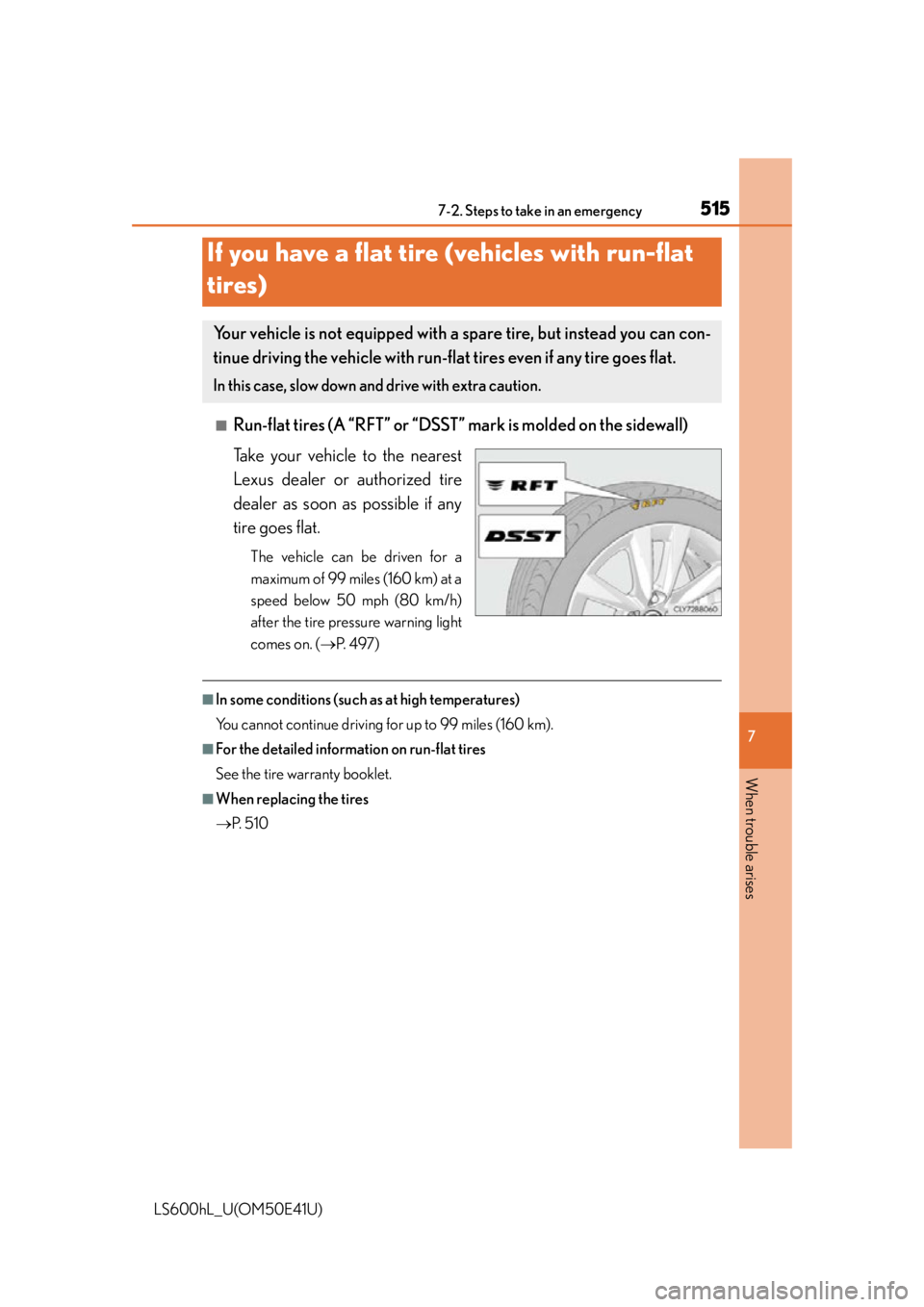

■Run-flat tires (A “RFT” or “DSST” mark is molded on the sidewall)
Take your vehicle to the nearest
Lexus dealer or authorized tire
dealer as soon as possible if any
tire goes flat.
The vehicle can be driven for a
maximum of 99 miles (160 km) at a
speed below 50 mph (80 km/h)
after the tire pressure warning light
comes on. (P. 4 9 7 )
■In some conditions (such as at high temperatures)
You cannot continue driving fo r up to 99 miles (160 km).
■For the detailed information on run-flat tires
See the tire warranty booklet.
■When replacing the tires
P. 5 1 0
If you have a flat tire (vehicles with run-flat
tires)
Your vehicle is not equipped with a spare tire, but instead you can con-
tinue driving the vehicle with run-flat tires even if any tire goes flat.
In this case, slow down and drive with extra caution.

5167-2. Steps to take in an emergency
LS600hL_U(OM50E41U)

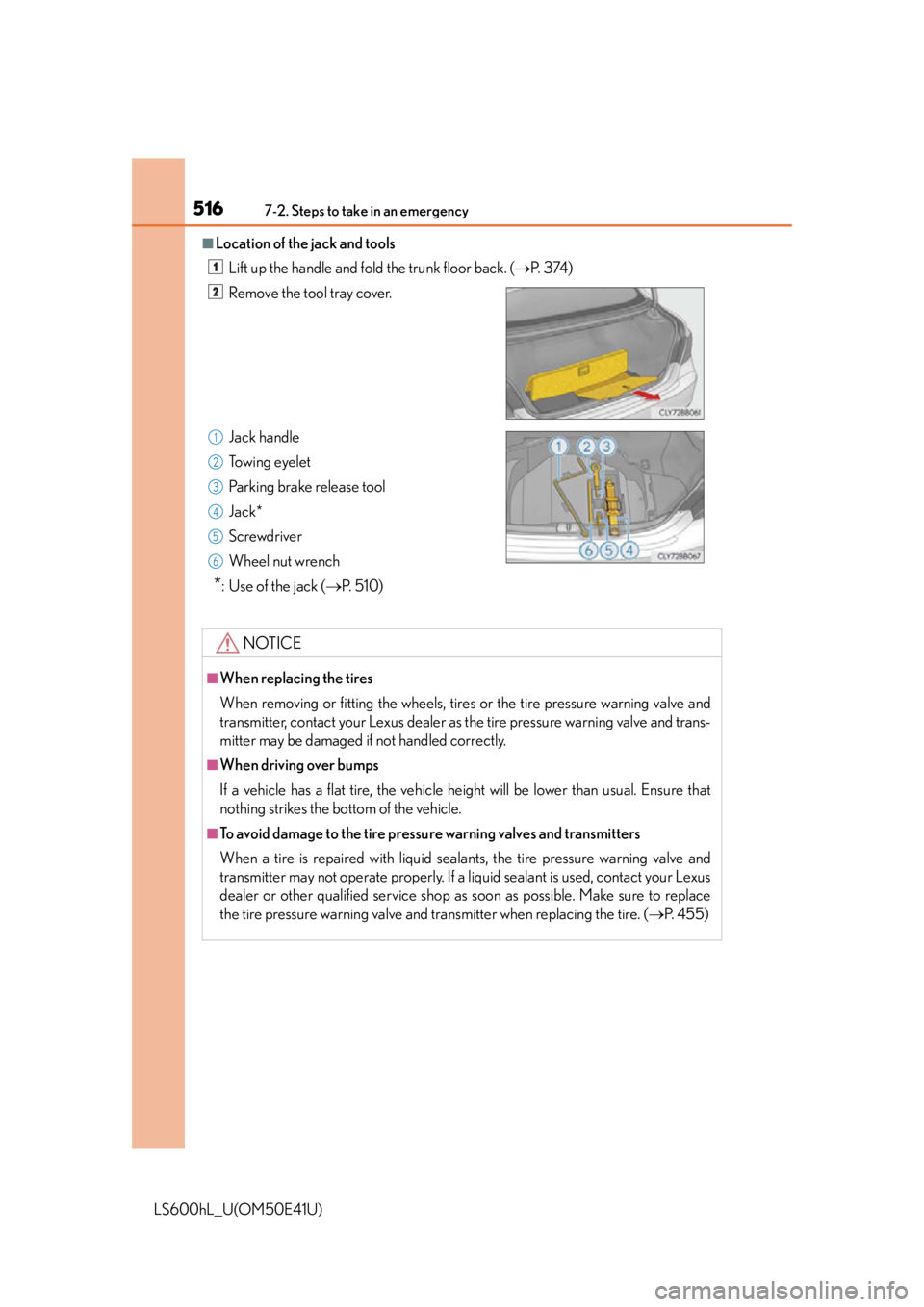

■Location of the jack and toolsLift up the handle and fold the trunk floor back. ( P. 3 74 )
Remove the tool tray cover.
Jack handle
Towing eyelet
Parking brake release tool
Jack*
Screwdriver
Wheel nut wrench
*: Use of the jack ( P. 5 1 0 )
NOTICE
■When replacing the tires
When removing or fitting the wheels, tire s or the tire pressure warning valve and
transmitter, contact your Lexus dealer as the tire pressure warning valve and trans-
mitter may be damaged if not handled correctly.
■When driving over bumps
If a vehicle has a flat tire, the vehicle height will be lower than usual. Ensure that
nothing strikes the bottom of the vehicle.
■To avoid damage to the tire pressu re warning valves and transmitters
When a tire is repaired with liquid seal ants, the tire pressure warning valve and
transmitter may not operate properly. If a liquid sealant is used, contact your Lexus
dealer or other qualified service shop as soon as possible. Make sure to replace
the tire pressure warning valve and transmitter when replacing the tire. ( P. 455)
1
2
1
2
3
4
5
6

5177-2. Steps to take in an emergency
7
When trouble arises
LS600hL_U(OM50E41U)
One of the following may be the cause of the problem:
●The electronic key may not be functioning properly. (P. 5 2 6 )
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
●There may be a malfunction in the immobilizer system. ( P. 8 8 )
●There may be a malfunction in the steering lock system.
●The hybrid system may be malfunctio ning due to an electrical problem
such as electronic key battery de pletion or a blown fuse. However,
depending on the type of malfuncti on, an interim measure is available
to start the hybrid system. ( P. 5 1 8 )
One of the following may be the cause of the problem:
●The 12-volt battery may be discharged. ( P. 5 2 7 )
●The 12-volt battery terminal connecti ons may be loose or corroded.
If the hybrid system will not start
Reasons for the hybrid system not st arting vary depending on the situa-
tion. Check the following and perf orm the appropriate procedure:
The hybrid system will not start even though the correct starting
procedure is being followed. ( P. 2 1 6 )
The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume.

5187-2. Steps to take in an emergency
LS600hL_U(OM50E41U)
One of the following may be the cause of the problem:
●One or both of the 12-volt battery terminals may be disconnected.
●The 12-volt battery may be discharged. ( P. 5 2 7 )
Contact your Lexus dealer if the problem cannot be repaired, or if repair proce-
dures are unknown.
When the hybrid system does not start, the following steps can be used as
an interim measure to star t the hybrid system if the power switch is func-
tioning normally:
Turn the power switch to ON mode ( P. 217) and check that the park-
ing brake is set.
Shift the shift lever to P.
Turn the power switch to ACCESSORY mode.
Press and hold the power switch fo r about 15 seconds while depressing
the brake pedal firmly.
Even if the hybrid system can be star ted using the above steps, the system
may be malfunctioning. Have the vehicle inspected by your Lexus dealer.
The interior lights and headlights do not turn on, or the horn does
not sound.
Emergency start function
1
2
3
4
