Vehicle specifications
LS600hL_U(OM50E41U)

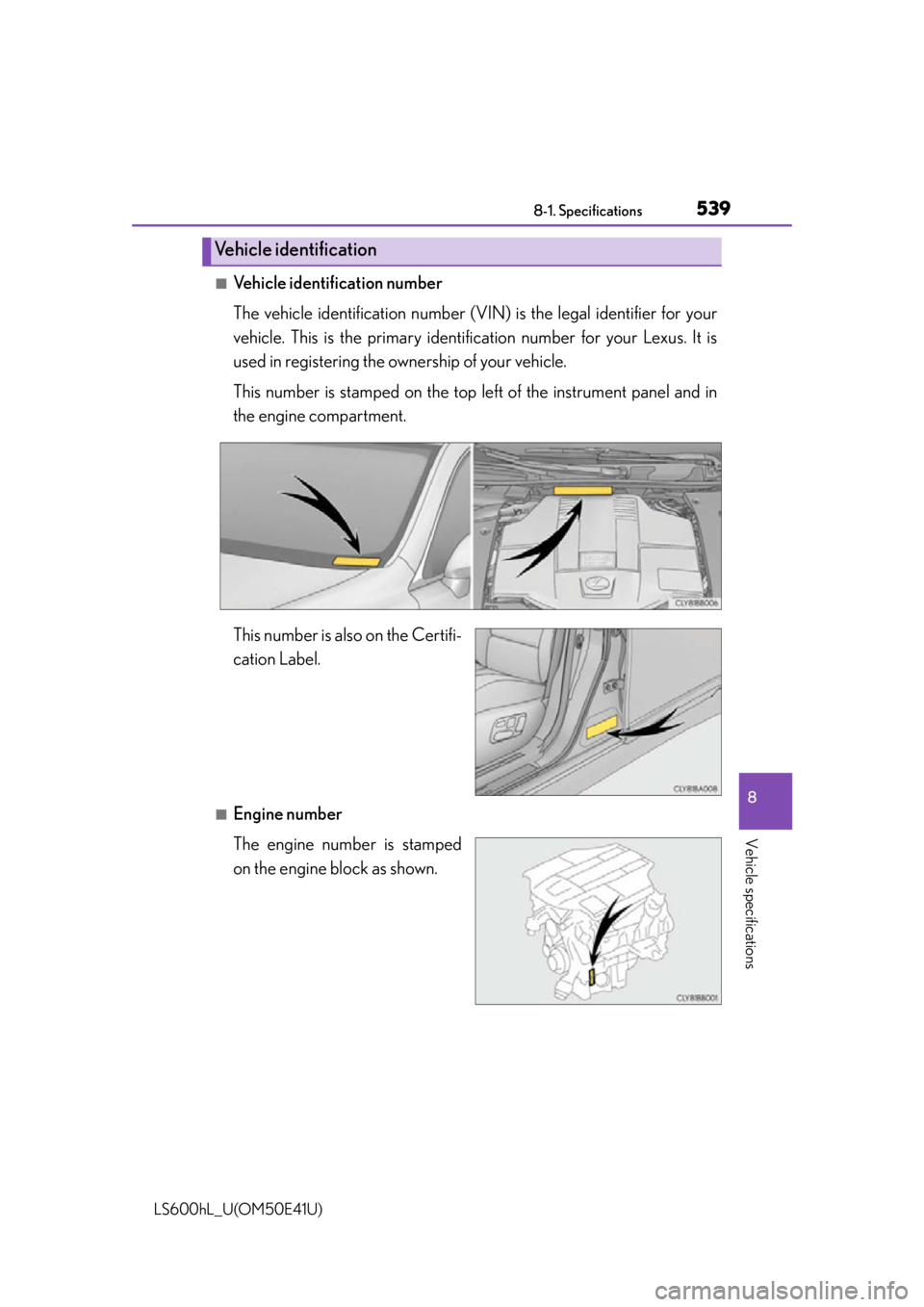

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary ident ification number for your Lexus. It is
used in registering the ownership of your vehicle.
This number is stamped on the top le ft of the instrument panel and in
the engine compartment.
This number is also on the Certifi-
cation Label.
■Engine number
The engine number is stamped
on the engine block as shown.
Vehicle identification

5408-1. Specifications
LS600hL_U(OM50E41U)

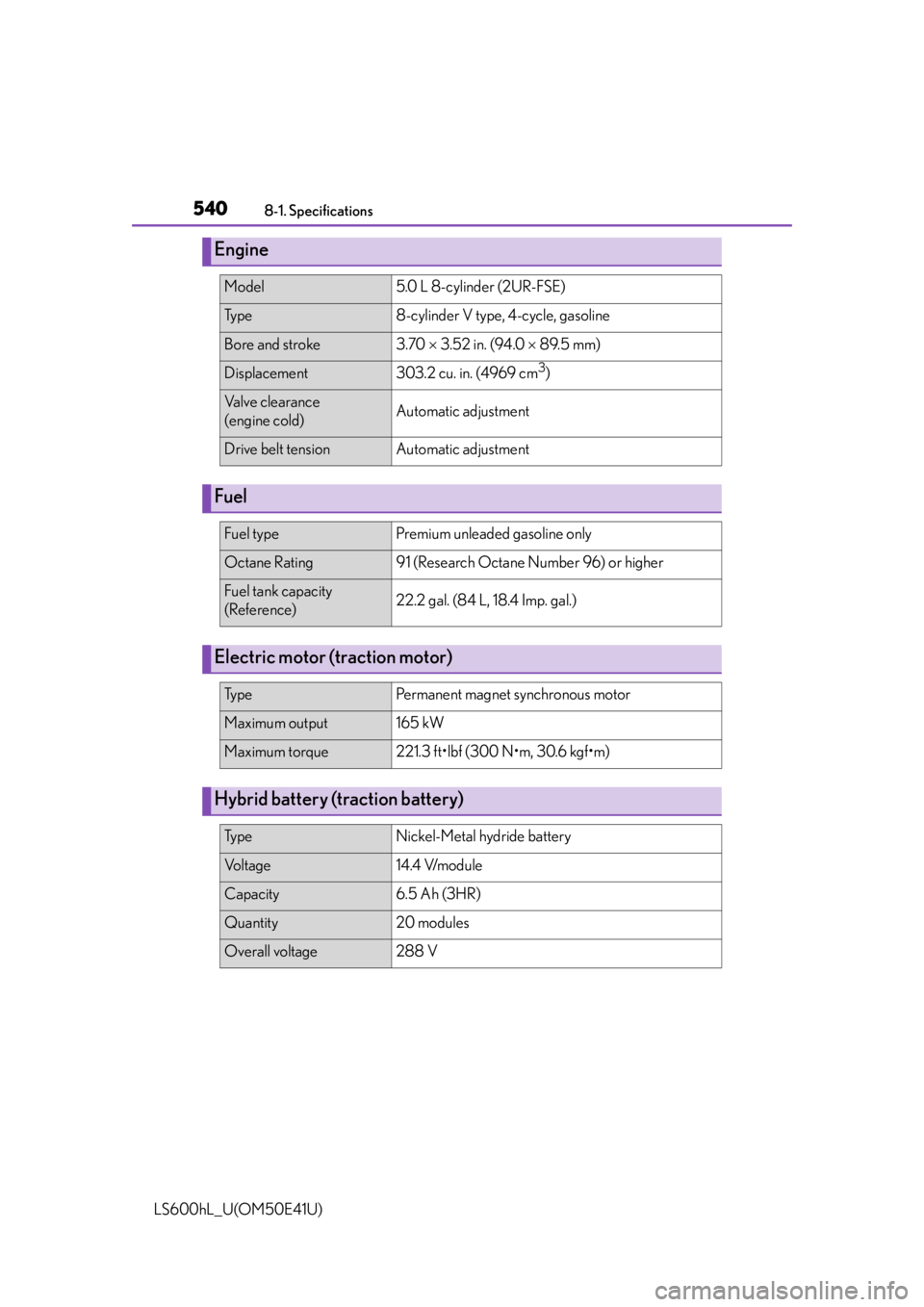

Engine
Model5.0 L 8-cylinder (2UR-FSE)
Ty p e8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.52 in. (94.0  89.5 mm)
Displacement303.2 cu. in. (4969 cm3)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel typePremium unleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity
(Reference)22.2 gal. (84 L, 18.4 Imp. gal.)
Electric motor (traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output165 kW
Maximum torque221.3 ft•lbf (300 N•m, 30.6 kgf•m)
Hybrid battery (traction battery)
Ty p eNickel-Metal hydride battery
Vo l t a g e14.4 V/module
Capacity6.5 Ah (3HR)
Quantity20 modules
Overall voltage288 V

5418-1. Specifications
8
Vehicle specifications
LS600hL_U(OM50E41U)
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turn off the hybrid system, wait more than 5
minutes, and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil

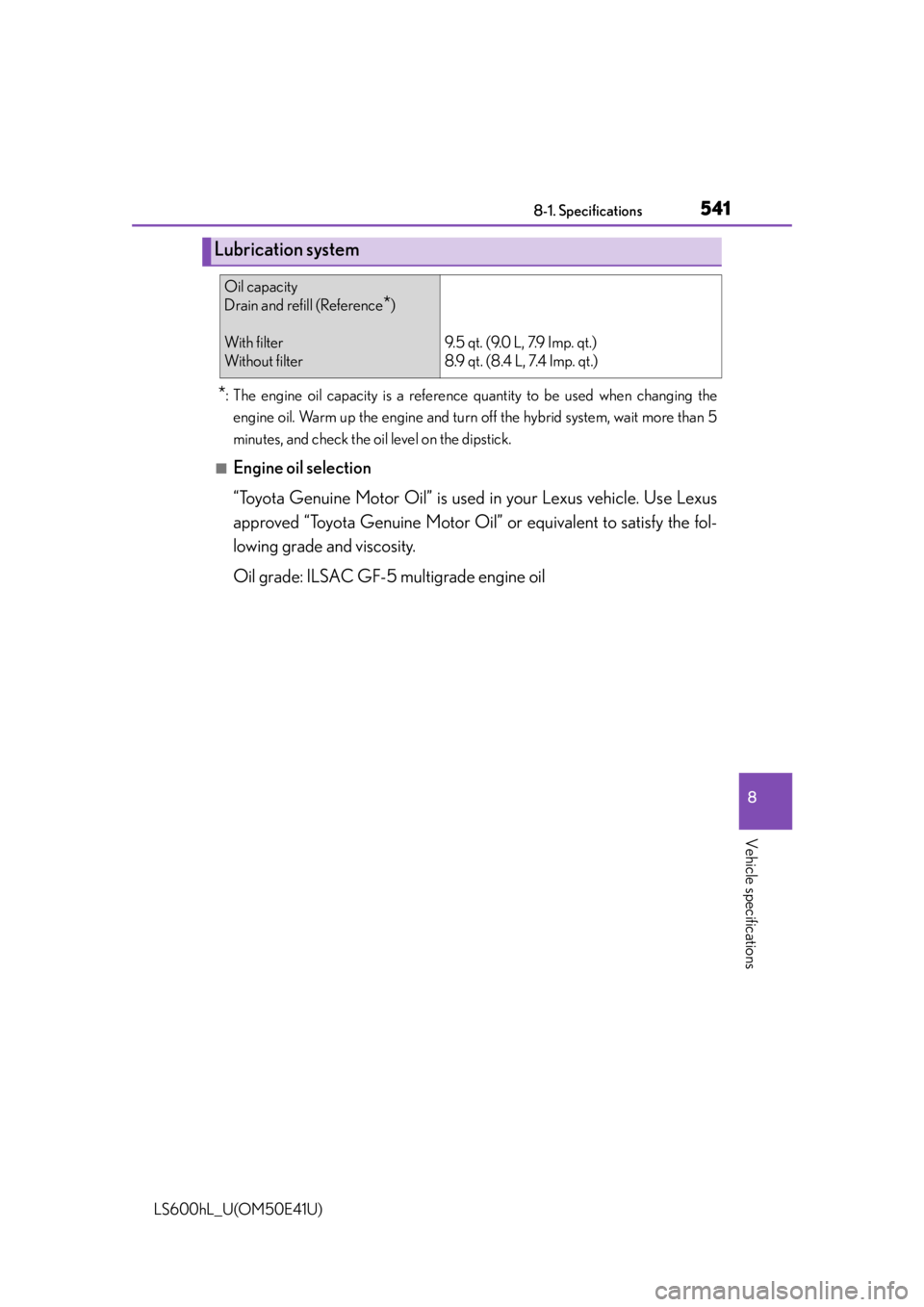

Lubrication system
Oil capacity
Drain and refill (Reference
*)
With filter
Without filter
9.5 qt. (9.0 L, 7.9 Imp. qt.)
8.9 qt. (8.4 L, 7.4 Imp. qt.)

5428-1. Specifications
LS600hL_U(OM50E41U)
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the ch aracteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the visc osity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity (one
with a higher value) may be better su ited if the vehicle is operated at
high speeds, or under extreme load conditions.
How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark is
added to some oil containers to
help you select the oil you should
use.
Outside temperature

5438-1. Specifications
8
Vehicle specifications
LS600hL_U(OM50E41U)

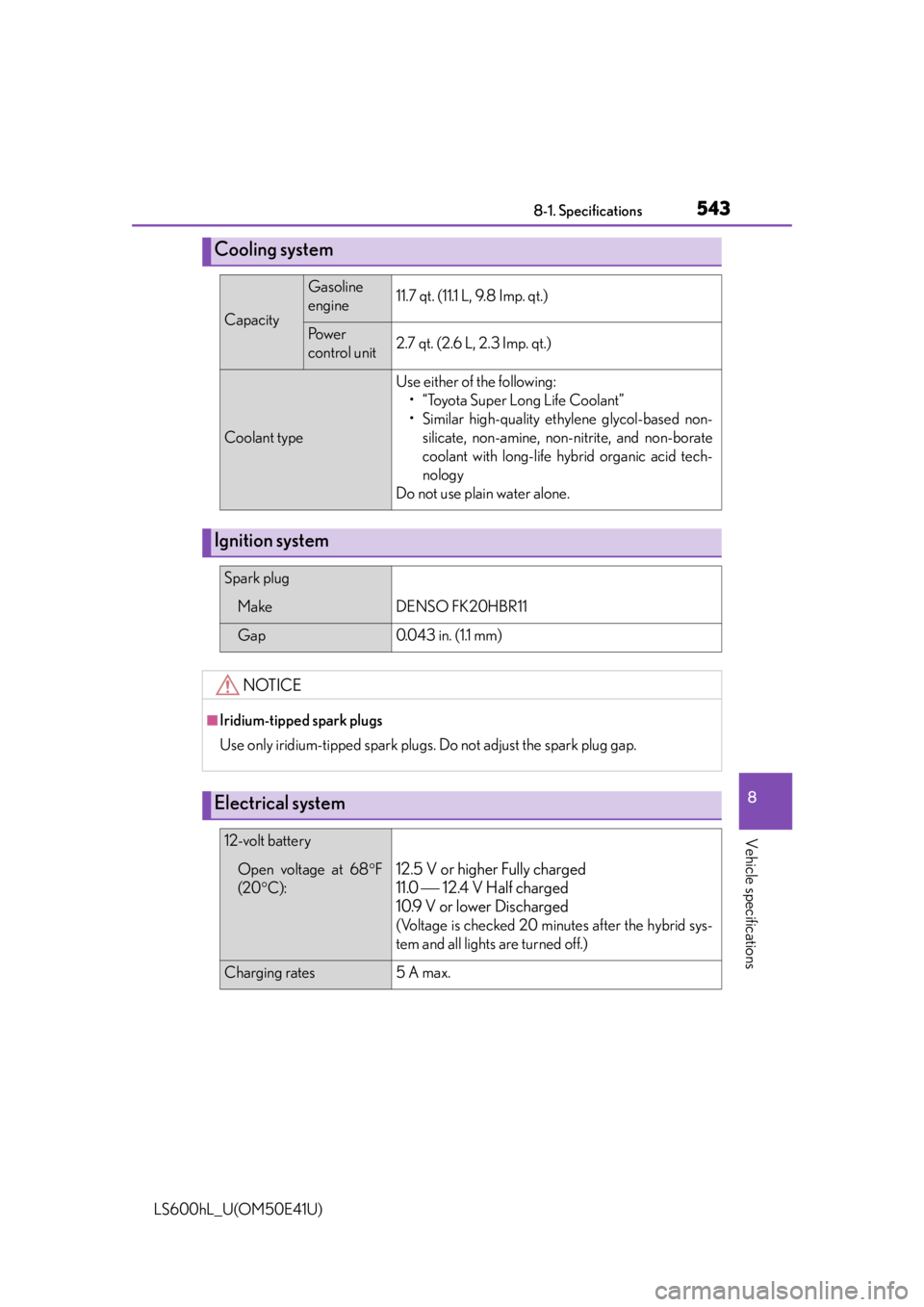

Cooling system
Capacity
Gasoline
engine11.7 qt. (11.1 L, 9.8 Imp. qt.)
Pow e r
control unit2.7 qt. (2.6 L, 2.3 Imp. qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non- nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.
Ignition system
Spark plug
MakeDENSO FK20HBR11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
12-volt battery
Open voltage at 68 F
(20 C): 12.5 V or higher Fully charged
11.0 
12.4 V Half charged
10.9 V or lower Discharged
(Voltage is checked 20 minutes after the hybrid sys-
tem and all lights are turned off.)
Charging rates5 A max.

5448-1. Specifications
LS600hL_U(OM50E41U)
*: The fluid capacity is the quantity of reference.If replacement is necessary, contact your Lexus dealer.
*: Your Lexus vehicle is filled with Toyota genuine gear oil at the factory. Use Lexus
approved Toyota genuine gear oil or an equivalent of matching quality to satisfy
the above specification. Please contact your Lexus dealer for further details.
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the fac-
tory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equiva-
lent of matching quality to satisfy th e above specification. Please contact your
Lexus dealer for further details.

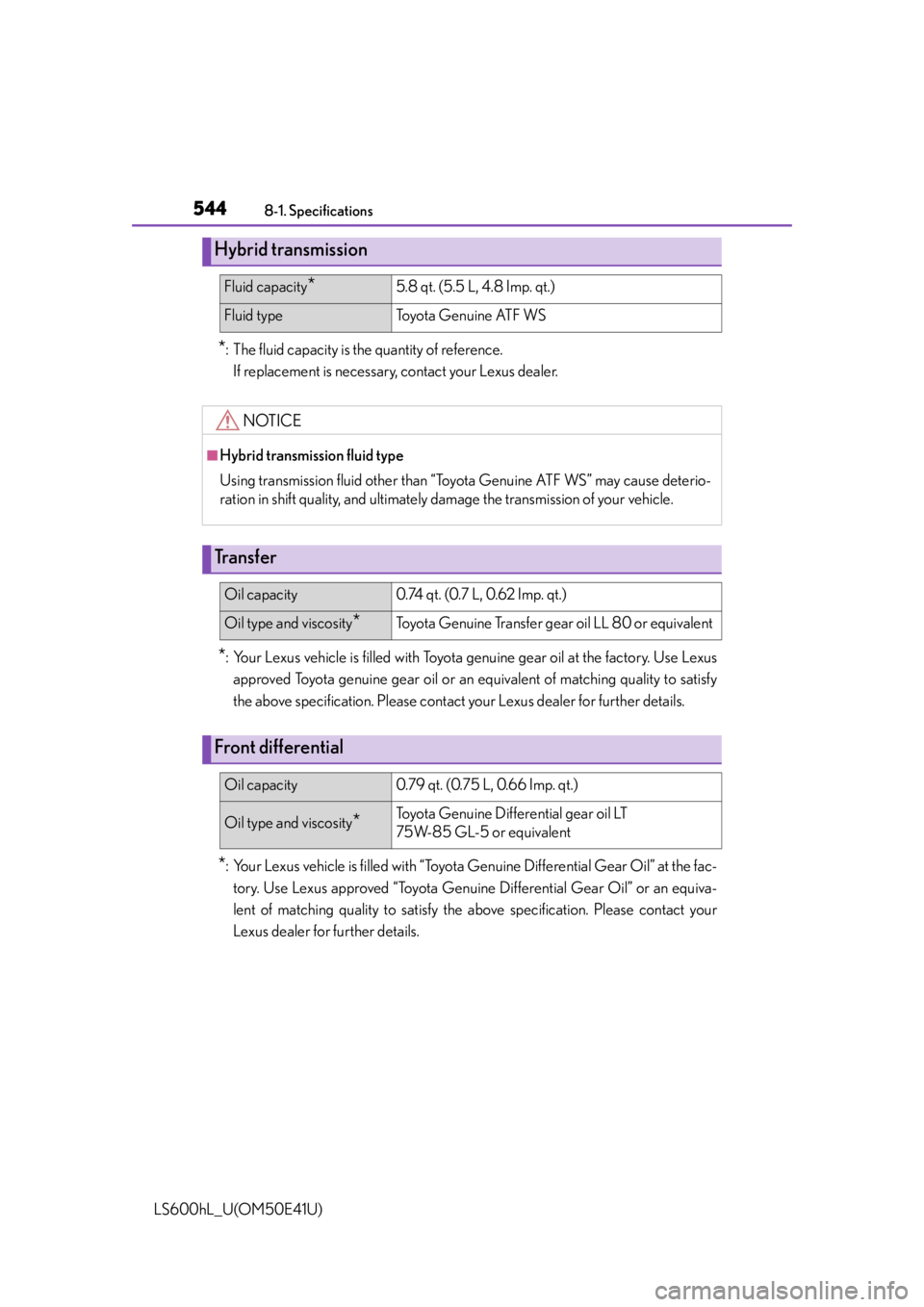

Hybrid transmission
Fluid capacity*5.8 qt. (5.5 L, 4.8 Imp. qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Hybrid transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterio-
ration in shift quality, and ultimately damage the transmission of your vehicle.
Tr a n s f e r
Oil capacity0.74 qt. (0.7 L, 0.62 Imp. qt.)
Oil type and viscosity*Toyota Genuine Transfer gear oil LL 80 or equivalent
Front differential
Oil capacity0.79 qt. (0.75 L, 0.66 Imp. qt.)
Oil type and viscosity*Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent

5458-1. Specifications
8
Vehicle specifications
LS600hL_U(OM50E41U)
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the fac-
tory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equiva-
lent of matching quality to satisfy th e above specification. Please contact your
Lexus dealer for further details.
*: Minimum pedal clearance when depressed with a force of 112 lbf (500 N, 51 kgf)
while the hybrid system is operating.
When performing the brake pedal inspection, also be sure to check that the
brake system warning light is not illumina ted when the hybrid system is operating
(If the brake system warning light is illuminated, refer to P. 493).

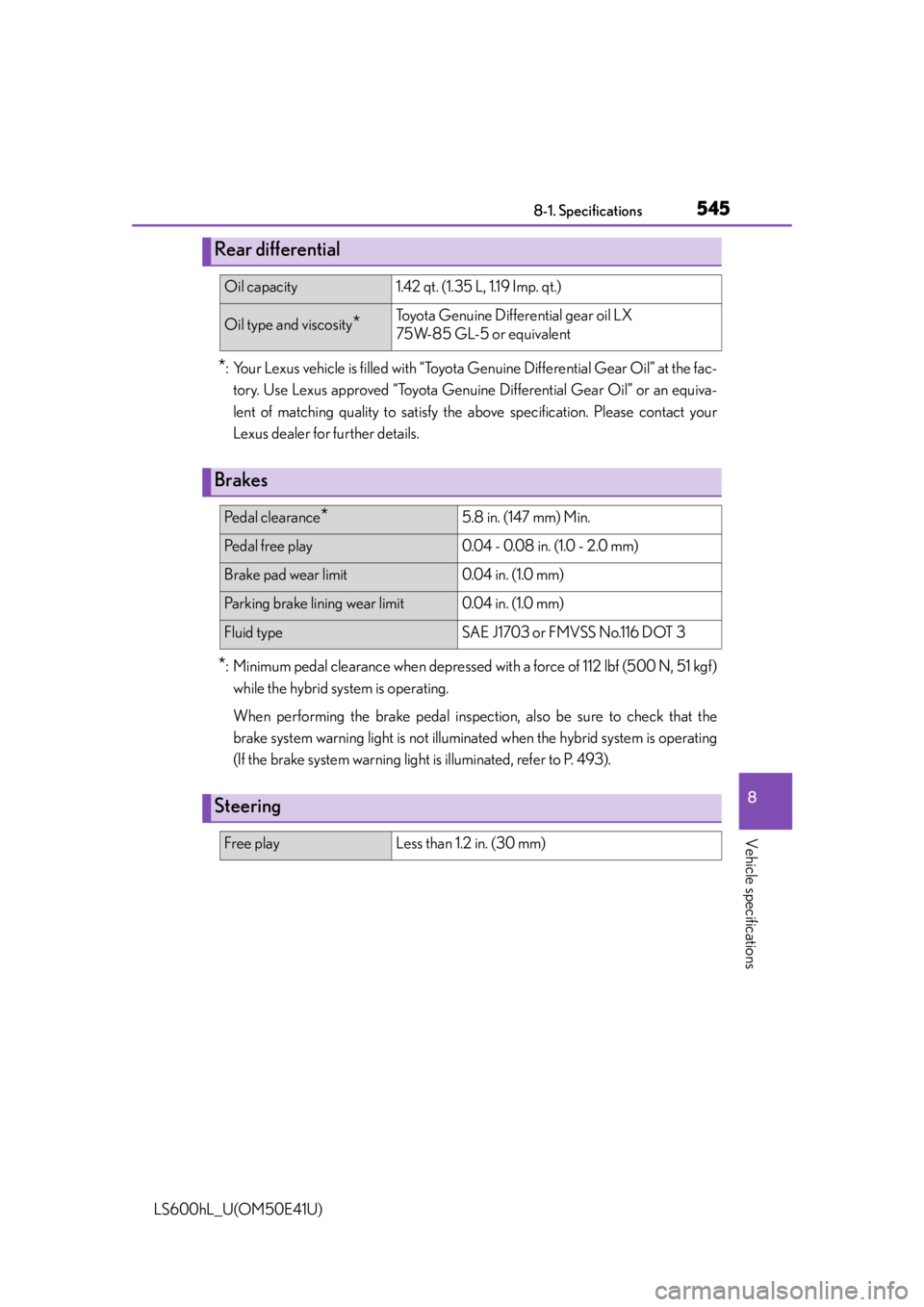

Rear differential
Oil capacity1.42 qt. (1.35 L, 1.19 Imp. qt.)
Oil type and viscosity*Toyota Genuine Differential gear oil LX
75W-85 GL-5 or equivalent
Brakes
Pe d a l c l e a r a n c e*5.8 in. (147 mm) Min.
Pedal free play0.04 - 0.08 in. (1.0 - 2.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
Steering
Free playLess than 1.2 in. (30 mm)

5468-1. Specifications
LS600hL_U(OM50E41U)

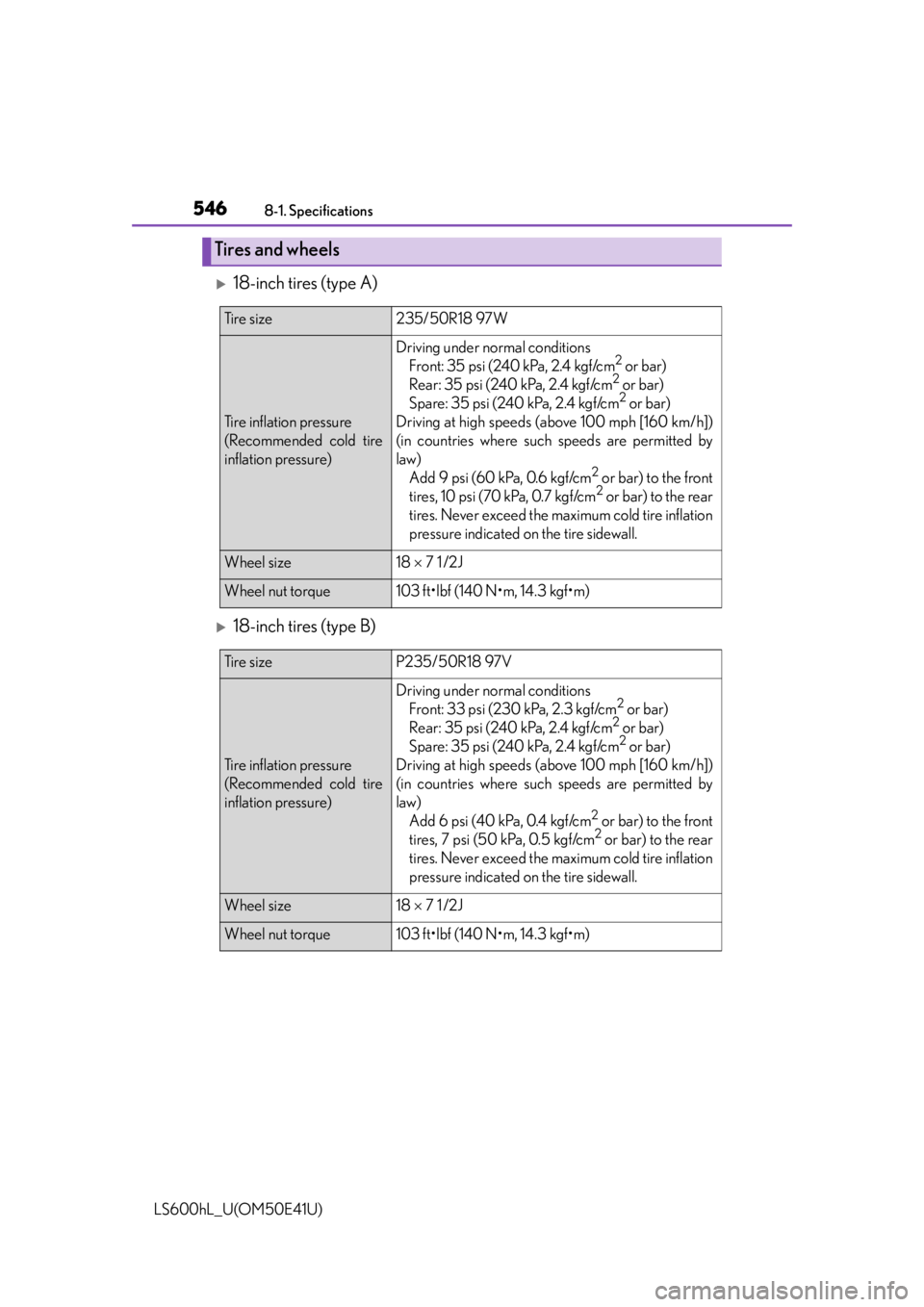

18-inch tires (type A)
18-inch tires (type B)
Tires and wheels
Ti r e s i z e235/50R18 97W
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Driving under normal conditionsFront: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Spare: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Driving at high speeds (above 100 mph [160 km/h])
(in countries where such speeds are permitted by
law) Add 9 psi (60 kPa, 0.6 kgf/cm
2 or bar) to the front
tires, 10 psi (70 kPa, 0.7 kgf/cm2 or bar) to the rear
tires. Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size18  7 1 /2J
Wheel nut torque103 ft•lbf (140 N•m, 14.3 kgf•m)
Ti r e s i z eP235/50R18 97V
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Driving under normal conditions
Front: 33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Spare: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Driving at high speeds (above 100 mph [160 km/h])
(in countries where such speeds are permitted by
law) Add 6 psi (40 kPa, 0.4 kgf/cm
2 or bar) to the front
tires, 7 psi (50 kPa, 0.5 kgf/cm2 or bar) to the rear
tires. Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size18  7 1 /2J
Wheel nut torque103 ft•lbf (140 N•m, 14.3 kgf•m)

5478-1. Specifications
8
Vehicle specifications
LS600hL_U(OM50E41U)

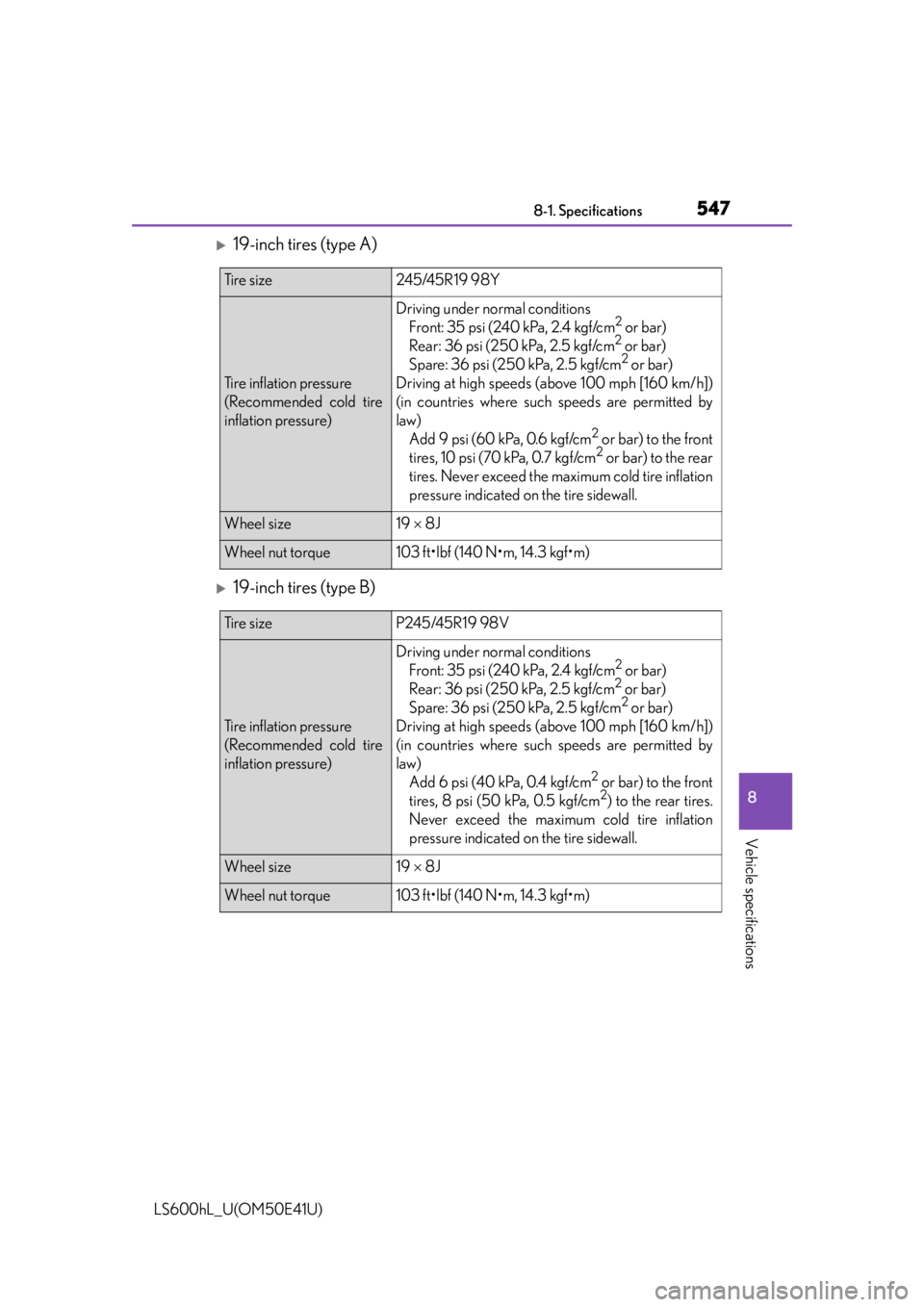

19-inch tires (type A)
19-inch tires (type B)
Ti r e s i z e245/45R19 98Y
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Driving under normal conditionsFront: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear: 36 psi (250 kPa, 2.5 kgf/cm2 or bar)
Spare: 36 psi (250 kPa, 2.5 kgf/cm2 or bar)
Driving at high speeds (above 100 mph [160 km/h])
(in countries where such speeds are permitted by
law) Add 9 psi (60 kPa, 0.6 kgf/cm
2 or bar) to the front
tires, 10 psi (70 kPa, 0.7 kgf/cm2 or bar) to the rear
tires. Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size19  8J
Wheel nut torque103 ft•lbf (140 N•m, 14.3 kgf•m)
Ti r e s i z eP245/45R19 98V
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Driving under normal conditions
Front: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear: 36 psi (250 kPa, 2.5 kgf/cm2 or bar)
Spare: 36 psi (250 kPa, 2.5 kgf/cm2 or bar)
Driving at high speeds (above 100 mph [160 km/h])
(in countries where such speeds are permitted by
law) Add 6 psi (40 kPa, 0.4 kgf/cm
2 or bar) to the front
tires, 8 psi (50 kPa, 0.5 kgf/cm2) to the rear tires.
Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size19  8J
Wheel nut torque103 ft•lbf (140 N•m, 14.3 kgf•m)

5488-1. Specifications
LS600hL_U(OM50E41U)
19-inch tires (type C)
Ti r e s i z e245/45RF19 98Y
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Driving under normal conditionsFront: 36 psi (250 kPa, 2.5 kgf/cm2 or bar)
Rear: 36 psi (250 kPa, 2.5 kgf/cm2 or bar)
Driving at high speeds (above 100 mph [160 km/h])
(in countries where such speeds are permitted by
law)
Add 9 psi (60 kPa, 0.6 kgf/cm
2 or bar) to the front
tires, 10 psi (70 kPa, 0.7 kgf/cm2 or bar) to the rear
tires. Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size19  8J
Wheel nut torque103 ft•lbf (140 N•m, 14.3 kgf•m)
