1212. Instrument cluster
2
Instrument cluster
LS600h/LS600hL_EE(OM50G20E)
The multi-information display presents the driver with a variety of driving-
related data.
●Trip information ( P. 123)
Displays driving range, fuel consump-
tion and other cruising related infor-
mation
●Drive monitor ( P. 126)
Displays either the average fuel con-
sumption after refueling or the driving
range
●Lexus parking assist-sensor dis-
play* (Refer to “NAVIGATION
AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.)
●Dynamic radar cruise control dis-
play* (if equipped) ( P. 293)
●Dynamic radar cruise control
with full-speed range display* (if
equipped) ( P. 307)
●LKA (Lane-Keeping Assist) dis-
play* (if equipped) ( P. 328)
Multi-information display
Display contents

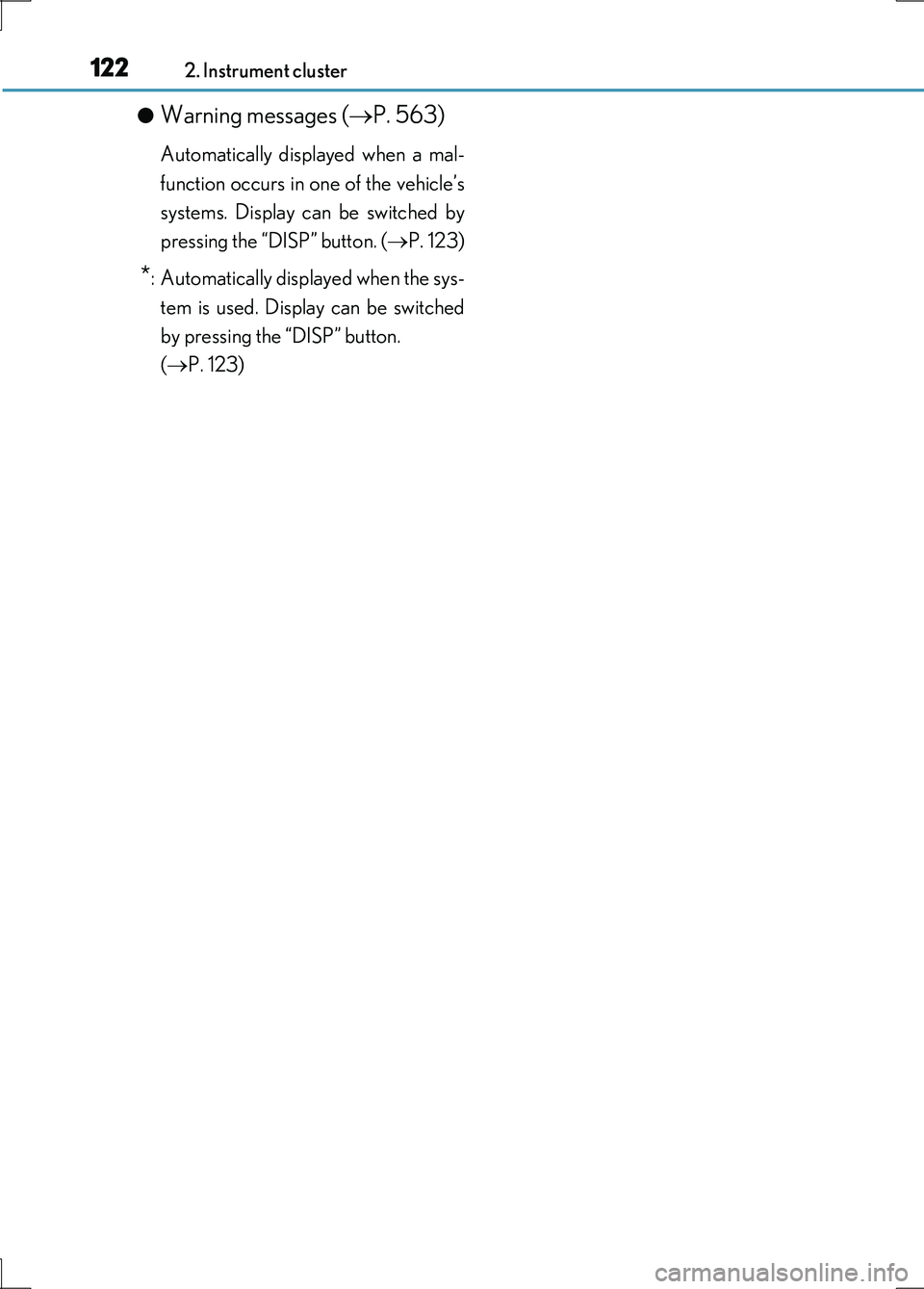

1222. Instrument cluster
LS600h/LS600hL_EE(OM50G20E)
●Warning messages ( P. 563)
Automatically displayed when a mal-
function occurs in one of the vehicle’s
systems. Display can be switched by
pressing the “DISP” button. ( P. 123)
*: Automatically displayed when the sys-
tem is used. Display can be switched
by pressing the “DISP” button.
( P. 123)

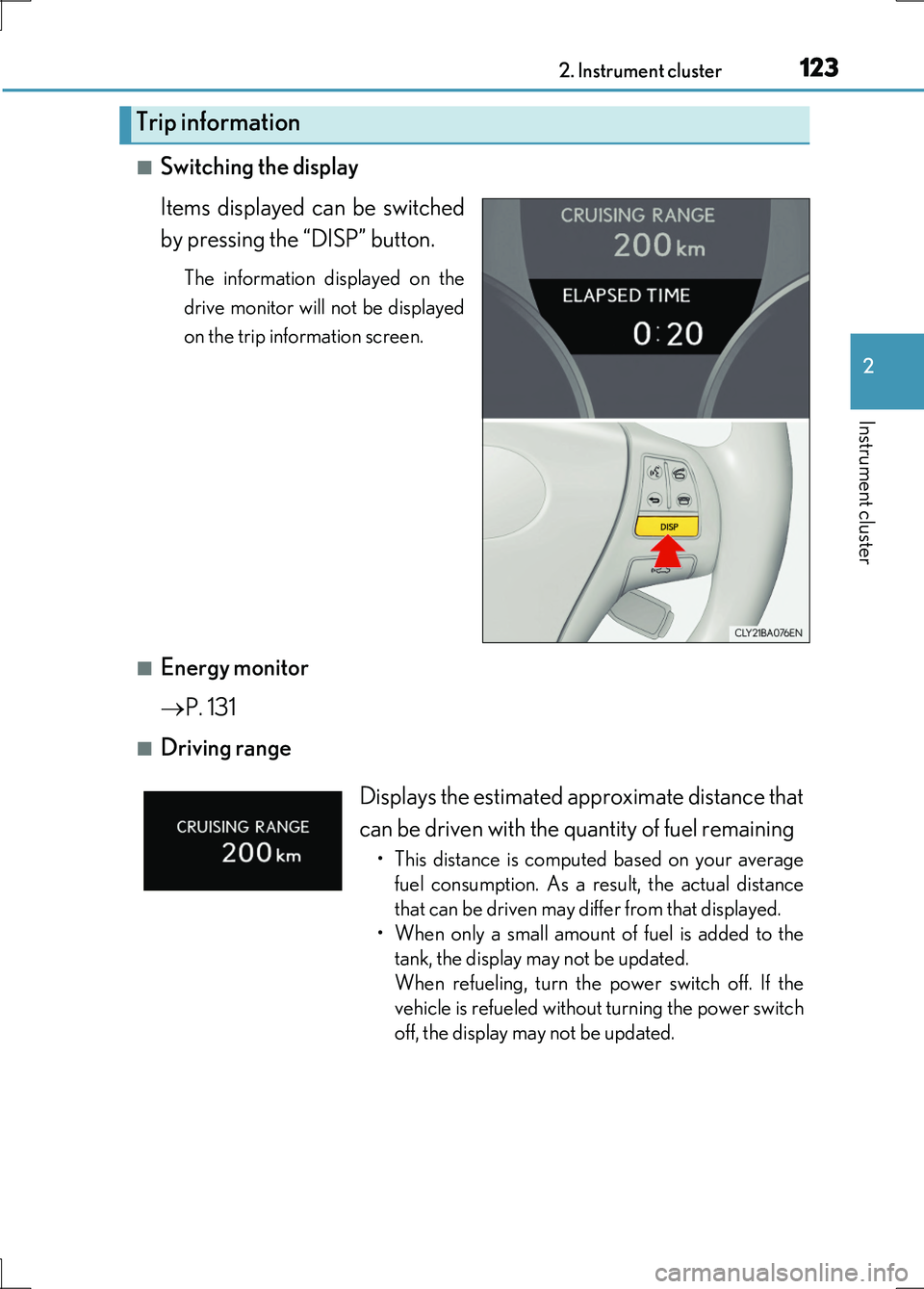

1232. Instrument cluster
2
Instrument cluster
LS600h/LS600hL_EE(OM50G20E)
■Switching the display
Items displayed can be switched
by pressing the “DISP” button.
The information displayed on the
drive monitor will not be displayed
on the trip information screen.
■Energy monitor
 P. 131
■Driving range
Trip information
Displays the estimated approximate distance that
can be driven with the quantity of fuel remaining
• This distance is computed based on your average
fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the
tank, the display may not be updated.
When refueling, turn the power switch off. If the
vehicle is refueled without turning the power switch
off, the display may not be updated.

1242. Instrument cluster
LS600h/LS600hL_EE(OM50G20E)
■Average fuel consumption
■Current fuel consumption
■Average fuel consumption after refueling
■Distance after refueling
■Elapsed time
Displays the average fuel consumption since the
function was reset
• The function can be reset by pressing the “DISP”
button for longer than 1 second when the average
fuel consumption is displayed.
On vehicles with a navigation system, the “Past
record” screen on the Remote Touch screen will
also be updated. ( P. 134)
• Use the displayed average fuel consumption as a
reference.
Displays the current rate of fuel consumption
Displays the average fuel consumption since the
vehicle was last refueled
Use the displayed average fuel consumption as a ref-
erence.
Displays the distance the vehicle has been driven
since the vehicle was last refueled
Displays the elapsed time since it was last reset
The function can be reset by pressing the “DISP” but-
ton for longer than 1 second when the elapsed time is
displayed.

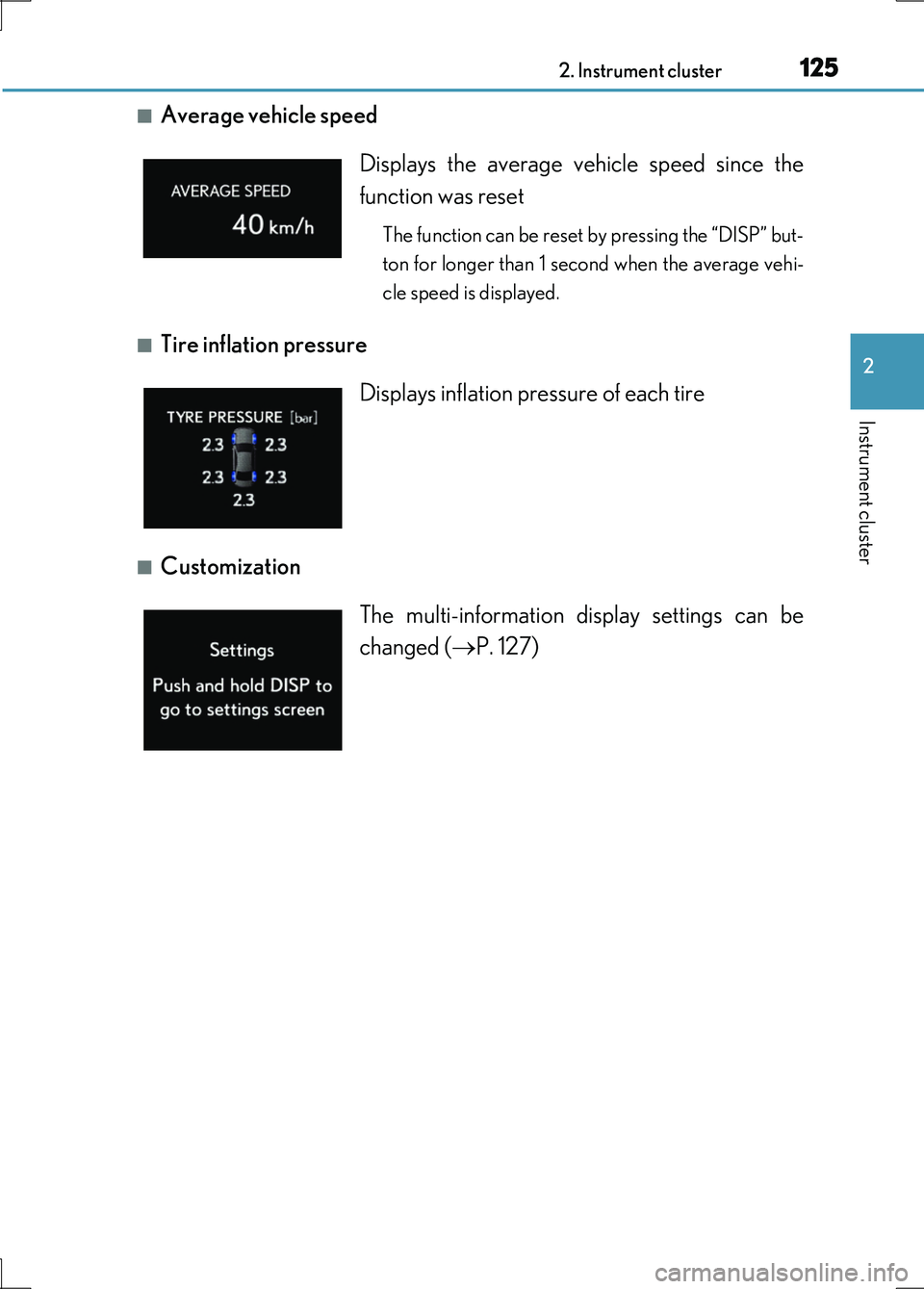

1252. Instrument cluster
2
Instrument cluster
LS600h/LS600hL_EE(OM50G20E)
■Average vehicle speed
■Tire inflation pressure
■Customization
Displays the average vehicle speed since the
function was reset
The function can be reset by pressing the “DISP” but-
ton for longer than 1 second when the average vehi-
cle speed is displayed.
Displays inflation pressure of each tire
The multi-information display settings can be
changed ( P. 127)

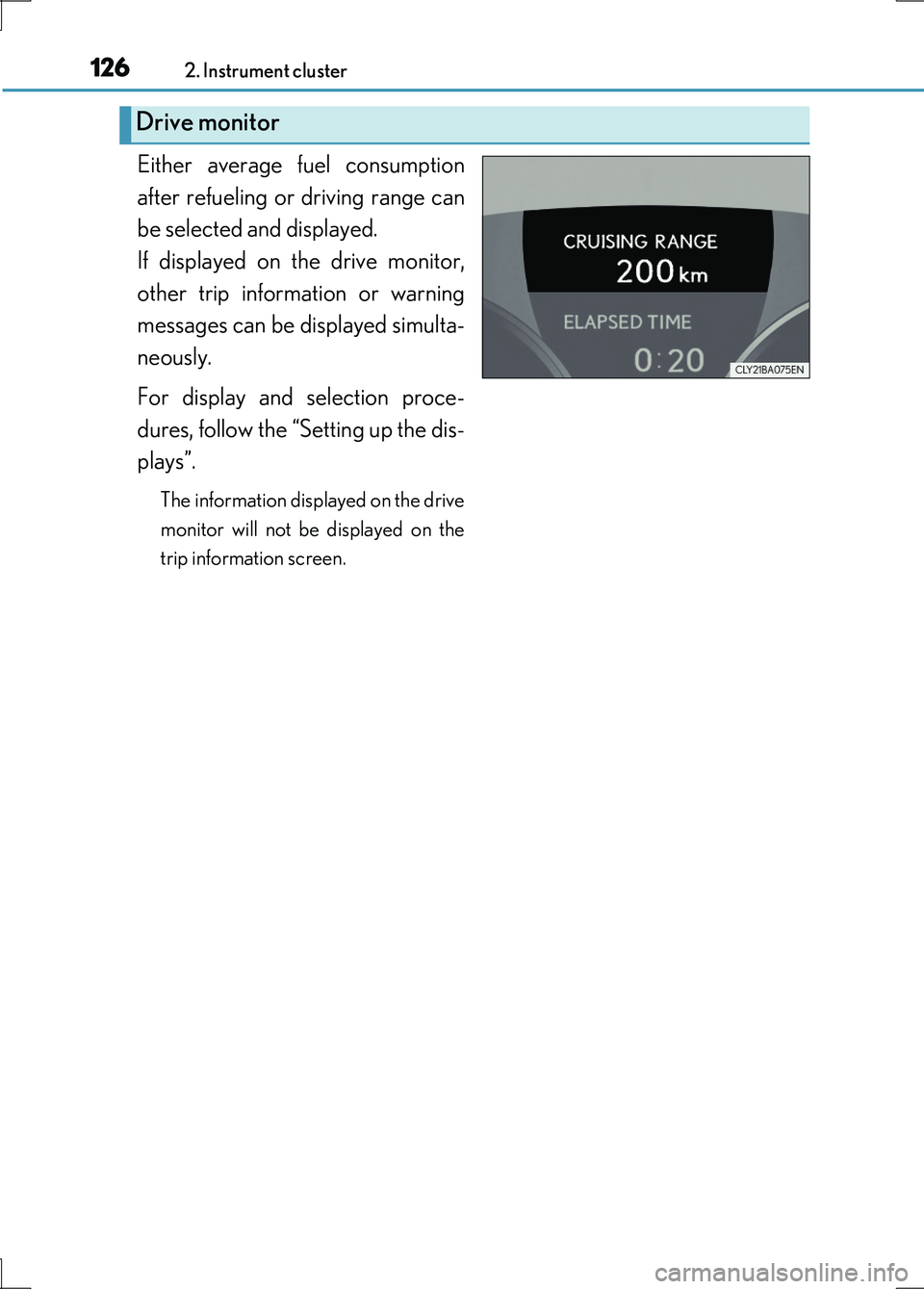

1262. Instrument cluster
LS600h/LS600hL_EE(OM50G20E)
Either average fuel consumption
after refueling or driving range can
be selected and displayed.
If displayed on the drive monitor,
other trip information or warning
messages can be displayed simulta-
neously.
For display and selection proce-
dures, follow the “Setting up the dis-
plays”.
The information displayed on the drive
monitor will not be displayed on the
trip information screen.
Drive monitor

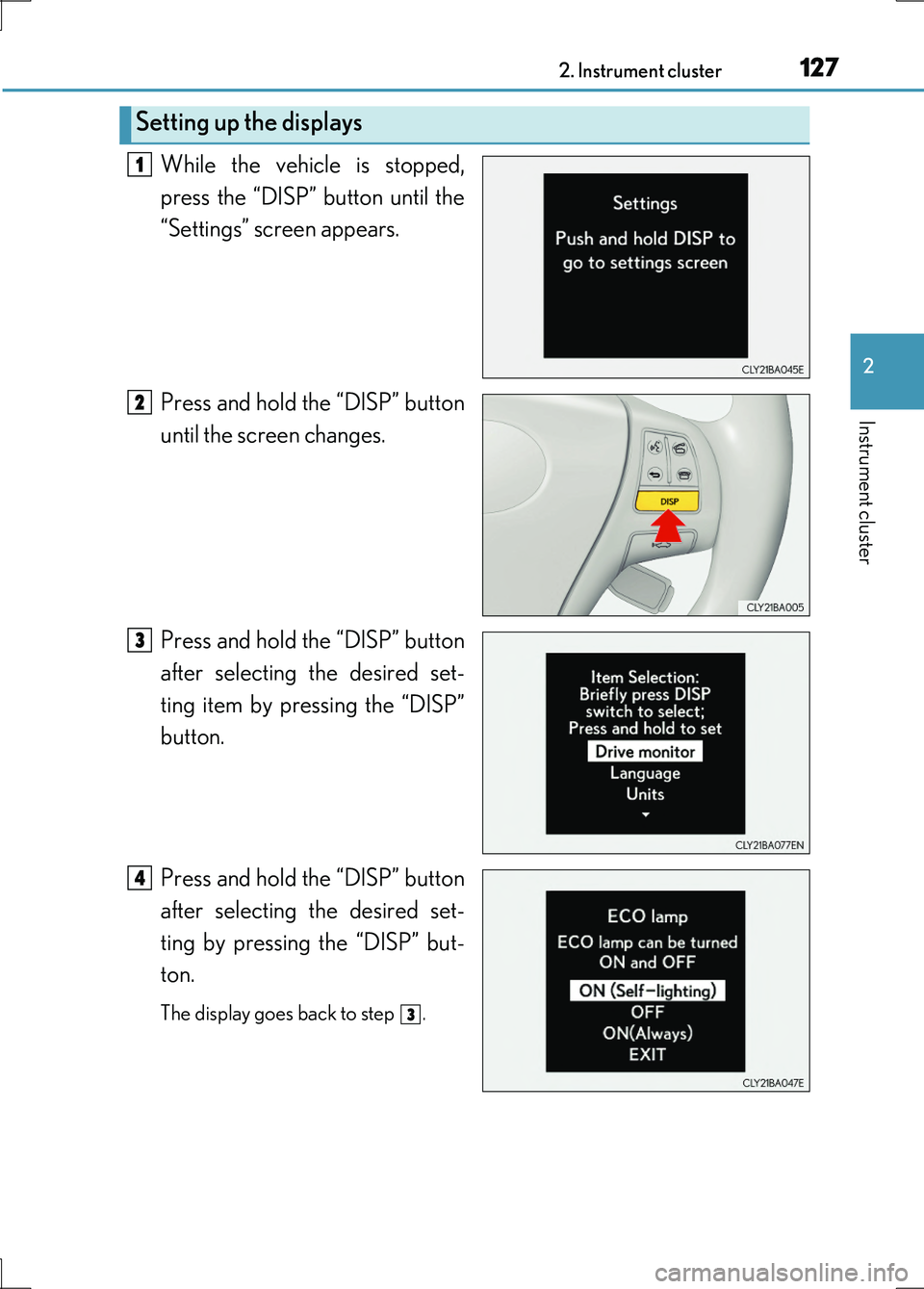

1272. Instrument cluster
2
Instrument cluster
LS600h/LS600hL_EE(OM50G20E)
While the vehicle is stopped,
press the “DISP” button until the
“Settings” screen appears.
Press and hold the “DISP” button
until the screen changes.
Press and hold the “DISP” button
after selecting the desired set-
ting item by pressing the “DISP”
button.
Press and hold the “DISP” button
after selecting the desired set-
ting by pressing the “DISP” but-
ton.
The display goes back to step .
Setting up the displays
1
2
3
4
3

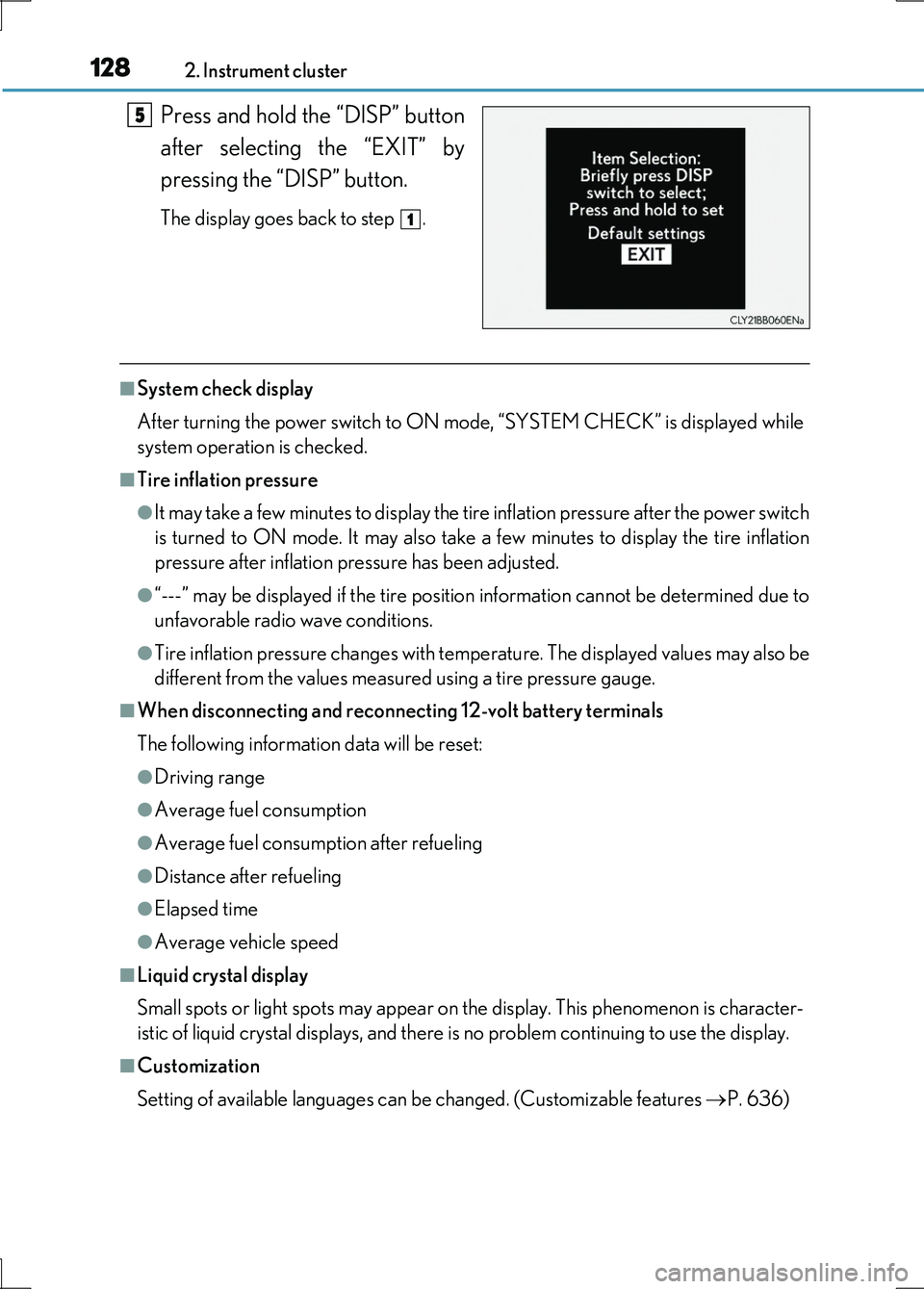

1282. Instrument cluster
LS600h/LS600hL_EE(OM50G20E)
Press and hold the “DISP” button
after selecting the “EXIT” by
pressing the “DISP” button.
The display goes back to step .
■System check display
After turning the power switch to ON mode, “SYSTEM CHECK” is displayed while
system operation is checked.
■Tire inflation pressure
●It may take a few minutes to display the tire inflation pressure after the power switch
is turned to ON mode. It may also take a few minutes to display the tire inflation
pressure after inflation pressure has been adjusted.
●“---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may also be
different from the values measured using a tire pressure gauge.
■When disconnecting and reconnecting 12-volt battery terminals
The following information data will be reset:
●Driving range
●Average fuel consumption
●Average fuel consumption after refueling
●Distance after refueling
●Elapsed time
●Average vehicle speed
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is character-
istic of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
Setting of available languages can be changed. (Customizable features P. 636)
5
1

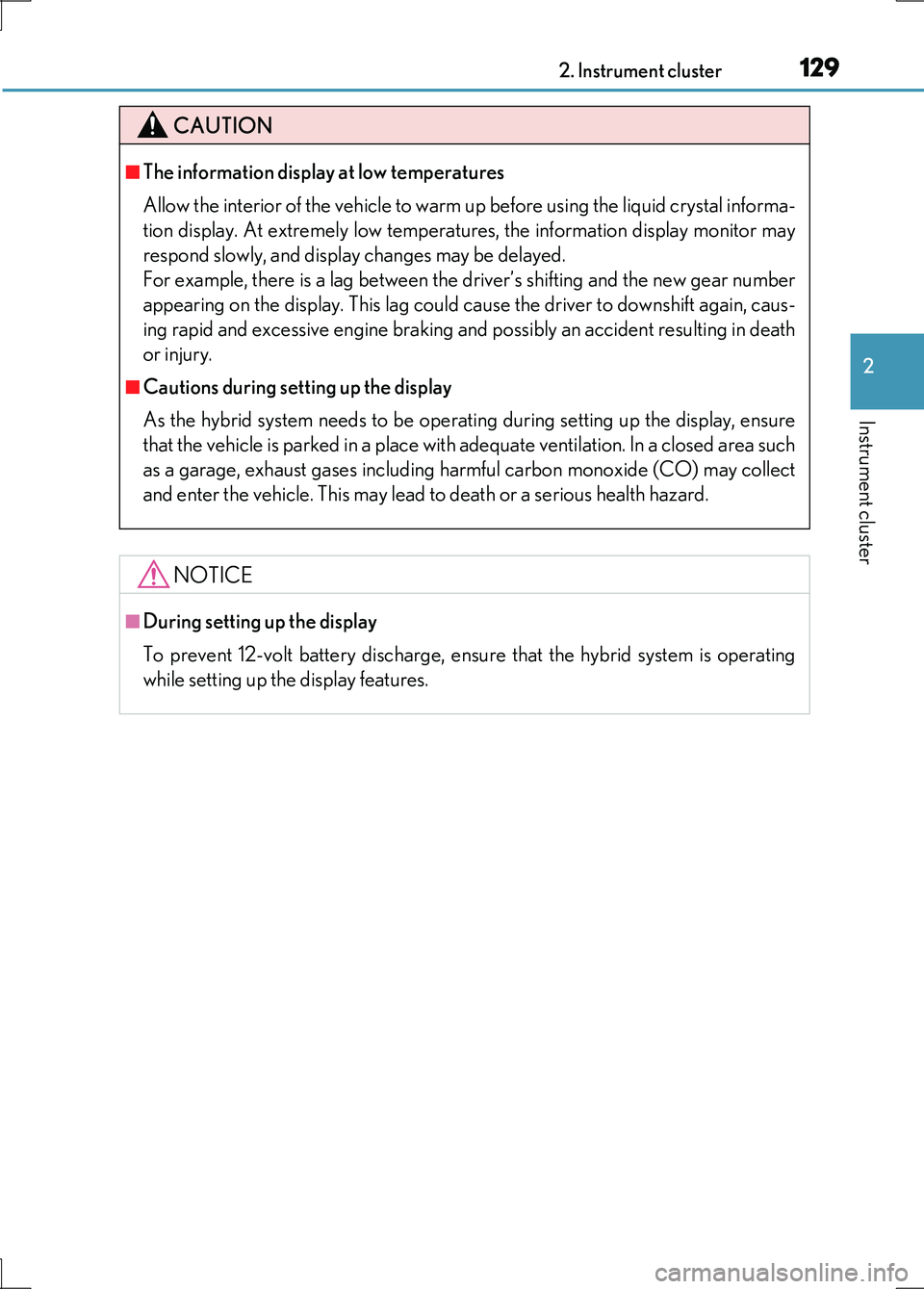

1292. Instrument cluster
2
Instrument cluster
LS600h/LS600hL_EE(OM50G20E)
CAUTION
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal informa-
tion display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, caus-
ing rapid and excessive engine braking and possibly an accident resulting in death
or injury.
■Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may collect
and enter the vehicle. This may lead to death or a serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is operating
while setting up the display features.

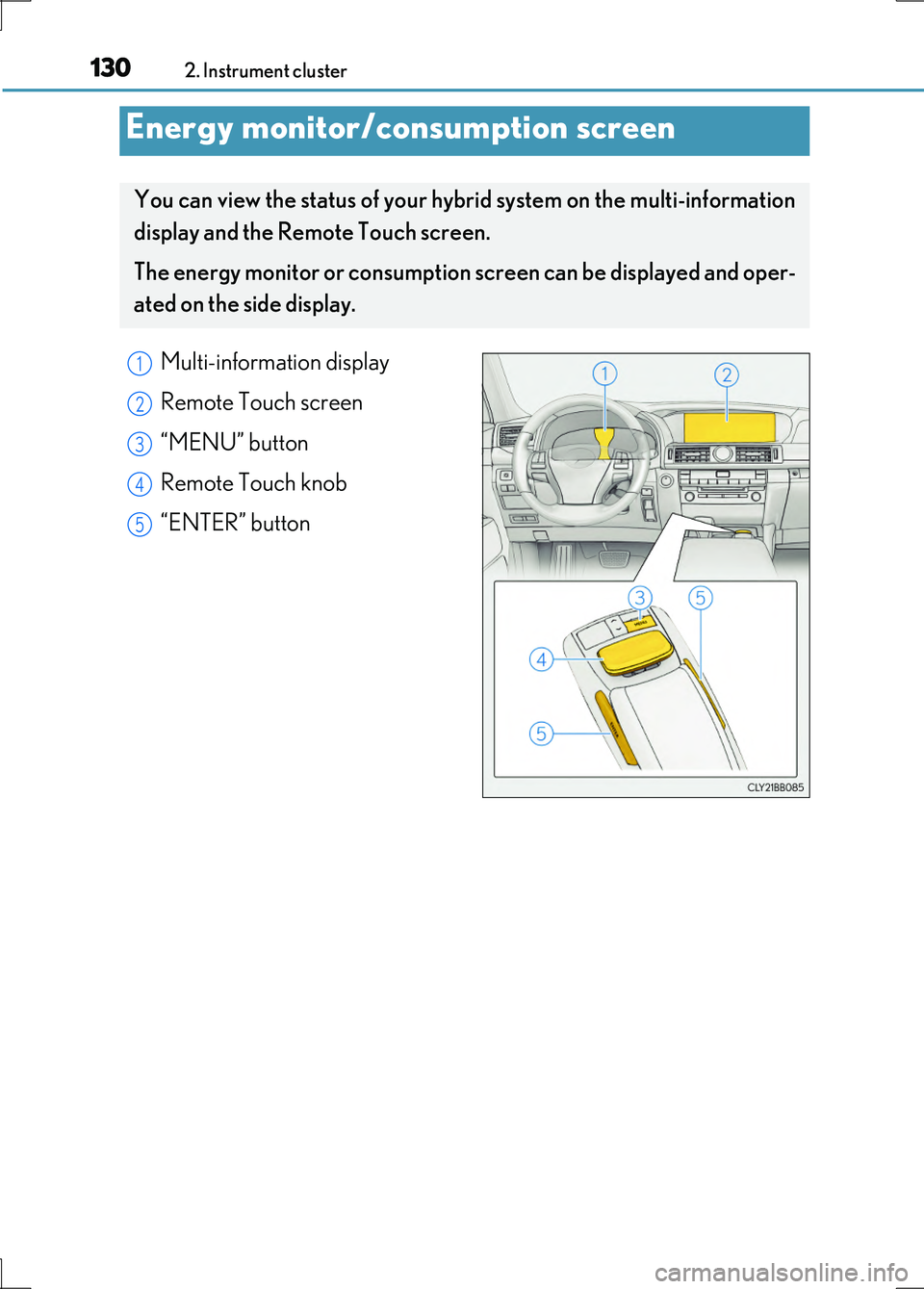

1302. Instrument cluster
LS600h/LS600hL_EE(OM50G20E)
Multi-information display
Remote Touch screen
“MENU” button
Remote Touch knob
“ENTER” button
Energy monitor/consumption screen
You can view the status of your hybr id system on the multi-information
display and the Remote Touch screen.
The energy monitor or consumption screen can be displayed and oper-
ated on the side display.
1
2
3
4
5
