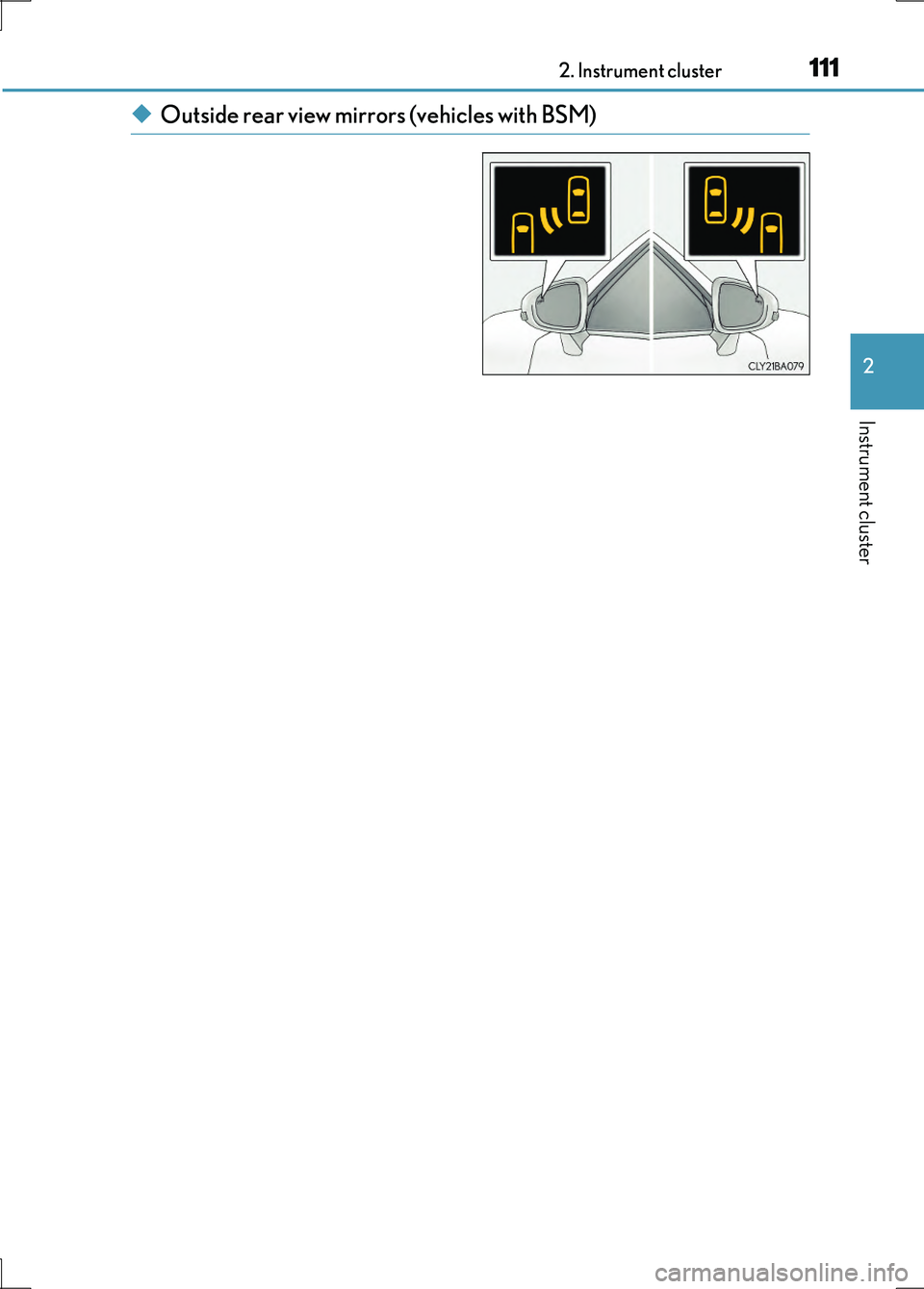

◆Outside rear view mirrors (vehicles with BSM)

1122. Instrument cluster
LS600h/LS600hL_EE(OM50G20E)
Warning lights inform the driver of malfunctions in the indicated vehicle’s
systems.
*1: These lights come on when the power switch is turned to ON mode to indicate
that a system check is being performed. They will go off after the hybrid system is
on, or after a few seconds. There may be a malfunction in a system if the lights do
not come on, or go off. Have the vehi cle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
*2: The light flashes to indicate a malfunction.
Warning lights
*1
Brake system warning light
( P. 555)
*1, 2
(if equipped)
Brake hold operated indi-
cator ( P. 557)
*1Charging system warning
light ( P. 556)
*1, 2Parking brake indicator
( P. 557)
*1Malfunction indicator
lamp ( P. 556)
*1Brake system warning light
( P. 557)
*1SRS warning light
( P. 556)
Open door warning light
( P. 558)
*1ABS warning light
( P. 556)
Low fuel level warning light
( P. 558)
*1Electric power steering
system warning light
( P. 557)
Seat belt reminder light
( P. 558)
*1, 2
(if equipped)
Pre-crash safety system
warning light ( P. 557)
*1
Master warning light
( P. 558)
*1
Slip indicator (P. 557)*1Tire pressure warning light
( P. 559)

1132. Instrument cluster
2
Instrument cluster
LS600h/LS600hL_EE(OM50G20E)

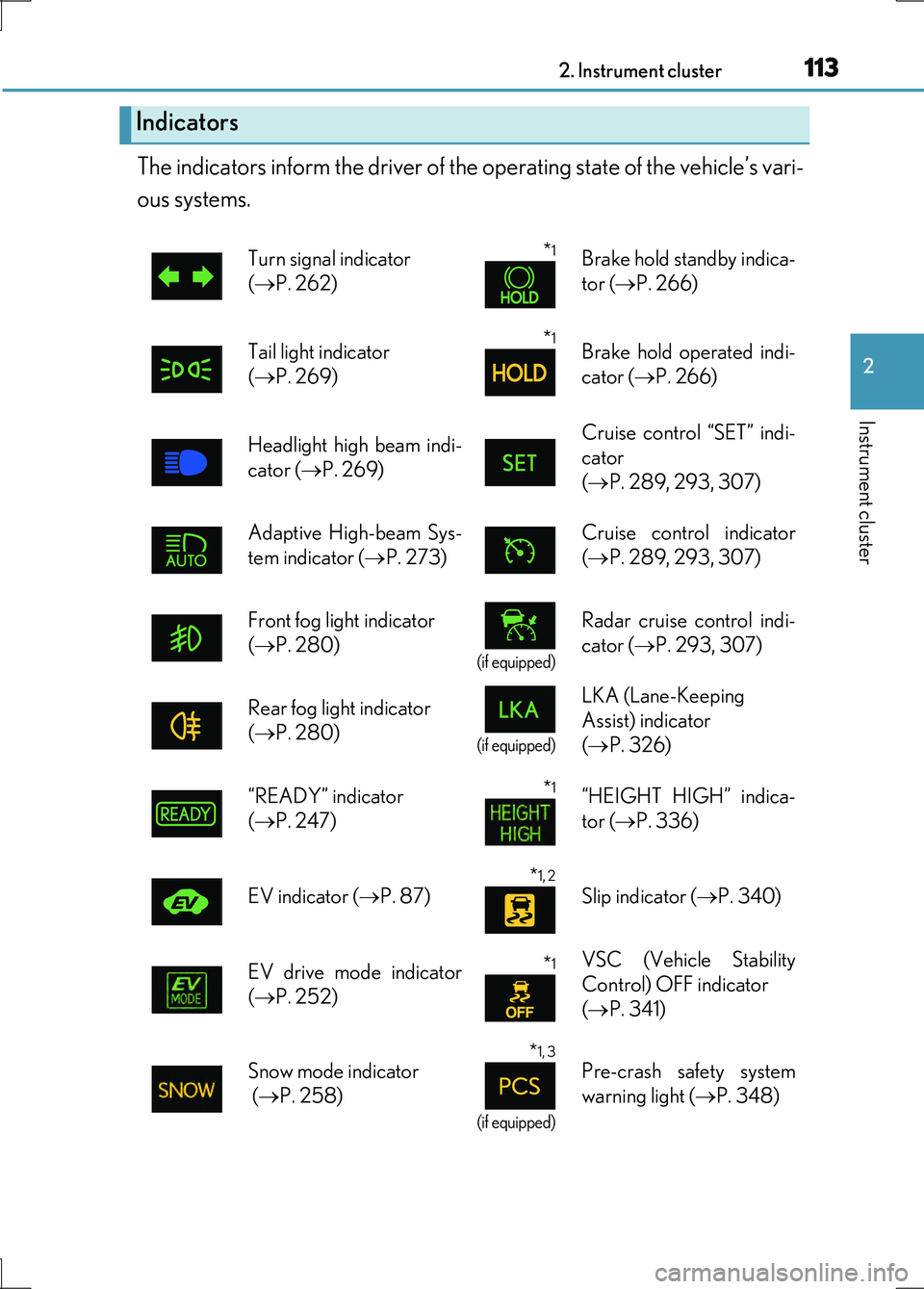

The indicators inform the driver of the operating state of the vehicle’s vari-
ous systems.
Indicators
Turn signal indicator
( P. 262)
*1Brake hold standby indica-
tor ( P. 266)
Tail light indicator
( P. 269)
*1Brake hold operated indi-
cator ( P. 266)
Headlight high beam indi-
cator ( P. 269)
Cruise control “SET” indi-
cator
( P. 289, 293, 307)
Adaptive High-beam Sys-
tem indicator ( P. 273)
Cruise control indicator
( P. 289, 293, 307)
Front fog light indicator
( P. 280)(if equipped)
Radar cruise control indi-
cator ( P. 293, 307)
Rear fog light indicator
( P. 280)(if equipped)
LKA (Lane-Keeping
Assist) indicator
( P. 326)
“READY” indicator
( P. 247)
*1“HEIGHT HIGH” indica-
tor ( P. 336)
EV indicator ( P. 87)*1, 2
Slip indicator (P. 340)
EV drive mode indicator
( P. 252)
*1VSC (Vehicle Stability
Control) OFF indicator
( P. 341)
Snow mode indicator
( P. 258)
*1, 3
(if equipped)
Pre-crash safety system
warning light ( P. 348)

1142. Instrument cluster
LS600h/LS600hL_EE(OM50G20E)
*1: These lights come on when the power switch is turned to ON mode to indicate
that a system check is being performed. They will go off after the hybrid system is
on, or after a few seconds. There may be a malfunction in a system if the lights do
not come on, or go off. Have the vehi cle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off. The light flashes faster than
usual to indicate that the system is operating.
*4: In order to confirm operation, the BSM outside rear view mirror indicators illumi-
nate in the following situations:
• When the power switch is turned to ON mode while the BSM main switch is
set to ON.
• When the BSM main switch is set to ON while the power switch is in ON
mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators
will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction with the system.
If this occurs, have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
*1Parking brake
indicator ( P. 263)
*1“PASSENGER
AIR BAG” indica-
tor ( P. 61)
*4
(if equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators ( P. 366)
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on
when you start the hybrid system, this could mean that these systems are not avail-
able to help protect you in an accident, which could result in death or serious injury.
Have the vehicle inspected by any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional immediately if this occurs.

1152. Instrument cluster
2
Instrument cluster
LS600h/LS600hL_EE(OM50G20E)
When driving mode is in other than sport mode (P. 334)
When driving mode is in sport mode (P. 334)
The units used on the speedometer may differ depending on the target region.
Gauges and meters

1162. Instrument cluster
LS600h/LS600hL_EE(OM50G20E)

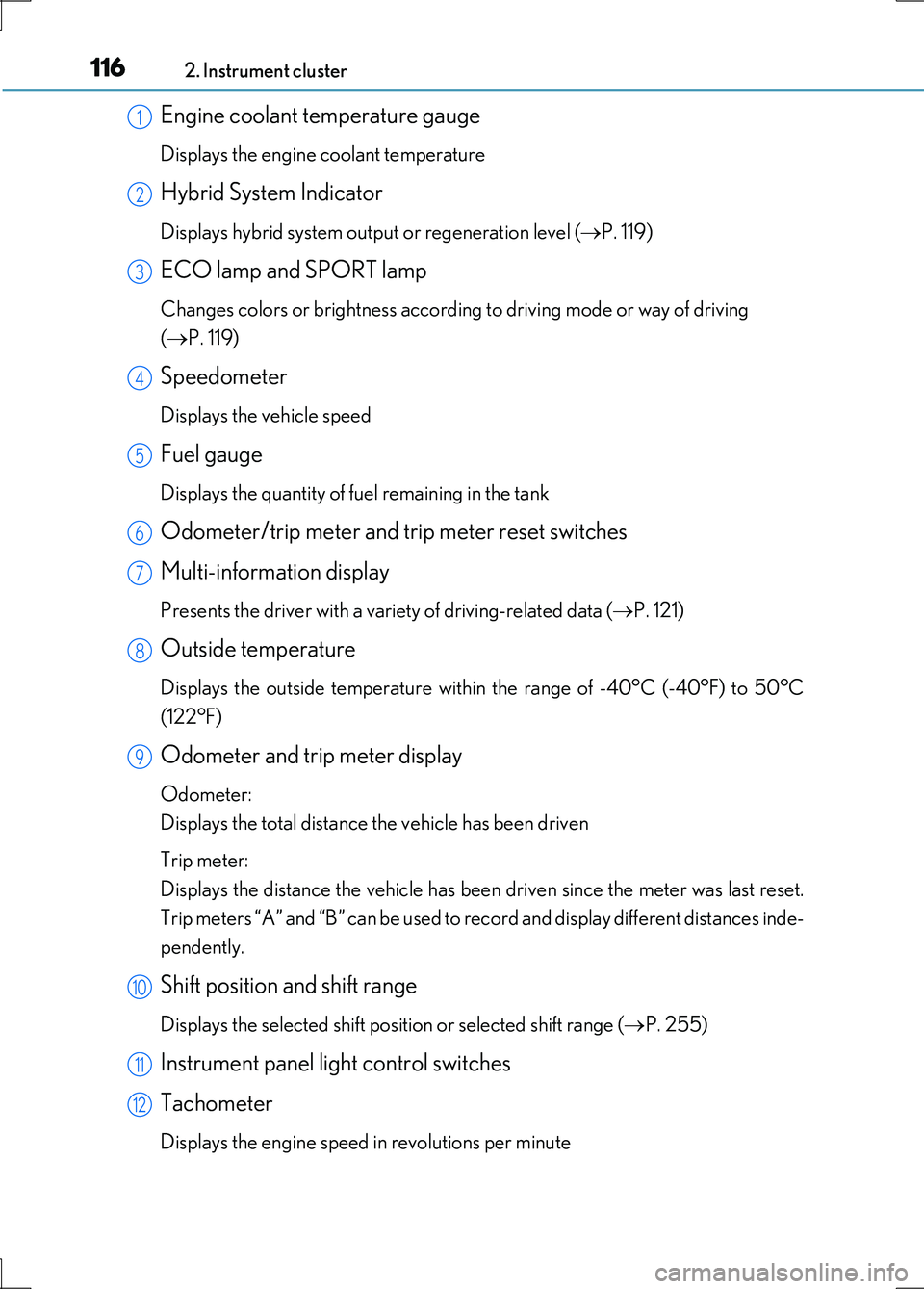

Engine coolant temperature gauge
Displays the engine coolant temperature
Hybrid System Indicator
Displays hybrid system output or regeneration level (P. 119)
ECO lamp and SPORT lamp
Changes colors or brightness according to driving mode or way of driving
( P. 119)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Odometer/trip meter and trip meter reset switches
Multi-information display
Presents the driver with a variety of driving-related data ( P. 121)
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F)
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances inde-
pendently.
Shift position and shift range
Displays the selected shift position or selected shift range ( P. 255)
Instrument panel light control switches
Tachometer
Displays the engine speed in revolutions per minute
1
2
3
4
5
6
7
8
9
10
11
12

1172. Instrument cluster
2
Instrument cluster
LS600h/LS600hL_EE(OM50G20E)
Switches the display
Resets the trip meter currently
displayed to “0”
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter

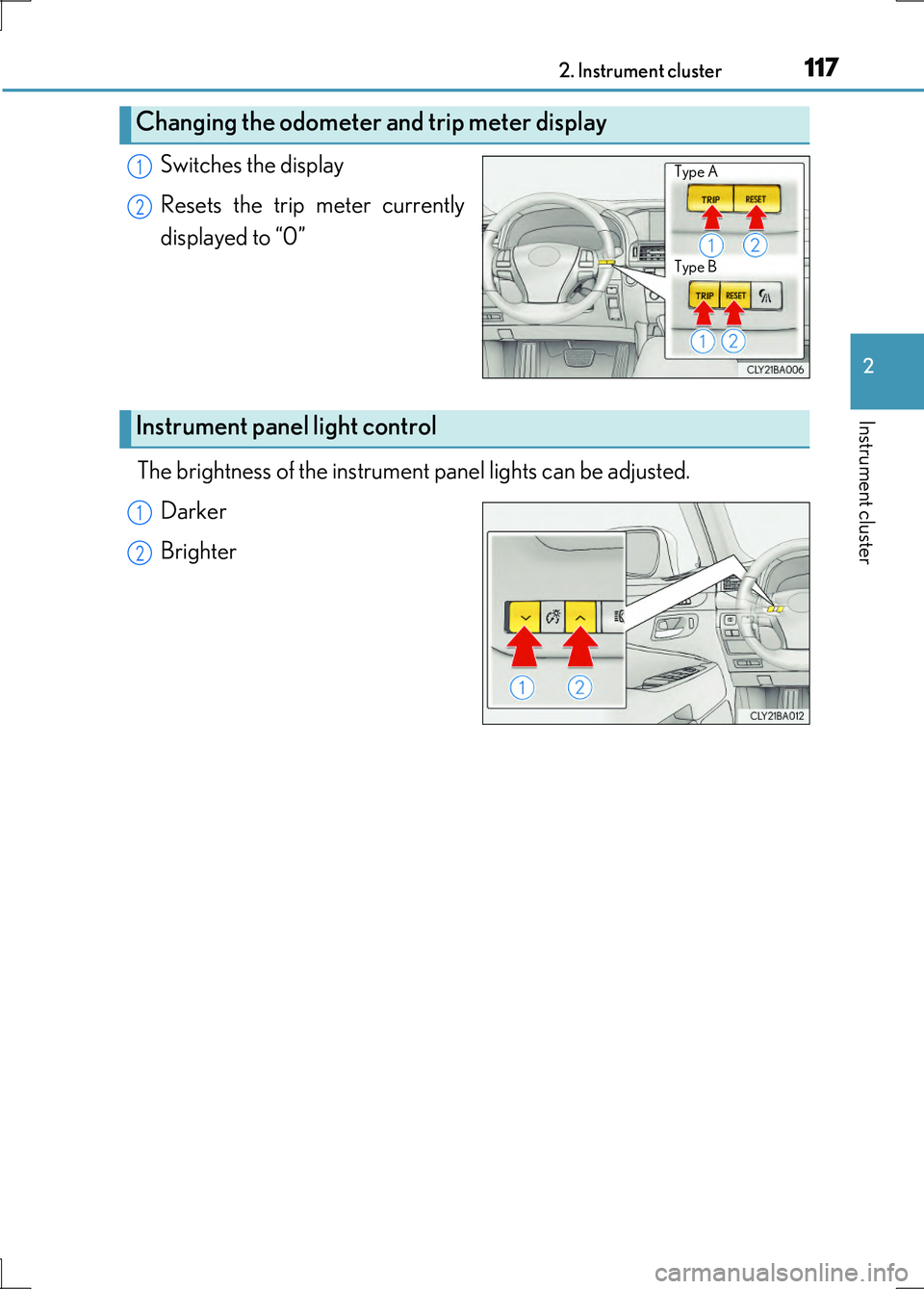

Changing the odometer and trip meter display
Type A
Type B
1
2
Instrument panel light control
1
2

1182. Instrument cluster
LS600h/LS600hL_EE(OM50G20E)
■The meters and display illuminate when
The power switch is in ON mode.
■Instrument panel brightness adjustment
●Meters:
The brightness level of the meters when the surroundings are bright (day mode)
and dark (night mode) can be adjusted individually. However, when in day mode,
adjusting the brightness level will also change the brightness level of night mode.
●Clock, air conditioning temperature display and switch lights:
The brightness level of the clock, air conditioning temperature display and switch
lights are linked with the brightness level of meter night mode.
■Light dimmer control (Changing to night mode)
The brightness level of the meter, clock and air conditioning temperature display
lights will change to night mode only wh en the surroundings are dark and the tail
lights are on.
■Automatic adjustment of the brightness level of the meters
The brightness level of the meters will be adjusted automatically according to the
brightness of the surroundings detected by the light sensor. However, the brightness
level of the meters will not be adjusted automatically in the following conditions.
●Day mode: When the brightness of the meter is adjusted to the brightest manually
●Night mode: When the brightness of the meter is adjusted to the brightest or dark-
est manually

1192. Instrument cluster
2
Instrument cluster
LS600h/LS600hL_EE(OM50G20E)

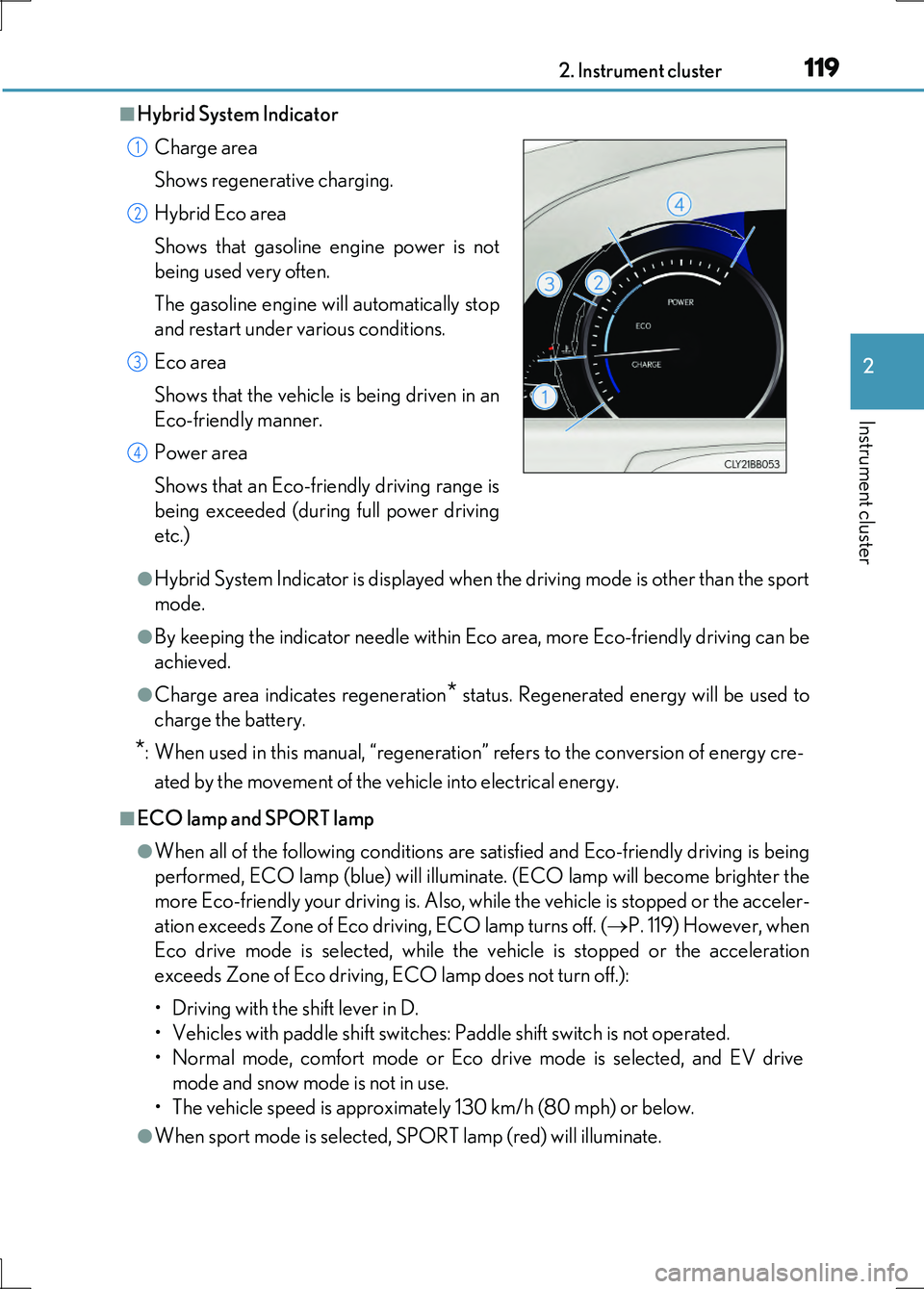

■Hybrid System Indicator
●Hybrid System Indicator is displayed when the driving mode is other than the sport
mode.
●By keeping the indicator needle within Eco area, more Eco-friendly driving can be
achieved.
●Charge area indicates regeneration* status. Regenerated energy will be used to
charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of energy cre-
ated by the movement of the vehicle into electrical energy.
■ECO lamp and SPORT lamp
●When all of the following conditions are satisfied and Eco-friendly driving is being
performed, ECO lamp (blue) will illuminate. (ECO lamp will become brighter the
more Eco-friendly your driving is. Also, while the vehicle is stopped or the acceler-
ation exceeds Zone of Eco driving, ECO lamp turns off. ( P. 119) However, when
Eco drive mode is selected, while the vehicle is stopped or the acceleration
exceeds Zone of Eco driving, ECO lamp does not turn off.):
• Driving with the shift lever in D.
• Vehicles with paddle shift switches: Paddle shift switch is not operated.
• Normal mode, comfort mode or Eco drive mode is selected, and EV drive
mode and snow mode is not in use.
• The vehicle speed is approximately 130 km/h (80 mph) or below.
●When sport mode is selected, SPORT lamp (red) will illuminate.
Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.
Eco area
Shows that the vehicle is being driven in an
Eco-friendly manner.
Power area
Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)
1
2
3
4

1202. Instrument cluster
LS600h/LS600hL_EE(OM50G20E)

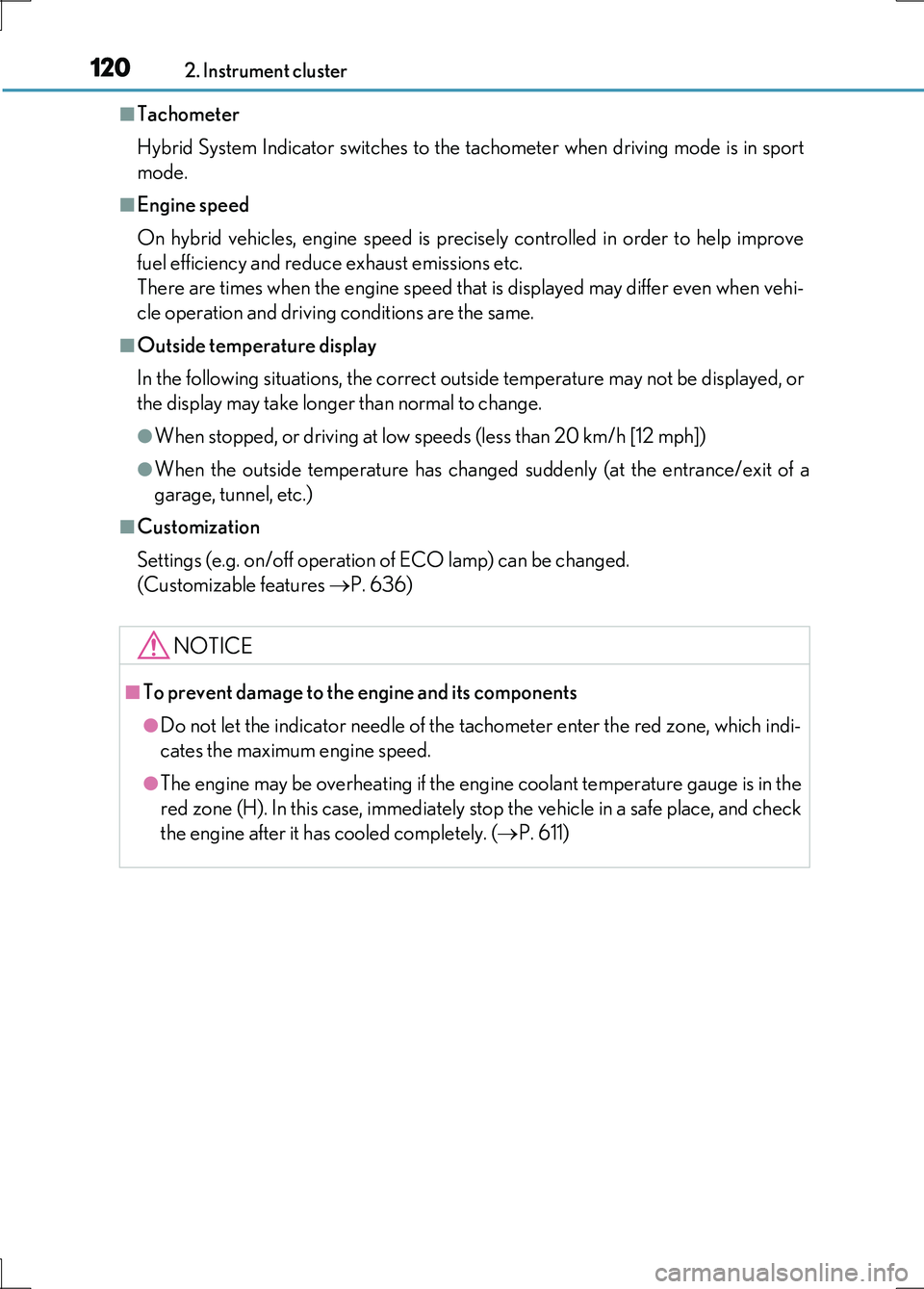

■Tachometer
Hybrid System Indicator switches to the tachometer when driving mode is in sport
mode.
■Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help improve
fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even when vehi-
cle operation and driving conditions are the same.
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 20 km/h [12 mph])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
■Customization
Settings (e.g. on/off operation of ECO lamp) can be changed.
(Customizable features P. 636)
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. ( P. 611)
