811-1. For safe use
1
For safety and security
LS600h/LS600hL_EE(OM50G20E)
CAUTION

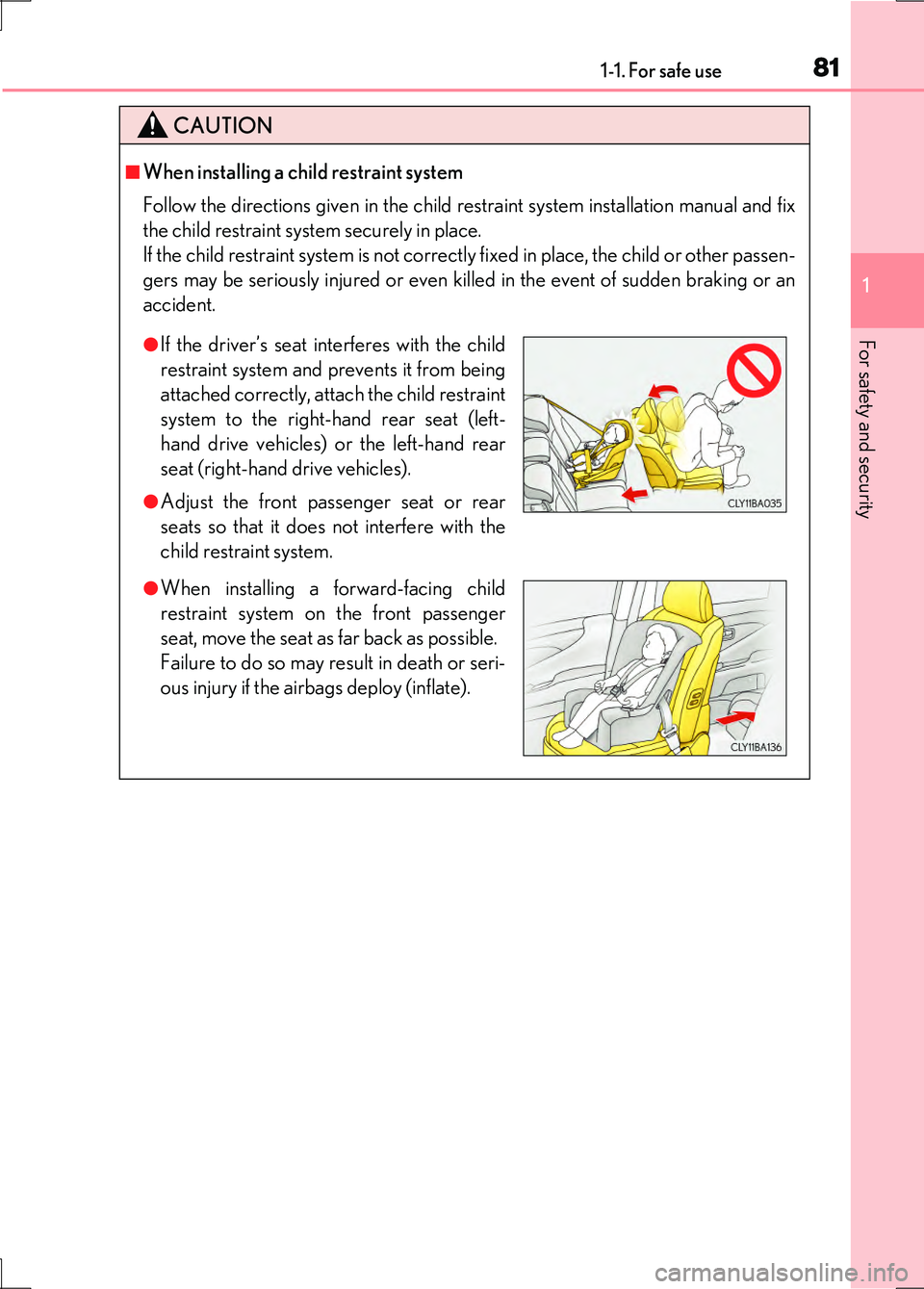

■When installing a child restraint system
Follow the directions given in the child restraint system installation manual and fix
the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other passen-
gers may be seriously injured or even killed in the event of sudden braking or an
accident.
●If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand rear seat (left-
hand drive vehicles) or the left-hand rear
seat (right-hand drive vehicles).
●Adjust the front passenger seat or rear
seats so that it does not interfere with the
child restraint system.
●When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as possible.
Failure to do so may result in death or seri-
ous injury if the airbags deploy (inflate).

821-1. For safe use
LS600h/LS600hL_EE(OM50G20E)
CAUTION
■When installing a child restraint system

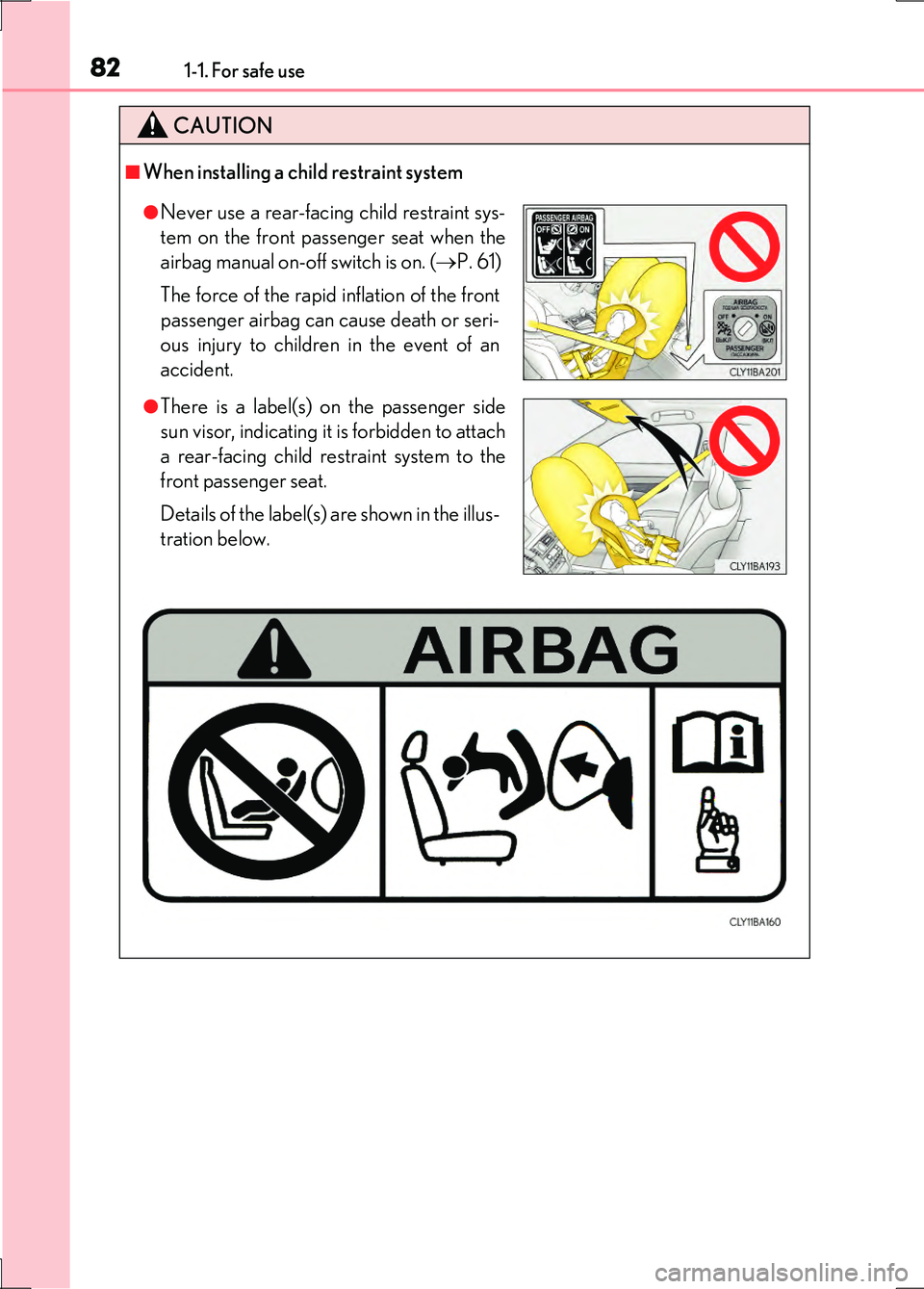

●Never use a rear-facing child restraint sys-
tem on the front passenger seat when the
airbag manual on-off switch is on. ( P. 61)
The force of the rapid inflation of the front
passenger airbag can cause death or seri-
ous injury to children in the event of an
accident.
●There is a label(s) on the passenger side
sun visor, indicating it is forbidden to attach
a rear-facing child restraint system to the
front passenger seat.
Details of the label(s) are shown in the illus-
tration below.

831-1. For safe use
1
For safety and security
LS600h/LS600hL_EE(OM50G20E)
CAUTION
■When installing a child restraint system

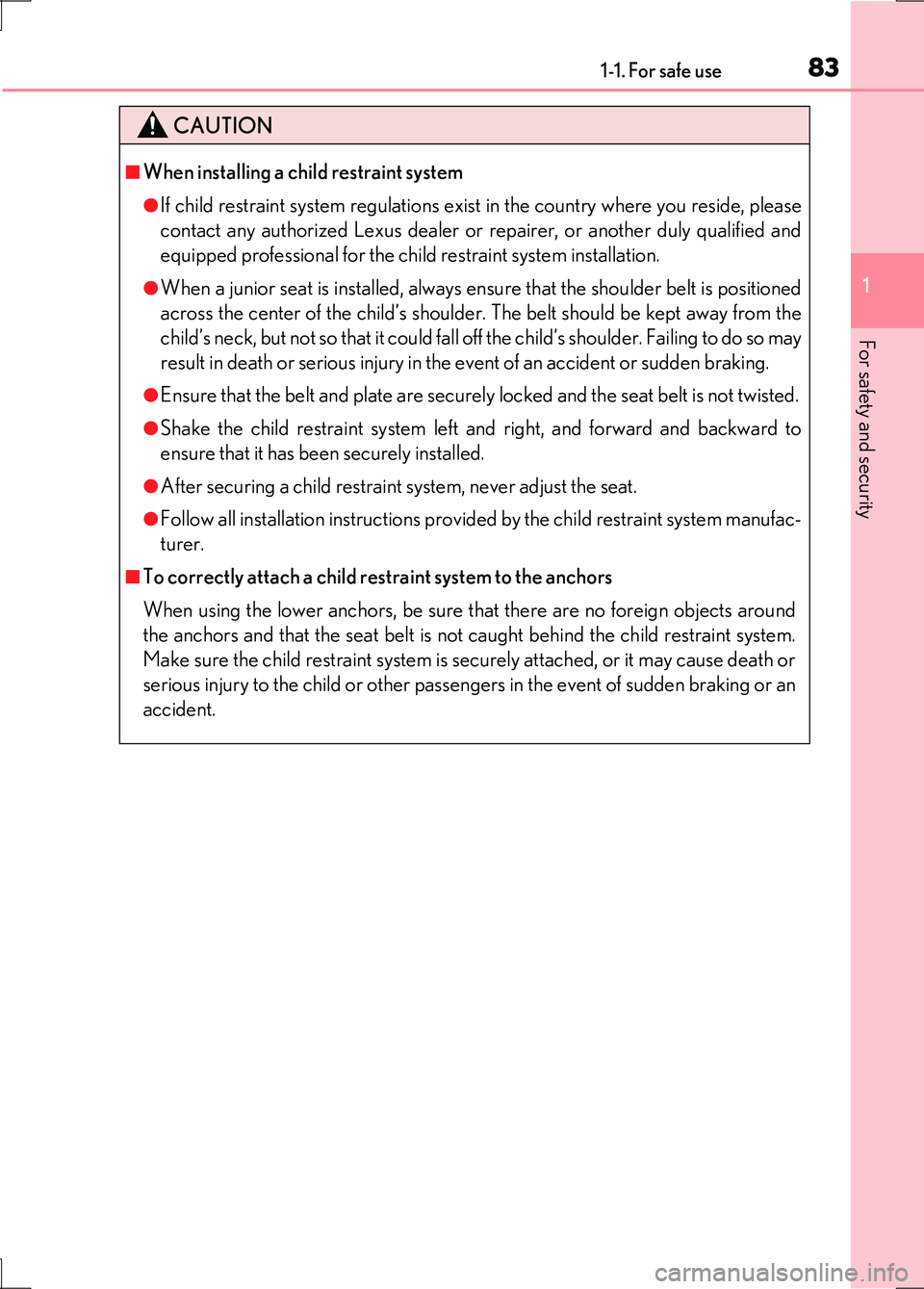

●If child restraint system regulations exist in the country where you reside, please
contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional for the child restraint system installation.
●When a junior seat is installed, always ensure that the shoulder belt is positioned
across the center of the child’s shoulder. The belt should be kept away from the
child’s neck, but not so that it could fall of f the child’s shoulder. Failing to do so may
result in death or serious injury in the event of an accident or sudden braking.
●Ensure that the belt and plate are securely locked and the seat belt is not twisted.
●Shake the child restraint system left and right, and forward and backward to
ensure that it has been securely installed.
●After securing a child restraint system, never adjust the seat.
●Follow all installation instructions provided by the child restraint system manufac-
turer.
■To correctly attach a child restraint system to the anchors
When using the lower anchors, be sure that there are no foreign objects around
the anchors and that the seat belt is not caught behind the child restraint system.
Make sure the child restraint system is securely attached, or it may cause death or
serious injury to the child or other passengers in the event of sudden braking or an
accident.

841-1. For safe use
LS600h/LS600hL_EE(OM50G20E)

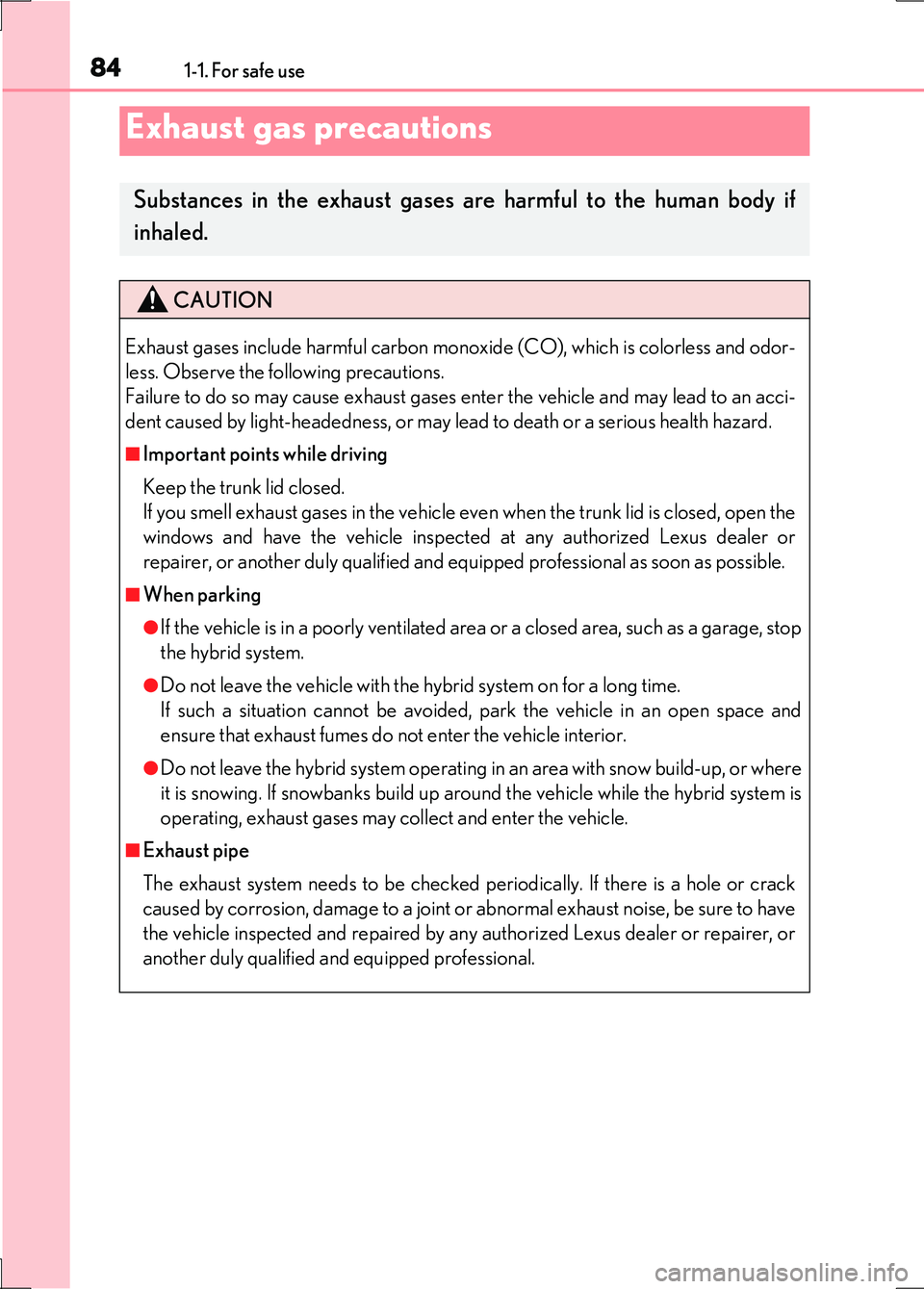

Exhaust gas precautions
Substances in the exhaust gases are harmful to the human body if
inhaled.
CAUTION
Exhaust gases include harmful carbon monoxide (CO), which is colorless and odor-
less. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to an acci-
dent caused by light-headedness, or may lead to death or a serious health hazard.
■Important points while driving
Keep the trunk lid closed.
If you smell exhaust gases in the vehicle even when the trunk lid is closed, open the
windows and have the vehicle inspected at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional as soon as possible.
■When parking
●If the vehicle is in a poorly ventilated area or a closed area, such as a garage, stop
the hybrid system.
●Do not leave the vehicle with the hybrid system on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and
ensure that exhaust fumes do not enter the vehicle interior.
●Do not leave the hybrid system operating in an area with snow build-up, or where
it is snowing. If snowbanks build up around the vehicle while the hybrid system is
operating, exhaust gases may collect and enter the vehicle.
■Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or crack
caused by corrosion, damage to a joint or abnormal exhaust noise, be sure to have
the vehicle inspected and repaired by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.

85
1
For safety and security
LS600h/LS600hL_EE(OM50G20E)
1-2. Hybrid system
Gasoline engine
Electric motor (traction motor)
Hybrid system features

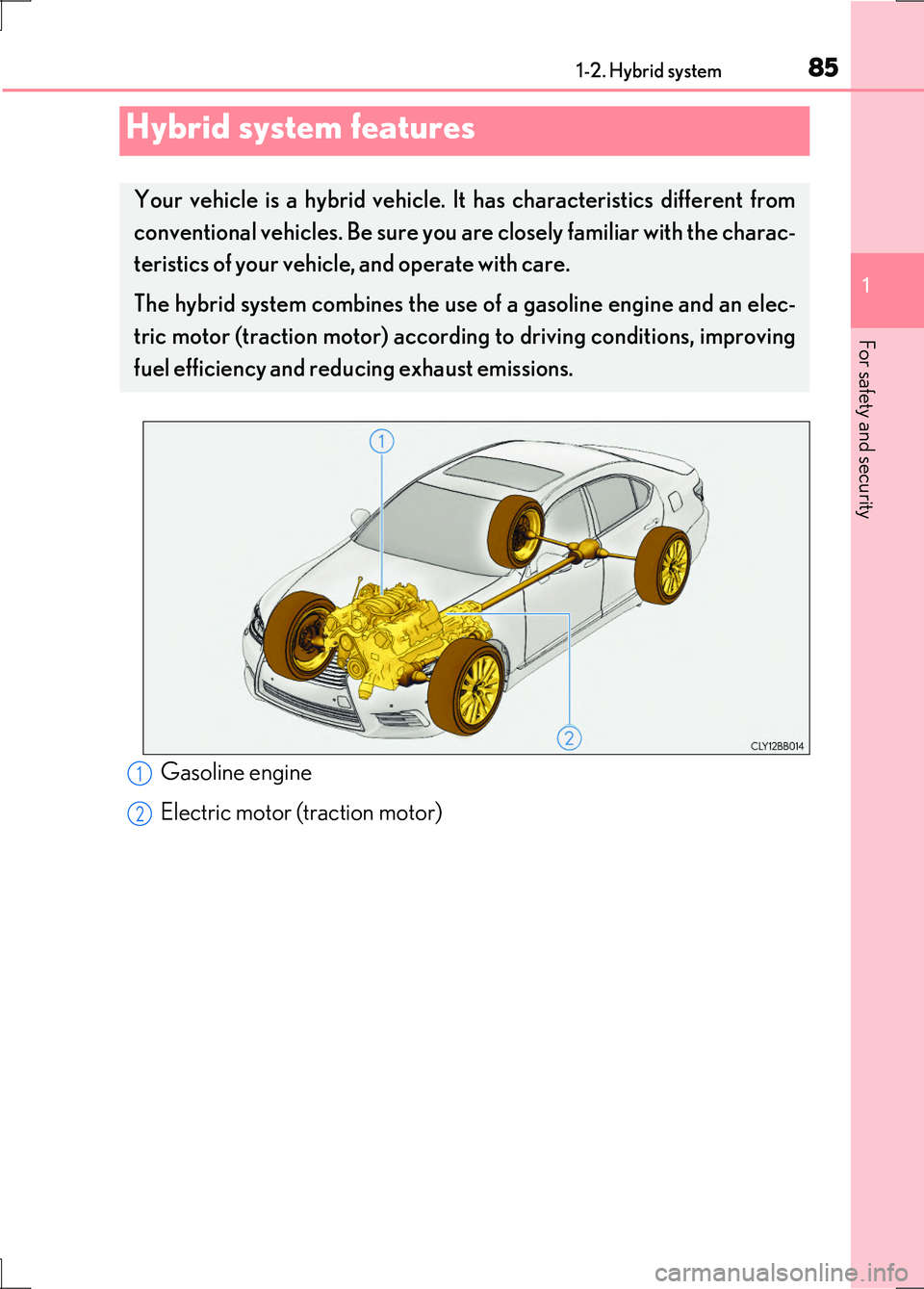

Your vehicle is a hybrid vehicle. It has characteristics different from
conventional vehicles. Be sure you ar e closely familiar with the charac-
teristics of your vehicle, and operate with care.
The hybrid system combines the use of a gasoline engine and an elec-
tric motor (traction motor) according to driving conditions, improving
fuel efficiency and redu cing exhaust emissions.
1
2

861-2. Hybrid system
LS600h/LS600hL_EE(OM50G20E)

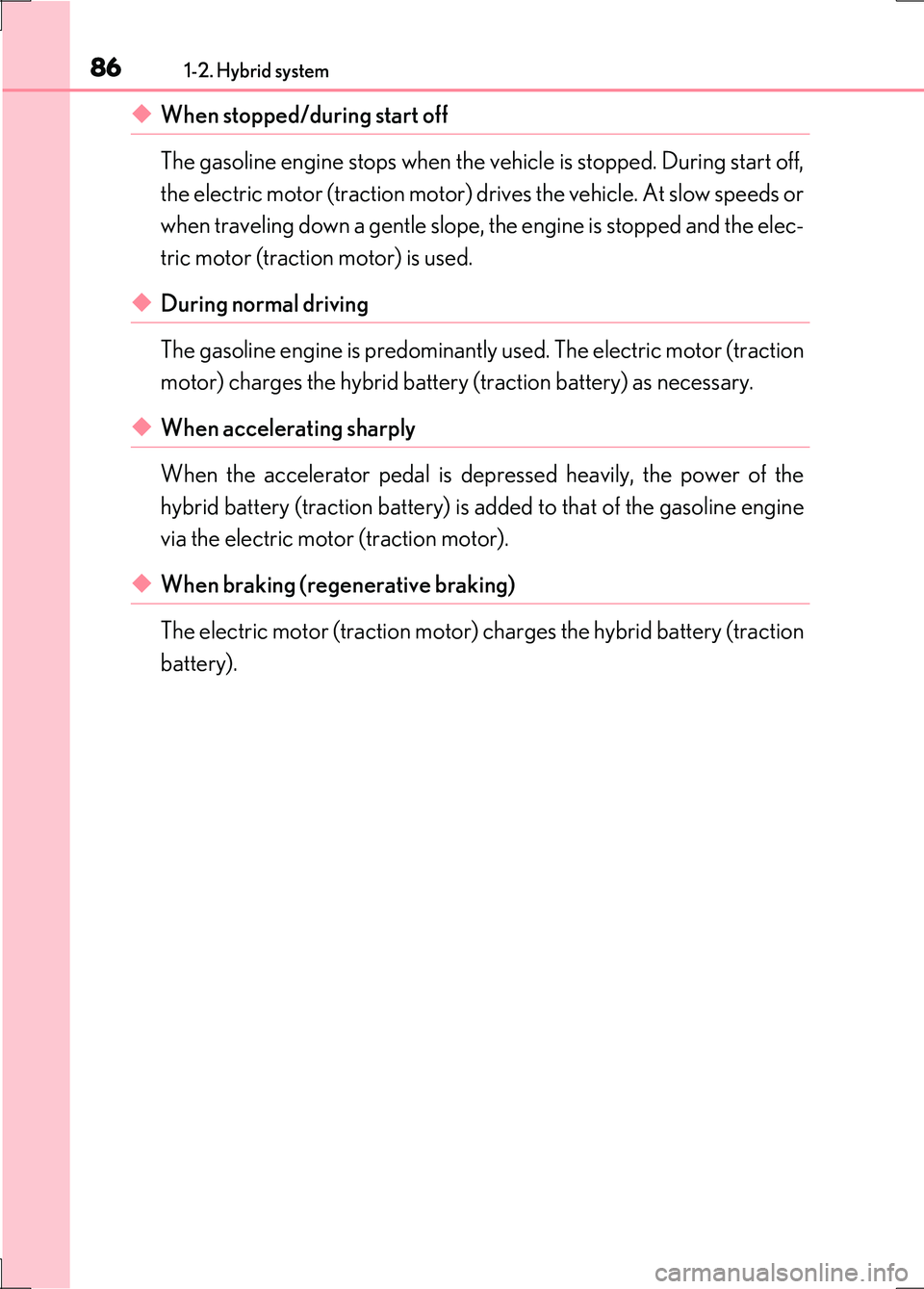

◆When stopped/during start off
The gasoline engine stops when the vehicle is stopped. During start off,
the electric motor (traction motor) drives the vehicle. At slow speeds or
when traveling down a gentle slope, the engine is stopped and the elec-
tric motor (traction motor) is used.
◆During normal driving
The gasoline engine is predominantly used. The electric motor (traction
motor) charges the hybrid battery (traction battery) as necessary.
◆When accelerating sharply
When the accelerator pedal is depressed heavily, the power of the
hybrid battery (traction battery) is added to that of the gasoline engine
via the electric motor (traction motor).
◆When braking (regenerative braking)
The electric motor (traction motor) charges the hybrid battery (traction
battery).

871-2. Hybrid system
1
For safety and security
LS600h/LS600hL_EE(OM50G20E)
■Regenerative braking
In the following situations, kinetic energy is converted to electric energy and decel-
eration force can be obtained in conjunction with the recharging of the hybrid bat-
tery (traction battery).
●The accelerator pedal is released while driving with the shift position in D or S.
●The brake pedal is depressed while driving with the shift position in D or S.
■EV indicator
■Conditions in which the ga soline engine may not stop
The gasoline engine starts and stops automatically. However, it may not stop auto-
matically in the following conditions:
●During gasoline engine warm-up
●During hybrid battery (traction battery) charging
●When the temperature of the hybrid battery (traction battery) is high or low
●When the heater is switched on
■Charging the hybrid battery (traction battery)
●As the gasoline engine charges the hybrid battery (traction battery), the battery
does not need to be charged from an outside source. However, if the vehicle is left
parked for a long time the hybrid battery will slowly discharge. For this reason, be
sure to drive the vehicle at least once every few months for at least 30 minutes or
16 km (10 miles). If the hybrid battery becomes fully discharged and you are unable
to jump-start the vehicle with the 12-volt battery, contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
●If the shift lever is in N, the hybrid ba ttery (traction battery) will not be charged.
Always put the shift lever in P when the vehicle is stopped. When driving in heavy
traffic, operate the vehicle with the shift lever in D or S to avoid discharging the bat-
tery.
●To help prevent the 12-volt battery from becoming discharged, drive the vehicle at
least once a month, and operate the accessories only when the “READY” indicator
is on. When parking the vehicle, make sure the doors and trunk are closed and all
lights are turned off.
The EV indicator comes on when the vehicle
is driven using only the electric motor (trac-
tion motor) or the gasoline engine is stopped.

881-2. Hybrid system
LS600h/LS600hL_EE(OM50G20E)
■Charging the 12-volt battery
 P. 609
■After the 12-volt battery has discharged or has been changed or removed
The gasoline engine may not stop even if the vehicle is running on the hybrid battery
(traction battery). If this continues for a few days, contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
■Sounds and vibrations specific to a hybrid vehicle
There may be no engine sounds or vibration even though the vehicle is able to move.
For safety, apply the parking brake and make sure to shift the shift lever to P when
parked.
The following sounds or vibrations may occur when the hybrid system is operating
and are not a malfunction:
●Motor sounds may be heard from the engine compartment.
●Sounds may be heard from the hybrid battery (traction battery) behind the rear
seats when the hybrid system starts or stops.
●Sounds from the hybrid system may be heard when the trunk lid is open.
●Sounds may be heard from the hybrid transmission when the hybrid system starts
or stops.
●Engine sounds may be heard when accelerating sharply.
●Sounds may be heard due to regenerative braking when the accelerator pedal is
released or the brake pedal is depressed.
●Vibration may be felt or sounds may be heard when the gasoline engine starts or
stops.
●Cooling fan sounds may be heard from the air intake vents on the package tray.
■Hybrid battery (traction battery) cooling
The air conditioning system may operate automatically to cool the hybrid battery
(traction battery).
■Maintenance, repair, re cycling, and disposal
Contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional regarding maintenance, repair, recycling and disposal. Do not
dispose of the vehicle yourself.
■Customization
Settings (e.g. on/off operation of the EV indicator) can be changed.
(Customizable features P. 634)

891-2. Hybrid system
1
For safety and security
LS600h/LS600hL_EE(OM50G20E)
Hybrid system precautions

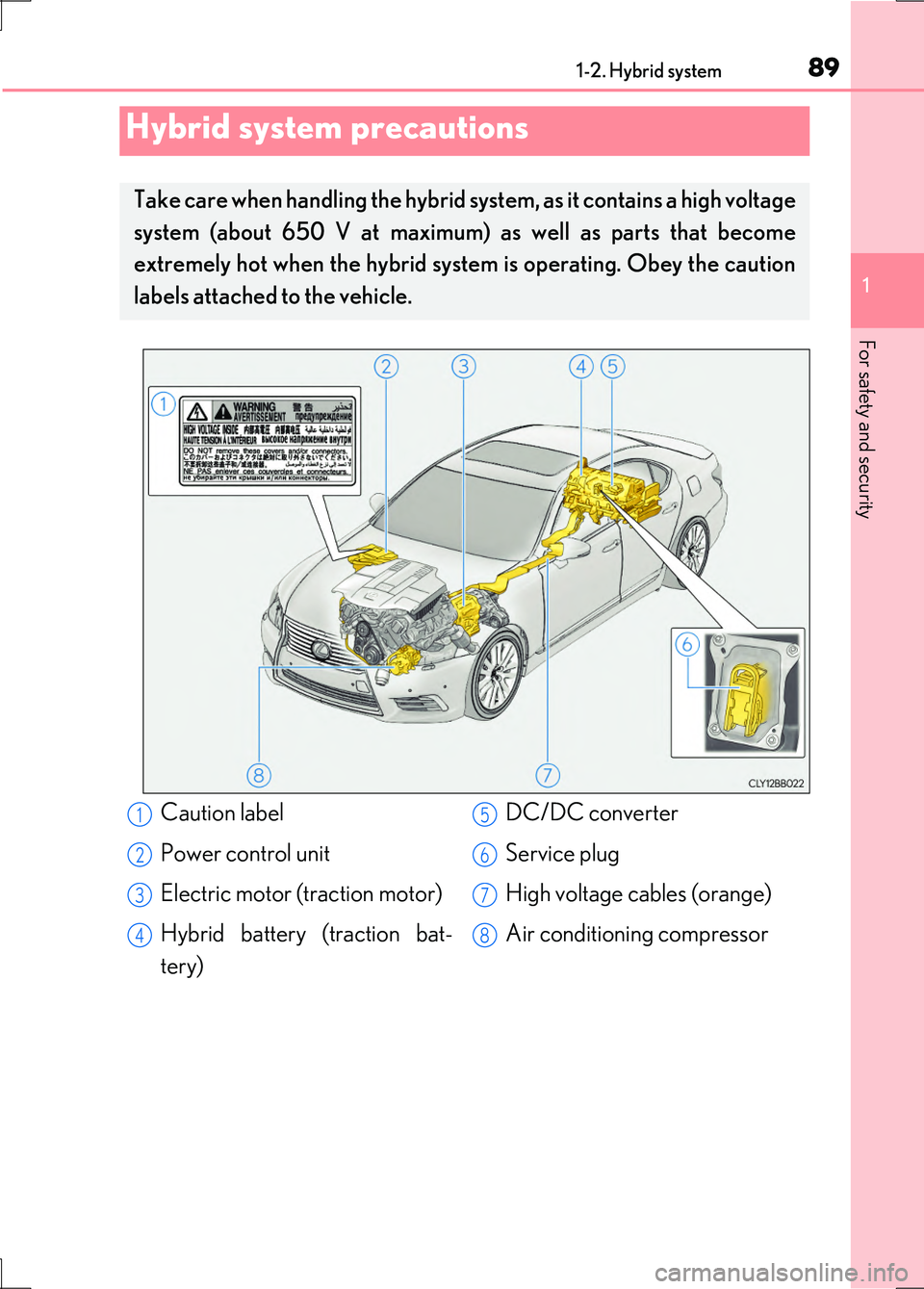

Take care when handling the hybrid system, as it contains a high voltage
system (about 650 V at maximum) as well as parts that become
extremely hot when the hybrid system is operating. Obey the caution
labels attached to the vehicle.
Caution label
Power control unit
Electric motor (traction motor)
Hybrid battery (traction bat-
tery)
DC/DC converter
Service plug
High voltage cables (orange)
Air conditioning compressor
1
2
3
4
5
6
7
8

901-2. Hybrid system
LS600h/LS600hL_EE(OM50G20E)
There are air intake vents on the
package tray for the purpose of
cooling the hybrid battery (traction
battery). If the vents become
blocked, the hybrid battery may
overheat, leading to a reduction in
hybrid battery output.
When a certain level of impact is detected by the impact sensor, the emer-
gency shut off system blocks off the high voltage current and stops the fuel
pump to minimize the risk of electrocution and fuel leakage. If the emer-
gency shut off system activates, your vehicle will not restart. To restart the
hybrid system, contact any authoriz ed Lexus dealer or repairer, or
another duly qualified and equipped professional.
A message is automatically displayed when a malfunction occurs in the
hybrid system or an improper operation is attempted.
If a warning message is shown on
the multi-information display, read
the message and follow the instruc-
tions.
Hybrid battery (traction battery) air vents
Emergency shut off system
Hybrid warning message
