LEXUS LS600H 2017 Owners Manual

4615-6. Other interior features
5
Interior features
LS600h/LS600hL_EE(OM50G20E)

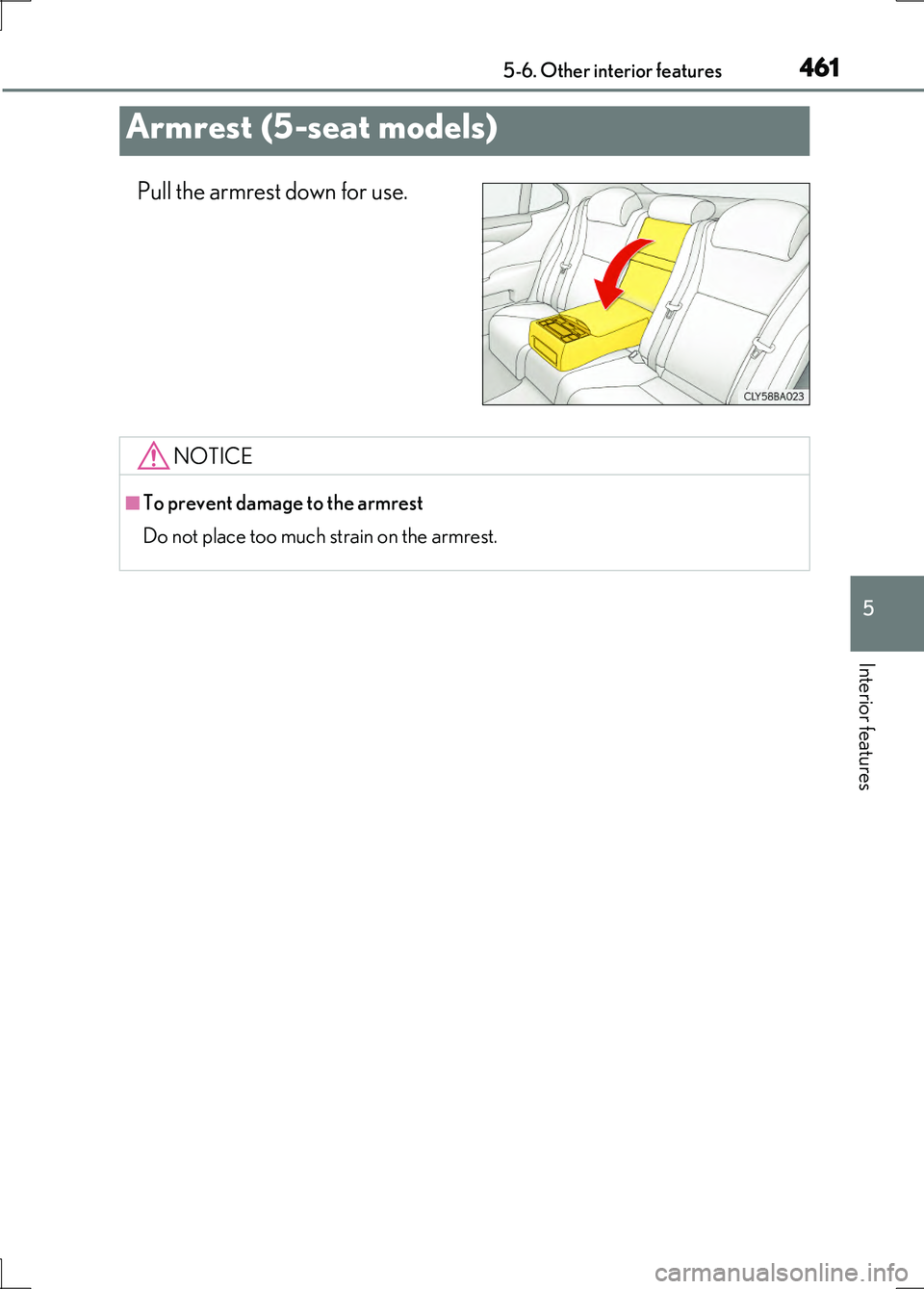

Pull the armrest down for use.
Armrest (5-seat models)
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.

4625-6. Other interior features
LS600h/LS600hL_EE(OM50G20E)

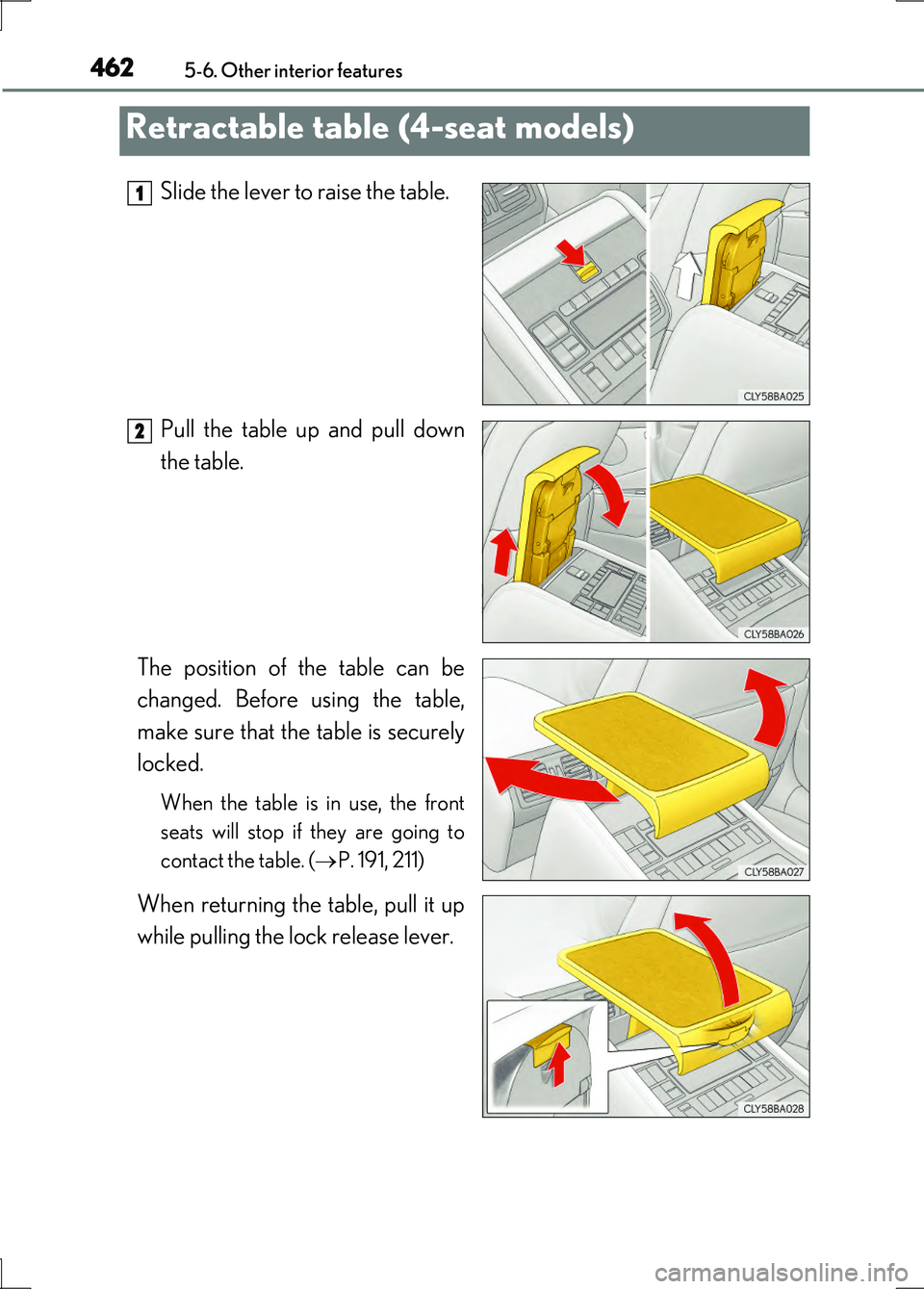

Slide the lever to raise the table.
Pull the table up and pull down
the table.
The position of the table can be
changed. Before using the table,
make sure that the table is securely
locked.
When the table is in use, the front
seats will stop if they are going to
contact the table. ( P. 191, 211)
When returning the table, pull it up
while pulling the lock release lever.
Retractable table (4-seat models)
1
2

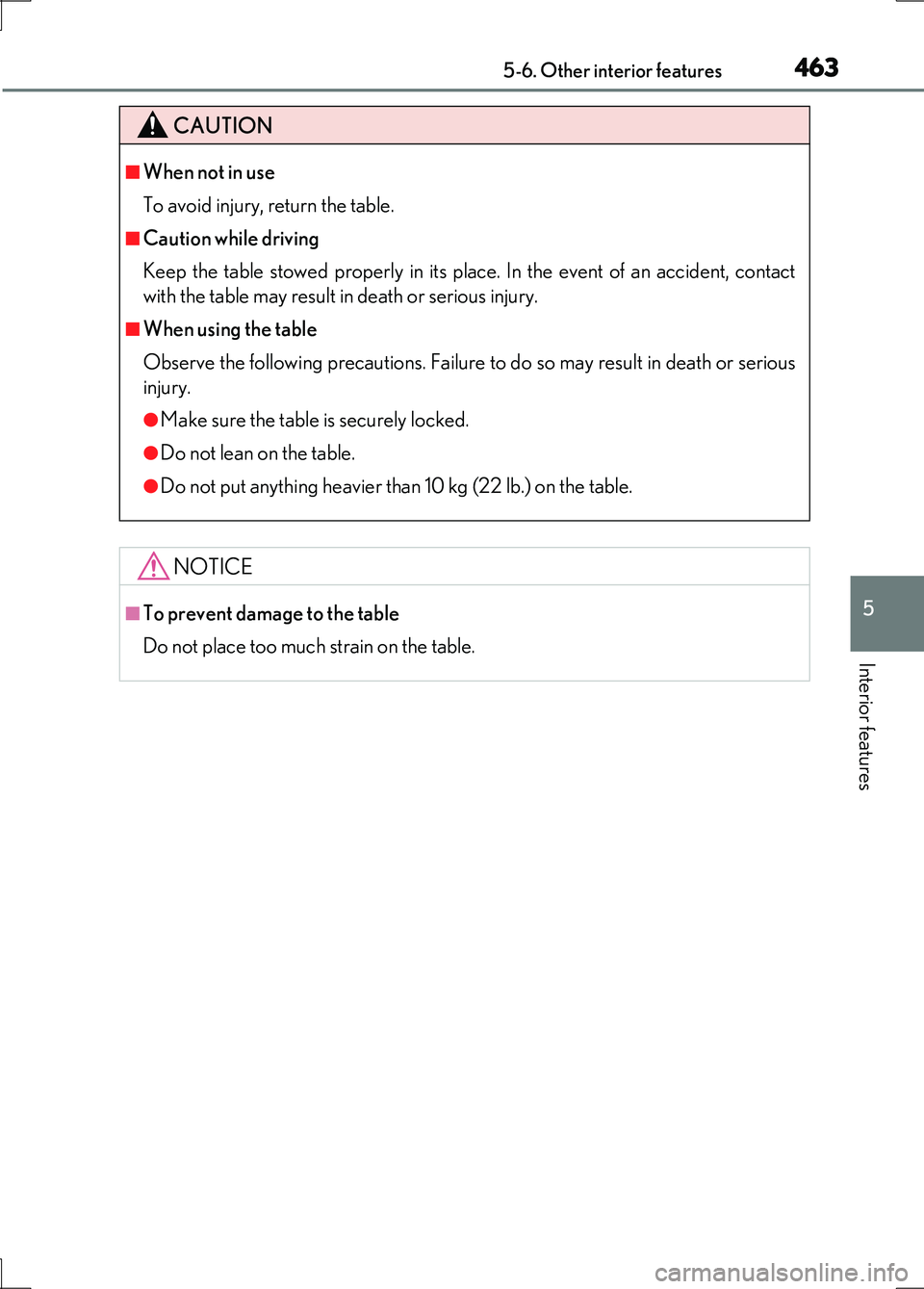

4635-6. Other interior features
5
Interior features
LS600h/LS600hL_EE(OM50G20E)
CAUTION
■When not in use
To avoid injury, return the table.
■Caution while driving
Keep the table stowed properly in its place. In the event of an accident, contact
with the table may result in death or serious injury.
■When using the table
Observe the following precautions. Failure to do so may result in death or serious
injury.
●Make sure the table is securely locked.
●Do not lean on the table.
●Do not put anything heavier than 10 kg (22 lb.) on the table.
NOTICE
■To prevent damage to the table
Do not place too much strain on the table.

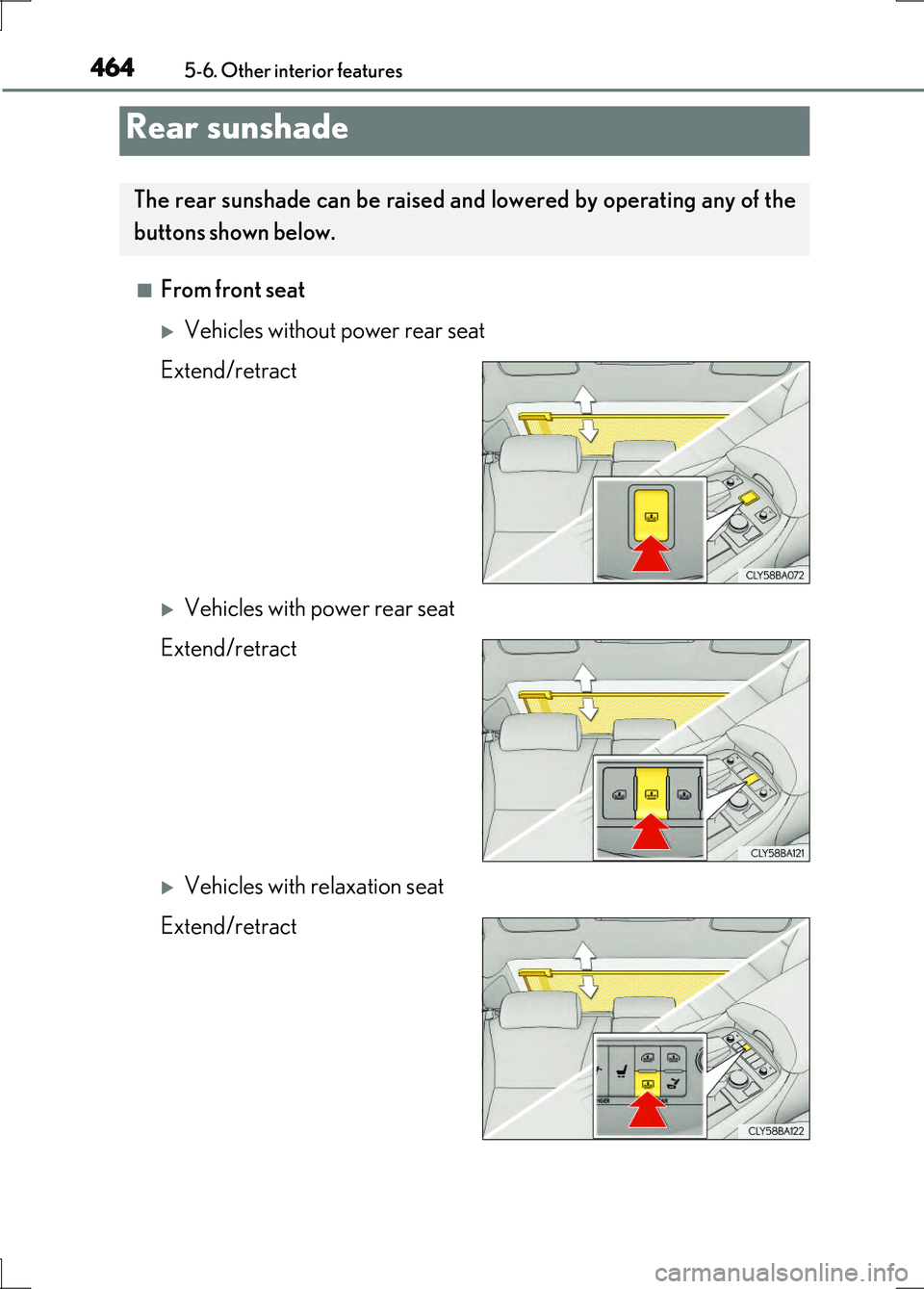

4645-6. Other interior features
LS600h/LS600hL_EE(OM50G20E)
■From front seat
Vehicles without power rear seat
Extend/retract
Vehicles with power rear seat
Extend/retract
Vehicles with relaxation seat
Extend/retract
Rear sunshade
The rear sunshade can be raised and lowered by operating any of the
buttons shown below.

4655-6. Other interior features
5
Interior features
LS600h/LS600hL_EE(OM50G20E)

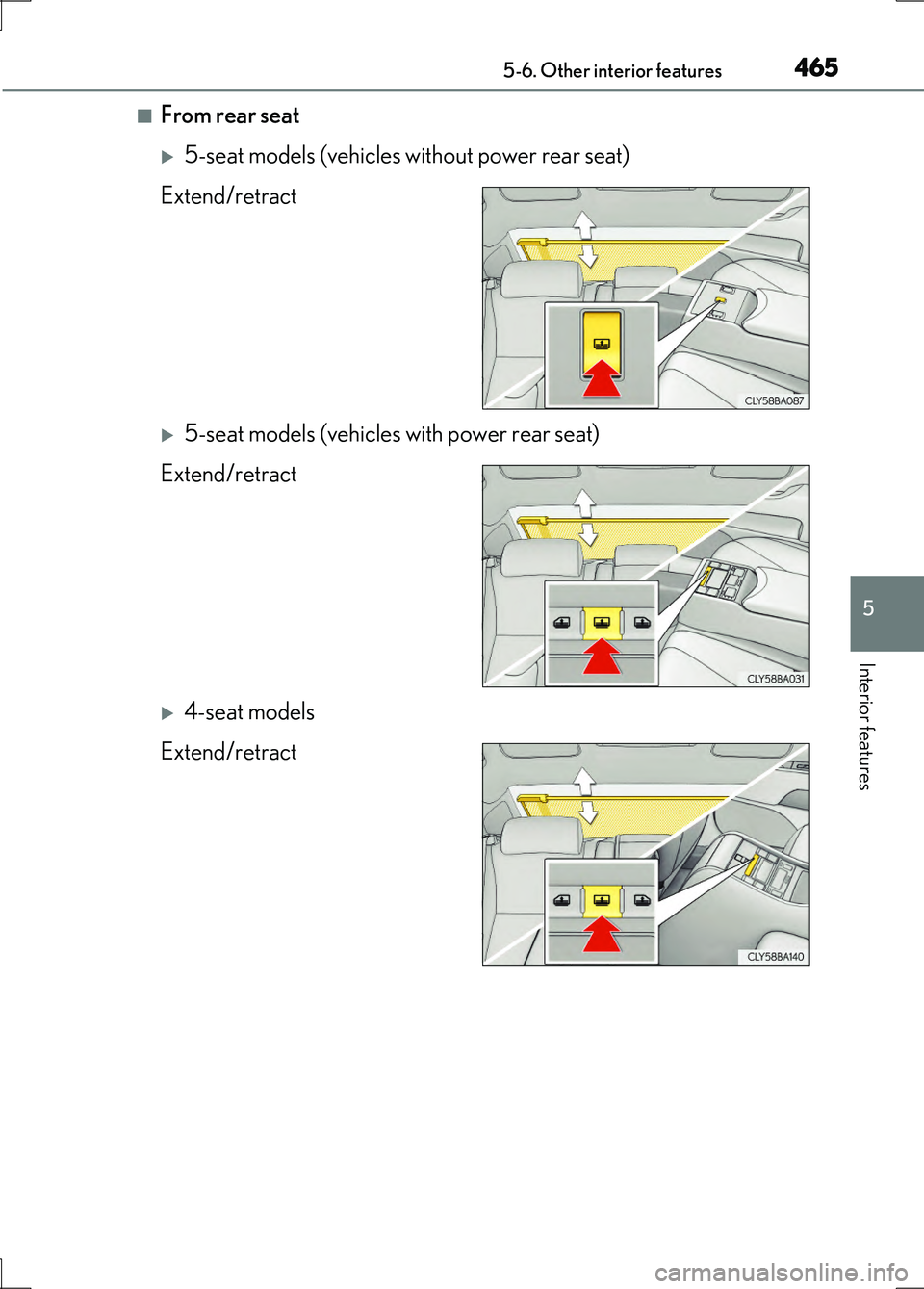

■From rear seat
5-seat models (vehicles without power rear seat)
Extend/retract
5-seat models (vehicles with power rear seat)
Extend/retract
4-seat models
Extend/retract

4665-6. Other interior features
LS600h/LS600hL_EE(OM50G20E)

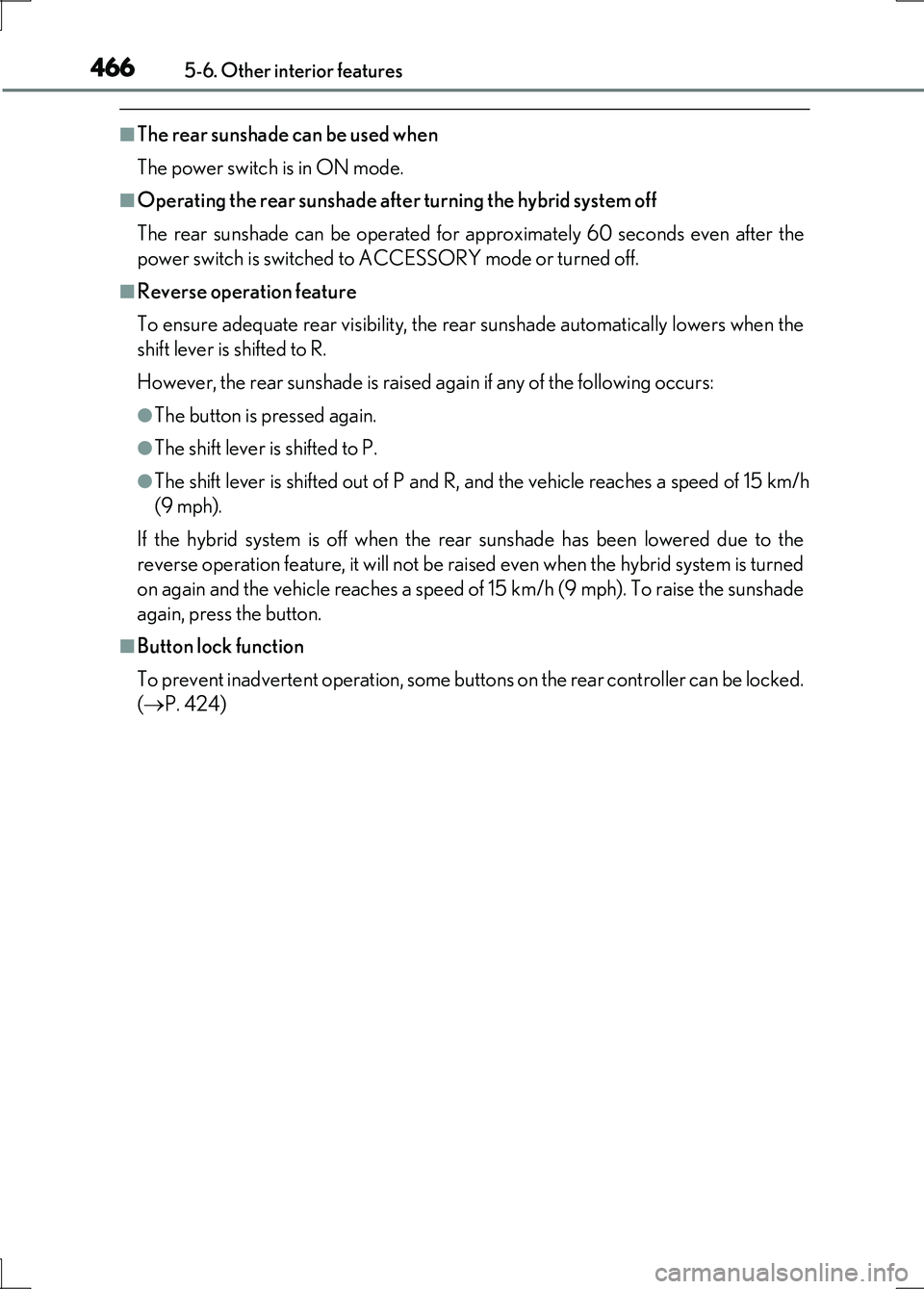

■The rear sunshade can be used when
The power switch is in ON mode.
■Operating the rear sunshade after turning the hybrid system off
The rear sunshade can be operated for approximately 60 seconds even after the
power switch is switched to ACCESSORY mode or turned off.
■Reverse operation feature
To ensure adequate rear visibility, the rear sunshade automatically lowers when the
shift lever is shifted to R.
However, the rear sunshade is raised again if any of the following occurs:
●The button is pressed again.
●The shift lever is shifted to P.
●The shift lever is shifted out of P and R, and the vehicle reaches a speed of 15 km/h
(9 mph).
If the hybrid system is off when the rear sunshade has been lowered due to the
reverse operation feature, it will not be raised even when the hybrid system is turned
on again and the vehicle reaches a speed of 15 km/h (9 mph). To raise the sunshade
again, press the button.
■Button lock function
To prevent inadvertent operation, some buttons on the rear controller can be locked.
( P. 424)

4675-6. Other interior features
5
Interior features
LS600h/LS600hL_EE(OM50G20E)

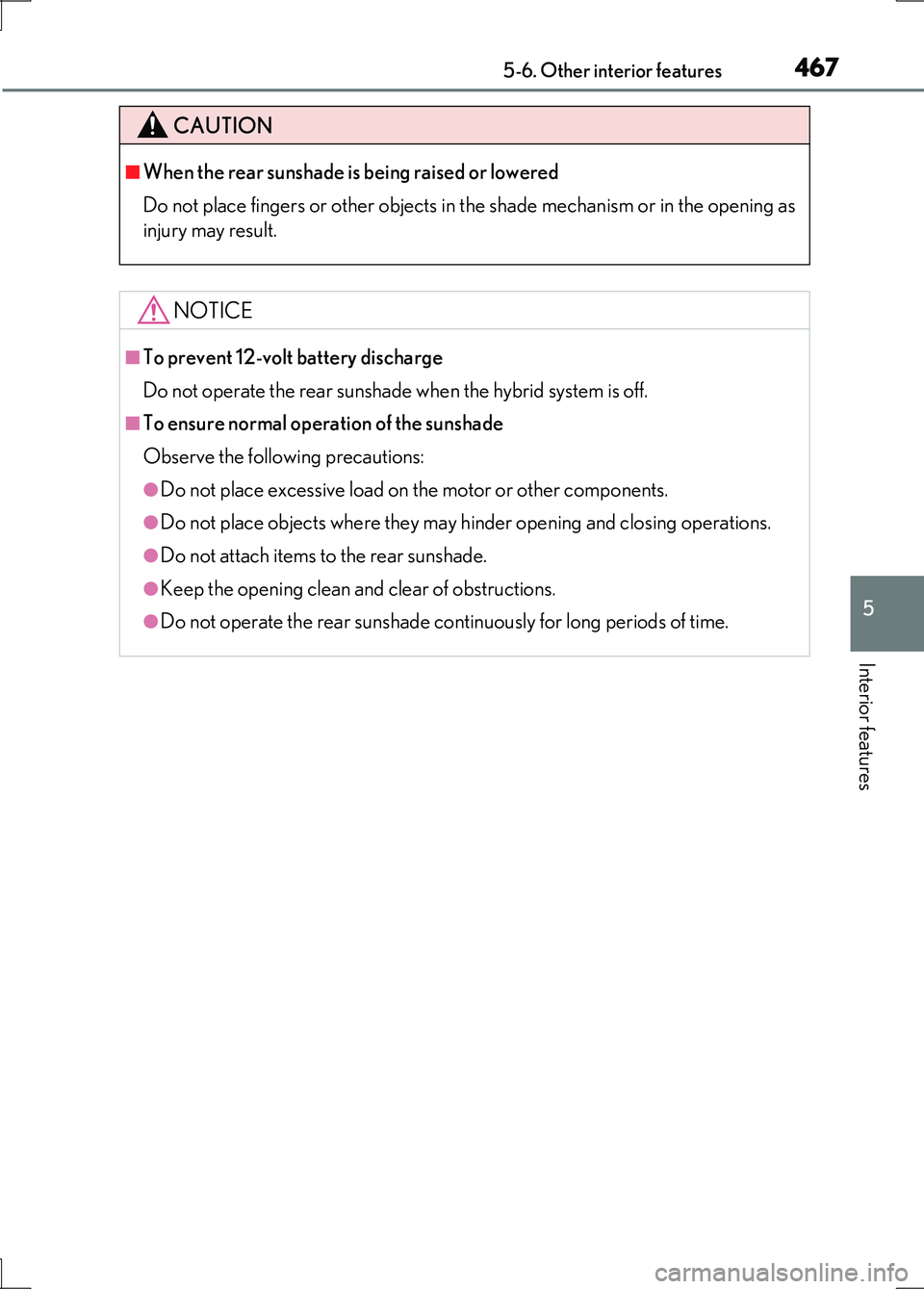

CAUTION
■When the rear sunshade is being raised or lowered
Do not place fingers or other objects in the shade mechanism or in the opening as
injury may result.
NOTICE
■To prevent 12-volt battery discharge
Do not operate the rear sunshade when the hybrid system is off.
■To ensure normal operation of the sunshade
Observe the following precautions:
●Do not place excessive load on the motor or other components.
●Do not place objects where they may hinder opening and closing operations.
●Do not attach items to the rear sunshade.
●Keep the opening clean and clear of obstructions.
●Do not operate the rear sunshade continuously for long periods of time.

4685-6. Other interior features
LS600h/LS600hL_EE(OM50G20E)

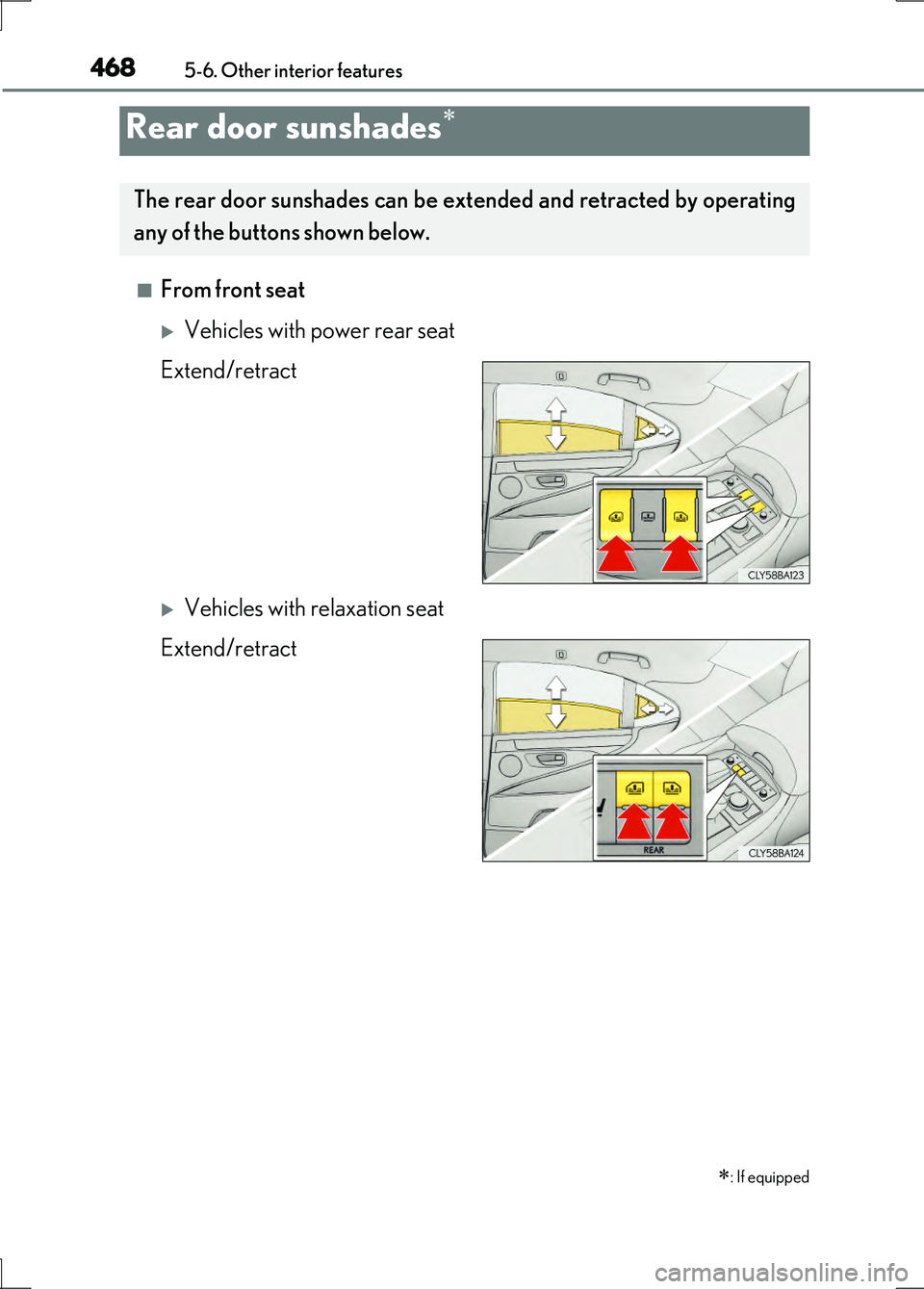

■From front seat
Vehicles with power rear seat
Extend/retract
Vehicles with relaxation seat
Extend/retract
Rear door sunshades
: If equipped
The rear door sunshades can be ex tended and retracted by operating
any of the buttons shown below.

4695-6. Other interior features
5
Interior features
LS600h/LS600hL_EE(OM50G20E)

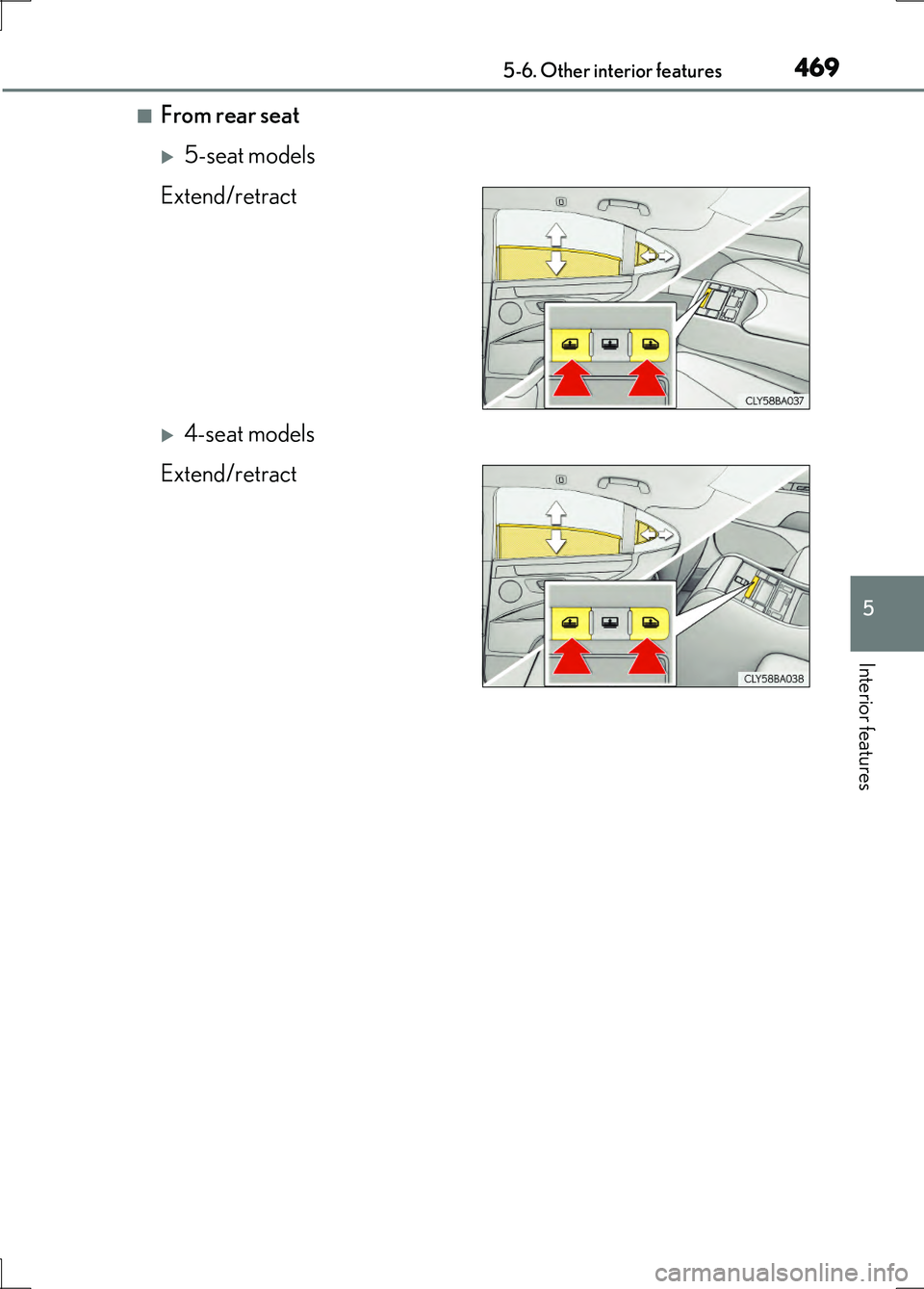

■From rear seat
5-seat models
Extend/retract
4-seat models
Extend/retract

4705-6. Other interior features
LS600h/LS600hL_EE(OM50G20E)

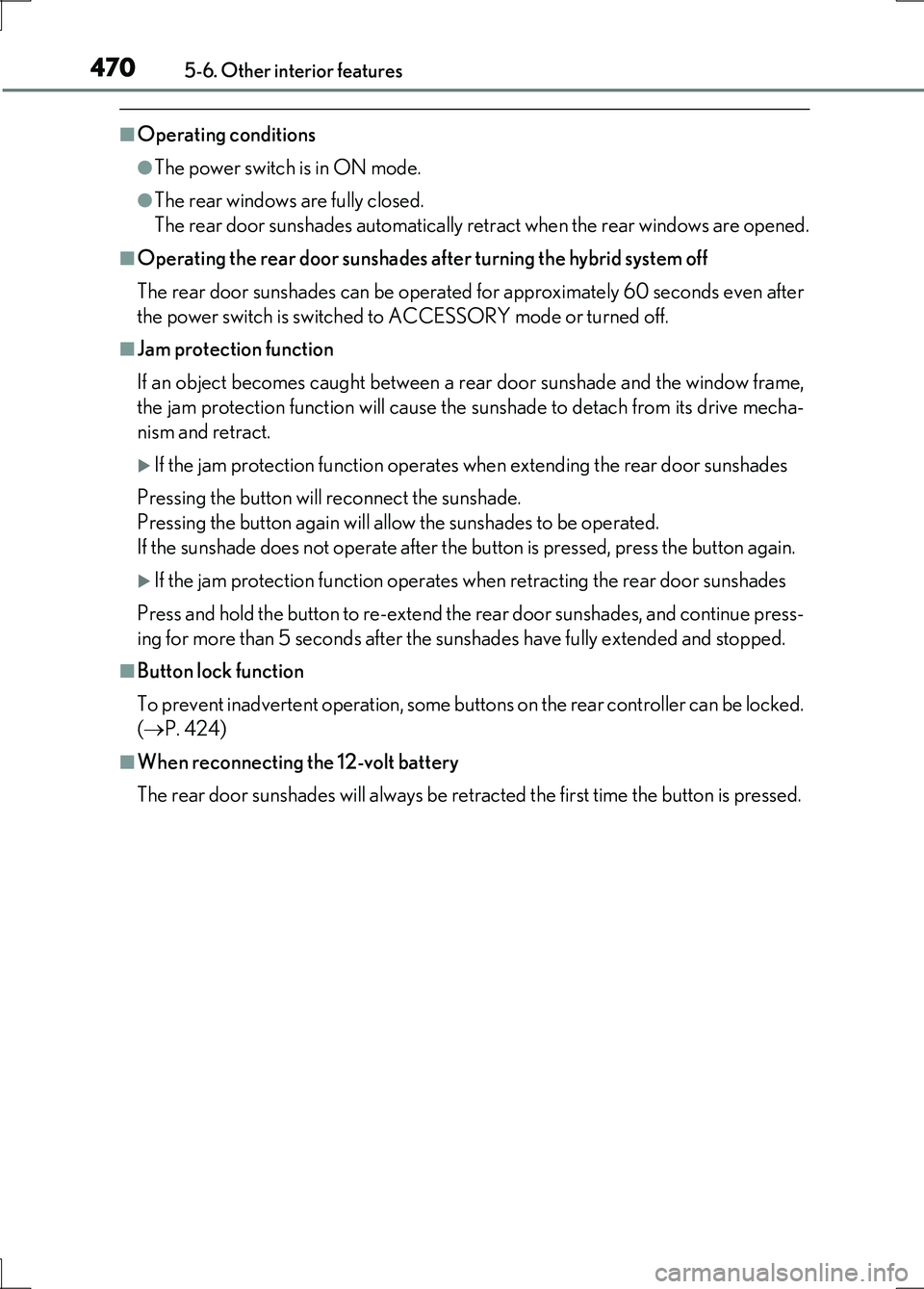

■Operating conditions
●The power switch is in ON mode.
●The rear windows are fully closed.
The rear door sunshades automatically retract when the rear windows are opened.
■Operating the rear door sunshades after turning the hybrid system off
The rear door sunshades can be operated for approximately 60 seconds even after
the power switch is switched to ACCESSORY mode or turned off.
■Jam protection function
If an object becomes caught between a rear door sunshade and the window frame,
the jam protection function will cause the sunshade to detach from its drive mecha-
nism and retract.
If the jam protection function operates when extending the rear door sunshades
Pressing the button will reconnect the sunshade.
Pressing the button again will allow the sunshades to be operated.
If the sunshade does not operate after the button is pressed, press the button again.
If the jam protection function operates when retracting the rear door sunshades
Press and hold the button to re-extend the rear door sunshades, and continue press-
ing for more than 5 seconds after the sunshades have fully extended and stopped.
■Button lock function
To prevent inadvertent operation, some buttons on the rear controller can be locked.
( P. 424)
■When reconnecting the 12-volt battery
The rear door sunshades will always be retracted the first time the button is pressed.
