LEXUS LS600H 2017 Owners Manual

431
5
Interior features
LS600h/LS600hL_EE(OM50G20E)
5-5. Using the storage features

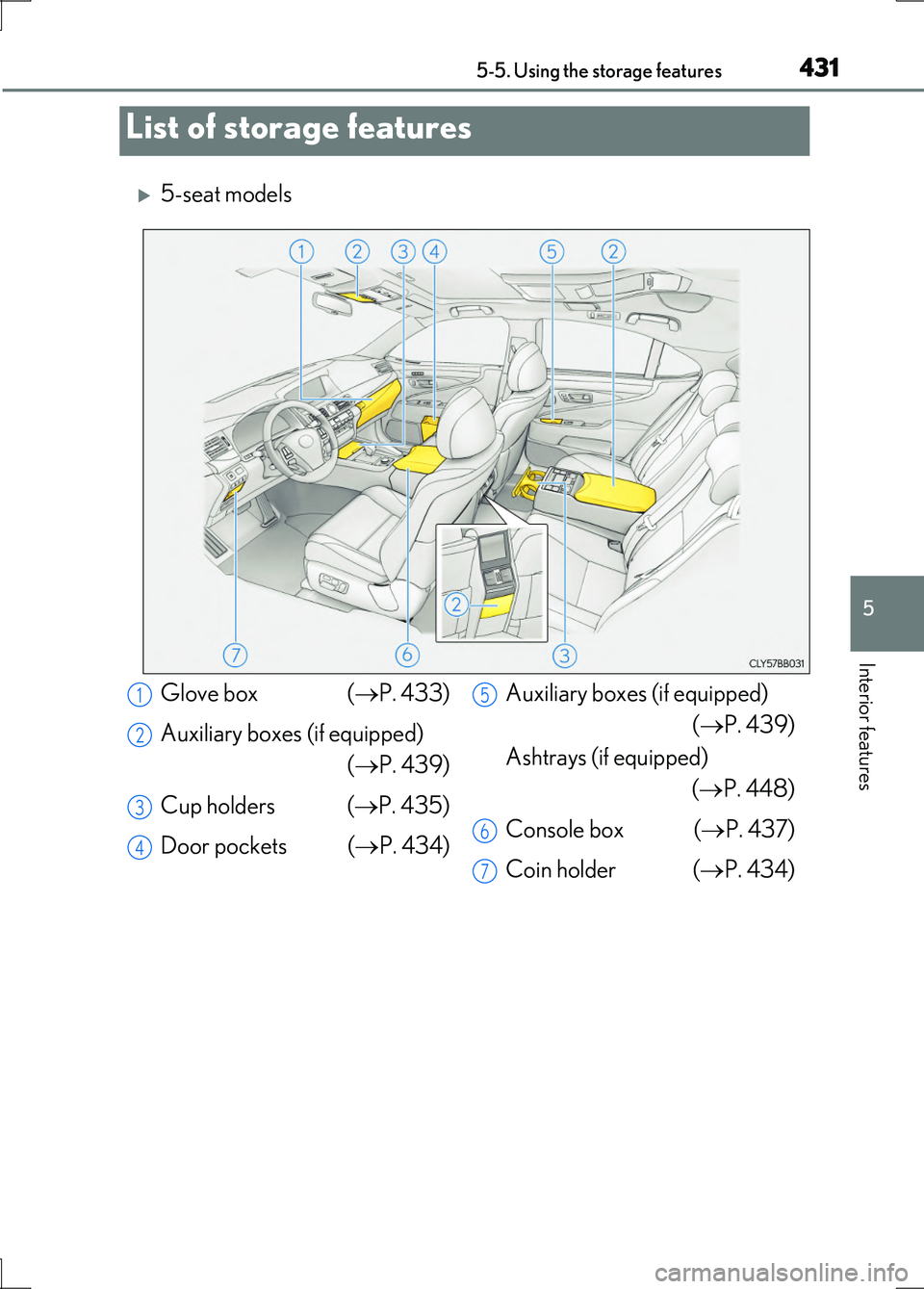

5-seat models
List of storage features
Glove box (P. 433)
Auxiliary boxes (if equipped)
( P. 439)
Cup holders ( P. 435)
Door pockets ( P. 434)
Auxiliary boxes (if equipped)
( P. 439)
Ashtrays (if equipped)
( P. 448)
Console box ( P. 437)
Coin holder ( P. 434)
1
2
3
4
5
6
7

4325-5. Using the storage features
LS600h/LS600hL_EE(OM50G20E)

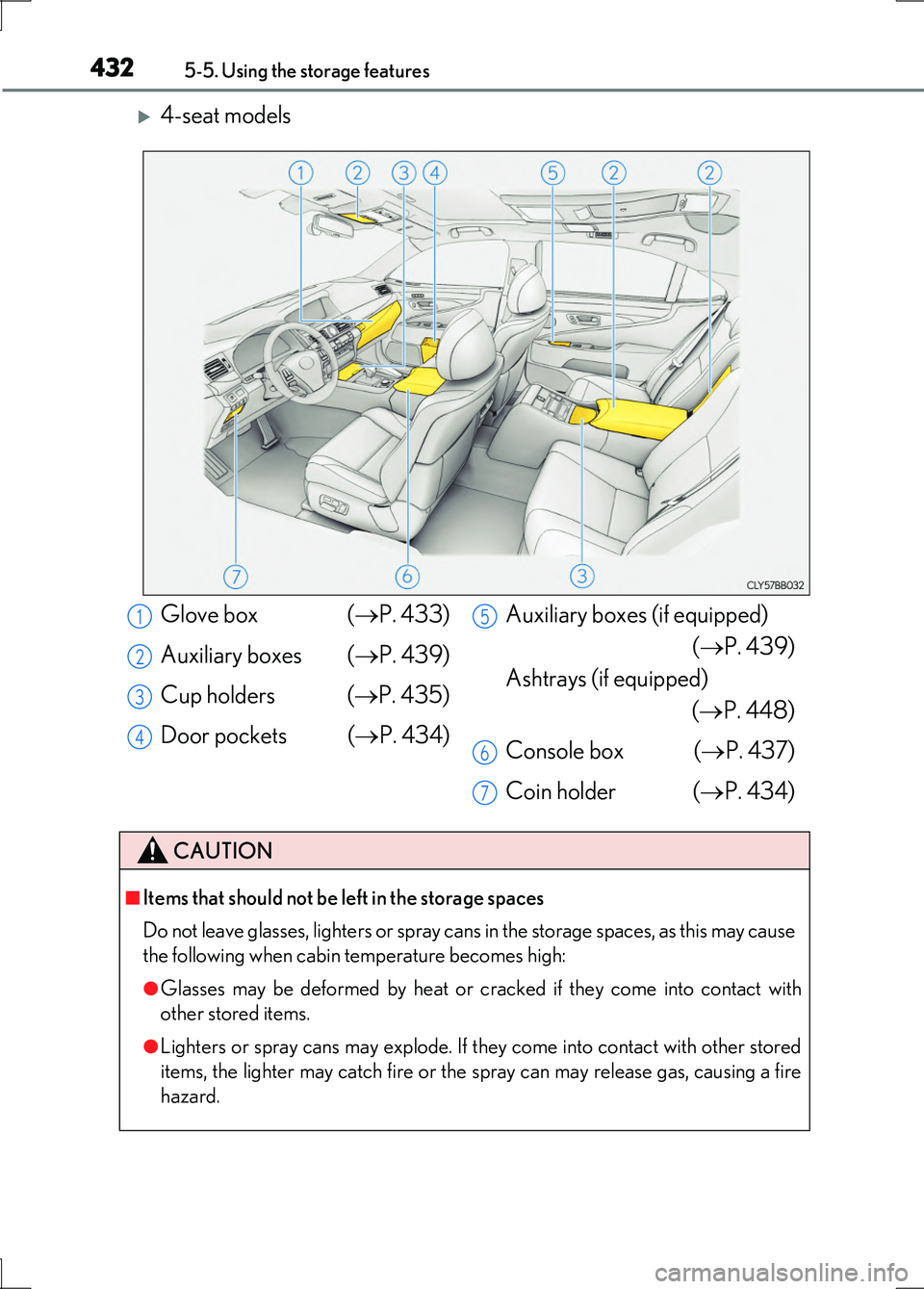

4-seat models
Glove box (P. 433)
Auxiliary boxes ( P. 439)
Cup holders ( P. 435)
Door pockets ( P. 434)
Auxiliary boxes (if equipped)
( P. 439)
Ashtrays (if equipped)
( P. 448)
Console box ( P. 437)
Coin holder ( P. 434)
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause
the following when cabin temperature becomes high:
●Glasses may be deformed by heat or cracked if they come into contact with
other stored items.
●Lighters or spray cans may explode. If they come into contact with other stored
items, the lighter may catch fire or the spray can may release gas, causing a fire
hazard.
1
2
3
4
5
6
7

4335-5. Using the storage features
5
Interior features
LS600h/LS600hL_EE(OM50G20E)

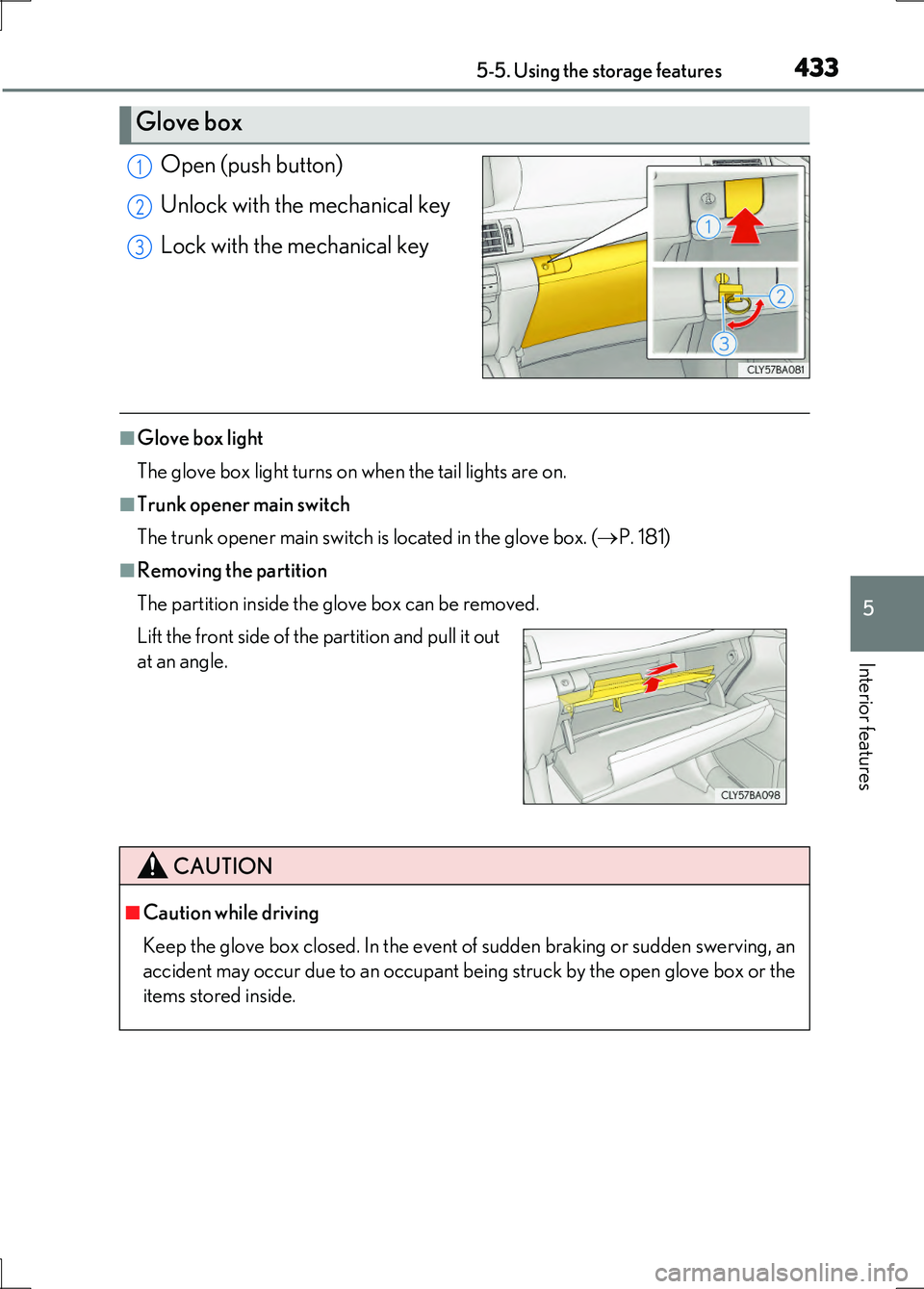

Open (push button)
Unlock with the mechanical key
Lock with the mechanical key
■Glove box light
The glove box light turns on when the tail lights are on.
■Trunk opener main switch
The trunk opener main switch is located in the glove box. ( P. 181)
■Removing the partition
The partition inside the glove box can be removed.
Glove box
1
2
3
Lift the front side of the partition and pull it out
at an angle.
CAUTION
■Caution while driving
Keep the glove box closed. In the event of sudden braking or sudden swerving, an
accident may occur due to an occupant being struck by the open glove box or the
items stored inside.

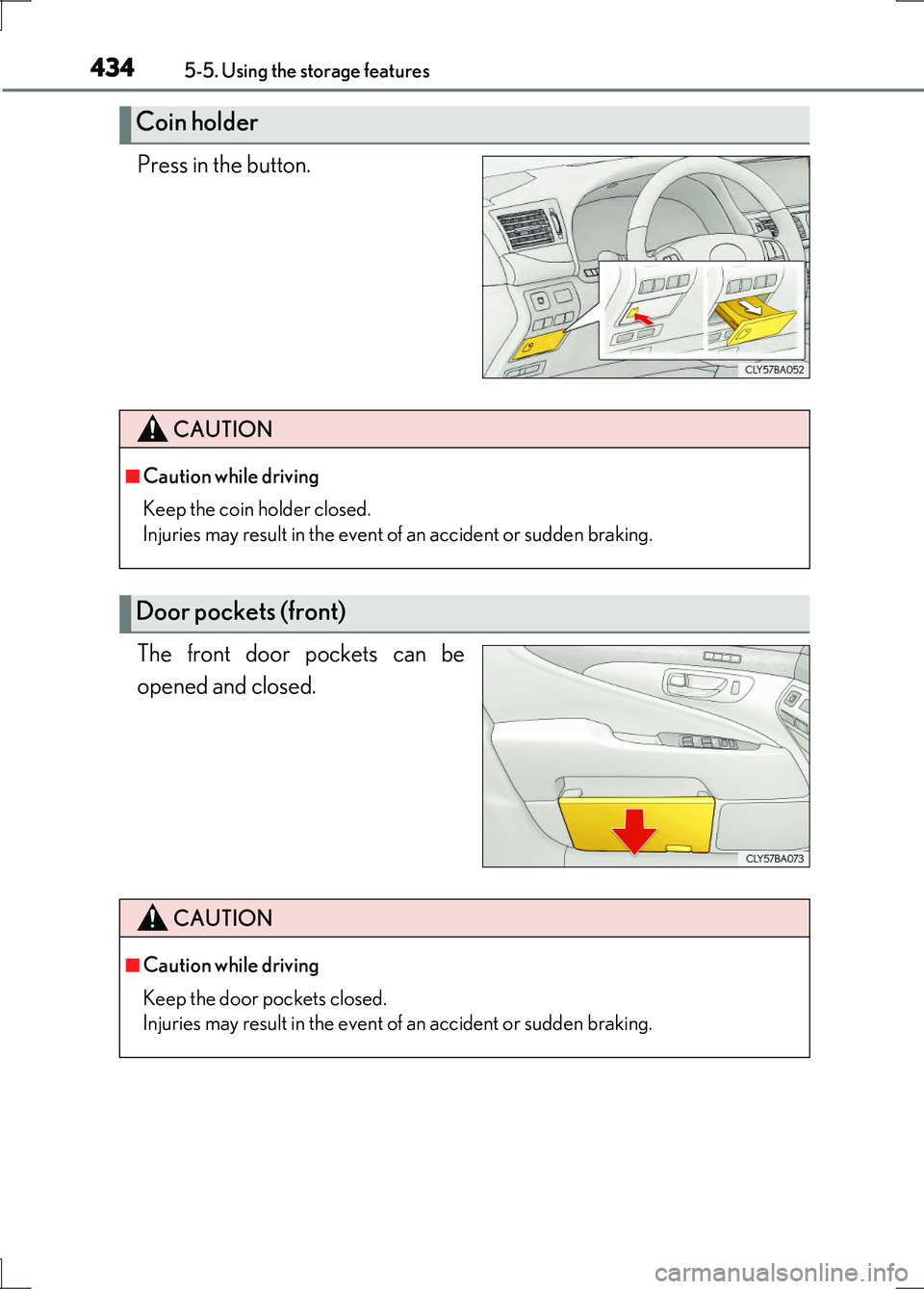

4345-5. Using the storage features
LS600h/LS600hL_EE(OM50G20E)
Press in the button.
The front door pockets can be
opened and closed.
Coin holder
CAUTION
■Caution while driving
Keep the coin holder closed.
Injuries may result in the event of an accident or sudden braking.
Door pockets (front)
CAUTION
■Caution while driving
Keep the door pockets closed.
Injuries may result in the event of an accident or sudden braking.

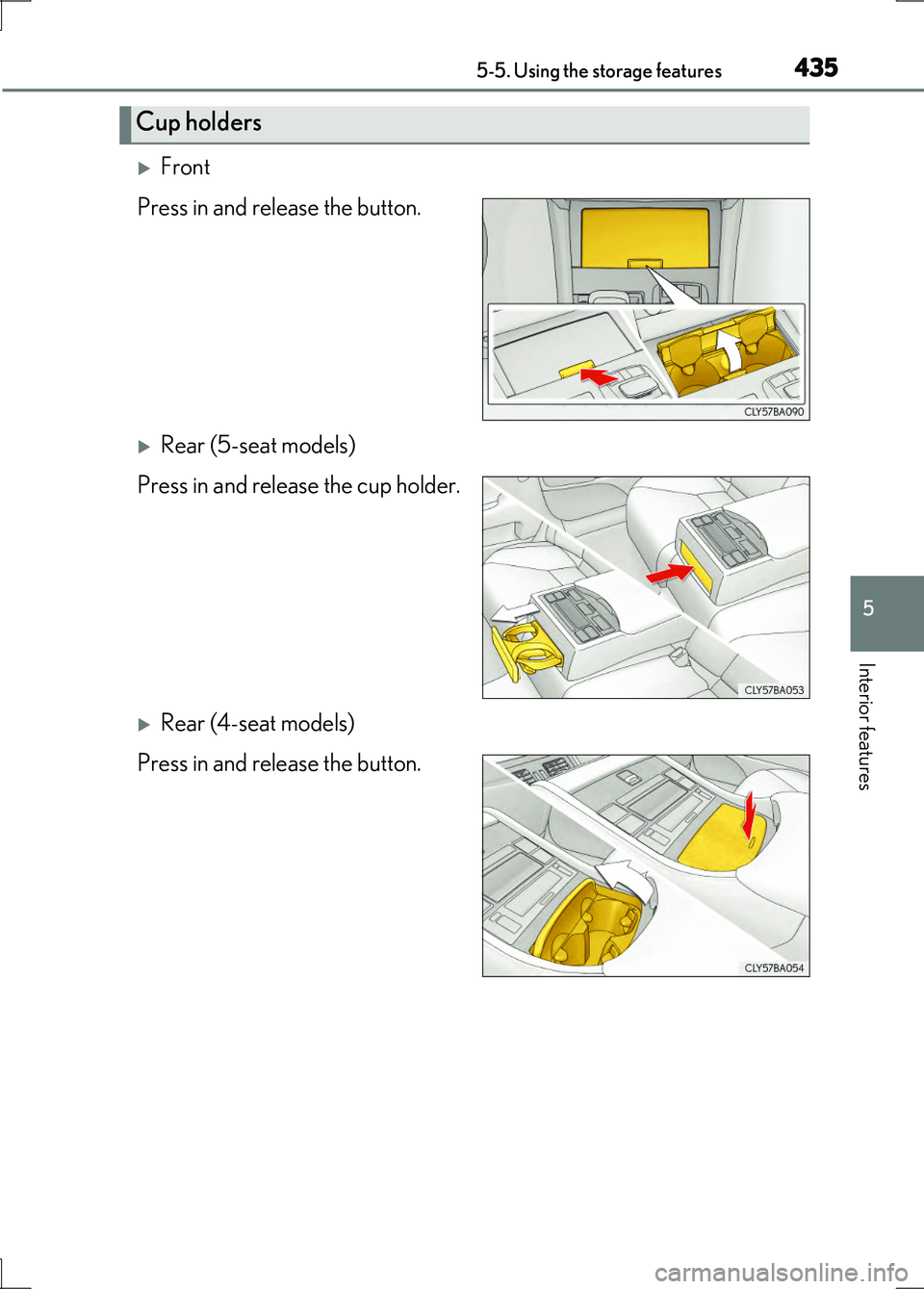

4355-5. Using the storage features
5
Interior features
LS600h/LS600hL_EE(OM50G20E)
Front
Press in and release the button.
Rear (5-seat models)
Press in and release the cup holder.
Rear (4-seat models)
Press in and release the button.
Cup holders

4365-5. Using the storage features
LS600h/LS600hL_EE(OM50G20E)

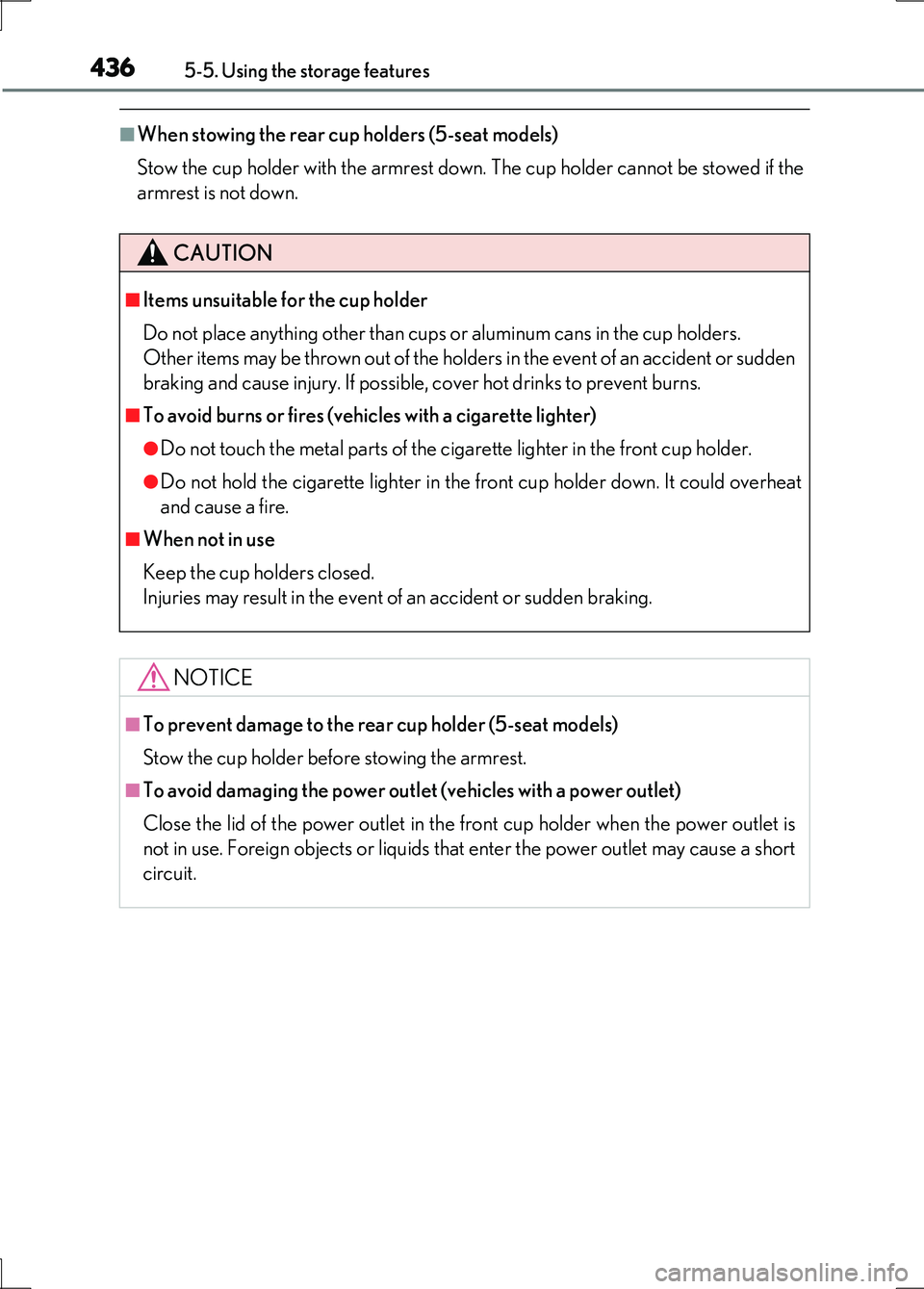

■When stowing the rear cup holders (5-seat models)
Stow the cup holder with the armrest down. The cup holder cannot be stowed if the
armrest is not down.
CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or sudden
braking and cause injury. If possible, cover hot drinks to prevent burns.
■To avoid burns or fires (vehicles with a cigarette lighter)
●Do not touch the metal parts of the cigarette lighter in the front cup holder.
●Do not hold the cigarette lighter in the front cup holder down. It could overheat
and cause a fire.
■When not in use
Keep the cup holders closed.
Injuries may result in the event of an accident or sudden braking.
NOTICE
■To prevent damage to the rear cup holder (5-seat models)
Stow the cup holder before stowing the armrest.
■To avoid damaging the power outlet (vehicles with a power outlet)
Close the lid of the power outlet in the front cup holder when the power outlet is
not in use. Foreign objects or liquids that enter the power outlet may cause a short
circuit.

4375-5. Using the storage features
5
Interior features
LS600h/LS600hL_EE(OM50G20E)

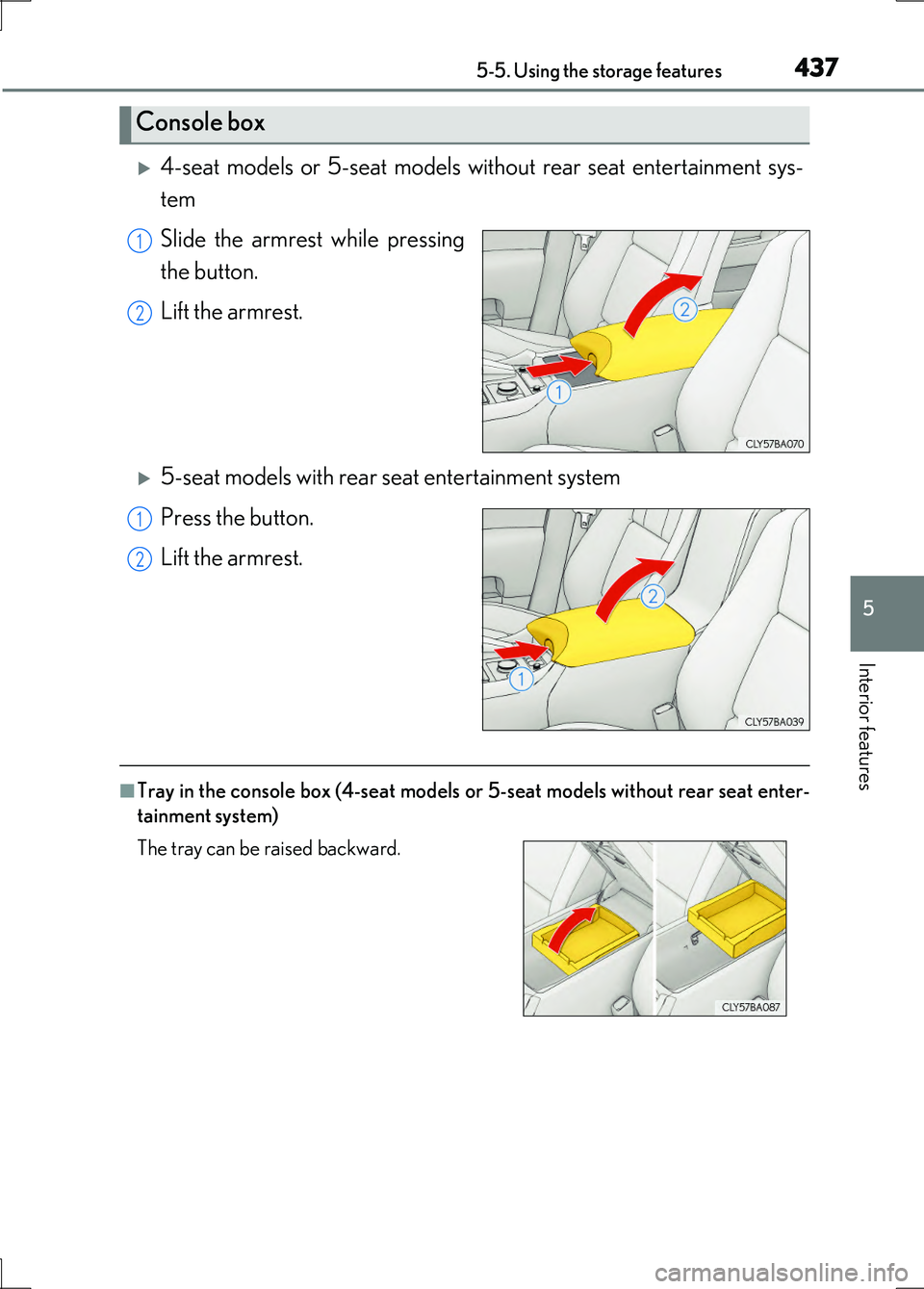

4-seat models or 5-seat models without rear seat entertainment sys-
tem
Slide the armrest while pressing
the button.
Lift the armrest.
5-seat models with rear seat entertainment system
Press the button.
Lift the armrest.
■Tray in the console box (4-seat models or 5-seat models without rear seat enter-
tainment system)
Console box
1
2
1
2
The tray can be raised backward.

4385-5. Using the storage features
LS600h/LS600hL_EE(OM50G20E)

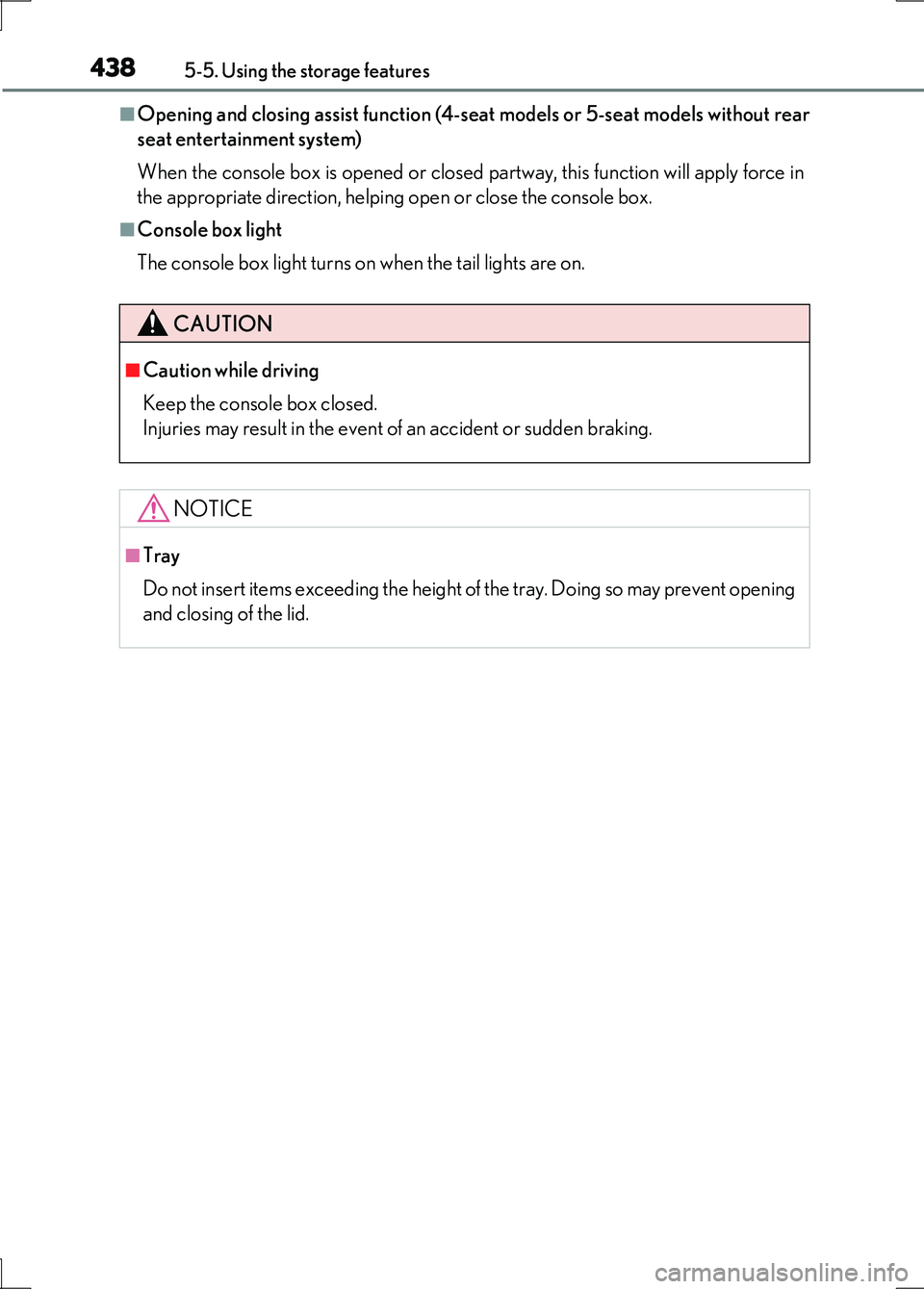

■Opening and closing assist function (4-seat models or 5-seat models without rear
seat entertainment system)
When the console box is opened or closed partway, this function will apply force in
the appropriate direction, helping open or close the console box.
■Console box light
The console box light turns on when the tail lights are on.
CAUTION
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
NOTICE
■Tray
Do not insert items exceeding the height of the tray. Doing so may prevent opening
and closing of the lid.

4395-5. Using the storage features
5
Interior features
LS600h/LS600hL_EE(OM50G20E)

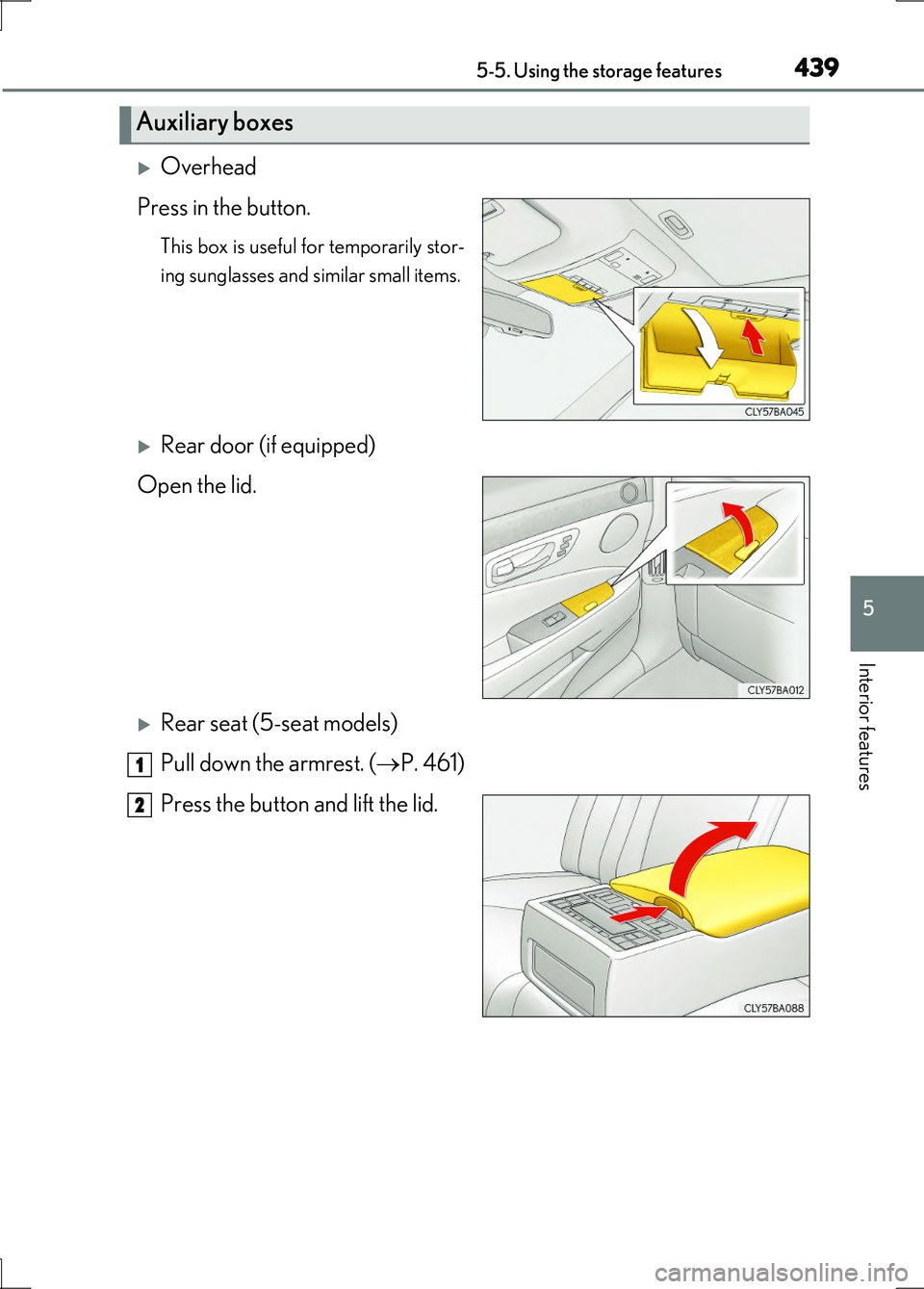

Overhead
Press in the button.
This box is useful for temporarily stor-
ing sunglasses and similar small items.
Rear door (if equipped)
Open the lid.
Rear seat (5-seat models)
Pull down the armrest. ( P. 461)
Press the button and lift the lid.
Auxiliary boxes
1
2

4405-5. Using the storage features
LS600h/LS600hL_EE(OM50G20E)

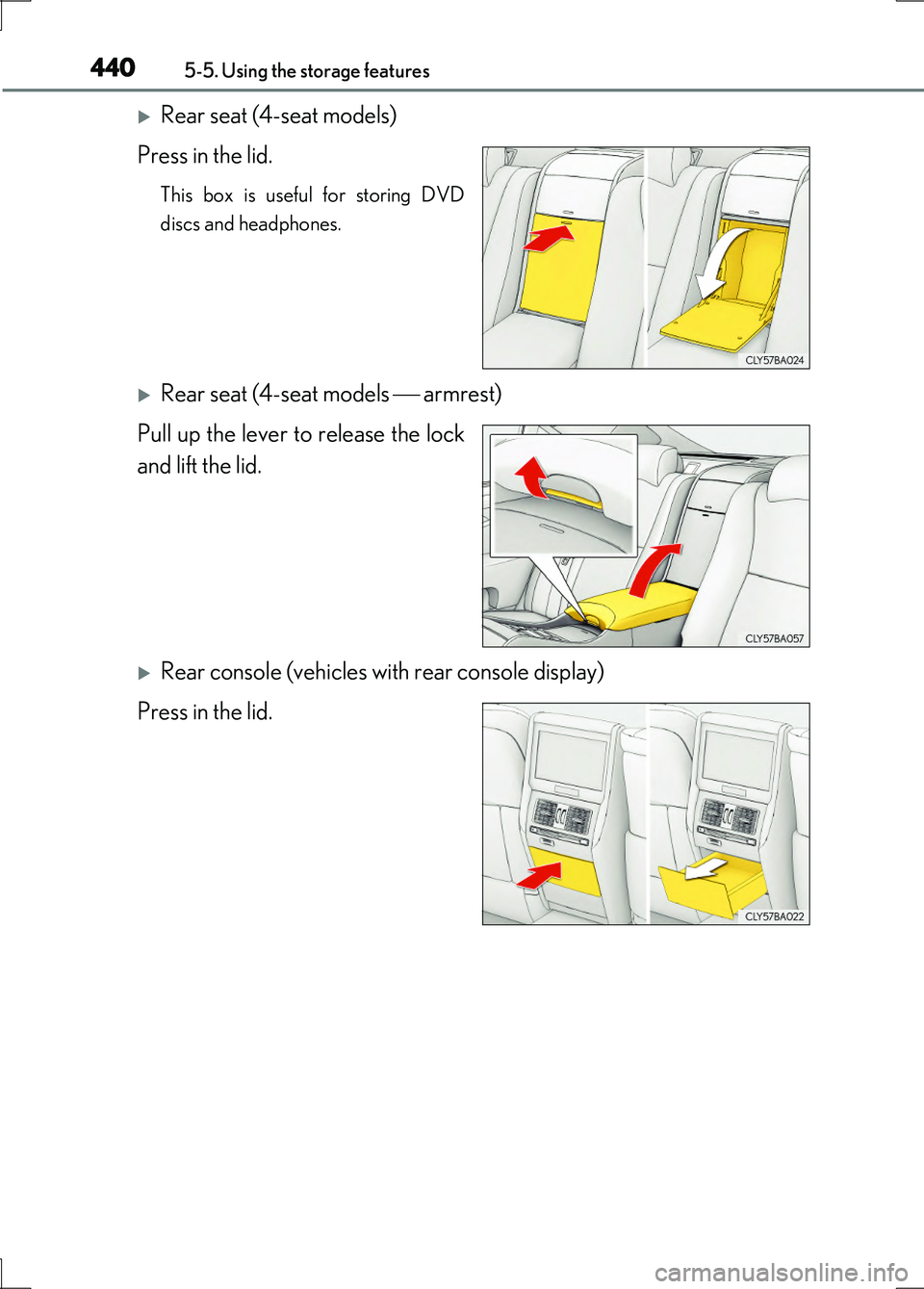

Rear seat (4-seat models)
Press in the lid.
This box is useful for storing DVD
discs and headphones.
Rear seat (4-seat models  armrest)
Pull up the lever to release the lock
and lift the lid.
Rear console (vehicles with rear console display)
Press in the lid.
