LEXUS LS600H 2017 Owners Manual

4515-6. Other interior features
5
Interior features
LS600h/LS600hL_EE(OM50G20E)
Front*
Push the back part of the lid to open,
and open the lid.
Console box
Open the console box and open the
lid.
Rear (5-seat models without rear seat entertainment system)*
Open the lid.

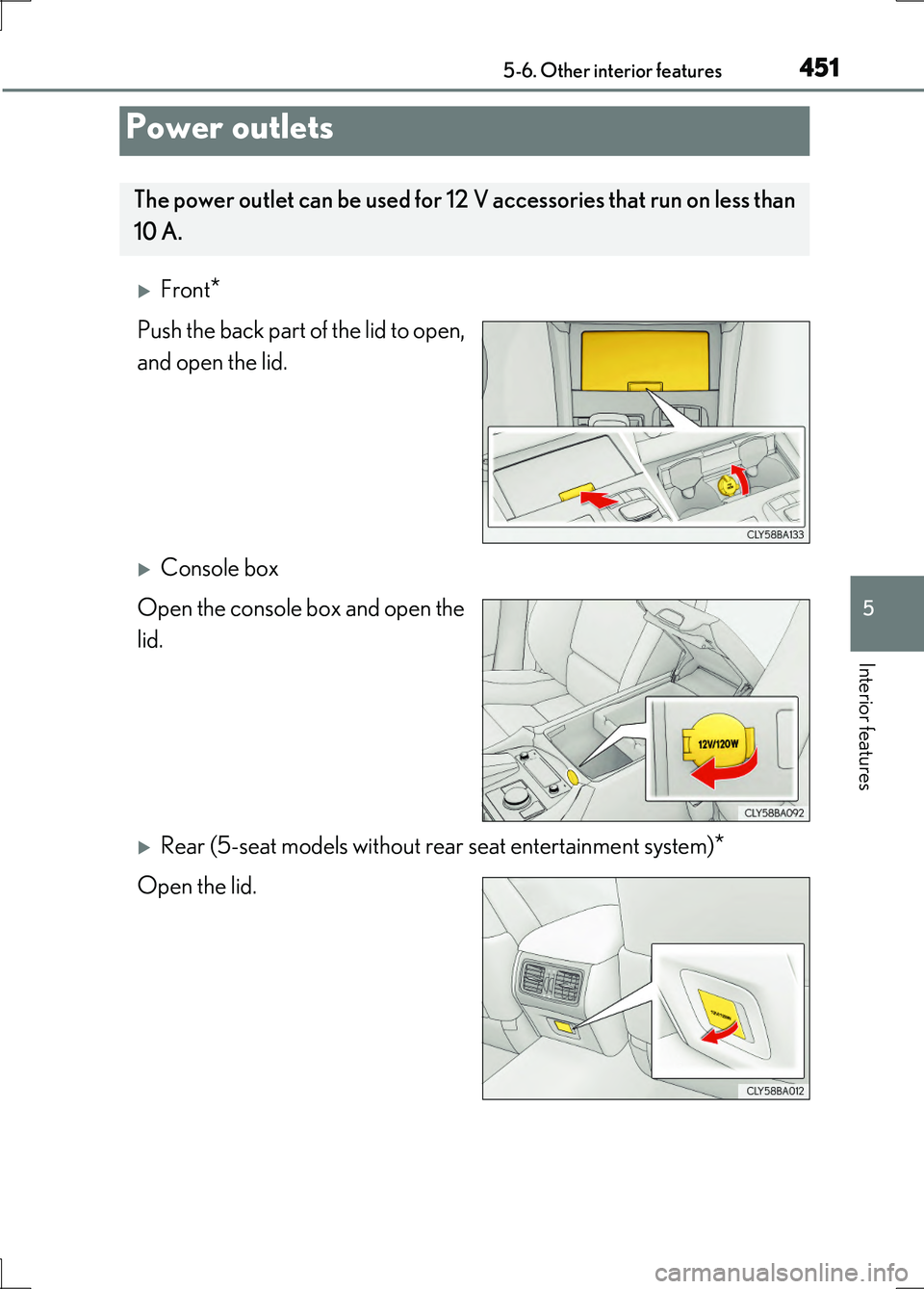

Power outlets
The power outlet can be used for 12 V accessories that run on less than
10 A.

4525-6. Other interior features
LS600h/LS600hL_EE(OM50G20E)

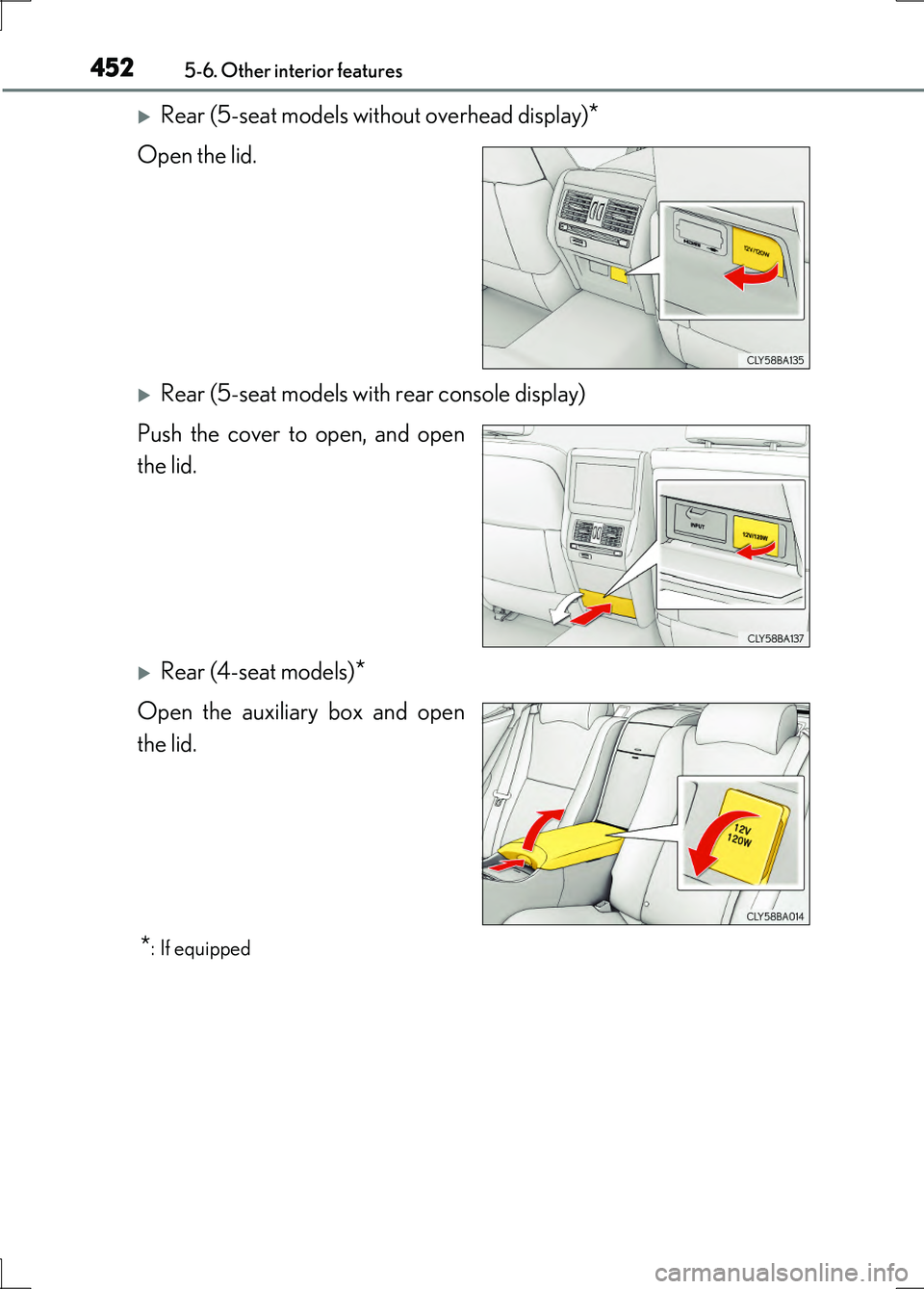

Rear (5-seat models without overhead display)*
Open the lid.
Rear (5-seat models with rear console display)
Push the cover to open, and open
the lid.
Rear (4-seat models)*
Open the auxiliary box and open
the lid.
*: If equipped

4535-6. Other interior features
5
Interior features
LS600h/LS600hL_EE(OM50G20E)

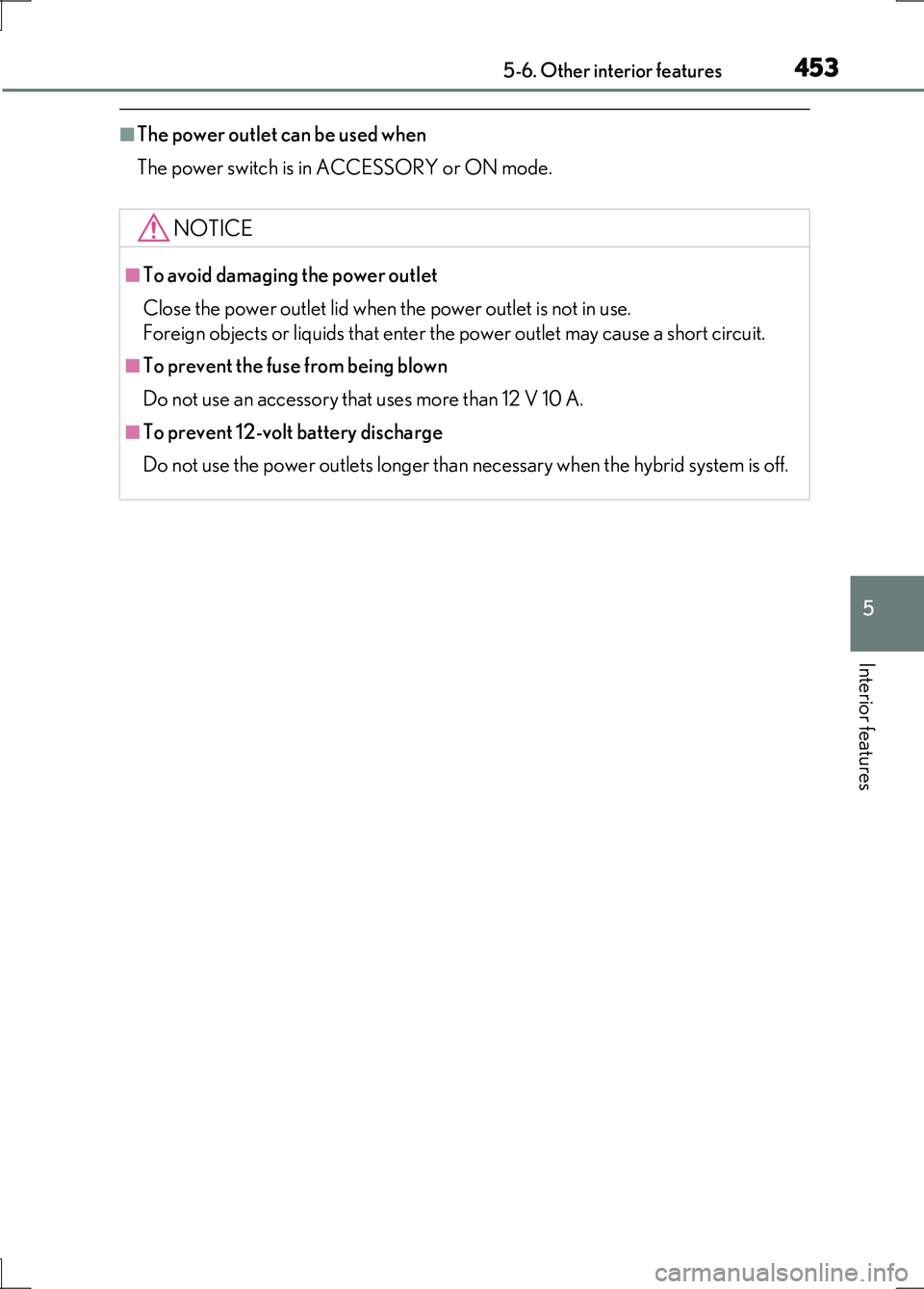

■The power outlet can be used when
The power switch is in ACCESSORY or ON mode.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short circuit.
■To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■To prevent 12-volt battery discharge
Do not use the power outlets longer than necessary when the hybrid system is off.

4545-6. Other interior features
LS600h/LS600hL_EE(OM50G20E)

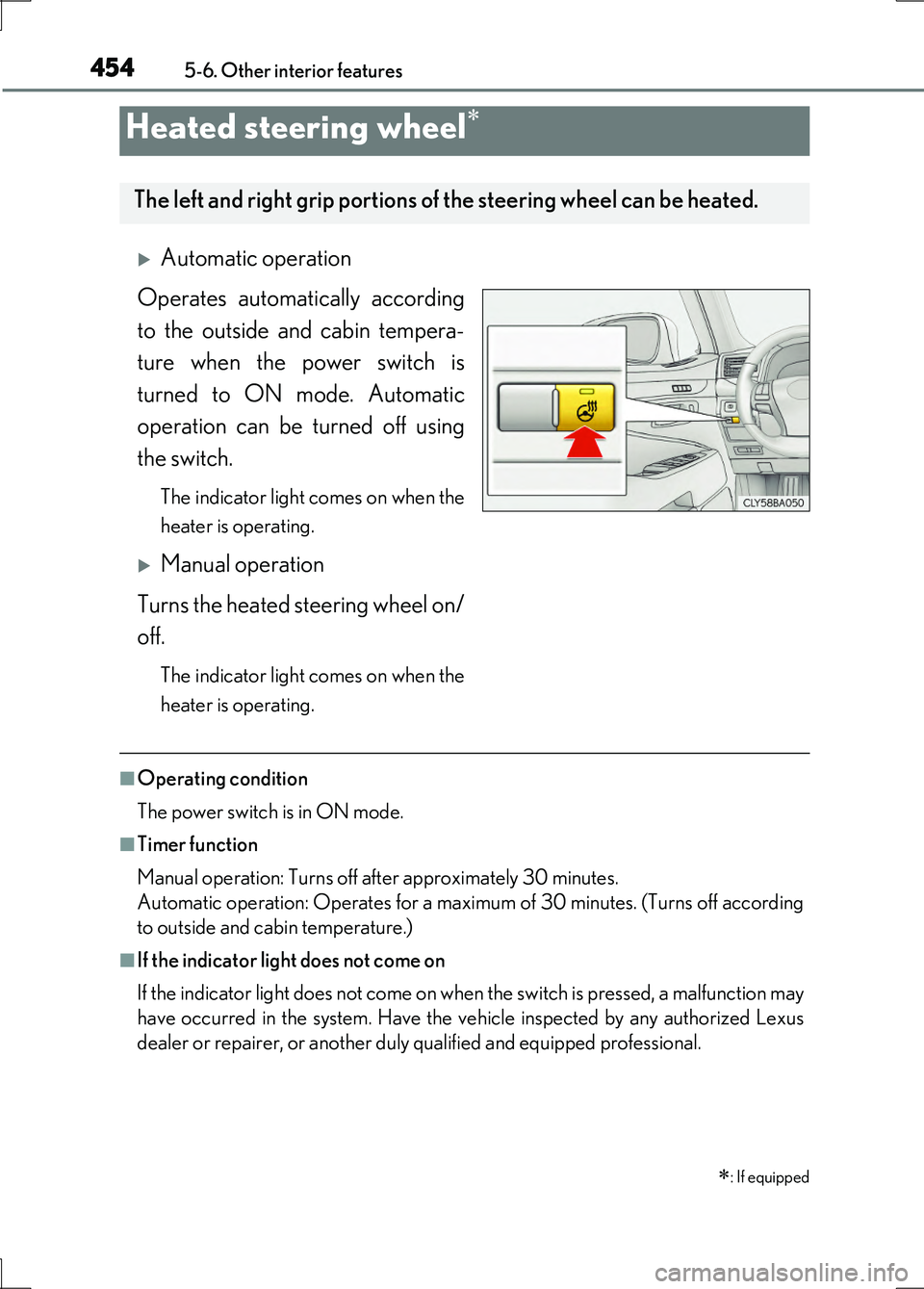

Automatic operation
Operates automatically according
to the outside and cabin tempera-
ture when the power switch is
turned to ON mode. Automatic
operation can be turned off using
the switch.
The indicator light comes on when the
heater is operating.
Manual operation
Turns the heated steering wheel on/
off.
The indicator light comes on when the
heater is operating.
■Operating condition
The power switch is in ON mode.
■Timer function
Manual operation: Turns off after approximately 30 minutes.
Automatic operation: Operates for a maximum of 30 minutes. (Turns off according
to outside and cabin temperature.)
■If the indicator light does not come on
If the indicator light does not come on when the switch is pressed, a malfunction may
have occurred in the system. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Heated steering wheel
: If equipped
The left and right grip portions of the steering wheel can be heated.

4555-6. Other interior features
5
Interior features
LS600h/LS600hL_EE(OM50G20E)

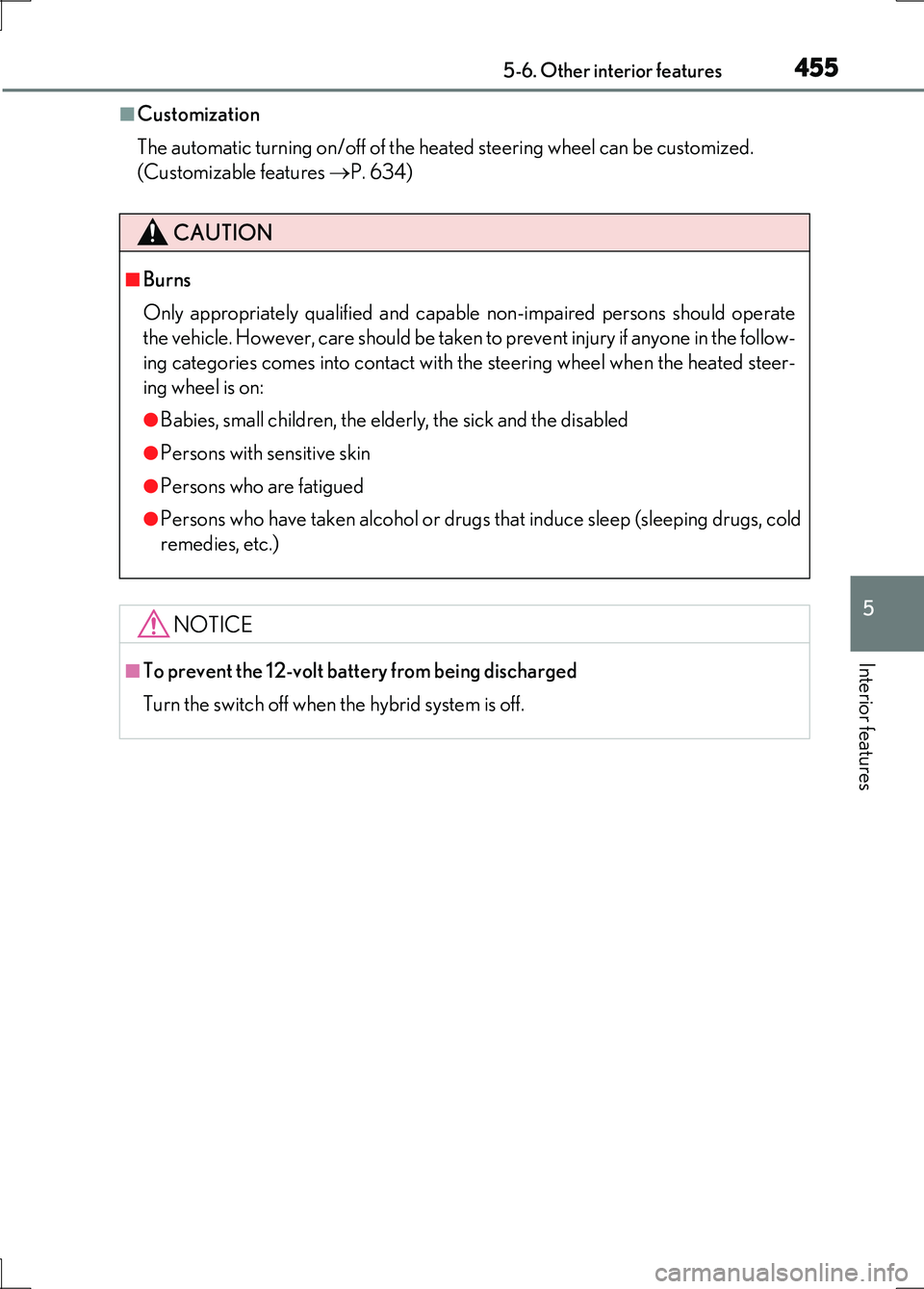

■Customization
The automatic turning on/off of the heated steering wheel can be customized.
(Customizable features P. 634)
CAUTION
■Burns
Only appropriately qualified and capable non-impaired persons should operate
the vehicle. However, care should be taken to prevent injury if anyone in the follow-
ing categories comes into contact with the steering wheel when the heated steer-
ing wheel is on:
●Babies, small children, the elderly, the sick and the disabled
●Persons with sensitive skin
●Persons who are fatigued
●Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold
remedies, etc.)
NOTICE
■To prevent the 12-volt battery from being discharged
Turn the switch off when the hybrid system is off.

4565-6. Other interior features
LS600h/LS600hL_EE(OM50G20E)

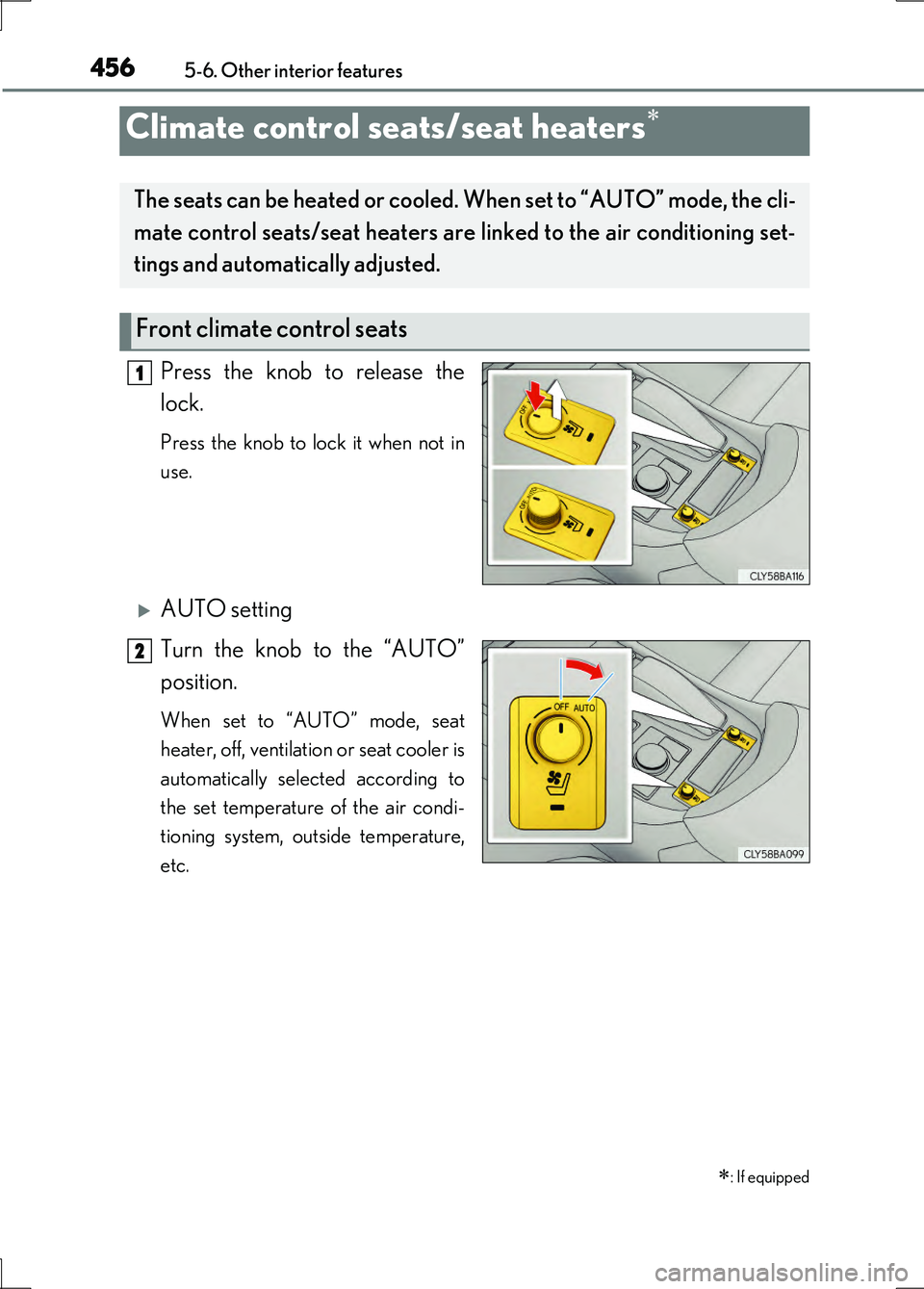

Press the knob to release the
lock.
Press the knob to lock it when not in
use.
AUTO setting
Turn the knob to the “AUTO”
position.
When set to “AUTO” mode, seat
heater, off, ventilation or seat cooler is
automatically selected according to
the set temperature of the air condi-
tioning system, outside temperature,
etc.
Climate control seats/seat heaters
: If equipped
The seats can be heated or cooled. When set to “AUTO” mode, the cli-
mate control seats/seat heaters are linked to the air conditioning set-
tings and automatically adjusted.
Front climate control seats
1
2

4575-6. Other interior features
5
Interior features
LS600h/LS600hL_EE(OM50G20E)

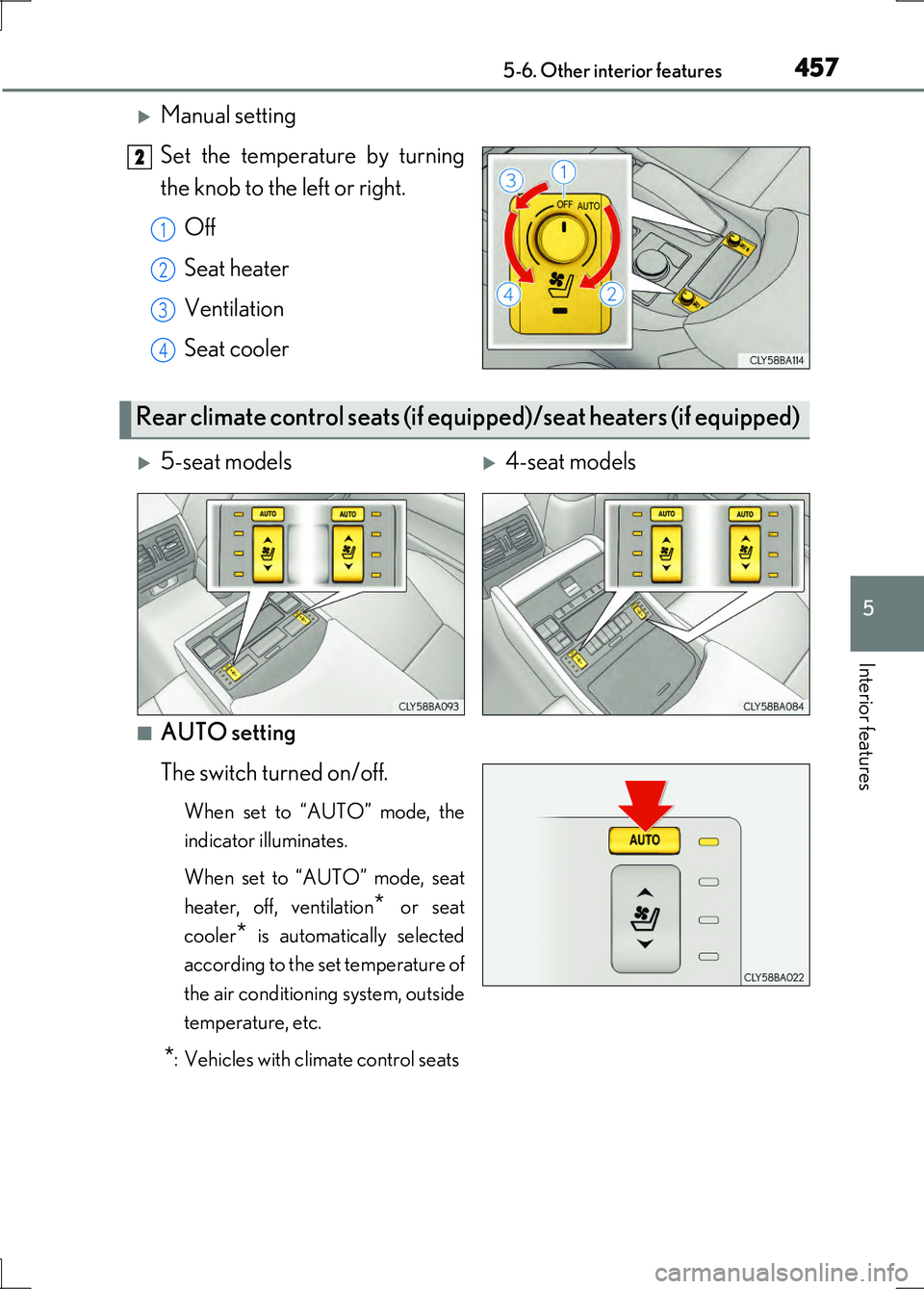

Manual setting
Set the temperature by turning
the knob to the left or right.
Off
Seat heater
Ventilation
Seat cooler
■AUTO setting
The switch turned on/off.
When set to “AUTO” mode, the
indicator illuminates.
When set to “AUTO” mode, seat
heater, off, ventilation* or seat
cooler* is automatically selected
according to the set temperature of
the air conditioning system, outside
temperature, etc.
*: Vehicles with climate control seats
2
1
2
3
4
Rear climate control seats (if eq uipped)/seat heaters (if equipped)
5-seat models4-seat models

4585-6. Other interior features
LS600h/LS600hL_EE(OM50G20E)

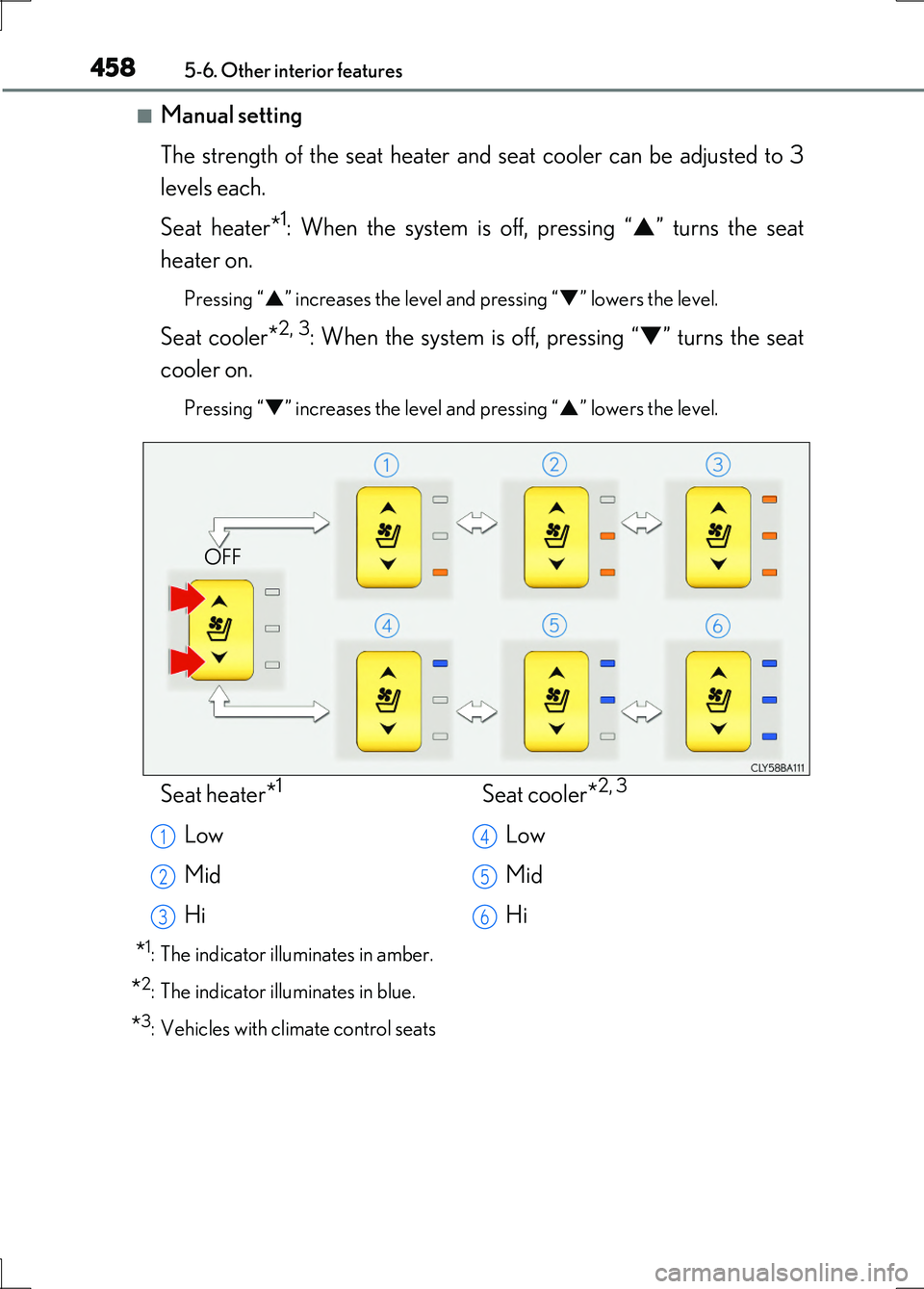

■Manual setting
The strength of the seat heater and seat cooler can be adjusted to 3
levels each.
Seat heater*1: When the system is off, pressing “ ” turns the seat
heater on.
Pressing “ ” increases the level and pressing “” lowers the level.
Seat cooler*2, 3: When the system is off, pressing “” turns the seat
cooler on.
Pressing “ ” increases the level and pressing “” lowers the level.
*1: The indicator illuminates in amber.
*2: The indicator illuminates in blue.
*3: Vehicles with climate control seats
OFF
Seat heater*1
Low
Mid
Hi
Seat cooler*2, 3
Low
Mid
Hi
1
2
3
4
5
6

4595-6. Other interior features
5
Interior features
LS600h/LS600hL_EE(OM50G20E)

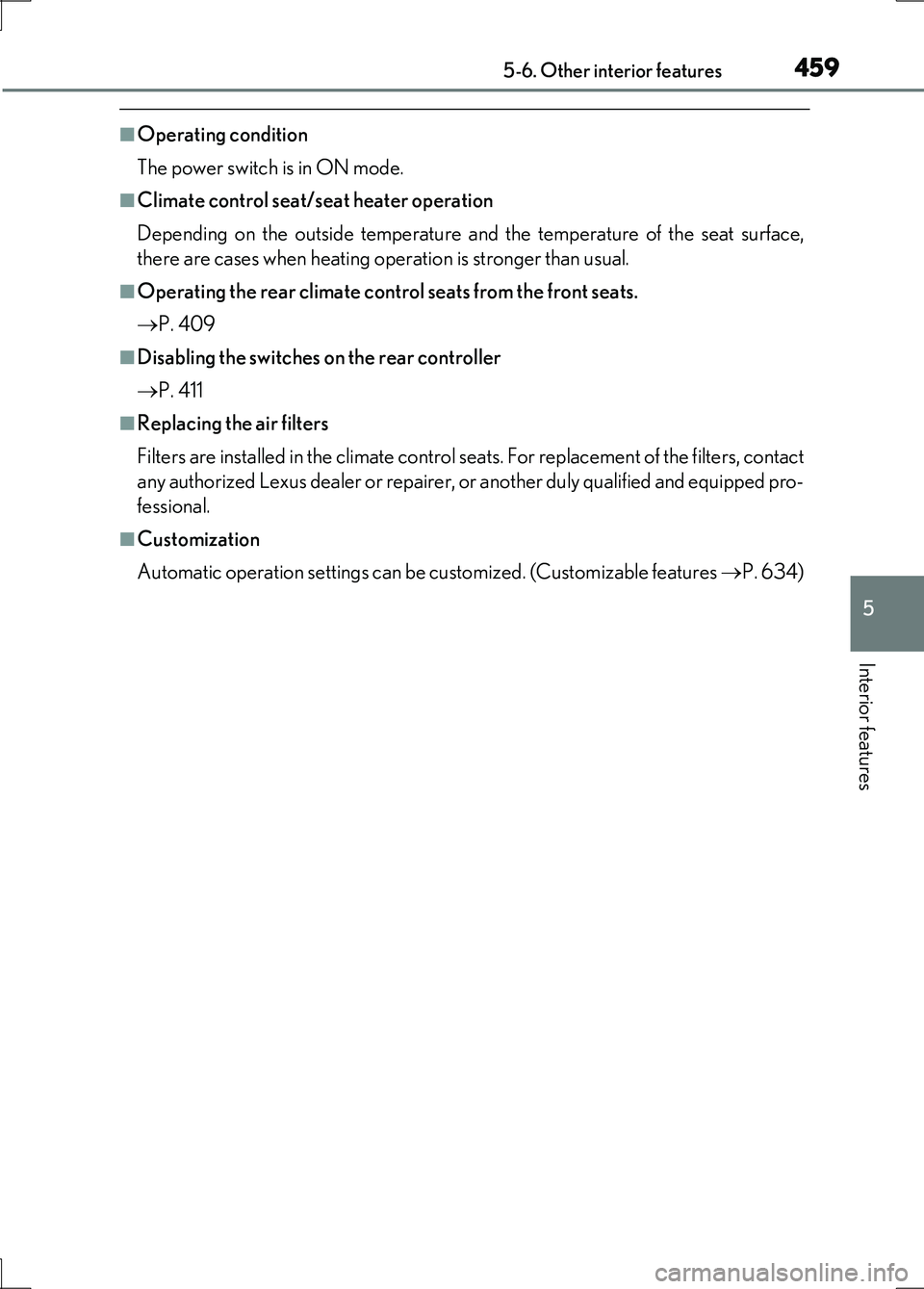

■Operating condition
The power switch is in ON mode.
■Climate control seat/seat heater operation
Depending on the outside temperature and the temperature of the seat surface,
there are cases when heating operation is stronger than usual.
■Operating the rear climate control seats from the front seats.
 P. 409
■Disabling the switches on the rear controller
 P. 411
■Replacing the air filters
Filters are installed in the climate control se ats. For replacement of the filters, contact
any authorized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional.
■Customization
Automatic operation settings can be customized. (Customizable features P. 634)

4605-6. Other interior features
LS600h/LS600hL_EE(OM50G20E)

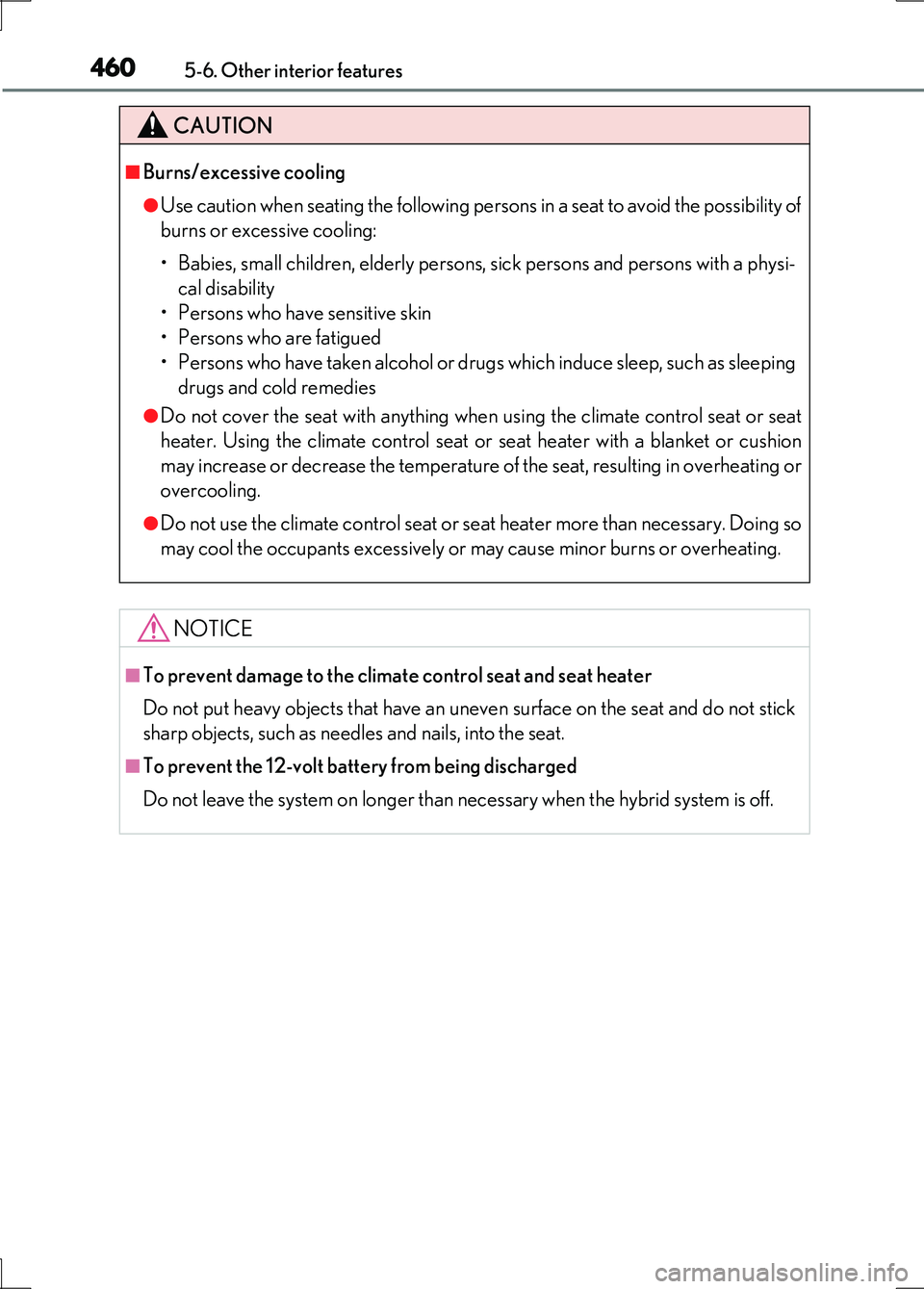

CAUTION
■Burns/excessive cooling
●Use caution when seating the following persons in a seat to avoid the possibility of
burns or excessive cooling:
• Babies, small children, elderly persons, sick persons and persons with a physi-
cal disability
• Persons who have sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs which induce sleep, such as sleeping
drugs and cold remedies
●Do not cover the seat with anything when using the climate control seat or seat
heater. Using the climate control seat or seat heater with a blanket or cushion
may increase or decrease the temperature of the seat, resulting in overheating or
overcooling.
●Do not use the climate control seat or seat heater more than necessary. Doing so
may cool the occupants excessively or may cause minor burns or overheating.
NOTICE
■To prevent damage to the climate control seat and seat heater
Do not put heavy objects that have an uneven surface on the seat and do not stick
sharp objects, such as needles and nails, into the seat.
■To prevent the 12-volt battery from being discharged
Do not leave the system on longer than necessary when the hybrid system is off.
