LEXUS LS600H 2017 Owners Manual

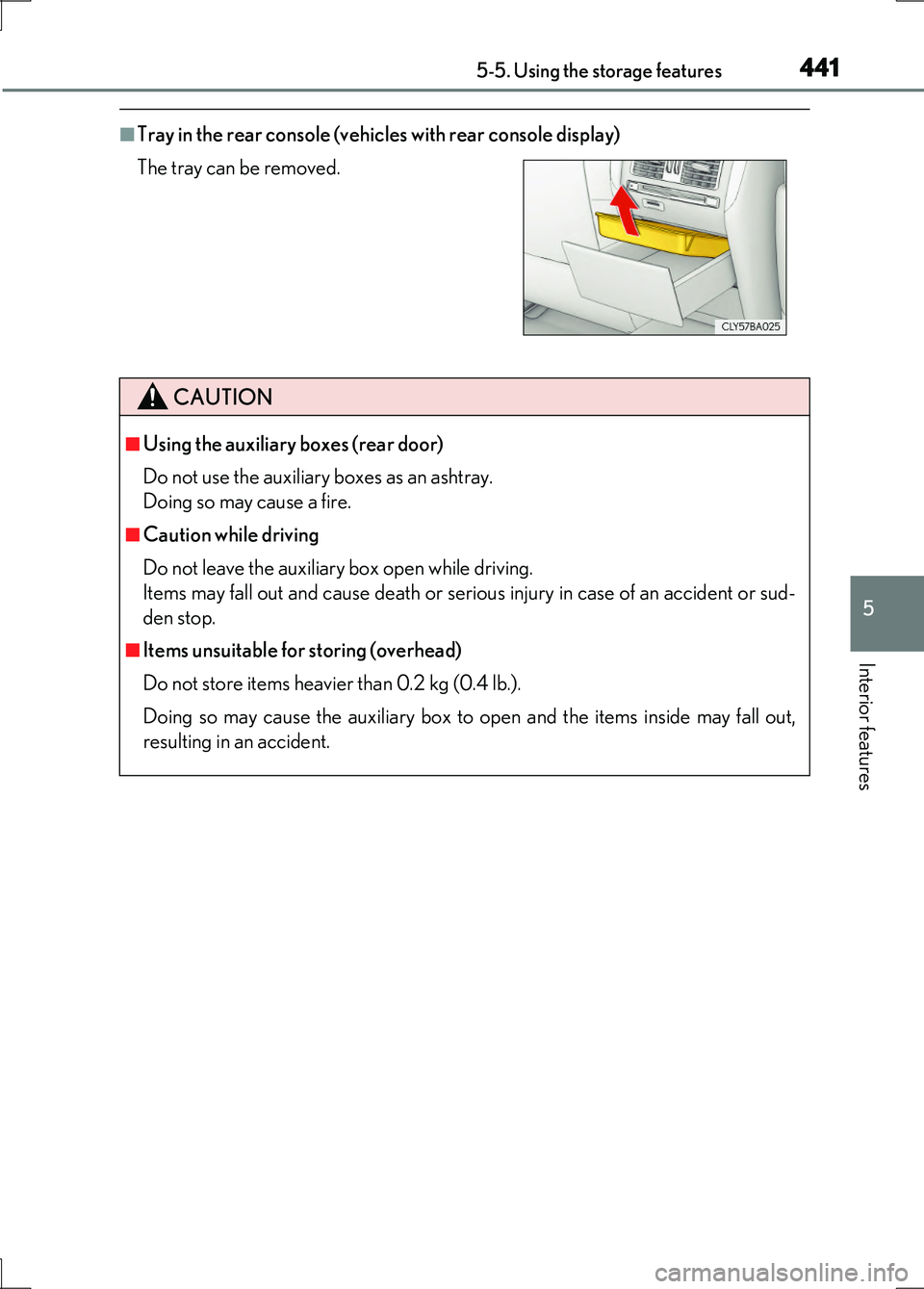

4415-5. Using the storage features
5
Interior features
LS600h/LS600hL_EE(OM50G20E)
■Tray in the rear console (vehicles with rear console display)
The tray can be removed.
CAUTION
■Using the auxiliary boxes (rear door)
Do not use the auxiliary boxes as an ashtray.
Doing so may cause a fire.
■Caution while driving
Do not leave the auxiliary box open while driving.
Items may fall out and cause death or serious injury in case of an accident or sud-
den stop.
■Items unsuitable for storing (overhead)
Do not store items heavier than 0.2 kg (0.4 lb.).
Doing so may cause the auxiliary box to open and the items inside may fall out,
resulting in an accident.

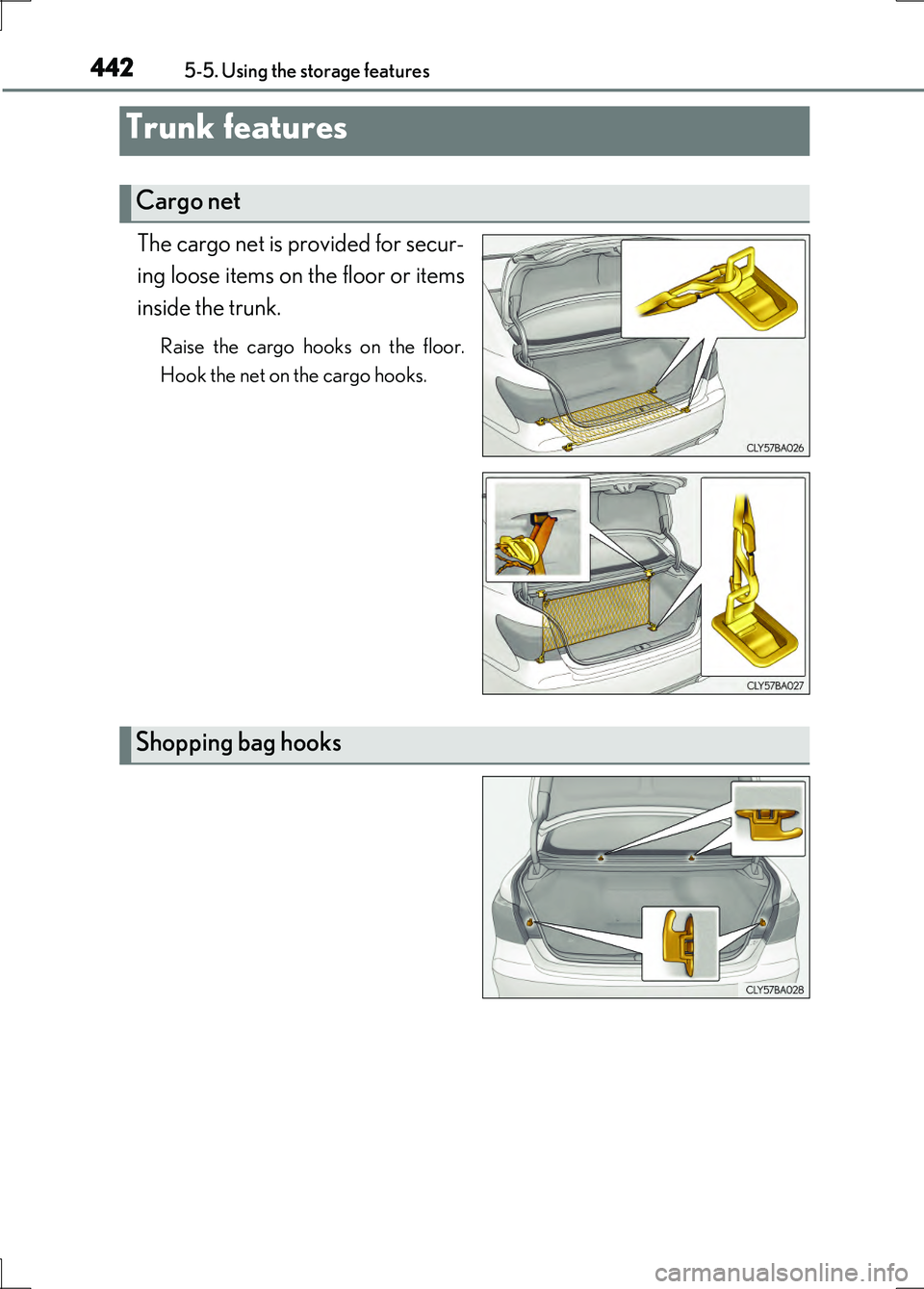

4425-5. Using the storage features
LS600h/LS600hL_EE(OM50G20E)
The cargo net is provided for secur-
ing loose items on the floor or items
inside the trunk.
Raise the cargo hooks on the floor.
Hook the net on the cargo hooks.
Trunk features
Cargo net
Shopping bag hooks

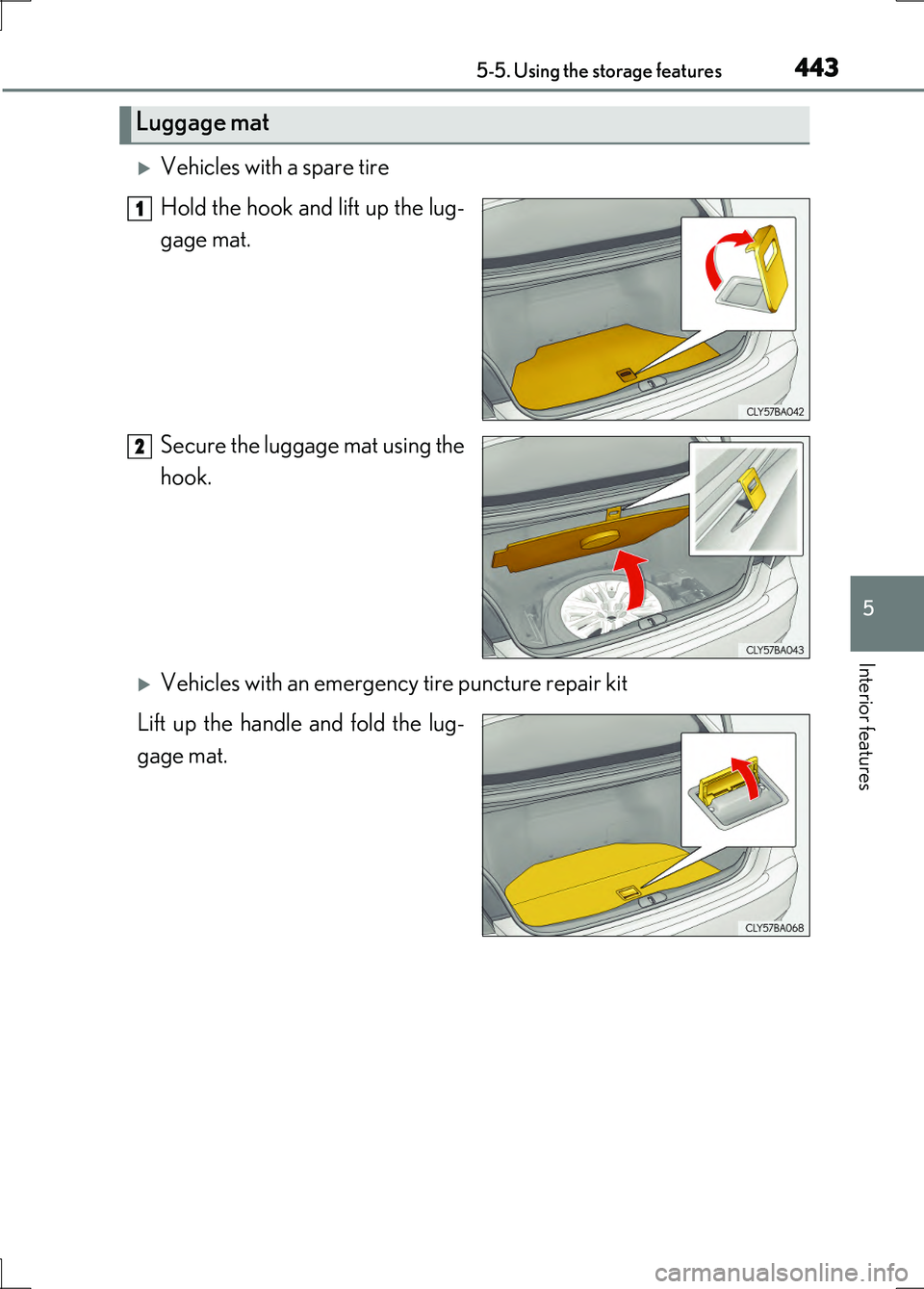

4435-5. Using the storage features
5
Interior features
LS600h/LS600hL_EE(OM50G20E)
Vehicles with a spare tire
Hold the hook and lift up the lug-
gage mat.
Secure the luggage mat using the
hook.
Vehicles with an emergency tire puncture repair kit
Lift up the handle and fold the lug-
gage mat.
Luggage mat
1
2

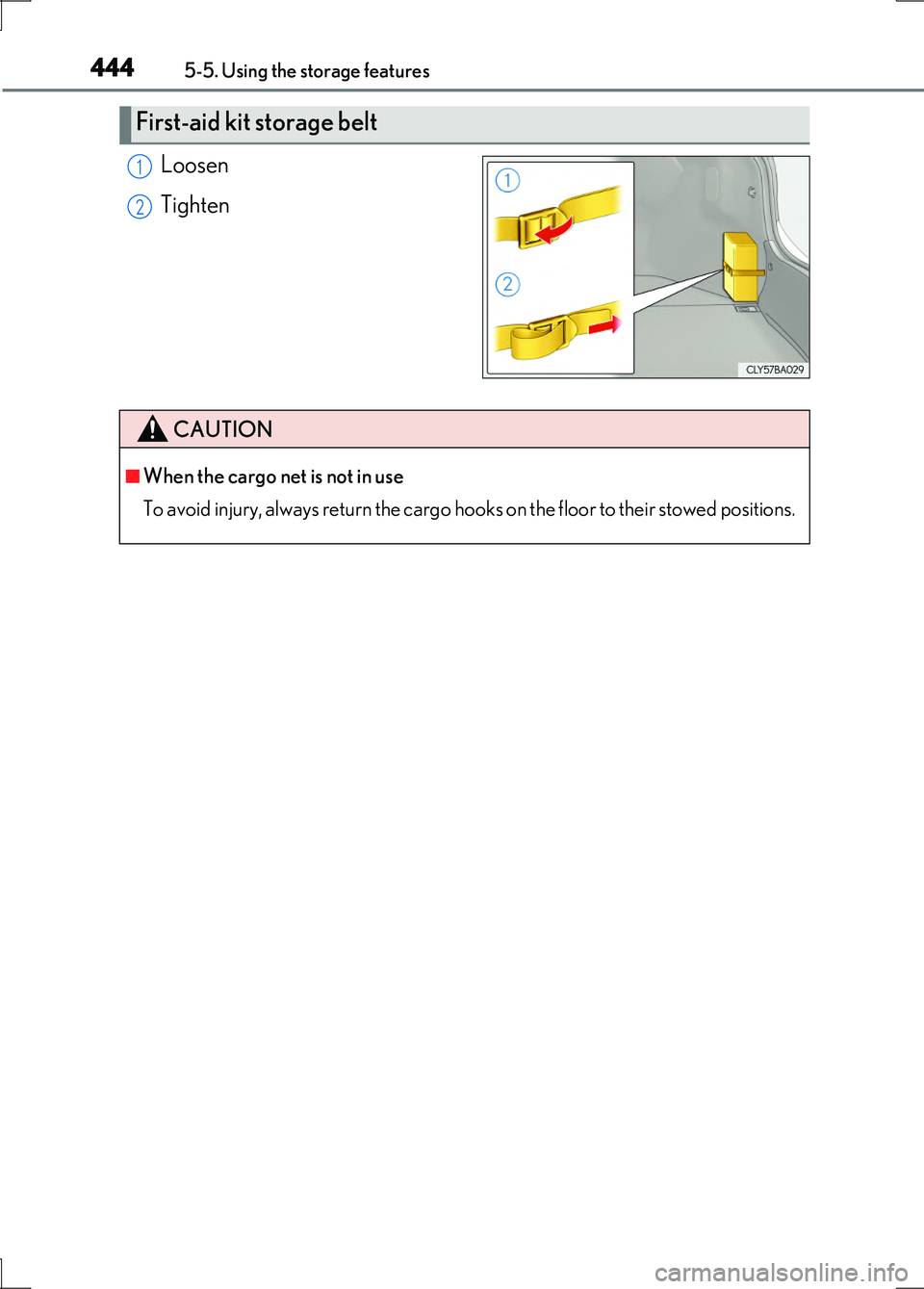

4445-5. Using the storage features
LS600h/LS600hL_EE(OM50G20E)
Loosen
Tighten
First-aid kit storage belt
1
2
CAUTION
■When the cargo net is not in use
To avoid injury, always return the cargo hooks on the floor to their stowed positions.

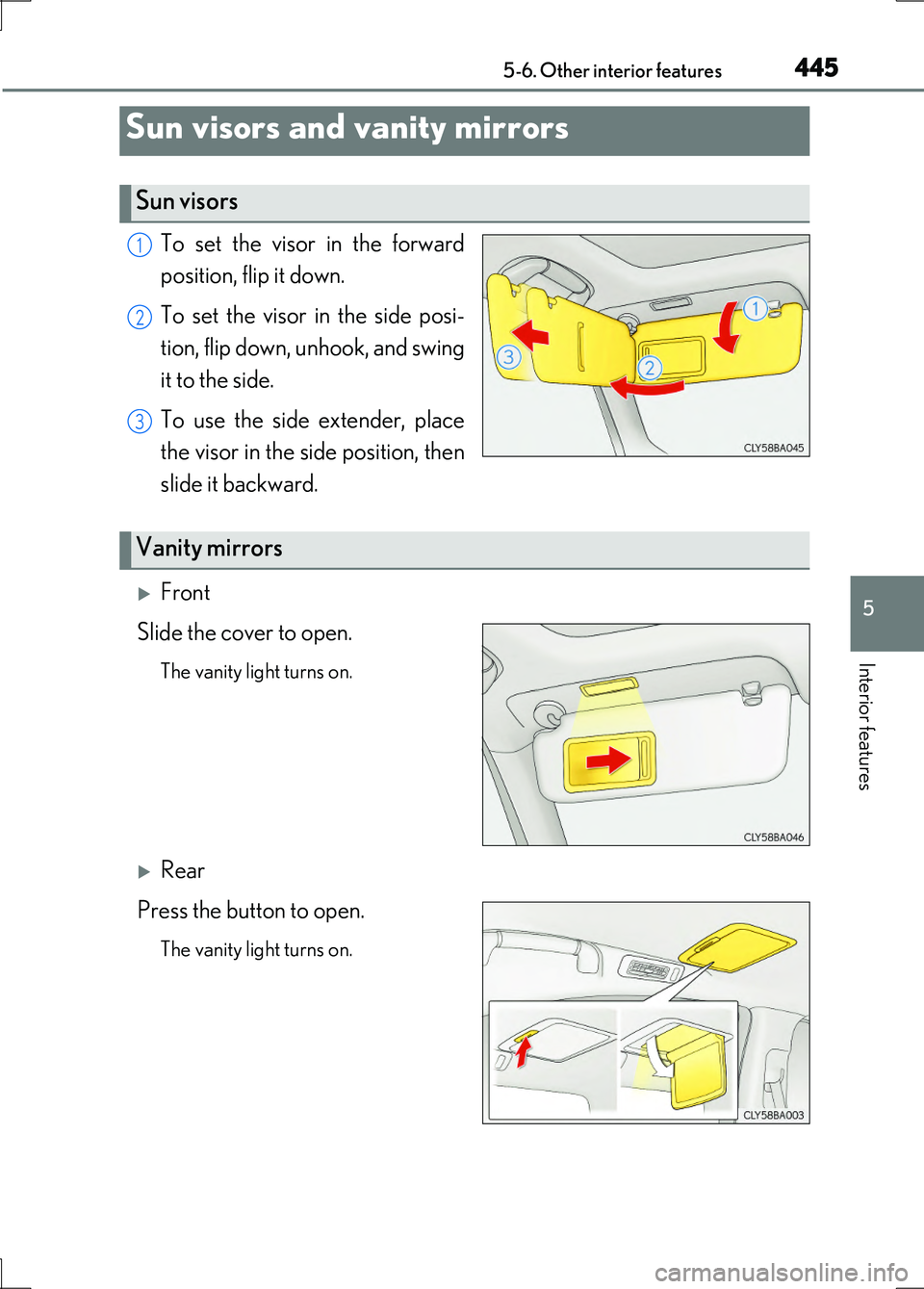

445
5
Interior features
LS600h/LS600hL_EE(OM50G20E)
5-6. Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and swing
it to the side.
To use the side extender, place
the visor in the side position, then
slide it backward.
Front
Slide the cover to open.
The vanity light turns on.
Rear
Press the button to open.
The vanity light turns on.
Sun visors and vanity mirrors
Sun visors
1
2
3
Vanity mirrors

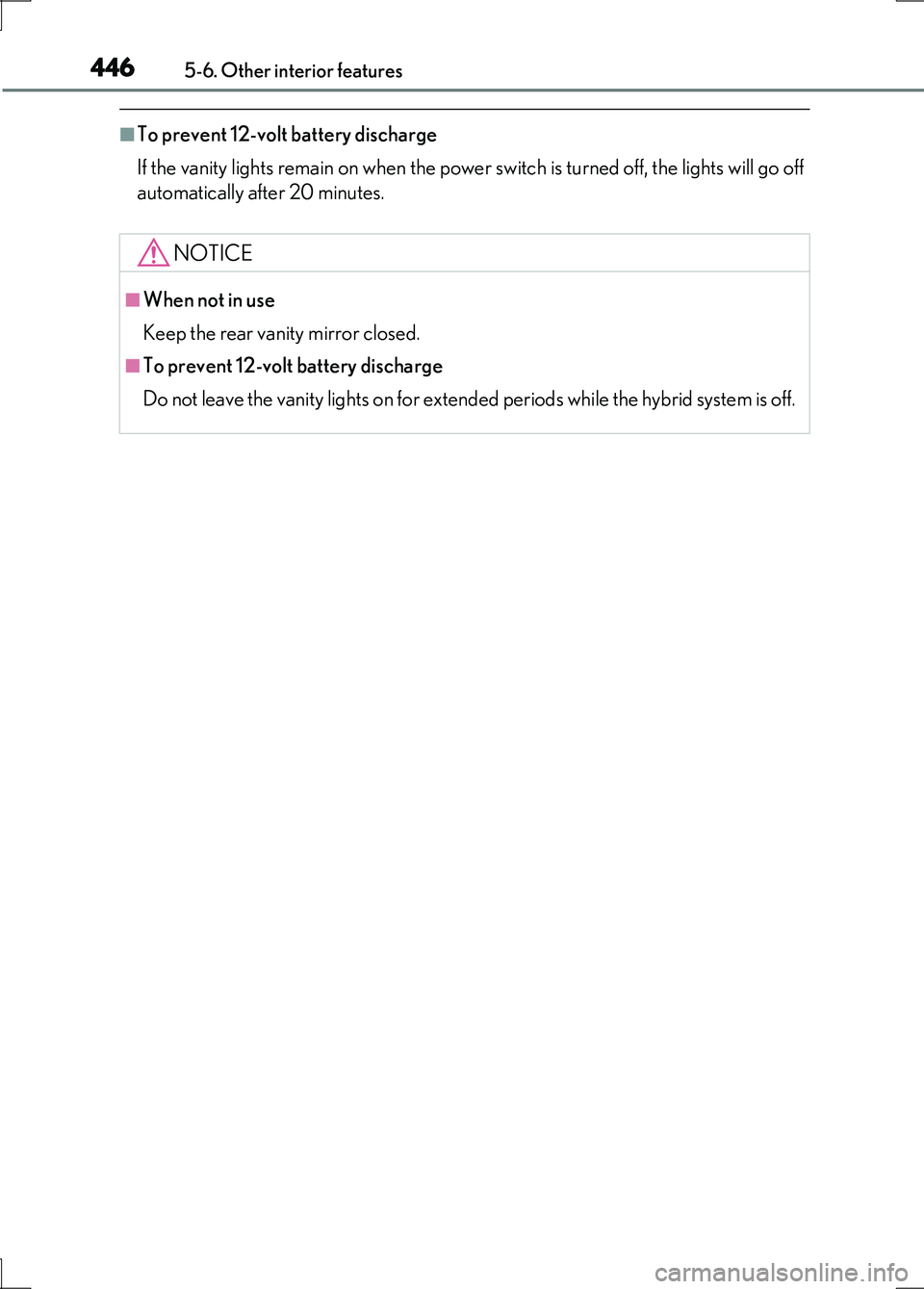

4465-6. Other interior features
LS600h/LS600hL_EE(OM50G20E)
■To prevent 12-volt battery discharge
If the vanity lights remain on when the power sw itch is turned off, the lights will go off
automatically after 20 minutes.
NOTICE
■When not in use
Keep the rear vanity mirror closed.
■To prevent 12-volt battery discharge
Do not leave the vanity lights on for extended periods while the hybrid system is off.

4475-6. Other interior features
5
Interior features
LS600h/LS600hL_EE(OM50G20E)
The GPS clock’s time is automati-
cally adjusted by utilizing GPS time
information. For details, refer to
“NAVIGATION AND MULTIME-
DIA SYSTEM OWNER’S MAN-
UAL”.
Clock

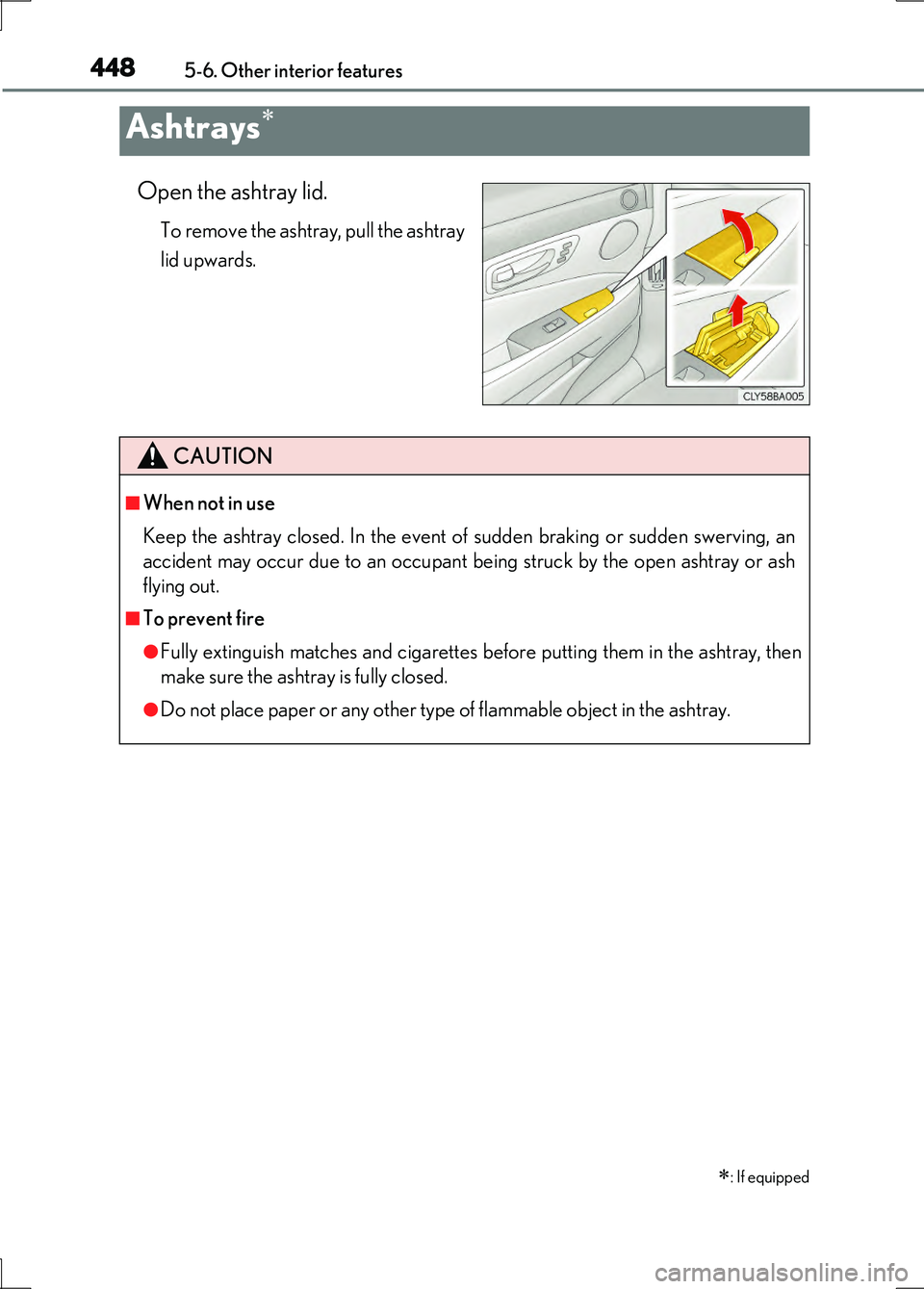

4485-6. Other interior features
LS600h/LS600hL_EE(OM50G20E)
Open the ashtray lid.
To remove the ashtray, pull the ashtray
lid upwards.
Ashtrays
: If equipped
CAUTION
■When not in use
Keep the ashtray closed. In the event of sudden braking or sudden swerving, an
accident may occur due to an occupant being struck by the open ashtray or ash
flying out.
■To prevent fire
●Fully extinguish matches and cigarettes before putting them in the ashtray, then
make sure the ashtray is fully closed.
●Do not place paper or any other type of flammable object in the ashtray.

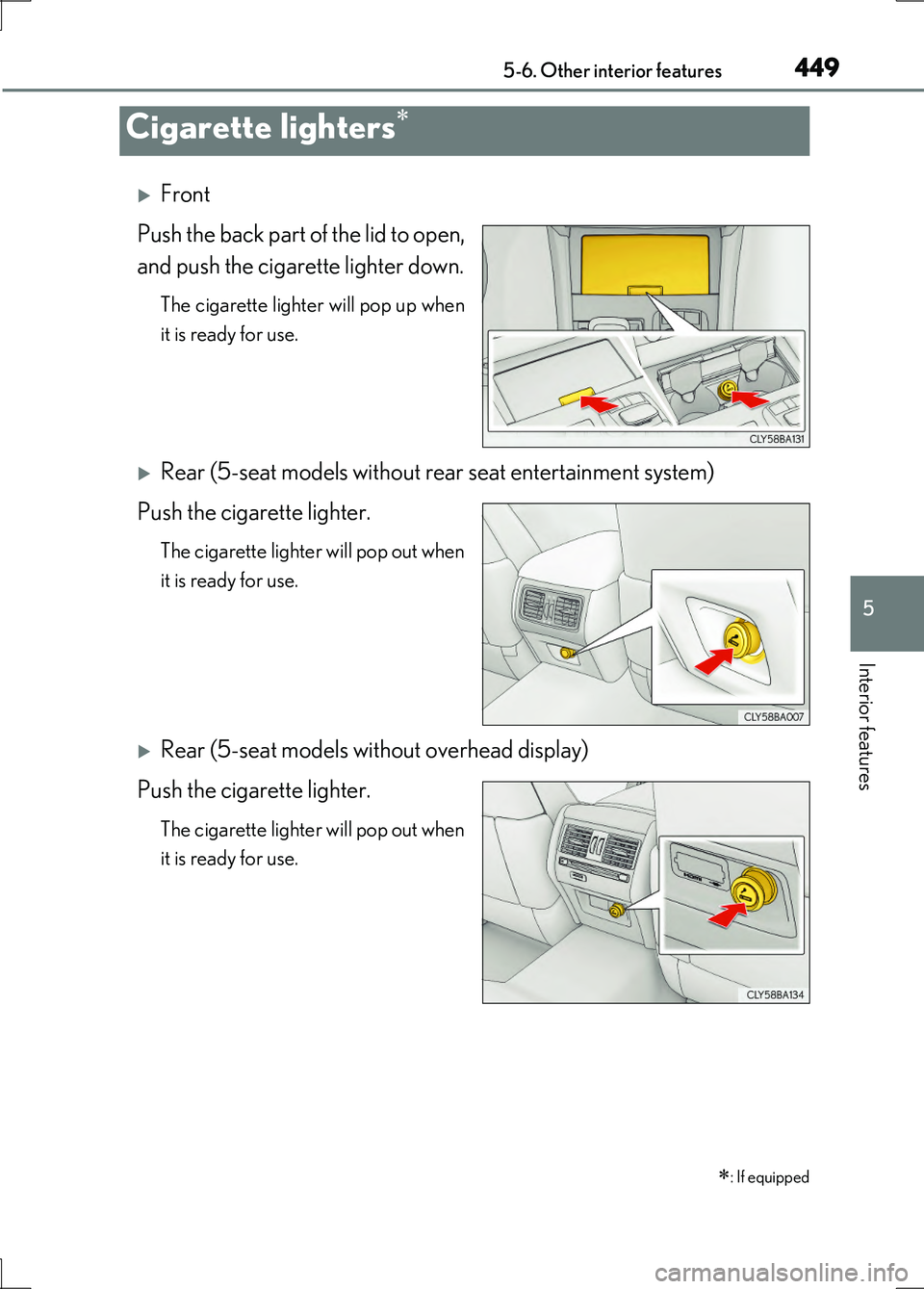

4495-6. Other interior features
5
Interior features
LS600h/LS600hL_EE(OM50G20E)
Front
Push the back part of the lid to open,
and push the cigare tte lighter down.
The cigarette lighter will pop up when
it is ready for use.
Rear (5-seat models without rear seat entertainment system)
Push the cigarette lighter.
The cigarette lighter will pop out when
it is ready for use.
Rear (5-seat models without overhead display)
Push the cigarette lighter.
The cigarette lighter will pop out when
it is ready for use.
Cigarette lighters
: If equipped

4505-6. Other interior features
LS600h/LS600hL_EE(OM50G20E)
Rear (4-seat models)
Open the auxiliary box and push the
cigarette lighter.
The cigarette lighter will pop out when
it is ready for use.
■The cigarette lighter can be used when
The power switch is in ACCESSORY or ON mode.
CAUTION
■To avoid burns or fires
●Do not touch the metal parts of the cigarette lighter.
●Do not hold the cigarette lighter down. It could overheat and cause a fire.
●Do not insert anything other than the cigarette lighter into the outlet.
■When not in use
Keep the ashtray closed.
Injuries may result in the event of an accident or sudden braking.
