LEXUS LS600H 2017 Owners Manual

5116-3. Do-it-yourself maintenance
6
Maintenance and care
LS600h/LS600hL_EE(OM50G20E)

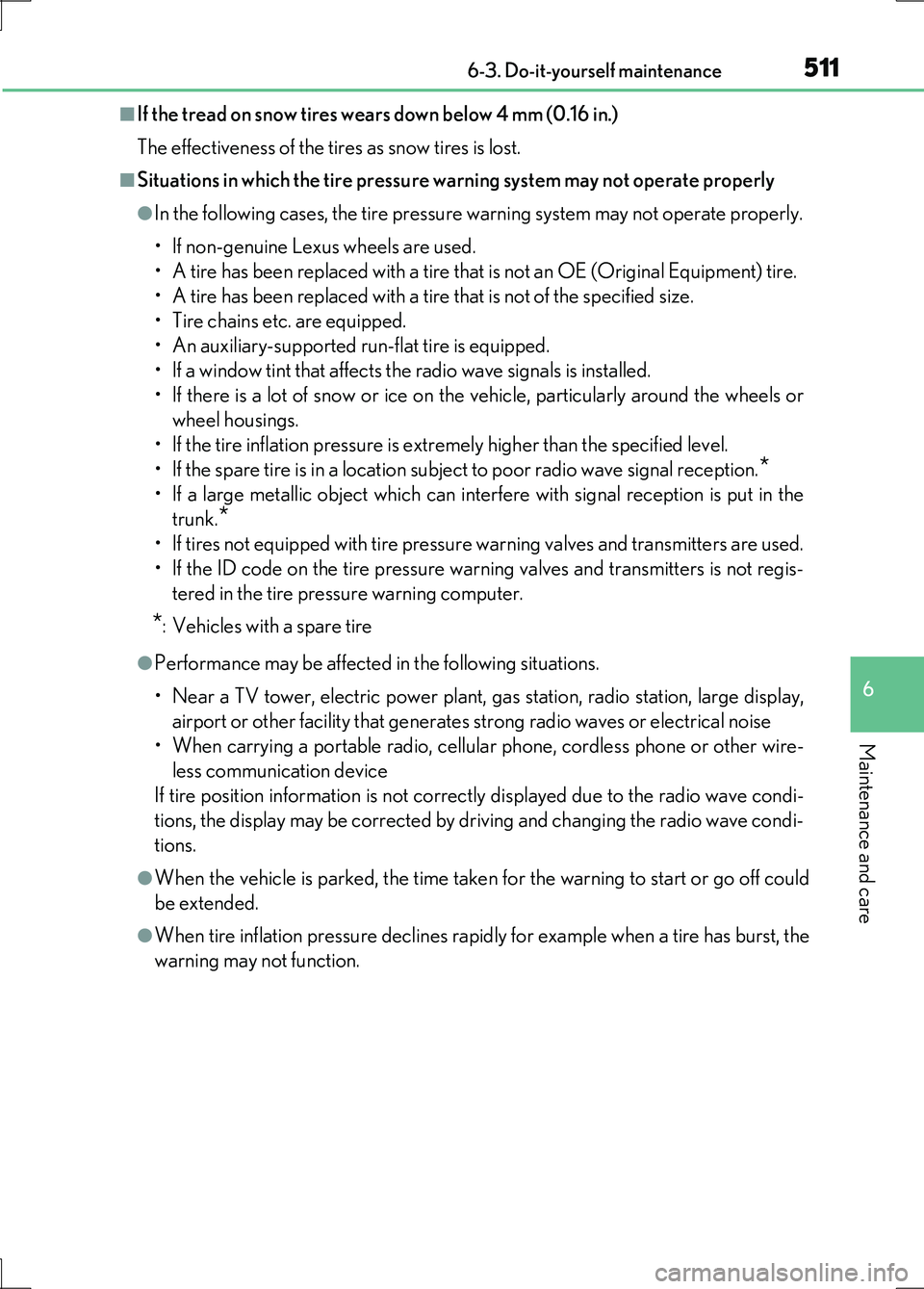

■If the tread on snow tires wears down below 4 mm (0.16 in.)
The effectiveness of the tires as snow tires is lost.
■Situations in which the tire pressure warning system may not operate properly
●In the following cases, the tire pressure warning system may not operate properly.
• If non-genuine Lexus wheels are used.
• A tire has been replaced with a tire that is not an OE (Original Equipment) tire.
• A tire has been replaced with a tire that is not of the specified size.
• Tire chains etc. are equipped.
• An auxiliary-supported run-flat tire is equipped.
• If a window tint that affects the radio wave signals is installed.
• If there is a lot of snow or ice on the vehicle, particularly around the wheels or
wheel housings.
• If the tire inflation pressure is extr emely higher than the specified level.
• If the spare tire is in a location subject to poor radio wave signal reception.*
• If a large metallic object which can interfere with signal reception is put in the
trunk.*
• If tires not equipped with tire pressure warning valves and transmitters are used.
• If the ID code on the tire pressure warning valves and transmitters is not regis-
tered in the tire pressure warning computer.
*: Vehicles with a spare tire
●Performance may be affected in the following situations.
• Near a TV tower, electric power plant, gas station, radio station, large display,
airport or other facility th at generates strong radio waves or electrical noise
• When carrying a portable radio, cellular phone, cordless phone or other wire-
less communication device
If tire position information is not correctly displayed due to the radio wave condi-
tions, the display may be corrected by driving and changing the radio wave condi-
tions.
●When the vehicle is parked, the time taken for the warning to start or go off could
be extended.
●When tire inflation pressure declines rapidly for example when a tire has burst, the
warning may not function.

5126-3. Do-it-yourself maintenance
LS600h/LS600hL_EE(OM50G20E)

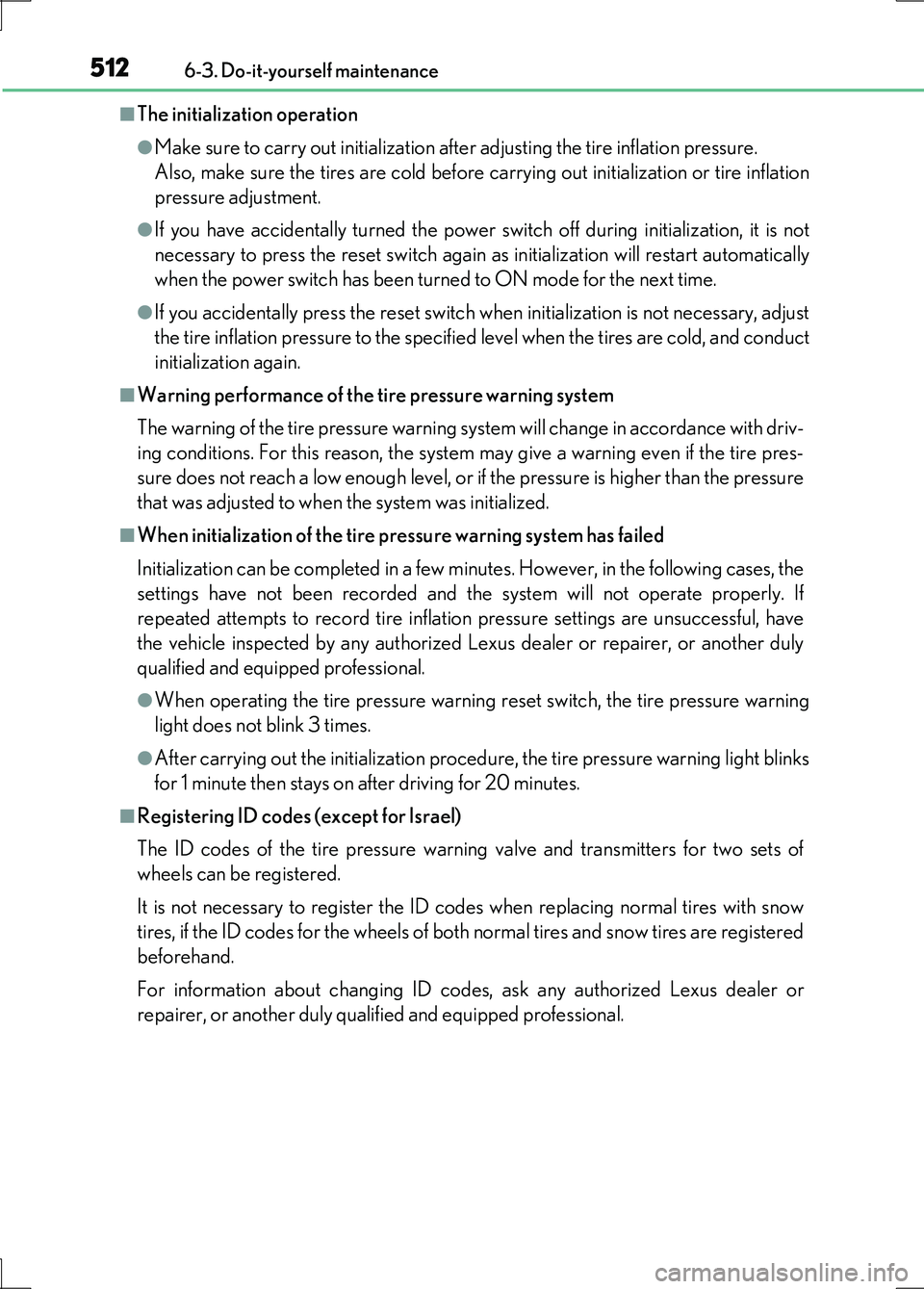

■The initialization operation
●Make sure to carry out initialization after adjusting the tire inflation pressure.
Also, make sure the tires are cold before carrying out initialization or tire inflation
pressure adjustment.
●If you have accidentally turned the power switch off during initialization, it is not
necessary to press the reset switch again as initialization will restart automatically
when the power switch has been turned to ON mode for the next time.
●If you accidentally press the reset switch when initialization is not necessary, adjust
the tire inflation pressure to the specified level when the tires are cold, and conduct
initialization again.
■Warning performance of the tire pressure warning system
The warning of the tire pressure warning system will change in accordance with driv-
ing conditions. For this reason, the system may give a warning even if the tire pres-
sure does not reach a low enough level, or if the pressure is higher than the pressure
that was adjusted to when the system was initialized.
■When initialization of the tire pressure warning system has failed
Initialization can be completed in a few minutes. However, in the following cases, the
settings have not been recorded and the system will not operate properly. If
repeated attempts to record tire inflation pressure settings are unsuccessful, have
the vehicle inspected by any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
●When operating the tire pressure warning reset switch, the tire pressure warning
light does not blink 3 times.
●After carrying out the initialization procedure, the tire pressure warning light blinks
for 1 minute then stays on after driving for 20 minutes.
■Registering ID codes (except for Israel)
The ID codes of the tire pressure warning valve and transmitters for two sets of
wheels can be registered.
It is not necessary to register the ID codes when replacing normal tires with snow
tires, if the ID codes for the wheels of both normal tires and snow tires are registered
beforehand.
For information about changing ID codes, ask any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.

5136-3. Do-it-yourself maintenance
6
Maintenance and care
LS600h/LS600hL_EE(OM50G20E)

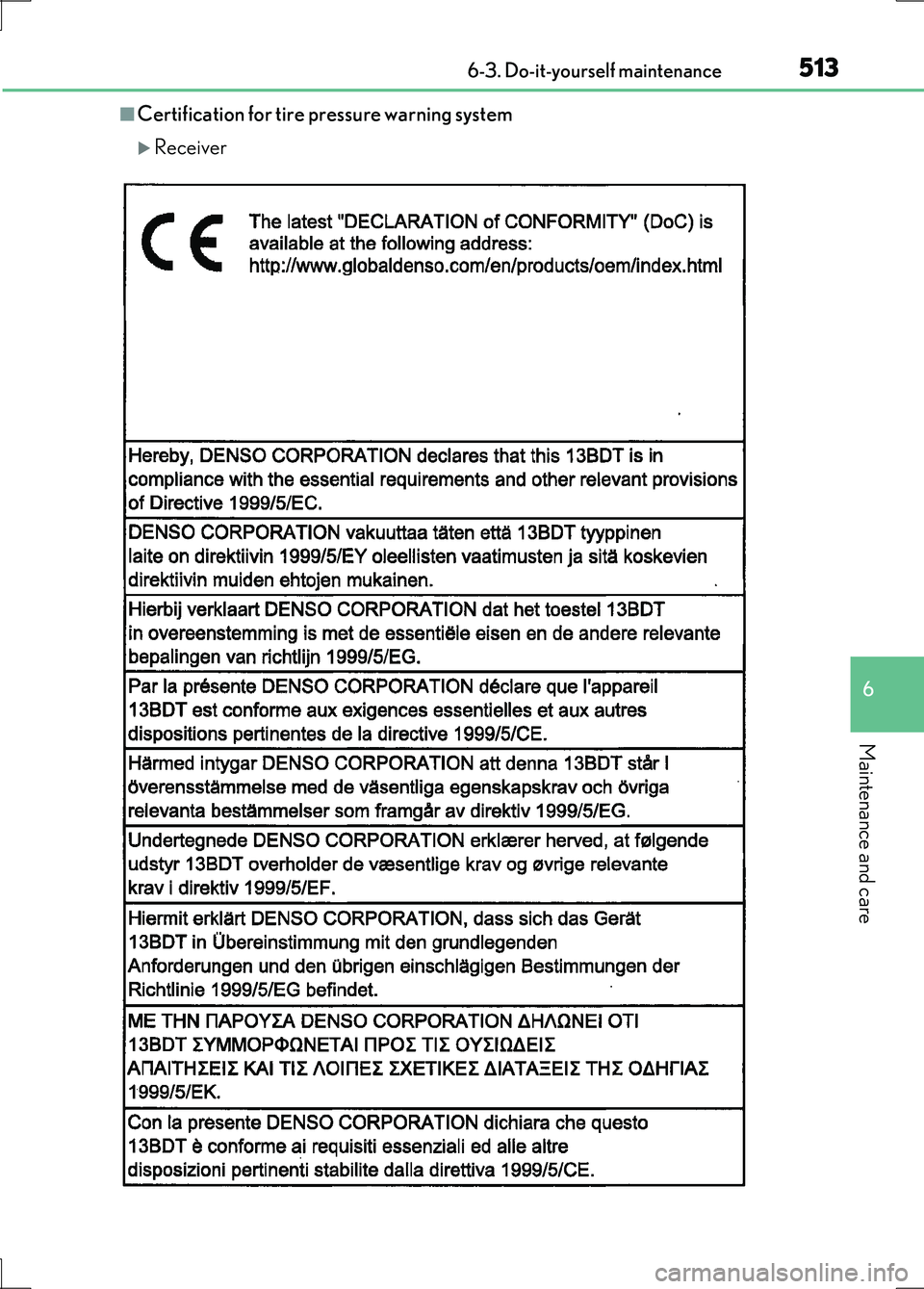

■Certification for tire pressure warning system
Receiver

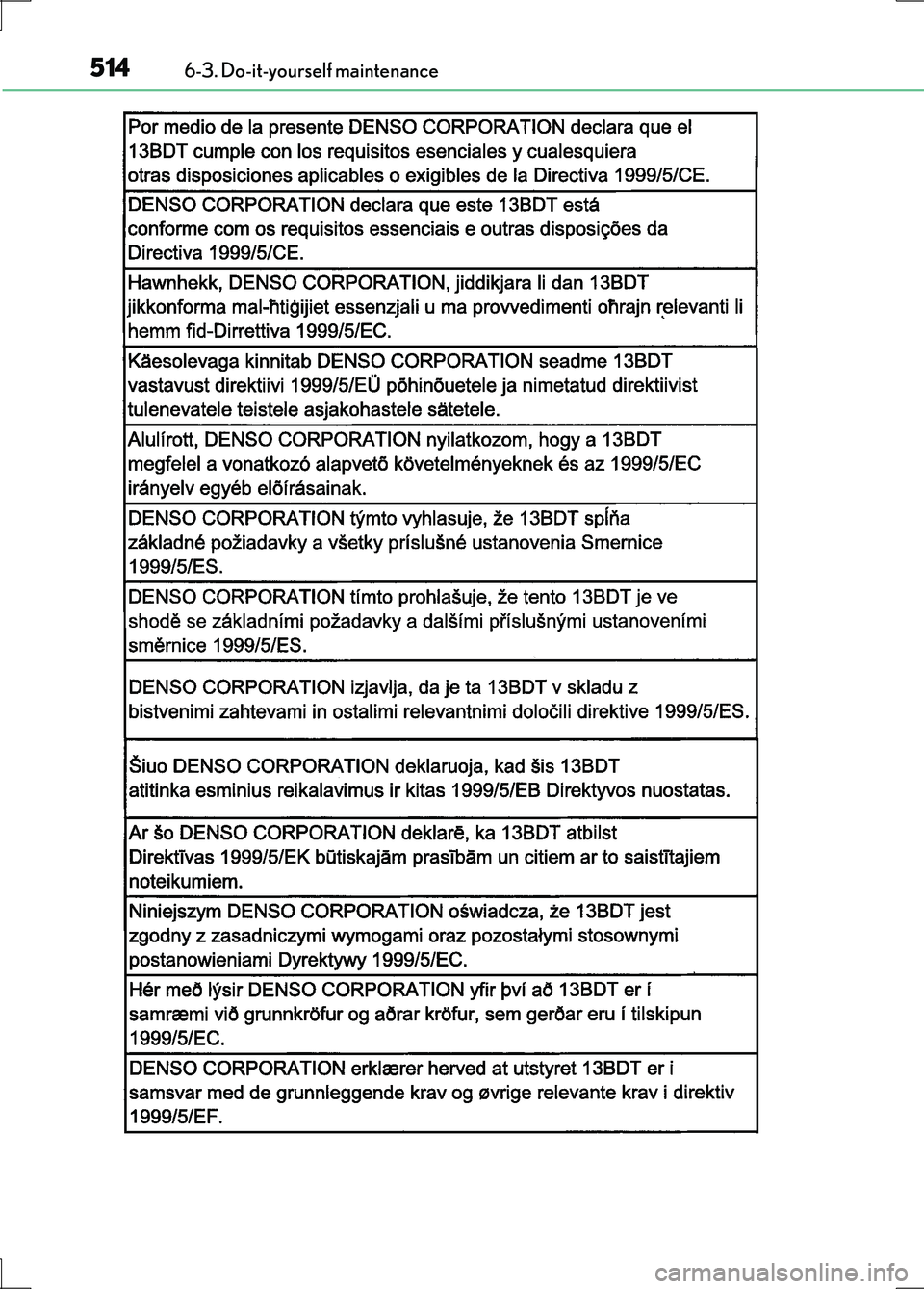

5146-3. Do-it-yourself maintenance
LS600h/LS600hL_EE(OM50G20E)

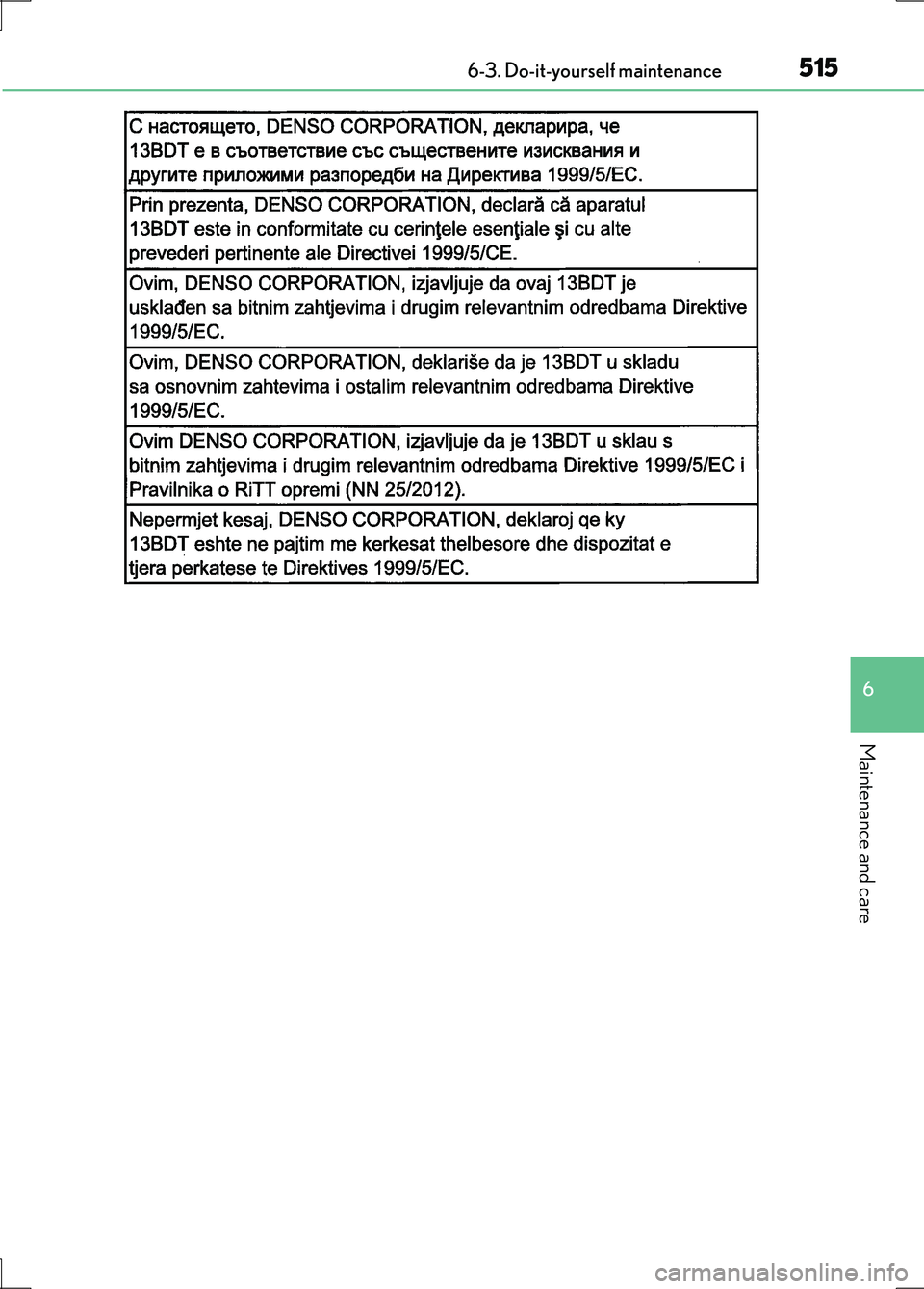

5156-3. Do-it-yourself maintenance
6
Maintenance and care
LS600h/LS600hL_EE(OM50G20E)

5166-3. Do-it-yourself maintenance
LS600h/LS600hL_EE(OM50G20E)

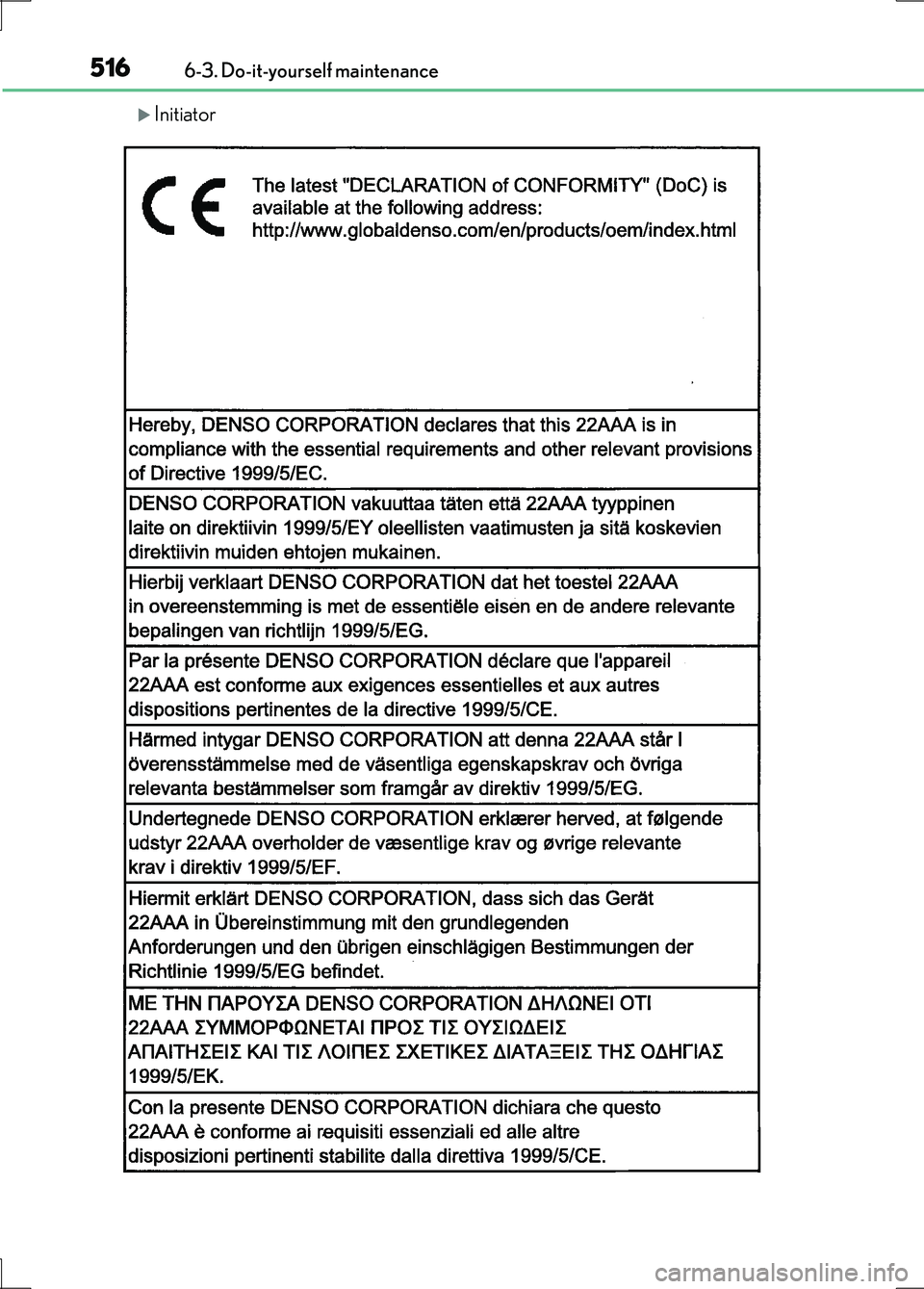

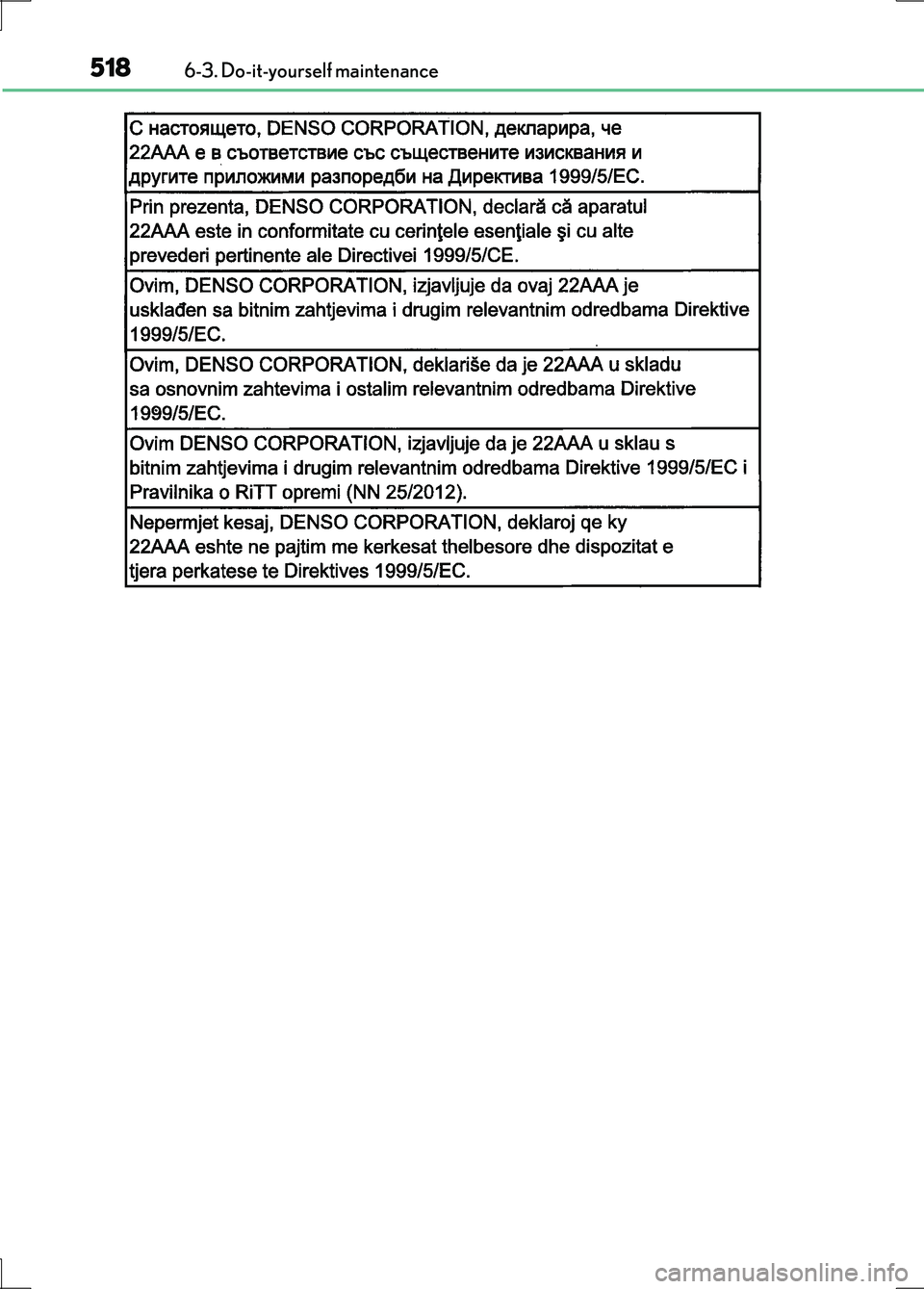

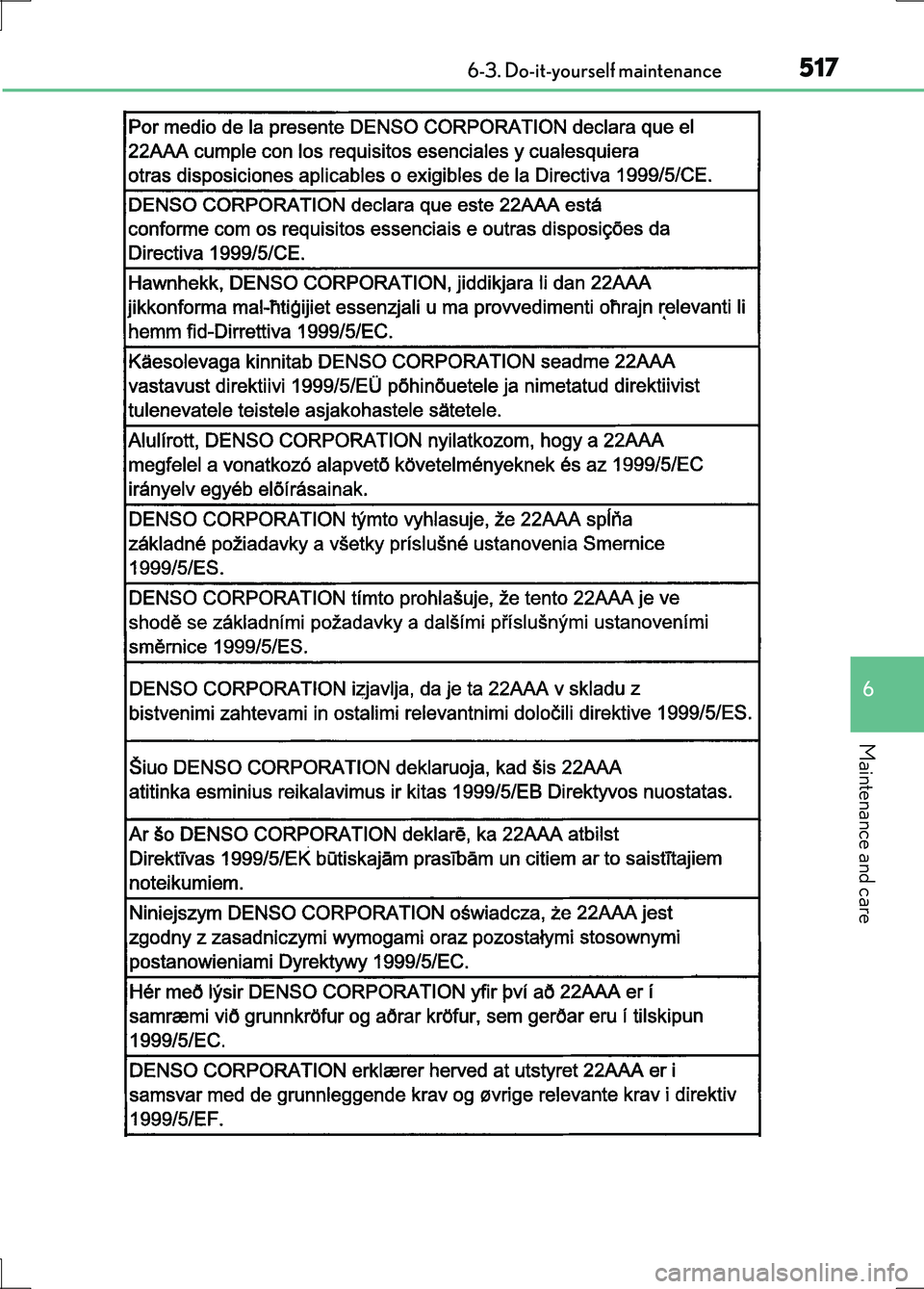

Initiator

5176-3. Do-it-yourself maintenance
6
Maintenance and care
LS600h/LS600hL_EE(OM50G20E)

5186-3. Do-it-yourself maintenance
LS600h/LS600hL_EE(OM50G20E)

5196-3. Do-it-yourself maintenance
6
Maintenance and care
LS600h/LS600hL_EE(OM50G20E)

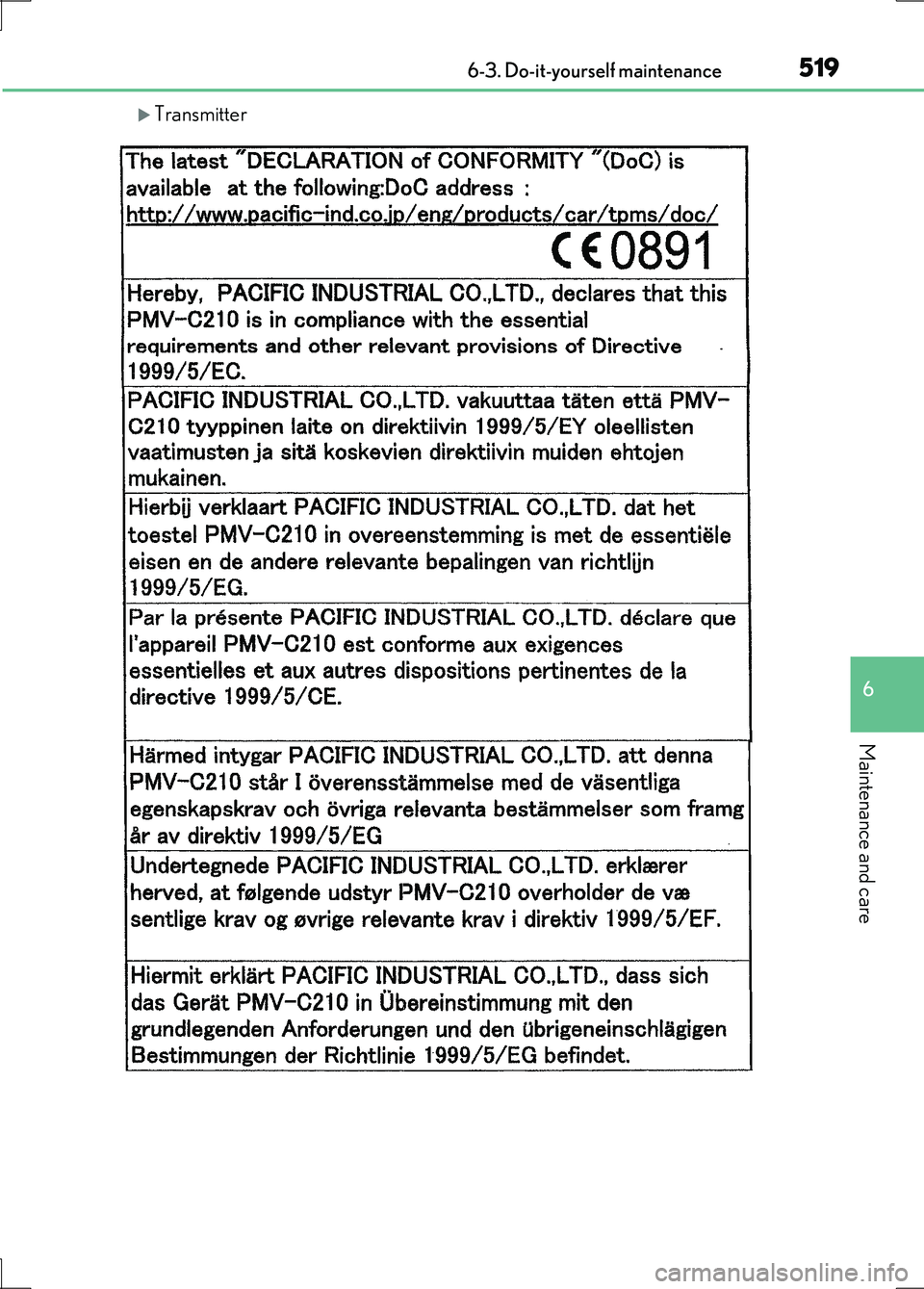

Transmitter

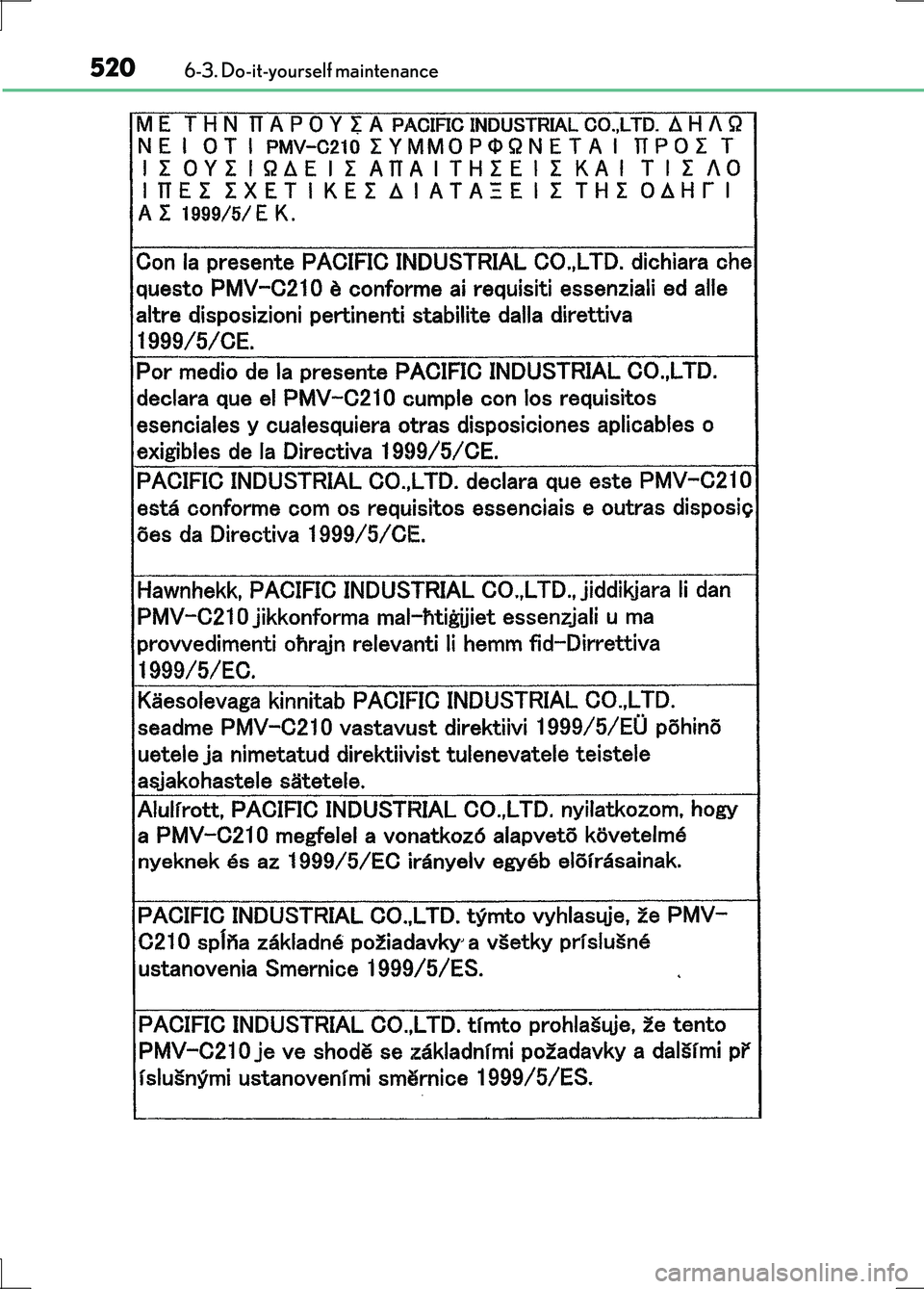

5206-3. Do-it-yourself maintenance
