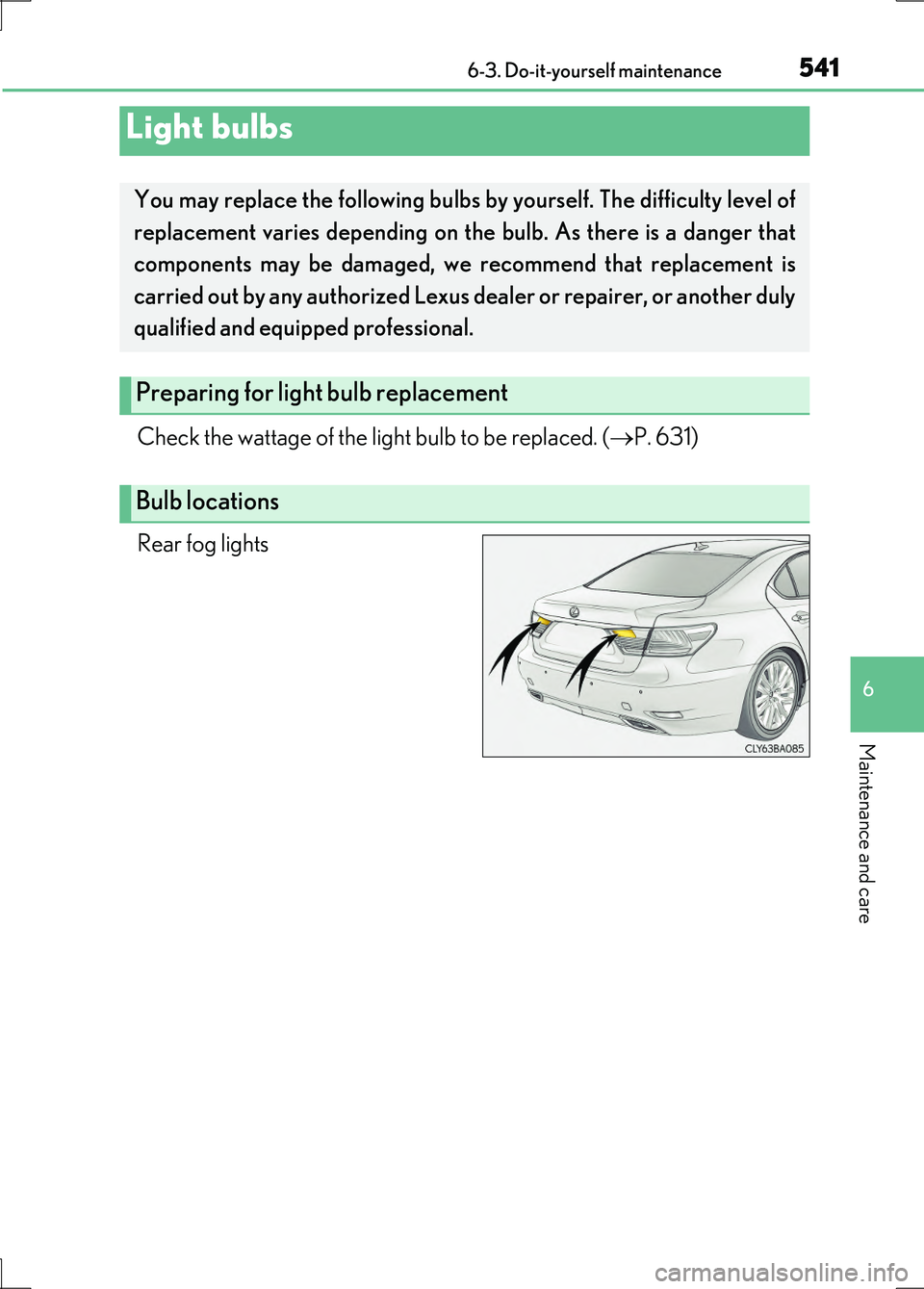

Page 541 of 676

5416-3. Do-it-yourself maintenance
6
Maintenance and care
LS600h/LS600hL_EE(OM50G20E)
Check the wattage of the light bulb to be replaced. (P. 631)
Rear fog lights
Light bulbs
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on the bulb. As there is a danger that
components may be damaged, we recommend that replacement is
carried out by any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
Preparing for light bulb replacement
Bulb locations

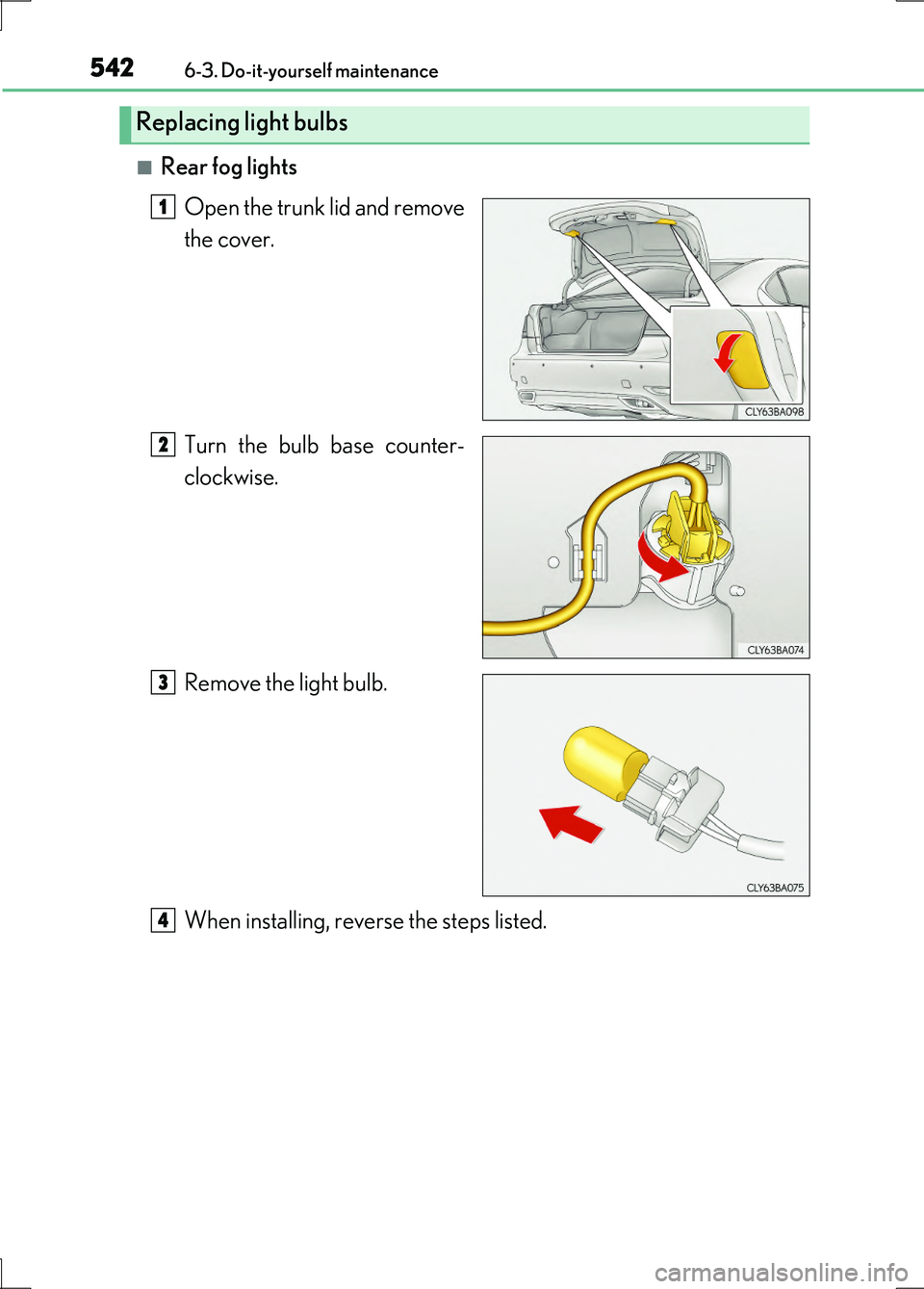

Page 542 of 676

5426-3. Do-it-yourself maintenance
LS600h/LS600hL_EE(OM50G20E)
■Rear fog lights
Open the trunk lid and remove
the cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
Replacing light bulbs
1
2
3
4

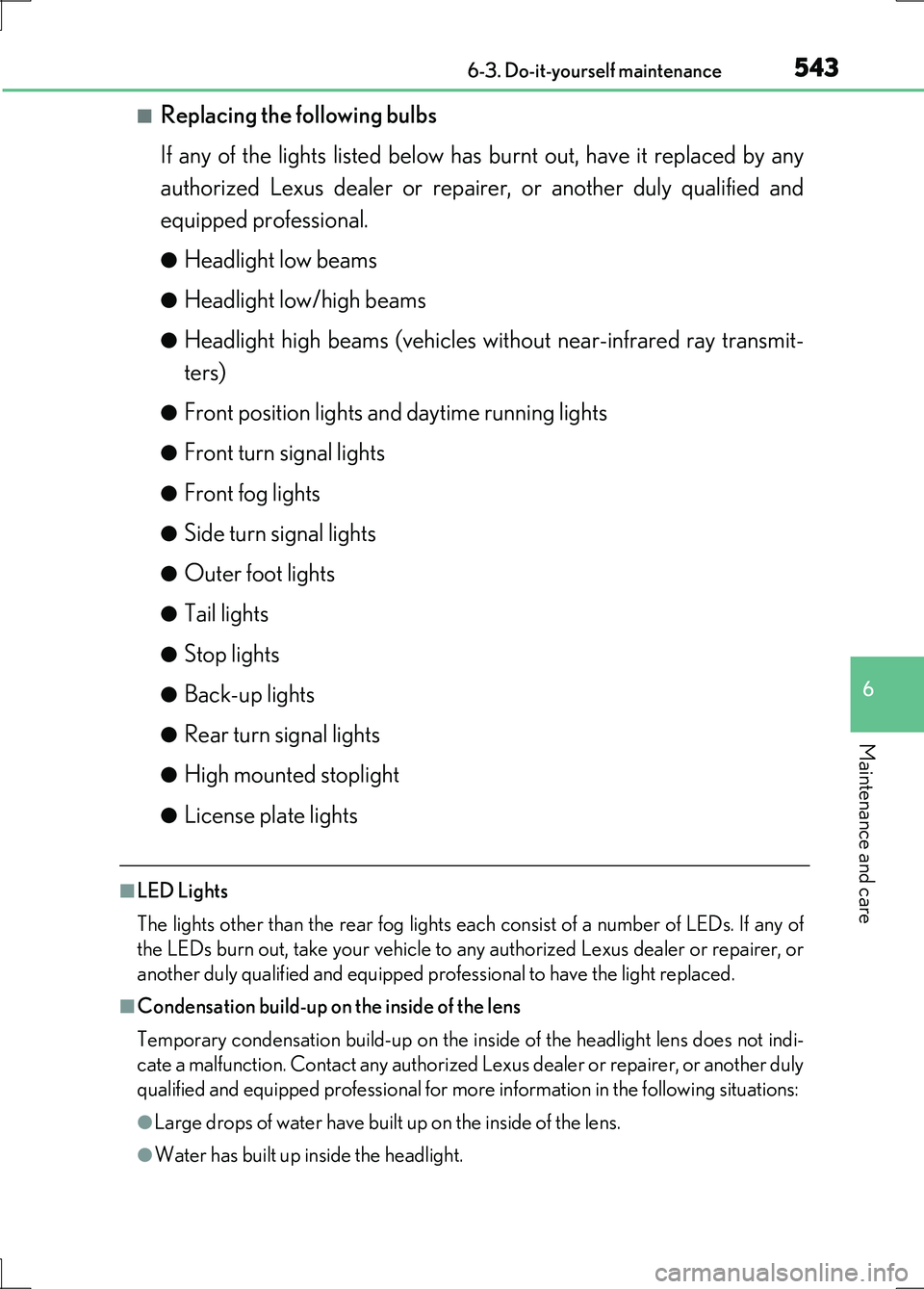

Page 543 of 676

5436-3. Do-it-yourself maintenance
6
Maintenance and care
LS600h/LS600hL_EE(OM50G20E)
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by any
authorized Lexus dealer or repair er, or another duly qualified and
equipped professional.
●Headlight low beams
●Headlight low/high beams
●Headlight high beams (vehicles without near-infrared ray transmit-
ters)
●Front position lights and daytime running lights
●Front turn signal lights
●Front fog lights
●Side turn signal lights
●Outer foot lights
●Tail lights
●Stop lights
●Back-up lights
●Rear turn signal lights
●High mounted stoplight
●License plate lights
■LED Lights
The lights other than the rear fog lights each consist of a number of LEDs. If any of
the LEDs burn out, take your vehicle to any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indi-
cate a malfunction. Contact any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional for more information in the following situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.

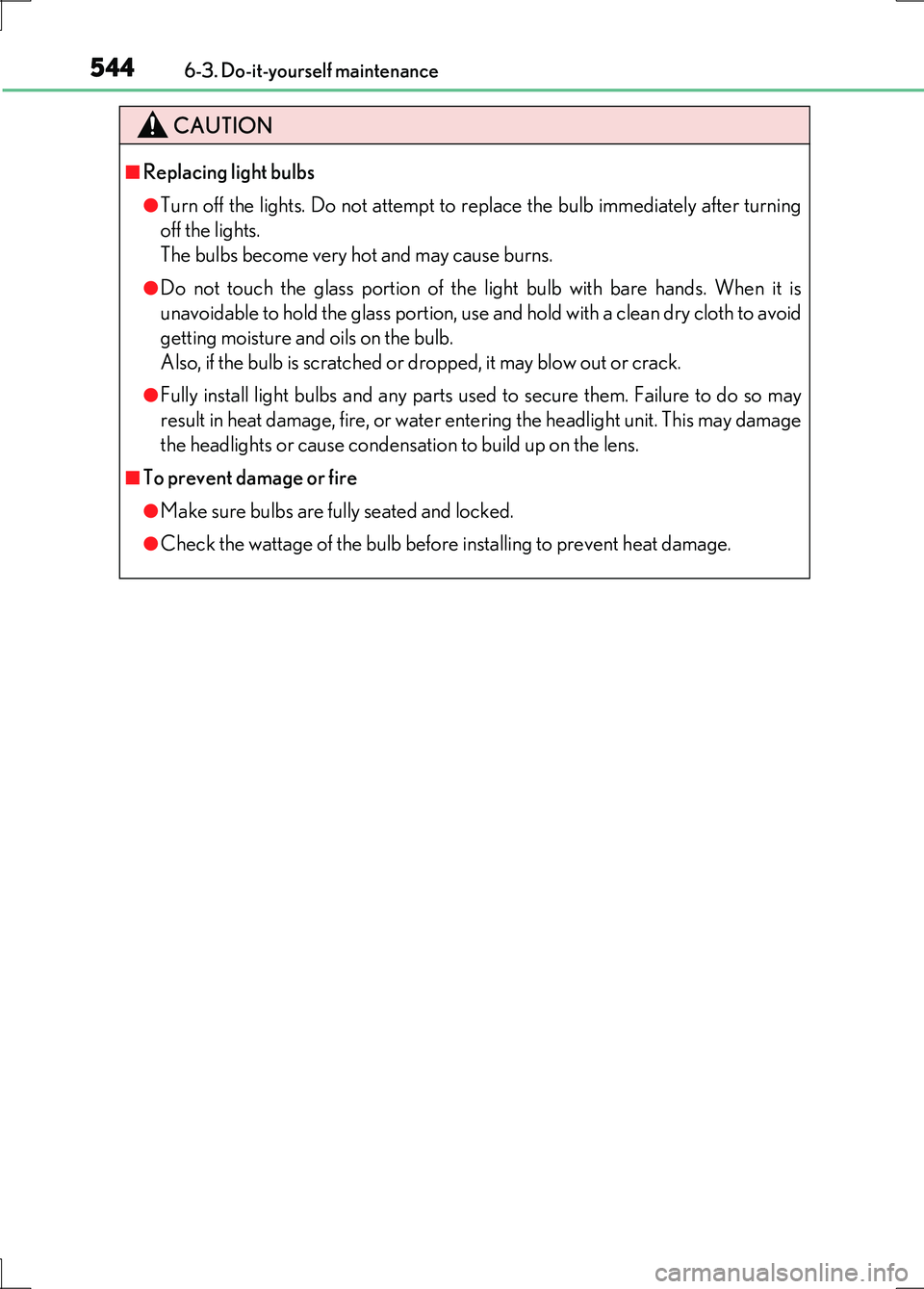

Page 544 of 676

5446-3. Do-it-yourself maintenance
LS600h/LS600hL_EE(OM50G20E)
CAUTION
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning
off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth to avoid
getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so may
result in heat damage, fire, or water entering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
■To prevent damage or fire
●Make sure bulbs are fully seated and locked.
●Check the wattage of the bulb before installing to prevent heat damage.

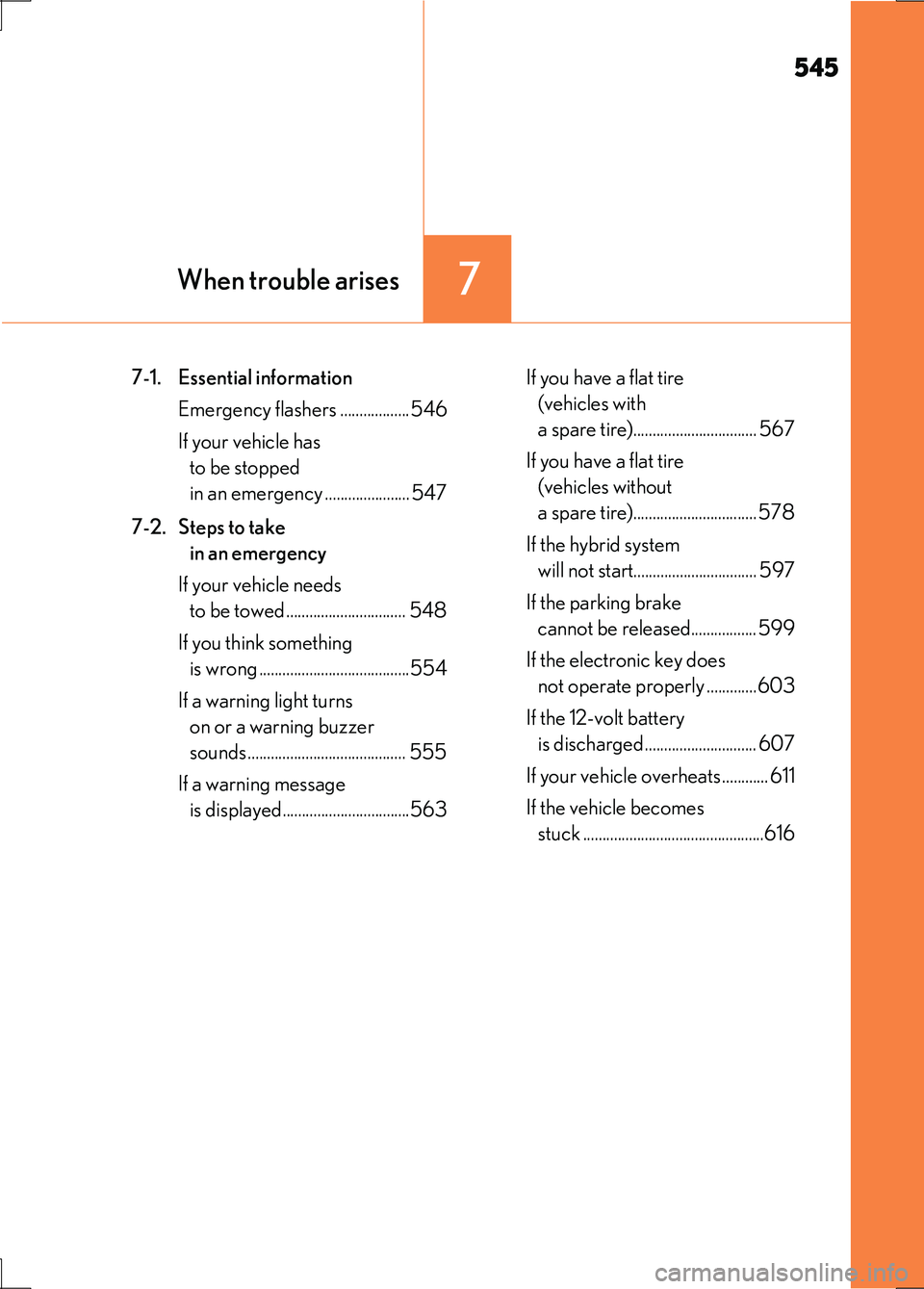

Page 545 of 676

545
7When trouble arises
LS600h/LS600hL_EE(OM50G20E)
7-1. Essential information
Emergency flashers ..................546
If your vehicle has
to be stopped
in an emergency ...................... 547
7-2. Steps to take
in an emergency
If your vehicle needs
to be towed ............................... 548
If you think something
is wrong .......................................554
If a warning light turns
on or a warning buzzer
sounds......................................... 555
If a warning message
is displayed.................................563
If you have a flat tire
(vehicles with
a spare tire)................................ 567
If you have a flat tire
(vehicles without
a spare tire)................................ 578
If the hybrid system
will not start................................ 597
If the parking brake
cannot be released................. 599
If the electronic key does
not operate properly .............603
If the 12-volt battery
is discharged............................. 607
If your vehicle overheats ............ 611
If the vehicle becomes
stuck ...............................................616

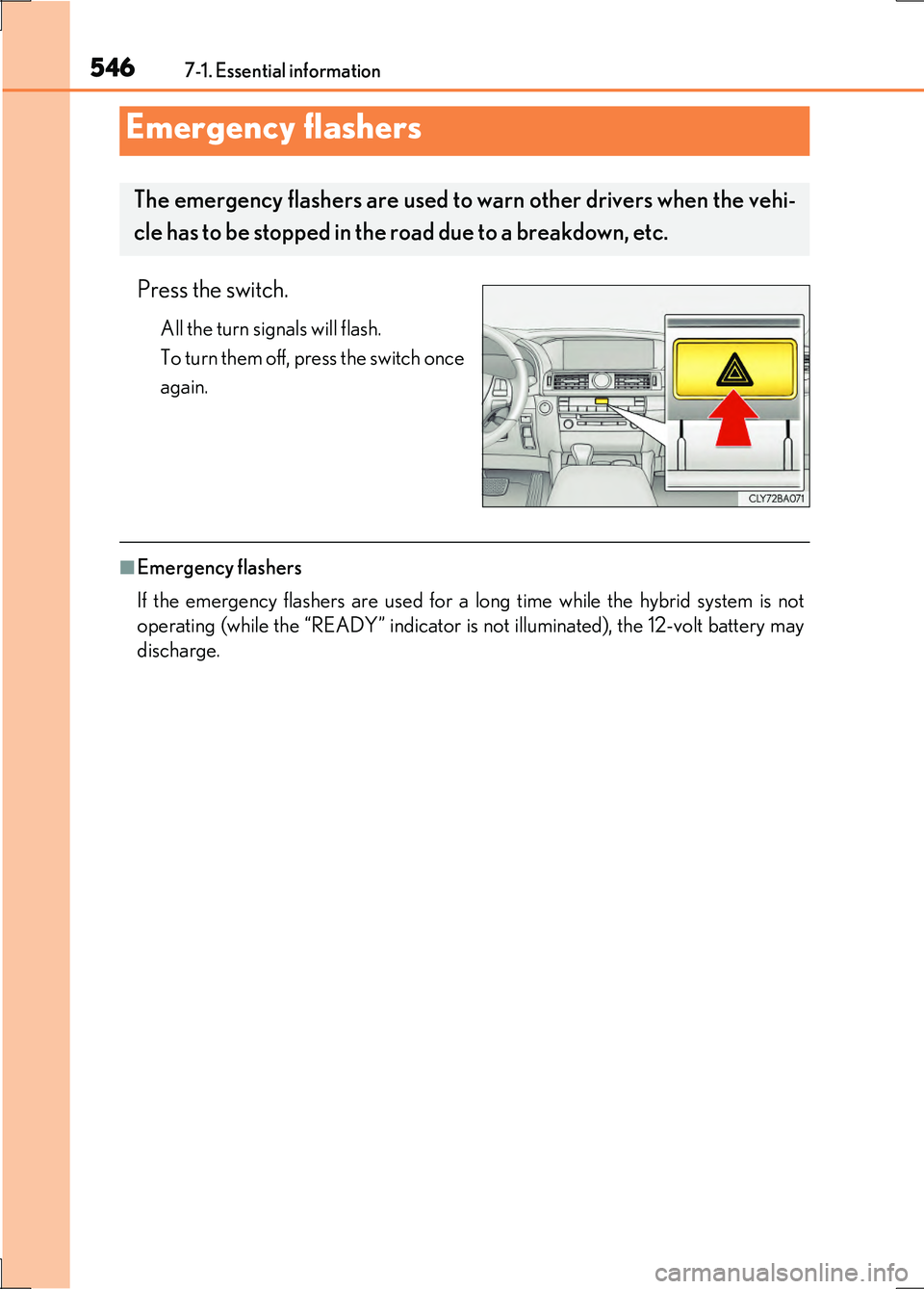

Page 546 of 676

546
LS600h/LS600hL_EE(OM50G20E)
7-1. Essential information
Press the switch.
All the turn signals will flash.
To turn them off, press the switch once
again.
■Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is not
operating (while the “READY” indicator is not illuminated), the 12-volt battery may
discharge.
Emergency flashers
The emergency flashers are used to warn other drivers when the vehi-
cle has to be stopped in the road due to a breakdown, etc.

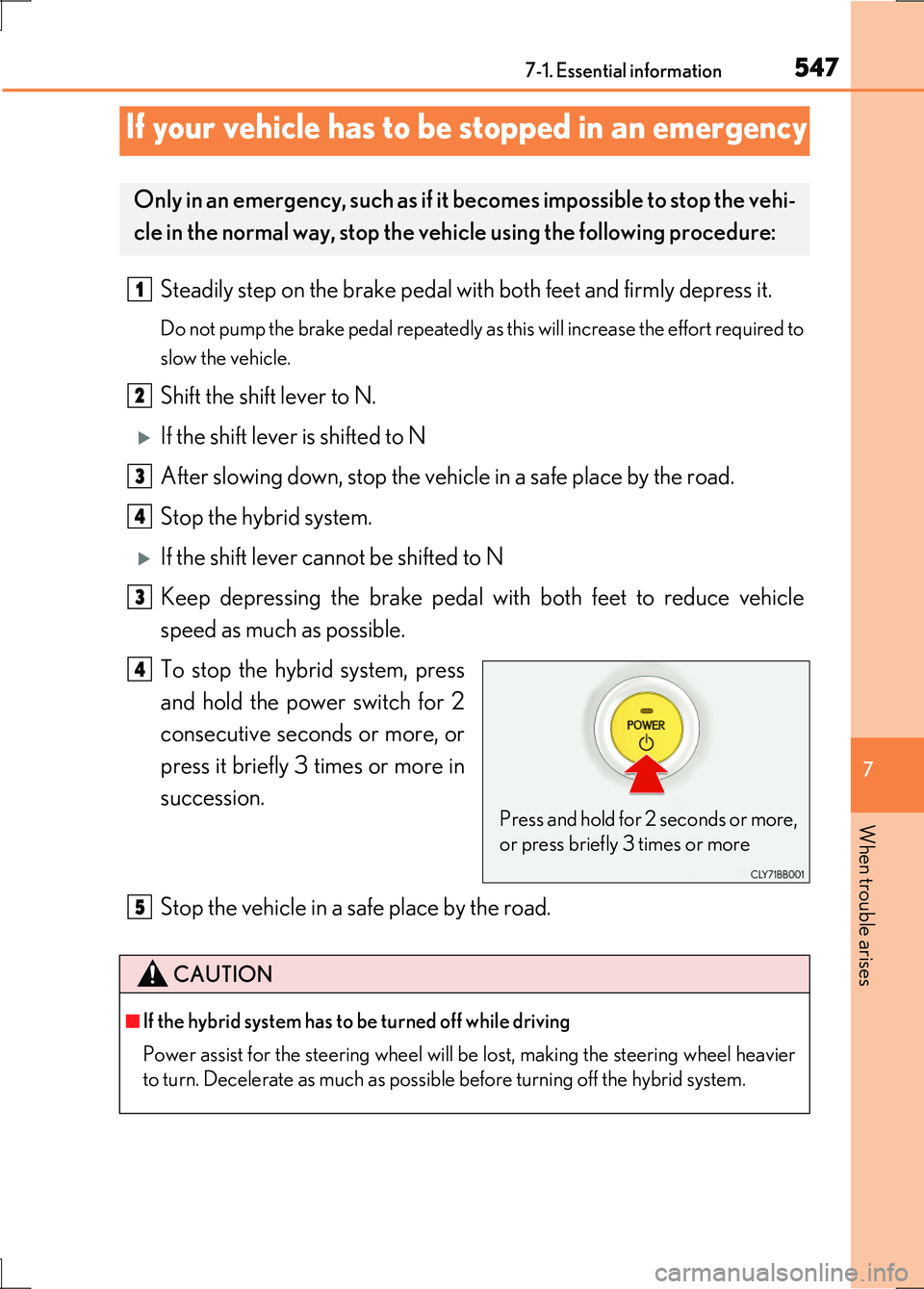

Page 547 of 676

5477-1. Essential information
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort required to
slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the hybrid system.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal wi th both feet to reduce vehicle
speed as much as possible.
To stop the hybrid system, press
and hold the power switch for 2
consecutive seconds or more, or
press it briefly 3 times or more in
succession.
Stop the vehicle in a safe place by the road.
If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the vehi-
cle in the normal way, stop the vehicle using the following procedure:
1
2
3
4
3
Press and hold for 2 seconds or more,
or press briefly 3 times or more
4
CAUTION
■If the hybrid system has to be turned off while driving
Power assist for the steering wheel will be lost, making the steering wheel heavier
to turn. Decelerate as much as possible before turning off the hybrid system.
5

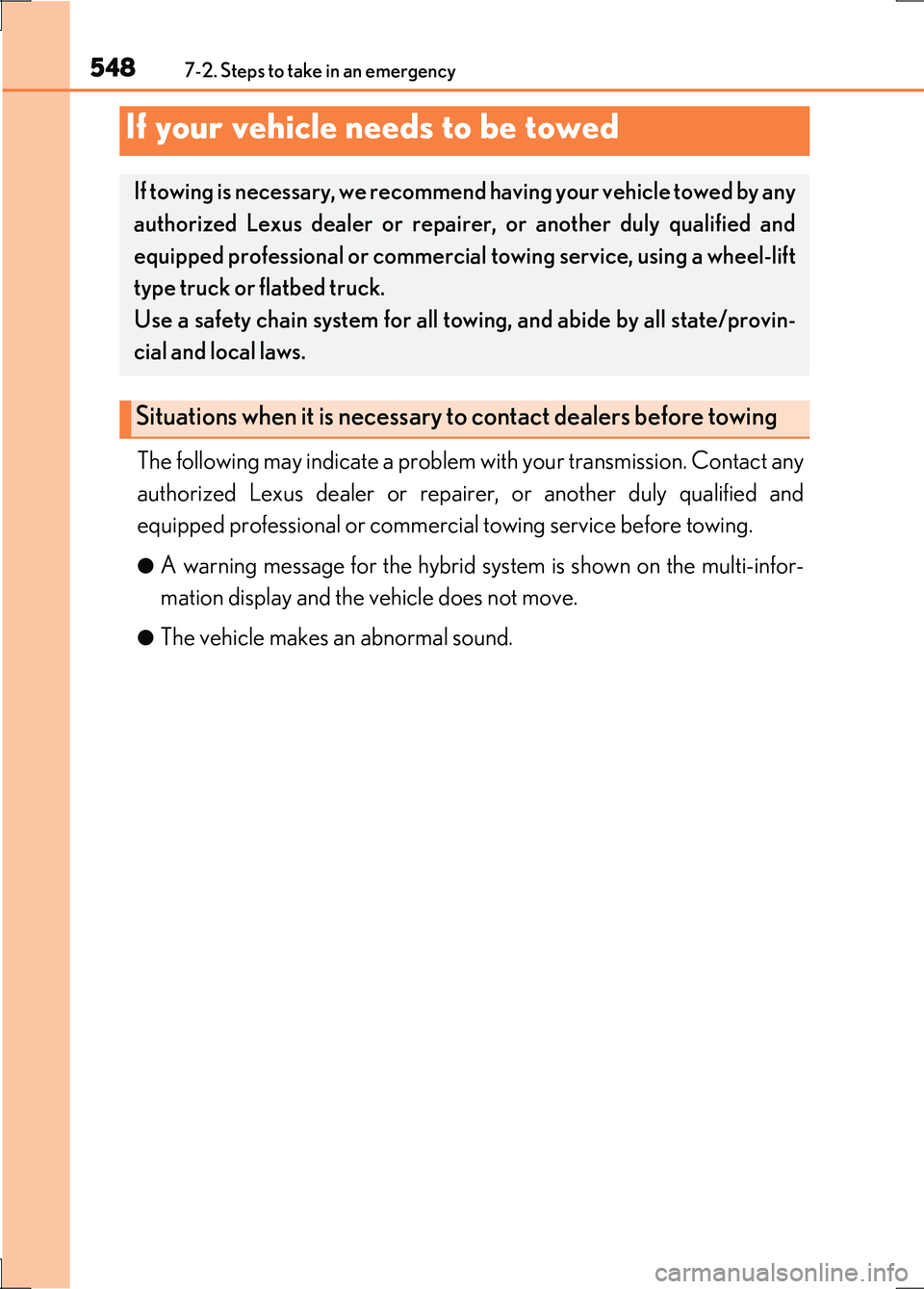

Page 548 of 676

548
LS600h/LS600hL_EE(OM50G20E)
7-2. Steps to take in an emergency
The following may indicate a problem with your transmission. Contact any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional or commercial towing service before towing.
●A warning message for the hybrid system is shown on the multi-infor-
mation display and the vehicle does not move.
●The vehicle makes an abnormal sound.
If your vehicle needs to be towed
If towing is necessary, we recommen d having your vehicle towed by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional or commercial towing service, using a wheel-lift
type truck or flatbed truck.
Use a safety chain system for all to wing, and abide by all state/provin-
cial and local laws.
Situations when it is necessary to contact dealers before towing

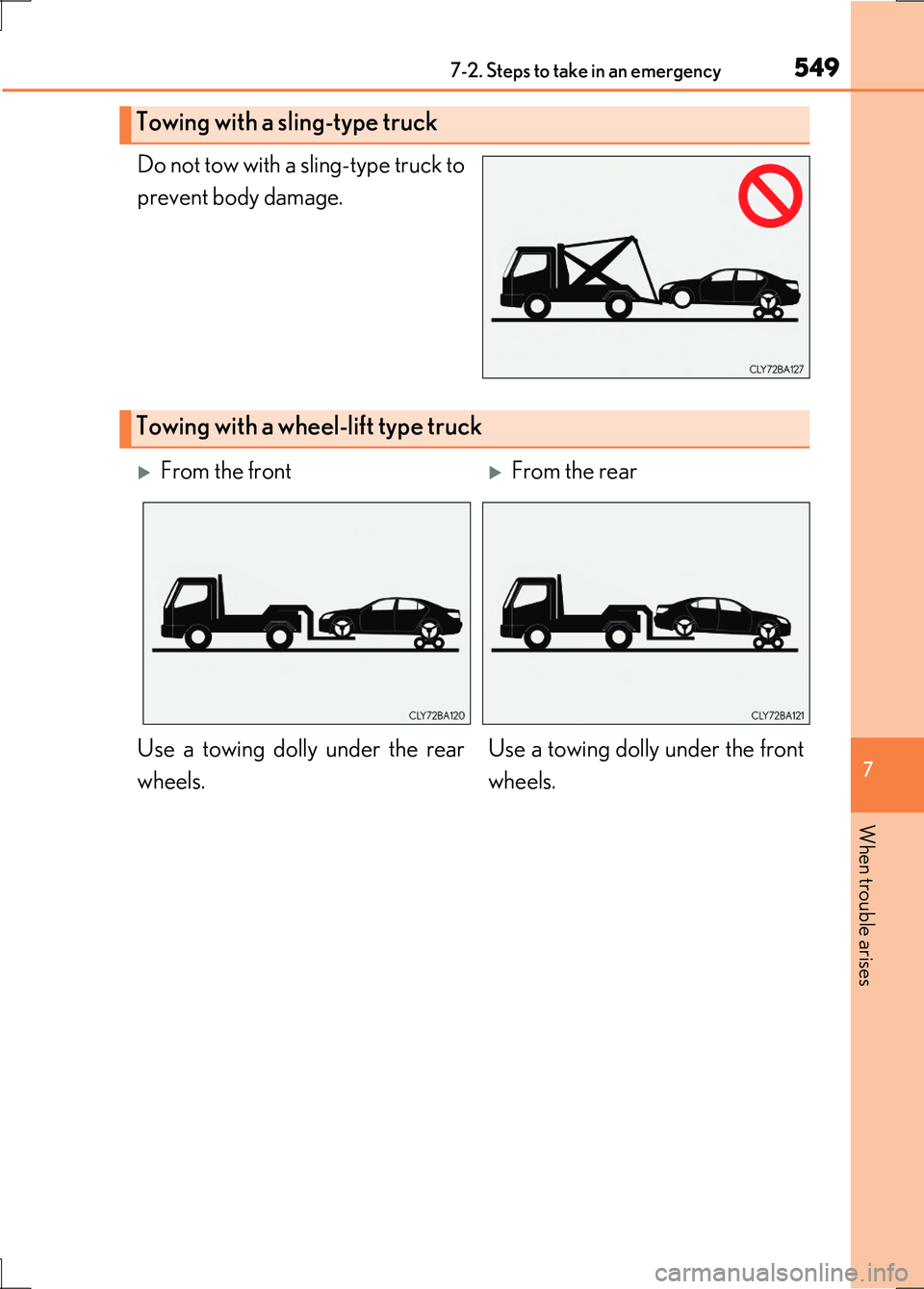

Page 549 of 676

5497-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)
Do not tow with a sling-type truck to
prevent body damage.
Towing with a sling-type truck
Towing with a wheel-lift type truck
From the frontFrom the rear
Use a towing dolly under the rear
wheels.
Use a towing dolly under the front
wheels.
Page 550 of 676

5507-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)
If your vehicle is transported by a
flatbed truck, it should be tied down
at the locations shown in the illustra-
tion.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45 .
Do not overly tighten the tie downs
or the vehicle may be damaged.
If a tow truck is not available in an emergency, your vehicle may be tempo-
rarily towed using cables or chains secured to the emergency towing eye-
lets. This should only be attempted on hard surfaced roads for short
distances at under 30 km/h (18 mph).
A driver must be in the vehicle to steer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steering and brakes must be in good condi-
tion.
Using a flatbed truck
Emergency towing
