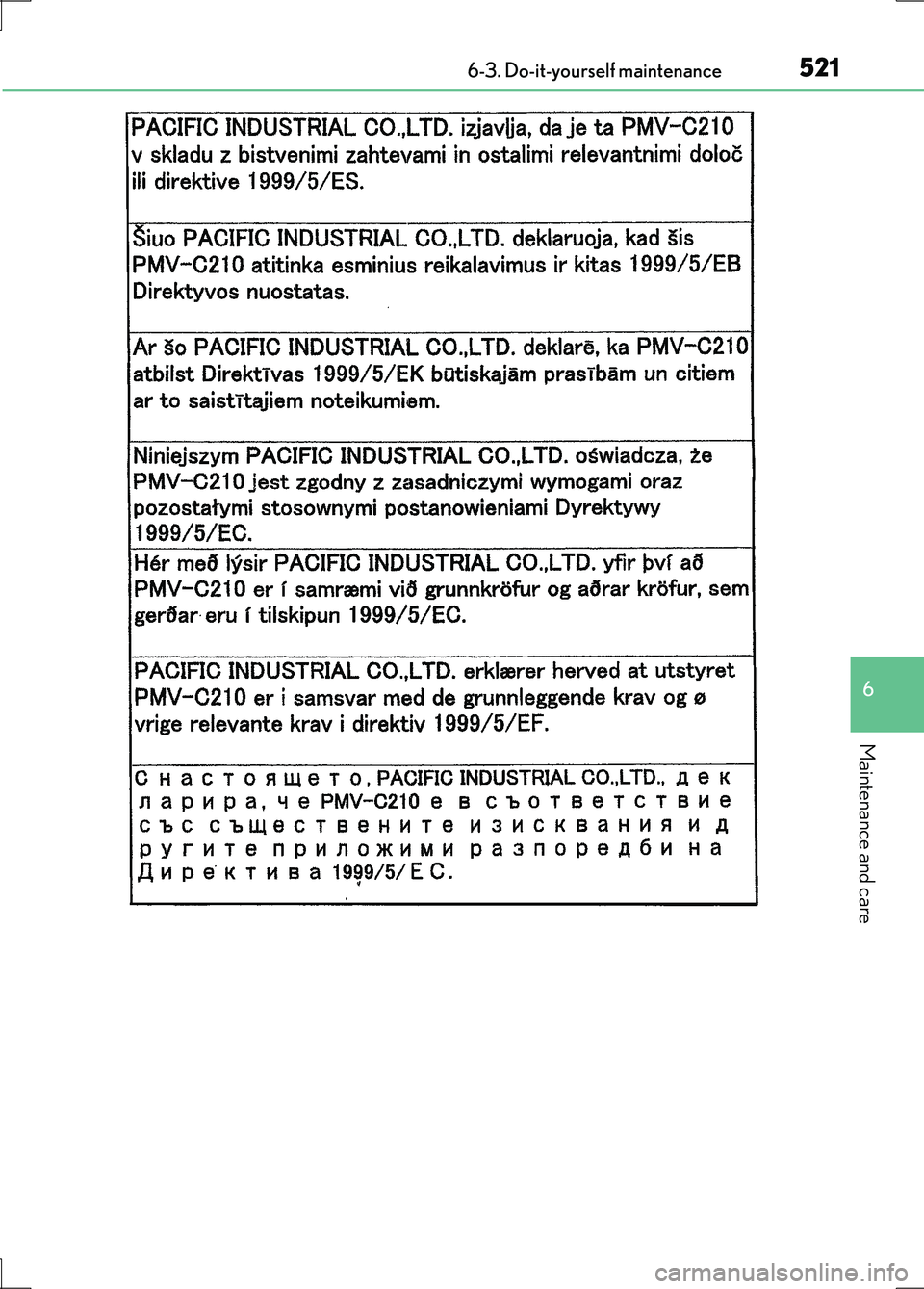

Page 521 of 676

5216-3. Do-it-yourself maintenance
6
Maintenance and care
LS600h/LS600hL_EE(OM50G20E)

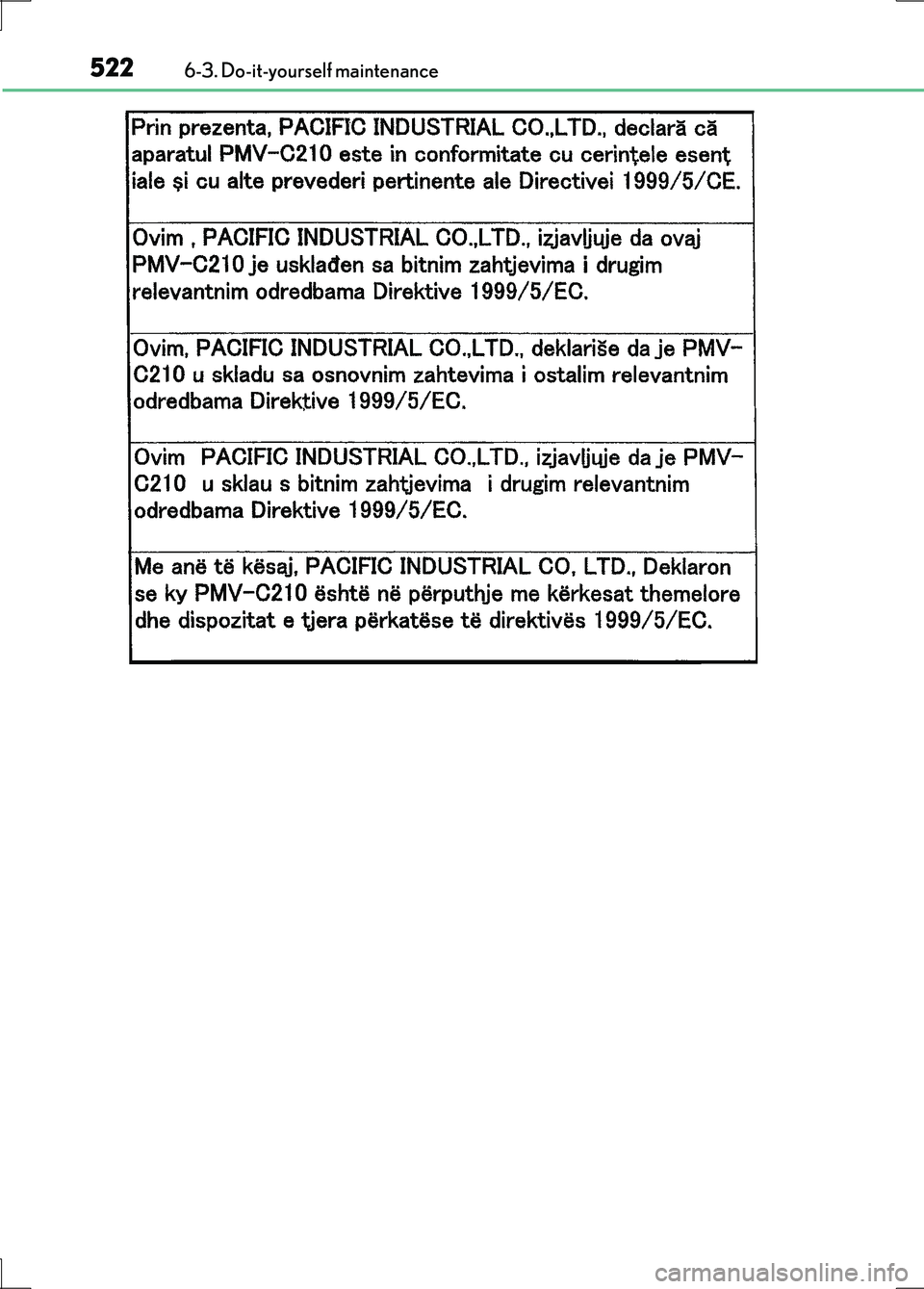

Page 522 of 676

5226-3. Do-it-yourself maintenance
LS600h/LS600hL_EE(OM50G20E)
Page 523 of 676

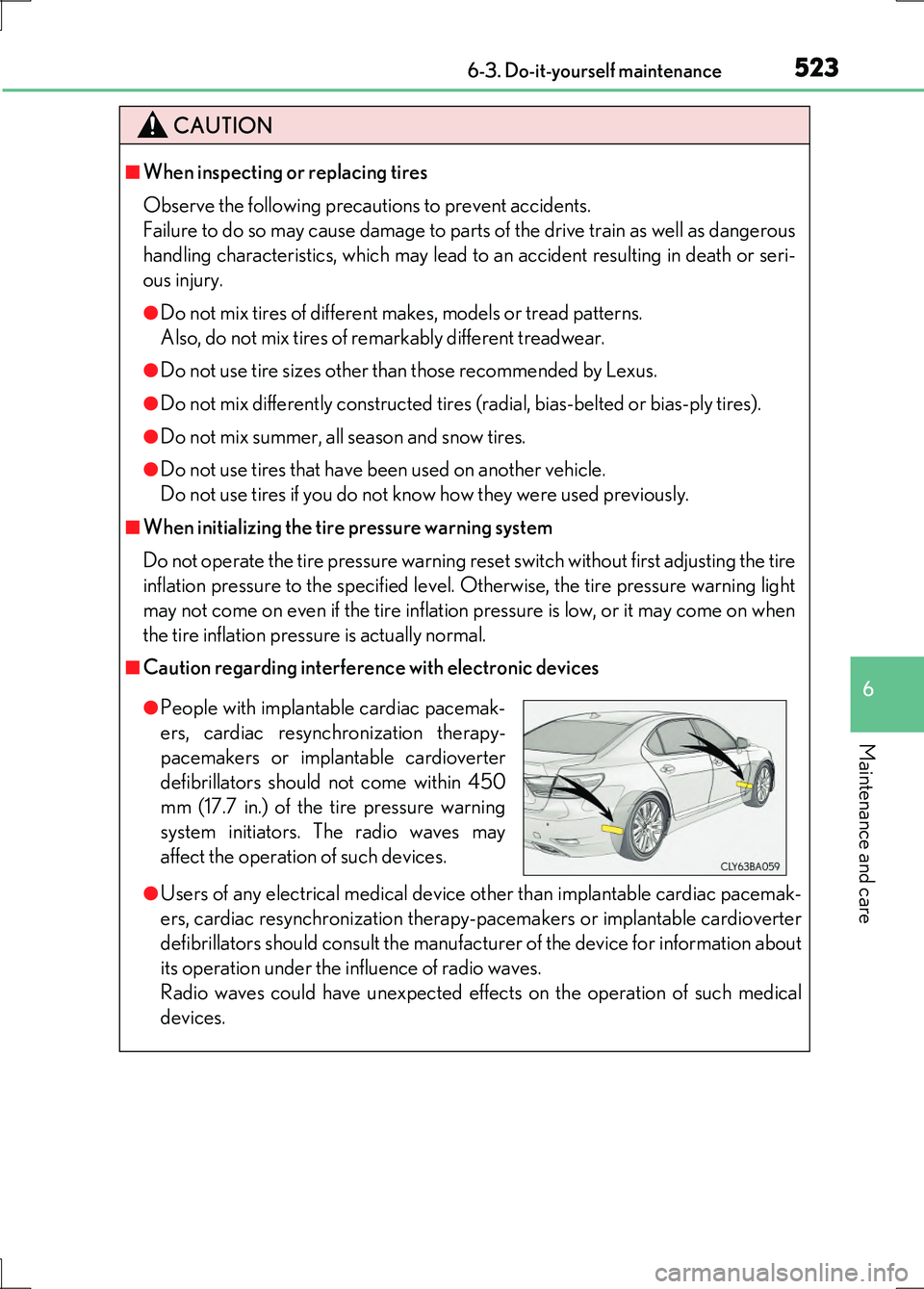

5236-3. Do-it-yourself maintenance
6
Maintenance and care
LS600h/LS600hL_EE(OM50G20E)
CAUTION
■When inspecting or replacing tires
Observe the following precautions to prevent accidents.
Failure to do so may cause damage to parts of the drive train as well as dangerous
handling characteristics, which may lead to an accident resulting in death or seri-
ous injury.
●Do not mix tires of different makes, models or tread patterns.
Also, do not mix tires of remarkably different treadwear.
●Do not use tire sizes other than those recommended by Lexus.
●Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
●Do not mix summer, all season and snow tires.
●Do not use tires that have been used on another vehicle.
Do not use tires if you do not kno w how they were used previously.
■When initializing the tire pressure warning system
Do not operate the tire pressure warning reset switch without first adjusting the tire
inflation pressure to the specified level. Otherwise, the tire pressure warning light
may not come on even if the tire inflation pressure is low, or it may come on when
the tire inflation pressure is actually normal.
■Caution regarding interference with electronic devices
●Users of any electrical medical device other than implantable cardiac pacemak-
ers, cardiac resynchronization therapy-pacemakers or implantable cardioverter
defibrillators should consult the manufacturer of the device for information about
its operation under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such medical
devices.
●People with implantable cardiac pacemak-
ers, cardiac resynchronization therapy-
pacemakers or implantable cardioverter
defibrillators should not come within 450
mm (17.7 in.) of the tire pressure warning
system initiators. The radio waves may
affect the operation of such devices.
Page 524 of 676

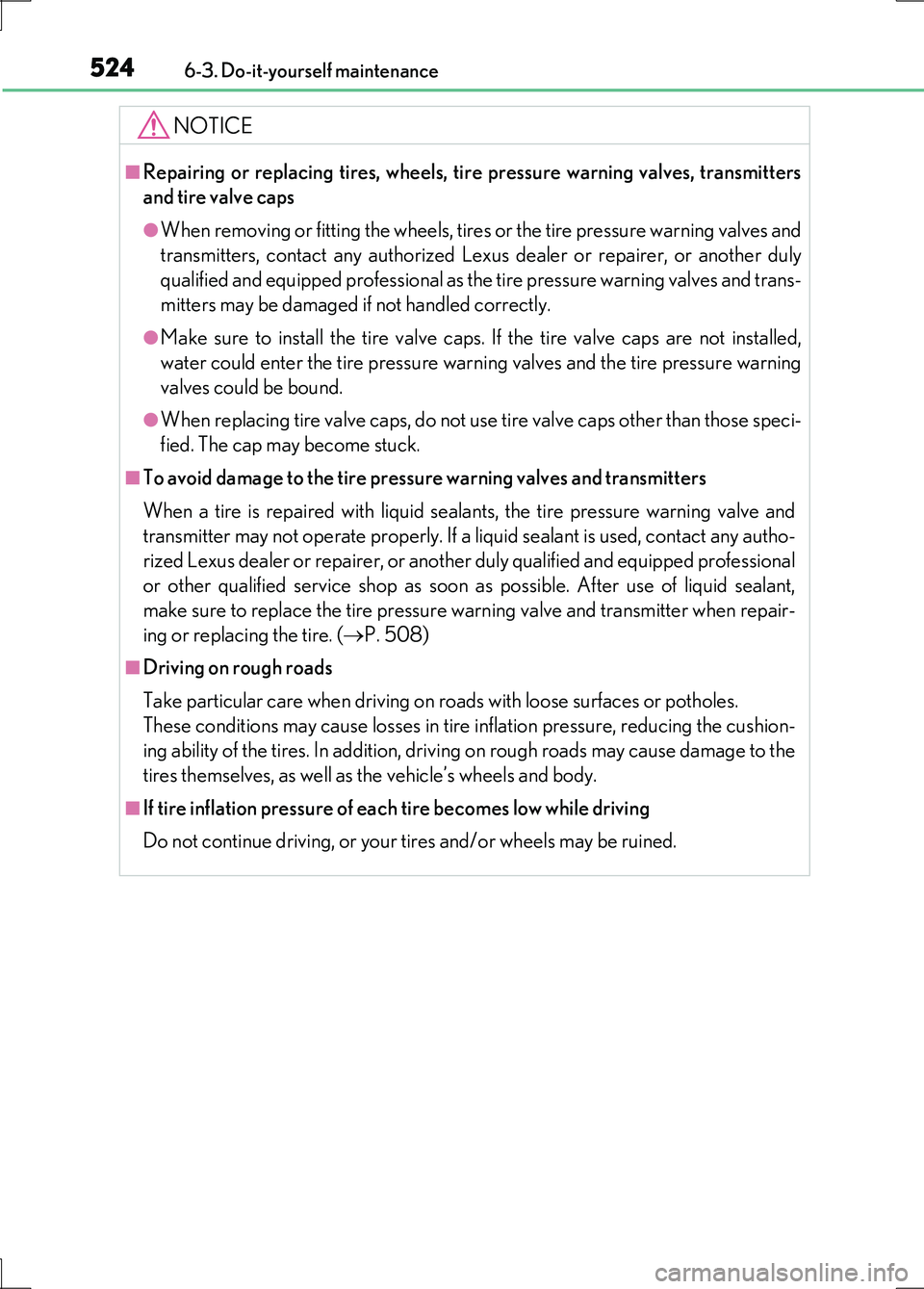

5246-3. Do-it-yourself maintenance
LS600h/LS600hL_EE(OM50G20E)
NOTICE
■Repairing or replacing tires, wheels, tire pressure warning valves, transmitters
and tire valve caps
●When removing or fitting the wheels, tires or the tire pressure warning valves and
transmitters, contact any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional as the tire pressure warning valves and trans-
mitters may be damaged if not handled correctly.
●Make sure to install the tire valve caps. If the tire valve caps are not installed,
water could enter the tire pressure warning valves and the tire pressure warning
valves could be bound.
●When replacing tire valve caps, do not use tire valve caps other than those speci-
fied. The cap may become stuck.
■To avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid sealants, the tire pressure warning valve and
transmitter may not operate properly. If a liquid sealant is used, contact any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped professional
or other qualified service shop as soon as possible. After use of liquid sealant,
make sure to replace the tire pressure warning valve and transmitter when repair-
ing or replacing the tire. ( P. 508)
■Driving on rough roads
Take particular care when driving on roads with loose surfaces or potholes.
These conditions may cause losses in tire inflation pressure, reducing the cushion-
ing ability of the tires. In addition, driving on rough roads may cause damage to the
tires themselves, as well as the vehicle’s wheels and body.
■If tire inflation pressure of each tire becomes low while driving
Do not continue driving, or your tires and/or wheels may be ruined.

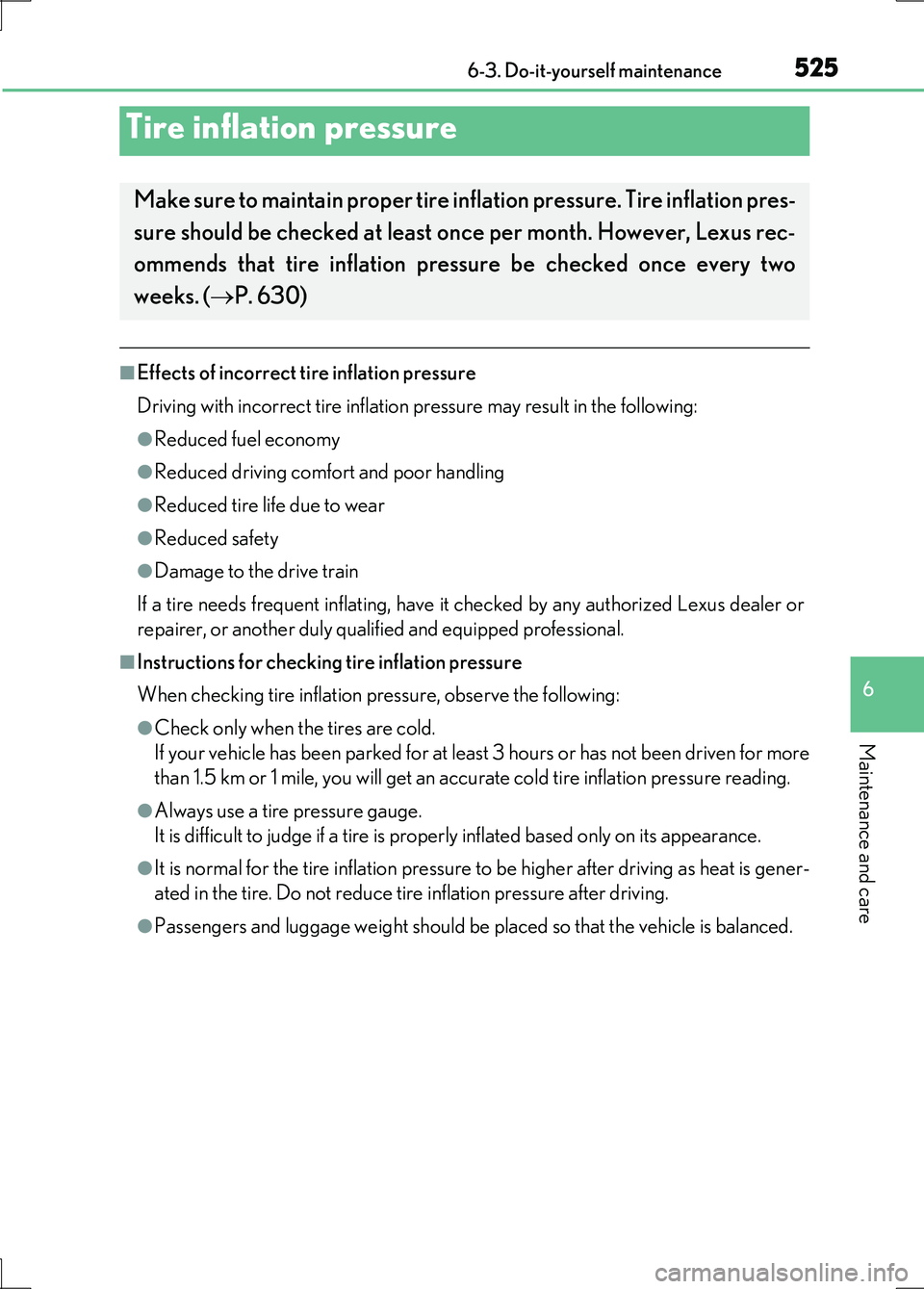

Page 525 of 676

5256-3. Do-it-yourself maintenance
6
Maintenance and care
LS600h/LS600hL_EE(OM50G20E)
■Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:
●Reduced fuel economy
●Reduced driving comfort and poor handling
●Reduced tire life due to wear
●Reduced safety
●Damage to the drive train
If a tire needs frequent inflating, have it checked by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
■Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
●Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been driven for more
than 1.5 km or 1 mile, you will get an accurate cold tire inflation pressure reading.
●Always use a tire pressure gauge.
It is difficult to judge if a tire is properly inflated based only on its appearance.
●It is normal for the tire inflation pressure to be higher after driving as heat is gener-
ated in the tire. Do not reduce tire inflation pressure after driving.
●Passengers and luggage weight should be placed so that the vehicle is balanced.
Tire inflation pressure
Make sure to maintain proper tire in flation pressure. Tire inflation pres-
sure should be checked at least once per month. However, Lexus rec-
ommends that tire inflation pr essure be checked once every two
weeks. ( P. 630)
Page 526 of 676

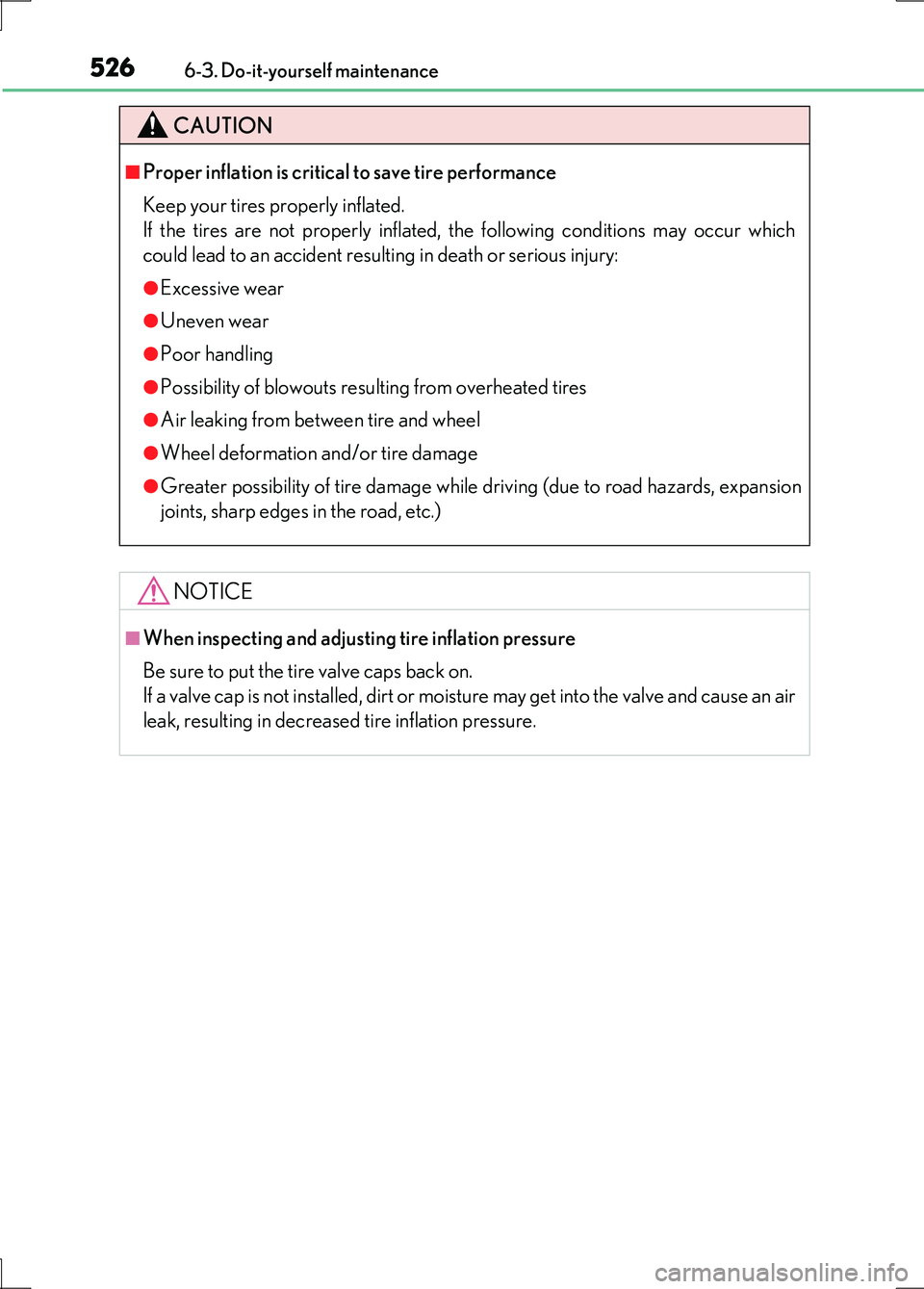

5266-3. Do-it-yourself maintenance
LS600h/LS600hL_EE(OM50G20E)
CAUTION
■Proper inflation is critical to save tire performance
Keep your tires properly inflated.
If the tires are not properly inflated, the following conditions may occur which
could lead to an accident resulting in death or serious injury:
●Excessive wear
●Uneven wear
●Poor handling
●Possibility of blowouts resulting from overheated tires
●Air leaking from between tire and wheel
●Wheel deformation and/or tire damage
●Greater possibility of tire damage while driving (due to road hazards, expansion
joints, sharp edges in the road, etc.)
NOTICE
■When inspecting and adjusting tire inflation pressure
Be sure to put the tire valve caps back on.
If a valve cap is not installed, dirt or moisture may get into the valve and cause an air
leak, resulting in decreased tire inflation pressure.
Page 527 of 676

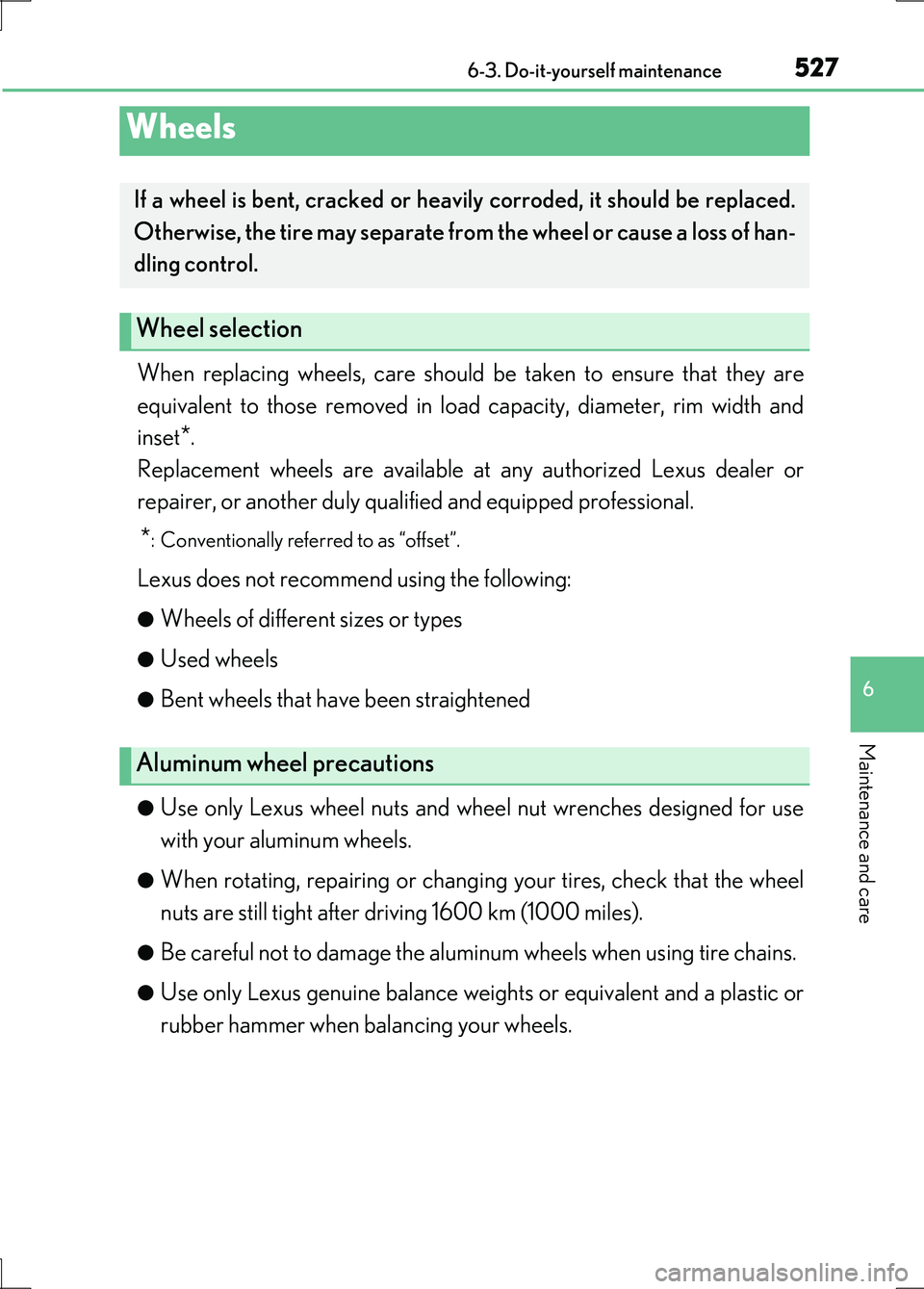

5276-3. Do-it-yourself maintenance
6
Maintenance and care
LS600h/LS600hL_EE(OM50G20E)
When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset*.
Replacement wheels are available at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
*: Conventionally referred to as “offset”.
Lexus does not recommend using the following:
●Wheels of different sizes or types
●Used wheels
●Bent wheels that have been straightened
●Use only Lexus wheel nuts and wheel nut wrenches designed for use
with your aluminum wheels.
●When rotating, repairing or changing your tires, check that the wheel
nuts are still tight after driving 1600 km (1000 miles).
●Be careful not to damage the aluminum wheels when using tire chains.
●Use only Lexus genuine balance weights or equivalent and a plastic or
rubber hammer when balancing your wheels.
Wheels
If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause a loss of han-
dling control.
Wheel selection
Aluminum wheel precautions

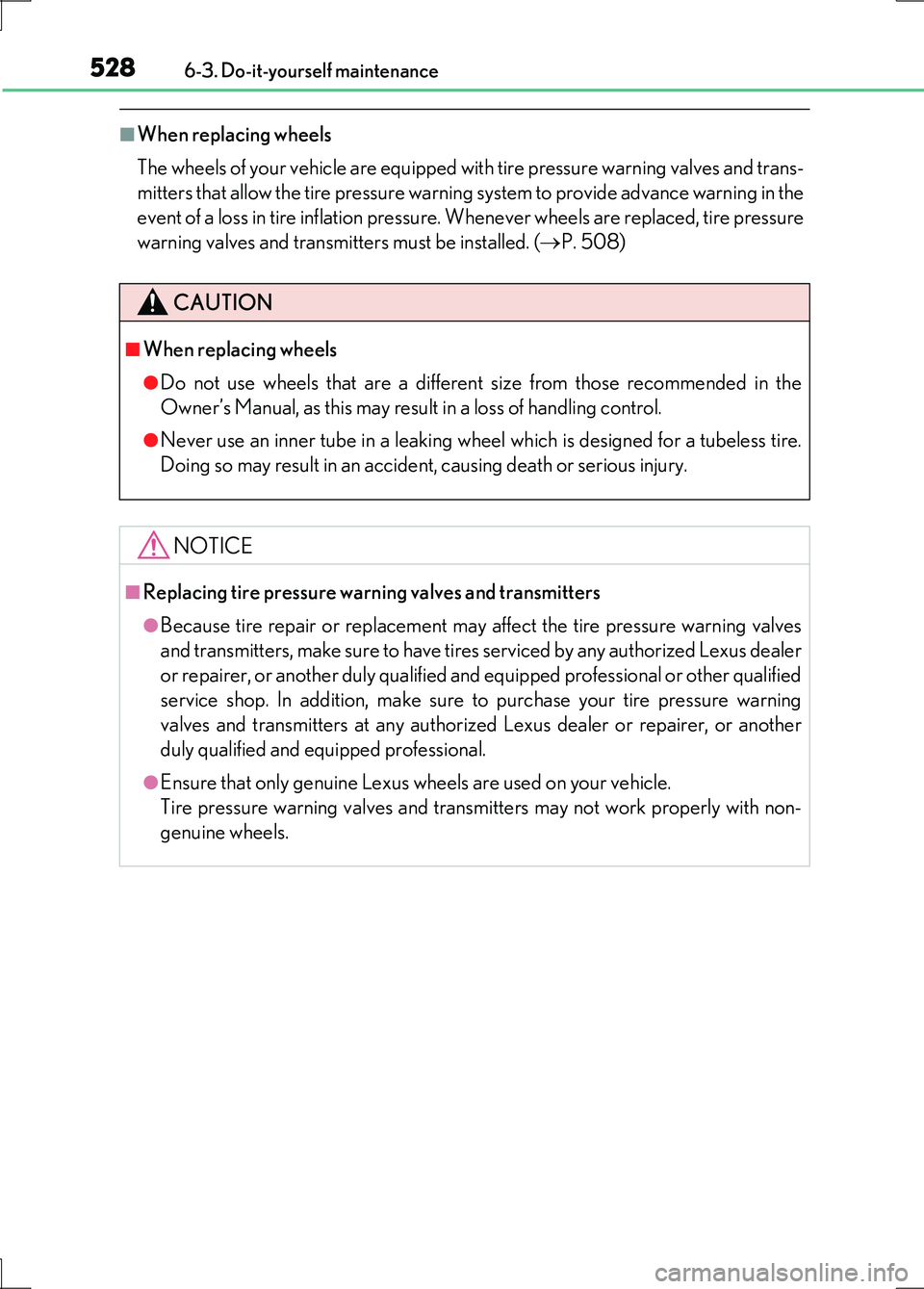

Page 528 of 676

5286-3. Do-it-yourself maintenance
LS600h/LS600hL_EE(OM50G20E)
■When replacing wheels
The wheels of your vehicle are equipped with tire pressure warning valves and trans-
mitters that allow the tire pressure warning system to provide advance warning in the
event of a loss in tire inflation pressure. Whenever wheels are replaced, tire pressure
warning valves and transmitters must be installed. ( P. 508)
CAUTION
■When replacing wheels
●Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in a loss of handling control.
●Never use an inner tube in a leaking wheel which is designed for a tubeless tire.
Doing so may result in an accident, causing death or serious injury.
NOTICE
■Replacing tire pressure warn ing valves and transmitters
●Because tire repair or replacement may affect the tire pressure warning valves
and transmitters, make sure to have tires serviced by any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional or other qualified
service shop. In addition, make sure to purchase your tire pressure warning
valves and transmitters at any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
●Ensure that only genuine Lexus wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly with non-
genuine wheels.
Page 529 of 676

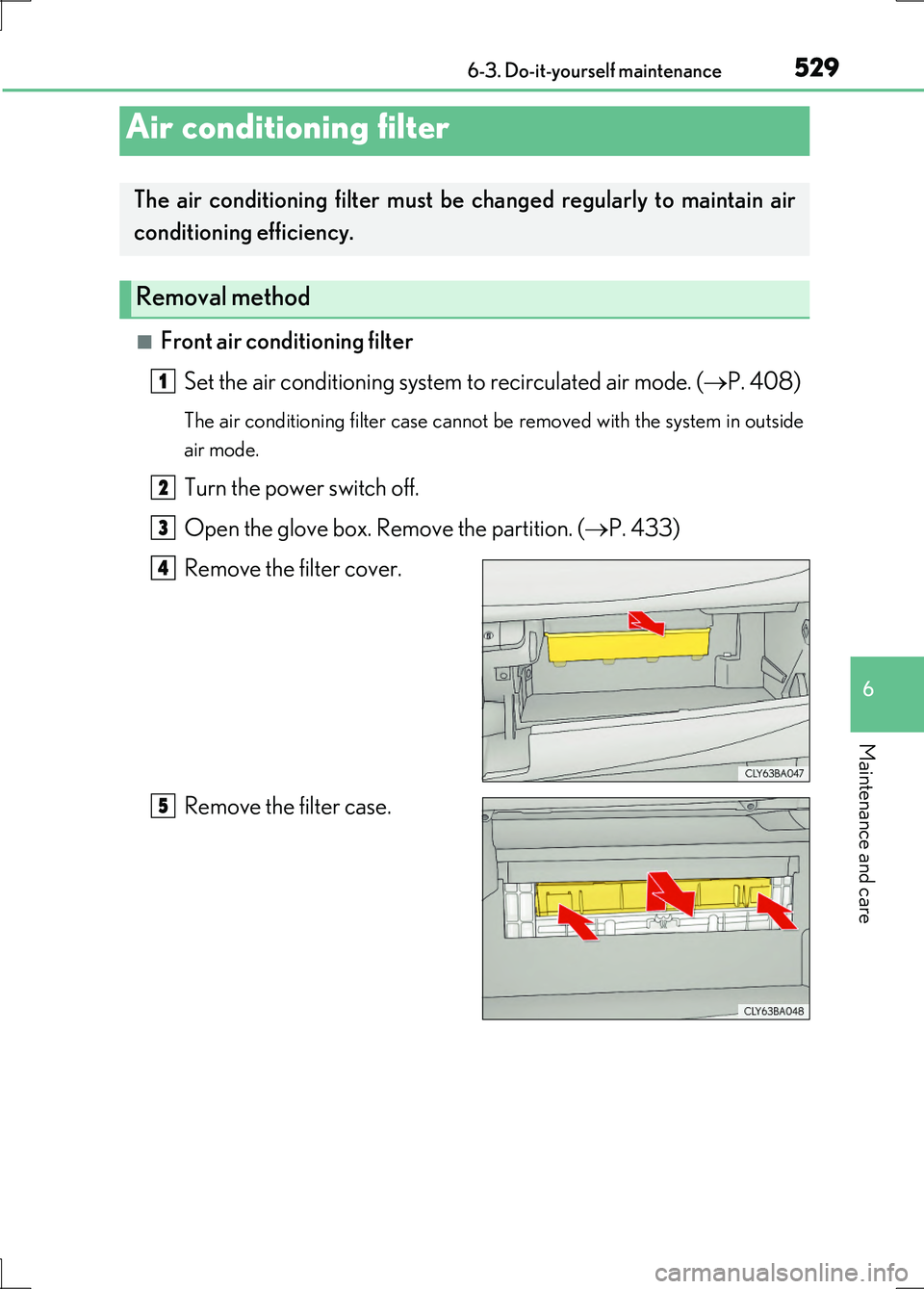

5296-3. Do-it-yourself maintenance
6
Maintenance and care
LS600h/LS600hL_EE(OM50G20E)
■Front air conditioning filter
Set the air conditioning system to recirculated air mode. ( P. 408)
The air conditioning filter case cannot be removed with the system in outside
air mode.
Turn the power switch off.
Open the glove box. Remove the partition. ( P. 433)
Remove the filter cover.
Remove the filter case.
Air conditioning filter
The air conditioning filter must be changed regularly to maintain air
conditioning efficiency.
Removal method
1
2
3
34
5
Page 530 of 676

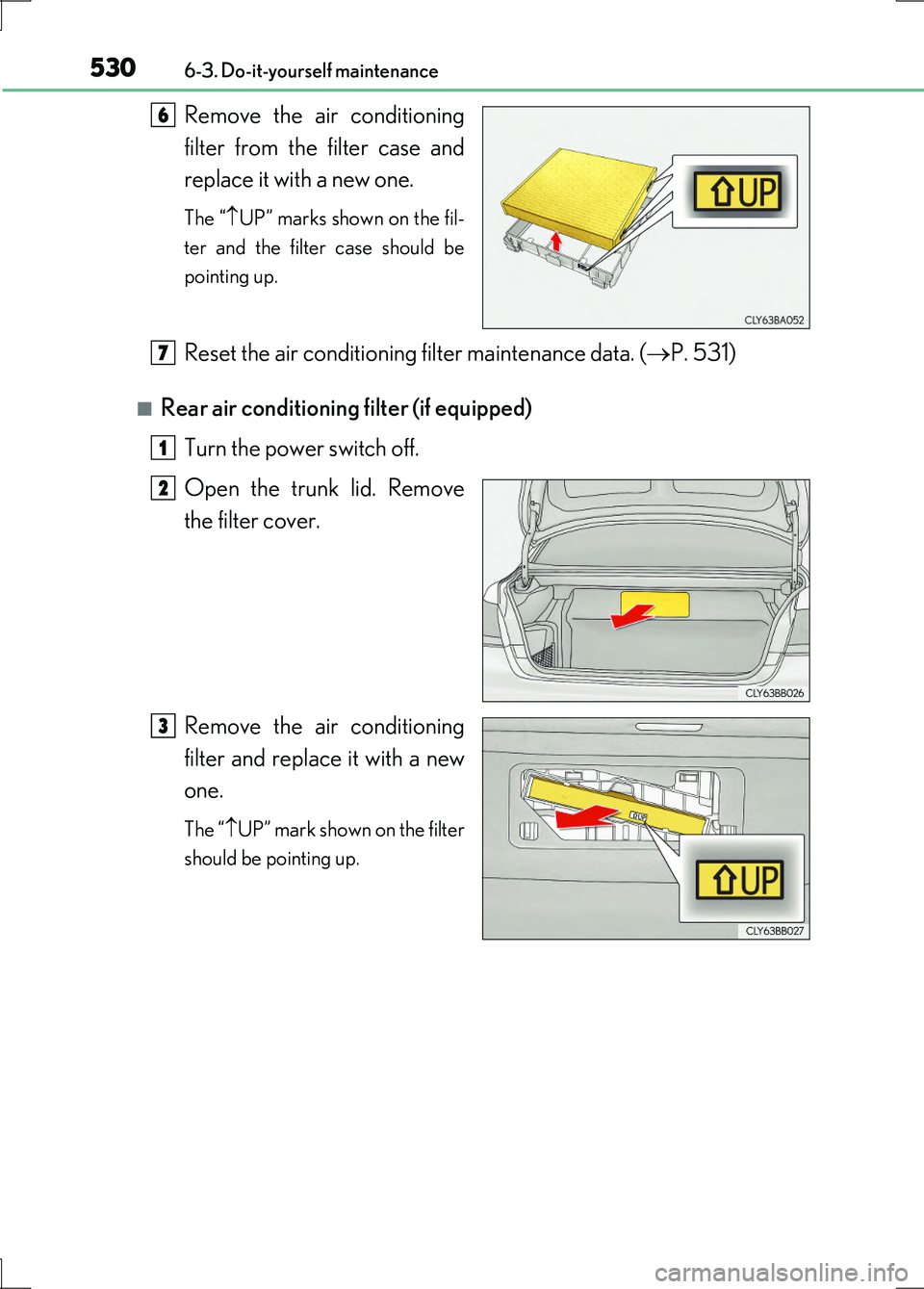

5306-3. Do-it-yourself maintenance
LS600h/LS600hL_EE(OM50G20E)
Remove the air conditioning
filter from the filter case and
replace it with a new one.
The “ UP” marks shown on the fil-
ter and the filter case should be
pointing up.
Reset the air conditioning filter maintenance data. ( P. 531)
■Rear air conditioning filter (if equipped)
Turn the power switch off.
Open the trunk lid. Remove
the filter cover.
Remove the air conditioning
filter and replace it with a new
one.
The “ UP” mark shown on the filter
should be pointing up.
6
7
1
2
33
