LEXUS LS600H 2017 Owners Manual
Manufacturer: LEXUS, Model Year: 2017, Model line: LS600H, Model: LEXUS LS600H 2017Pages: 676, PDF Size: 35.25 MB
Page 631 of 676

631
8
8-1. Specifications
Vehicle specifications
LS600h/LS600hL_EE(OM50G20E)
Light bulbs
Light bulbsWType
ExteriorRear fog lights21A
Interior
Vanity lights
Front
Rear
8
3
A
B
Trunk lid light3.8A
Trunk light3.8A
A: Wedge base bulbs B: Double end bulbs
Page 632 of 676

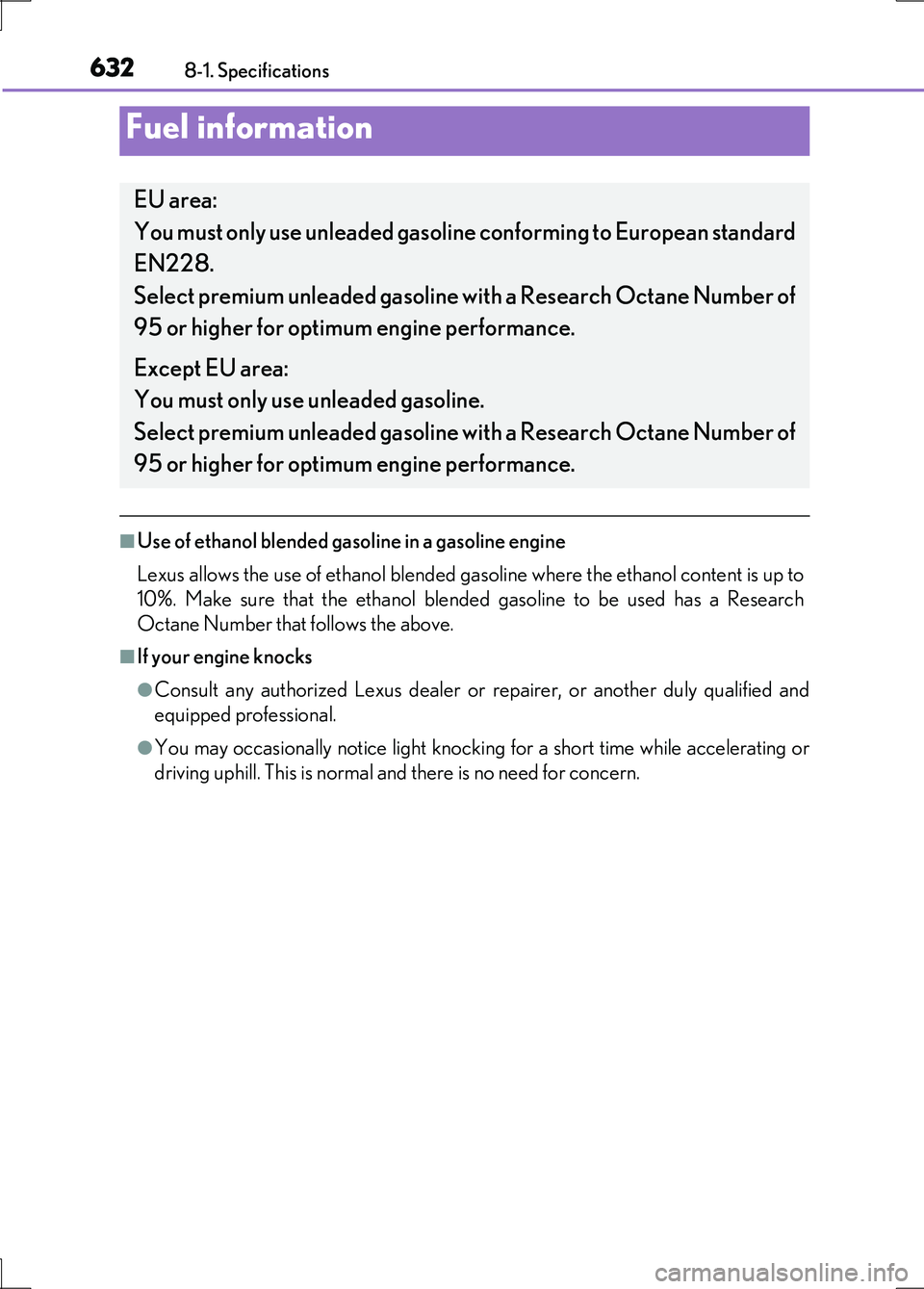

6328-1. Specifications
LS600h/LS600hL_EE(OM50G20E)
■Use of ethanol blended gasoline in a gasoline engine
Lexus allows the use of ethanol blended gasoline where the ethanol content is up to
10%. Make sure that the ethanol blended gasoline to be used has a Research
Octane Number that follows the above.
■If your engine knocks
●Consult any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
●You may occasionally notice light knocking for a short time while accelerating or
driving uphill. This is normal and there is no need for concern.
Fuel information
EU area:
You must only use unleaded gasoline conforming to European standard
EN228.
Select premium unleaded gasoline wi th a Research Octane Number of
95 or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select premium unleaded gasoline wi th a Research Octane Number of
95 or higher for optimum engine performance.
Page 633 of 676

633
8
8-1. Specifications
Vehicle specifications
LS600h/LS600hL_EE(OM50G20E)

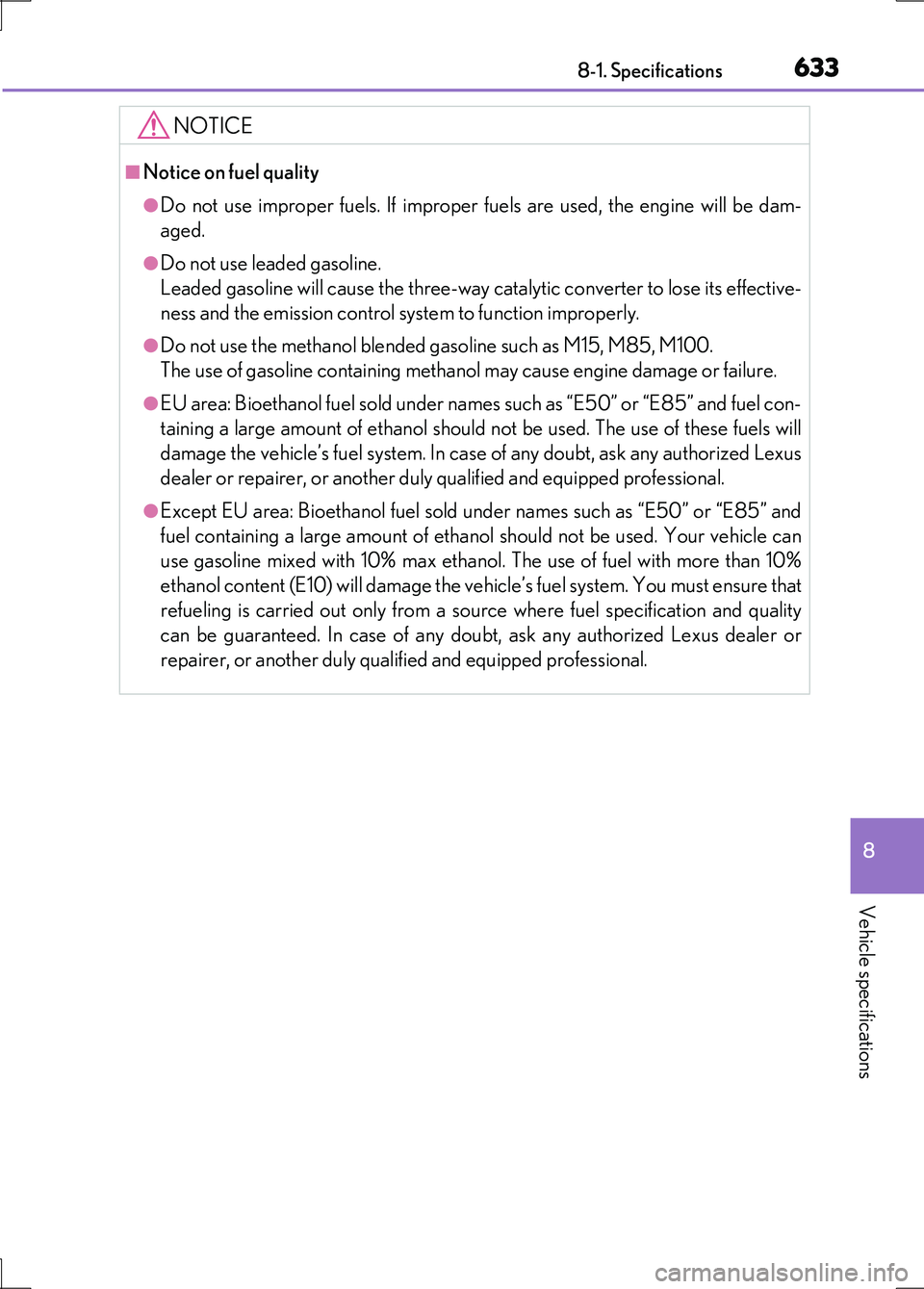

NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be dam-
aged.
●Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its effective-
ness and the emission control system to function improperly.
●Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine damage or failure.
●EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel con-
taining a large amount of ethanol should not be used. The use of these fuels will
damage the vehicle’s fuel system. In case of any doubt, ask any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
●Except EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. Your vehicle can
use gasoline mixed with 10% max ethanol. The use of fuel with more than 10%
ethanol content (E10) will damage the vehicle’s fuel system. You must ensure that
refueling is carried out only from a source where fuel specification and quality
can be guaranteed. In case of any doubt, ask any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
Page 634 of 676

634
LS600h/LS600hL_EE(OM50G20E)
8-2. Customization
■Changing by using the Remote Touch
Press the “MENU” button on the Remote Touch.
Select on the “Menu” screen and select .
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing by using the “DISP” button
P. 127
Customizable features
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. Th ese preferences can be changed by
using the “DISP” button, by using th e Remote Touch, or at any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped
professional.
Customizing vehicle features
1
2
Page 635 of 676

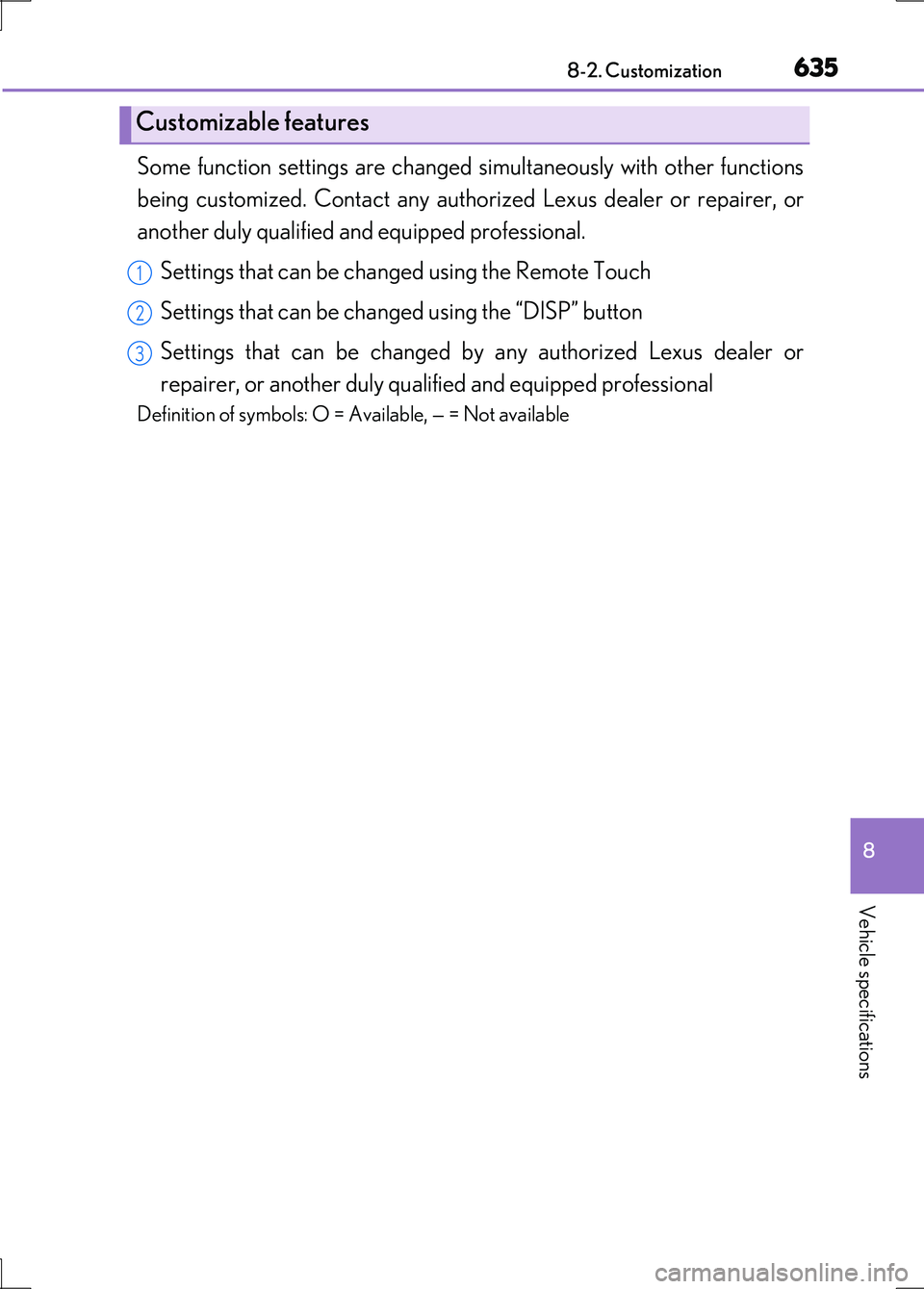

635
8
8-2. Customization
Vehicle specifications
LS600h/LS600hL_EE(OM50G20E)
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Settings that can be changed using the Remote Touch
Settings that can be changed using the “DISP” button
Settings that can be changed by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
Definition of symbols: O = Available, — = Not available
Customizable features
1
2
3
Page 636 of 676

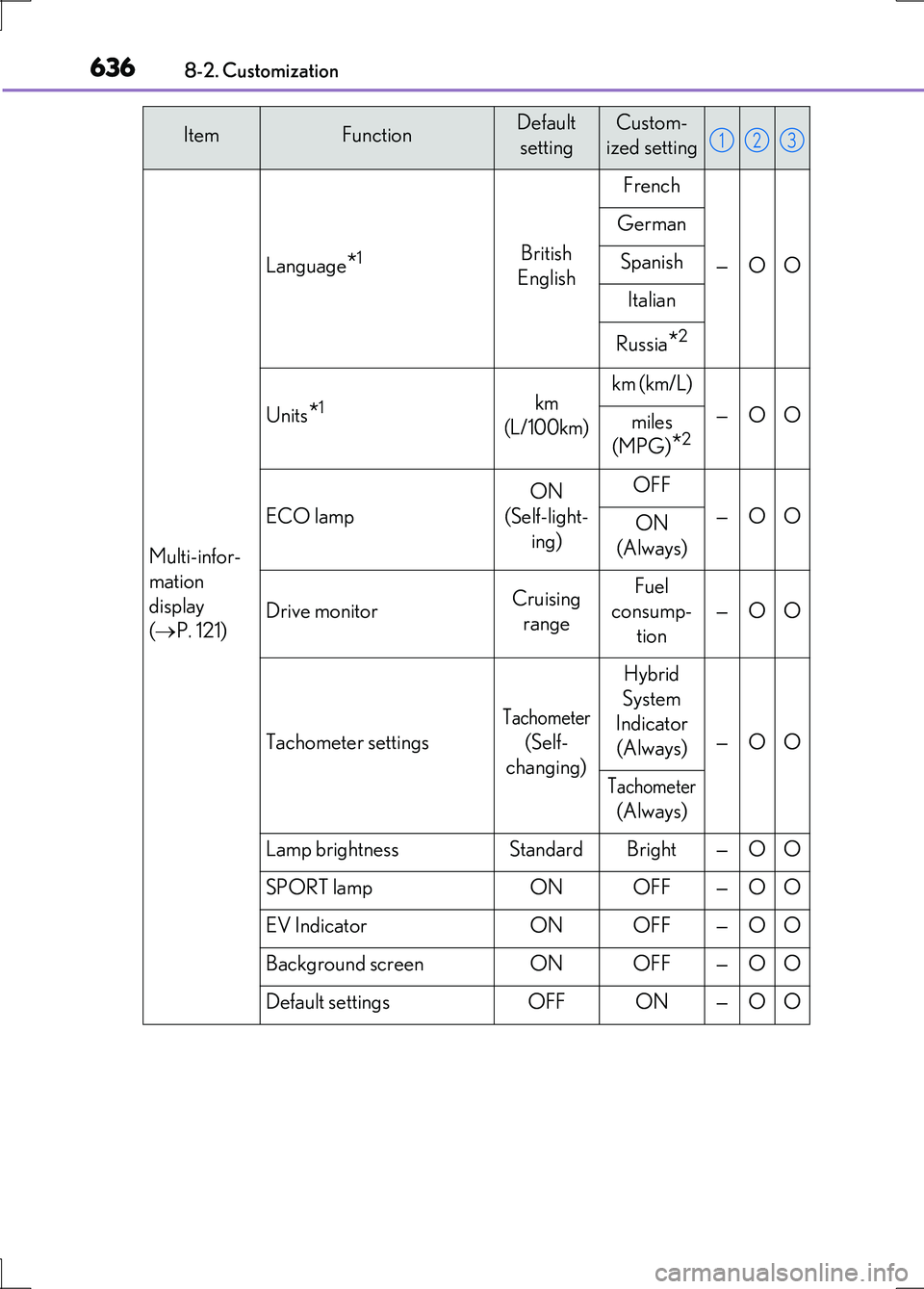

6368-2. Customization
LS600h/LS600hL_EE(OM50G20E)
ItemFunctionDefault
setting
Custom-
ized setting
Multi-infor-
mation
display
( P. 121)
Language*1British
English
French
—OO
German
Spanish
Italian
Russia*2
Units*1km
(L/100km)
km (km/L)
—OOmiles
(MPG)*2
ECO lamp
ON
(Self-light-
ing)
OFF
—OOON
(Always)
Drive monitorCruising
range
Fuel
consump-
tion
—OO
Tachometer settings
Tachometer
(Self-
changing)
Hybrid
System
Indicator
(Always)—OO
Tachometer
(Always)
Lamp brightnessStandardBright—OO
SPORT lampONOFF—OO
EV IndicatorONOFF—OO
Background screenONOFF—OO
Default settingsOFFON—OO
123
Page 637 of 676

637
8
8-2. Customization
Vehicle specifications
LS600h/LS600hL_EE(OM50G20E)
Door lock
( P. 176,
603)
Unlocking using a
mechanical key
All doors
unlocked in
one step
Driver’s
door
unlocked in
one step, all
doors
unlocked in
two steps
——O
Speed-detecting auto-
matic door lock functionOnOffO—O
Shifting gears to position
other than P locks all
doors.
OffOnO—O
Shifting gears to P unlocks
all doors.OffOnO—O
Opening driver’s door
unlocks all doors.OnOffO—O
Smart entry
& start
system
( P. 149)
and
wireless
remote
control
( P. 171)
Operation signal
(Emergency flashers)OnOffO—O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
30
seconds
60
seconds
——O
120
seconds
Open door warning
buzzerOnOff——O
ItemFunctionDefault
setting
Custom-
ized setting123
Page 638 of 676

6388-2. Customization
LS600h/LS600hL_EE(OM50G20E)
Smart entry
& start
system
( P. 149)
Smart entry & start systemOnOffO—O
Smart door unlockingAll the
doors
Driver’s
door
O—OEach door
Same side
doors
Welcome light illumination
controlOnOff——O
Opening trunk without the
electronic key when all
doors are unlocked
OnOff——O
Wireless
remote
control
( P. 171)
Wireless remote controlOnOff——O
Unlocking operation
All doors
unlocked in
one step
Driver’s
door
unlocked in
one step, all
doors
unlocked in
two steps
O—O
Trunk unlocking operationOne long
press
One short
press
——OPush twice
Off
Front seats
( P. 187)
Driver’s seat movement
when exiting the vehicleStandard
Off
O—O
Partial
Driver’s seat lumbar sup-
port movement when exit-
ing the vehicle
OnOff——O
ItemFunctionDefault
setting
Custom-
ized setting123
Page 639 of 676

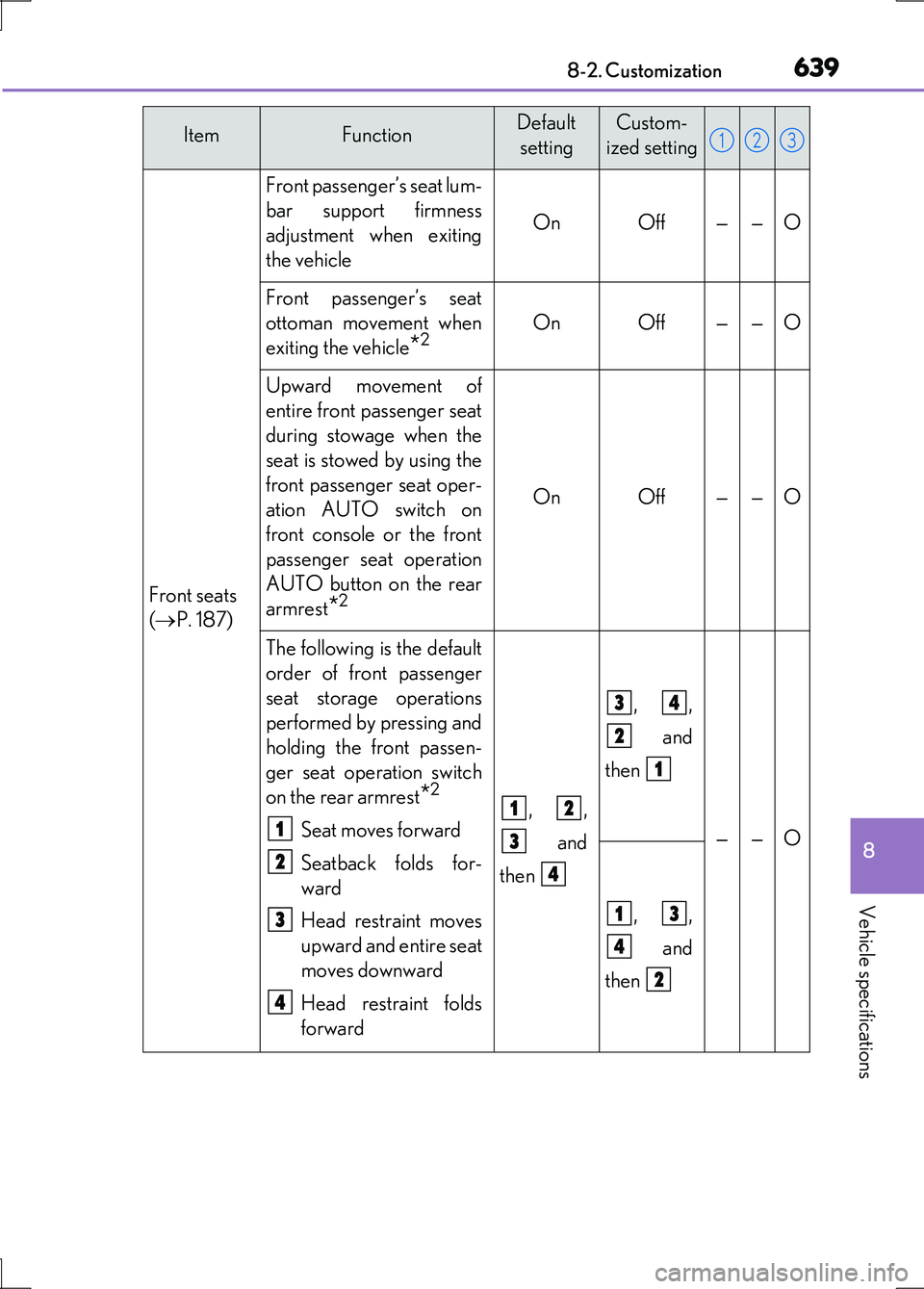

639
8
8-2. Customization
Vehicle specifications
LS600h/LS600hL_EE(OM50G20E)
Front seats
( P. 187)
Front passenger’s seat lum-
bar support firmness
adjustment when exiting
the vehicle
OnOff——O
Front passenger’s seat
ottoman movement when
exiting the vehicle*2OnOff——O
Upward movement of
entire front passenger seat
during stowage when the
seat is stowed by using the
front passenger seat oper-
ation AUTO switch on
front console or the front
passenger seat operation
AUTO button on the rear
armrest*2
OnOff——O
The following is the default
order of front passenger
seat storage operations
performed by pressing and
holding the front passen-
ger seat operation switch
on the rear armrest*2
Seat moves forward
Seatback folds for-
ward
Head restraint moves
upward and entire seat
moves downward
Head restraint folds
forward
, ,
and
then
, ,
and
then
——O
, ,
and
then
ItemFunctionDefault
setting
Custom-
ized setting123
1
2
3
4
12
3
4
34
2
1
13
4
2
Page 640 of 676

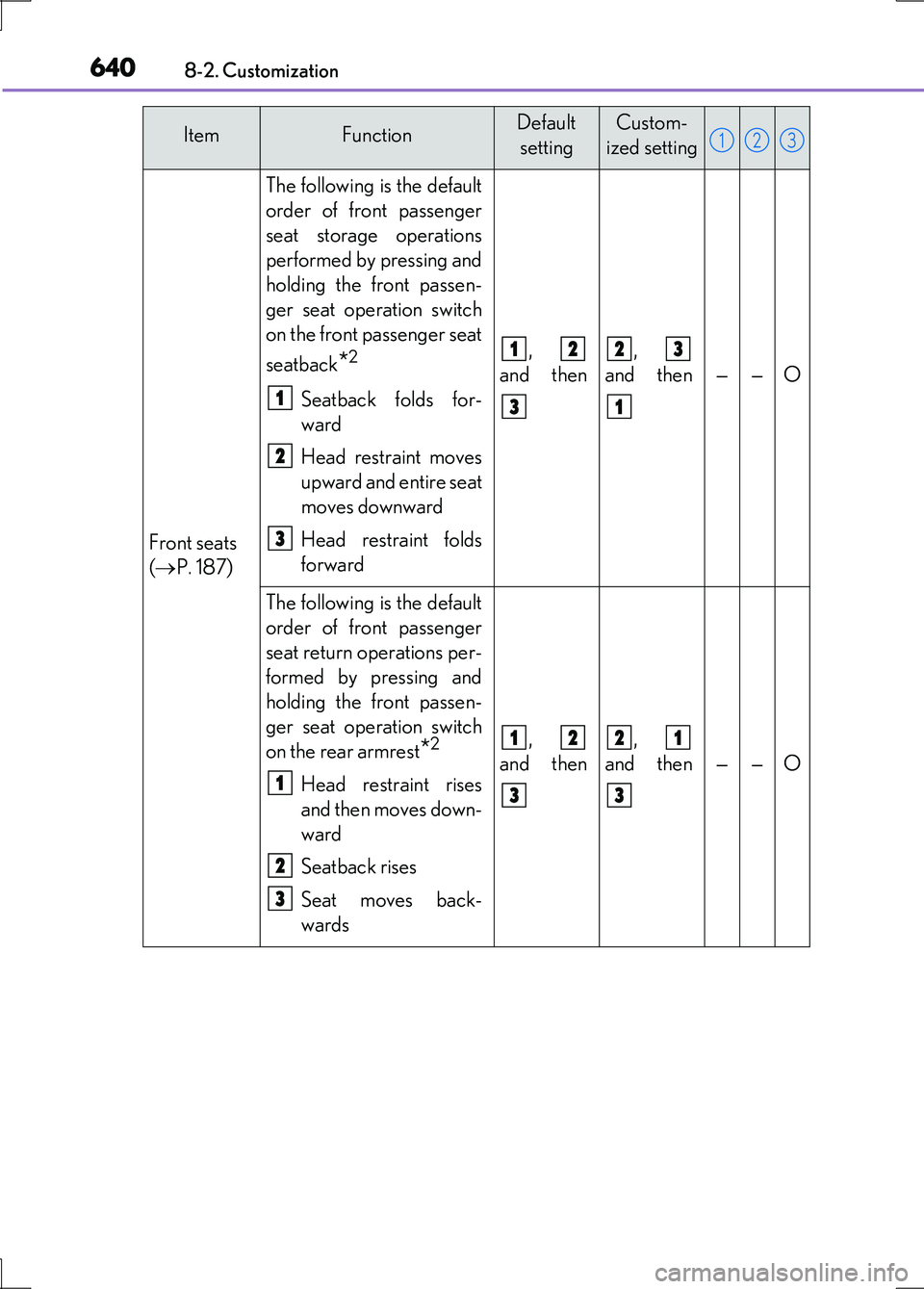

6408-2. Customization
LS600h/LS600hL_EE(OM50G20E)
Front seats
( P. 187)
The following is the default
order of front passenger
seat storage operations
performed by pressing and
holding the front passen-
ger seat operation switch
on the front passenger seat
seatback*2
Seatback folds for-
ward
Head restraint moves
upward and entire seat
moves downward
Head restraint folds
forward
,
and then
,
and then
——O
The following is the default
order of front passenger
seat return operations per-
formed by pressing and
holding the front passen-
ger seat operation switch
on the rear armrest*2
Head restraint rises
and then moves down-
ward
Seatback rises
Seat moves back-
wards
,
and then
,
and then——O
ItemFunctionDefault
setting
Custom-
ized setting123
1
2
3
12
3
23
1
1
2
3
12
3
21
3
