Page 611 of 676

LEXUS LS600H 2017  Owners Manual 6117-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)

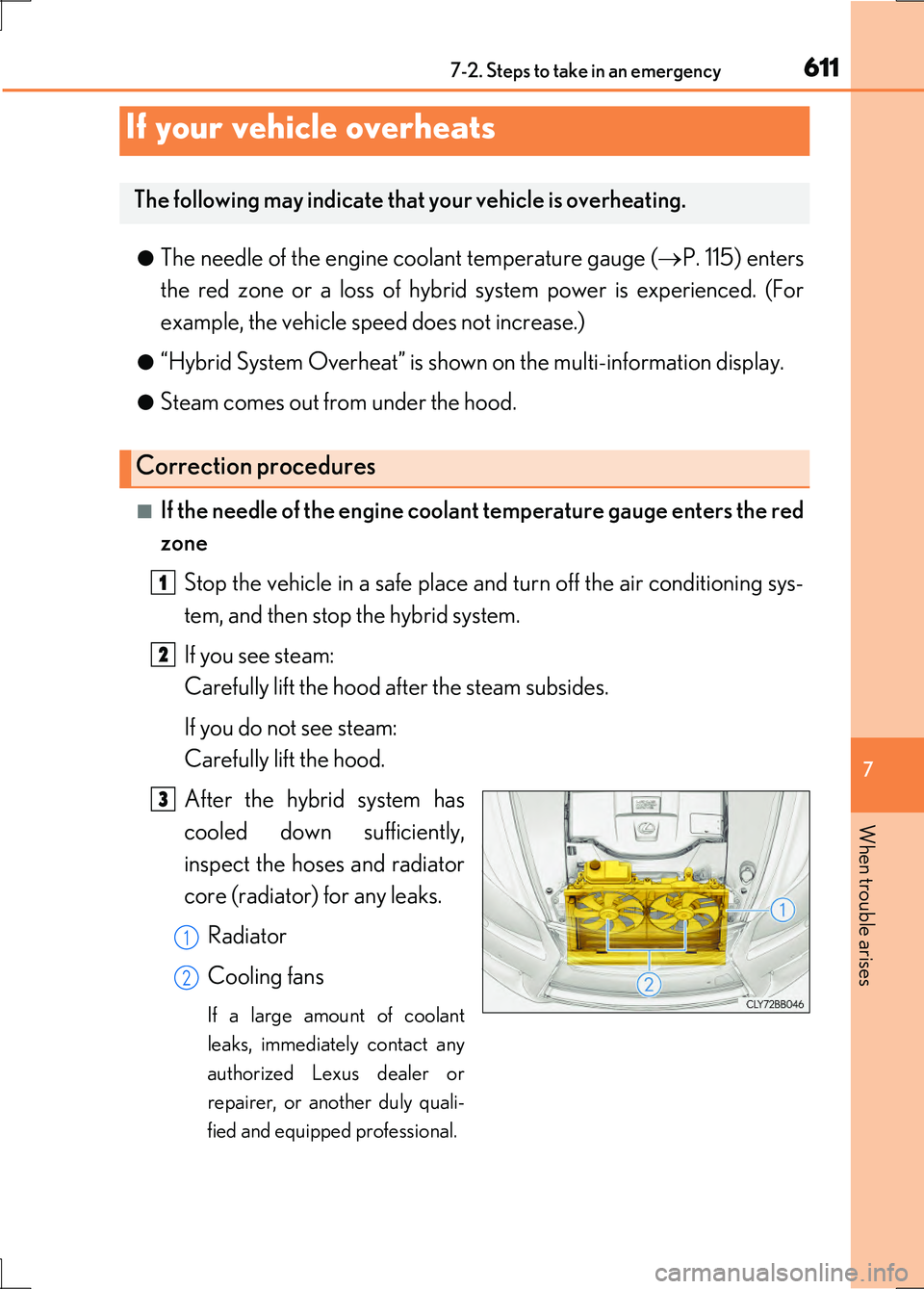

●The needle of the engine coolant temperature gauge ( P. 115) enters
the red zone or a loss of hybrid sys

Page 612 of 676

LEXUS LS600H 2017  Owners Manual 6127-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)

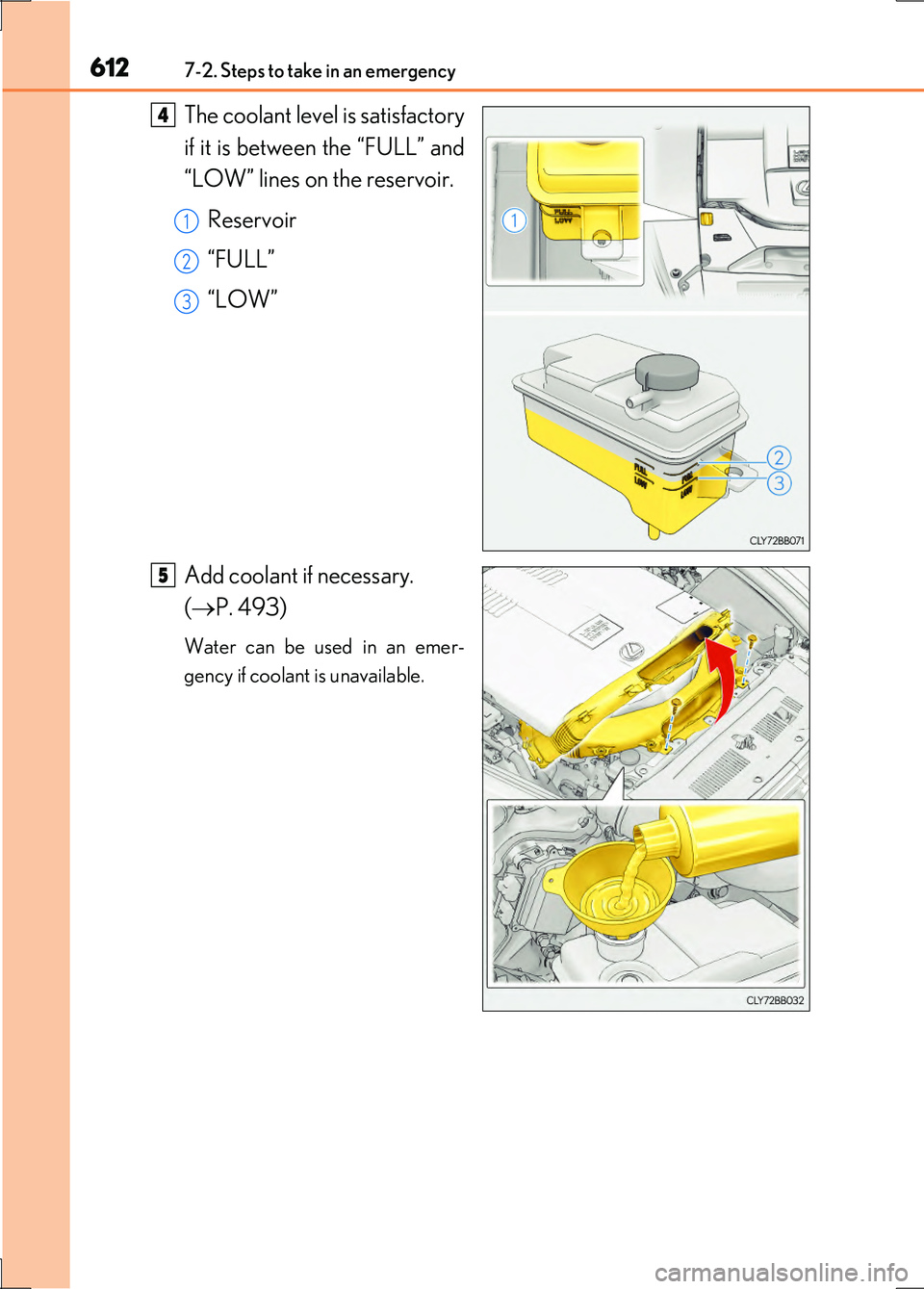

The coolant level is satisfactory
if it is between the “FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL”
“LO

Page 613 of 676

LEXUS LS600H 2017  Owners Manual 6137-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)

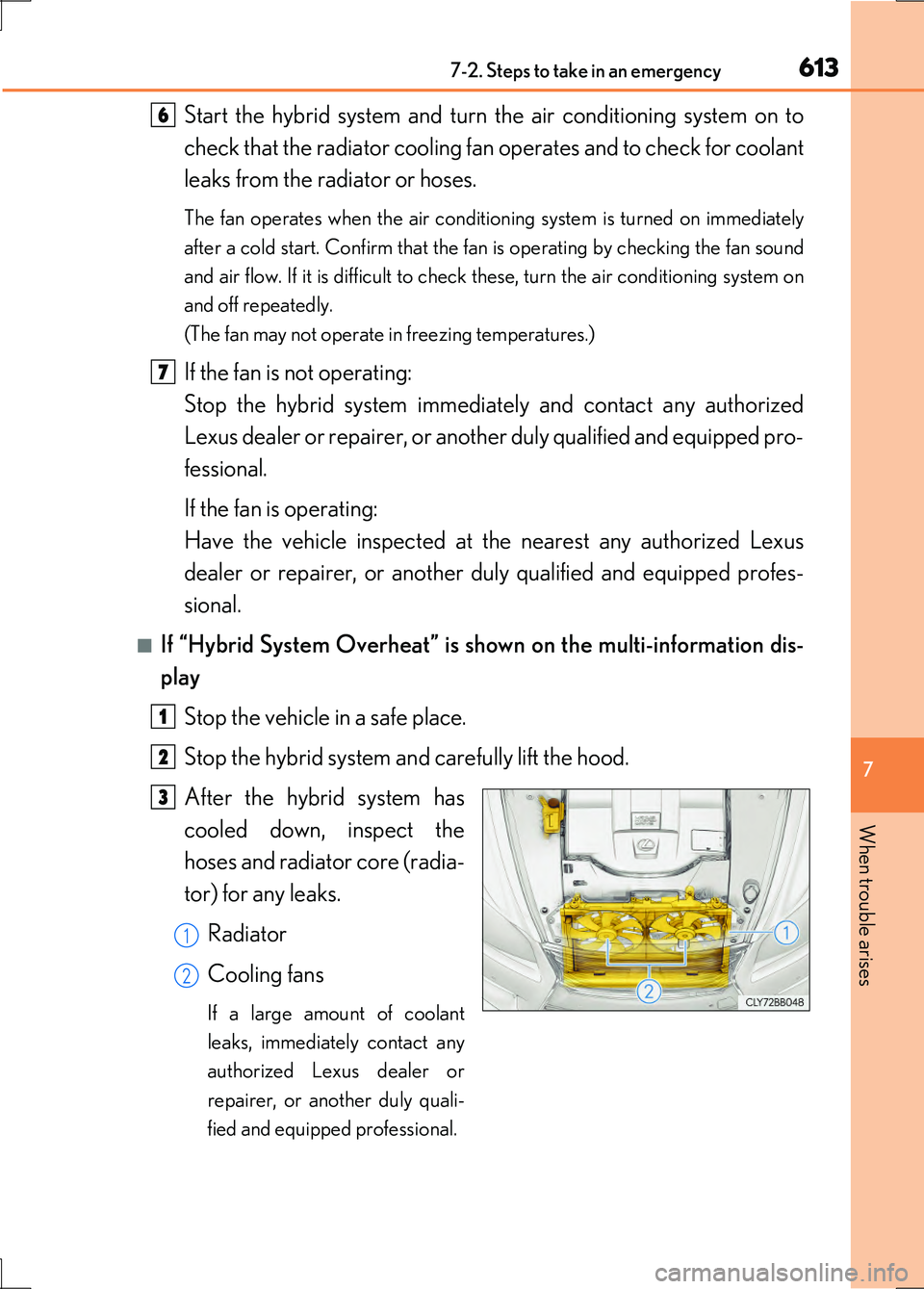

Start the hybrid system and turn the air conditioning system on to
check that the radiator cooling fan operates

Page 614 of 676

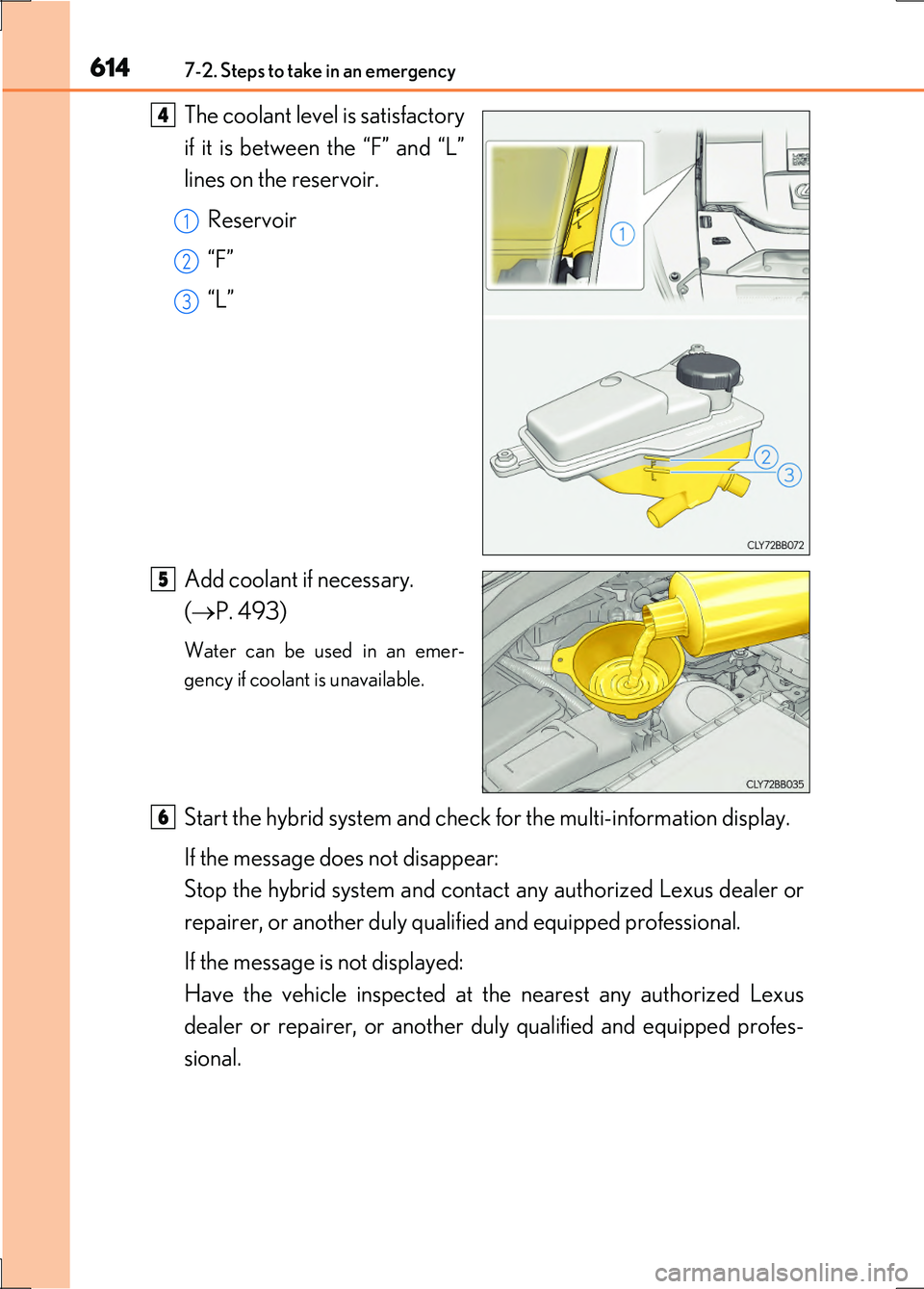

LEXUS LS600H 2017  Owners Manual 6147-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)
The coolant level is satisfactory
if it is between the “F” and “L”
lines on the reservoir.
Reservoir
“F”
“L”
Add

Page 615 of 676

LEXUS LS600H 2017  Owners Manual 6157-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)

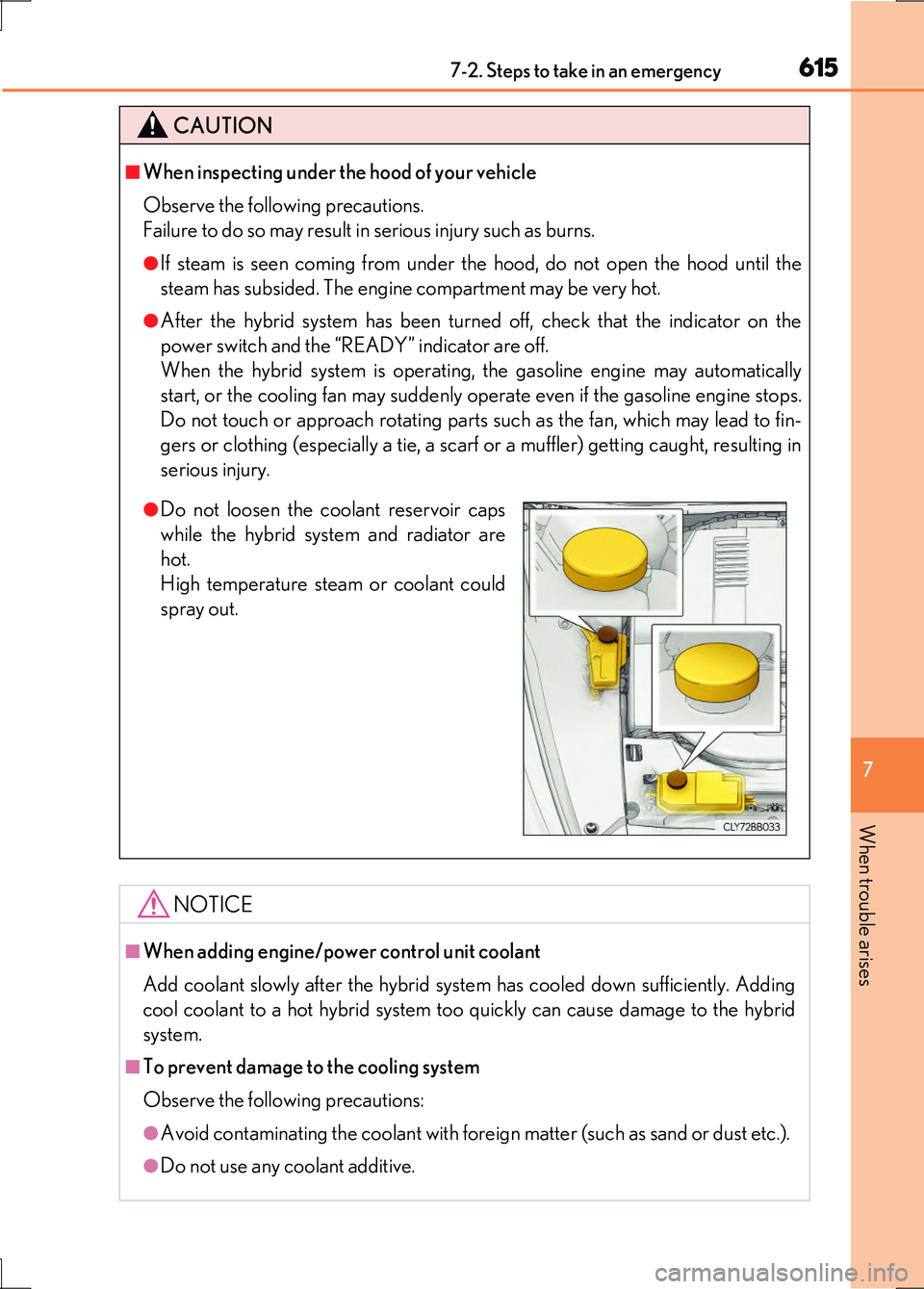

CAUTION
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so

Page 616 of 676

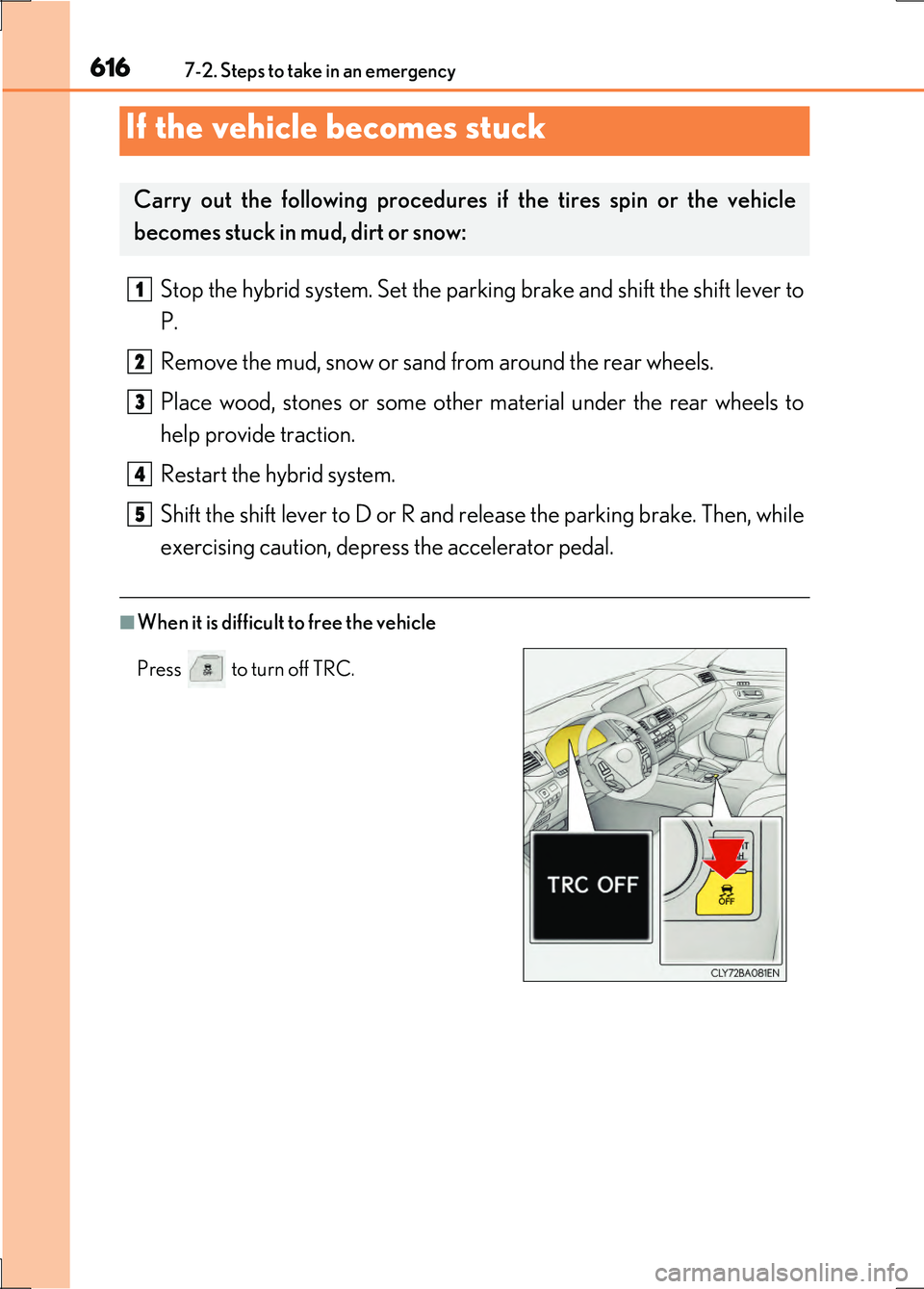

LEXUS LS600H 2017  Owners Manual 6167-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)
Stop the hybrid system. Set the parking brake and shift the shift lever to
P.
Remove the mud, snow or sand from around the rear whee

Page 617 of 676

LEXUS LS600H 2017  Owners Manual 6177-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)

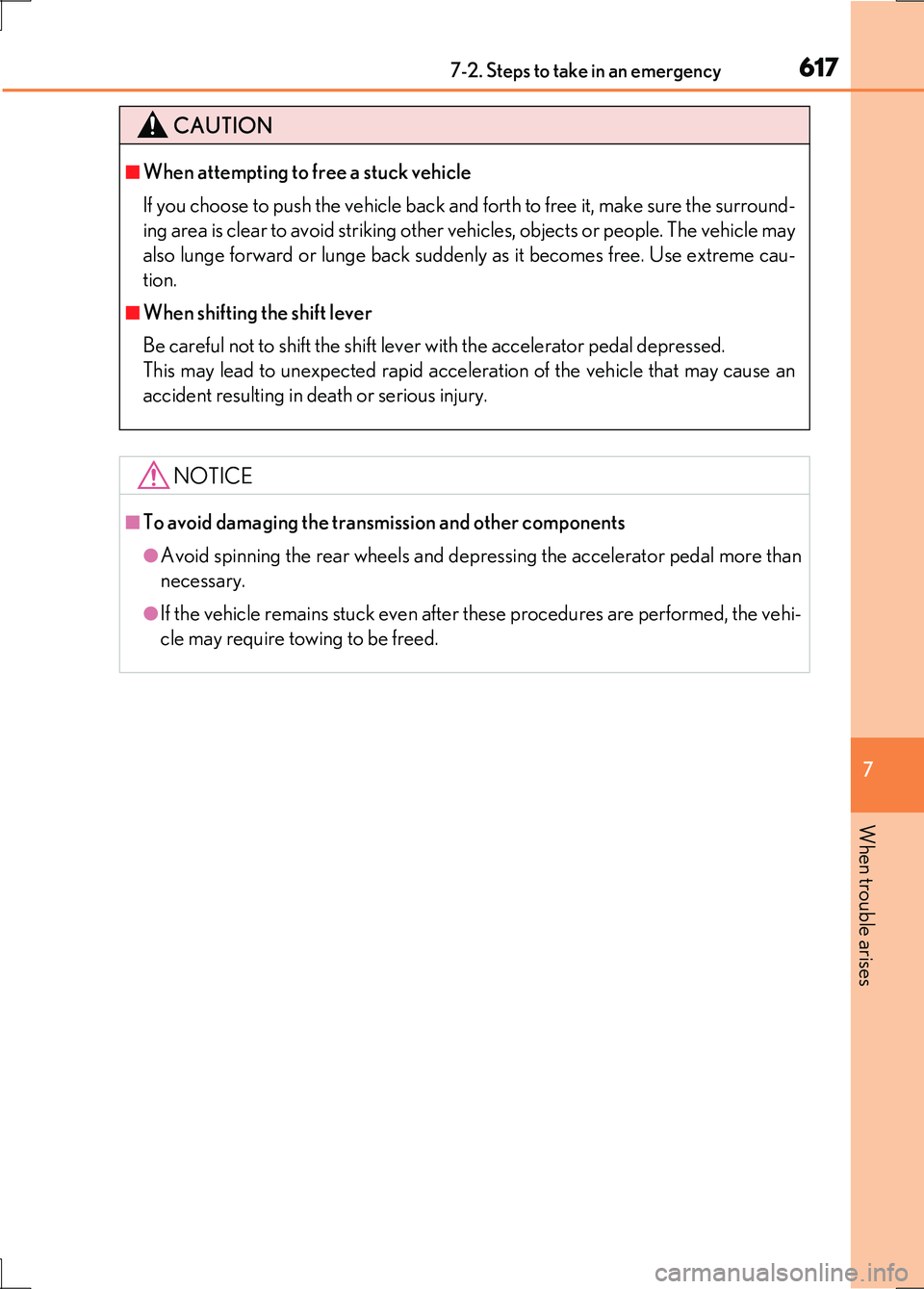

CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it,

Page 618 of 676

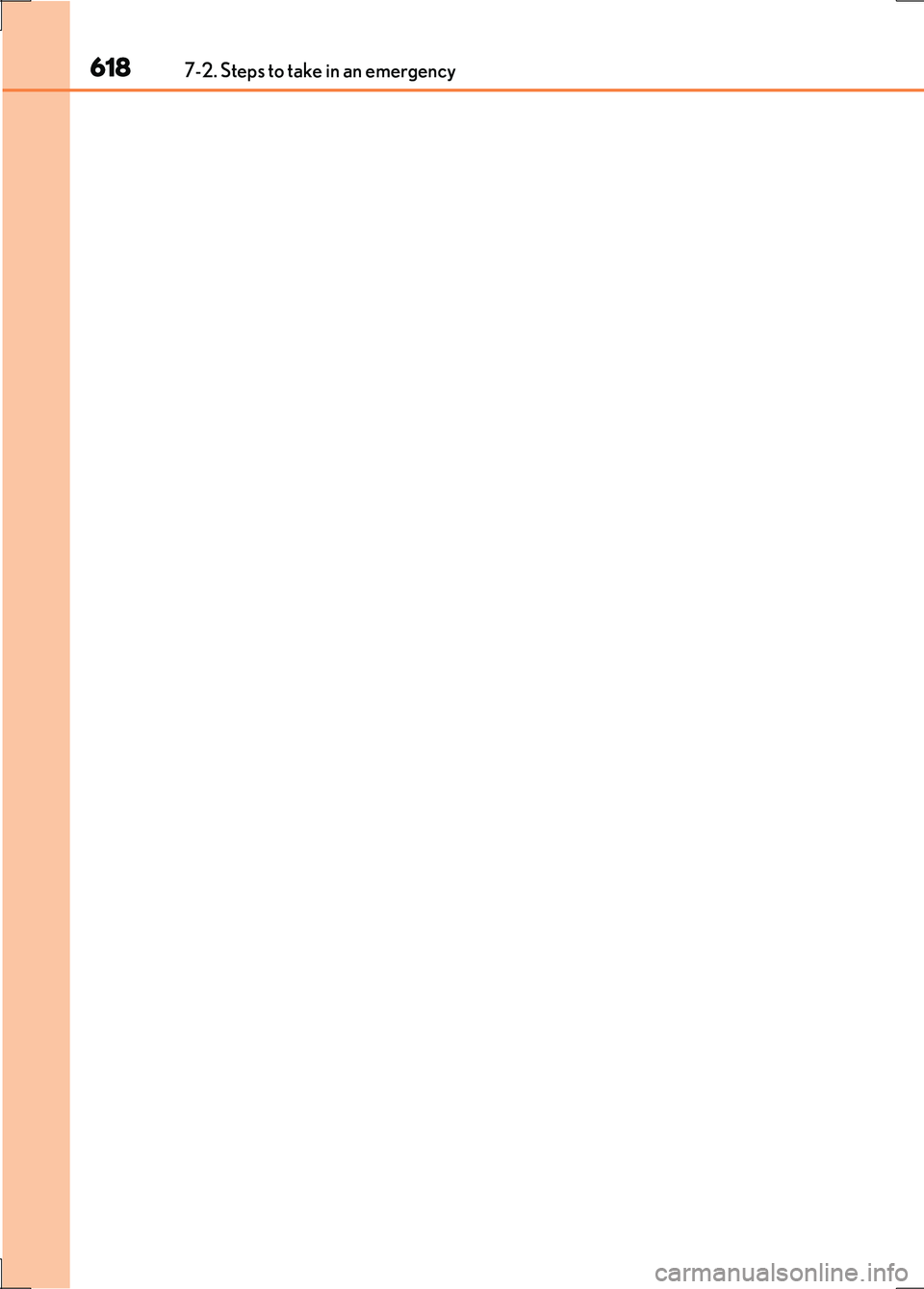

LEXUS LS600H 2017  Owners Manual 6187-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)

Page 619 of 676

LEXUS LS600H 2017  Owners Manual 619

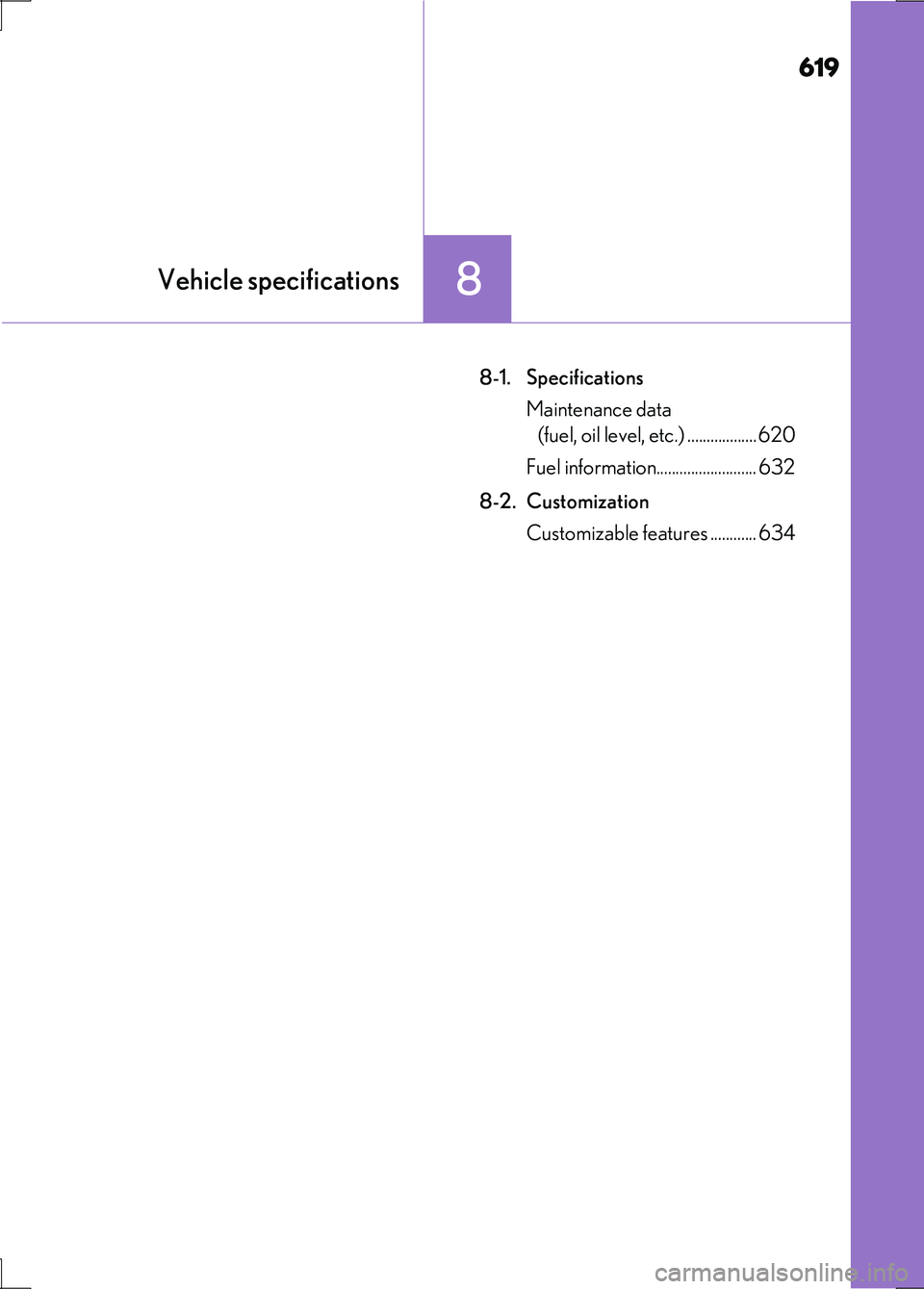

8Vehicle specifications
LS600h/LS600hL_EE(OM50G20E)
8-1. Specifications
Maintenance data
(fuel, oil level, etc.) .................. 620
Fuel information.......................... 632
8-2. Cu

Page 620 of 676

LEXUS LS600H 2017  Owners Manual 620
LS600h/LS600hL_EE(OM50G20E)

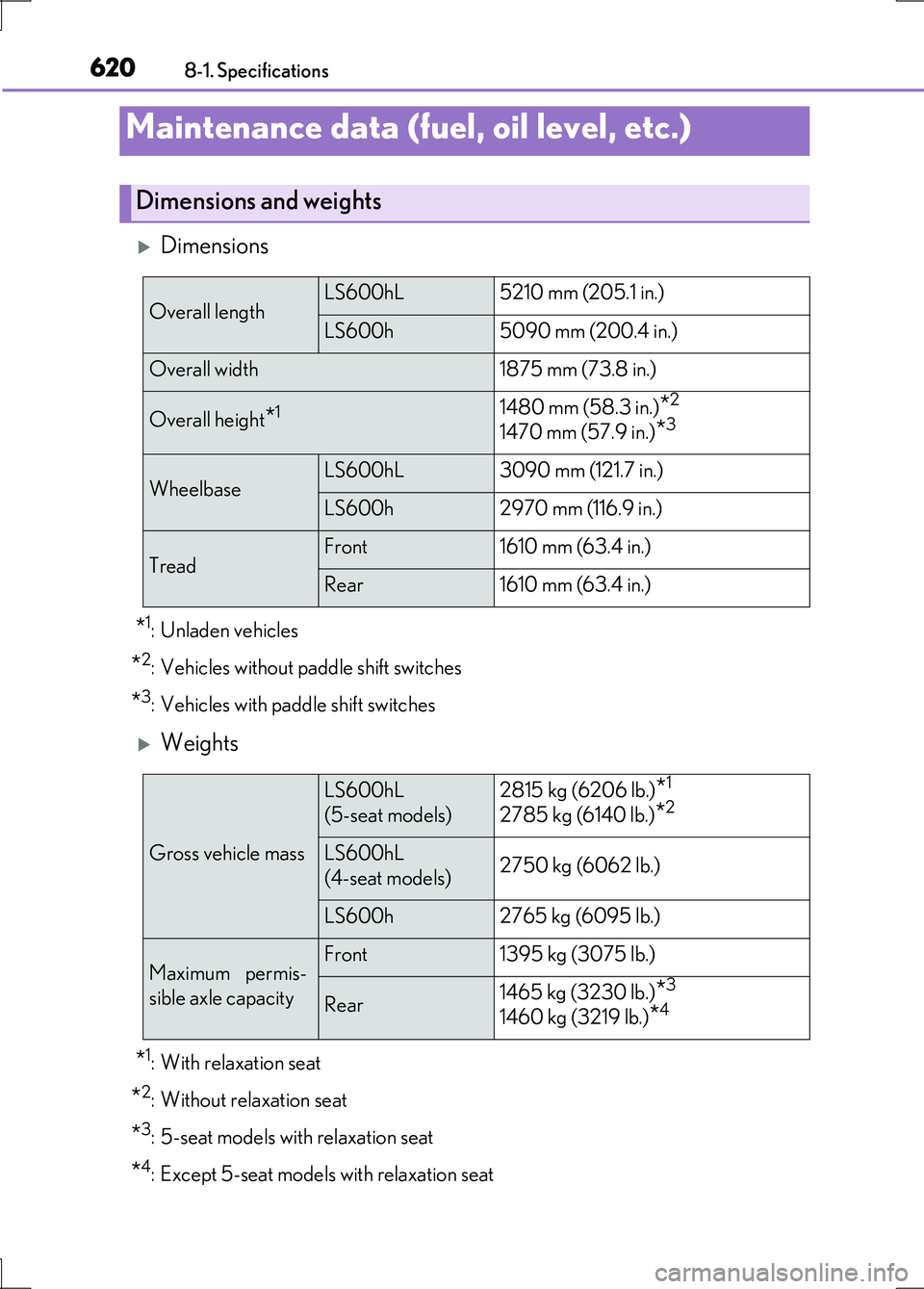

8-1. Specifications
Dimensions
*1: Unladen vehicles
*2: Vehicles without paddle shift switches
*3: Vehicles with paddle shift switches
Weights
*1: With relaxation
