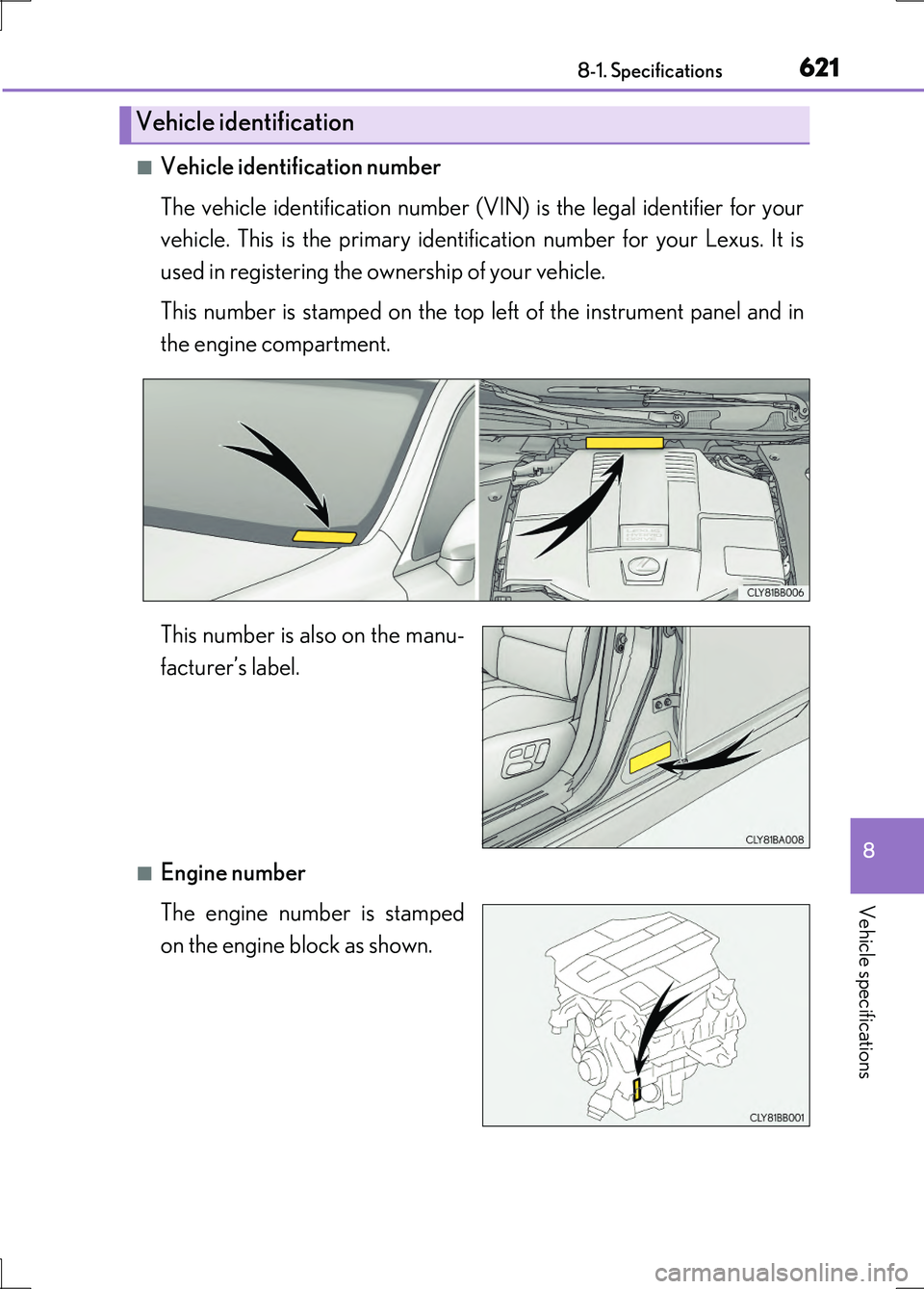

Page 621 of 676

621
8
8-1. Specifications
Vehicle specifications
LS600h/LS600hL_EE(OM50G20E)
■Vehicle identification number
The vehicle identification number (V IN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is
used in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in
the engine compartment.
This number is also on the manu-
facturer’s label.
■Engine number
The engine number is stamped
on the engine block as shown.
Vehicle identification

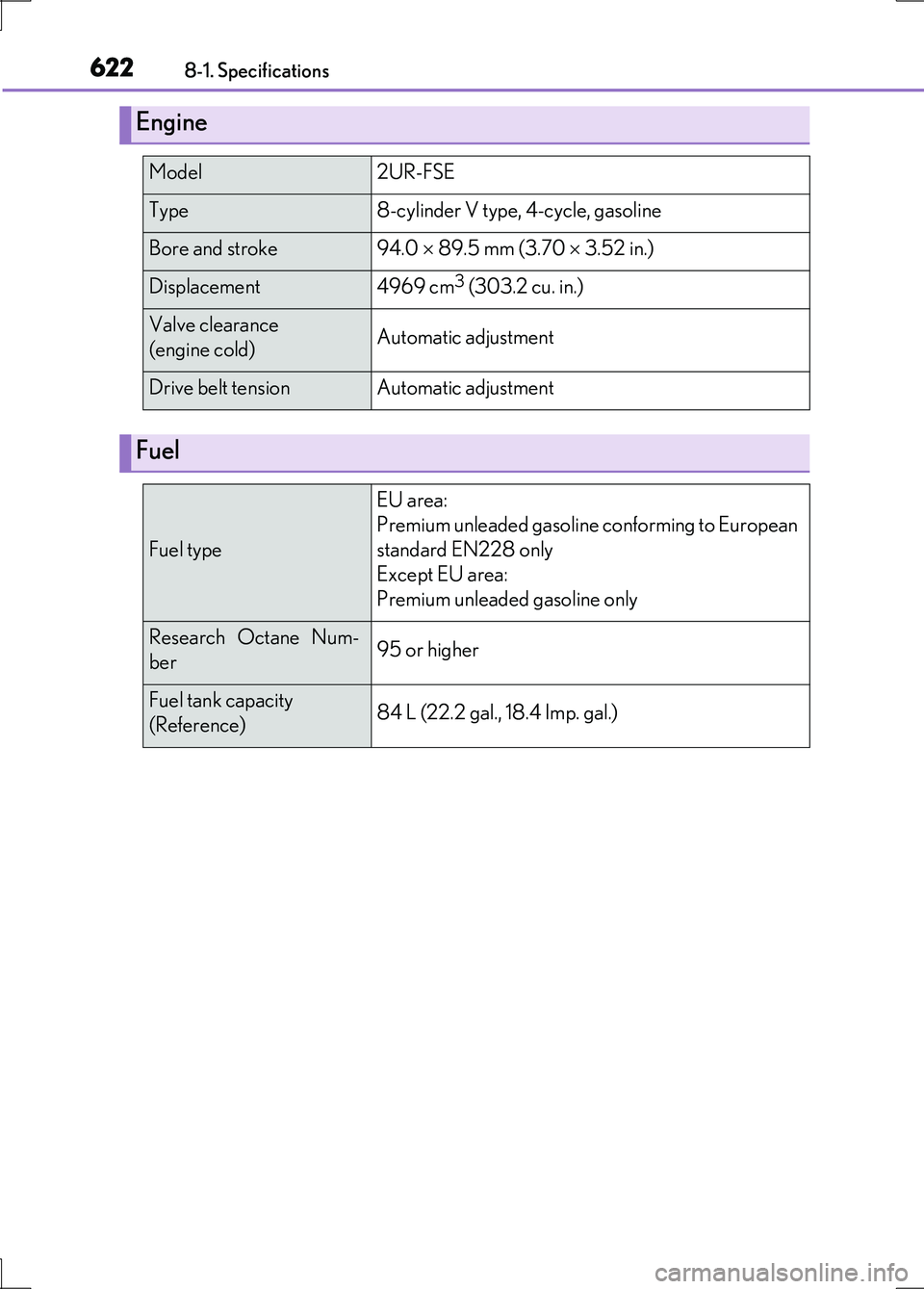

Page 622 of 676

6228-1. Specifications
LS600h/LS600hL_EE(OM50G20E)
Engine
Model2UR-FSE
Type8-cylinder V type, 4-cycle, gasoline
Bore and stroke94.0 89.5 mm (3.70 3.52 in.)
Displacement4969 cm3 (303.2 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel type
EU area:
Premium unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Premium unleaded gasoline only
Research Octane Num-
ber95 or higher
Fuel tank capacity
(Reference)84 L (22.2 gal., 18.4 Imp. gal.)

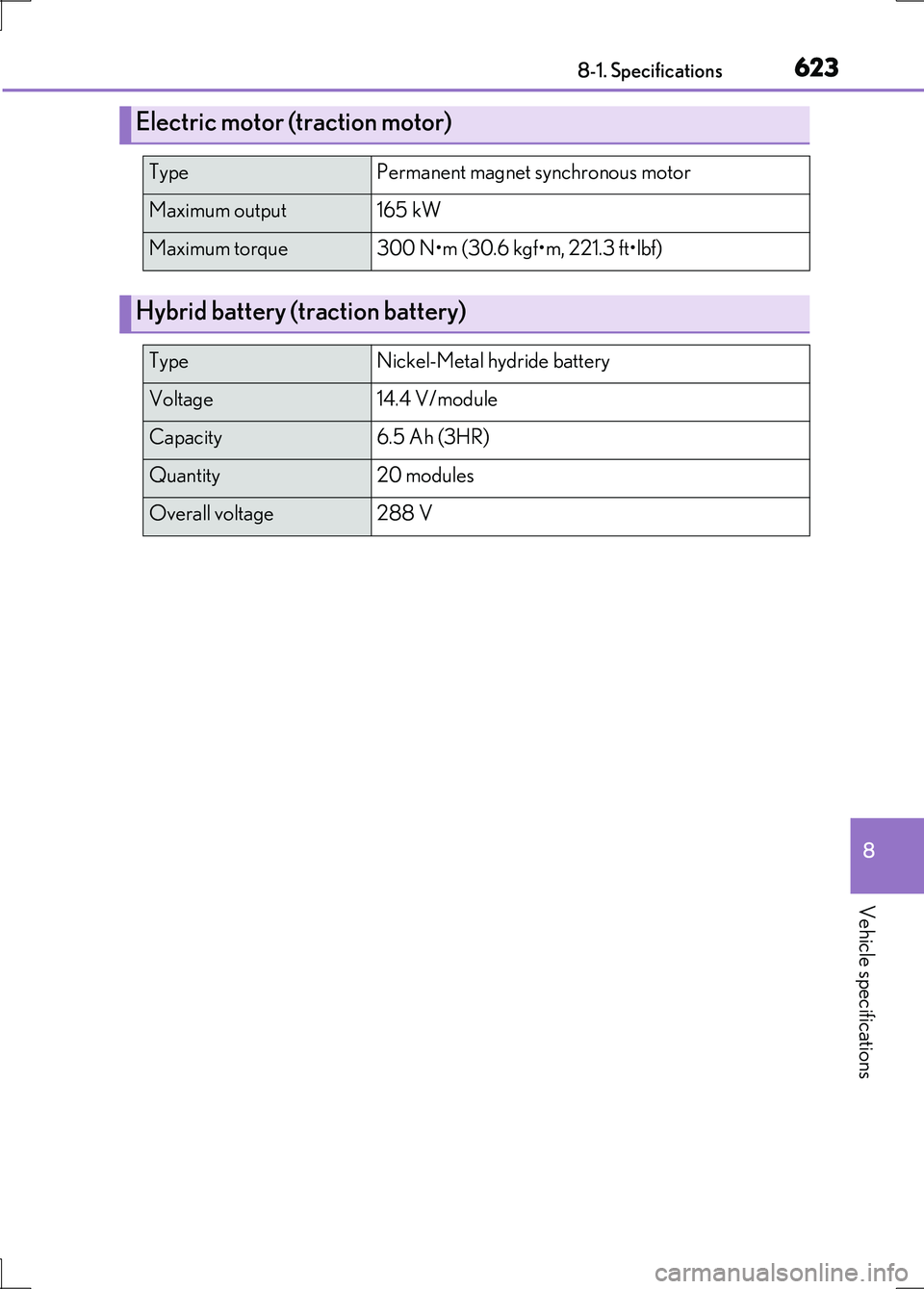

Page 623 of 676

623
8
8-1. Specifications
Vehicle specifications
LS600h/LS600hL_EE(OM50G20E)
Electric motor (traction motor)
TypePermanent magnet synchronous motor
Maximum output165 kW
Maximum torque300 N•m (30.6 kgf•m, 221.3 ft•lbf)
Hybrid battery (traction battery)
TypeNickel-Metal hydride battery
Voltage14.4 V/module
Capacity6.5 Ah (3HR)
Quantity20 modules
Overall voltage288 V

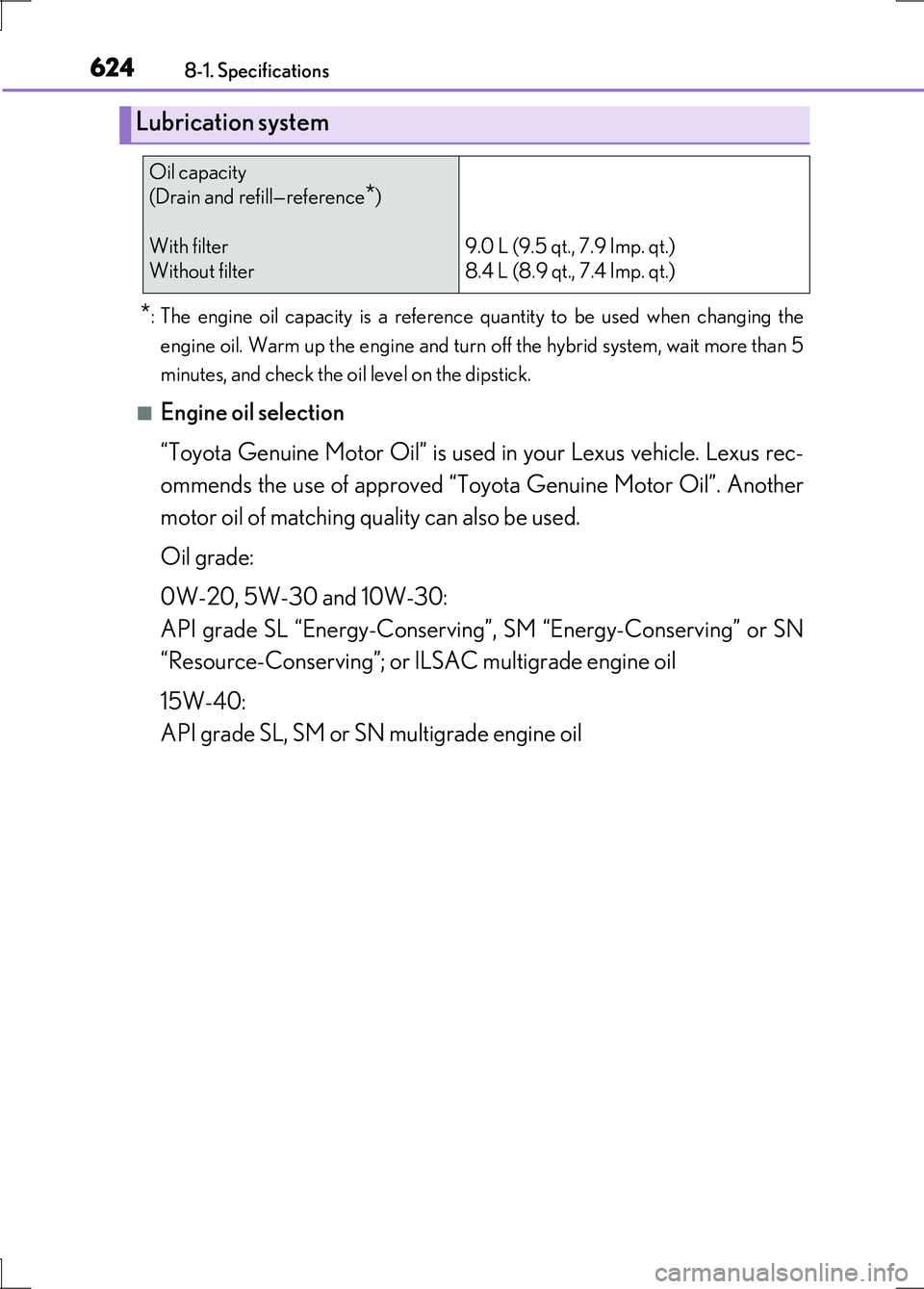

Page 624 of 676

6248-1. Specifications
LS600h/LS600hL_EE(OM50G20E)
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turn off the hybrid system, wait more than 5
minutes, and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Lubrication system
Oil capacity
(Drain and refill—reference*)
With filter
Without filter
9.0 L (9.5 qt., 7.9 Imp. qt.)
8.4 L (8.9 qt., 7.4 Imp. qt.)

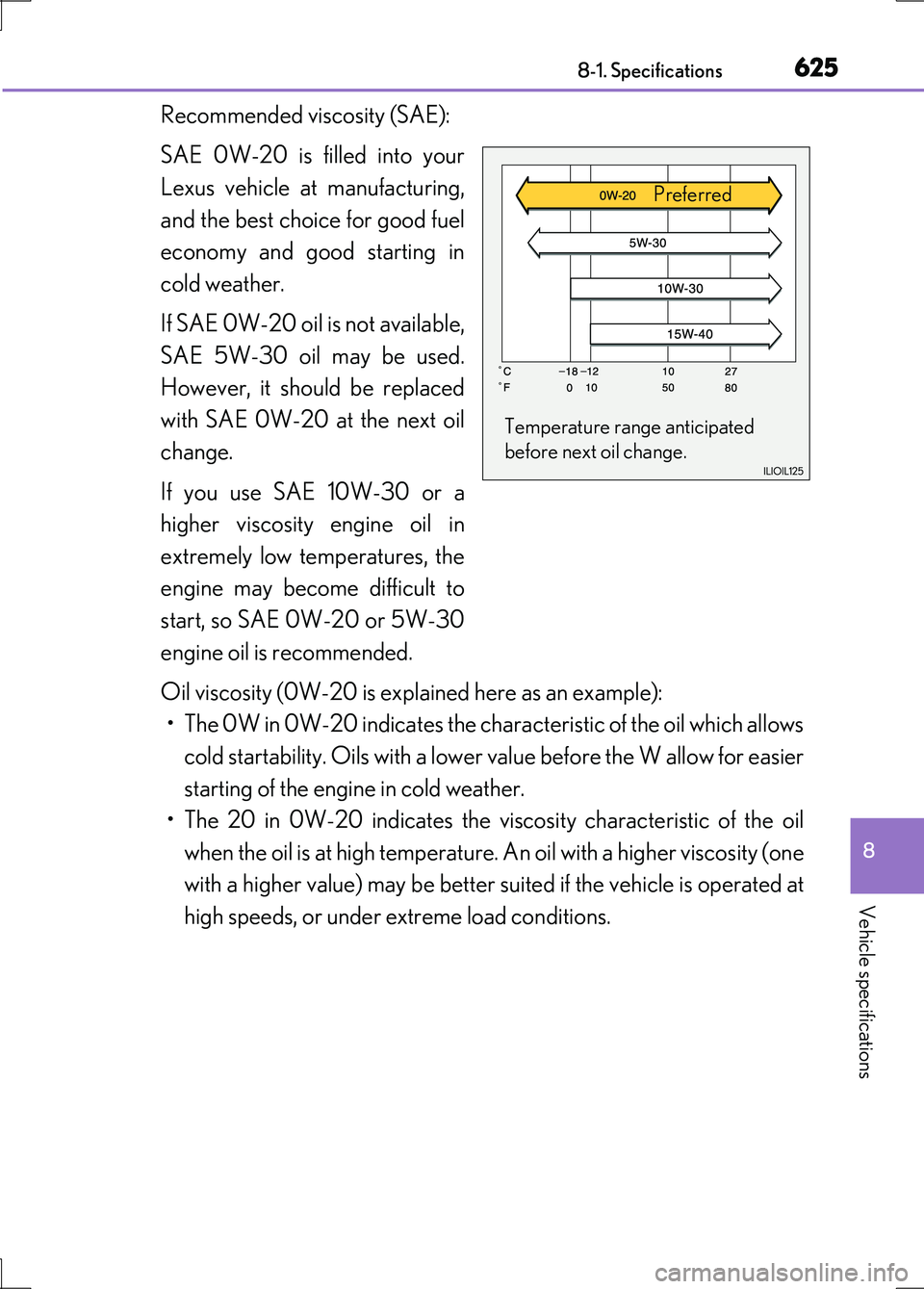

Page 625 of 676

625
8
8-1. Specifications
Vehicle specifications
LS600h/LS600hL_EE(OM50G20E)
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Lexus vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 0W-20 or 5W-30
engine oil is recommended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity (one
with a higher value) may be better suited if the vehicle is operated at
high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change.
Preferred

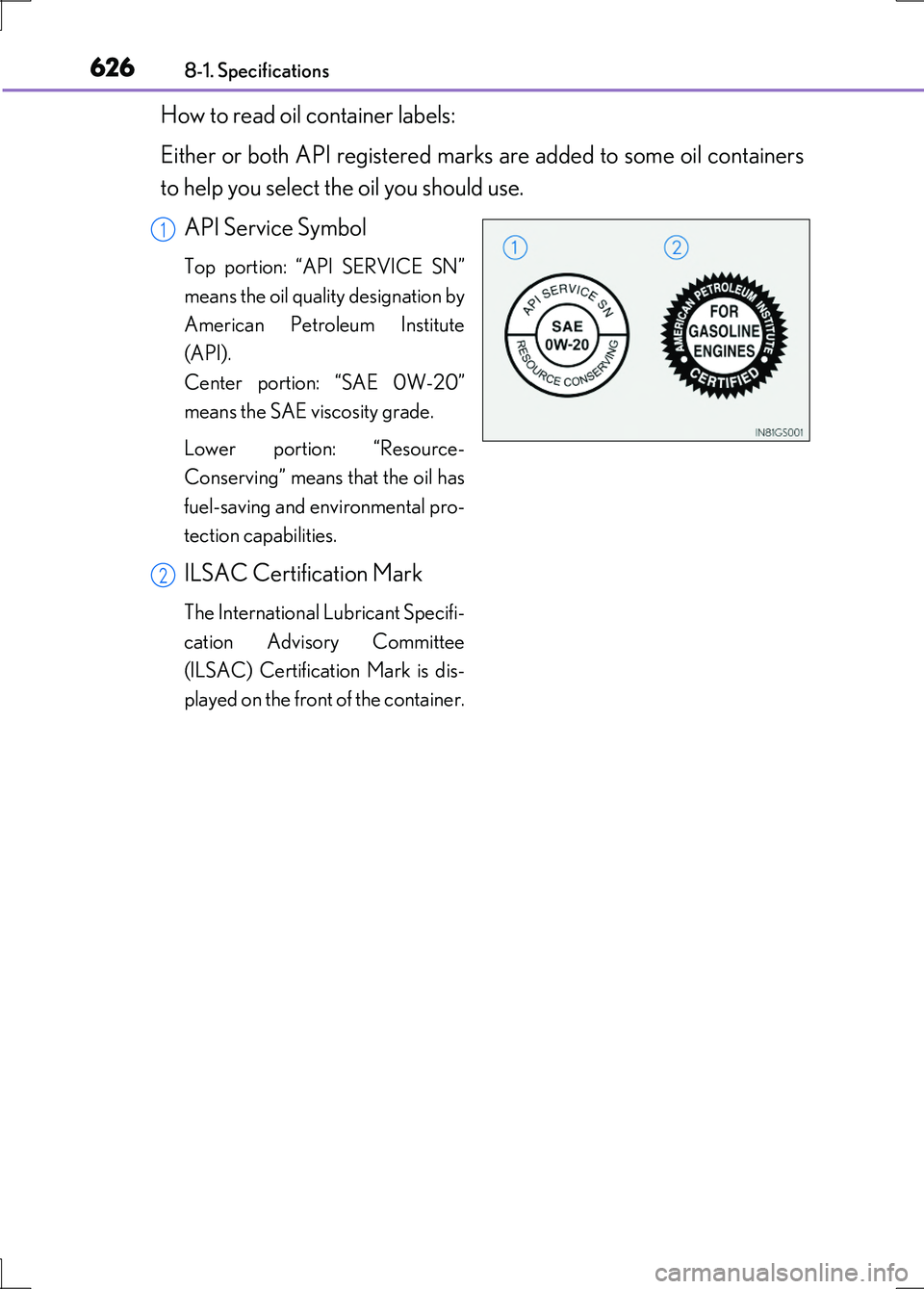

Page 626 of 676

6268-1. Specifications
LS600h/LS600hL_EE(OM50G20E)
How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation by
American Petroleum Institute
(API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil has
fuel-saving and environmental pro-
tection capabilities.
ILSAC Certification Mark
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is dis-
played on the front of the container.
1
2

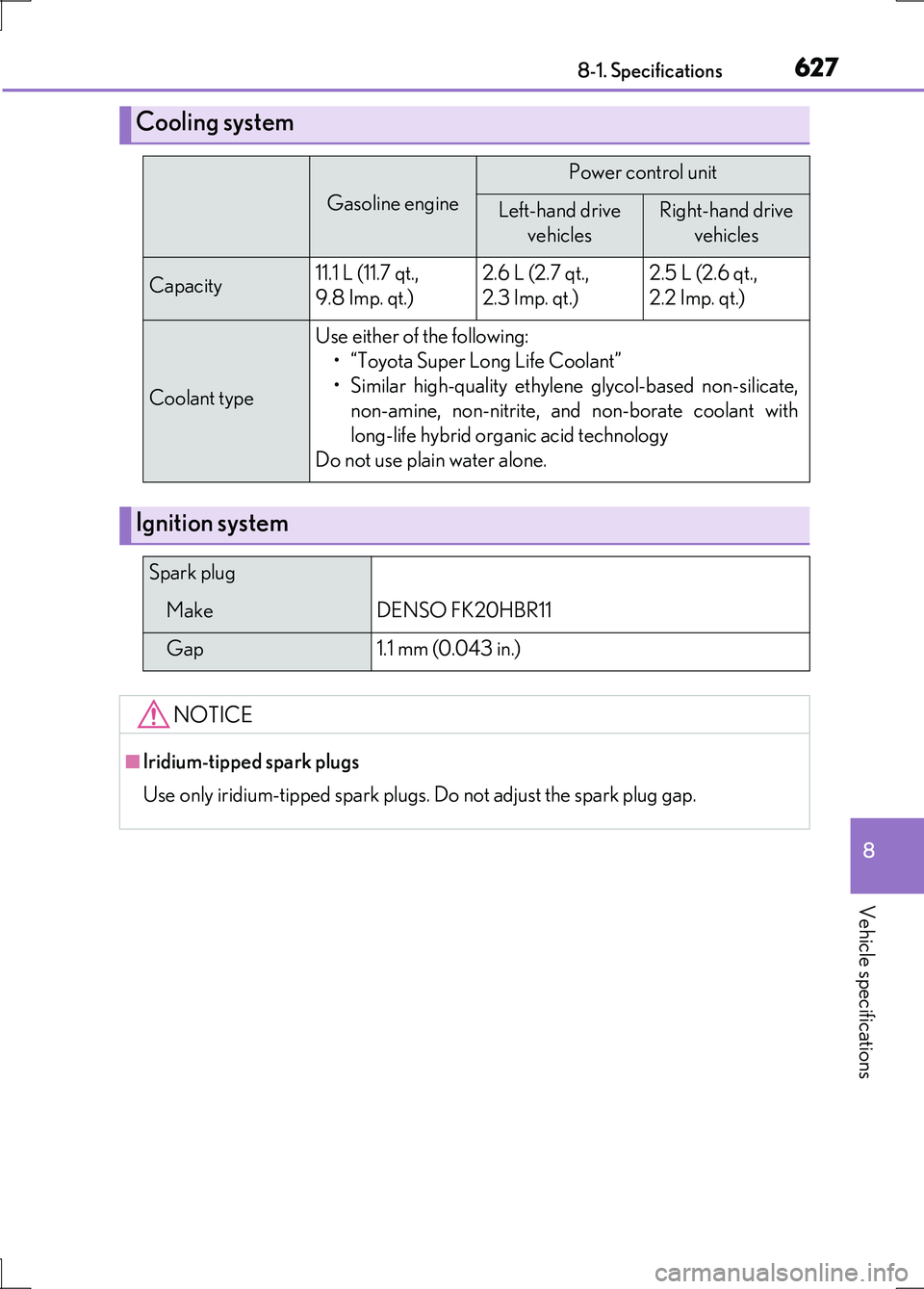

Page 627 of 676

627
8
8-1. Specifications
Vehicle specifications
LS600h/LS600hL_EE(OM50G20E)
Cooling system
Gasoline engine
Power control unit
Left-hand drive
vehicles
Right-hand drive
vehicles
Capacity11.1 L (11.7 qt.,
9.8 Imp. qt.)
2.6 L (2.7 qt.,
2.3 Imp. qt.)
2.5 L (2.6 qt.,
2.2 Imp. qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate,
non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
MakeDENSO FK20HBR11
Gap1.1 mm (0.043 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Page 628 of 676

6288-1. Specifications
LS600h/LS600hL_EE(OM50G20E)
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Electrical system
12-volt battery
Open voltage at 20 C
(68 F):
12.0 V or higher
(Voltage is checked 20 minutes after the hybrid sys-
tem and all lights are turned off.)
If the voltage is lower than the standard value, charge
the battery.
Charging rates5 A max.
Hybrid transmission
Fluid capacity*5.5 L (5.8 qt., 4.8 Imp. qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Hybrid transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterio-
ration in shift quality, and ultimately damage the transmission of your vehicle.

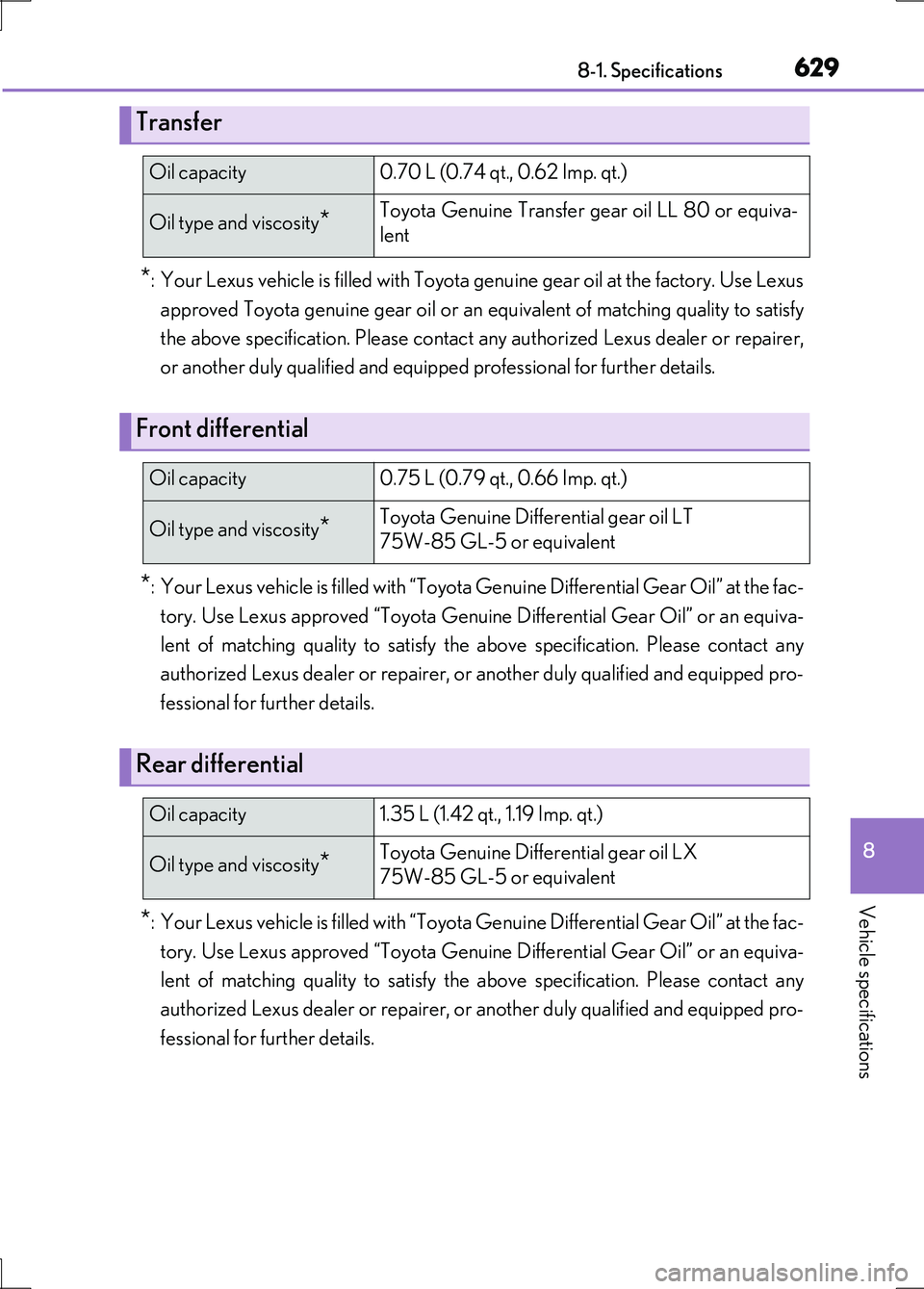

Page 629 of 676

629
8
8-1. Specifications
Vehicle specifications
LS600h/LS600hL_EE(OM50G20E)
*: Your Lexus vehicle is filled with Toyota genuine gear oil at the factory. Use Lexus
approved Toyota genuine gear oil or an equivalent of matching quality to satisfy
the above specification. Please contact any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional for further details.
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the fac-
tory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equiva-
lent of matching quality to satisfy the above specification. Please contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional for further details.
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the fac-
tory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equiva-
lent of matching quality to satisfy the above specification. Please contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional for further details.
Transfer
Oil capacity0.70 L (0.74 qt., 0.62 Imp. qt.)
Oil type and viscosity*Toyota Genuine Transfer gear oil LL 80 or equiva-
lent
Front differential
Oil capacity0.75 L (0.79 qt., 0.66 Imp. qt.)
Oil type and viscosity*Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Rear differential
Oil capacity1.35 L (1.42 qt., 1.19 Imp. qt.)
Oil type and viscosity*Toyota Genuine Differential gear oil LX
75W-85 GL-5 or equivalent
Page 630 of 676

6308-1. Specifications
LS600h/LS600hL_EE(OM50G20E)
*: Minimum pedal clearance when depressed with a force of 500 N (51 kgf, 112 lbf)
while the hybrid system is operating.
When performing the brake pedal inspection, also be sure to check that the
brake system warning light is not illuminated when the hybrid system is operating
(If the brake system warning light is illuminated, refer to P. 555).
Brakes
Pedal clearance*147 mm (5.8 in.) Min.
Pedal free play1.0 - 2.0 mm (0.04 - 0.08 in.)
Fluid typeSAE J1703 or FMVSS No.116 DOT 3 or,
SAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)
Tires and wheels
Tire size245/45R19 102Y
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)
Vehicle speedFront wheel
kPa (kgf/cm2 or
bar, psi)
Rear wheel
kPa (kgf/cm2 or
bar, psi)
More than 210 km/h
(132 mph)290 (2.9, 42)290 (2.9, 42)
210 km/h
(132 mph) or less250 (2.5, 36)250 (2.5, 36)
Wheel size19 8 J
Wheel nut torque140 N•m (14.3 kgf•m, 103 ft•lbf)
