LEXUS LS600H 2017 Owners Manual

6017-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)
Using the flathead end of the
screwdriver, remove the clips.
When installing the tool tray clips:
 P. 602

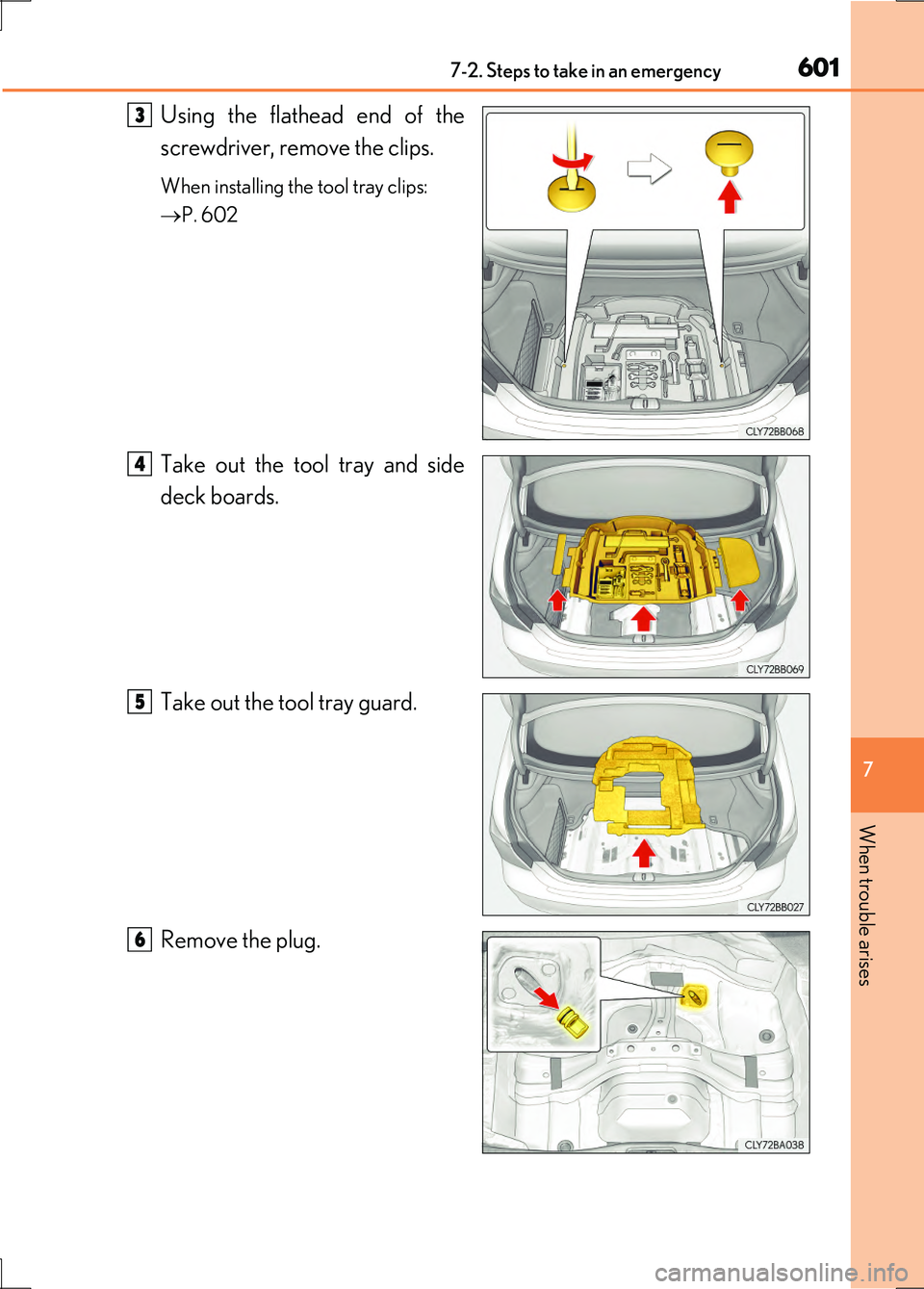

Take out the tool tray and side
deck boards.
Take out the tool tray guard.
Remove the plug.
3
4
5
6

6027-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)
Replace the screwdriver head
with the parking brake release
tool.
Insert the tool and press it down
firmly while turning it
counterclockwise until it stops.
■When installing the tool tray clips (vehicles without a spare tire)
■Manual operation of the parking brake
The parking brake cannot be set manually.
7
8
CAUTION
■When releasing the parking brake manually
●Shift the shift lever to P, turn the power switch off and chock the tires.
Failure to do so may cause the vehicle to move, resulting in an accident.
●Turn the power switch off and check that the parking brake indicator is off.
Failure to do so may cause the system to operate and turn the inserted parking
brake release tool, resulting in an injury.
Install the clips as shown in the illustration.

6037-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)
Use the mechanical key built in to the electronic keys to operate the
doors. ( P. 141)
Vehicles with an alarm: An alarm will sound if the alarm is set when the trunk or
doors are unlocked. ( P. 103)
■Doors
Remove the cover on the
driver’s door handle.
If the electronic key does not operate properly
If communication between the electronic key and vehicle is inter-
rupted ( P. 159) or the electronic key cannot be used because the
battery is depleted, the smart entry & start system and wireless remote
control cannot be used. In such cases, the doors and trunk can be
opened and the hybrid system can be started by following the proce-
dure below.
Locking and unlocking the doors, unlocking the trunk and key
linked functions
1

6047-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)

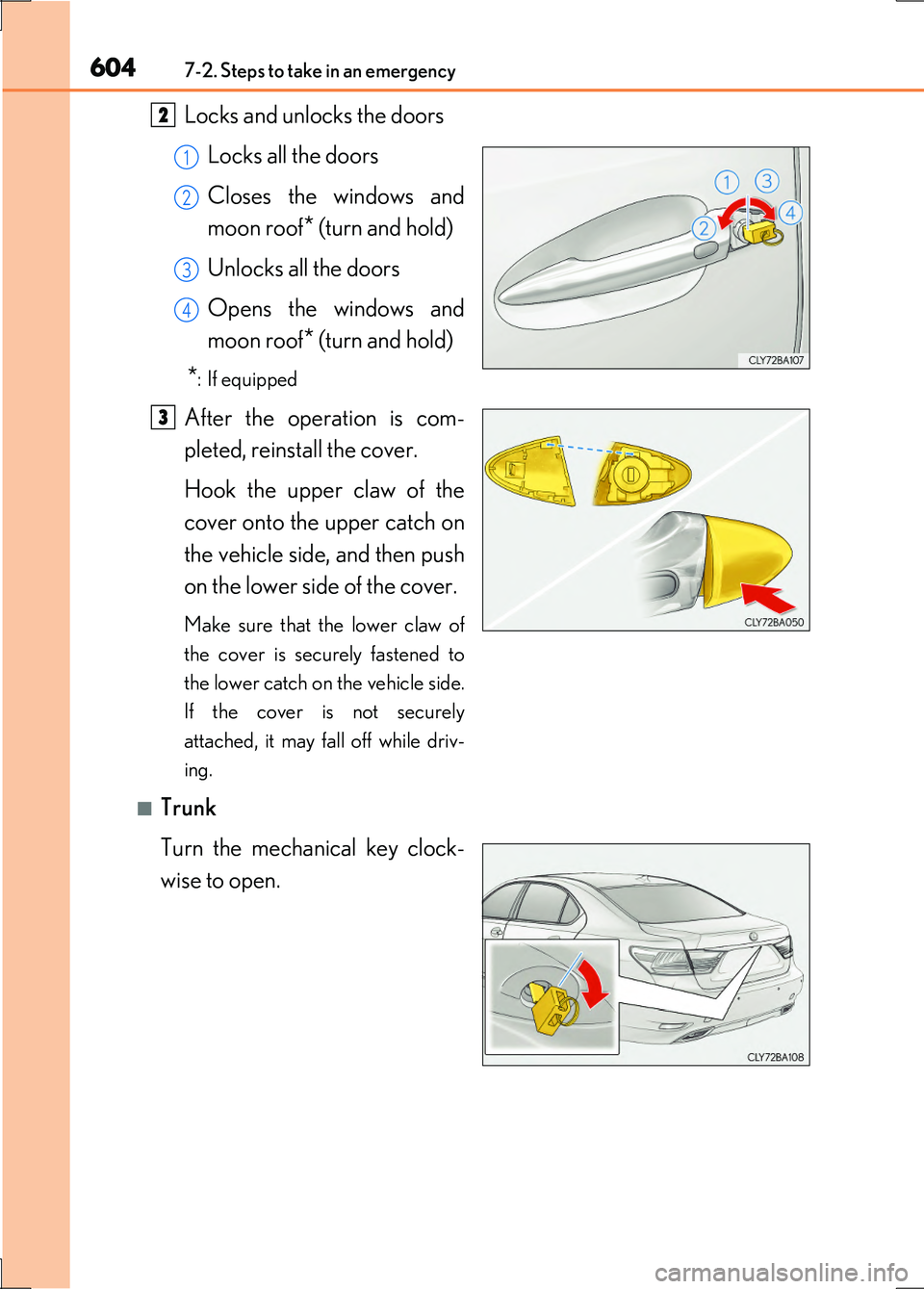

Locks and unlocks the doors
Locks all the doors
Closes the windows and
moon roof* (turn and hold)
Unlocks all the doors
Opens the windows and
moon roof* (turn and hold)
*: If equipped
After the operation is com-
pleted, reinstall the cover.
Hook the upper claw of the
cover onto the upper catch on
the vehicle side, and then push
on the lower side of the cover.
Make sure that the lower claw of
the cover is securely fastened to
the lower catch on the vehicle side.
If the cover is not securely
attached, it may fall off while driv-
ing.
■Trunk
Turn the mechanical key clock-
wise to open.
2
1
2
3
4
3

6057-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of
the electronic key to the power
switch.
If any of the doors is opened or closed
after the key was touched to the
switch to start the vehicle, an alarm
will sound to indicate that the start
function cannot detect the key.
Press the power switch within 10 seconds of the buzzer sounding,
keeping the brake pedal depressed.
In the event that the hybrid system still cannot be started, contact any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
■Stopping the hybrid system
Shift the shift lever to P and press the power switch as you normally do when stop-
ping the hybrid system.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the elec-
tronic key battery be replaced immediately when the battery is depleted. ( P. 532)
■Alarm (if equipped)
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set, the
alarm may be triggered.
■Changing power switch modes
Within 10 seconds of the buzzer sounding, release the brake pedal and press the
power switch.
The hybrid system does not start and modes will be changed each time the switch is
pressed. ( P. 248)

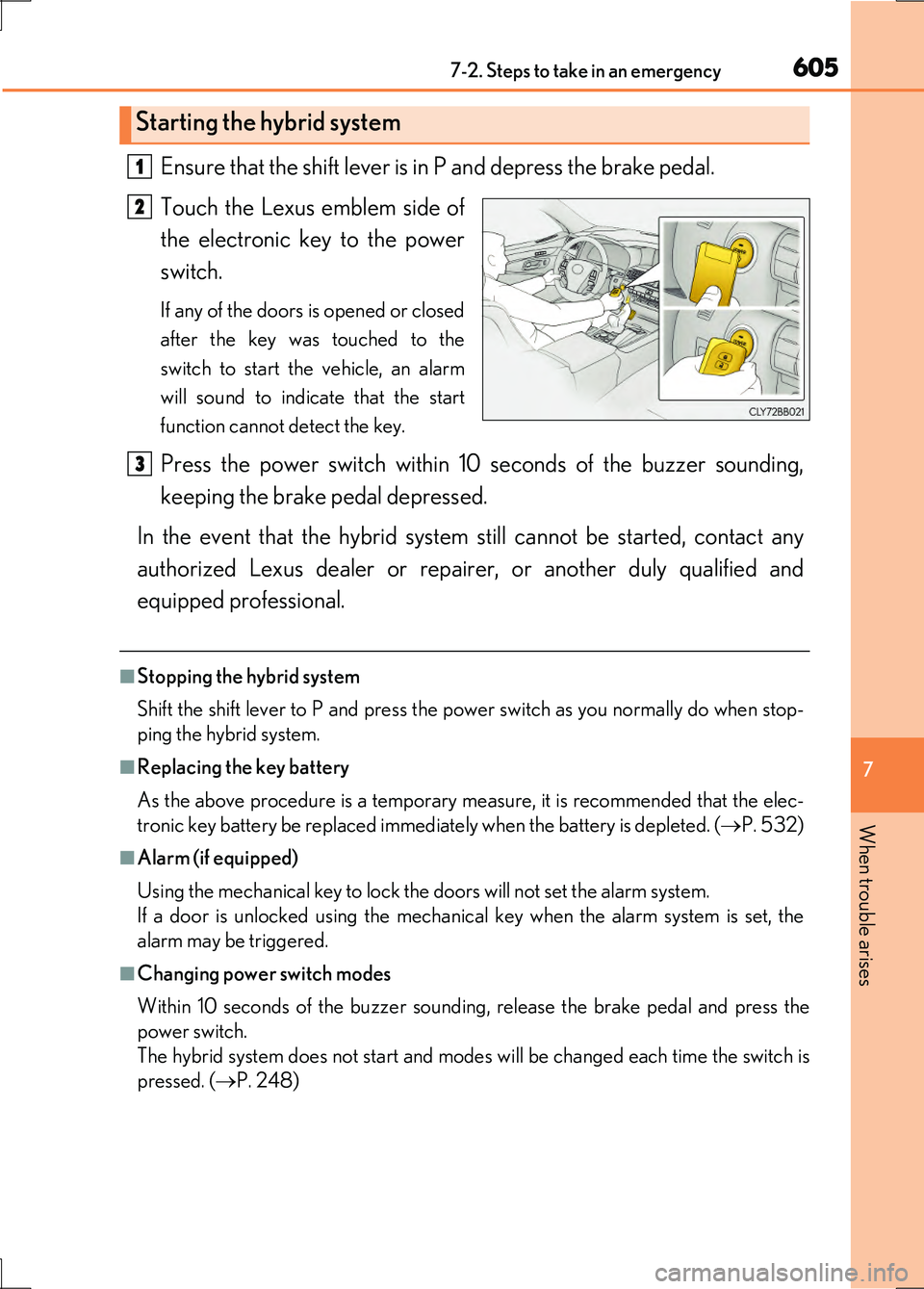

Starting the hybrid system
1
2
3

6067-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)

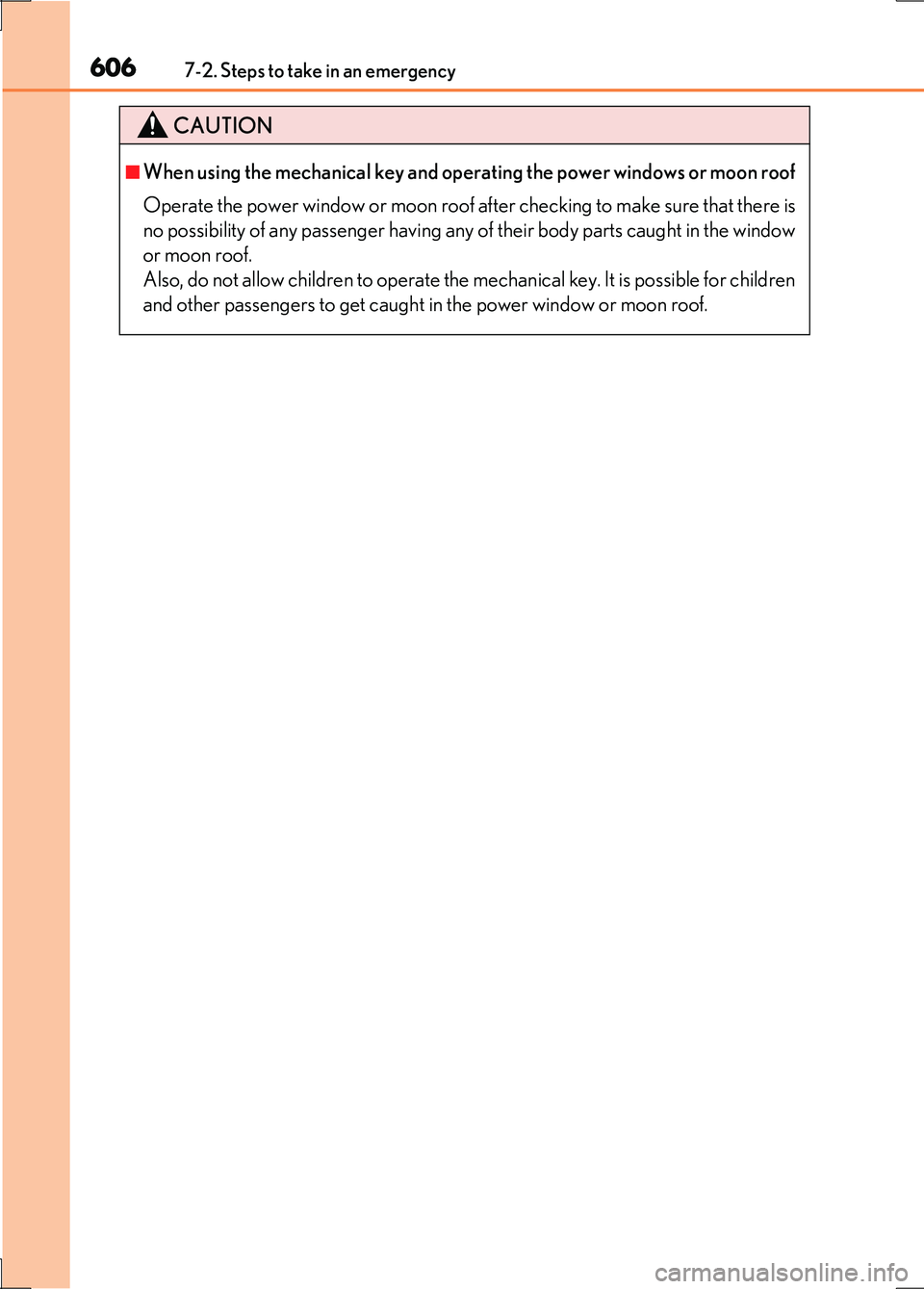

CAUTION
■When using the mechanical key and operating the power windows or moon roof
Operate the power window or moon roof after checking to make sure that there is
no possibility of any passenger having any of their body parts caught in the window
or moon roof.
Also, do not allow children to operate the mechanical key. It is possible for children
and other passengers to get caught in the power window or moon roof.

6077-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)
If you have a set of jumper (or booster) cables and a second vehicle with a
12-volt battery, you can jump start your vehicle by following the steps
below.
Confirm that the electronic key is
being carried.
When connecting the jumper (or
booster) cables, depending on the sit-
uation, the alarm may activate and
doors locked. (P. 105)
Open the trunk lid and remove the 12-volt battery cover. ( P. 502)
In the event that the trunk opener cannot be used, use the mechanical key to open
the trunk. ( P. 603)

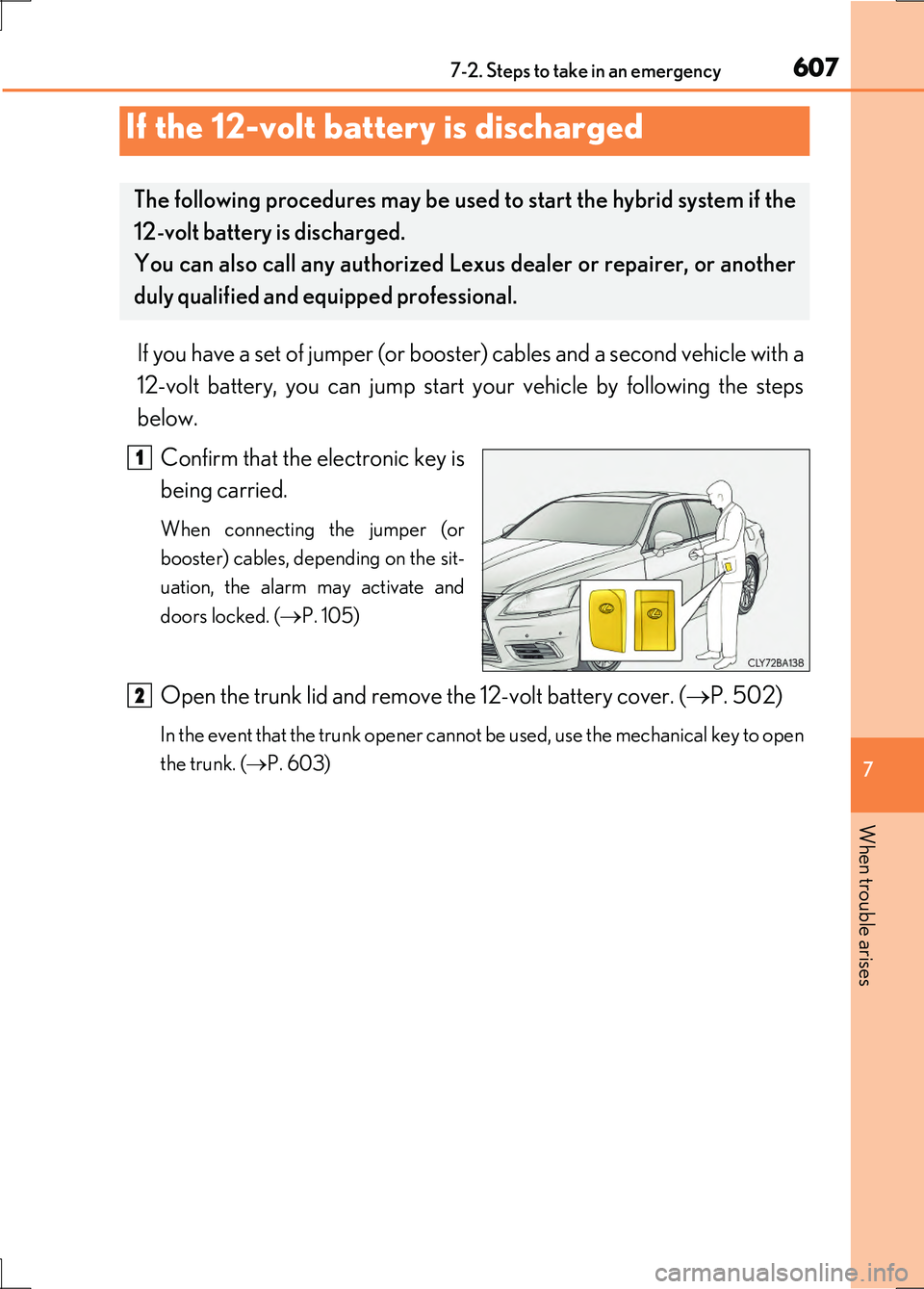

If the 12-volt battery is discharged
The following procedures may be used to start the hybrid system if the
12-volt battery is discharged.
You can also call any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
1
2

6087-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)

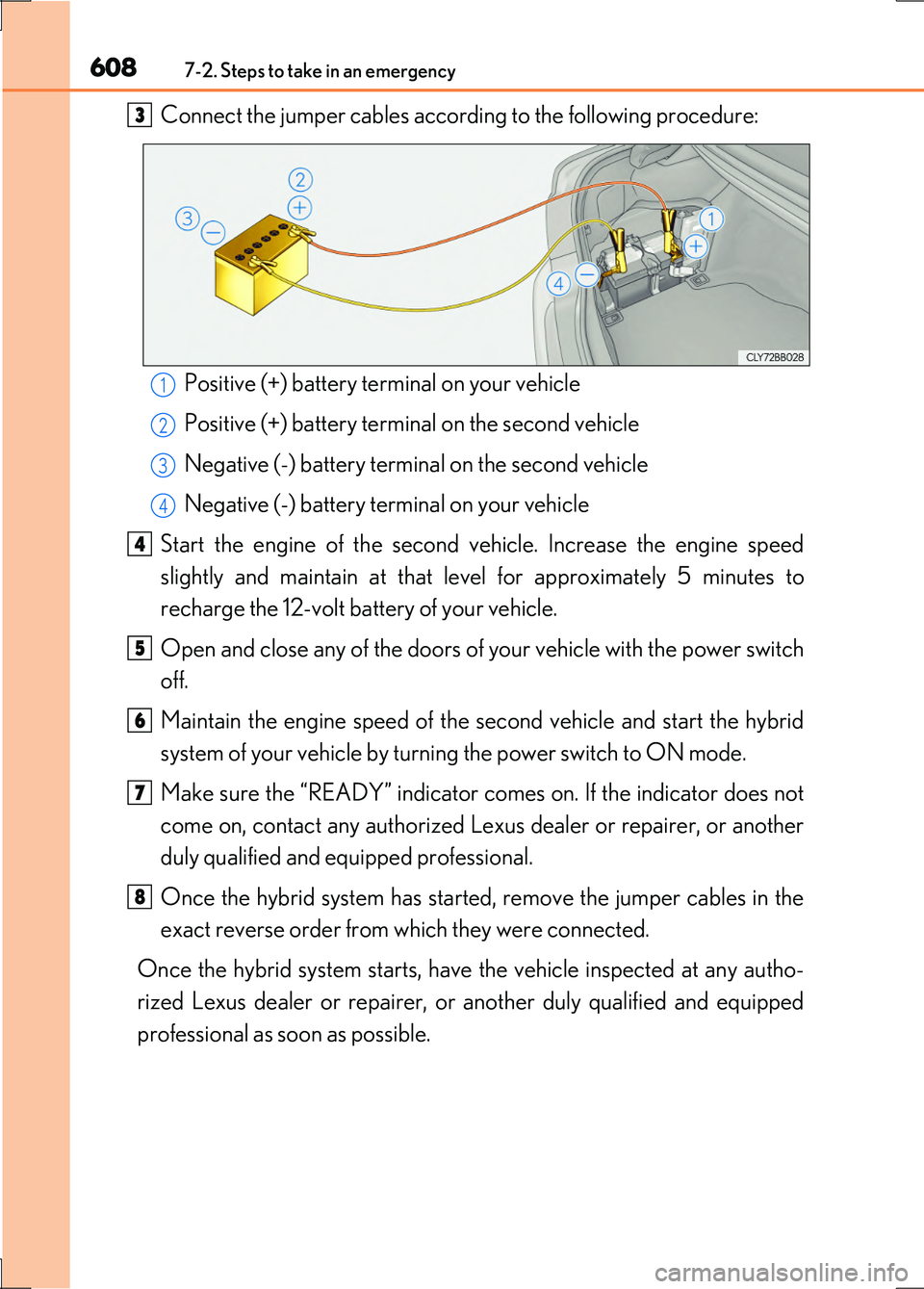

Connect the jumper cables according to the following procedure:
Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (-) battery terminal on the second vehicle
Negative (-) battery terminal on your vehicle
Start the engine of the second vehicle. Increase the engine speed
slightly and maintain at that level for approximately 5 minutes to
recharge the 12-volt battery of your vehicle.
Open and close any of the doors of your vehicle with the power switch
off.
Maintain the engine speed of the second vehicle and start the hybrid
system of your vehicle by turning the power switch to ON mode.
Make sure the “READY” indicator comes on. If the indicator does not
come on, contact any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
Once the hybrid system has started, remove the jumper cables in the
exact reverse order from which they were connected.
Once the hybrid system starts, have the vehicle inspected at any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped
professional as soon as possible.
3
1
2
3
4
4
5
6
7
8

6097-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)
■Starting the hybrid system when the 12-volt battery is discharged
The hybrid system cannot be started by push-starting.
■To prevent 12-volt battery discharge
●Turn off the headlights and the audio system while the hybrid system is off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic.
■When the 12-volt battery is removed or discharged
The hybrid system may not start. ( P. 504)
■Charging the 12-volt battery
The electricity stored in the 12-volt battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of certain elec-
trical appliances. If the vehicle is left for a long time, the 12-volt battery may dis-
charge, and the hybrid system may be unable to start. (The 12-volt battery recharges
automatically while the hybrid system is operating.)
■When recharging or replacing the 12-volt battery
In some cases, it may not be possible to unlock the doors using the smart entry &
start system when the 12-volt battery is discharged. Use the wireless remote control
or the mechanical key to lock or unlock the doors.
■If the 12-volt battery is discharged
The information stored in the computer will be deleted.
If the 12-volt battery is discharged, have the vehicle inspected by your Lexus dealer.

6107-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)

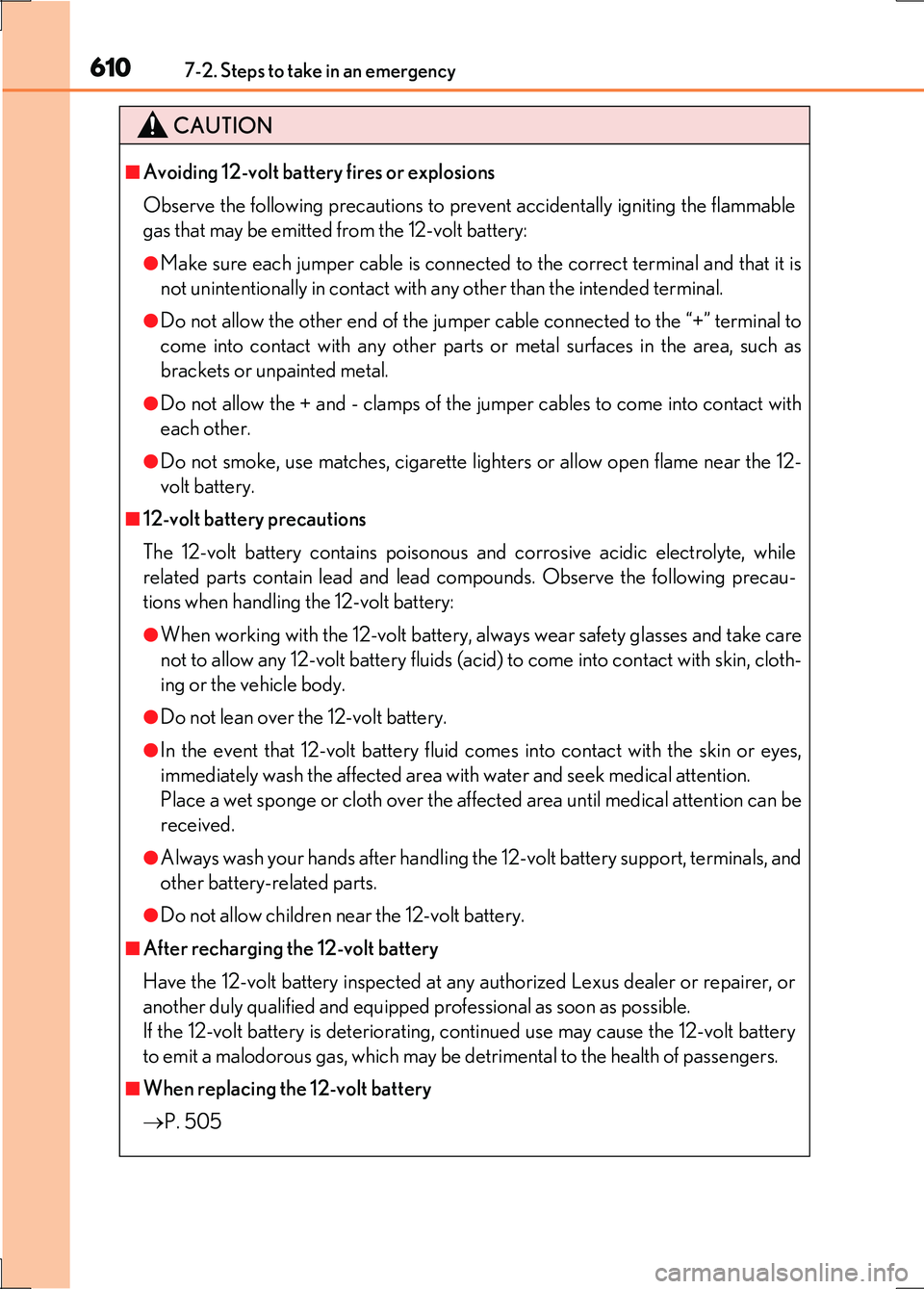

CAUTION
■Avoiding 12-volt battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable
gas that may be emitted from the 12-volt battery:
●Make sure each jumper cable is connected to the correct terminal and that it is
not unintentionally in contact with any other than the intended terminal.
●Do not allow the other end of the jumper cable connected to the “+” terminal to
come into contact with any other parts or metal surfaces in the area, such as
brackets or unpainted metal.
●Do not allow the + and - clamps of the jumper cables to come into contact with
each other.
●Do not smoke, use matches, cigarette lighters or allow open flame near the 12-
volt battery.
■12-volt battery precautions
The 12-volt battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following precau-
tions when handling the 12-volt battery:
●When working with the 12-volt battery, always wear safety glasses and take care
not to allow any 12-volt battery fluids (acid) to come into contact with skin, cloth-
ing or the vehicle body.
●Do not lean over the 12-volt battery.
●In the event that 12-volt battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention can be
received.
●Always wash your hands after handling the 12-volt battery support, terminals, and
other battery-related parts.
●Do not allow children near the 12-volt battery.
■After recharging the 12-volt battery
Have the 12-volt battery inspected at any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional as soon as possible.
If the 12-volt battery is deteriorating, continued use may cause the 12-volt battery
to emit a malodorous gas, which may be detrimental to the health of passengers.
■When replacing the 12-volt battery
 P. 505
