711-1. For safe use
1
For safety and security
LS600h/LS600hL_EE(OM50G20E)

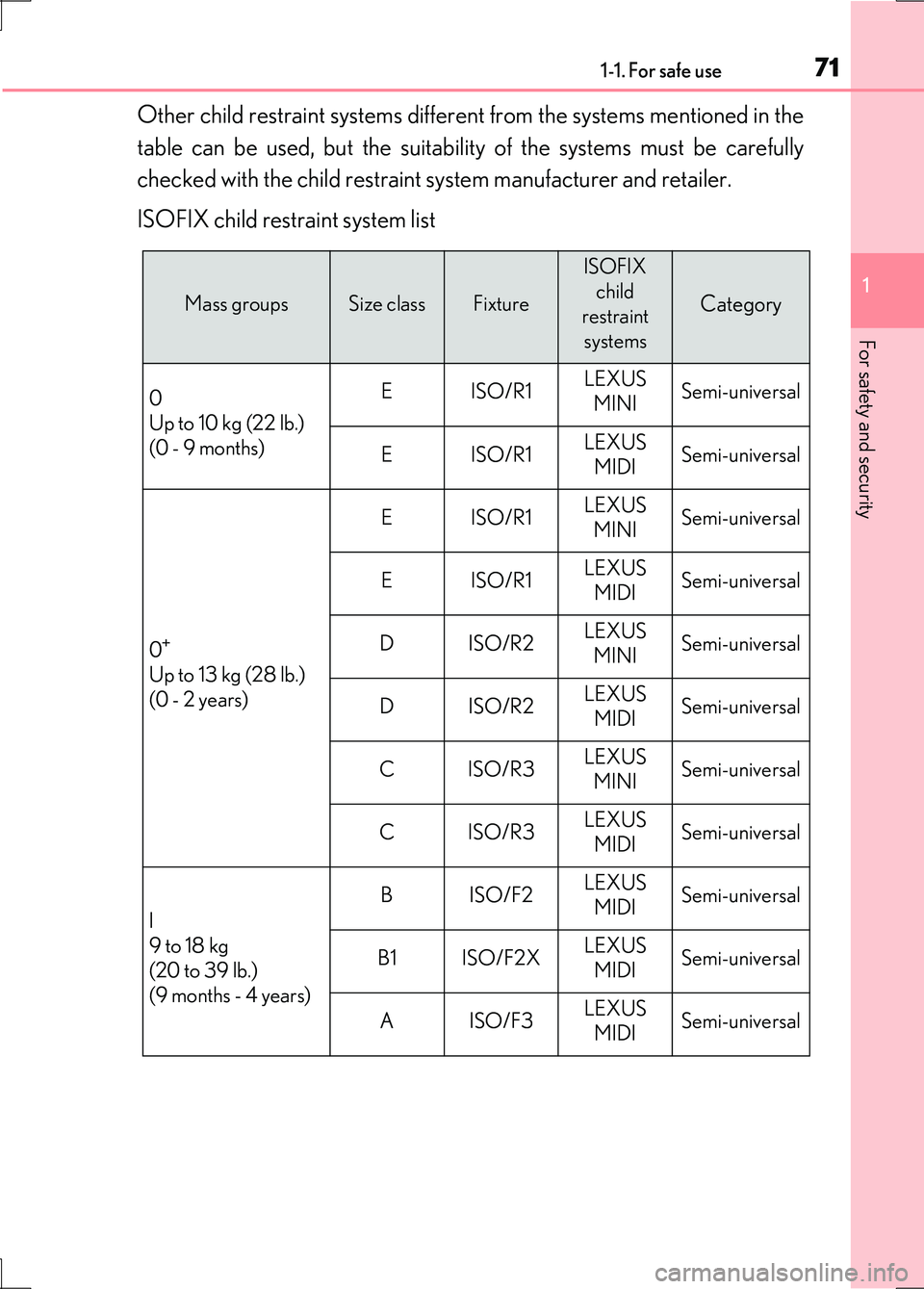

Other child restraint systems different from the systems mentioned in the
table can be used, but the suitability of the systems must be carefully
checked with the child restraint system manufacturer and retailer.
ISOFIX child restraint system list

Mass groupsSize classFixture
ISOFIX
child
restraint
systems
Category
0
Up to 10 kg (22 lb.)
(0 - 9 months)
EISO/R1 LEXUS
MINI Semi-universal
EISO/R1 LEXUS
MIDI Semi-universal
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
EISO/R1 LEXUS
MINI Semi-universal
EISO/R1 LEXUS
MIDI Semi-universal
DISO/R2 LEXUS
MINI Semi-universal
DISO/R2 LEXUS
MIDI Semi-universal
CISO/R3 LEXUS
MINI Semi-universal
CISO/R3 LEXUS
MIDI Semi-universal
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)
BISO/F2 LEXUS
MIDI Semi-universal
B1 ISO/F2X LEXUS
MIDI Semi-universal
AISO/F3 LEXUS
MIDI Semi-universal

721-1. For safe use
LS600h/LS600hL_EE(OM50G20E)

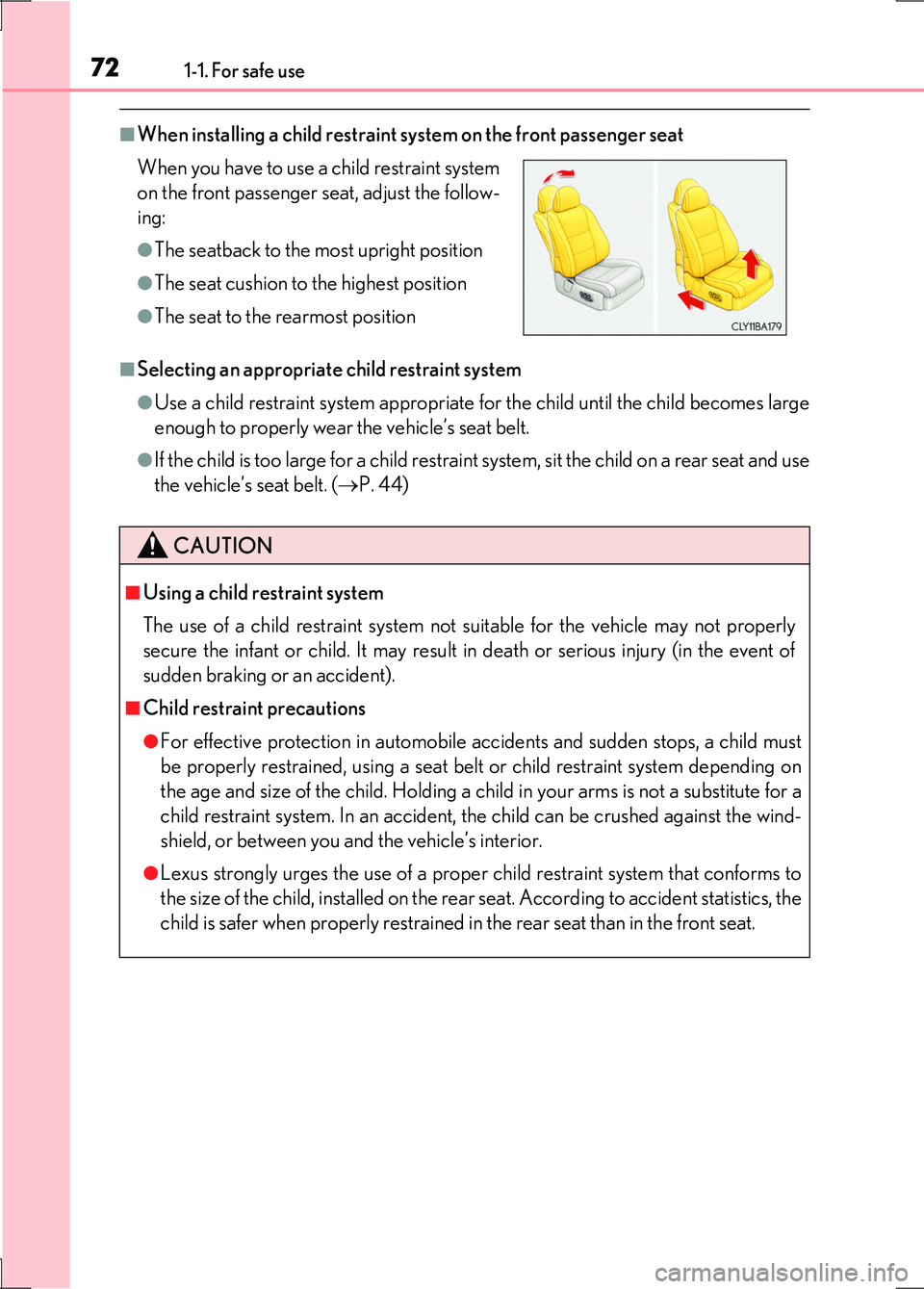

■When installing a child restraint system on the front passenger seat
■Selecting an appropriate child restraint system
●Use a child restraint system appropriate for the child until the child becomes large
enough to properly wear the vehicle’s seat belt.
●If the child is too large for a child restraint system, sit the child on a rear seat and use
the vehicle’s seat belt. ( P. 44)
When you have to use a child restraint system
on the front passenger seat, adjust the follow-
ing:
●The seatback to the most upright position
●The seat cushion to the highest position
●The seat to the rearmost position
CAUTION
■Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not properly
secure the infant or child. It may result in death or serious injury (in the event of
sudden braking or an accident).
■Child restraint precautions
●For effective protection in automobile accidents and sudden stops, a child must
be properly restrained, using a seat belt or child restraint system depending on
the age and size of the child. Holding a child in your arms is not a substitute for a
child restraint system. In an accident, the child can be crushed against the wind-
shield, or between you and the vehicle’s interior.
●Lexus strongly urges the use of a proper child restraint system that conforms to
the size of the child, installed on the rear seat. According to accident statistics, the
child is safer when properly restrained in the rear seat than in the front seat.

731-1. For safe use
1
For safety and security
LS600h/LS600hL_EE(OM50G20E)

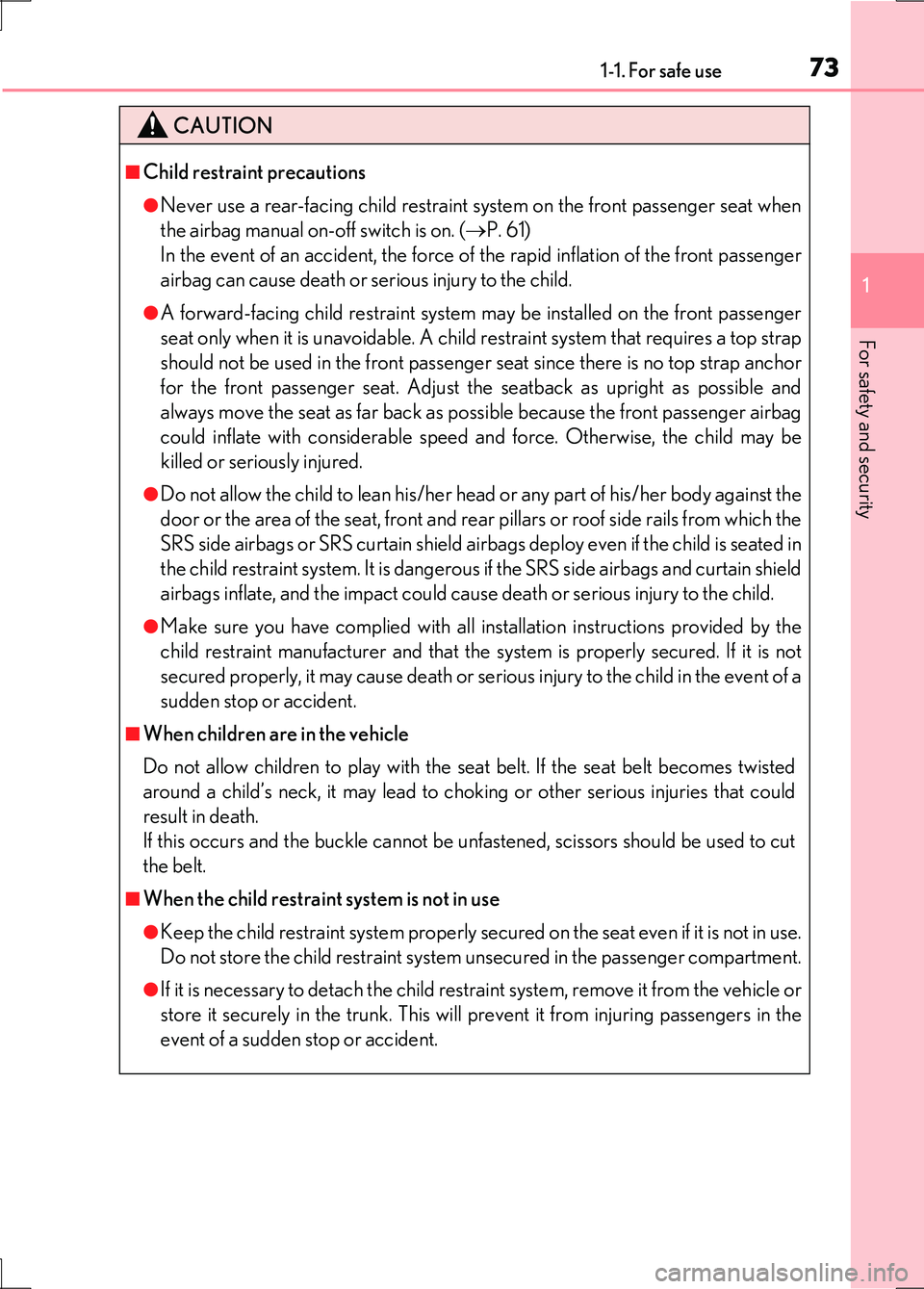

CAUTION
■Child restraint precautions
●Never use a rear-facing child restraint system on the front passenger seat when
the airbag manual on-off switch is on. ( P. 61)
In the event of an accident, the force of the rapid inflation of the front passenger
airbag can cause death or serious injury to the child.
●A forward-facing child restraint system may be installed on the front passenger
seat only when it is unavoidable. A child restraint system that requires a top strap
should not be used in the front passenger seat since there is no top strap anchor
for the front passenger seat. Adjust the seatback as upright as possible and
always move the seat as far back as possible because the front passenger airbag
could inflate with considerable speed and force. Otherwise, the child may be
killed or seriously injured.
●Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front and rear pillars or roof side rails from which the
SRS side airbags or SRS curtain shield airbags deploy even if the child is seated in
the child restraint system. It is dangerous if the SRS side airbags and curtain shield
airbags inflate, and the impact could cause death or serious injury to the child.
●Make sure you have complied with all installation instructions provided by the
child restraint manufacturer and that the system is properly secured. If it is not
secured properly, it may cause death or serious injury to the child in the event of a
sudden stop or accident.
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could
result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut
the belt.
■When the child restraint system is not in use
●Keep the child restraint system properly secured on the seat even if it is not in use.
Do not store the child restraint system unsecured in the passenger compartment.
●If it is necessary to detach the child restraint system, remove it from the vehicle or
store it securely in the trunk. This will prevent it from injuring passengers in the
event of a sudden stop or accident.

741-1. For safe use
LS600h/LS600hL_EE(OM50G20E)

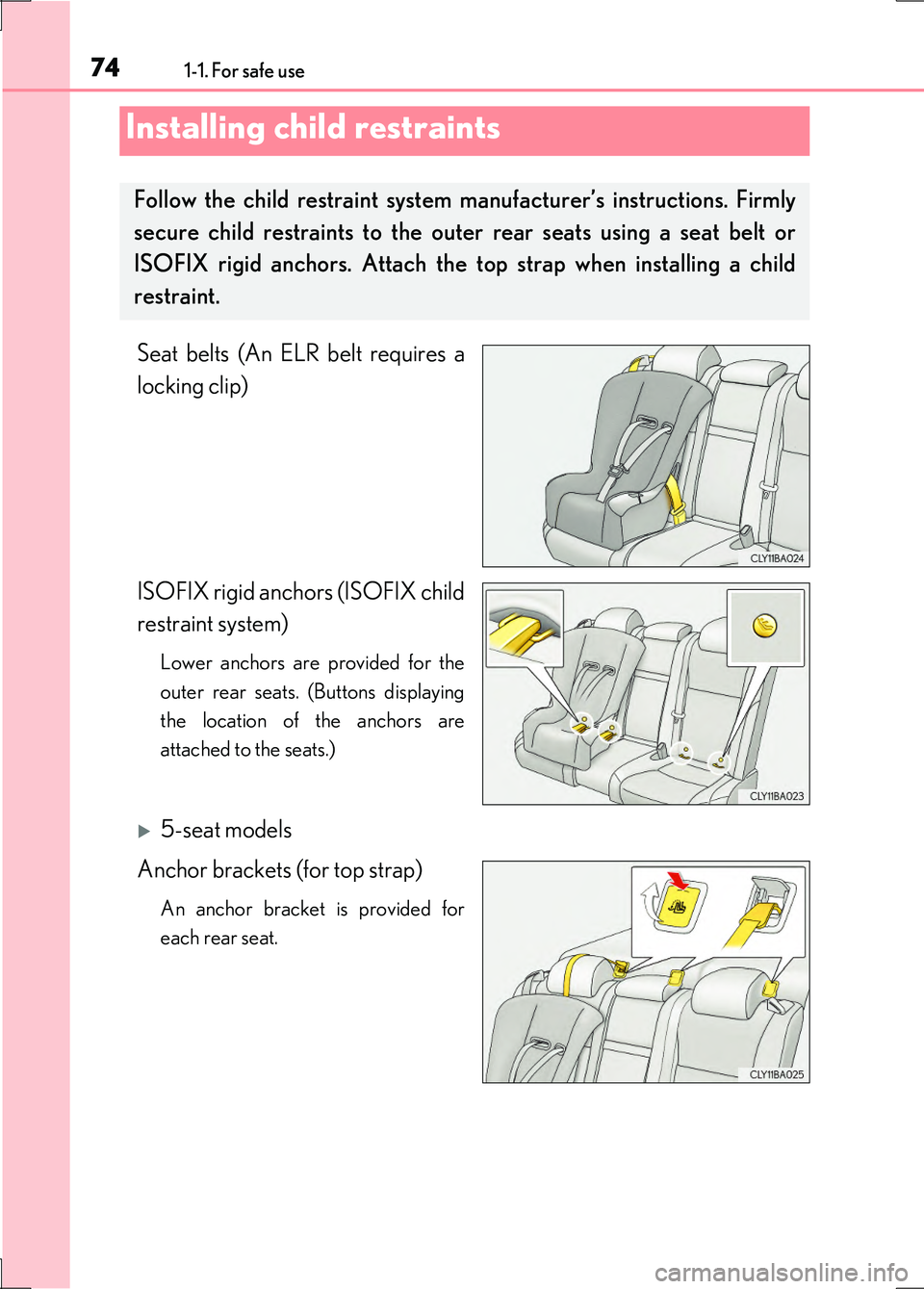

Seat belts (An ELR belt requires a
locking clip)
ISOFIX rigid anchors (ISOFIX child
restraint system)
Lower anchors are provided for the
outer rear seats. (Buttons displaying
the location of the anchors are
attached to the seats.)
5-seat models
Anchor brackets (for top strap)
An anchor bracket is provided for
each rear seat.
Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the outer rear seats using a seat belt or
ISOFIX rigid anchors. Attach the top strap when installing a child
restraint.

751-1. For safe use
1
For safety and security
LS600h/LS600hL_EE(OM50G20E)

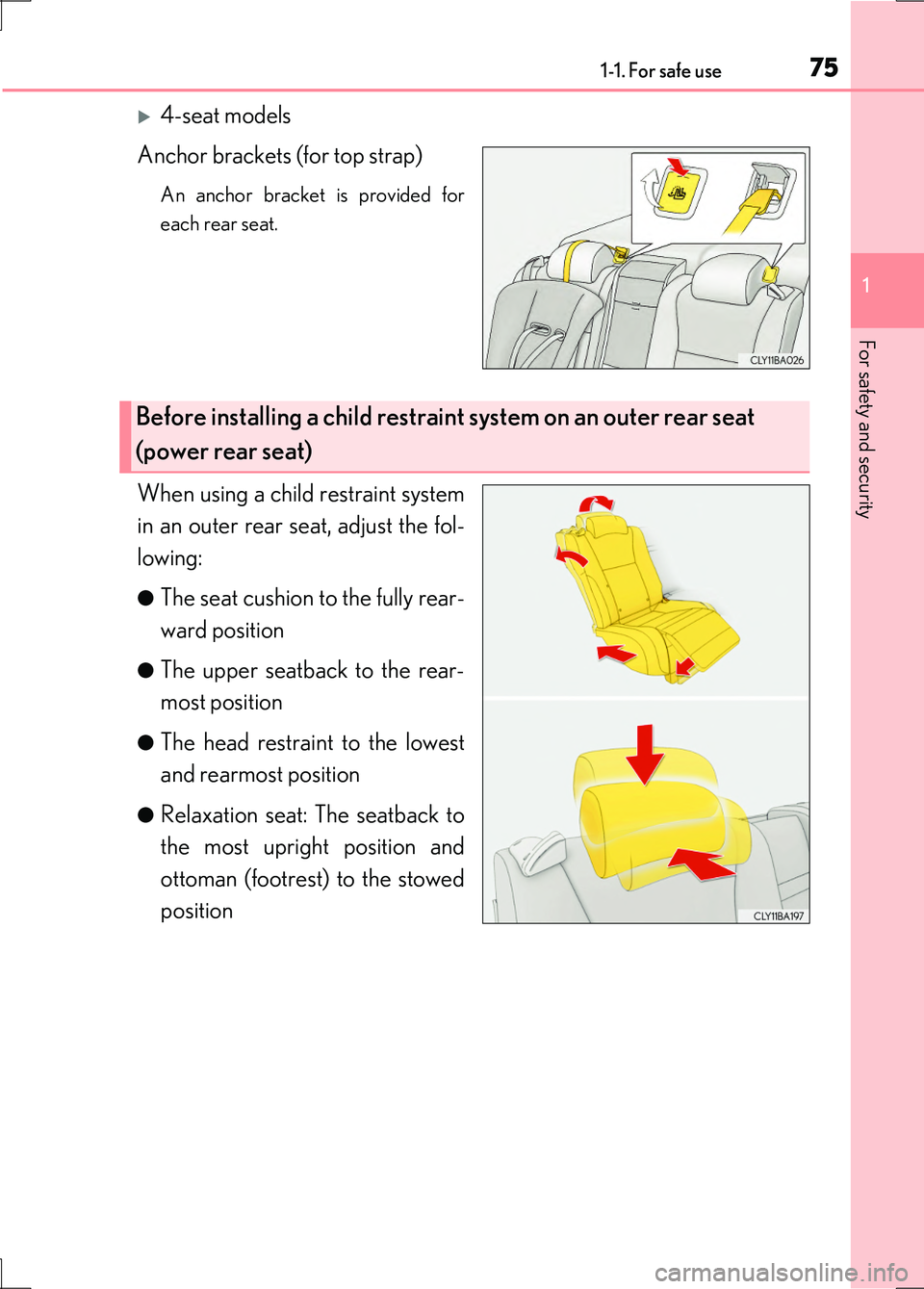

4-seat models
Anchor brackets (for top strap)
An anchor bracket is provided for
each rear seat.
When using a child restraint system
in an outer rear seat, adjust the fol-
lowing:
●The seat cushion to the fully rear-
ward position
●The upper seatback to the rear-
most position
●The head restraint to the lowest
and rearmost position
●Relaxation seat: The seatback to
the most upright position and
ottoman (footrest) to the stowed
position
Before installing a child restraint system on an outer rear seat
(power rear seat)

761-1. For safe use
LS600h/LS600hL_EE(OM50G20E)
■Rear-facing  Baby seat/child seat
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
Follow the directions given in the
child restraint system installation
manual and fix the child restraint
system securely in place.
If your child restraint system is not
equipped with a lock-off (a seat
belt locking feature), secure the
child restraint system using a
locking clip.
After installing the child restraint system, rock it back and forth to
ensure that it is installed securely.
Installing child restraints using a seat belt
1
2

771-1. For safe use
1
For safety and security
LS600h/LS600hL_EE(OM50G20E)

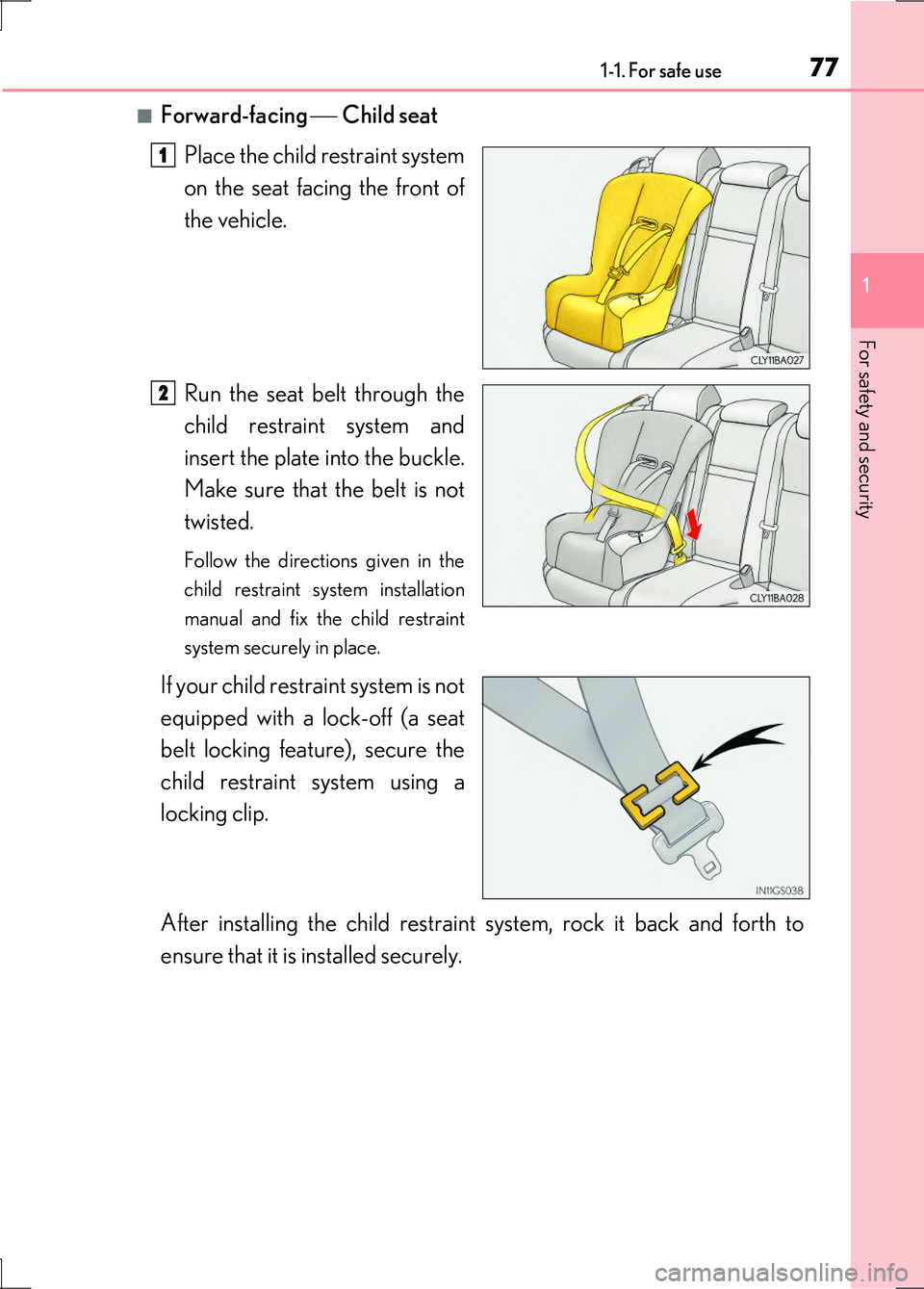

■Forward-facing Child seat
Place the child restraint system
on the seat facing the front of
the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
Follow the directions given in the
child restraint system installation
manual and fix the child restraint
system securely in place.
If your child restraint system is not
equipped with a lock-off (a seat
belt locking feature), secure the
child restraint system using a
locking clip.
After installing the child restraint system, rock it back and forth to
ensure that it is installed securely.
1
2

781-1. For safe use
LS600h/LS600hL_EE(OM50G20E)
■Junior seat
Place the child restraint system
on the seat facing the front of
the vehicle.
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manufac-
turer’s instructions and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Check that the shoulder belt is cor-
rectly positioned over the child’s
shoulder and that the lap belt is as
low as possible. ( P. 44)
Push the buckle release button and
fully retract the seat belt.
1
2
Removing a child restraint installed with a seat belt

791-1. For safe use
1
For safety and security
LS600h/LS600hL_EE(OM50G20E)
Widen the gap between the seat cushion and seatback slightly.
Latch the buckles onto the exclu-
sive fixing bars.
If the child restraint has a top strap, the
top strap should be latched onto the
anchor bracket.
Installation with ISOFIX rigid anchors (ISOFIX child restraint sys-
tem)
1
2

801-1. For safe use
LS600h/LS600hL_EE(OM50G20E)
Secure the child restraint using a
seat belt or ISOFIX rigid anchors
and move the head restraint to
the lowest position (outer rear
seats) or fold the head restraint
(rear center seat). ( P. 214)
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is securely
latched.
■When installing a child restraint system
You need a locking clip to install the child restraint system. Follow the instructions
provided by the manufacturer of the system . If your child restraint system does not
provide a locking clip, you can purchase the following item from any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional:
Locking clip for child restraint system
(Part No. 73119-22010)
Child restraint systems with a top strap
1
2
