LEXUS LX570 2014 Owners Manual

1011-3. Adjustable components (s eats, mirrors, steering wheel)
1
Before driving
LX570_OM_OM60L21U_(U) ■
Automatic adjustment of the steering position
A desired steering position can be ente red to memory and recalled automatically
by the driving position memory. (  P. 8 3 )
CAUTION■
While driving
Do not adjust the steering wheel.
Doing so may cause the driver to mishandle the vehicle and an accident, resulting in
death or serious injury.

1021-3. Adjustable components (seats, mirrors, steering wheel)
LX570_OM_OM60L21U_(U) Anti-glare inside rear view mirror Adjusting the height of the rear view mirror
Adjust the height of the rear view
mirror by moving it up and down.
Automatic anti-glare function
Changing automatic anti-glare
function mode
ON
OFF When the automatic anti-glare
function is in ON mode, the indica-
tor illuminates.
The function will be set to ON
mode each time the “ENGINE
START STOP” switch is turned to
IGNITION ON mode.
Pressing the button turns the func-
tion to OFF mode. (The indicator
also turns off.)The rear view mirror’s position can be adjusted to enable sufficient confir-
mation of the rear view in accordan ce with the driver’s seating posture.

1031-3. Adjustable components (s eats, mirrors, steering wheel)
1
Before driving
LX570_OM_OM60L21U_(U) ■
To prevent sensor error
CAUTION■
While driving
Do not adjust the position of the mirror.
Doing so may lead to mishandling of the ve hicle and an accident, resulting in death
or serious injury. To ensure that the sensors operate properly,
do not touch or cover them.

1041-3. Adjustable components (seats, mirrors, steering wheel)
LX570_OM_OM60L21U_(U) Outside rear view mirrors
Folding back the mirrors
Folds the mirrors
Extends the mirrors Putting the outside rear view mir-
ror folding switch in the neutral
position sets the mirrors to auto-
matic mode. Automatic mode
allows the folding or extending of
the mirrors to be linked to locking/
unlocking of the doors.Mirror angle can be adjusted.
Select a mirror to adjust
Left
Right
Adjust the mirror
Up
Right
Down
LeftSTEP 1
STEP 2

1051-3. Adjustable components (s eats, mirrors, steering wheel)
1
Before driving
LX570_OM_OM60L21U_(U) ■
Mirror angle can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode. ■
When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers. Turn on
the rear window defogger to turn on the outside rear view mirror defoggers.
(  P. 4 5 6 )■
Auto anti-glare function
When the anti-glare inside rear view mirr or is set to auto mode, the outside rear
view mirrors will activate in conjunction with the anti-glare inside rear view mirror to
reduce reflected light. (  P. 1 0 2 )■
Linked mirror function when reversing
When the mirror select switch is in the “L ” or “R” position, the outside rear view mir-
rors will automatically angle downwards wh en the vehicle is reversing in order to
give a better view of the ground. To disa ble this function, move the mirror select
switch to the neutral position (between “L” and “R”). ■
Automatic adjustment of the mirror angle
A desired mirror face angle can be entered to memory and recalled automatically
by the driving position memory. (  P. 8 3 )

1061-3. Adjustable components (s eats, mirrors, steering wheel)
LX570_OM_OM60L21U_(U) CAUTION■
When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an accident,
resulting in death or serious injury. ●
Do not adjust the mirrors while driving. ●
Do not drive with the mirrors folded back. ●
Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.■
When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your hand
caught by the moving mirror. ■
When the mirror defoggers are operating
Do not touch the rear view mirror surfac es, as they can become very hot and burn
you.
NOTICE■
If ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de-icer to free the
mirror.

1071
Before driving
LX570_OM_OM60L21U_(U) 1-4. Opening and closing th e windows and moon roof
Power windows
Lock switch
Press the switch down to lock pas-
senger window switches. Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.The power windows can be opened and closed using the following
switches.
Closing
One-touch closing
*Opening
One-touch opening
*
*: To s t o p t h e w i n d o w p a r t w a y ,
operate the switch in the oppo-
site direction.
■
The power windows can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode. ■
Door lock linked window operation
The following functions can be used if customized at your Lexus dealer. ●
The power windows can be opened and closed using the mechanical key.
(  P. 8 6 7 )●
The power windows can be opened using the wireless remote control.
(  P. 4 8 )●
The power windows can be closed using the entry function. (  P. 3 6 )

1081-4. Opening and closing the windows and moon roof
LX570_OM_OM60L21U_(U) ■
Operating the power windows after turning the “ENGINE START STOP” switch
OFF
The power windows can be operated for ap proximately 45 seconds even after the
“ENGINE START STOP” switch is turned to ACCESSORY mode or turned OFF.
They cannot, however, be operated once either front door is opened. ■
Jam protection function
If an object becomes caught between th e window and the window frame, window
travel is stopped and the window is opened slightly. ■
When the power window does not close normally
If the jam protection function is oper ating abnormally and a window cannot be
closed, perform the following operations using the power window switch on the rel-
evant door. ●
After stopping the vehicle, the window can be closed by holding the power win-
dow switch in the one-touch closin g position while the “ENGINE START
STOP” switch is turned to IGNITION ON mode. ●
If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following procedure.
Hold the power window switch in the one-touch closing position. Con-
tinue holding the switch for a further 6 seconds after the window has
closed.
Hold the power window switch in the one-touch opening position. Con-
tinue holding the switch for a further 2 seconds after the window has
opened completely.
Hold the power window switch in the one-touch closing position once
again. Continue holding the switch for a further 2 seconds after the win-
dow has closed.
If you release the switch while the window is moving, start again from the beginning.
If the window continues to close but then re-open slightly even after performing the
above procedure correctly, have the vehicle inspected by your Lexus dealer. STEP 1
STEP 2
STEP 3

1091-4. Opening and closing the windows and moon roof
1
Before driving
LX570_OM_OM60L21U_(U) ■
Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features  P. 9 0 6 )
CAUTION■
Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury. ●
Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated. ●
Do not allow children to operate the power windows.
Closing a power window on someone can cause death or serious injury.■
Jam protection function ●
Never try jamming any part of your body to activate the jam protection function
intentionally. ●
The jam protection function may not work if something gets caught just before
the window fully closes.

1101-4. Opening and closing the windows and moon roof

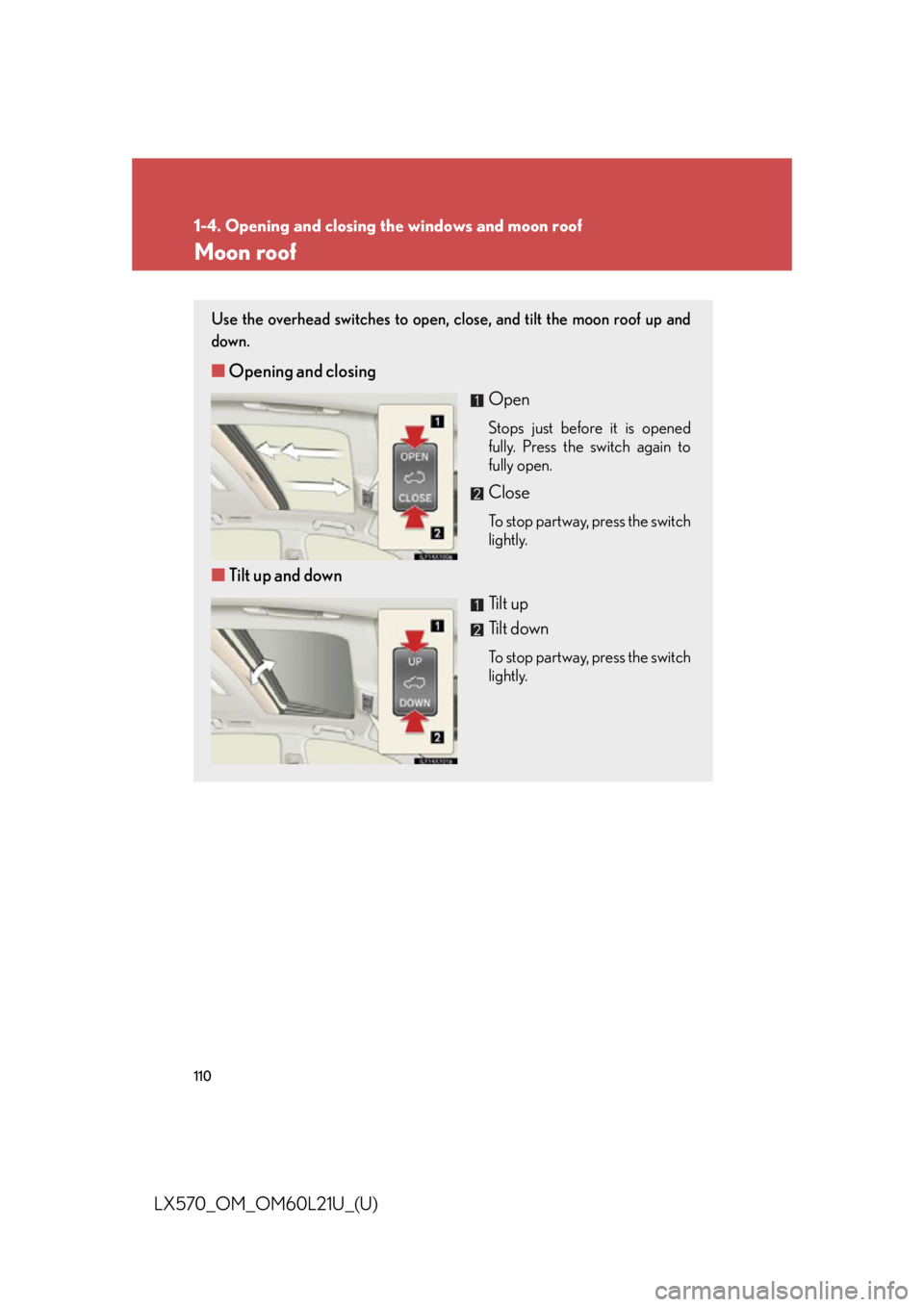

LX570_OM_OM60L21U_(U) Moon roof Use the overhead switches to open, cl ose, and tilt the moon roof up and
down.
■ Opening and closing
Open Stops just before it is opened
fully. Press the switch again to
fully open.
Close To stop partway, press the switch
lightly.
■ Tilt up and down
Ti l t u p
Tilt down To stop partway, press the switch
lightly.
