LEXUS LX570 2014 Owners Manual

9111-3. Adjustable components (seats, mirrors, steering wheel)
Before driving

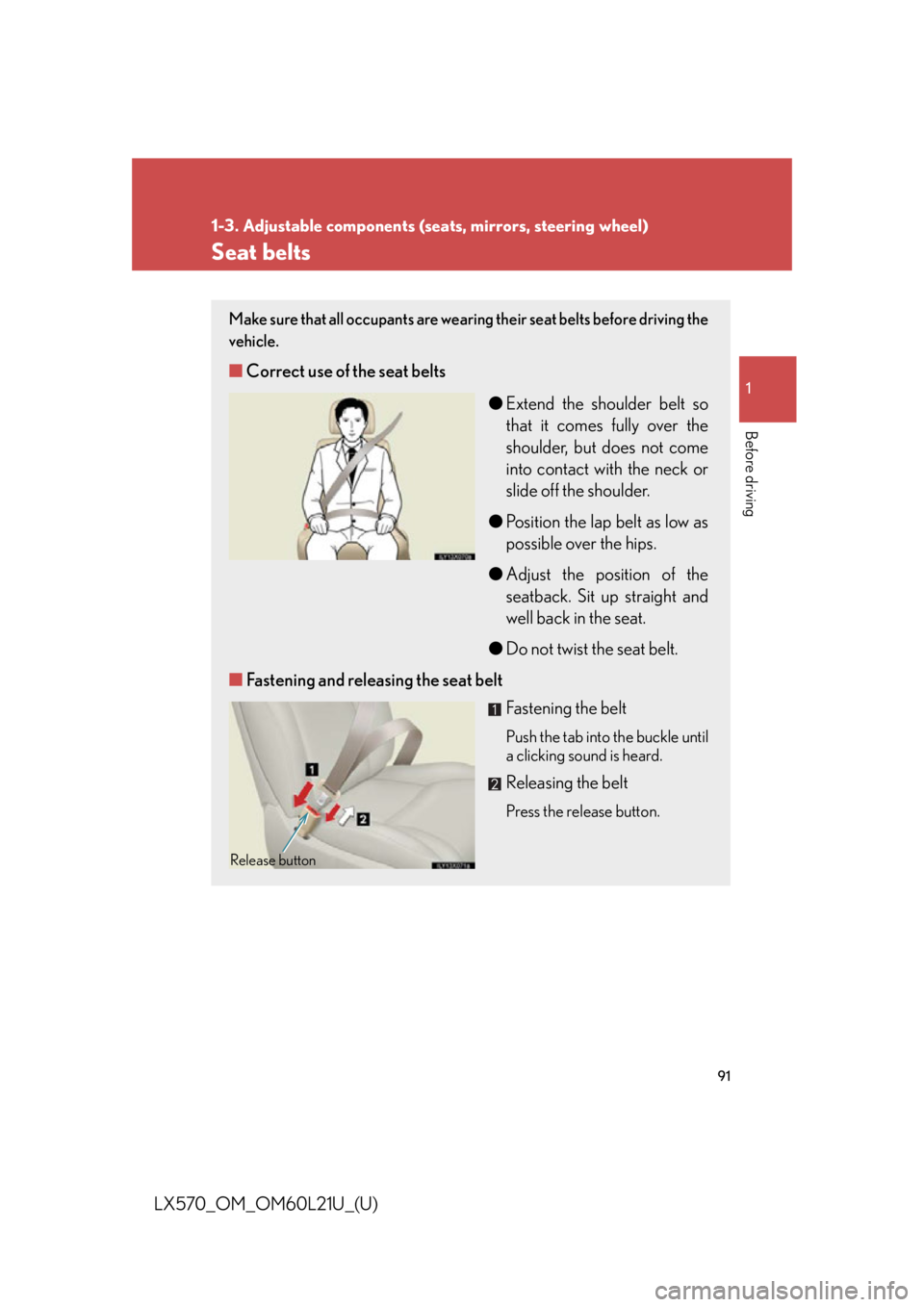

LX570_OM_OM60L21U_(U) Seat belts Make sure that all occupants are wearing their seat belts before driving the
vehicle.
■ Correct use of the seat belts
● Extend the shoulder belt so
that it comes fully over the
shoulder, but does not come
into contact with the neck or
slide off the shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the
seatback. Sit up straight and
well back in the seat.
● Do not twist the seat belt.
■ Fastening and releasing the seat belt
Fastening the belt Push the tab into the buckle until
a clicking sound is heard.
Releasing the belt Press the release button.
Release button

921-3. Adjustable components (s eats, mirrors, steering wheel)

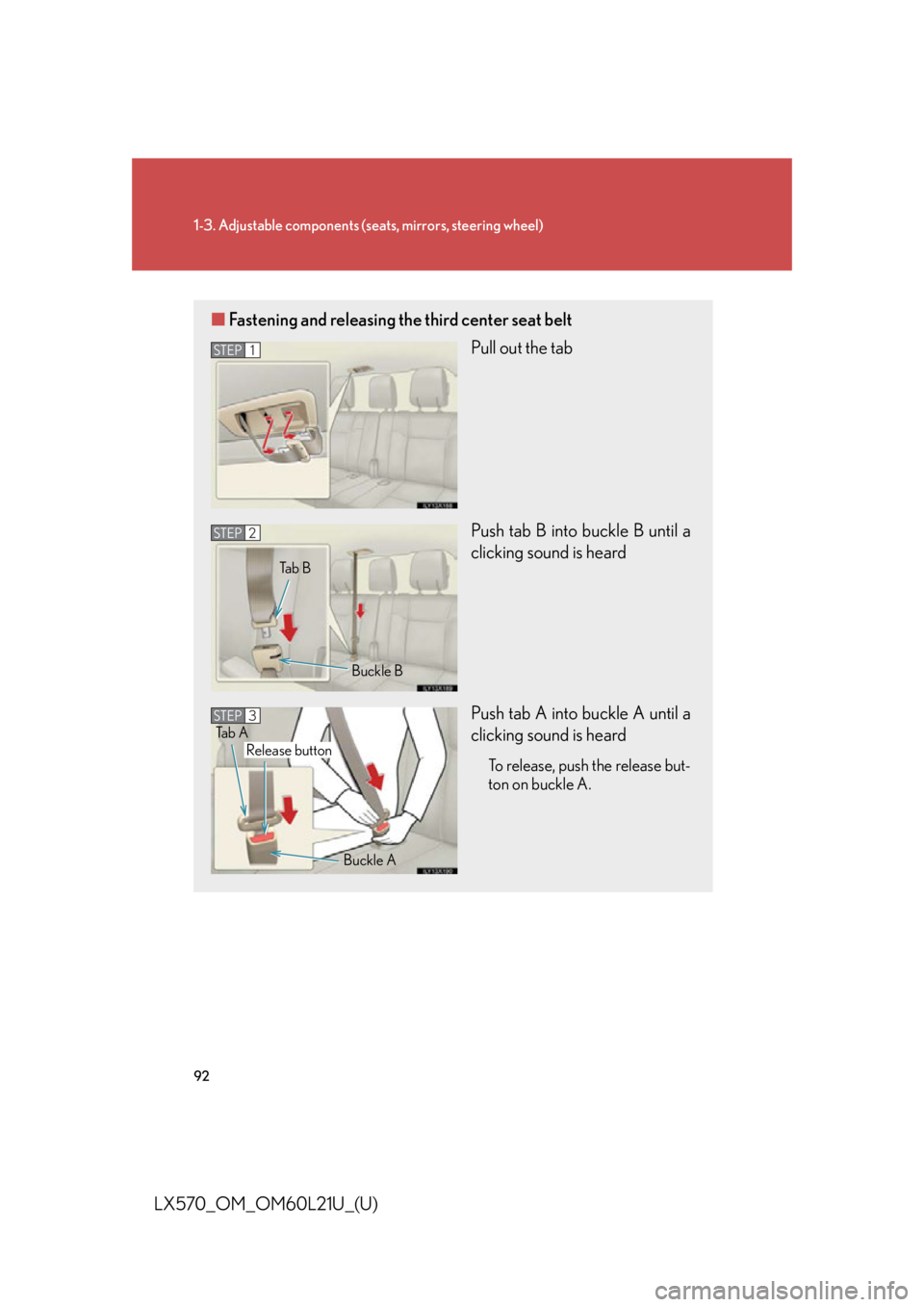

LX570_OM_OM60L21U_(U) ■ Fastening and releasing the third center seat belt
Pull out the tab
Push tab B into bu ckle B until a
clicking sound is heard
Push tab A into buckle A until a
clicking sound is heard To release, push the release but-
ton on buckle A.STEP 1
STEP 2
Ta b B
Buckle BSTEP 3
Ta b A
Release button
Buckle A

931-3. Adjustable components (s eats, mirrors, steering wheel)
1
Before driving

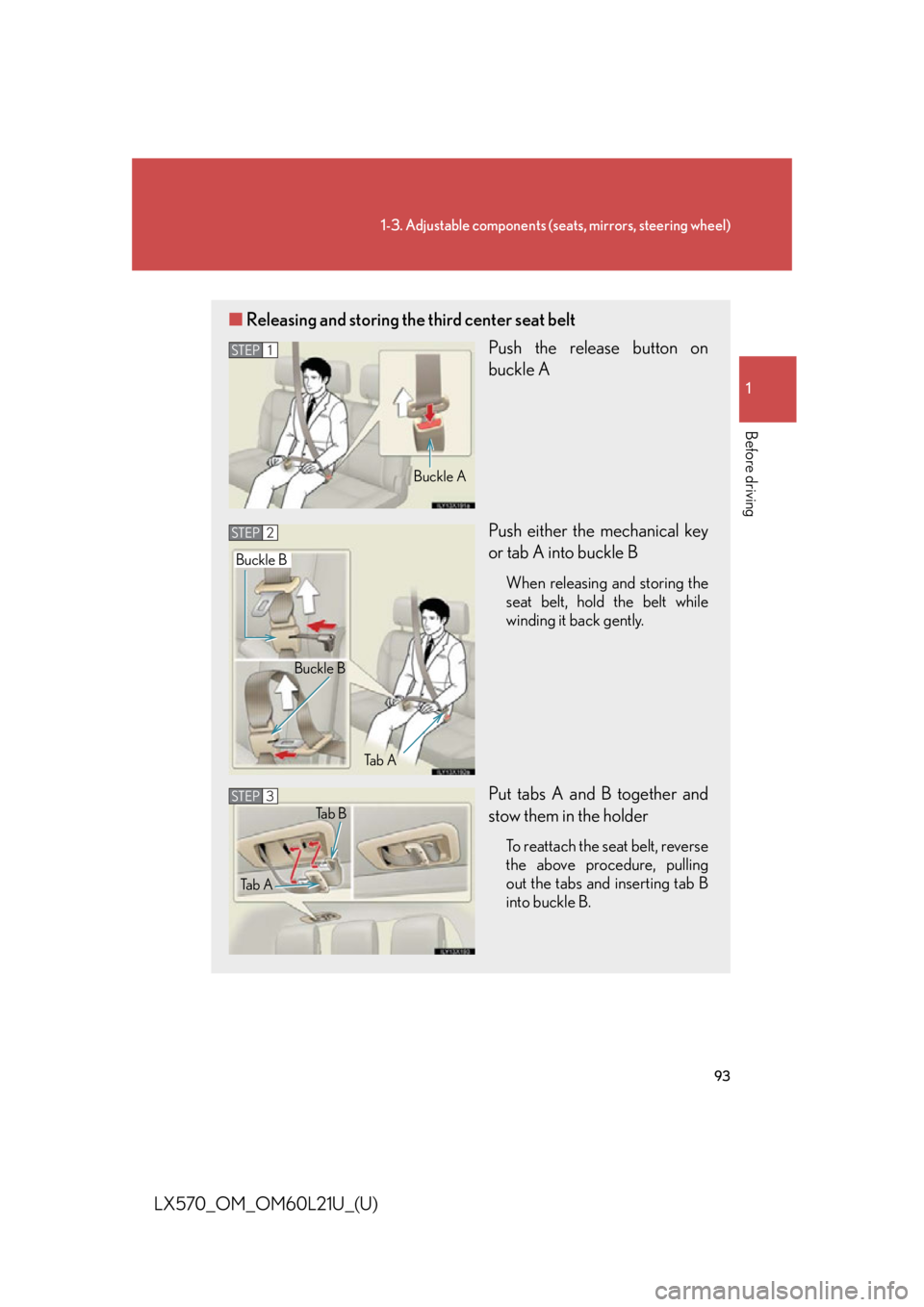

LX570_OM_OM60L21U_(U) ■ Releasing and storing the third center seat belt
Push the release button on
buckle A
Push either the mechanical key
or tab A into buckle B When releasing and storing the
seat belt, hold the belt while
winding it back gently.
Put tabs A and B together and
stow them in the holder To reattach the seat belt, reverse
the above procedure, pulling
out the tabs and inserting tab B
into buckle B.STEP 1
Buckle A
Buckle BBuckle B
Ta b ASTEP 2
Ta b A Ta b BSTEP 3

941-3. Adjustable components (s eats, mirrors, steering wheel)
LX570_OM_OM60L21U_(U) Seat belt pretensioners (front and second outboard seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicl e is subjected to
certain types of severe frontal colli-
sion or a vehicle rollover. The pretensioner may not activate
in the event of a minor frontal
impact, a side impact or a rear
impact.
Pre-collision seat belts (front seats of vehicles with pre-collision system)
If the system determines that a collision is unavoidable, the front seat belts
will retract before the collision. (  P. 355)■ Adjusting the height of the belt (front and second outboard seats)
Down
Up Move the height adjuster up and
down as needed until you hear a
click.

951-3. Adjustable components (s eats, mirrors, steering wheel)
1
Before driving
LX570_OM_OM60L21U_(U) ■
Emergency locking retractor (ELR)
The retractor will lock the belt during a sudd en stop or on impact. It may also lock if
you lean forward too quickly. A slow, easy motion will allow the belt to extend so that
you can move around fully. ■
Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and cannot be extended. This feature is
used to hold the child restraint system (CRS) firmly. To free the belt again, fully
retract the belt and then pull the belt out once more. (  P. 1 4 9 )■
When the third center seat belt cannot be extended
■
Child seat belt usage
The seat belts of your vehicle were princi pally designed for pe rsons of adult size.●
Use a child restraint system appropriate for the child, until the child becomes
large enough to properly wear the vehicle’s seat belt. (  P. 144)●
When the child becomes large enough to properly wear the vehicle’s seat belt,
follow the instructions on P. 91 regarding seat belt usage. Put your fingers between the seat belt and the
holder.
Pull the seat belt forcefully in the direction of
the arrow and then release it to unlock.

961-3. Adjustable components (s eats, mirrors, steering wheel)
LX570_OM_OM60L21U_(U) ■
Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the
first collision, but will not activate for the second or subsequent collisions. ■
Seat belt extender
CAUTION
Observe the following precautions to reduce the risk of injury in the event of sudden
braking, sudden swerving or an accident.
Failing to do so may cause death or serious injury. ■
Wearing a seat belt ●
Ensure that all passengers wear a seat belt. ●
Always wear a seat belt properly. ●
Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at on ce, including children.●
Lexus recommends that children be seated in the rear seat and always use a seat
belt and/or an appropriate child restraint system. ●
Do not recline the seat any more than necessary to achieve a proper seating
position. The seat belt is most effective when the occupants are sitting up straight
and well back in the seats. ●
Do not wear the shoulder belt under your arm. ●
Always wear your seat belt low and snug across your hips. If your seat belts cann ot be fastened securely
because they are not long enough, a person-
alized seat belt extender is available from
your Lexus dealer free of charge.

971-3. Adjustable components (s eats, mirrors, steering wheel)
1
Before driving
LX570_OM_OM60L21U_(U) CAUTION■
Pregnant women
■
People suffering illness
Obtain medical advice and wear the seat belt in the proper way. ■
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could
result in death.
If this occurs and the buckle cannot be un fastened, scissors shou ld be used to cut
the belt. ■
Seat belt pretensioners ●
Do not place anything, such as a cushion, on the front passenger’s seat. Doing so
will disperse the passenger’s weight, wh ich prevents the sensor from detecting
the passenger’s weight properly. As a resu lt, the seat belt pretensioner for the
front passenger’s seat may not activ ate in the event of a a collision.●
If the pretensioner has activated, the SRS warning light will come on. In that case,
the seat belt cannot be used again and must be replaced at your Lexus dealer. Obtain medical advice and wear the seat belt
in the proper way. (  P. 9 1 )
Women who are pregnant should position
the lap belt as low as possible over the hips in
the same manner as other occupants. Extend
the shoulder belt completely over the shoul-
der and position the belt across the chest.
Avoid belt contact over the rounding of the
abdominal area.
If the seat belt is not worn properly, not only a
pregnant woman, but also the fetus could suf-
fer death or serious injury as a result of sud-
den braking, sudden swerving or a collision.

981-3. Adjustable components (s eats, mirrors, steering wheel)
LX570_OM_OM60L21U_(U) CAUTION■
Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your shoul-
der. The belt should be kept away from yo ur neck, but not falling off your shoulder.
Failure to do so could reduce the amount of protection in an accident and cause
death or serious injuries in the event of a sudden stop, sudden swerve or accident.
(  P. 9 4 )■
When using the third center seat belt
■
Seat belt damage and wear ●
Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed
in the door. ●
Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts.
Do not use a damaged seat belt until it is replaced. Damaged seat belt cannot
protect an occupant from death or serious injury. ●
Ensure that the belt and tab are lo cked and the belt is not twisted.
If the seat belt does not function co rrectly, immediately contact your Lexus
dealer. ●
Replace the seat assembly, including the belt s, if your vehicle has been involved in
a serious accident, even if there is no obvious damage.●
Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by your Lexus dealer. Inappropriate han-
dling of the pretensioner may prevent it from operating properly resulting in
death or serious injury. Do not use the third center seat belt with
either buckle released . Fastening only one of
the buckles may result in death or serious
injury in case of sudden braking, sudden
swerving or an accident.

991-3. Adjustable components (s eats, mirrors, steering wheel)
1
Before driving
LX570_OM_OM60L21U_(U) CAUTION■
Using a seat belt extender ●
Do not wear the seat belt extender, if you can fasten the seat belt without the
extender. ●
Do not use the seat belt extender when installing a child restraint system, because
the belt will not securely hold the child restraint system, increasing the risk of
death or serious injury in the event of a sudden stop, sudden swerve or accident.●
The personalized extender may not be safe on another vehicle, when used by
another person, or at a different seatin g position other than the one originally
intended.
NOTICE■
When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the extender,
not on the seat belt.
This helps prevent damage to the vehi cle interior and the extender itself.

1001-3. Adjustable components (seats, mirrors, steering wheel)
LX570_OM_OM60L21U_(U) Steering wheel
Auto tilt away
When the “ENGINE START
STOP” switch is turned OFF and
the driver’s seat belt is unfastened,
the steering wheel returns to its
stowed position by moving up and
away to enable easier driver entry
and exit. Switching to ACCESSORY or
IGNITION ON mode or fasten-
ing the driver’s seat belt will return
the steering wheel to the original
position.The steering wheel can be adjusted to a comfortable position while the
“ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode or when the driver’s seat belt is fastened.
Up
Down
Toward the driver
Away from the driver
