7111-3. Adjustable components (seats, mirrors, steering wheel)
Before driving

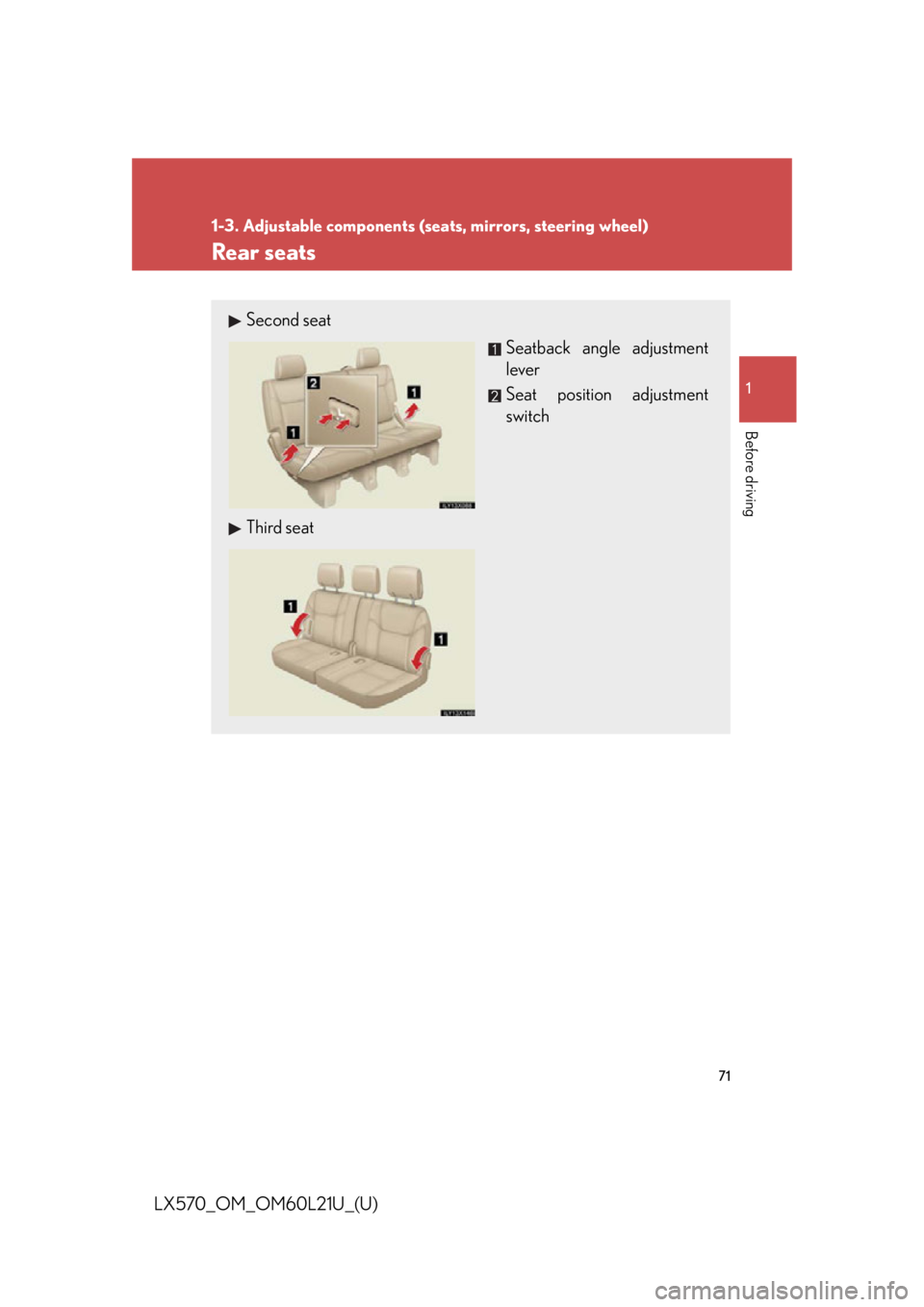

LX570_OM_OM60L21U_(U) Rear seats Second seat
Seatback angle adjustment
lever
Seat position adjustment
switch
Third seat

721-3. Adjustable components (s eats, mirrors, steering wheel)
LX570_OM_OM60L21U_(U) Tumbling the second seats and third seat entry
For easy access to the third se at, perform in “Tumbling the sec-
ond seats” (  P. 73).
■ Before tumbling the second seats
Stow the seat belt buckles and
lower the head restraints to the
lowest position.
Pass the outer seat belts through
the seat belt hangers and secure
the seat belt plates. This prevents the shoulder belt
from being damaged.
Make sure that the seat belts are
removed from the hangers before
using them. STEP 1
STEP 1
STEP 2

731-3. Adjustable components (s eats, mirrors, steering wheel)
1
Before driving
LX570_OM_OM60L21U_(U) ■ Tumbling the second seats
Fold down the se atback while pull-
ing the seatback angle adjustment
lever, and swing the whole seat up
and forward.
Hook the holding strap to the
assist grip and secure the seat by
pulling its free end. When returning the second seat to
its original position, stow the hold-
ing strap.STEP 1
STEP 2

741-3. Adjustable components (s eats, mirrors, steering wheel)
LX570_OM_OM60L21U_(U) Remove the seat hook covers from
the back of the seat cushion, and
install them on the seat hooks. When returning the second seat to
its original position, remove the
seat hook covers from the floor and
install them in the back of the seat
cushion.STEP 3
■
If you cannot raise the left side seatback
Lift the seatback until it stops.
Lower the seatback a little then lift it again.STEP 1
STEP 2

751-3. Adjustable components (s eats, mirrors, steering wheel)
1
Before driving
LX570_OM_OM60L21U_(U) Folding the third seats

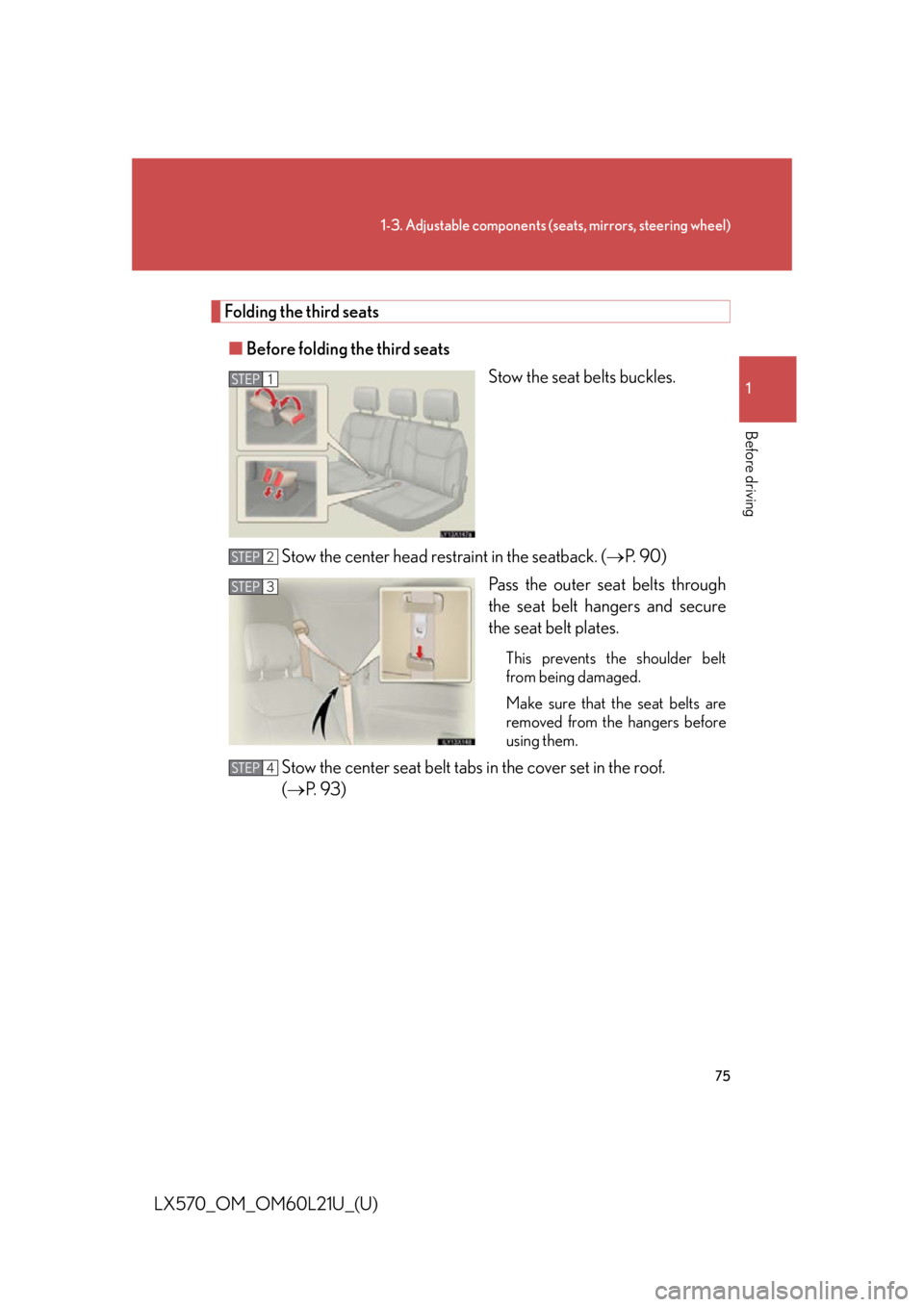

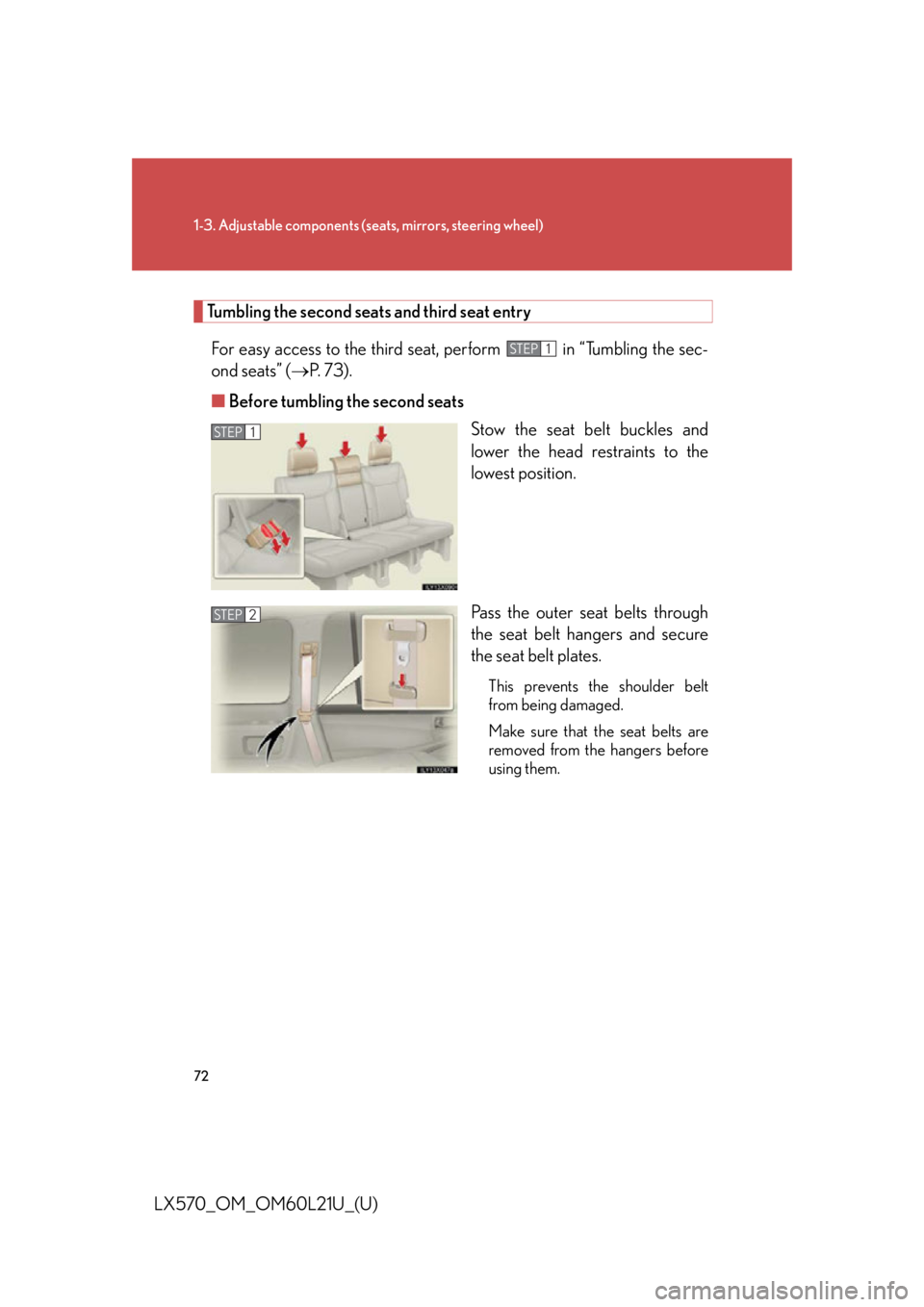

■ Before folding the third seats
Stow the seat belts buckles.
Stow the center head restraint in the seatback. (  P. 9 0 )
Pass the outer seat belts through
the seat belt hangers and secure
the seat belt plates. This prevents the shoulder belt
from being damaged.
Make sure that the seat belts are
removed from the hangers before
using them.
Stow the center seat belt tabs in the cover set in the roof.
(  P. 9 3 ) STEP 1
STEP 2
STEP 3
STEP 4

761-3. Adjustable components (s eats, mirrors, steering wheel)

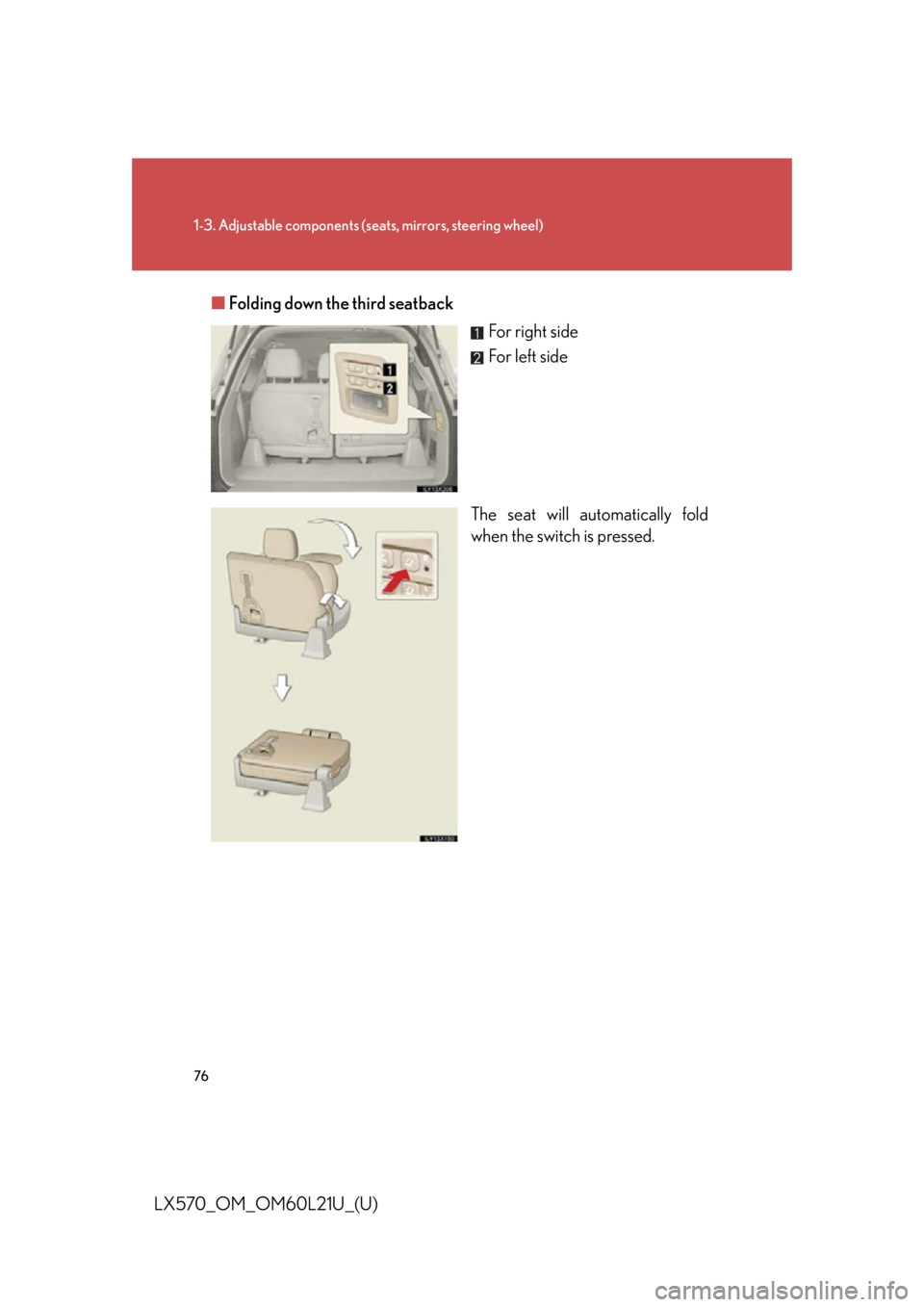

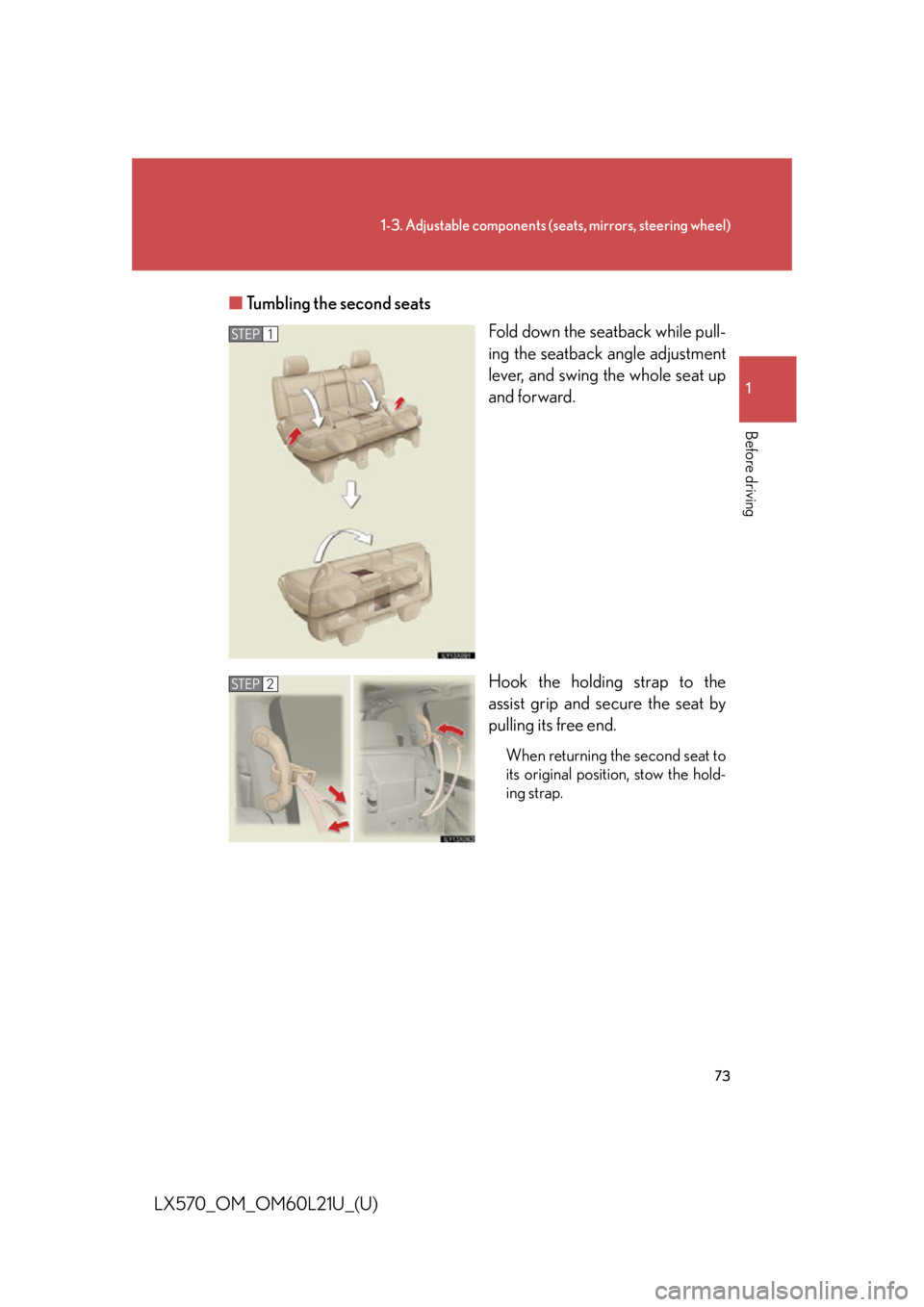

LX570_OM_OM60L21U_(U) ■ Folding down the third seatback
For right side
For left side
The seat will automatically fold
when the switch is pressed.

771-3. Adjustable components (s eats, mirrors, steering wheel)
1
Before driving

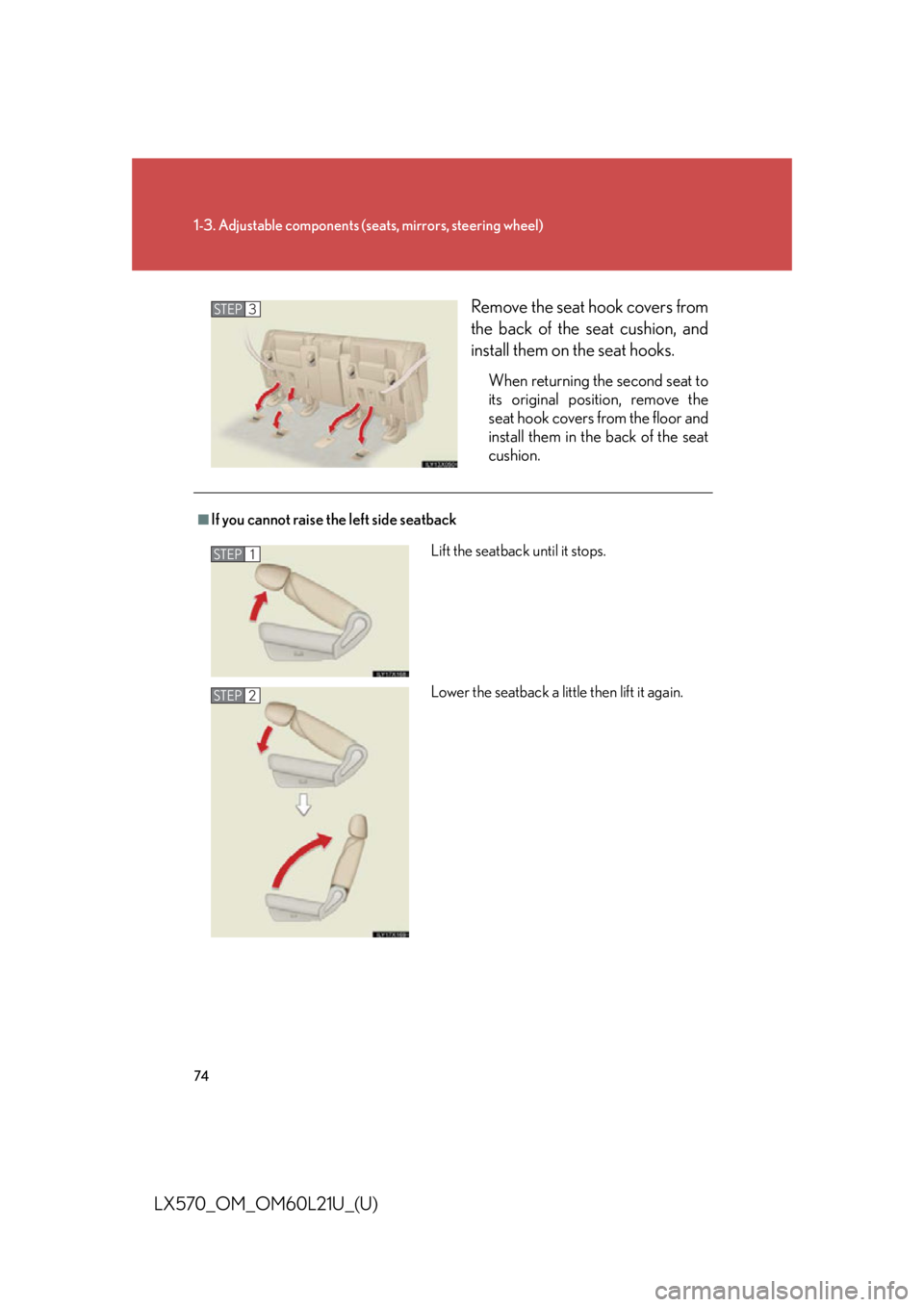

LX570_OM_OM60L21U_(U) ■ Folding up the third seats
Perform following steps in “Before folding the third seats”.
(  P. 7 5 )
If the switch is pressed and held,
the seat will automatically fold and
lift sideward. (The buzzer sounds
twice when the seat is about to lift.) If the switch is released while the
seat is lifting sideward, operation
will stop and a buzzer will sound
continuously.
Before operating, make sure that
the handle on the rear of the seat-
back is secure.
Remove the seat hook covers from
the underside of the seat cushion,
and install them on the seat hooks.STEP 1
STEP 2
STEP 3

781-3. Adjustable components (s eats, mirrors, steering wheel)

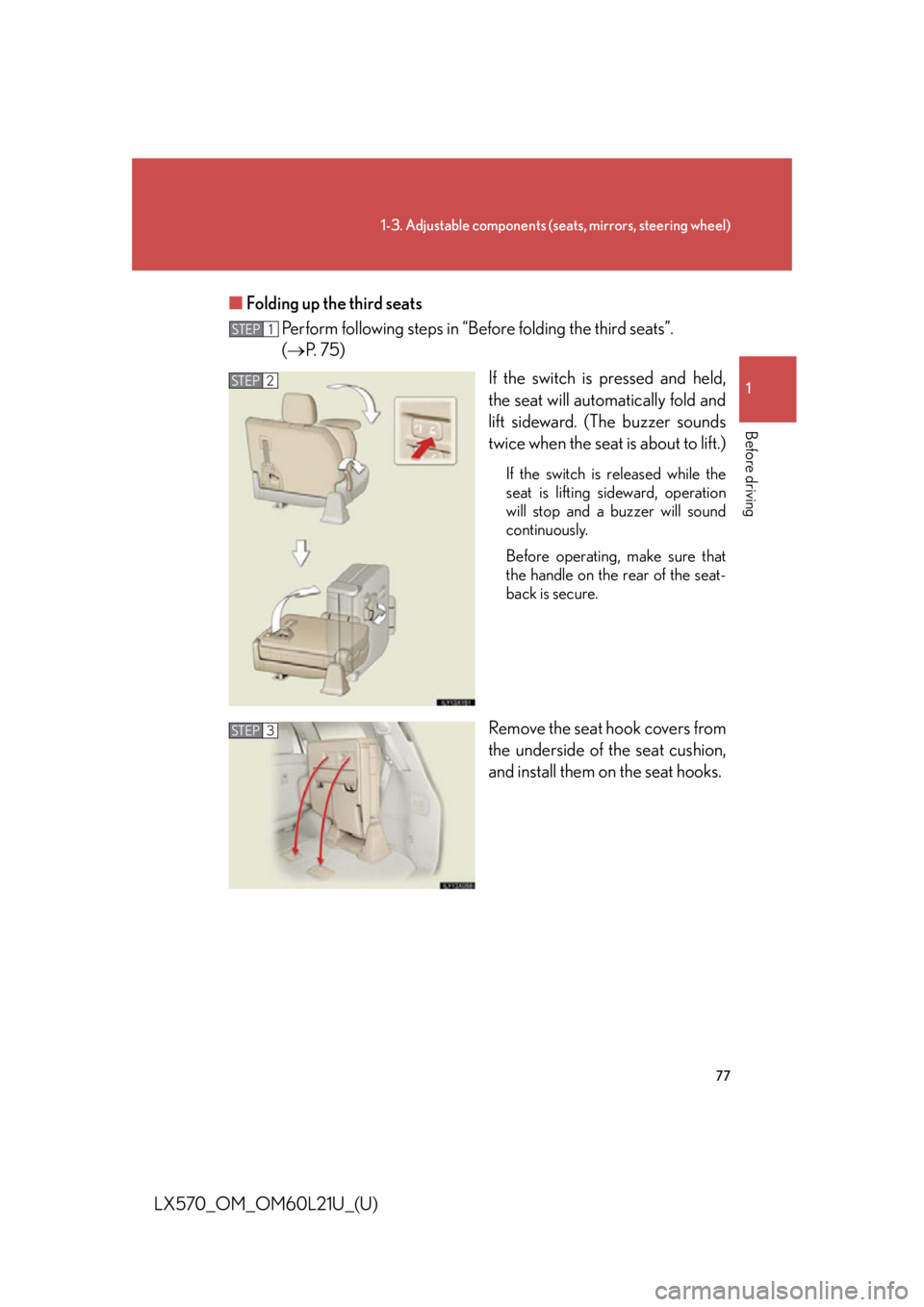

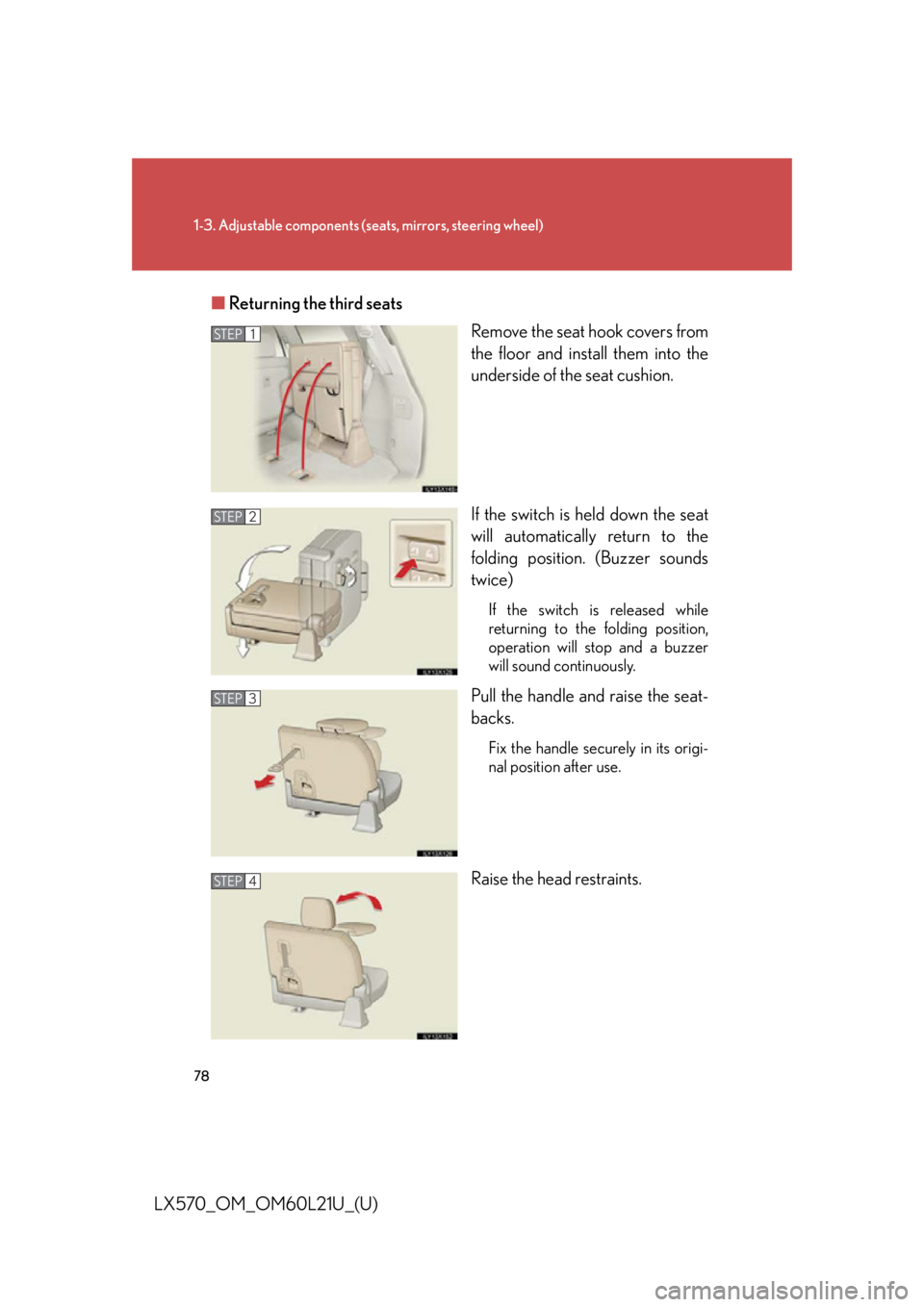

LX570_OM_OM60L21U_(U) ■ Returning the third seats
Remove the seat hook covers from
the floor and install them into the
underside of the seat cushion.
If the switch is held down the seat
will automatically return to the
folding position. (Buzzer sounds
twice) If the switch is released while
returning to the folding position,
operation will stop and a buzzer
will sound continuously.
Pull the handle and raise the seat-
backs. Fix the handle securely in its origi-
nal position after use.
Raise the head restraints.STEP 1
STEP 2
STEP 3
STEP 4

791-3. Adjustable components (s eats, mirrors, steering wheel)
1
Before driving
LX570_OM_OM60L21U_(U) ■
Alarms and indicators
The following table describes circumstances and correction procedures when only
alarms are sound.
Indicator light and
buzzer Situation Correction procedure
Buzzer sounds for
10 seconds Indicator
light on
* Shift lever is not in the
“P” position with the
“ENGINE START
STOP” switch in IGNI-
TION ON mode.
Stop the switch opera-
tion during the auto-
matic third seat is in
motion. Move the shift lever in
the “P” position with the
“ENGINE START
STOP” switch in IGNI-
TION ON mode.
Return the third seat
from a halfway position
to tumbling position or
the original position with
the third seat return
switch or third seat tum-
bling switch.Indicator light flashes
* The seat movement is
stopped in a half way
when the back door is
opened.

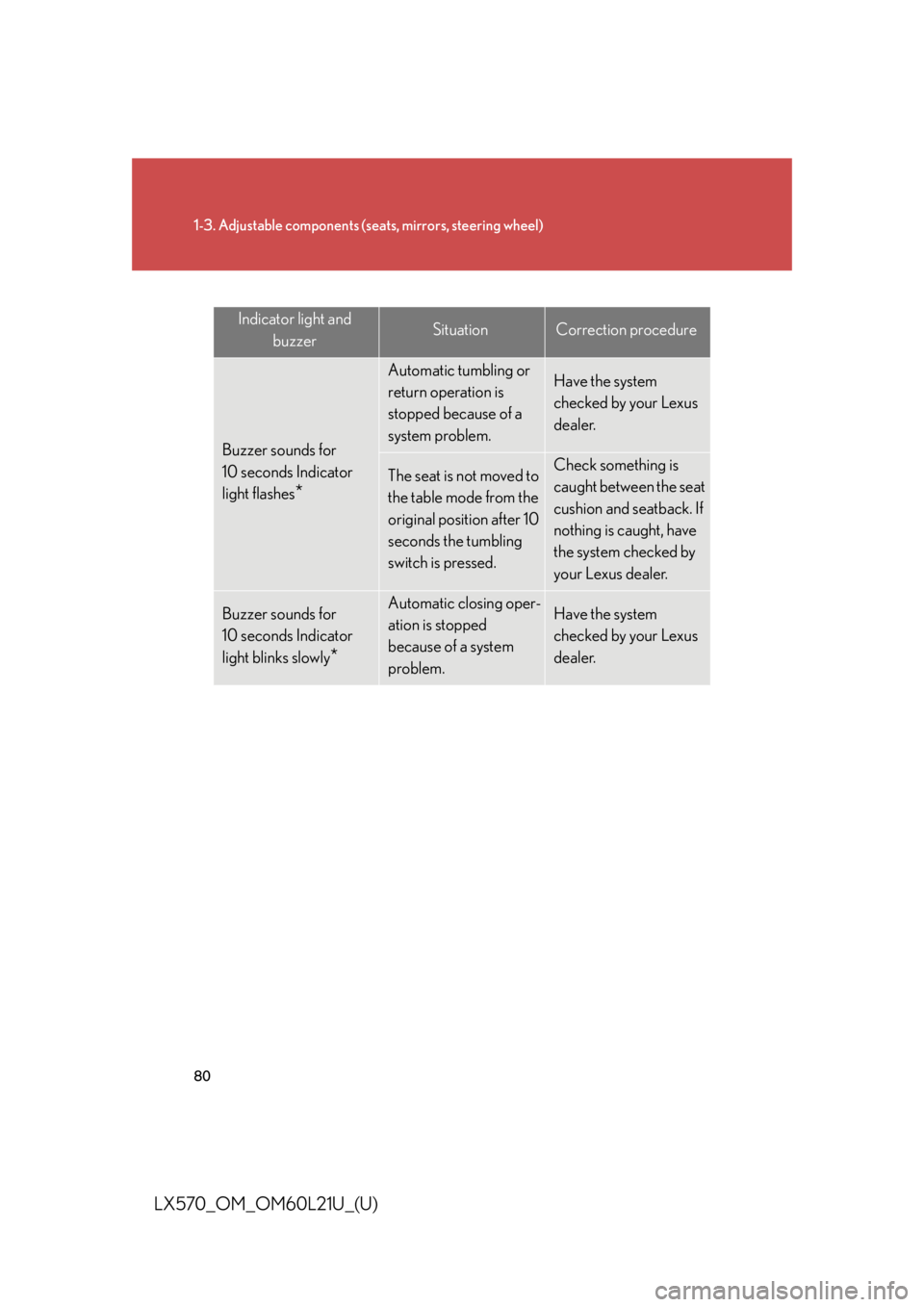

801-3. Adjustable components (s eats, mirrors, steering wheel)
LX570_OM_OM60L21U_(U) Indicator light and
buzzer Situation Correction procedure
Buzzer sounds for
10 seconds Indicator
light flashes
* Automatic tumbling or
return operation is
stopped because of a
system problem. Have the system
checked by your Lexus
dealer.
The seat is not moved to
the table mode from the
original position after 10
seconds the tumbling
switch is pressed. Check something is
caught between the seat
cushion and seatback. If
nothing is caught, have
the system checked by
your Lexus dealer.
Buzzer sounds for
10 seconds Indicator
light blinks slowly
* Automatic closing oper-
ation is stopped
because of a system
problem. Have the system
checked by your Lexus
dealer.
