5923-4. Using the rear seat entertainment system
LX570_OM_OM60L21U_(U) Playing a USB memory
Selecting a desired folder or album
Press “  ” or “  ” of the “FOL/CH” button un til the desired folder/album
number appears on the screen.
Selecting a desired file or track
Press or repeatedly until the desired file/track number
appears on the screen.■ Connecting a USB
 P. 5 4 9
■ Display
Select USB mode on the source
screen to display the control
screen.
■ Controller
Selecting a folder/album
Play/pause
Fast forward or rewind
Selecting a file/track (press)
Fast forward or rewind (press
and hold)

5943-4. Using the rear seat entertainment system
LX570_OM_OM60L21U_(U) Playing iPod
Selecting a desired track
Press or repeatedly until the desired track number
appears on the screen.
Fast forwarding or rewinding a track
Press or , or press and hold or .■ Connecting an iPod
 P. 5 5 9
■ Display
Select iPod mode on the source
screen to display the control
screen.
■ Controller
Play/pause
Fast forward or rewind
Selecting a track (press)
Fast forward or rewind (press
and hold)

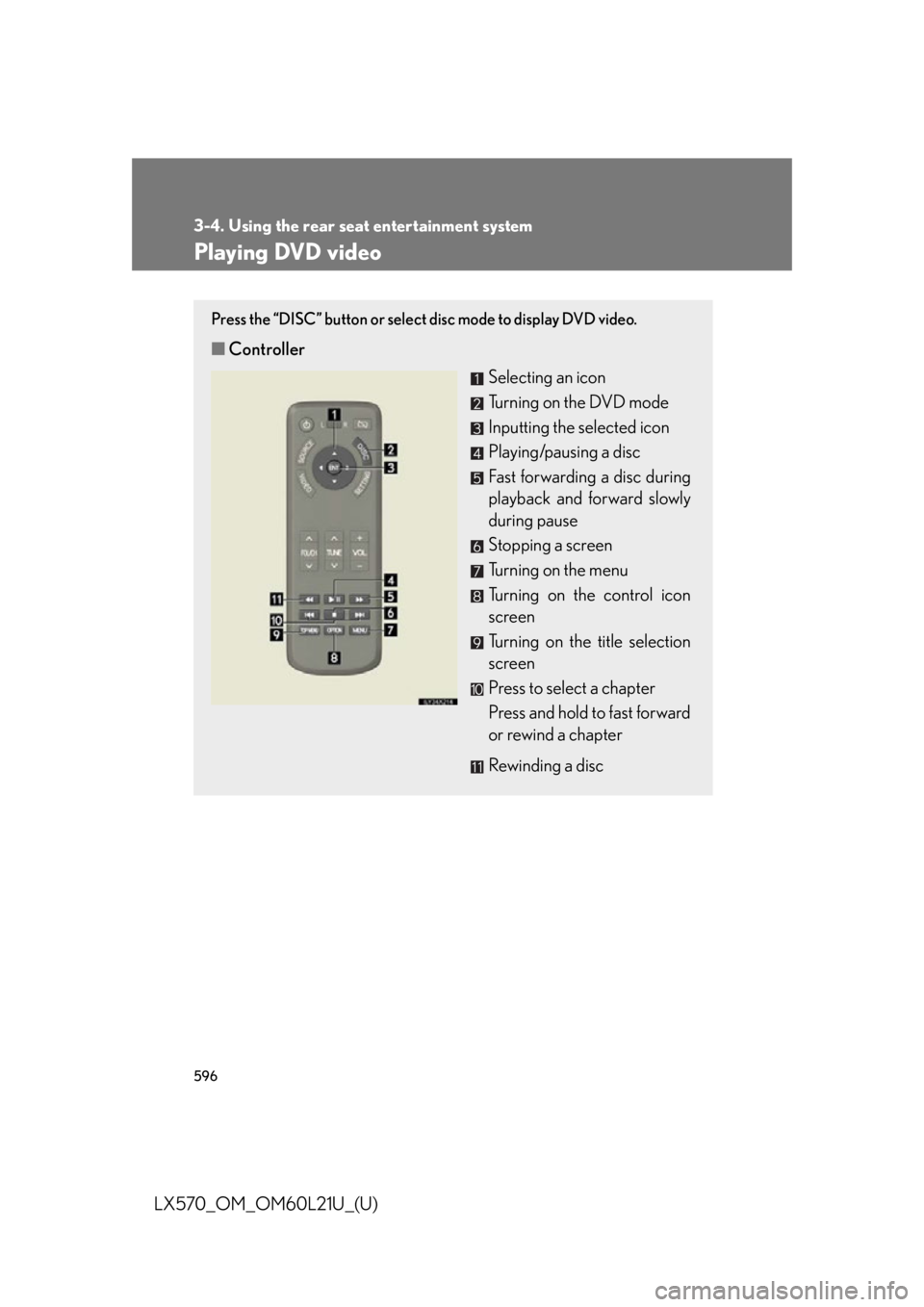

5963-4. Using the rear seat entertainment system
LX570_OM_OM60L21U_(U) Playing DVD video Press the “DISC” button or select disc mode to display DVD video.
■ Controller
Selecting an icon
Turning on the DVD mode
Inputting the selected icon
Playing/pausing a disc
Fast forwarding a disc during
playback and forward slowly
during pause
Stopping a screen
Turning on the menu
Turning on the control icon
screen
Turning on the title selection
screen
Press to select a chapter
Press and hold to fast forward
or rewind a chapter
Rewinding a disc

5973-4. Using the rear se at entertainment system
3
Interior features
LX570_OM_OM60L21U_(U) ■ Control icon screen
Press the “OPTION” button on the controller if no icons are shown
while watching a DVD video, and the following screen appears.
Hide the buttons
Setting screen appears
(  P. 6 0 1 )
Menu screen appears
Rewind
Stop
Play/pause
Fast forward
If appears on the screen when you select an icon, the operation
relevant to that control is not permitted.
■ Settings screen
Select “Settings” on the control icon screen, the following screen
appears.
Change initial setting
Return to previous screen
Search by title
Display the predetermined
scene and start playing from
there
Change audio language
Change subtitle language
Change angle

6013-4. Using the rear se at entertainment system
3
Interior features
LX570_OM_OM60L21U_(U) Initial DVD setup
■ Displaying “Setup Menu” screen
Select “Setup” on the control icon screen.
Select the setting to be changed.
Pa g e 1
After you change the settings,
select “OK”. The initial setting screen will be
turned off and return to the picture
previously.
“Default”: Restores default settings
“Page 2”: Go to page 2
: Returns to the previous
screen
Pa g e 2 STEP 1
STEP 2

6043-4. Using the rear seat entertainment system
LX570_OM_OM60L21U_(U) Setup operation from the front seat
This screen appears when a fron t passenger selects the setup menu.
Rear passengers can cancel this
setup operation by selecting
“Play”. The player will resume nor-
mal play.
Likewise, a front passenger can
cancel a rear passenger’s selection
of the setup menu.■
Error messages
If “Region code error” is displayed, chec k if the region code printed on the DVD
matches the player’s region code.
If a different message is displayed:  P. 5 2 5

6093-4. Using the rear se at entertainment system
3
Interior features
LX570_OM_OM60L21U_(U) Setting LCD AI
Automatically determines th e tone of the video image and sets the con-
trast to an optimum level, displaying a sharp image.
Press the “SETTING” button on the controller.
Select “LCD AI”. “LCD AI” indicator is highlighted.
Setting the display mode
Press the “SETTING” button on the controller.
Select “Screen Size” tab on the screen.
Select “Normal”, “Wide1” or
“Wide2”.STEP 1
STEP 2
STEP 1
STEP 2
STEP 3

6113-4. Using the rear se at entertainment system
3
Interior features
LX570_OM_OM60L21U_(U) ■
A/V input port
The rear seat entertainment system plays videos and sound when audio-video
equipment is connected to the A/V input port. For details, refer to the manufac-
turer’s instructions. ■
Powe r o u t l e t
The power outlet is used to connect the audio-video equipment. (  P. 7 0 1 )■
To turn off the display
■
LC D AI
The image quality is automatically adjust ed when the “LCD AI” indicator is on,
brightness and contrast adjustment becomes less effective.
NOTICE■
When the A/V input port is not in use
Keep the A/V input port cover closed.
Inserting anything other than an appropriat e plug may cause electrical failure or a
short circuit. Select “Screen off” on the screen.
To turn the display back on, press the
“SOURCE”, “DISC”, “VIDEO” or
“SETTING” button on the controller.

612
LX570_OM_OM60L21U_(U) 3-5. Using the hands-free system (for cellular phone)
Hands-free system (for cellular phone) The hands-free system is a function th at allows you to use your cellular
phone without touching it.
This system supports Bluetooth ®
cellular phones. Bluetooth ®
is a wireless
data system that allows a cellular phon e to wirelessly connect to the hands-
free system and outgoing/incoming calls.
The illustrations of the hands-free system screens shown here may slightly
vary depending on the type of the system.
■ Telephone switch
Off hook switch
• Sending
• Receiving
• “Phone” screen display
On hook switch
• End call
• Refuse call

6143-5. Using the hands-free sy stem (for cellular phone)
LX570_OM_OM60L21U_(U) Status display
You can check indicators such as signal strength an d battery charge on
the “Phone” screen.
Connection status
Battery charge
Call area
Signal strength
Indicators Conditions
Connection status Good No
connection
Battery charge Full Empty
Call area “Rm”: Roaming area
Signal strength Excellent Poor
