LEXUS LX570 2014 Owners Manual

5613-3. Using the audio system
3
Interior features
LX570_OM_OM60L21U_(U) Playing iPod
■ Play/pause
Touch to play, touch to
pause or press to play/
pause.
■ Selecting a play mode
To u c h “ B r o w s e ” .
Select the desired play mode.STEP 1
STEP 2

5623-3. Using the audio system
LX570_OM_OM60L21U_(U) Selecting, fast forwarding or rewinding a track
■ Selecting one track at a time
Turn the “TUNE•SCROLL” knob or press “  ” or “  ” on the
“PRST•TRACK” button to select the desired track.
■ Selecting a track from the list
Touch the track name on the screen to display the following track
list screen.
Touch the desired track number. ,
: Touch to move the list up or
down by 5 track groups.
“PRST•TRACK” button: Press “  ”
or “  ” on the “PRST•TRACK” but-
ton to scroll through the track list
one by one.
“TUNE•SCROLL” knob: Turn the
knob clockwise or counterclock-
wise to quickly scroll up or down
the track list.
, : If appears to the right of
an item name, the com-
plete name is too long for
the screen. Touch to
scroll to the end of the
name. Touch to move to
the beginning of the name.
■ Fast forwarding or rewinding a track
To fast forward or rewind, press and hold “  ” or “  ” on the
“PRST•TRACK” button. STEP 1
STEP 2

5633-3. Using the audio system
3
Interior features
LX570_OM_OM60L21U_(U) Random playback
■ Playing tracks in random order
Touch “RAND” on the screen.
Each time “RAND” is touched, the mode changes as follows:
track shuffle  album shuffle  off
■ Playing the albums in random order
Touch “RAND” repeatedly until “A LB.RAND” appears on the screen.To cancel, touch “RAND” again.
Repeat play
Touch “RPT” on the screen. “RPT” appears on the screen.
To cancel, touch “RPT” again.

5643-3. Using the audio system
LX570_OM_OM60L21U_(U) ■
If you touch
The display returns to the previous screen. ■
About iPod
●
“Made for iPod” and “Made for iPhone” me an that an electronic accessory has
been designed to connect specifically to iPod, or iPhone, respectively, and has
been certified by the developer to meet Apple performance standards. ●
Apple is not responsible for the operation of this device or its compliance with
safety and regulatory standards. Please note that the use of this accessory with
iPod or iPhone may affect wireless performance. ●
iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of Apple
Inc., registered in the U.S. and other countries.■
iPod cover art ●
Depending on the iPod and the songs in the iPod, iPod cover art may be dis-
played. This function can be changed to “On” or “Off”. (  P. 559)●
It may take time to disp lay iPod cover art, and the iPod may not be operated
while the cover art display is in process. ●
Only iPod cover art that is saved in JPEG format can be displayed.

5653-3. Using the audio system
3
Interior features
LX570_OM_OM60L21U_(U) ■
iPod functions ●
When the iPod connected to the system includes iPod video, the system can
only output the sound by touching “Video” on the “iPod” screen. ●
Depending on the iPod, the video so und may not be able to be heard.●
When an iPod is connected and the audio source is changed to iPod mode, the
iPod will resume play from the same point in which it was last used. ●
Depending on the iPod that is connecte d to the system, certain functions may
not be available. If a function is unavailable due to a malfunction (as opposed to
a system specification), disconnecting the device and reconnecting it once
again may resolve the problem.■
When using an iPod
You maybe unable to use the instrument panel power outlet if the iPod is connected
to the USB port at the same time. ■
Battery charge
When an iPod is connected using a genuine iPod cable, the iPod starts charging its
battery. ■
Error messages for iPod
“iPod Error”: This indicates a problem in the iPod or its connection.
“No music files found.”: This indicates th at there is no music data in the iPod.
“Please check the iPod firmware version.”:
This indicates that the software version is not compati-
ble. Perform the iPod firmware updates and try again.
“iPod authorization failed.”: This indicates that it failed to authorize the iPod. Please
check your iPod.

5663-3. Using the audio system
LX570_OM_OM60L21U_(U) ■
Compatible models
The following iPod ®
, iPod nano ®
, iPod classic ®
, iPod touch ®
and iPhone ®
devices
can be used with this system. ●
Made for
• iPod touch (4th generation)
• iPod touch (3rd generation)
• iPod touch (2nd generation)
• iPod touch (1st generation)
•iPod classic
•iPod with video
• iPod nano (6th generation)
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
• iPod nano (2nd generation)
• iPod nano (1st generation)
•iPhone 4
•iPhone 3GS
•iPhone 3G
•iPhone
Depending on differences between models or software versions etc., some models
might be incompatible with this system.

5673-3. Using the audio system
3
Interior features
LX570_OM_OM60L21U_(U) CAUTION■
While driving
Do not connect an iPod or operate the controls.
NOTICE■
To prevent damage to the iPod or its terminal ●
Do not leave the iPod in the vehicle. The temperature inside the vehicle may
become high, resulting in damage to the iPod. ●
Do not push down on or apply unnecessary pressure to the iPod while it is con-
nected. ●
Do not insert foreign objects into the port.

5683-3. Using the audio system

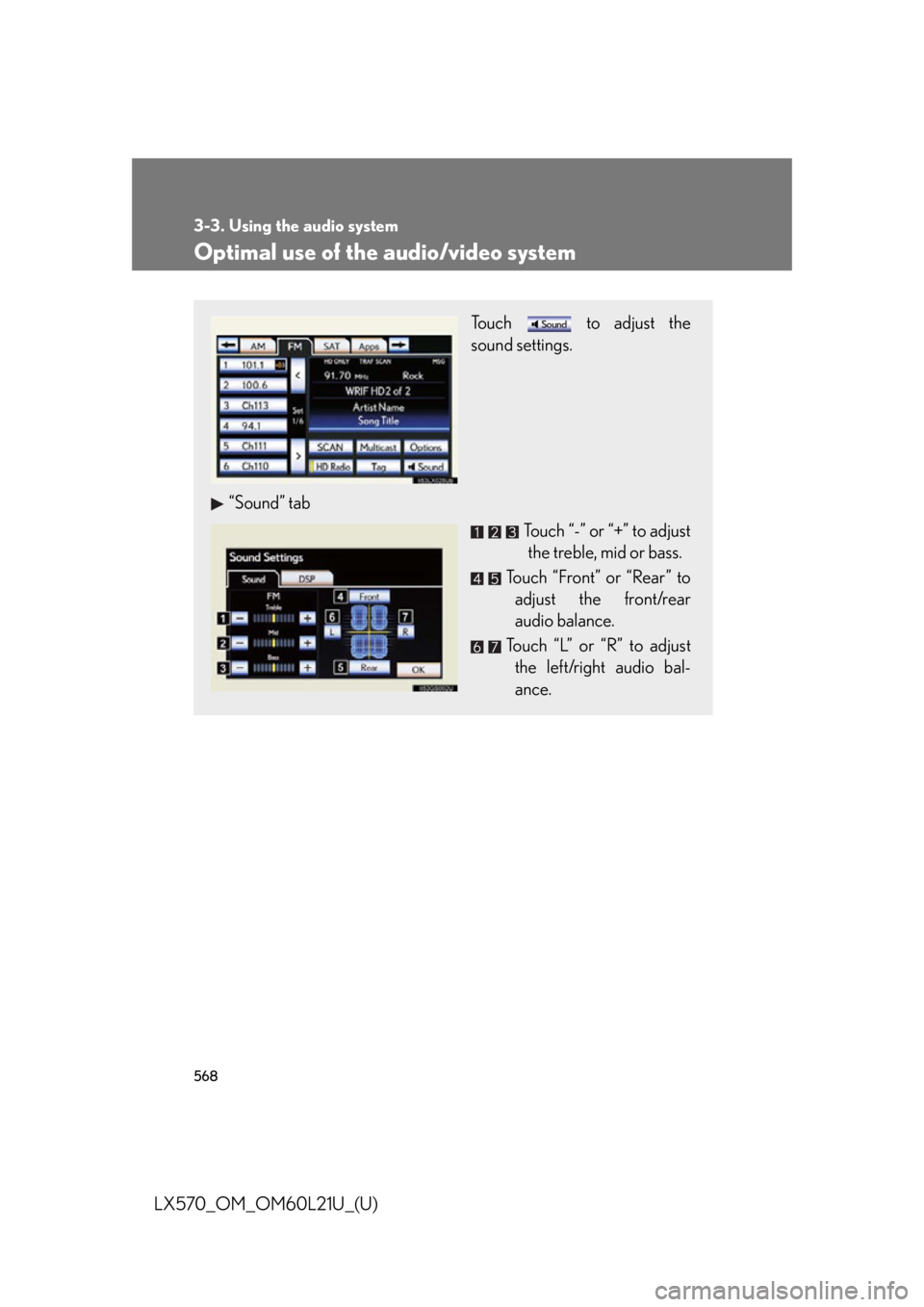

LX570_OM_OM60L21U_(U) Optimal use of the audio/video system Touch to adjust the
sound settings.
“Sound” tab
Touch “-” or “+” to adjust
the treble, mid or bass.
Touch “Front” or “Rear” to
adjust the front/rear
audio balance.
Touch “L” or “R” to adjust
the left/right audio bal-
ance.

5693-3. Using the audio system
3
Interior features

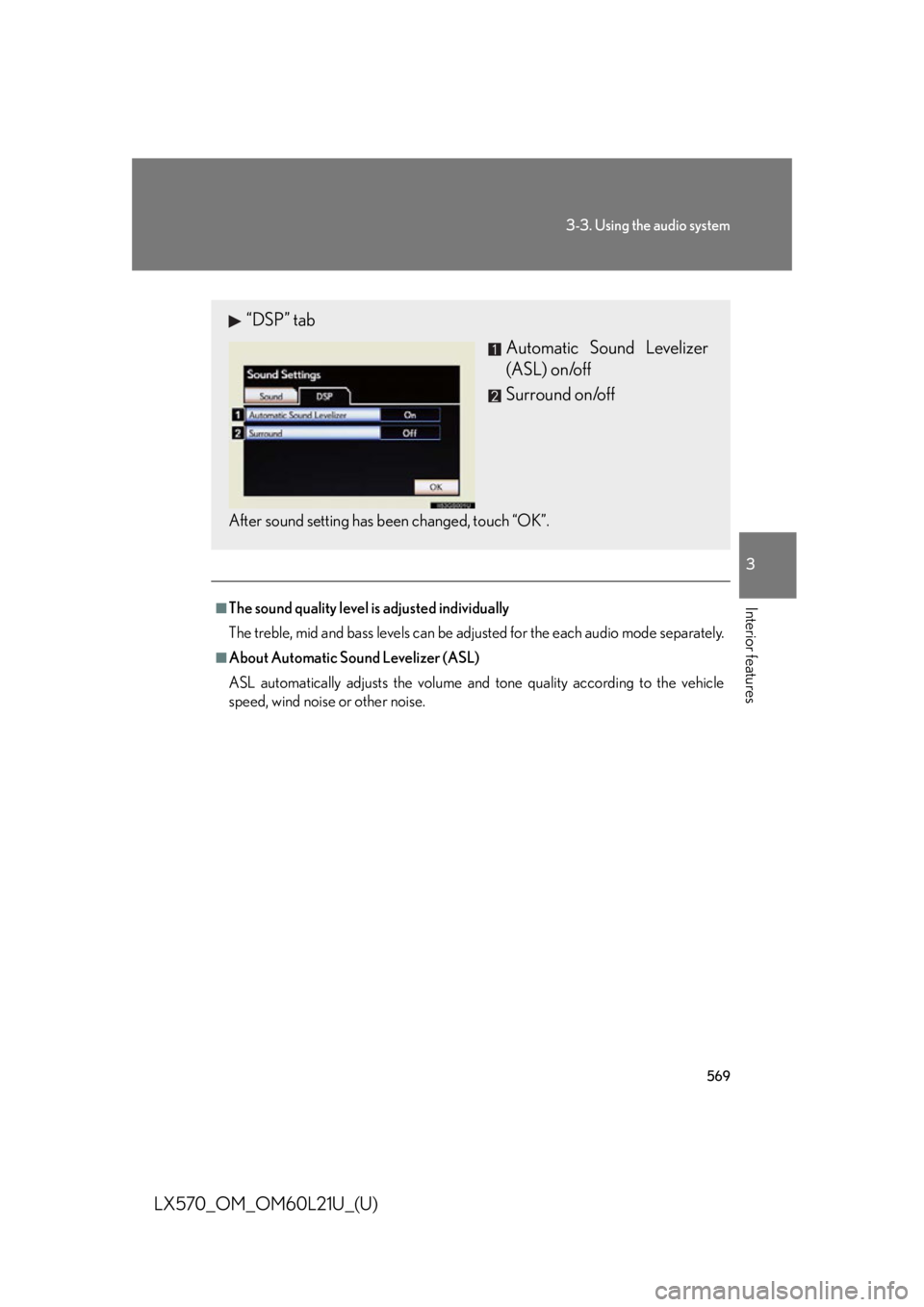

LX570_OM_OM60L21U_(U) ■
The sound quality level is adjusted individually
The treble, mid and bass levels can be adjusted for the each audio mode separately. ■
About Automatic Sound Levelizer (ASL)
ASL automatically adjusts the volume and tone quality according to the vehicle
speed, wind noise or other noise.“DSP” tab
Automatic Sound Levelizer
(ASL) on/off
Surround on/off
After sound setting has been changed, touch “OK”.

5703-3. Using the audio system

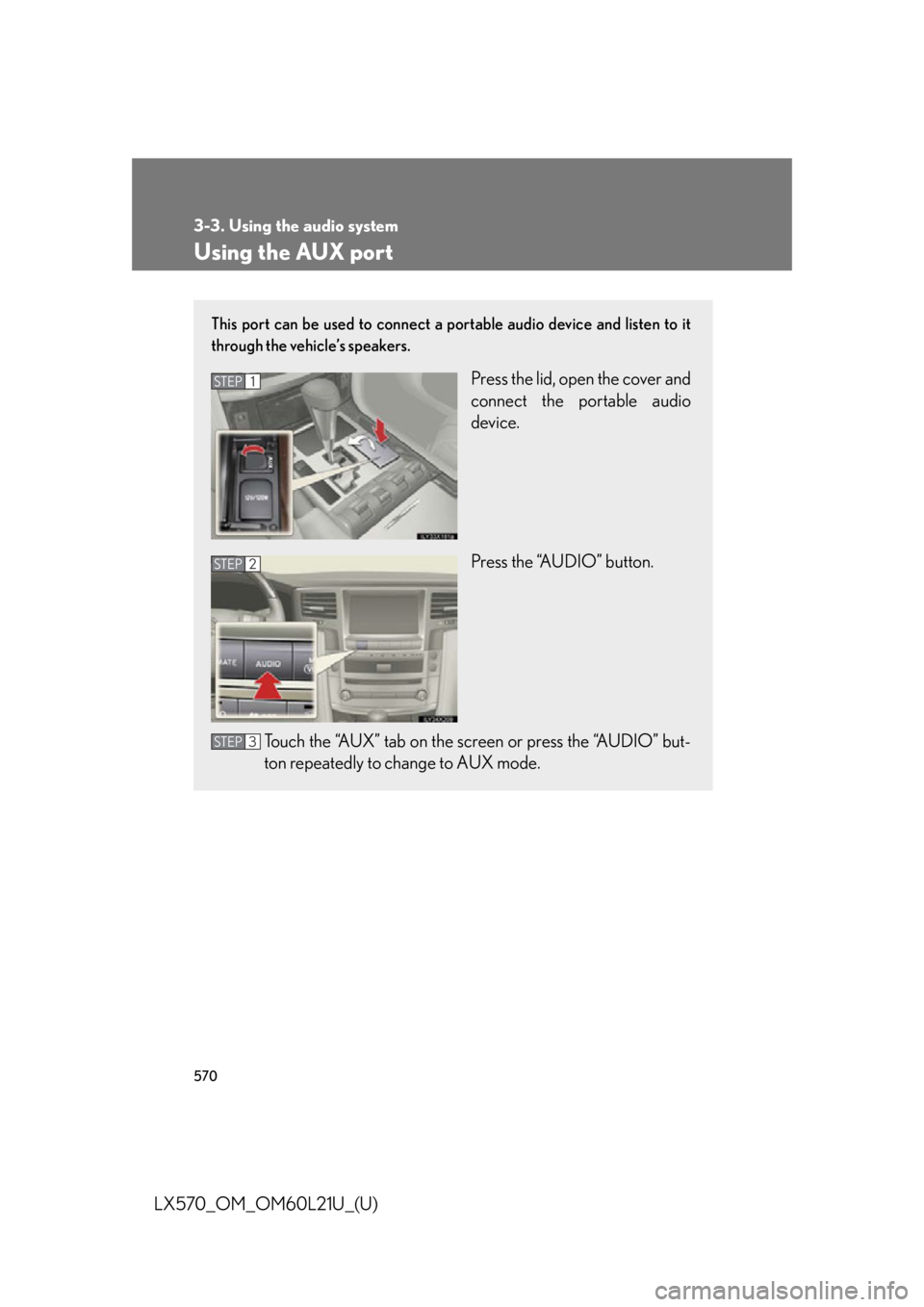

LX570_OM_OM60L21U_(U) Using the AUX port This port can be used to connect a po rtable audio device and listen to it
through the vehicle’s speakers.
Press the lid, open the cover and
connect the portable audio
device.
Press the “AUDIO” button.
Touch the “AUX” tab on the screen or press the “AUDIO” but-
ton repeatedly to change to AUX mode. STEP 1
STEP 2
STEP 3
