LEXUS LX570 2015 User Guide

11

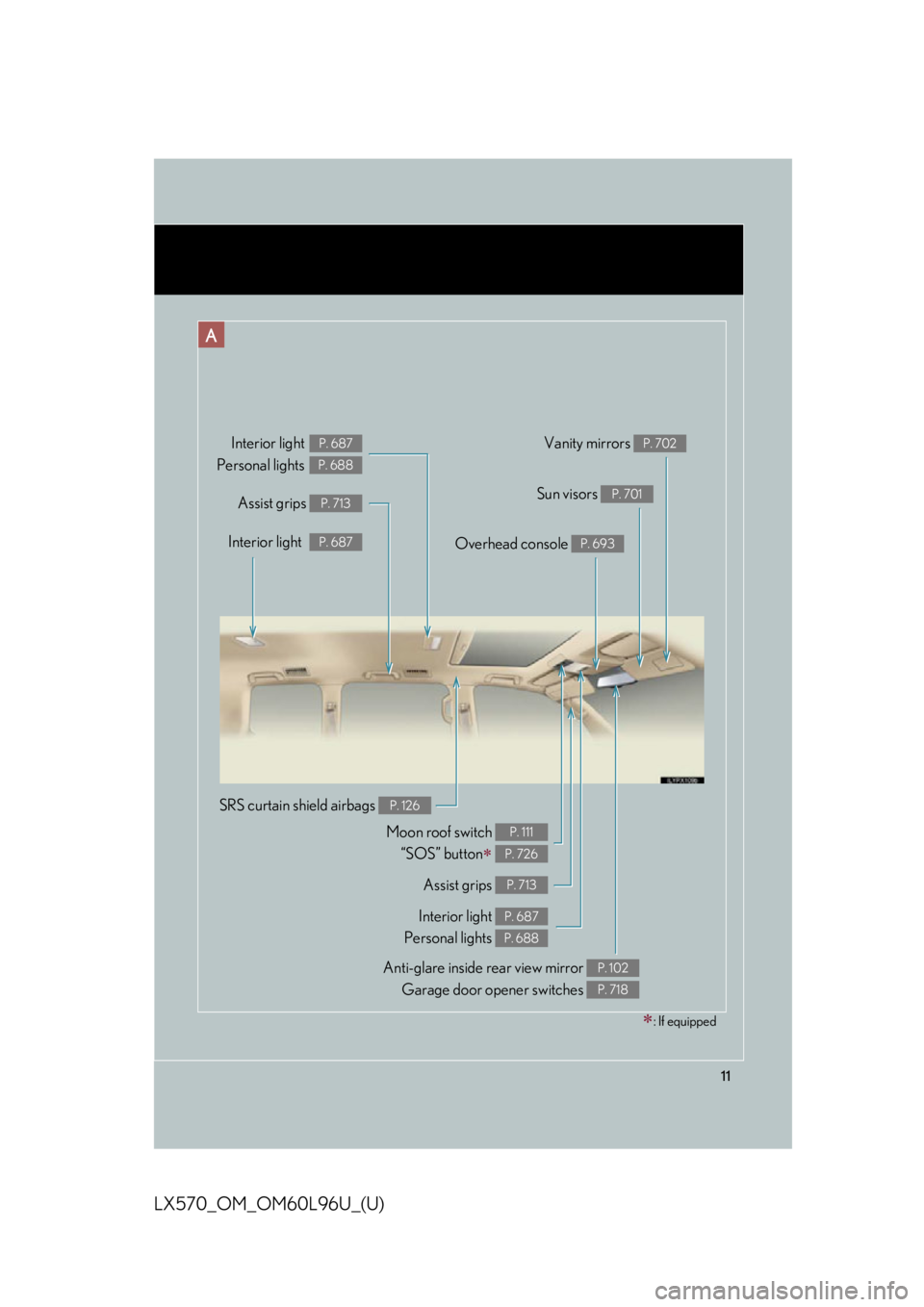

LX570_OM_OM60L96U_(U) Anti-glare inside rear view mirror
Garage door opener switches P. 102
P. 718Moon roof switch
“SOS” button
 P. 111
P. 726Interior light
 P. 687
Vanity mirrors P. 702
Sun visors P. 701
SRS curtain shield airbags P. 126A
Overhead console P. 693
Interior light
Personal lights
 P. 687
P. 688
Interior light
Personal lights P. 687
P. 688
 : If equippedAssist grips P. 713
Assist grips P. 713

12
LX570_OM_OM60L96U_(U) Window lock switch P. 108
Power window switches P. 108Pictorial index Interior B
Door lock switch P. 52Driving position memory buttons P. 83
Inside lock button P. 52

13
LX570_OM_OM60L96U_(U) C Front seat heater/ventilator switch
 P. 709
Shift lever P. 181
Shift lock override button P. 870Crawl Control switch
Multi-terrain Select mode
select switch P. 337
P. 344
Height select/height
control OFF switches P. 320ECT switch P. 183
AVS switch P. 331
Ashtray
Cigarette lighter P. 703
P. 704
Parking brake lever P. 190AUX port/USB port
Power outlet P. 552, 562, 574
P. 705
Cup holders P. 694
Four-wheel drive control switch P. 332
 : If equipped

14
LX570_OM_OM60L96U_(U)Pictorial index Instrument panelHeadlight switch
Turn signal lever
Fog light switch P. 208
P. 189
P. 220
Windshield wipers and washer switch
Rear window wiper and washer switch P. 222
P. 228
Hood lock release lever P. 750Gauges and meters
Multi-information display P. 192
P. 200
Glove box P. 691
SRS knee airbags P. 126
Fuel filler door opener P. 116
Bottle holder P. 696Tire pressure warning reset switch P. 768

15
LX570_OM_OM60L96U_(U) A
Air conditioning
system P. 444
Front passenger’s
seat belt reminder
light P. 829
Clock P. 415
Audio system P. 462
Emergency flasher switch P. 816Rear window and
outside rear view
mirror defoggers P. 460 Touch screen P. 404
Navigation system
*
Front passenger AIR BAG
ON and OFF indicator P. 140
* : Refer to “Navigation Sy stem Owner’s Manual”.

16
LX570_OM_OM60L96U_(U) B

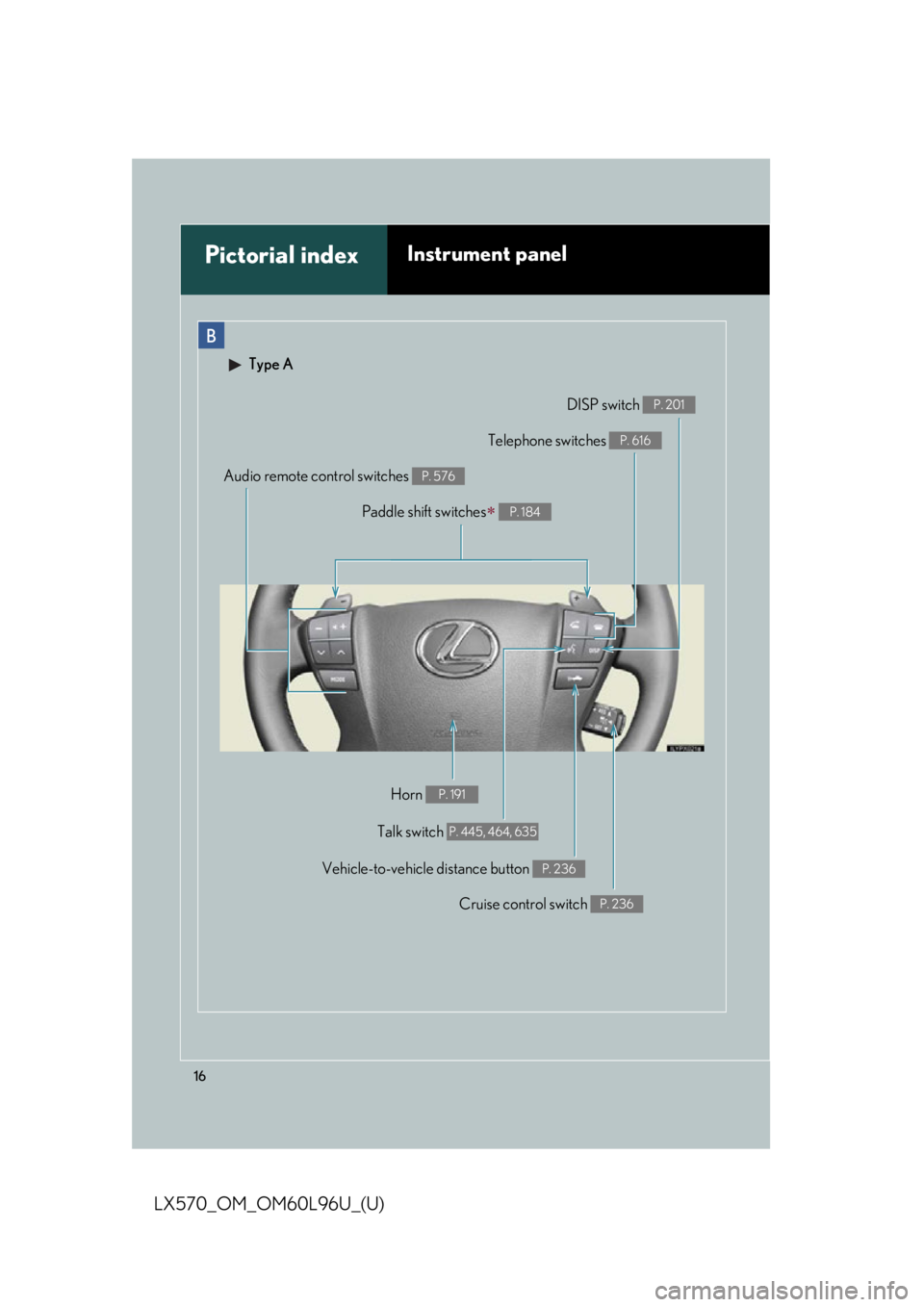

Pictorial index Instrument panel Type A
Cruise control switch P. 236DISP switch P. 201
Talk switch P. 445, 464, 635Telephone switches P. 616
Audio remote control switches P. 576
Vehicle-to-vehicle distance button P. 236
Horn P. 191Paddle shift switches
 P. 184

17

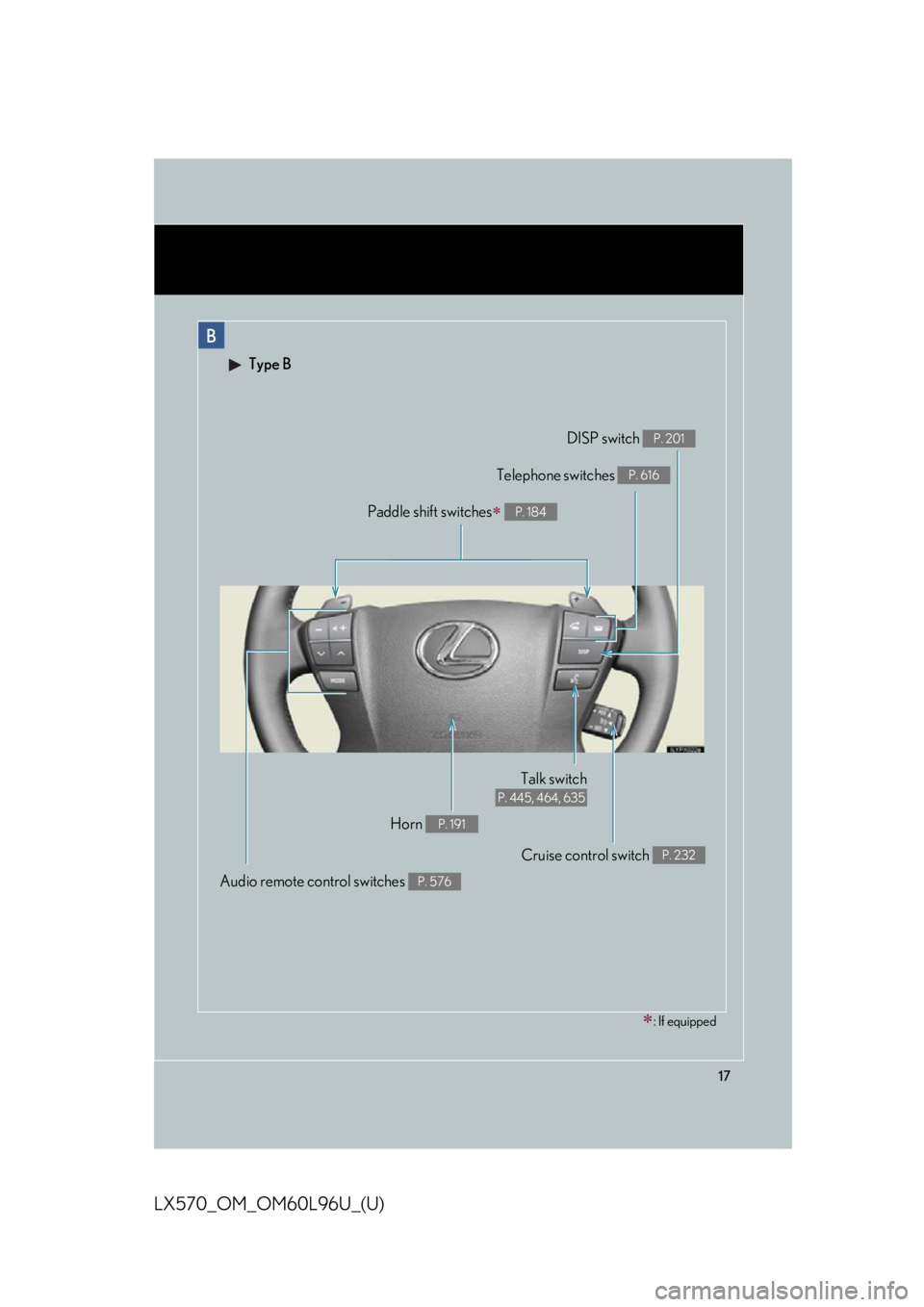

LX570_OM_OM60L96U_(U) B Type B
Cruise control switch P. 232
Talk switch P. 445, 464, 635
Audio remote control switches P. 576
Horn P. 191
 : If equippedDISP switch P. 201
Telephone switches P. 616
Paddle shift switches
 P. 184

18
LX570_OM_OM60L96U_(U) C
Engine (ignition) switch P. 177
Easy access mode switch P. 323
Center differential lock/unlock
switch P. 332
Power back door main switch P. 57Intuitive parking assist switch
 P. 251
Roll sensing of curtain shield
airbags off switch P. 139VIEW switch
 P. 303
Pictorial index Instrument panel

19
LX570_OM_OM60L96U_(U) D
Headlight cleaner switch
 P. 231
Outside rear view mi rror control switches P. 104Odometer/trip meter display
change button P. 193
Instrument panel light control dial P. 194
Tilt and telescopic steering
control switch P. 100
AFS OFF switch P. 210
Auxiliary box P. 697
Power back door switch P. 57
VSC OFF switch P. 351
 : If equippedHeated steering wheel switch
 P. 707

20

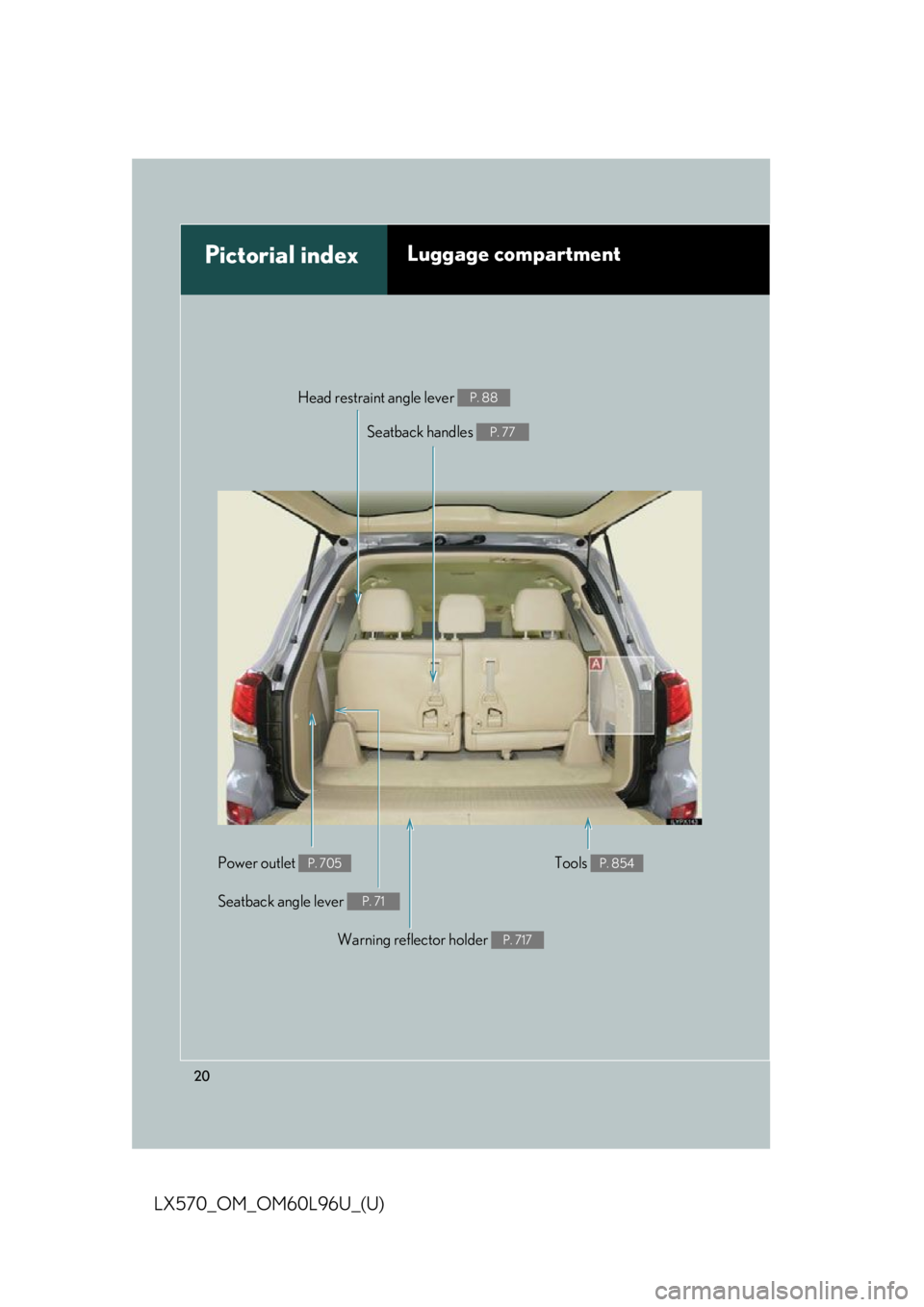

LX570_OM_OM60L96U_(U)Pictorial index Luggage compartment Seatback handles P. 77
Warning reflector holder P. 717Head restraint angle lever P. 88
Seatback angle lever P. 71
Tools P. 854
Power outlet P. 705
