LEXUS LX570 2015 Owner's Manual

21
LX570_OM_OM60L96U_(U) A

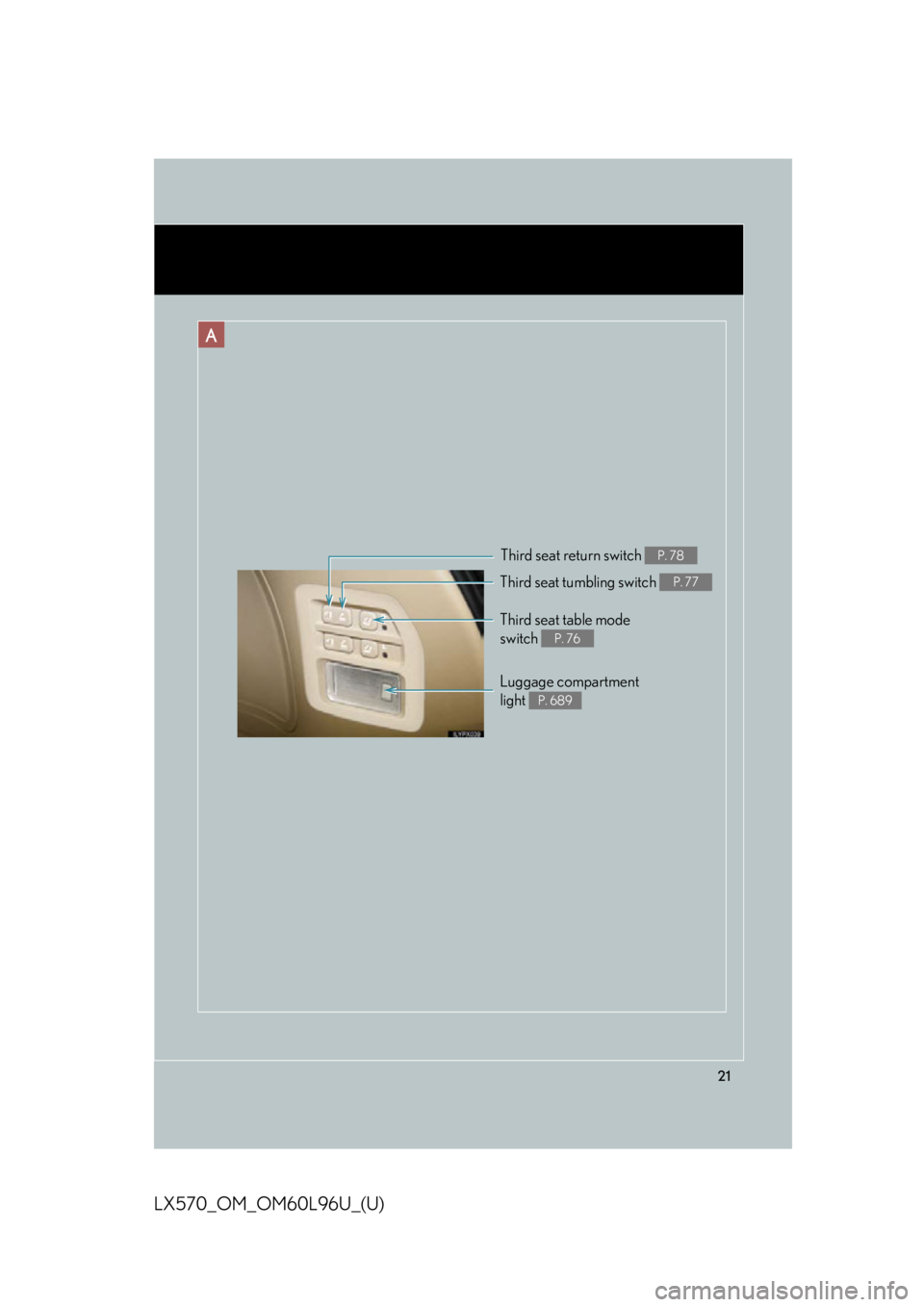

Third seat table mode
switch P. 76
Third seat tumbling switch P. 77
Third seat return switch P. 78
Luggage compartment
light P. 689

22
LX570_OM_OM60L96U_(U) For your information Main Owner’s Manual Please note that this manual applies to all models and explains all equipment, includ-
ing options. Therefore, you may find some explanations for equipment not installed
on your vehicle.
All specifications provided in this manual are current at the time of printing. How-
ever, because of the Lexus policy of continual product improvement, we reserve
the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ from
your vehicle in terms of color and equipment.
Noise from under vehicle after turning off the engine Approximately five hours afte r the engine is turned off, you may hear sound coming
from under the vehicle for several minutes. This is the sound of a fuel evaporation
leakage check and, it does not indicate a malfunction.
Accessories, spare parts and modification of your Lexus A wide variety of non-genuine spare parts and accessories for Lexus vehicles are
currently available in the market. You sh ould know that Toyota does not warrant
these products and is not responsible for their performance, re pair, or replacement,
or for any damage they may cause to, or adverse effect they may have on, your
Lexus vehicle.
This vehicle should not be modified with non-genuine Lexus products. Modification
with non-genuine Lexus products could affect its performance, safety or durability,
and may even violate governmental regula tions. In addition, damage or perfor-
mance problems resulting from the modi fication may not be covered under war-
ranty.

23
LX570_OM_OM60L96U_(U) Installation of a mobile two-way radio system The installation of a mobile two-way radio system in your vehicle could affect elec-
tronic systems such as:
● Multiport fuel injection system/seque ntial multiport fuel injection system
● Cruise control system
● Dynamic radar cruise control system
● Anti-lock brake system
● SRS airbag system
● Seat belt pret ensioner system
Be sure to check with your Lexus dealer for precautionary measures or special
instructions regarding installation of a mobile two-way radio system.

24
LX570_OM_OM60L96U_(U) Vehicle data recordings Your Lexus is equipped with several sophisticated computers that will record cer-
tain data, such as:
•Engine speed
• Accelerator status
•Brake status
•Vehicle speed
• Shift position
The recorded data varies according to the vehicle grade level and options with
which it is equipped. Furthermore, these computers do not record conversations,
sounds or pictures.
● Data usage
Lexus may use the data recorded in th ese computers to diagnose malfunctions,
conduct research and develo pment, and improve quality.
Lexus will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the lessee if the
vehicle is leased
• In response to an official request by the police, a court of law or a government
agency
• For use by Lexus in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or vehicle
owner
● Usage of data collected through Safety Connect / Lexus Enform
(U.S. mainland
only)
If your Lexus has Safety Co nnect or Lexus Enform and if you have subscribed to
those services, please refer to the Safety Connect / Lexus Enform Telematics Sub-
scription Service Agreement for information on data collected and its usage.

25
LX570_OM_OM60L96U_(U) Event data recorder This vehicle is equipped with an event data recorder (EDR). The main purpose of an
EDR is to record, in certain crash or near crash-like situations, such as an air bag
deployment or hitting a road obstacle, data that will assist in understanding how a
vehicle’s systems performed. The EDR is desi gned to record data related to vehicle
dynamics and safety systems for a short peri od of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fastened;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal;
and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which
crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a nontrivial crash situation
occurs; no data are recorded by the ED R under normal driving conditions and no
personal data (e.g., name, gender, age, and crash locat ion) are reco rded. However,
other parties, such as law enforcement, could combine the EDR data with the type
of personally identifying data routinel y acquired during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access to the
vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties,
such as law enforcement, that have the special equipment, can read the information
if they have access to the vehicle or the EDR.

26
LX570_OM_OM60L96U_(U) ● Disclosure of the EDR data
Lexus will not disclose the data recorded in an EDR to a third party except when:
• An agreement from the vehicle’s owner (or the lessee for a leased vehicle) is
obtained
• In response to an official request by the police, a court of law or a government
agency
• For use by Lexus in a lawsuit
However, if necessary, Lexus may:
• Use the data for research on vehicle safety performance
• Disclose the data to a third party for re search purposes without disclosing infor-
mation about the specific vehicle or vehicle owner
Scrapping of your Lexus The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat be lt pretensioners left
as they are, this may cause an accident such as fire. Be sure to have the systems of
the SRS airbag and seat belt pretensioner removed and disposed of by a qualified
service shop or by your Lexus deal er before you scrap your vehicle.
Perchlorate Material Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These components
may include airbag, seat belt pretensioners, and wirele ss remote control batteries.

27
LX570_OM_OM60L96U_(U) CAUTION■
General precautions while driving
Driving under the influence: Never drive your vehicle when un der the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol
and certain drugs delay reaction time, im pair judgment and reduce coordination,
which could lead to an accident that could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers
or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that distracts
the driver, such as adjusting controls, talking on a cellular phone or reading can
result in a collision with resulting death or serious injury to you, your occupants or
others. ■
General precaution regarding children’s safety
Never leave children unattended in the vehi cle, and never allow children to have or
use the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the cigarette
lighter, the windows, the moon roof, or other features of the vehicle. In addition,
heat build-up or extremely cold temperatures inside the vehicle can be fatal to chil-
dren.

28
LX570_OM_OM60L96U_(U) Symbols used throughout this manual Cautions & Notices
Symbols used in illustrations CAUTIONThis is a warning against something which, if ignored, may cause death or serious
injury to people. You are informed about what you must or must not do in order to
reduce the risk of death or seriou s injury to yourself and others.
NOTICE
This is a warning against something which, if ignored, may cause damage to the vehi-
cle or its equipment. You are informed about what you must or must not do in order to
avoid or reduce the risk of damage to your Lexus and its equipment.
Safety symbol The symbol of a circle with a slash through it means “Do not”, “Do not
do this”, or “Do not let this happen”.
Arrows indicating operations Indicates the action (pushing, turning,
etc.) used to operate switches and other
devices.
Indicates the outcome of an operation
(e.g. a lid opens).

Before driving
1
29
LX570_OM_OM60L96U_(U) 1-1. Key information
Keys.............................................. 30
1-2. Opening, closing and
locking the doors
Smart access system with
push-button start ................... 35
Wireless remote co ntrol......... 49
Side doors.................................... 52
Back door .................................... 56
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ................................... 67
Rear seats..................................... 71
Driving position memory
system ....................................... 83
Head restraints .......................... 87
Seat belts ...................................... 91
Steering wheel ......................... 100
Anti-glare inside rear view
mirror ....................................... 102
Outside rear view
mirrors ..................................... 104 1-4. Opening and closing the
windows and moon roof
Power windows ....................... 108
Moon roof .................................... 111
1-5. Refueling
Opening the fuel tank
cap .............................................. 116
1-6. Theft deterrent system
Engine immobilizer
system....................................... 119
Alarm........................................... 121
1-7. Safety information
Correct driving posture ....... 124
SRS airbags .............................. 126
Front passenger occupant
classification system ........... 140
Child restraint systems ......... 146
Installing child restraints........ 151

30
LX570_OM_OM60L96U_(U) 1-1. Key information
Keys The following keys are provided with the vehicle.
Electronic keys • Operating the smart access
system with push-button start
(  P. 35)
• Operating the wireless
remote control function
(  P. 49)
Mechanical keys
Key number plate
■ Card key (if equipped)
Electronic key Operating the smart access sys-
tem with push-button start
(  P. 35)
Mechanical key
