dimensions LEXUS LX570 2016 Owners Manual

562
LX570_OM_OM60N01U_(U) 8-1. Specifications

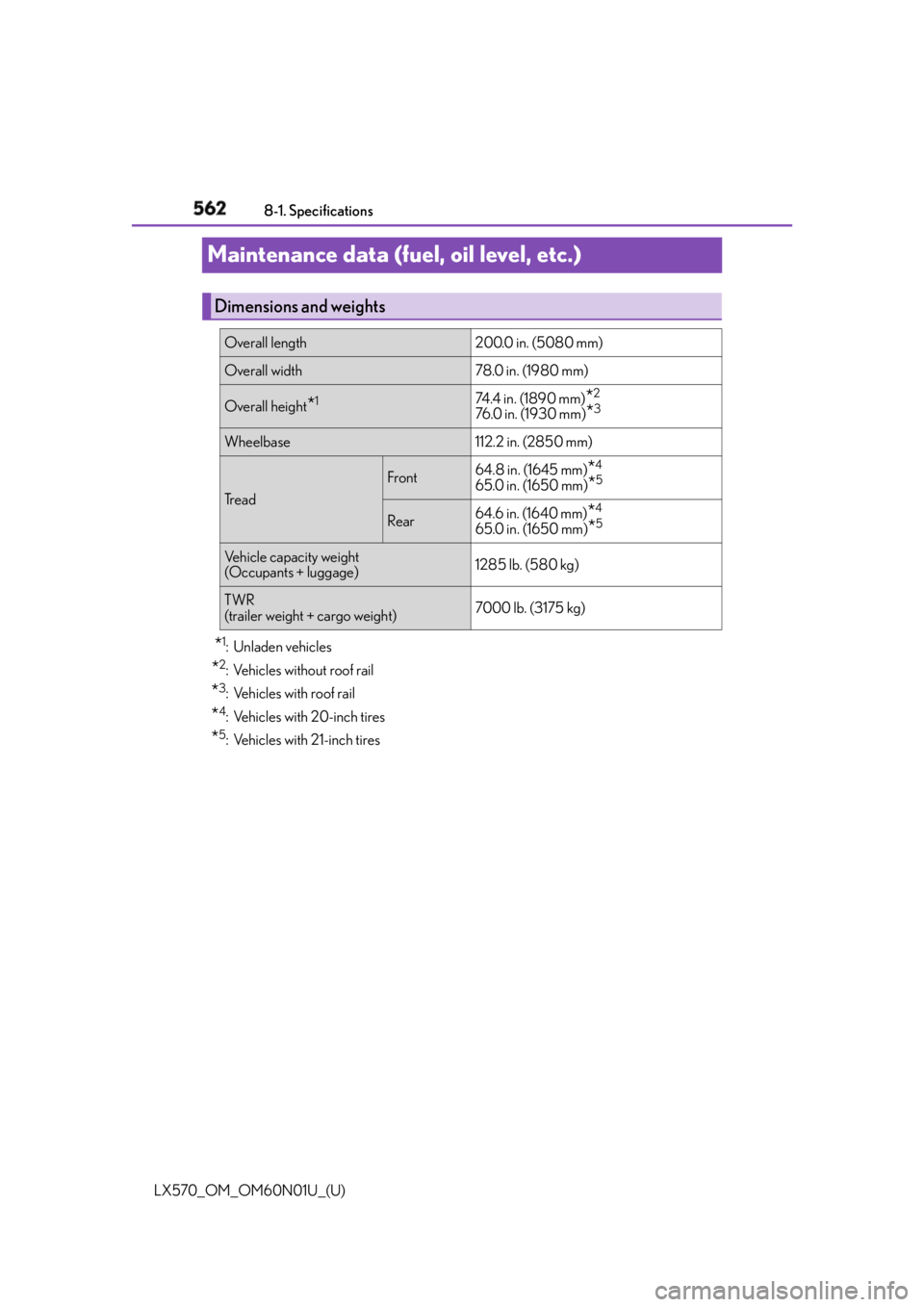

Maintenance data (fuel, oil level, etc.)
* 1
: Unladen vehicles
* 2
: Vehicles without roof rail
* 3
: Vehicles with roof rail
* 4
: Vehicles with 20-inch tires
* 5
: Vehicles with 21-inch tiresDimensions and weights Overall length 200.0 in. (5080 mm)
Overall width 78.0 in. (1980 mm)
Overall height
* 1
74.4 in. (1890 mm)
* 2
76 . 0 i n . ( 1 9 3 0 m m )
* 3
Wheelbase 112.2 in. (2850 mm)
Tr e a d Front 64.8 in. (1645 mm)
* 4
65.0 in. (1650 mm)
* 5
Rear 64.6 in. (1640 mm)
* 4
65.0 in. (1650 mm)
* 5
Vehicle capacity weight
(Occupants + luggage) 1285 lb. (580 kg)
TWR
(trailer weight + cargo weight) 7000 lb. (3175 kg)

576
LX570_OM_OM60N01U_(U) 8-1. Specifications
■
Typical tire size information
The illustration indicates typical tire
size.
Tire use (P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index
(2 digits or 3 digits)
Speed symbol
(alphabet with one letter)■
Tire dimensions
Section width
Tire height
Wheel diameterTire size 1
2
3
4
5
6
7
1
2
3
